ABSCO SHEDS 15231FK User manual

Absco Industries Assembly Instruction Manual
ABSCO BASIC SHED
MODEL: 15231FK
1.52mW x 2.26mD x 1.80mH
Model: 15231FK 25/09/18 1.10 1
Download the Absco
Sheds Assembly App
for instructional videos
MANU FA CT URED
IN A US TR ALIA
SNAPTiTE
Assemb ly
AU: 1800 029 701
N Z: 0800 466 444
[email protected]
www.abscosheds.com.au
CONCRETE
SLAB
2360mm
1620mm
When laying concrete slab, ensure there
is a rebated edge 25mm deep around
the perimeter. This will help water egress
from the base of the shed.
For construction in non-cyclonic areas
Wind rating: N2 as per AS4055-2012.
If you require a higher wind rating please contact
us: [email protected] or 1800 029 701
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 23151GK 21-11-2017
CONCRETE SLAB
2360mm
1620mm
FRONT: 2.26m
SIDE: 1.52m
HEIGHT: 1.95m
We thank you for choosing an Australian made
shed. For further assistance please visit our detailed
instructional video library at
Http://www.abscosheds.com.au/watch-videos
At ABSCO Industries we are always looking to be
number ONE, so please let us know what you think
of our instructions. Feedback makes us better.
[email protected]
CONCRETE
REBATED EDGE
BOTTOM CHANNEL
CONCRETE SLAB
75mm WIDE REBATE
100mm
WHEN LAYING YOUR CONCRETE
SLAB, ENSURE THERE IS A
REBATED EDGE 25mm DEEP
AROUND THE PERIMETER
THIS WILL HELP WATER EGRESS
FROM THE BASE OF THE SHED
Absco Industries
Premier Shed Model: 23151GK
PAGE 01

Absco Industries Assembly Instruction Manual
ABSCO BASIC SHED
MODEL: 15231FK
1.52mW x 2.26mD x 1.80mH
Model: 15231FK 25/09/18 1.10 2
GENERAL INSTRUCTIONS
• Before commencing any assembly, read through these instructions in detail to gain a thorough
understanding of assembly methods and associated details.
• Unpack the carton and carefully identify and check off all the parts against the parts described
and illustrated on "COMPONENTS PACKING LIST" pages.
SITE PREPARATION
• The site for the shed must be level. An uneven surface may result in misalignment of parts.
• The shed shall be erected on top of a reinforced concrete slab and anchored down appropriately
illustrated on “FINAL CONSTRUCTION” page.

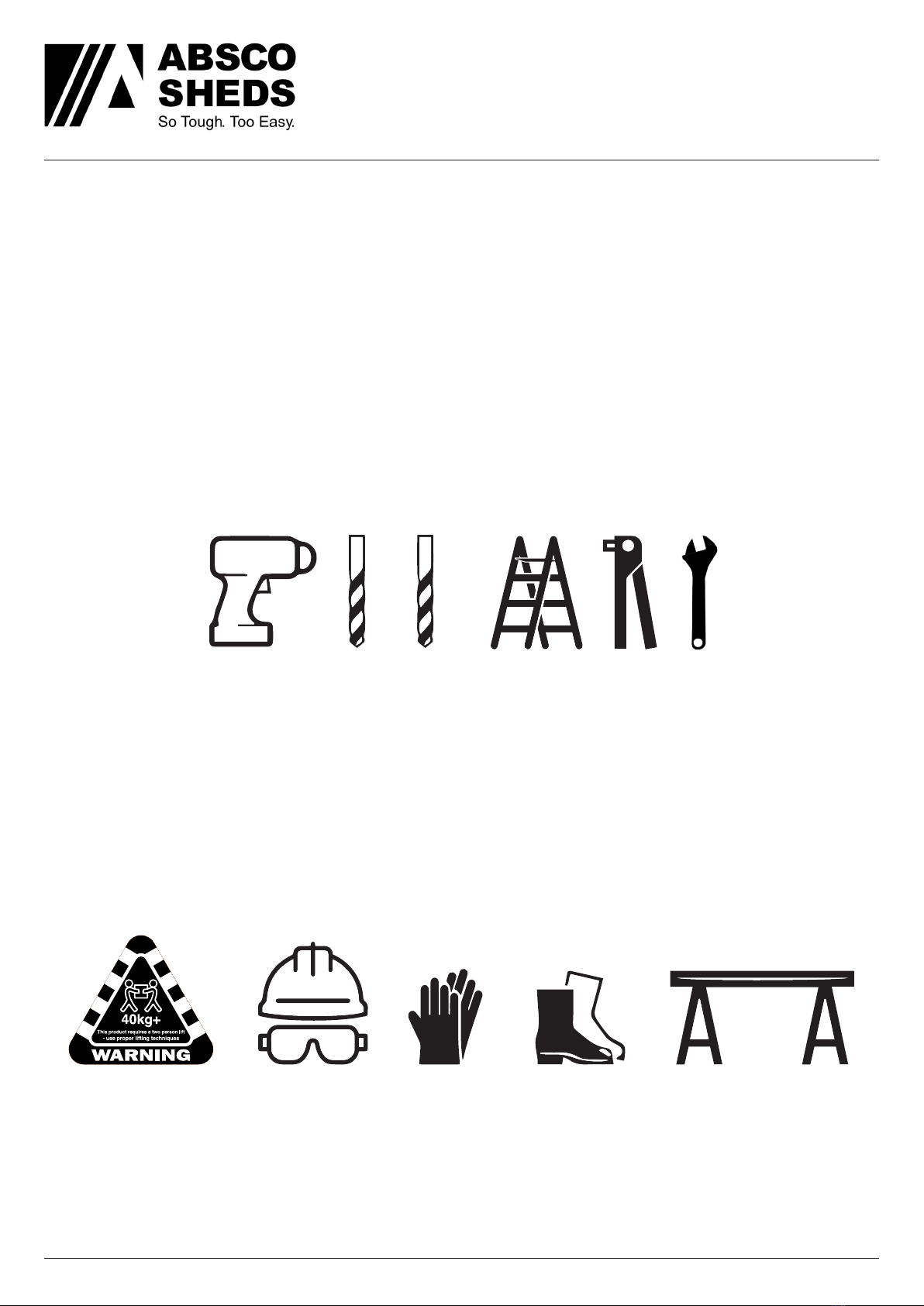

TOOLS REQUIRED
SAFETY NOTES
• Some parts may have sharp edges. It is advisable to wear gloves when handling these items and
safety glasses if drilling holes. Sensible shoes are highly recommended.
• Do not erect your shed in windy conditions.
• Ensure that the shed is securely anchored to a solid foundation immediately after construction is
completed.
• It is highly recommended to erect the shed with two or more people.
RECOMMENDED
3mm drill bit 10mm drill bits metal & masonry

Absco Industries Assembly Instruction Manual
ABSCO BASIC SHED
MODEL: 15231FK
1.52mW x 2.26mD x 1.80mH
Model: 15231FK 25/09/18 1.10 3

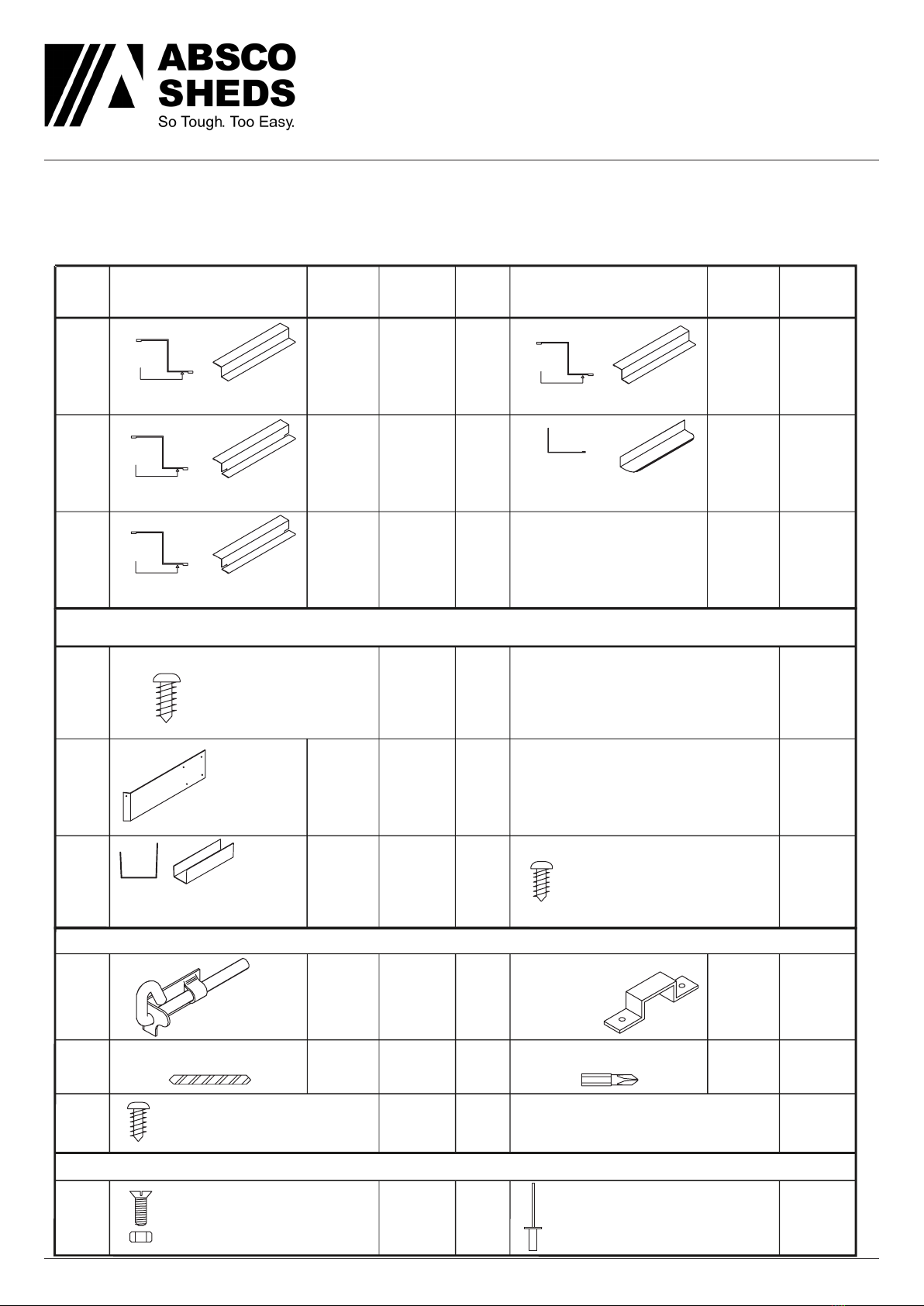

COMPONENT PACKING LIST
Check off all components.
COMPONENT
DESCRIPTION
PART
No. CHECK COMPONENT DESCRIPTION
PART
No. CHECK
QTY QTY
5
3
3
1
1
1
1
1
1
2
4
1
1
1
1
2
1785mm X 773mm 30A
STEEL SHEET
STEEL SHEET
1785mm X 773mm 31A
STEEL SHEET
1592mm X 773mm 43A
STEEL SHEET
1785mm X 711mm 34A
STEEL SHEET
1725mm X 773mm B
81F
CHANNEL
L = 1513mm
54BL
CHANNEL
81CL
CHANNEL
58A
CHANNEL WITH HINGES
L = 1725mm
58B
CHANNEL
L = 1725mm
58C
CHANNEL
L = 773mm
53D
CHANNEL
L = 1513mm
53B
61C
CHANNEL
L = 1513mm
CHANNEL
L = 1513mm
80A
CHANNEL
L = 1785mm
79C
CHANNEL
L = 783mm
53D
53B
61C
81F
54B
81C
80A
79C
58A
58B
58C
2
4
54BR
CHANNEL
81CR
CHANNEL
L = 1126.5mm
54B
81C
L = 1126.5mm
L = 1126.5mm
L = 1126.5mm

Absco Industries Assembly Instruction Manual
ABSCO BASIC SHED
MODEL: 15231FK
1.52mW x 2.26mD x 1.80mH
Model: 15231FK 25/09/18 1.10 4
COMPONENT PACKING LIST
Check off all components.
COMPONENT
DESCRIPTION
PART
No. CHECK COMPONENT DESCRIPTION
PART
No. CHECK
QTY QTY
INSTRUCTIONS & FITTINGS PACKET
1
1
1
89A
JAMB L= 1785mm
89B
JAMB L= 1785mm
90C
JAMB L= 783mm
91A
JAMB L= 1120mm
2
88A
LIP TRIM L= 1592mm
2
1ASSEMBLY
INSTRUCTIONS
12A
1
DOOR
STRAP
L: 165mm
68Gx20mm
SELF TAPPING
SCREWS
88A
Part No. Here
Part No. Here
Part No. Here
Part No. Here
CSJ
6CHANNEL JOINER
L= 200mm (7.9")
1PSTKSGL
SINGLE DOOR
FITTINGS PACK
DOOR
PADBOLT
HASP
1
1
SELF TAPPING SCREWS
PACKET CONTAINING 220
1
DOOR
PADBOLT
FAST006
3/16 COUNTERSUNK
SCREWS & NUTS
63.2 x 8mm
BLIND POP RIVETS
6
PSTKSGL - SINGLE DOOR FITTINGS PACK
PACK 6P - SCREW PACK 6
PACK 6P
SCREW PACK 6
1
PHILLIPS DRIVER BIT
3mm DRILL BIT
11 DRILL
FAST007
FAST038
1SELF TAPPING SCREWS
PACKET CONTAINING 100

Absco Industries Assembly Instruction Manual
ABSCO BASIC SHED
MODEL: 15231FK
1.52mW x 2.26mD x 1.80mH
Model: 15231FK 25/09/18 1.10 5
SNAPTiTE ASSEMBLY GUIDE
The Snaptite Assembly System locks end channels to all roof and wall sheets without the need for
tools and fasteners.
To assemble each panel, the perimeter channels are secured to the top and bottom of each panel.
Gently tap the channel over the SNAPTiTE lugs on the sheet, working along the sheet.
Each perimeter channel must finish flush with the edges of the sheets. Simply tap the channel along
the sheets until each end is neatly flush. If you need to remove channels from the panels, slide it off
from the side.
Channel locks the shed panel into
position without the need for screws!
FASTENING SYMBOLS
Secure channel to sheeting by SNAPTiTE
fastening method.
Join components together with one
screw at this location only, as some
channels have extra holes that are not
required for this model of shed.
Do not join components together at
this location yet, as the screws may
obstruct further assembly of the other
components.
Join components together by pre-drill-
ing the holes first. Use one component as
template to mark where the holes are and
drill with a 3mm drill bit.
3mm pop rivet
4mm nut and bolt set.
D
SNAP
T TE
i

Absco Industries Assembly Instruction Manual
ABSCO BASIC SHED
MODEL: 15231FK
1.52mW x 2.26mD x 1.80mH
Model: 15231FK 25/09/18 1.10 6
Guide on Joining Spliced Channels
The text marked on all parts must be shown on the same side as each other
Step 1.
Position the channels and the
CSJ joiner so the centre of
the CSJ is in line with the end
of each channel to be joiner
together.
Step 2.
Join the first channel to the CSJ
by inserting the centre of the
CSJ, on an angle, to the end of
the channel where the JOIN>>
text is marked.
Push down one side of the CSJ
until you hear a ‘click’.
Step 3.
Join the second channel to the
CSJ by positioning the <<JOIN
of the channel at the centre of
the CSJ, on an angle. Push the
CSJ into the channel until you
hear a ‘click’.
Finished Channel.
The joined channels should
now look like the picture with
the CSJ positioned equally
inside of the joined channels.
Drill out holes with 3mm drill
bit in CSJ to match the holes
in channel and secure with the
screws supplied.
These may have to be
temporarily removed during
assembly.
= =
JOIN>> <<JOIN
CSJ
==
JOIN>>
J
==
JOIN>> SJ
= =
JOIN>>
<<JOIN
= =
JOIN>> <<JOIN
Finished Spliced
Channel
Channel
Push
20mm 15mm
CSJ
.
...

Absco Industries Assembly Instruction Manual
ABSCO BASIC SHED
MODEL: 15231FK
1.52mW x 2.26mD x 1.80mH
Model: 15231FK 25/09/18 1.10 7
PRE-ASSEMBLY OF SPLICED CHANNELS
NOTE: Some channels may have holes in them - You will
need to redrill holes where CSJ joining channel covers
them.
Join together 16x channel sections using 8x channel joiners (Part CSJ)
=
=
2253mm (88.7")
4 x 81C
2 x 54B
54BR
54BL
81CR
81CL
4 X 81CR
4 X 81CL
2 X 54BR
2 X 54BL

Absco Industries Assembly Instruction Manual
ABSCO BASIC SHED
MODEL: 15231FK
1.52mW x 2.26mD x 1.80mH
Model: 15231FK 25/09/18 1.10 8
OVERVIEW OF ROOF COMPONENTS
OVERVIEW OF ROOF COMPONENTS
43A
43A
43A
88A
81C
81C
88A

Absco Industries Assembly Instruction Manual
ABSCO BASIC SHED
MODEL: 15231FK
1.52mW x 2.26mD x 1.80mH
Model: 15231FK 25/09/18 1.10 9
OVERVIEW OF WALL COMPONENTS
OVERVIEW OF WALL COMPONENTS
53D
B
34A
30A
31A
30A
30A
30A
30A
31A
31A
54B
91A
91A
61C
54B
81F
81C
80A
81C
53B
79C
89B
90C
89A

Absco Industries Assembly Instruction Manual
ABSCO BASIC SHED
MODEL: 15231FK
1.52mW x 2.26mD x 1.80mH
Model: 15231FK 25/09/18 1.10 10

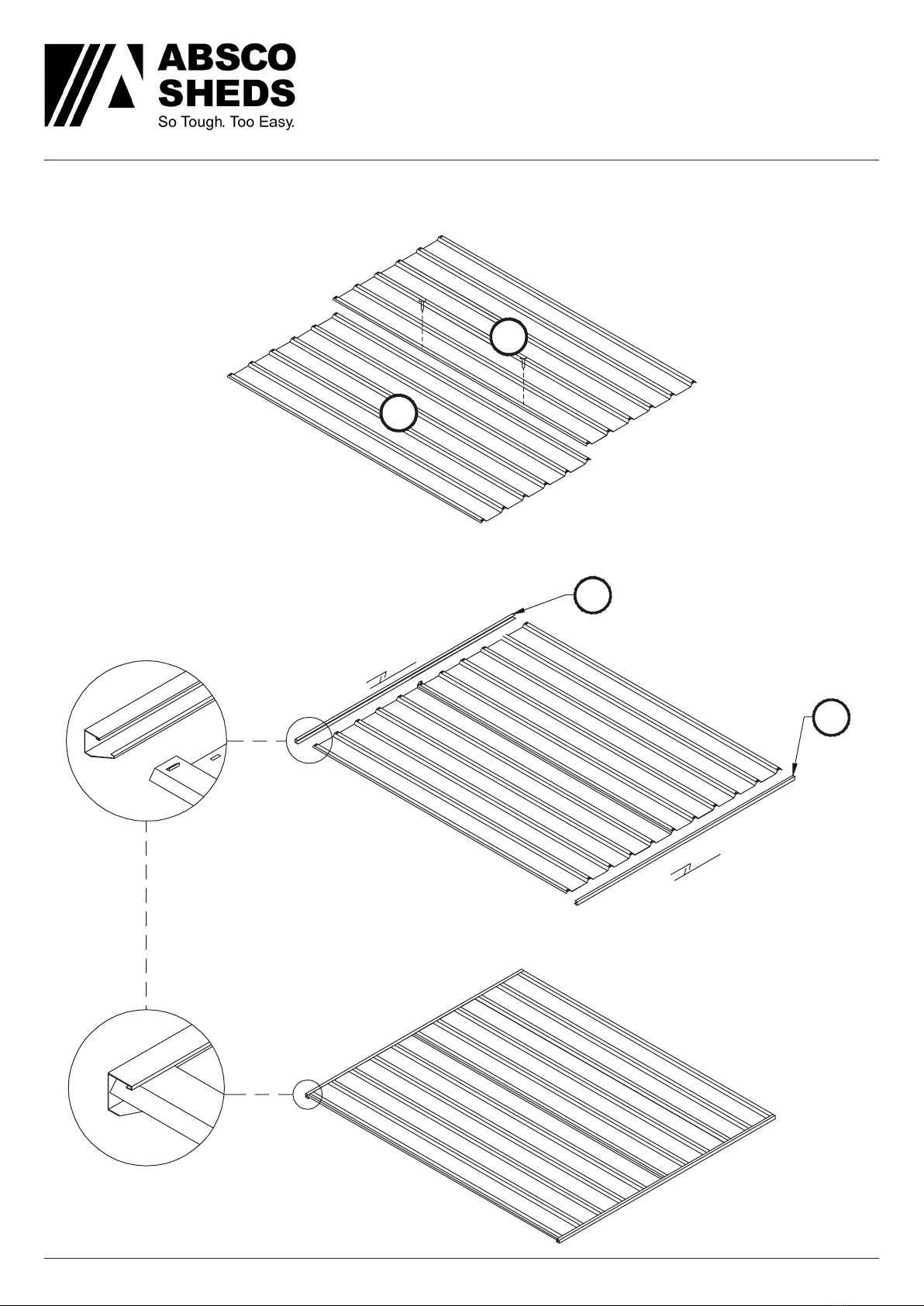

REAR PANEL ASSEMBLY
30A
30A
SNAP
T TE
i
SNAP
T TE
i
61C
81F
1x required

Absco Industries Assembly Instruction Manual
ABSCO BASIC SHED
MODEL: 15231FK
1.52mW x 2.26mD x 1.80mH
Model: 15231FK 25/09/18 1.10 11
LEFT SIDE PANEL ASSEMBLY
1x required
30A
31A
31A
80A
54B
81C
SNAP
T TE
i
SNAP
T TE
i

Absco Industries Assembly Instruction Manual
ABSCO BASIC SHED
MODEL: 15231FK
1.52mW x 2.26mD x 1.80mH
Model: 15231FK 25/09/18 1.10 12
RIGHT SIDE PANEL ASSEMBLY
1x required
54B
81C
SNAP
T TE
i
SNAP
T TE
i
30A
31A
30A

Absco Industries Assembly Instruction Manual
ABSCO BASIC SHED
MODEL: 15231FK
1.52mW x 2.26mD x 1.80mH
Model: 15231FK 25/09/18 1.10 13

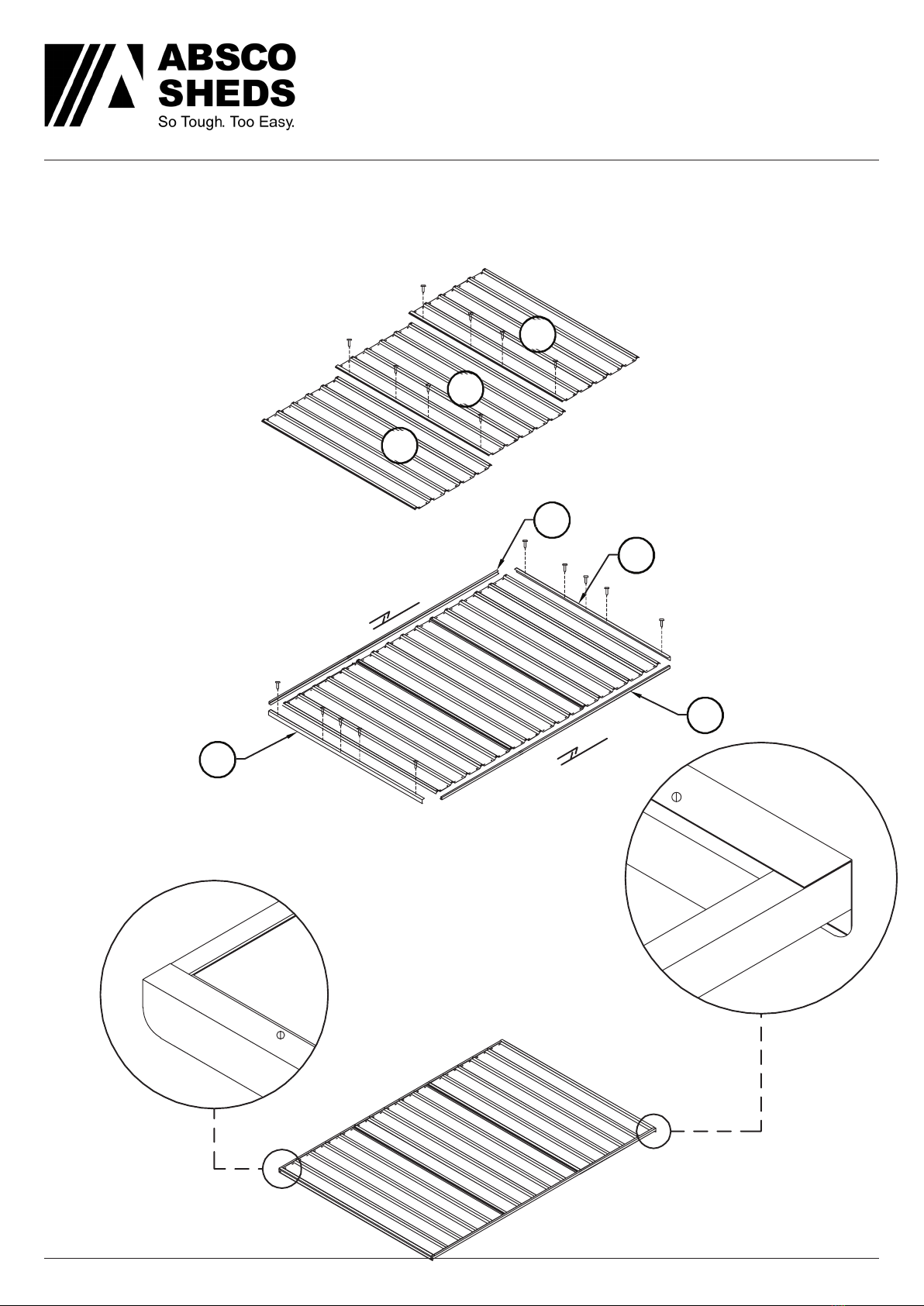

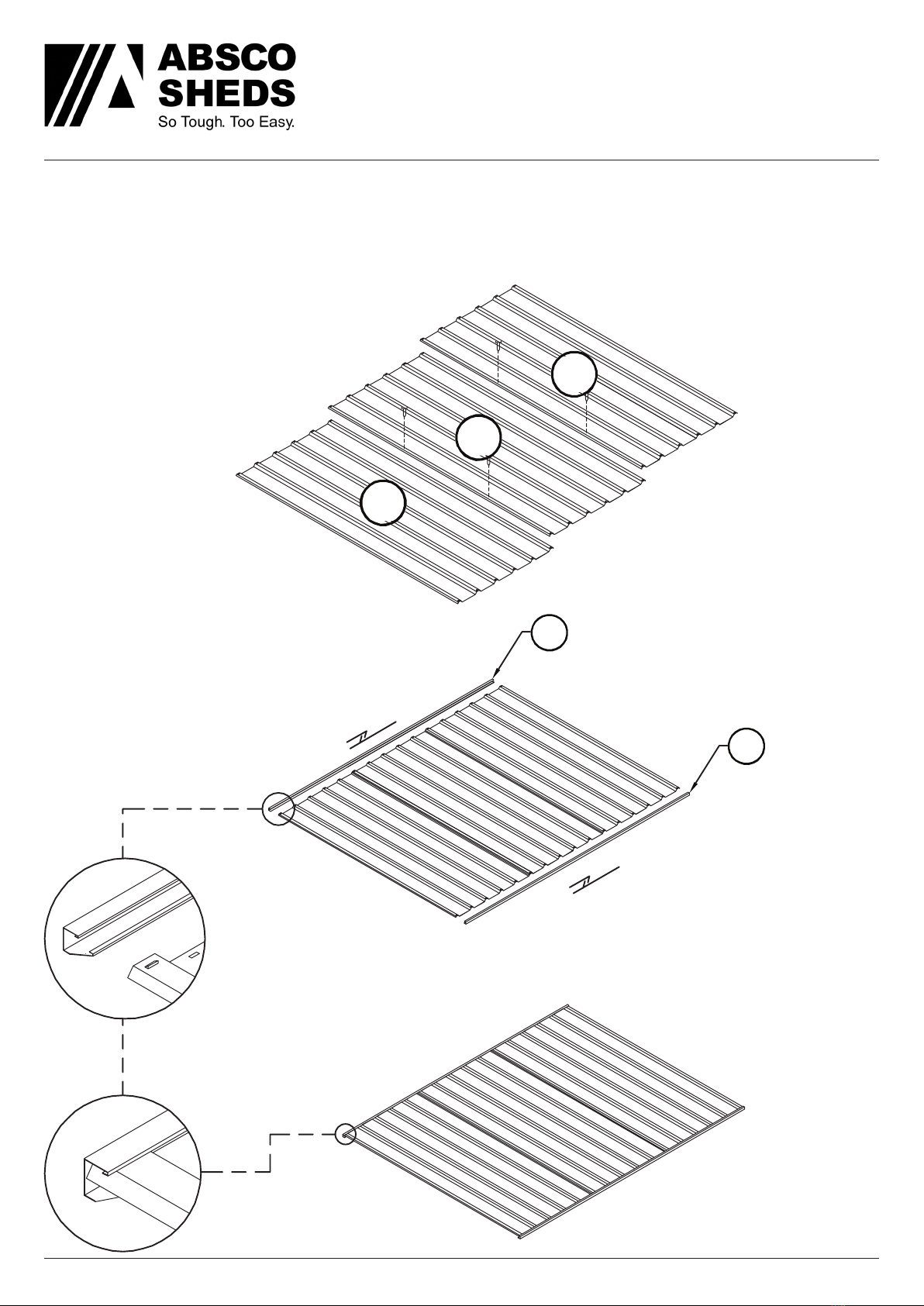

ROOF PANEL ASSEMBLY
D
D
1x required
43A
43A
43A
SNAP
T TE
i
SNAP
T TE
i
81C
88A
81C
88A

Absco Industries Assembly Instruction Manual
ABSCO BASIC SHED
MODEL: 15231FK
1.52mW x 2.26mD x 1.80mH
Model: 15231FK 25/09/18 1.10 14

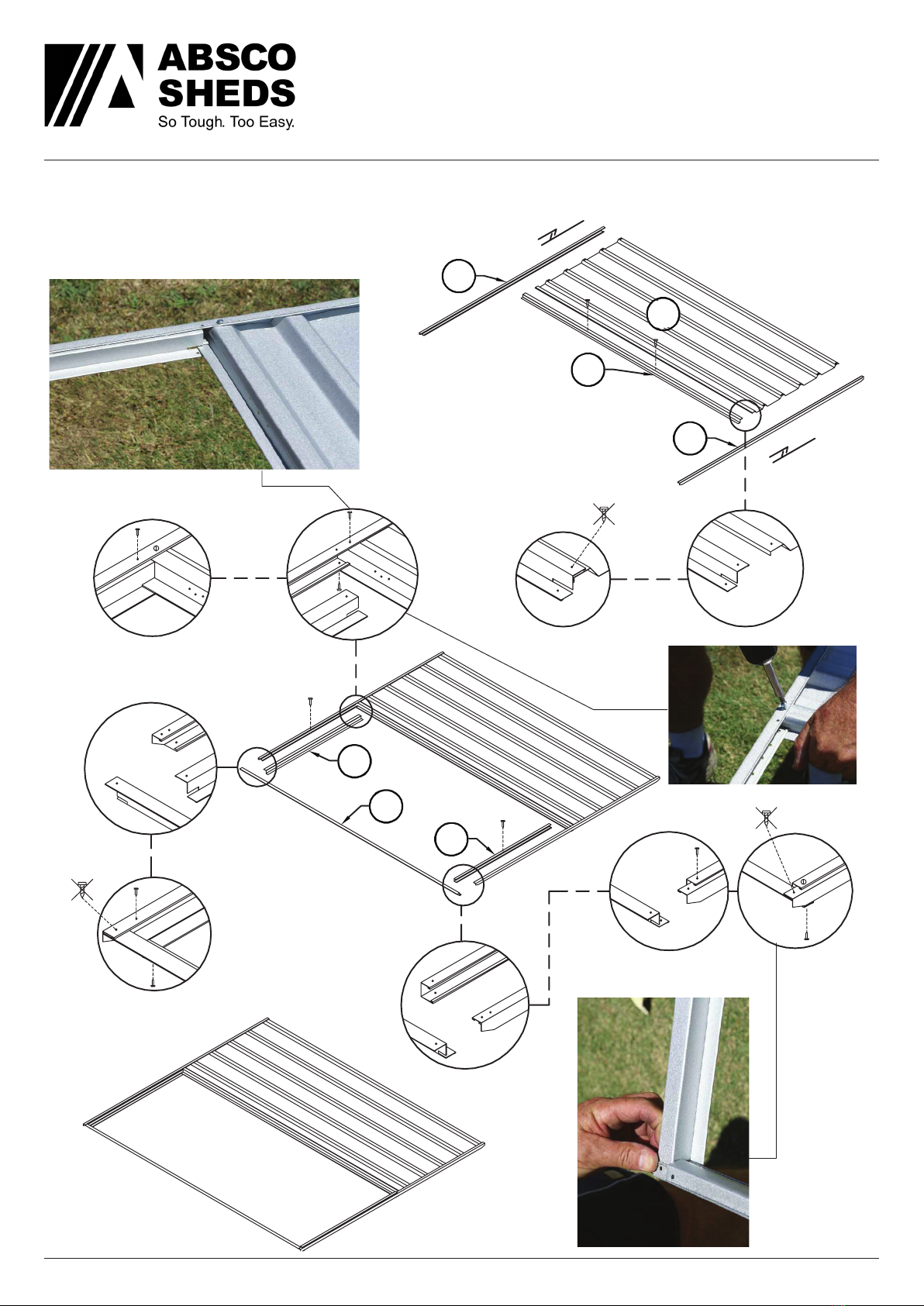

FRONT PANEL ASSEMBLY
SNAP
T
TE
i
SNAP
T
TE
i
34A
89A
53B
53D
79C
89B
90C
90C
53A
53A
90C
89A
89A
53A
90C
89B
53A
90C
79C
53B
53B
90C
79C
79C
89B
89B
89A
89A
34A
1x required

Absco Industries Assembly Instruction Manual
ABSCO BASIC SHED
MODEL: 15231FK
1.52mW x 2.26mD x 1.80mH
Model: 15231FK 25/09/18 1.10 15

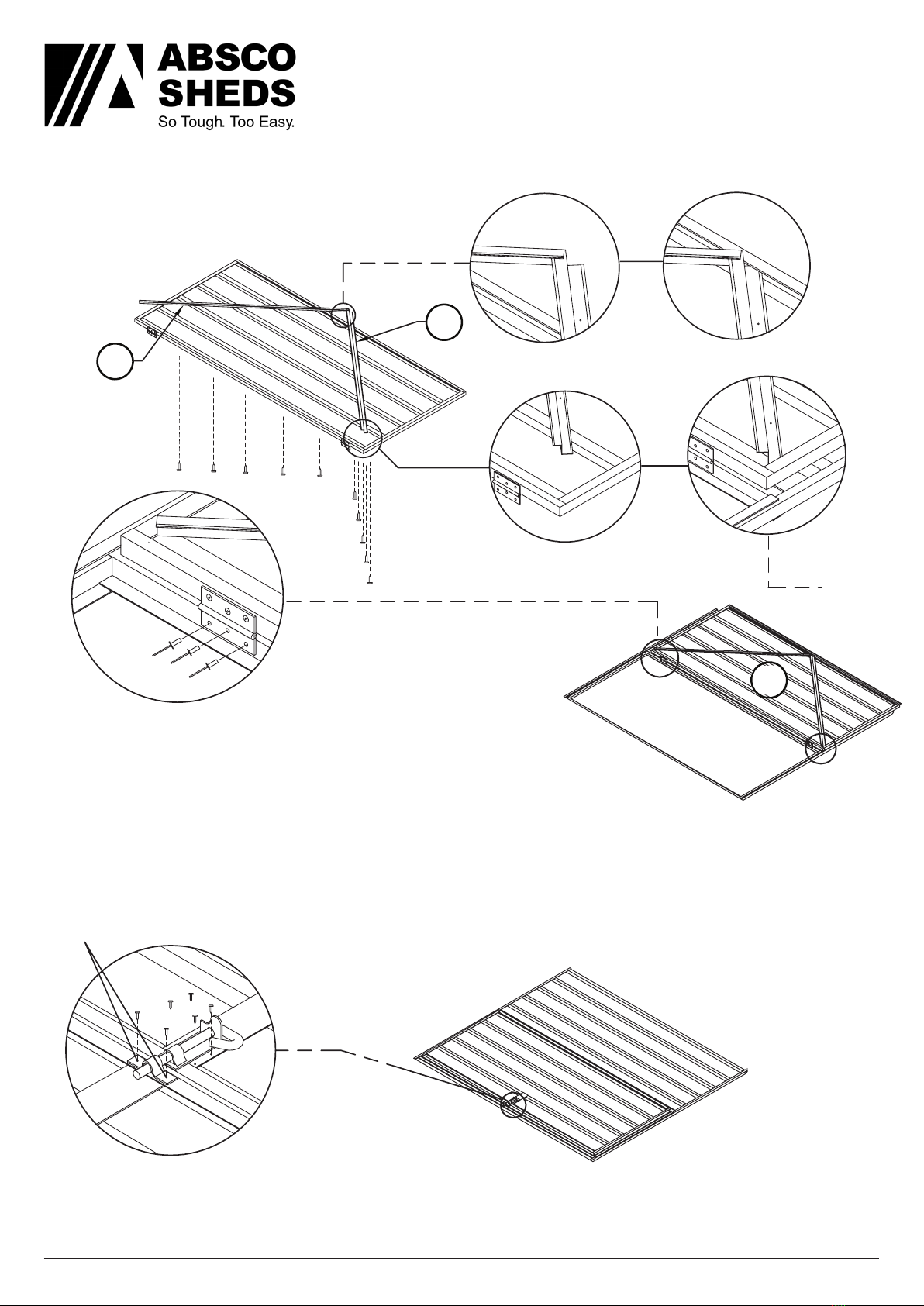

DOOR PANEL ASSEMBLY
Vertical door channels are
installed in the opposite
orientation compared to the
horizontal door channels.
Short flange
of channel
Long
flange of
channel
SINGLE DOOR
58C
58C
SNAP
T
TE
i
SNAP
T TE
i
12A
B
B
58B
58A
D
D
D
D

Absco Industries Assembly Instruction Manual
ABSCO BASIC SHED
MODEL: 15231FK
1.52mW x 2.26mD x 1.80mH
Model: 15231FK 25/09/18 1.10 16
SINGLE DOOR PANEL
NOTE: Nuts and bolts are also
supplied and may be used instead of
rivets. Use a 4mm drill bit to enlarge
these holes in the jamb
NOTE: The holes to fasten the padbolt hasp are not
pre-punched to allow for proper alignment. Position
the hasp centrally over the padbolt shaft and drill 3mm
holes and secure with screws.
91A
91A
DOOR PANEL ASSEMBLY
B

Absco Industries Assembly Instruction Manual
ABSCO BASIC SHED
MODEL: 15231FK
1.52mW x 2.26mD x 1.80mH
Model: 15231FK 25/09/18 1.10 17

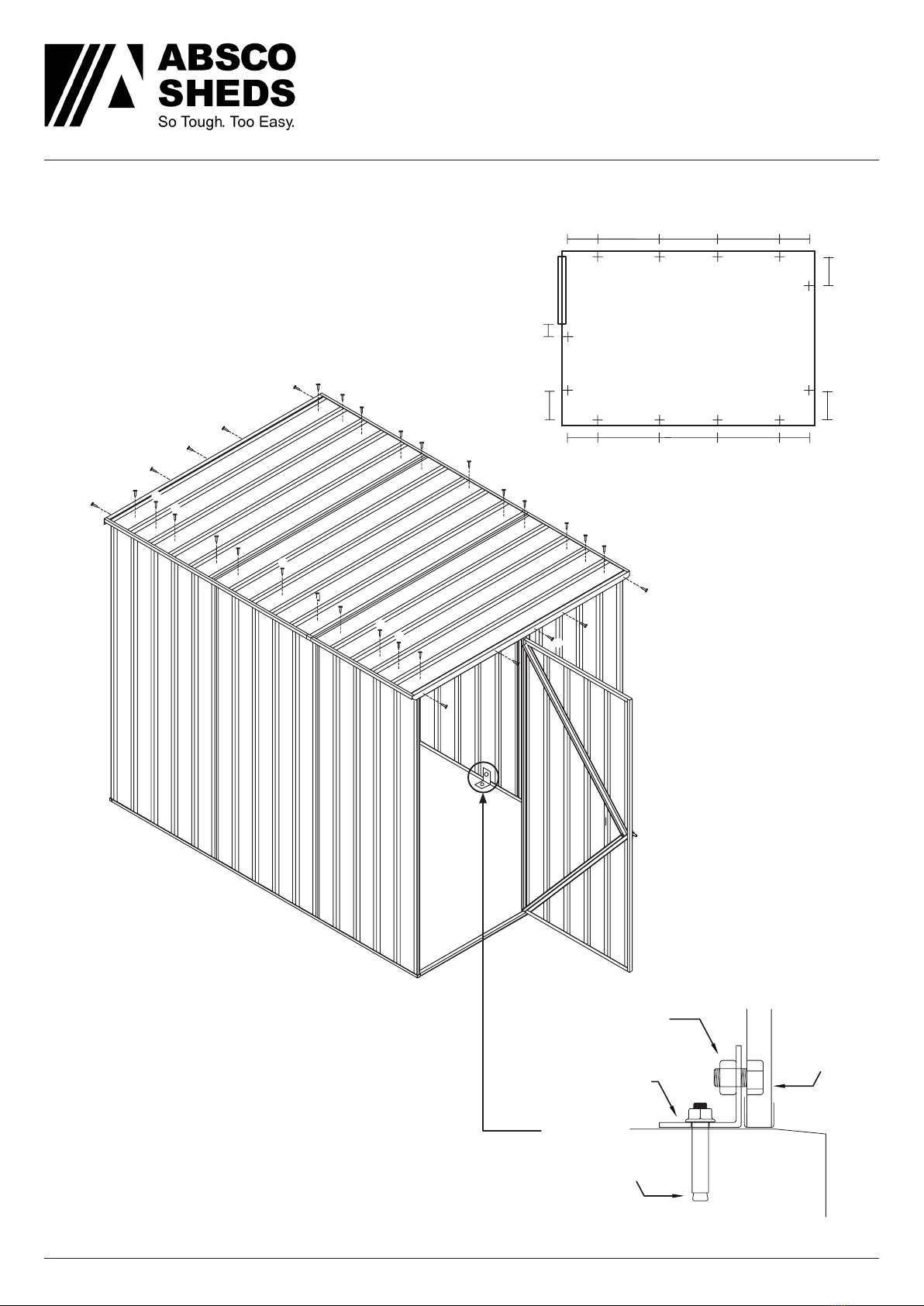

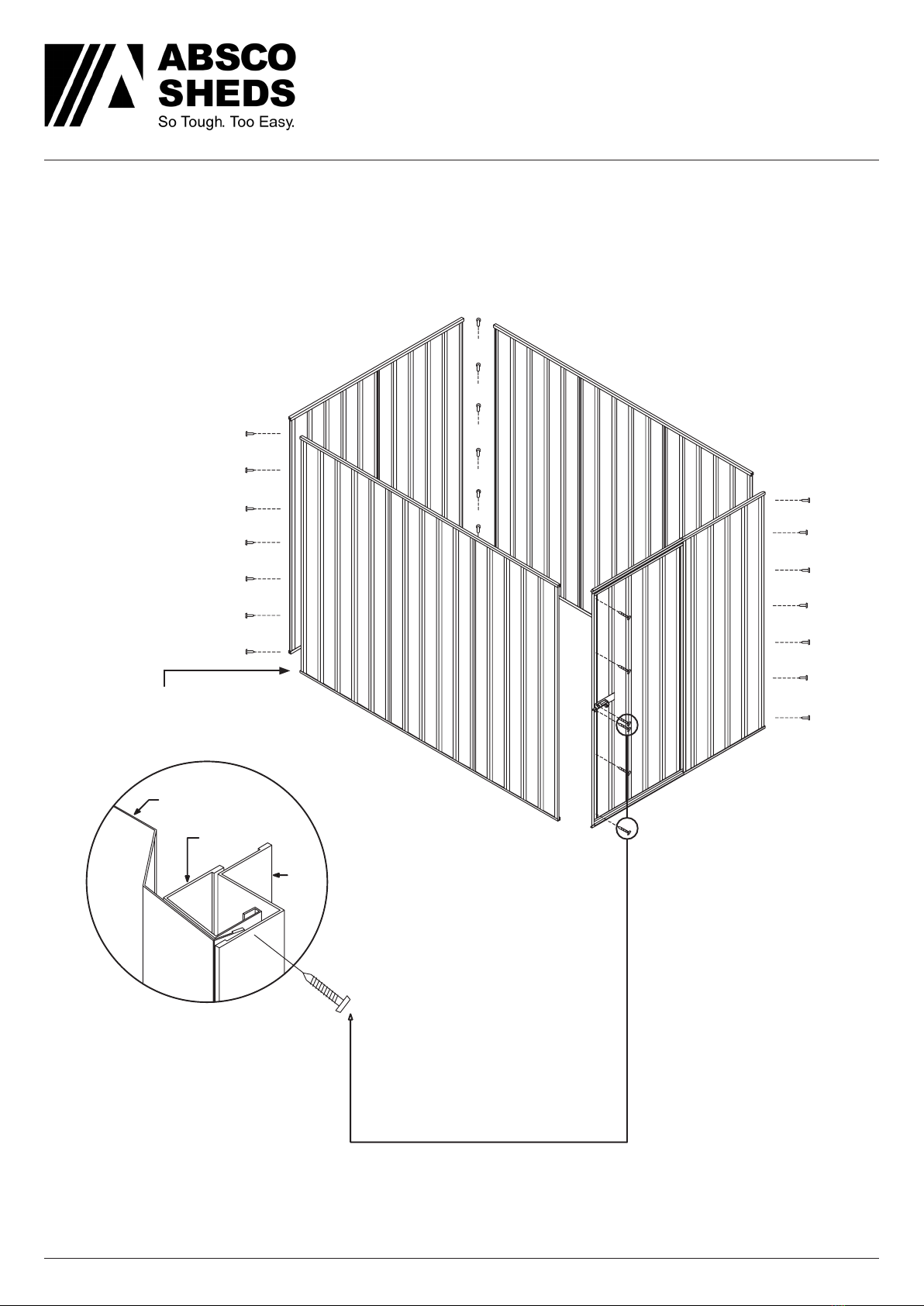

PANEL CONSTRUCTION
NOTE: Take care to ensure that all wall panels are not upside down. The top channels of each panel
are pre-punched for attaching roof sheeting. The base channels are not pre-punched.
Side wall channels fit into the
notched rear wall channels.
Connect door mullion sections
with six 20mm screws
Replace padbolt hasp 10mm
screws with 20mm screws
31A
80A
89B
D
D
D
D
D
D
D
D
D

Absco Industries Assembly Instruction Manual
ABSCO BASIC SHED
MODEL: 15231FK
1.52mW x 2.26mD x 1.80mH
Model: 15231FK 25/09/18 1.10 18
FINAL CONSTRUCTION
Each anchor consists of one nut, bolt, M10
dynabolt and steel angle.
Drill a 10mm hole into the wall sheet.
Drill a 10mm hole into the concrete.
Bolt and Nut*
M10 4.6/S
Steel Angle*
35 x 35 x 3
M10 Dynabolt*
* Denotes hot dip galvanised finish
Wall Sheet
Slab
D
D
D
D
D
D
D
D
D
D
DD
ANCHORING OF SHED
Location of 12
concrete anchors
250 250
250
250250 250250 590590 590590 590590
50

Absco Industries Assembly Instruction Manual
ABSCO BASIC SHED
MODEL: 15231FK
1.52mW x 2.26mD x 1.80mH
Model: 15231FK 25/09/18 1.10 19
Absco Skillion Roof Shed Notes
• 1.G This instruction manual shall be read in conjunction with other consultants drawings, specifications and
written instructions provided by Absco and/or their representatives.
• 2.G The drawings provided herein are for installation and structural engineering purposes only. If discrepancies
are discovered within the documentation provided, these shall be brought to the attention of Absco and
written approvals obtained prior to commencing the affected section of work.
• 3.G If in doubt ask.
• 4.G Until approvals from the local authorities are obtained, commencement of construction from these
drawings shall not commence.
• 5.G Unless varied by the project specification, all materials and workmanship shall be undertaken in
accordance with the relevant Australian standards and the by-laws and ordinances of the relevant building
authorities.
• 6.G All dimensions indicated in these drawings shall be verified on site by the installation contractor. Scaling
of drawings shall not be undertaken.
• 7.G Prior to commencing works on site, the contractor shall verify the position of all services in the area to
ensure that the construction does not interfere with any of those services.
• 8.G During installation on site the shed structures shall be maintained in a stable condition with no part
becoming overstressed or permanently deformed.
• 9.G In circumstances where the shed has been installed in a manner which is inconsistent with the installation
manual, structural certification shall be void.
• 10.G The structural components detailed within this installation manual have been designed for the following
loads in accordance with AS/NZS1170 based on a Class 10a, Type 2 structure:
• Roof Live Load: 0.25 kPa uniformly distributed or 1.1 kN concentrated as per AS/NZS1170.1
• Wind Load: Classification N2, Non-Cyclonic to AS4055 where Vu = 40 m/s, Vs = 26 m/s
Windward wall Cpe = 0.7
Leeward Wall Cp,e = -0.3 to -0.5 as applicable based on shed geometry
Side Wall Cp,e = -0.5 to -0.65 as applicable based on shed geometry
Roof Cp,e = -0.5 to -1.3 depending on wind direction
6-12 Activity St, Acacia Ridge QLD 4110
PO Box 119, Acacia Ridge QLD 4110
AU: 1800 029 701
N Z: 0800 466 444
[email protected]
www.abscosheds.com.au
General

Absco Industries Assembly Instruction Manual
ABSCO BASIC SHED
MODEL: 15231FK
1.52mW x 2.26mD x 1.80mH
Model: 15231FK 25/09/18 1.10 20
Absco Skillion Roof Shed Notes
• 1.S All structural steelwork shall have a corrosion protection system applied consistent with AS/NZS 2312-
2002.
• 2.S All structural steelwork detailed within this installation manual shall be minimum Grade 550 for roll formed
sections (including roof and wall sheeting) and Grade 250 for angle sections.
• 3.S All roof, and wall sheeting shall be minimum base metal thickness of 0.3mm
• 4.S All snaptite channels and jambs shall be minimum base metal thickness of 0.42mm
• 5.S All top hats shall be minimum base metal thickness of 1.0mm
• 6.S All screw fasteners shall be Phil Pan Head Zinc Plated #8 x 3/4” (STP0820)
• 7.S All bolt fasteners for anchoring shall be M10 minimum grade 4.6/S
• 8.S Installation of screw fasteners shall generally be undertaken in accordance with the relevant provisions
of AS1562.
Steelwork
• 1.F The supporting slab foundation for the garden shed shall be of a minimum size indicated on the installation
manual. The top surface of the formed slab shall be level and free of any irregularities which would inhibit
the installation of the shed.
• 2.F The structural engineering design for the supporting slab foundation shall be undertaken by a suitably
qualified structural engineer. The design shall consider all relevent provision of AS3600 and AS2870.
• 3.F Between adjacent footings or excavations, the contractor installing the slab foundation shall not exceed
a rise of 1 in a run of 2 in line of slope.

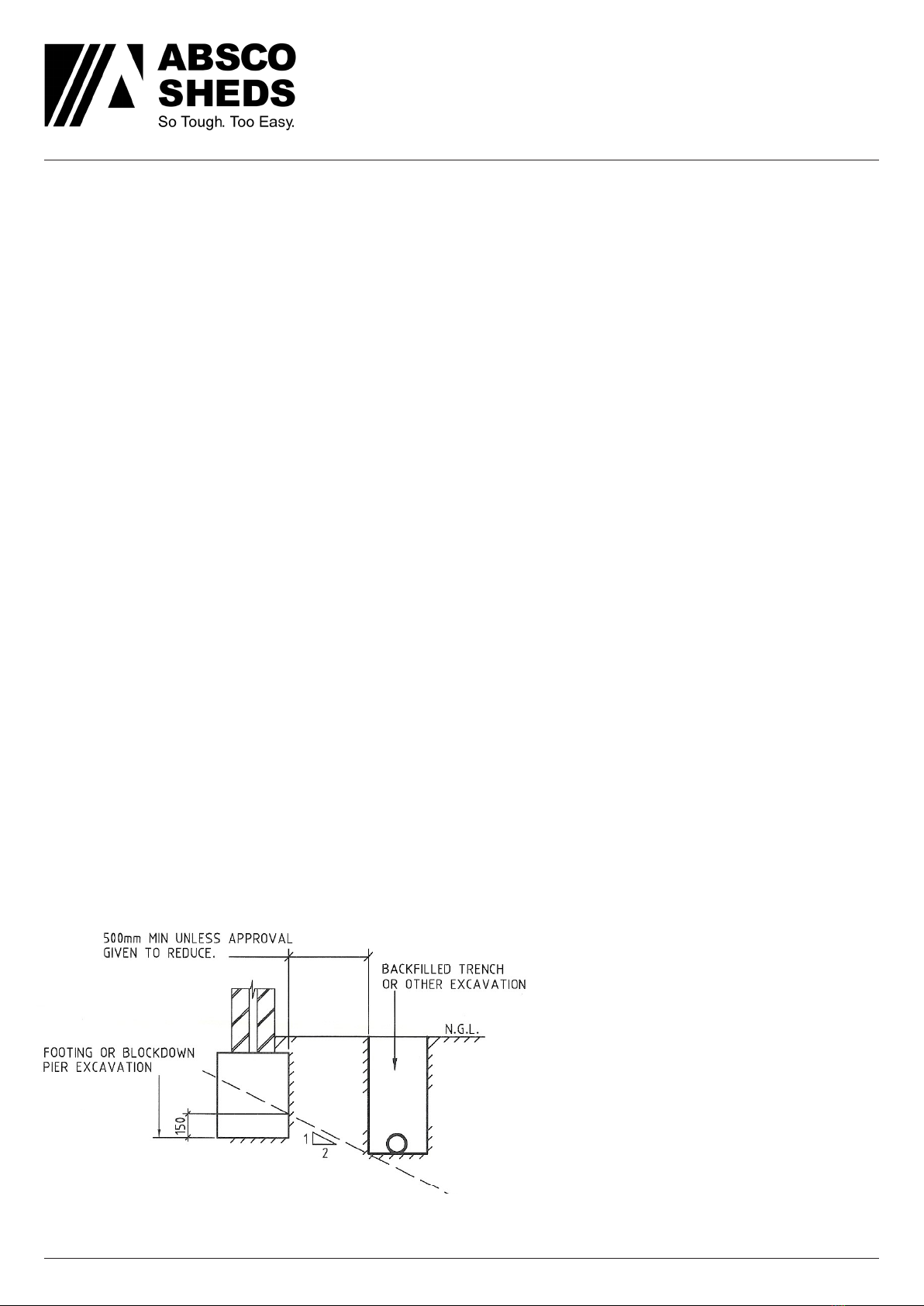

• 4.F Unless approved in writing by the slab foundation engineer, the limits of excavations near existing
footings shall be in accordance with that indicated below.
Supporting Slab and Foundations
The contactor shall undertake investigatory
localised excavations near existing
footings to ascertain their depth prior to
excavating adjacent to them. It is noted that
excavating to a depth below that indicated
above shall not be undertaken without
the written approval from the engineer.
