Absco Industries Assembly Instruction Manual Model: CYC15 02/03/2021 1.0 1
N3/C1 FRAME KIT
FOR 1.5m WIDE TO
1.5m DEEP MODELS
DOWNLOAD
OUR APP FOR
ASSEMBLY
VIDEOS
LEAVE A REVIEW
Tell us about your experience and
receive a $20 Coles Gift Card.
Visit www.abscosheds.com.au/review
AU: 1800 029 701
NZ: 0800 466 444
[email protected]
www.abscosheds.com.au
This kit is applicable to the following sheds:
The addition of this frame kit will increase the
wind rating of the specified sheds to
Wind rating: N3/C1 as per AS4055-2012.
Suitable for specific cyclonic regions
15151GK
15151SK
15141RK
WARNING: This shed must be anchored to a
100mm thick concrete slab with the concrete
anchors supplied.
Failure to do so will result in the shed not
having the structural integrity required to
endure a severe storms or cyclonic event.
WARNING: Doors must remain closed with
all padbolts properly secured during severe
storms or cyclonic event.
Where information conflicts with the original
non-cyclonic instruction manual, this
document is to be referenced.
View of frame kit
applied to
15151GK

Absco Industries Assembly Instruction Manual Model: CYC15 02/03/2021 1.0 2
N3/C1 FRAME KIT
FOR 1.5m WIDE TO
1.5m DEEP MODELS
GENERAL INSTRUCTIONS
• Before commencing any assembly, read through these instructions in detail to gain a thorough
understanding of assembly methods and associated details.
• Unpack the carton and carefully identify and check off all the parts against the parts described
and illustrated on "COMPONENTS PACKING LIST" pages.
• Local authority approval must be obtained prior to construction of the shed. Once you have
selected your site you will need to lodge a site plan to your local council.
• The bracing material supplied is 80 x 40 mm galvanised steel channel, similar to that used in steel
house framing. Some channels are required to be cut to specific lengths using a hacksaw.
SITE PREPARATION
• The site for the shed must be level. An uneven surface may result in misalignment of parts.
• The shed shall be erected on top of a reinforced concrete slab and anchored down appropriately.
• If using a rebated slab ensure that all frame uprights are trimmed 25mm.
TOOLS REQUIRED
SAFETY NOTES
• Some parts may have sharp edges. It is advisable to wear gloves when handling these items and
safety glasses if drilling holes. Sensible shoes are highly recommended.
• Do not erect your shed in windy conditions.
• It is highly recommended to erect the shed with two or more people.
RECOMMENDED
3mm drill bit 6mm drill bit 10mm drill bits metal & masonry

Absco Industries Assembly Instruction Manual Model: CYC15 02/03/2021 1.0 3
N3/C1 FRAME KIT
FOR 1.5m WIDE TO
1.5m DEEP MODELS

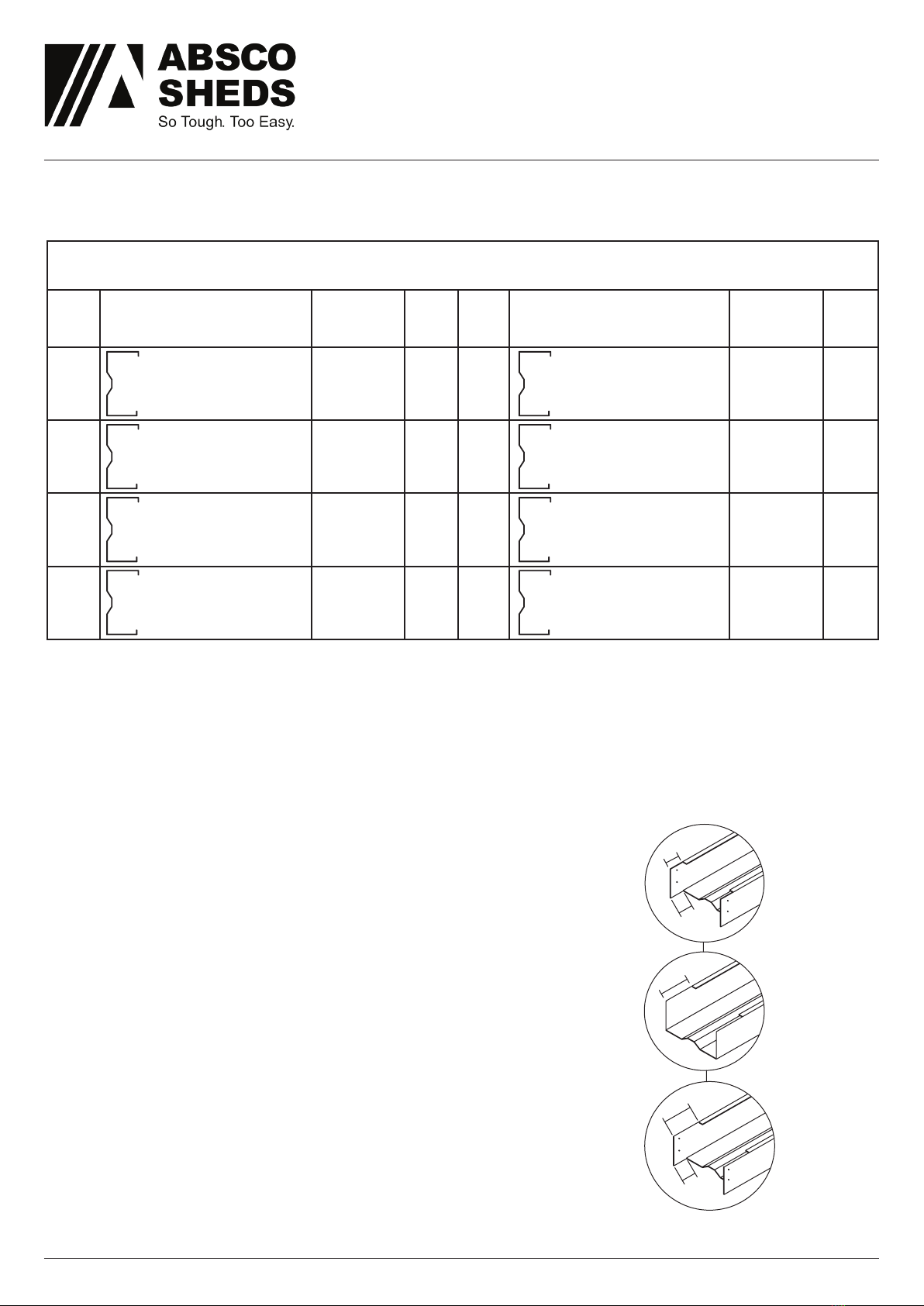

COMPONENT PACKING LIST
FRAME PACK
QTY COMPONENT
DESCRIPTION
PART
No. CHK QTY COMPONENT DESCRIPTION
PART
No. CHK
2FRONT
WALL C0660 2 DOOR STUD S1785
2BACK
WALL C1460 2 DOOR STUD EXTENSION C0400
4SIDE
WALL C1220 3 DOOR BRACE HORIZONTAL K0640
2ROOF
BRACE C1470 2 DOOR BRACE VERTICAL C1555
C Straight cut to both ends.
J20mm Tab notch on one end only
K20mm Tab notch on both ends
L45mm Lip notch on one end only
M45mm Lip notch on both ends
N20mm Tab notch + 45mm Lip notch
P20mm Tab notch + 45mm Lip notch on both ends
ROne end: 20mm Tab notch + 45mm Lip notch
SSPECIAL NOTCHING, not noted above.
FRAME SECTION IDENTIFICATION GUIDE
The first letter of the part number is used to identify the notching
type. EG. K2940, see below for reference list.
The following digits represent the overall length of the item.
EG. K2940
Part K2940 is a channel that is 2940mm long with a 20mm Tab notch
at each end.
20mm Tab
notch
45mm Lip
notch
20mm Tab
notch
+
45mm Lip
notch
4
5
4
5
2
0
2
0
2
0
C S
C
C
C
C
C
K

Absco Industries Assembly Instruction Manual Model: CYC15 02/03/2021 1.0 4
N3/C1 FRAME KIT
FOR 1.5m WIDE TO
1.5m DEEP MODELS
COMPONENT PACKING LIST

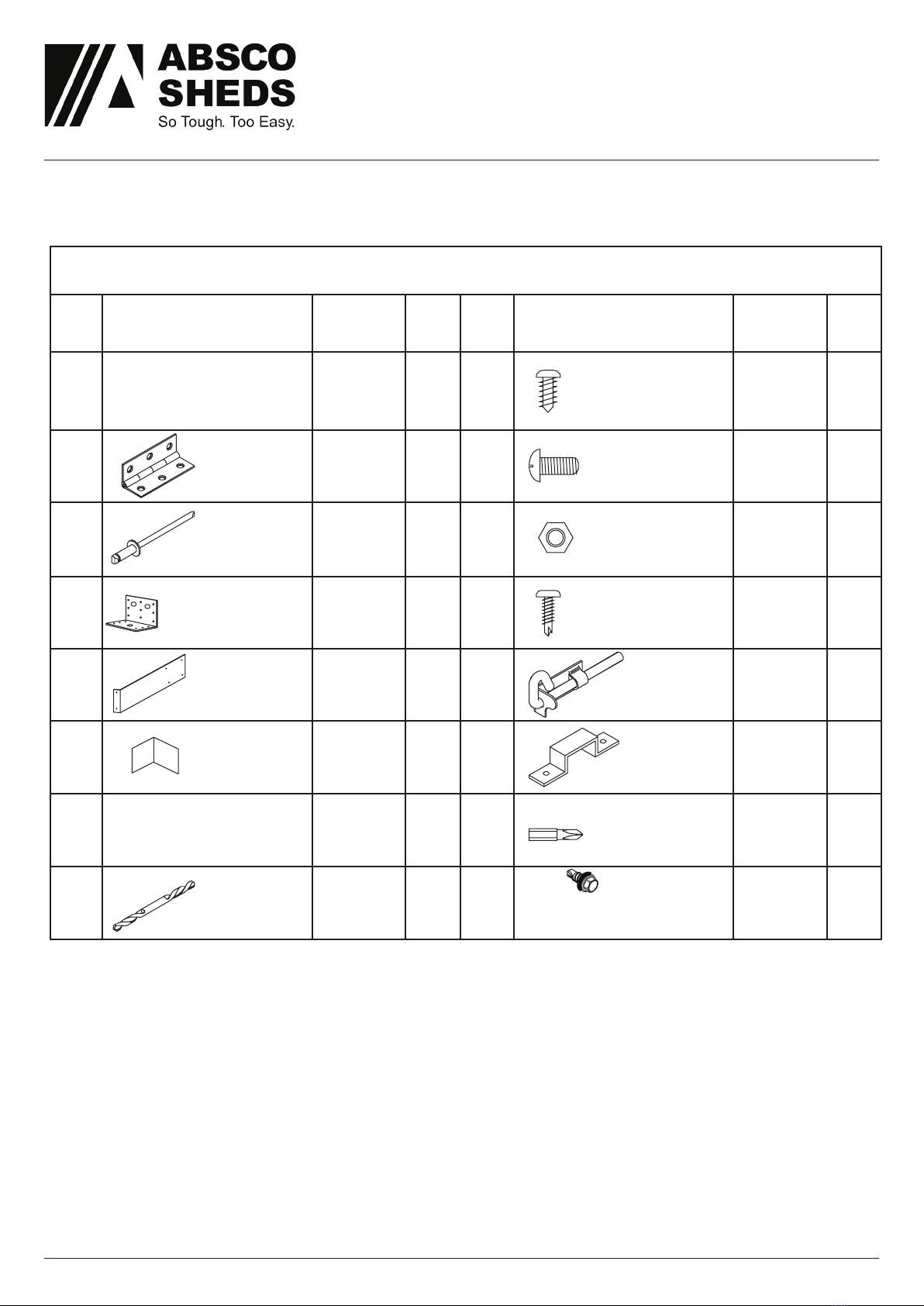

FITTINGS AND ACCESSORIES
QTY COMPONENT
DESCRIPTION
PART
No. CHK QTY COMPONENT DESCRIPTION
PART
No. CHK
1INSTRUCTION
MANUAL IM 1
8G x 3/8” SELF
TAPPING SCREW
(220 PACK)
FAST001
1HINGE
6 HOLE FAST012A 8
3/16” x 1/2”
PAN HD
BOLT
FAST002
1
3mm POP
RIVET PACK
(50 PACK)
FAST009 83/16”
NYLOC NUT FAST003
8MULTIPURPOSE
BRACKET (MPB) BKT17 1
10G x 5/8” WAFER
TEK SCREW
(300 PACK)
FAST014
4
DOOR
PLATE
2 CO + 2 ZINC
CO12A 4PADBOLT FAST006
4CORNER
BRACKET BKT10 2PADBOLT HASP FAST007
1
M10 DYNABOLT
M10 NUT & BOLT
BRACKET (12 PACK)
ANCHOR
KIT 1PHILLIPS HEAD
DRIVER BIT FAST038
13MM DRILL
BIT DRILL 35 FAST033
HEX HD
TEK SCREW W/ NEO
WASHER 10-16x16mm

Absco Industries Assembly Instruction Manual Model: CYC15 02/03/2021 1.0 5
N3/C1 FRAME KIT
FOR 1.5m WIDE TO
1.5m DEEP MODELS

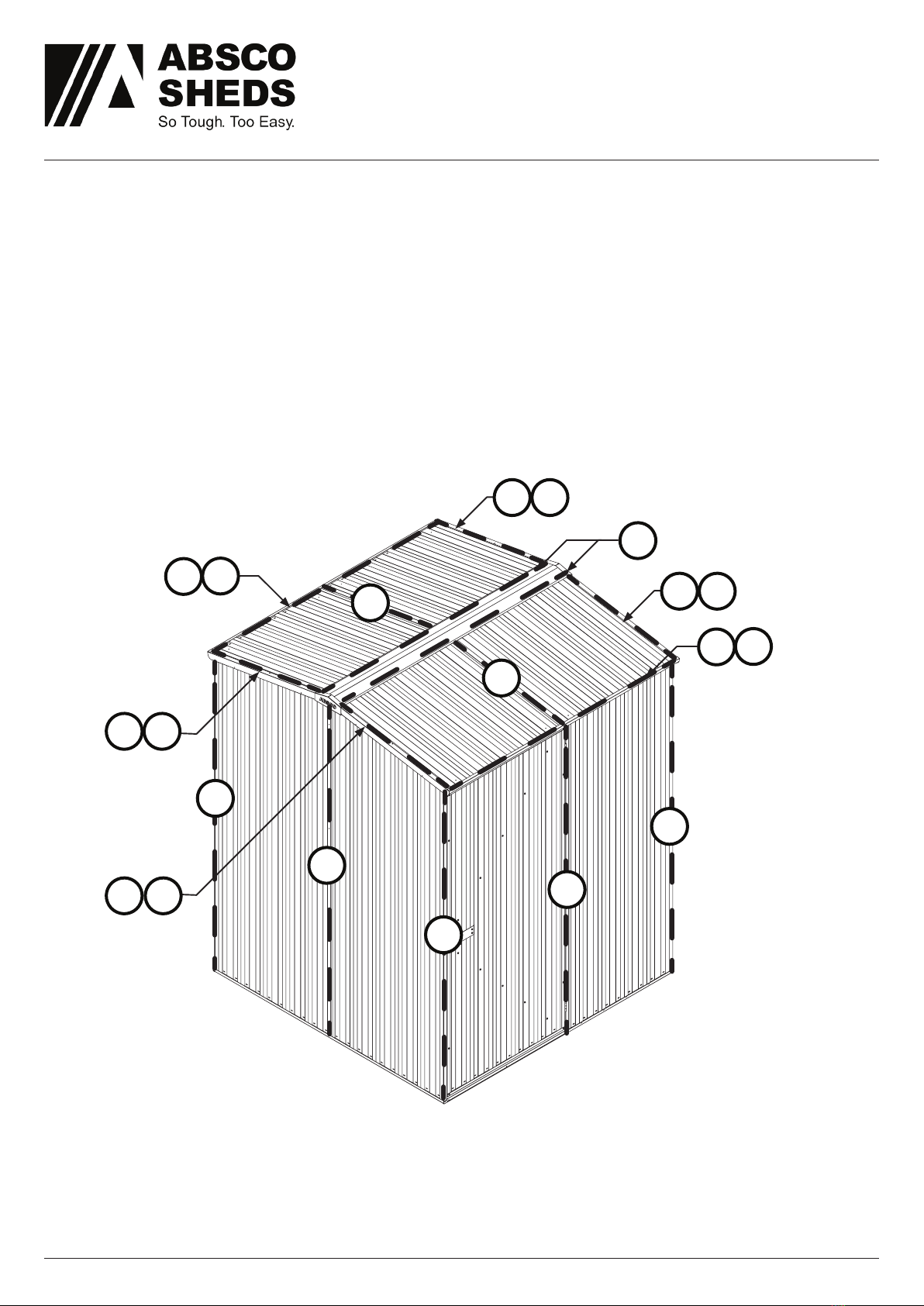

INSTALL EXTRA FASTENERS
Absco sheds sheets have punched holes typically spaced at 592mm from centre to centre.
To achieve a cyclonic wind rating additional screws will need to be installed to reduce these distances.
The fastener intended at these positions is FAST001, a 10mm self tapping screw.
Pre-drill and reinforce with extra screws at 148mm centres in the following locations
B- Roof panel to wall
C- Roof panel to ridge beam - inside [Not applicable to skillion models]
G- Wall sheet to wall channel - inside
Pre-drill and reinforce with extra screws at 296mm centres in the following locations
A- All sheet-to-sheet connections
D- Wall corners
E - Roof lip to sheet
F- Sheet to channel
15151GK shown for illustrative purposes.
D
D
F
F
A
A
EB
EB
EB
BG
BG
A
EB
C

Absco Industries Assembly Instruction Manual Model: CYC15 02/03/2021 1.0 6
N3/C1 FRAME KIT
FOR 1.5m WIDE TO
1.5m DEEP MODELS

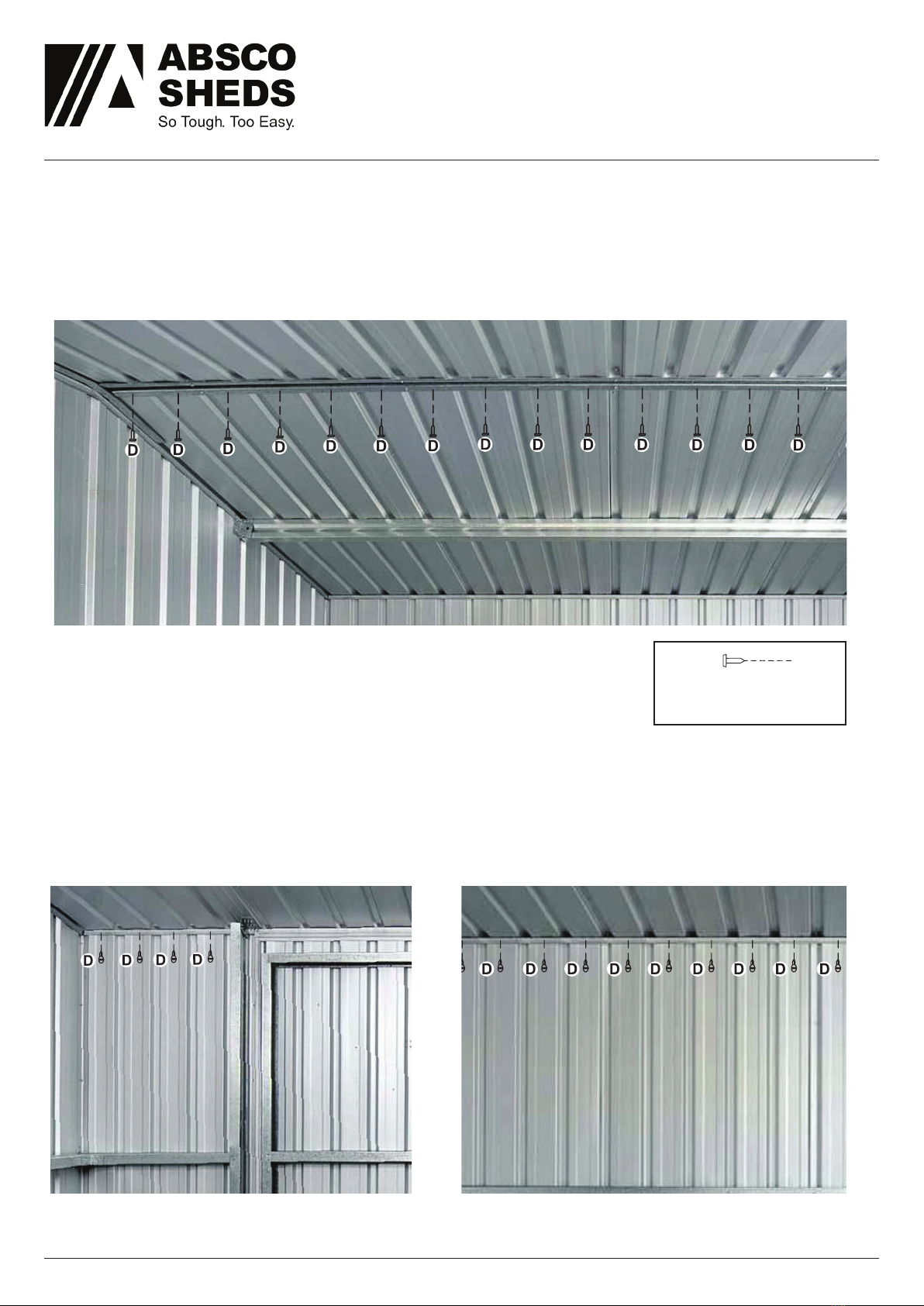

INSTALL EXTRA FASTENERS - INTERIOR VIEW
means pre-drill 3mm hole
and fix with FAST001
D
“G” - Wall sheet to top wall channel.
Pre-drill from inside the shed through the inside face of the top channel and into the wall sheet
at 148mm centres, (every pan) and then fix with a screw. Do this on the front and back walls only.
Additional FAST001 for rear wallAdditional FAST001 for front wall.
“C” - Roof panel to ridge beam.
Pre-drill from inside the shed upward through the ridge beam and into the roof panel at 148mm
centres, (every pan) then fix with a screw. Some screws will already be in these positions, skip these.
For illustrative purposes fasteners are shown on just one side of the
ridge beam.
Repeat again to other side.

Absco Industries Assembly Instruction Manual Model: CYC15 02/03/2021 1.0 7
N3/C1 FRAME KIT
FOR 1.5m WIDE TO
1.5m DEEP MODELS
BOXING FRAME SECTIONS
1. All frame sections have one side length of
38mm and another at 40mm.
3. Slide opposing sides together so that
each frame section fits neatly inside the
other.
5. Fix with tek screws.
Use tek screws to fix the two sections and complete a boxed frame member as shown. Make sure that
you alternate tek screw position on opposing sides of the boxed sections. Align tek screws 296mm
apart. This is approximately 2 sheet corrugations in distance. If spaced correctly the screw heads will
line up with corrugations of the sheets and will make for a flush finish against the wall or roof.
2. Slide the 38mm side into the 40mm side
as shown.
4. Apply firm pressure to each side of the
boxed section to firmly lock it into position.
NOTE:
- Only the horizontal wall frame sections are to be boxed.
- Do not screw any boxed sections until they have been correctly sized as the specific step instructs.
- Roof section, door frames and upright door studs are singular pieces.
- Use self drilling tek screws for all assembly and installation of these sections.

Absco Industries Assembly Instruction Manual Model: CYC15 02/03/2021 1.0 8
N3/C1 FRAME KIT
FOR 1.5m WIDE TO
1.5m DEEP MODELS

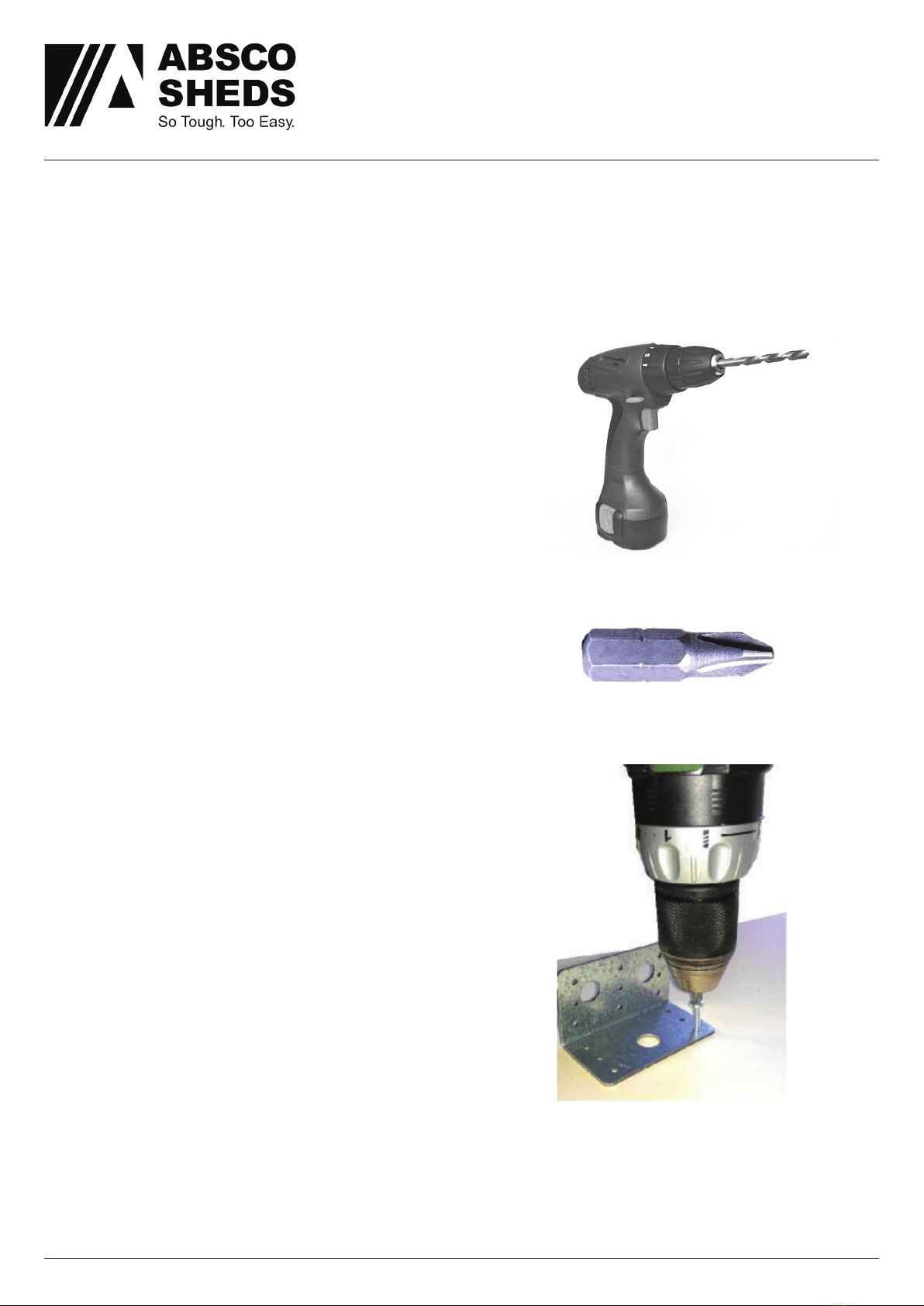

USING SELF DRILLING TEK SCREWS
Self drilling tek screws are an effective means of securing components without the need to pre-drill
holes. By following these instructions you will be able to easily secure your frame kit components.
Self drilling tek screws require an electric or battery
drill for installation, Do not attempt to fasten tek
screws by hand.
If available make sure that the drill has the slow
speed and high torque settings selected.
Fit the supplied driver bit into the chuck of the drill.
Place the tek screw onto the tip of the driver and
place the tek screw into position using the weight
of the drill to prevent it from moving.
Once in position apply a moderate amount of
pressure to the drill
Start slowly, begin to drill the tek screw into the
metal.
Once the tek screw has stabilised while drilling
increase the speed until the tek screw threads ‘bite’
into the metal.

Absco Industries Assembly Instruction Manual Model: CYC15 02/03/2021 1.0 9
N3/C1 FRAME KIT
FOR 1.5m WIDE TO
1.5m DEEP MODELS
FRAMING OVERVIEW
Frame layout for:
15151GK
15151SK
15141RK*
*Not to scale
GENERAL NOTE:
- If shed is on a rebated slab S1785 will need to be cut-to-suit rebate height.
15141RK:
- Roof brace orientation will be perpendicular to what is shown.
- Roof braces will be trimmed to 2900mm.
15151SK:
- One central roof brace is required.
C0660
K0640
BKT17
C1555
C1470
S1785
C1220
C0400
BKT17
S1785
C1220
Horizontal wall
framing is boxed.
C0400C1460
BKT10

Absco Industries Assembly Instruction Manual Model: CYC15 02/03/2021 1.0 10
N3/C1 FRAME KIT
FOR 1.5m WIDE TO
1.5m DEEP MODELS

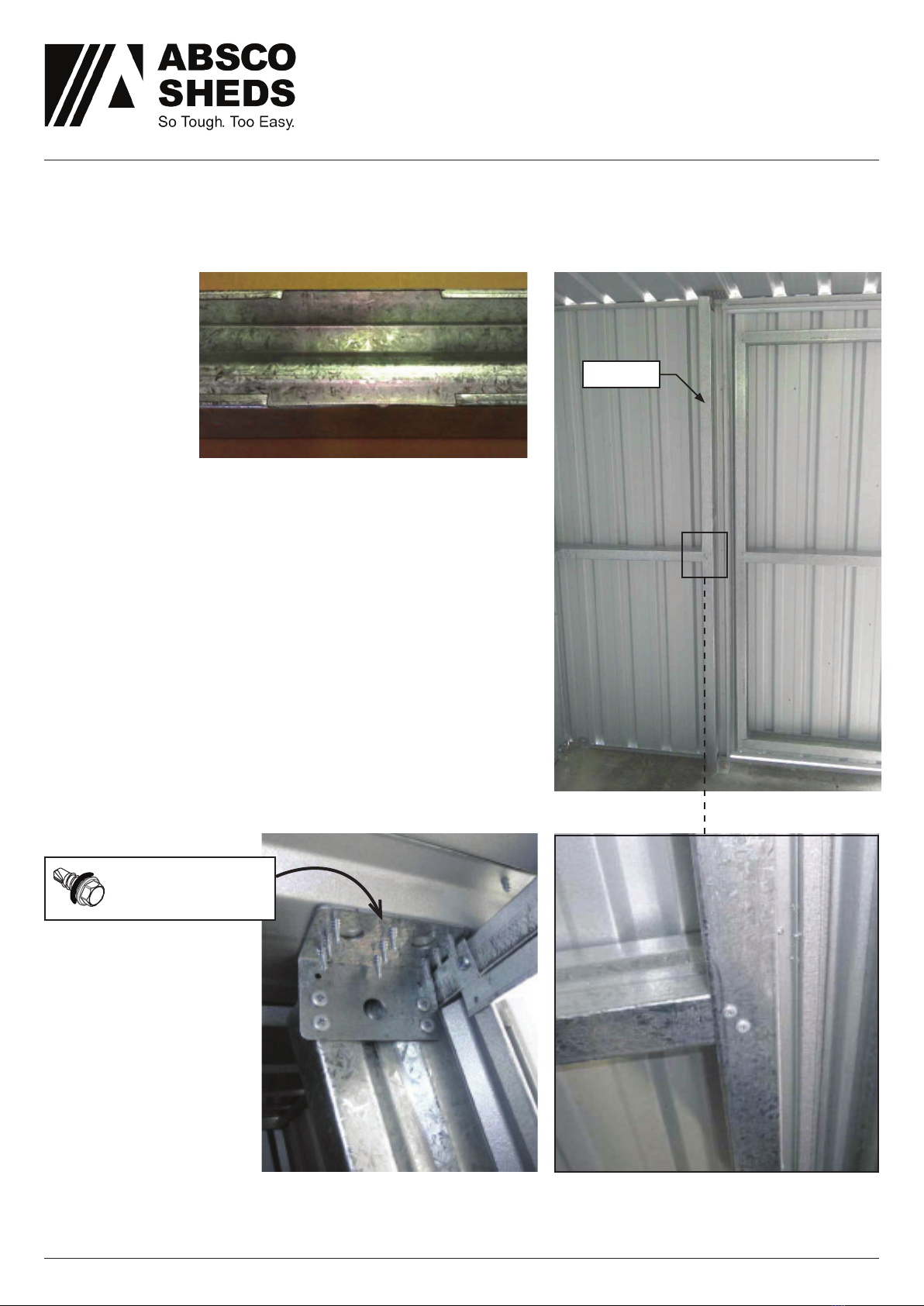

DOOR BRACING
2. Place door frame components on a flat
and level surface and use one tek screw at
each join.
NOTE: If the door has been completely
assembled as per original instruction manual
you will need to remove the diagonal door
braces.
3. Make sure the frame is square and fix with
a second tek screw at each join.
4. Turn frame over and repeat last step.
1. Seal any brace holes using the supplied
pop rivets, FAST007. Perform from the
outside of the door.
K0640
C1555
