Abus TVAC15100 User manual

TVAC15100
User manual
Version 06/2011
Original English user manual. Keep for future use.

12
English
Introduction
Dear Customer,
Thank you for purchasing this product.
This product meets the requirements of the applicable European and national guidelines. The
corresponding declarations and documents can be obtained from the manufacturer
(www.abus-sc.com).
To maintain this condition and to ensure risk-free operation, you as the user must observe these operation
instructions!
Before initial start-up, read through the complete operating instructions observing operating and safety
instructions.
All company and product names mentioned in this document are registered trademarks.
All rights reserved.
If you have any questions, please contact your installer or your local dealer!
Disclaimer
This user manual was prepared with greatest care. If you should notice omissions or inaccuracies, please
inform us about these on the back of this manual given address.
The ABUS Security-Center GmbH assumes no liability for technical and typographical faults and reserves
the right to make at any time modifications to the product or user manual without a previous announcement.
The company is not liable or responsible for direct and indirect subsequent damages which are caused in
connection with the equipment, the performance and the use of this product.
No guarantee for the content of this document is taken.

13
English
Icon explanation
A flash in the triangle is used if there is danger for the health, e.g. by an electric shock.
An exclamation mark in the triangle points to an important note in this user manual which
must be minded.
This symbol can be found when you are to be given tips and information on operation.
Important safety advice
The warranty will expire for damage due to non-compliance with these operating
instructions. ABUS will not be liable for any consequential loss!
ABUS will not accept liability for damage to property or personal injury caused by
incorrect handling or non-compliance with the safety-instructions.
In such cases the warranty will expire.
The device has been manufactured in compliance with international safety standards. Please read these
safety advices carefully.
Safety advice
1. Mains supply
100–240 V AC, 50–60 Hz (via power adapter plug to 5 V DC)
Operate this product only from the type of power supply indicated on the marking label. If you are not
sure of the type of power supplied to your home, consult your local power company. Disconnect the
product from the mains before you start any maintenance or installation procedures.
2. Overloading
Do not overload a wall outlet, extension cord or adapter as this may result in electric fire or shock.
3. Liquids
Protect the device from any kind of liquids entering.
4. Cleaning
Disconnect the product from the wall outlet before cleaning. Use a light damp cloth (no solvents) to dust
the product.
5. Accessories
Do not use any unsupported accessories as these may be hazardous or cause damage the product.
6. Location
xSetup the device only in dry and dust-protected rooms.
xDo not place the device near a radiator or heat register.
xSetup the device only in areas with the advised operating temperatures of -10° ~ 50°C.
7. Wireless transmission
The range of wireless transmission depends on various environmental factors. The local conditions at the
installation location can have a negative impact on the range. For this reason, if there is a clear line of
sight between the receiver and the transmitter, the range can be as much as 200 m, but in buildings it is
significantly less.
The following environmental factors impair both the range and the frame rate:
Mobile phone masts, high-tension electricity pylons, power lines, ceiling and walls, devices with the same
or similar radio frequency.

14
English
Warnings
Follow all safety and operating advises before starting-up the device!
1. Follow these directions in order to avoid damage of the power cord or plug:
xDo not modify or process the power cord or plug arbitrarily.
xMake sure to disconnect the power cord holding the plug.
xKeep heating appliances as far as possible from the power cord in order to prevent the cover vinyl
from melting.
2. Follow these directions. Failure to follow any of them may cause electrical shock:
xDo not open the main body or the power supply.
xDo not insert metal or inflammable objects inside the product.
xIn order to avoid any damage during lighting use a surge protection.
3. Do not use the product when it is out of order. If you continue to use the product when defective, serious
damage can be caused to it. Make sure to contact your local product distributor if the product is out of
order.
During the installation into an existing video surveillance system make sure that all devices are
disconnected from the low and supply voltage circuit.
If in doubt allow a professional electrician to mount, install and wire-up your device. Improper
electrical connection to the mains does not only represent at threat to you but also to other
persons.
Wire-up the entire system making sure that the mains and low voltage circuit remain separated
and cannot come into contact with each other in normal use or due to any malfunctioning.
Unpacking
While you are unpacking the device please handle it with utmost care.
If you notice any damage of the original packaging, please check at first the device.
If the device shows damages, please contact your local dealer.

15
English
Table of contents
1. Intended Use.........................................................................................................................................16
2. Scope of delivery..................................................................................................................................16
3. Features and functions........................................................................................................................16
4. Description of the connections...........................................................................................................17
4.1 Rear of the transmitter .................................................................................................................17
4.2 Rear of the receiver......................................................................................................................17
4.3 Cable connections........................................................................................................................18
4.4 Video/audio signals on the jack plug............................................................................................18
4.5 LEDs.............................................................................................................................................19
5. Installation.............................................................................................................................................19
5.1 Installation set-up.........................................................................................................................19
5.2 Pairing the transmitter and receiver.............................................................................................20
6. Maintenance and cleaning...................................................................................................................20
6.1 Maintenance.................................................................................................................................20
6.2 Cleaning.......................................................................................................................................21
7. Disposal.................................................................................................................................................21
8. Technical data.......................................................................................................................................21

16
English
1. Intended Use
Using this 2.4 GHz digital transmission set, you can transmit video and audio signals wireless over
medium to long distances without any problems. The video transmission set consists of a wireless
transmitter and a wireless receiver.
Wireless signal transmission is an advantage in all locations where cables cannot be laid. The
transmitter module transmits the signal recorded by the camera wirelessly to the receiver module.
Faults and interference can be avoided due to the conversion into digital signals.
A detailed function description can be found in chapter 3 (“Description and functions”).

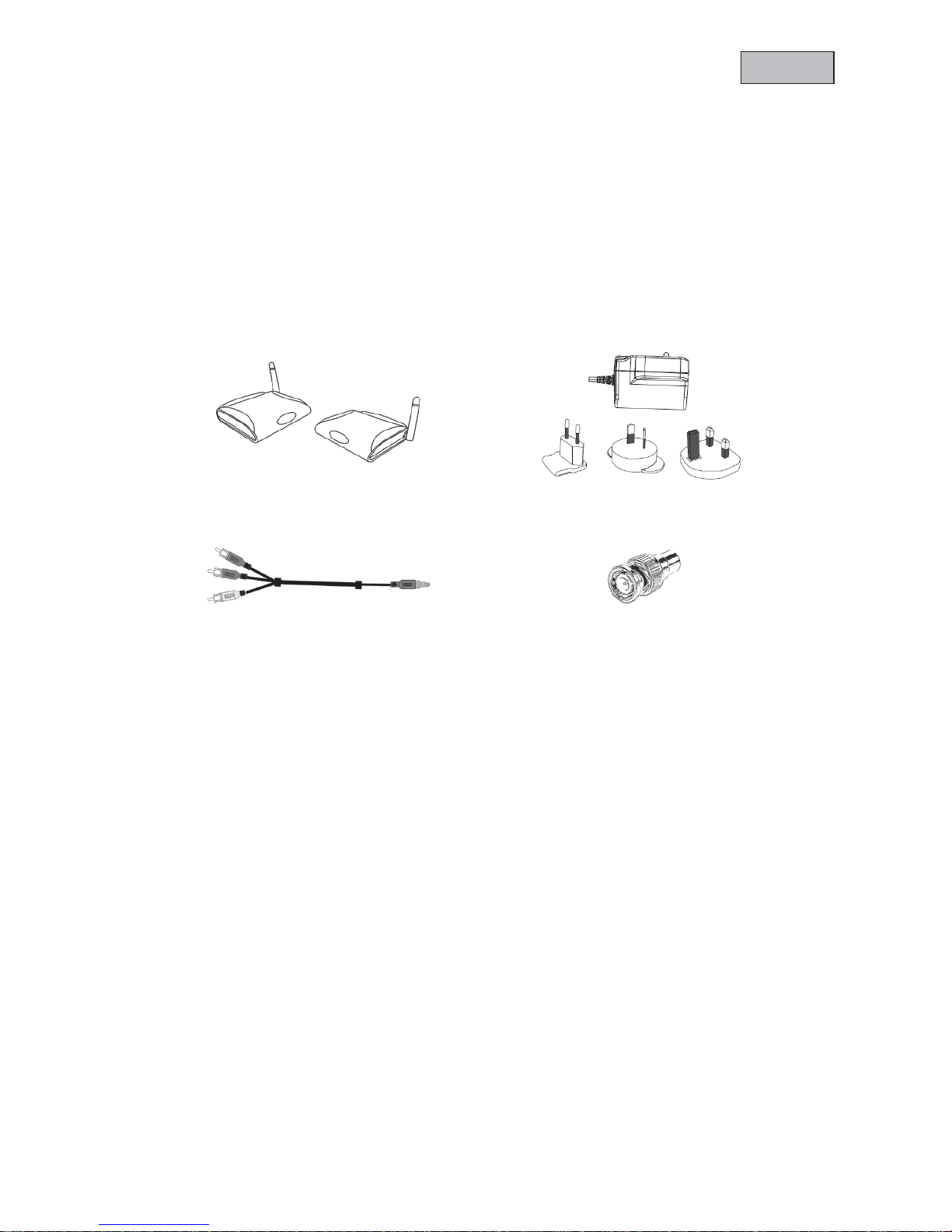

2. Scope of delivery
Receiver and transmitter unit Power supply unit incl.
EU, AU and UK plugs
AV cable 2x BNC-RCA adapters
3. Features and functions
xWireless transmission of video and audio signals
xTransmission frame rate = 30 fps @ D1 resolution
x2.4 GHz encoded digital wireless transmission
xIntegrated IR transmitter
xDigital wireless transmission for cameras and recorders

17
English
4. Description of the connections
4.1 Rear of the transmitter
4.2 Rear of the receiver
cPower supply 5 V DC/1 A (DC, 14.5 x 4.8 mm)
dAV input Input for the transmitted signal, use the AV cable supplied
ePairing button Button for pairing the transmitter and receiver
fPower switch Switches the transmitter on/off
cPower supply 5 V DC/1 A (DC, 14.5 x 4.8 mm)
dAV output Output for representing the transmitted signal, use the
AV cable supplied
ePairing button Button for pairing the transmitter and receiver
fPower switch Switches the receiver on/off
AV IN PAIRING
PAIRINGAV OUT
DC IN 5 V /1 A
DC IN 5 V /1 A
cd e f
cd e f

18
English

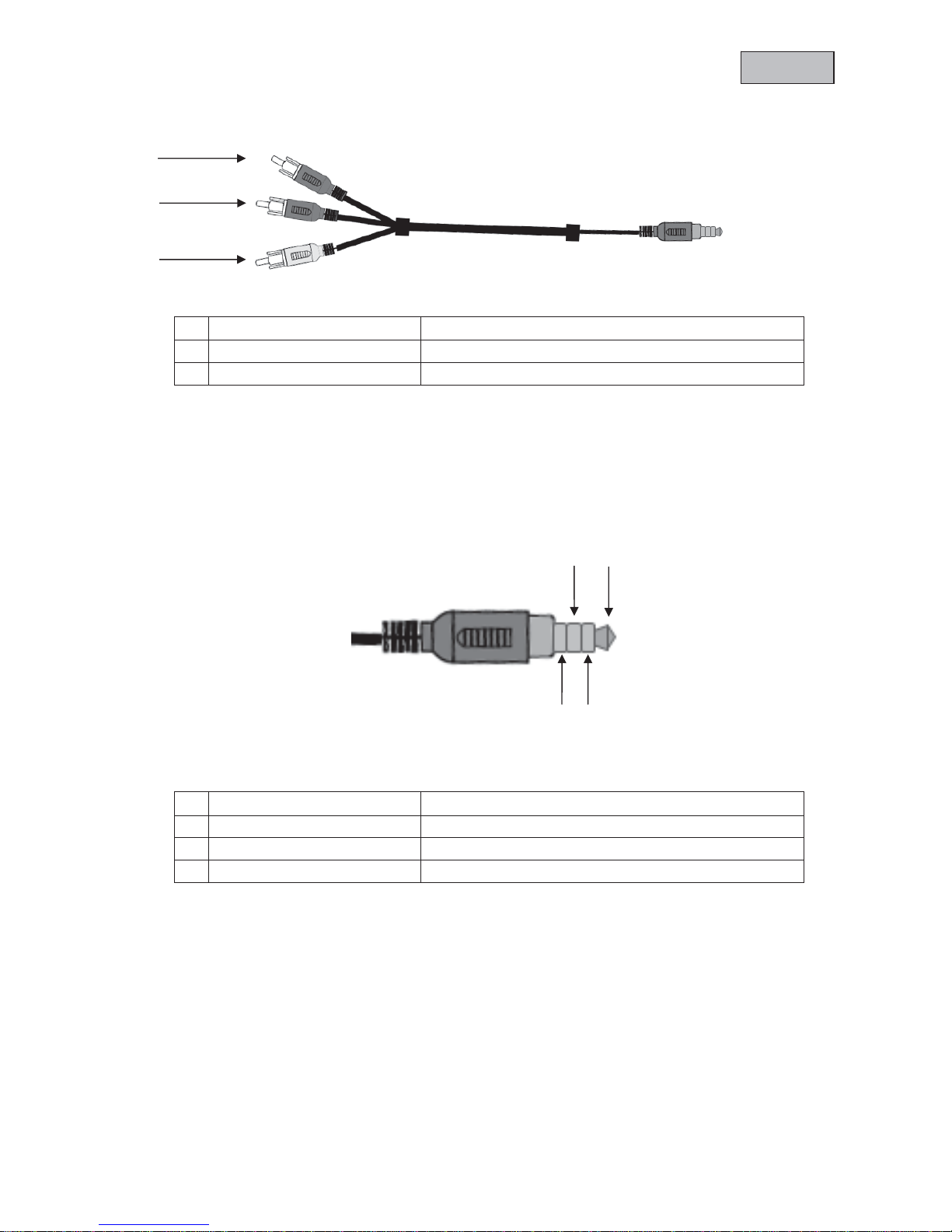

4.3 Cable connections
To connect the video RCA plug to a BNC input or output on a camera, monitor or recorder, attach the
BNC-RCA adapter to the yellow RCA plug.
4.4 Video/audio signals on the jack plug
cYellow RCA connector (video) Connection for transmitting the video signal
NRed RCA connector (audio) Connection for transmitting the audio signal
OWhite RCA connector (audio) Connection for transmitting the audio signal
cGround Common ground connection
NAudio channel 1 Audio signal
OVideo signal Video signal
PAudio channel 2 Audio signal
O
c
N
O
c
NP

19
English
4.5 LEDs
Description LED on LED flashing LED off
Power LED Device switched on - Device switched off
LINK LED Connection established Connection being made No connection
5. Installation
5.1 Installation set-up
Connect the monitor output on a recorder or video output on a camera to the transmitter. Use the
supplied AV cable and the BNC-RCA adapters.
Connect the receiver to a monitor. Now connect the supplied power supply units to the receiver and
transmitter, then switch them on (move switch from “0” to “I”).
cPower LED Device status display
dIR LED Transmission/reception of an IR
signal for a remote control
eLINK LED Connection status display
Visual contact
Warning:
Please note that the image transmission rate can be limited depending on the ambient
conditions.
c d e

20
English
Connect a camera to the transmitter to establish wireless transmission of the signal to a recorder or
monitor via the receiver.
The IR sensor is located in the middle between the LEDs. Using the receiver, you have the possibility
of transmitting the signals from a remote control to the transmitter. The transmitter then sends on the
received IR signals (e.g. to a recorder).
Please ensure that the IR LED on the transmitter has a direct visual contact to the IR LED on
the recorder.
5.2 Pairing the transmitter and receiver
Proceed as follows to pair the transmitter and receiver:
1. First press the PAIRING button on the receiver until the green LINK LED on the front starts
to flash.
2. Now press the PAIRING button on the transmitter until the green LINK LED on the front starts to
flash.
3. Both LINK LEDs on the devices light up continuously when the connection has been established
successfully.
6. Maintenance and cleaning
6.1 Maintenance
Regularly check the product's physical state, e.g. check for damage of the housing.
If you suspect that safe operation cannot be guaranteed anymore, disconnect the product and ensure
that it cannot be used by mistake.
Warning:
Please ensure that the IR LED on the transmitter has a direct visual contact to the IR LED on
the recorder for transmission.
Warning:
Please note that connection can take up to 30 seconds.

21
English
You can assume that safe operation is not possible anymore when
xthe device shows visible damage,
xthe device does not function anymore
Please note:
The product is maintenance free for you. Inside the product are no parts that can be checked
or repaired, so do not ever open it.
6.2 Cleaning
Wipe the product with a clean, dry cloth. If the device is very dirty, you can moisten the cloth with
lukewarm water.
Make sure that no liquids can enter the equipment as the device can be destroyed. Never use
chemical detergents as they could attack the surface of the device
7. Disposal
Devices with this marking should not be put in the household garbage. Dispose of the
product at the end of its lifetime according to the applicable regulations.
8. Technical data
Model number TVAC15100
Transmitter TVAC15100 Receiver
Frequency 2.4 GHz
Inputs AV IN, DC input DC input
Outputs - AV OUT
LED displays POWER: Power supply IR: IR signal
LINK: Connection status
Resolution D1 (720 x 480)
Frame rate Max. 30 fps
Transmission channels 1
Range approx. 100 m (clear sight line)*
Power supply 5 V DC/1 A
Power consumption Max. 400 mA Max. 300 mA
Operating temperature -10 °C – 50 °C
Dimensions 114 x 85 x 23 mm
Weight 90 g
* The range depends on the ambient conditions (e.g. mobile phone masts, high-tension electricity pylons,
power lines, ceiling and walls, etc.).
If the conditions are unfavourable, the range may be very restricted.
