AC Infinity Airlift Series User manual

USER MANUALUSER MANUAL
AIRLIFT SERIES
SHUTTER EXHAUST FAN SYSTEM

3
WELCOME
Thank you for choosing AC Infinity. We are committed to product quality and friendly customer service.
If you have any questions or suggestions, please don’t hesitate to contact us. Visit www.acinfinity.com
and click contact for our contact information.
EMAIL
[e-mail]
WEB
www.acinfinity.com
LOCATION
Los Angeles, CA

4
PRODUCT
AIRLIFT S10
AIRLIFT S12
AIRLIFT S14
AIRLIFT S16
AIRLIFT T10
AIRLIFT T12
AIRLIFT T14
AIRLIFT T16
AIRLIFT T18
AIRLIFT T20
AIRLIFT T22
AIRLIFT T30
AIRLIFT T36
MODEL
AC-ALS10
AC-ALS12
AC-ALS14
AC-ALS16
AC-ALT10
AC-ALT12
AC-ALT14
AC-ALT16
AC-ALT18
AC-ALT20
AC-ALT22
AC-ALT30
AC-ALT36
UPC-A
819137021433
819137021440
819137021457
819137021464
819137020900
819137020917
819137020924
819137020948
819137020948
819137020955
819137020962
819137020986
819137020993
MANUAL CODE AL2104X1
SERIOUS INJURY OR DEATH. Please do not touch the fan's impeller and
blades. Secure all nearby objects including wires and cables from coming
into contact with the fan’s impeller and blades. Use caution when deciding
where to install this fan.

5
MANUAL INDEX
Manual Index .................................................................................
Key Features .................................................................................
Product Contents ...........................................................................
Installation ..................................................................................
Powering and Setup ......................................................................
Daisy Chain and Setup ..................................................................
Programming ..................................................................................
Other Settings..................................................................................
Other AC Infinity Products .............................................................
Warranty ........................................................................................
Page 5
Page 6
Page 7
Page 8
Page 11
Page 14
Page 15
Page 28
Page 30
Page 31

6
KEY FEATURES
SMART CONTROLLER
Fetures automation controls
that activate the fan according
to temperature, humidity,
timer, and schedules.
HEAVY DUTY BUILD
Fans are enclosed in
steel and wire guards to
withstand shocks and harsh
environments.
WEATHERPROOF
The shutter fan unit is sealed
to Ingress Protection 44
standards to be resistant to
liquid and dust.
DUAL BALL BEARINGS
Long life bearings rated at
67,000 hours. Also allows
the fan to be mounted in any
direction.
EFFICIENT EC-MOTOR
PWM controlled EC-motor
enables precise speed control,
low noise, and higher energy
efficiency.
SPEED CONTROLLER
Single button controller with
circular readout display that
enables fan speed control in
eight speeds.

7
PRODUCT CONTENTS
AIRLIFT S-SERIES
FAN UNIT
SPEED
CONTROLLER
(x1)
MACHINE SCREWS
(WALL MOUNT)
(x2)
WOOD SCREWS
(WALL MOUNT)
(x2)
MACHINE SCREWS
(SHUTTER MOUNT)
(x4)
WIRE
TIES
(x4)
WOOD SCREWS
(SHUTTER MOUNT)
(x4)
AIRLIFT T-SERIES
SENSOR
PROBE
(x1)
SMART
CONTROLLER
(x1)
WOOD SCREWS
(WALL HANG)
(x2)
WOOD SCREWS
(WALL MOUNT)
(x2)
MACHINE SCREWS
(WALL MOUNT)
(x2)
SHUTTER
FAN UNIT
(x1)

8
INSTALLATION
STEP 1
When installing in a large room like a green
house, barn, or garage, it is recommended
that the shutter fan should be mounted on the
opposite side of any ventilation openings for
better air circulation.
The fan should also be positioned higher in the
room to exhaust out heated air, which will rise
on its own due to natural convection.
STEP 2
Measure the dimensions of the shutter fan’s
mounting frame which will go through the wall.
Select a location on the wall where you will be
mounting the fan. Please make sure that the
wall is free of any wires or pipes.
Using the measurements of the shutter fan, use
a level and ruler to draw an outline of the area
to be drilled and cut.
Mounting Hole

9
INSTALLATION
STEP 4
Position the shutter fan through the hole cut in
step 3. Use it to measure the positioning of the
mounting screws then remove the fan unit.
Then using a drill bit, create the four mounting
holes.
STEP 3
Depending on your mounting surface material,
use the appropriate tools to cut into the wall.
Use a drill or a hand saw to create an opening
large enough to insert a saw blade or jigsaw
inside the outlined area of the wall panel.
Thinner Woods or Plastic Woods,Tougher Plastic or, Metal

10
INSTALLATION

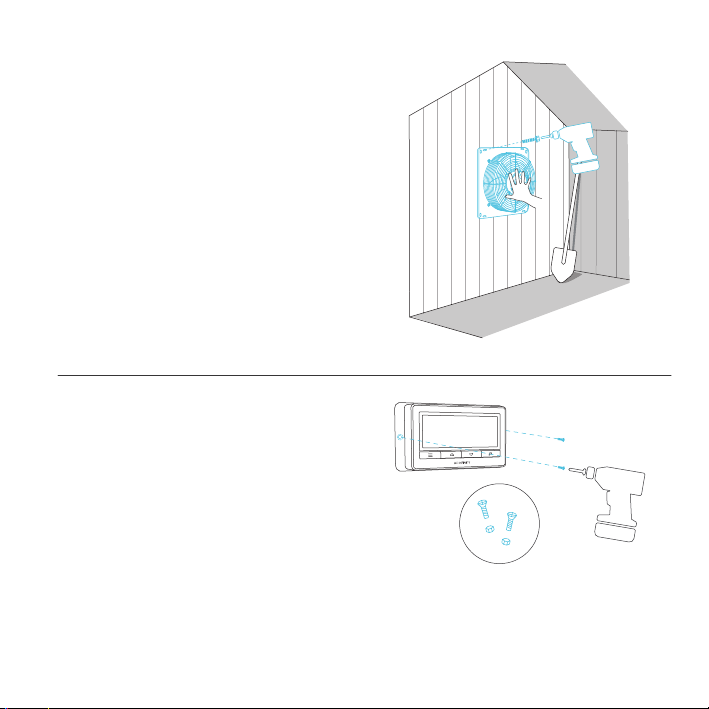

STEP 5
From inside the room, position the shutter fan
back into the opening of the fan. Make sure
the controller connectors and power cord is on
the inside of the room. Then, use the included
hardware to secure the fan.
If you are using your own shutter, remove the
AIRLIFT's shutter by unscrewing the nuts and
bolts from the fan guard. Reassemble the fan
guard onto your existing shutter by reapplying
the nuts and bolts in the same mounting
locations.
STEP 6
Once the fan is mounted securely you can
then mount the controller using the included
hardware. Place the controller near the fan in
order to power the controller.
Inside

11
STEP 2
Plug the fans power cord into an AC power
outlet to power the fan and controller.
STEP 1
Plug the shutter fan’s 4-pin Molex connector
into the speed controller’s port at the top.
POWERING AND SETUP
S-SERIES

12
STEP 2
Secure the sensor probe head near by,
preferably in the hottest area of the room.You
can use the wire tie to secure the probe away
from the fan blades.
STEP 1
Locate the connector plug of the sensor probe
and plug it into the bottom of the thermal
controller.
POWERING AND SETUP
T-SERIES

13
POWERING AND SETUP
STEP 4
Plug the fans power cord into an AC power
outlet to power the fan and controller.
STEP 3
Connect the Molex end from the fan into the
bottom of the controller.
T-SERIES

14

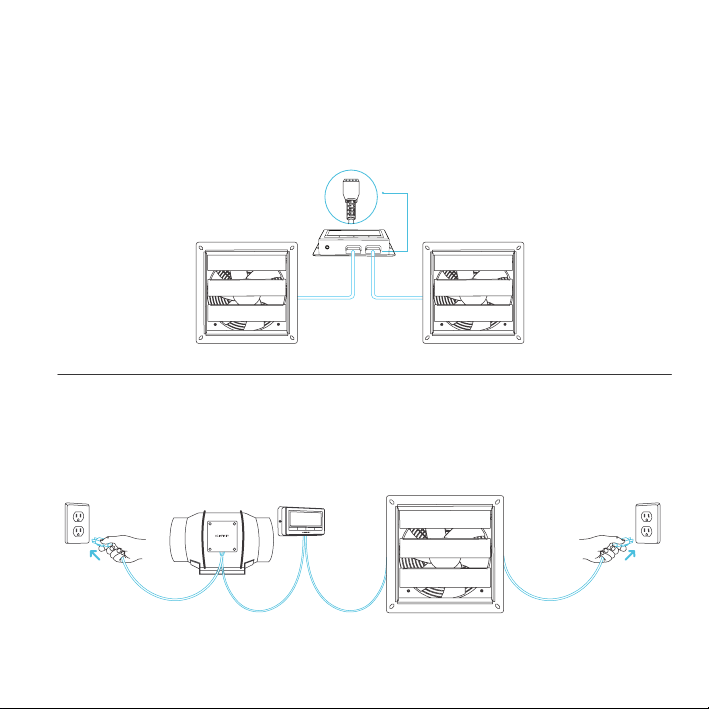

DAISY CHAIN AND SETUP
The fan controller can power up to two compatible fans to share the same programming.
(The illustration below is for T-Series model only. )
The controller included is compatible with AC Infinity fan models that contain an EC-motor.
Typically, EC-motor fans will have a separate cord coming out of it for the power and the controller.
The compatible fans do not need to be the same model or part of the same product series.
EC Motor - Compatible

15
FAN SPEED ADJUSTING
The controller features a single button that
controls the fan speed from 0-8. Pressing the
speed button increases the fan speed in one
unit increments. Pressing the button at the 8
setting will set the fan speed back to 0.
POWERING ON AND OFF
Holding the speed button for 4 seconds will turn
the fan OFF. Pressing it again from OFF will
turn the fan ON at its last speed setting.
Fan Speed
Indicator
PROGRAMMING

16
PROGRAMMING
21 3
HIGH TEMP.
LOW TEMP.
AUTO AM
PM
HIGH HUMID.
LOW HUMID. TO
ON
4
5
6
7
8
9
10
11
1. MODE BUTTON
Cycles through the controller’s
available modes: OFF, ON, AUTO
(4 triggers), TIMER TO ON, TIMER
TO OFF, CYCLE (On and Off), and
SCHEDULE (On and Off).
6. CONTROLLER MODE
Displays the controller's current
mode. Pressing the mode button
cycles through the available modes.
10. FAN SPEED
Displays the current speed in which
the fan is running. Includes a trend
indicator that signals if the fan is cur-
rently rising, falling or holding steady.
8. PROBE HUMIDITY
Displays the current humidity that
the probe is measuring. Shows "--"
if no probe is plugged in. Includes
a trend indicator that signals a rise,
steady, or fall in temperature within
the last hour.
11. COUNTDOWN
Displays the countdown of the TIMER
TO ON, TIMER TO OFF, CYCLE, or
SCHEDULE modes.TO ON shows
the amount of time left before the fan
turns on. TO OFF shows the amount
of time left before the fan turns off.
9. CURRENT TIME
Displays the current time. The internal
battery sustains the clock so it does
not default to 00:00 if power is cut off.
Please see page 23 for instructions
on how to set up the clock time.
7. PROBE TEMPERATURE
Displays the current temperature
that the probe is detecting. Shows
“--” if no probe is plugged in. Includes
a trend indicator that signals a rise,
steady, or fall in temperature within
the last hour.
5. USER SETTING
Displays the value of
your current mode.
Use the up and down
buttons to adjust the
value.
4. STATUS ICONS
Flashes or displays
the alert icons from
the controller. Icons
include Timer Alert
and Display Lock.
2. UP/DOWN BUTTONS
Adjusts the value of your current
mode. The up button increases and
down button decreases the setting.
Hold both to reset values to OFF or 0.
3. SETTING BUTTON
Cycles through the controller’s
available settings: DISPLAY, °F/ °C,
CLOCK, CALIB. T°/ H%, and TRANS.
T°/ H%.

17
PROGRAMMING
CONTROLLER MODES
Pressing the mode button will cycle through the controller’s available programming modes: OFF, ON,
AUTO (4 triggers), TIMER TO ON, TIMER TO OFF, CYCLE (On and Off), and SCHEDULE (On and
Off).
ON MODE
Your fan will actively run at the speed set here,
regardless of the probe’s reading. The ON mode
also serves as the maximum speed setting the
other modes will run in.
OFF MODE
Your fan will not run while in this mode. However,
the fan speed set while in this mode establishes
the minimum speed in other modes. When the fan
is triggered to turn OFF in all other modes, it will
instead run at the speed set here.
AUTO MODE (HIGH TEMPERATURE TRIGGER)
Pressing the up or down button sets the high
temperature trigger. The fans will activate if the
probe’s reading meets or exceeds this threshold.
Once triggered, the fan will gradually ramp up to the
speed set in ON mode. If the probe’s reading falls
below this trigger point, the fans will gradually slow
down to a stop or at the speed set in OFF mode.
You may set this trigger below the low temperature
trigger to create a specific range in which the fan is
active.
Note that this trigger can activate as long
as you are in AUTO Mode, even if you are
viewing a different trigger within AUTO Mode.
If there is a speed set in OFF Mode other than
zero, the fans will run at that speed when
triggered to turn off.

18
PROGRAMMING
AUTO MODE (LOW TEMPERATURE TRIGGER)
Pressing the up or down button sets the low
temperature trigger. The fans will activate if the
probe’s reading meets or falls below this threshold.
Once triggered, the fan will gradually ramp up to the
speed set in ON mode. If the probe’s reading rises
above this trigger point, the fans will gradually slow
down to a stop or at the speed set in OFF mode.
You may set this trigger above the high temperature
trigger to create a specific range in which the fan
is active.
AUTO MODE (HIGH HUMIDITY TRIGGER)
Pressing the up or down button sets the high
humidity trigger. The fans will activate if the probe’s
reading meets or exceeds this threshold.
Once triggered, the fan will gradually ramp up to the
speed set in ON mode. If the probe’s reading falls
below this trigger point, the fans will gradually slow
down to a stop or at the speed set in OFF mode.
You may set this trigger below the low humidity
trigger to create a specific range in which the fan
is active.
Note that this trigger can activate as long
as you are in AUTO Mode, even if you are
viewing a different trigger within AUTO Mode.
If there is a speed set in OFF Mode other than
zero, the fans will run at that speed when
triggered to turn off.
Note that this trigger can activate as long
as you are in AUTO Mode, even if you are
viewing a different trigger within AUTO Mode.
If there is a speed set in OFF Mode other than
zero, the fans will run at that speed when
triggered to turn off.

19
PROGRAMMING
AUTO MODE (LOW HUMIDITY TRIGGER)
Pressing the up or down button sets the low
humidity trigger. The fans will activate if the probe’s
reading meets or falls below this threshold.
Once triggered, the fan will gradually ramp up to the
speed set in ON mode. If the probe’s reading rises
above this trigger point, the fans will gradually slow
down to a stop or at the speed set in OFF Mode.
You may set this trigger above the high humidity
trigger to create a range in which the fan is active.
TIMER TO ON MODE
Pressing the up or down button sets a countdown
time. Once the timer ends, the fans will trigger to
run at the speed set in ON Mode. If there is a speed
set in OFF Mode, the fans will run at that speed
during the countdown.
The countdown will begin if no buttons are pressed
for 5 seconds. The time left on the countdown is
displayed below the current fan speed. Leaving
the timer mode while the countdown is running will
pause it until you return to this mode.
If there is a speed set in OFF Mode other
than zero, the fans will run at that speed
when triggered to turn off.
Note that this trigger can activate as long
as you are in AUTO Mode, even if you are
viewing a different trigger within AUTO Mode.
If there is a speed set in OFF Mode other than
zero, the fans will run at that speed when
triggered to turn off.

20
PROGRAMMING
TIMER TO OFF MODE
Pressing the up or down button sets a countdown
time. The fans will run at the speed set in ON Mode
until the countdown ends. If there is a speed set in
OFF Mode, the fans will run at that speed after the
end of the countdown.
The countdown will begin if no buttons are pressed
for 5 seconds. The time left on the countdown is
displayed below the current fan speed. Leaving
the timer mode while the countdown is running will
pause it until you return to this mode.
CYCLE MODE (ON AND OFF)
Set an on duration and an off duration for the fan to
cycle through continuously. Press the up or down
button to first set a duration for the fan to activate.
Then press the mode button again and set a
duration for the fan to deactivate. When the fan is
activated, it will run at the speed set in ON Mode.
When the fan is deactivated, it will run at the speed
set in OFF Mode.
The countdown will begin if no buttons are pressed
for 5 seconds. The time left on the countdown
before the next on or off phase is displayed below
the current fan speed. Leaving the cycle mode
while the countdown is running will pause it until
you return to this mode.
If there is a speed set in OFF Mode other
than zero, the fans will run at that speed
when triggered to turn off.
OFF
If there is a speed set in OFF Mode other
than zero, the fans will run at that speed
when triggered to turn off.
PM
OFF
TO
