AIRTITAN SERIES
CRAWLSPACE AND BASEMENT VENTILATION FANS

3
WELCOME
Thank you for choosing AC Infinity. We are committed to product quality and friendly customer service.
If you have any questions or suggestions, please don’t hesitate to contact us. Visit www.acinfinity.com
and click contact for our contact information.
EMAIL
[e-mail]
WEB
www.acinfinity.com
LOCATION
Los Angeles, CA

4
PRODUCT
AIRTITAN T3
AIRTITAN T7

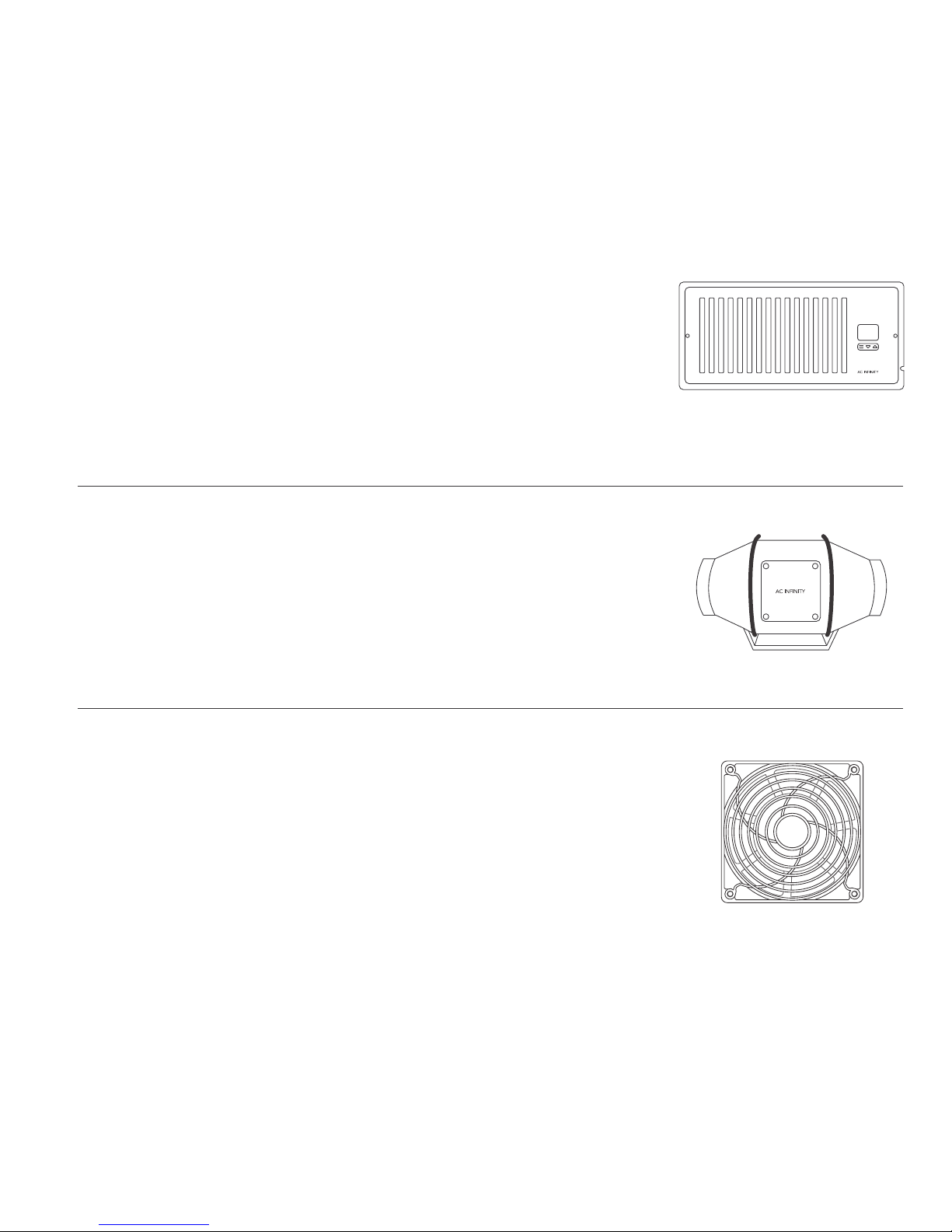

AIRTITAN T8
AIRTITAN T8-N
MODEL
AC-ATT3
AC-ATT7
AC-ATT8
AC-ATT8-N
UPC-A
00819137020467
00819137020474
00819137020481
00819137020498
MANUAL CODE AT1803X2

5
MANUAL INDEX
Manual Index .................................................................................
Key Features .................................................................................
Product Contents ...........................................................................
Mounting ........................................................................................
Powering ........................................................................................
Programming .................................................................................
Other AC Infinity Products .............................................................
Warranty ........................................................................................
Page 5
Page 6
Page 7
Page 8
Page 10
Page 12
Page 20
Page 21

6
KEY FEATURES
INGRESS PROTECTION
Fans are sealed to be
dust proof and high water
resistance. Can receive water
splashes and high pressure
water jets.
HEAVY DUTY BUILD
The fan system features a
galvanized steel or aluminum
mounting frame with fan
guards. Fans are enclosed in
steel or plastic.
SMART CONTROLLER
Digital controller can be set
to trigger fans at high and low
temperature and humidity.
Features alarms and fan
speed control.
THERMAL PROBE
The corded precision sensor
probe constructed of stainless
steel ensures an accurate
temperature and humidity
reading.
QUIET PWM MOTOR
PWM-controlled motor
features precise speed
control, reduced rotor noise,
and runs on energy efficient
DC voltage.
DUAL BALL BEARINGS
Each fan contains long-life
ball bearings rated at 67,000
hours. This bearing system
enables fans to be mounted in
any direction.

7
PRODUCT CONTENTS
AIRTITAN T8
AIRTITAN T8-N
AIRTITAN T3
AIRTITAN T7
AC-ATT8
AC-ATT8-N
AC-ATT3
AC-ATT7
THERMAL
PROBE (x1)
THERMAL
PROBE (x1)
POWER
ADAPTER (x1)
POWER
ADAPTER (x1)

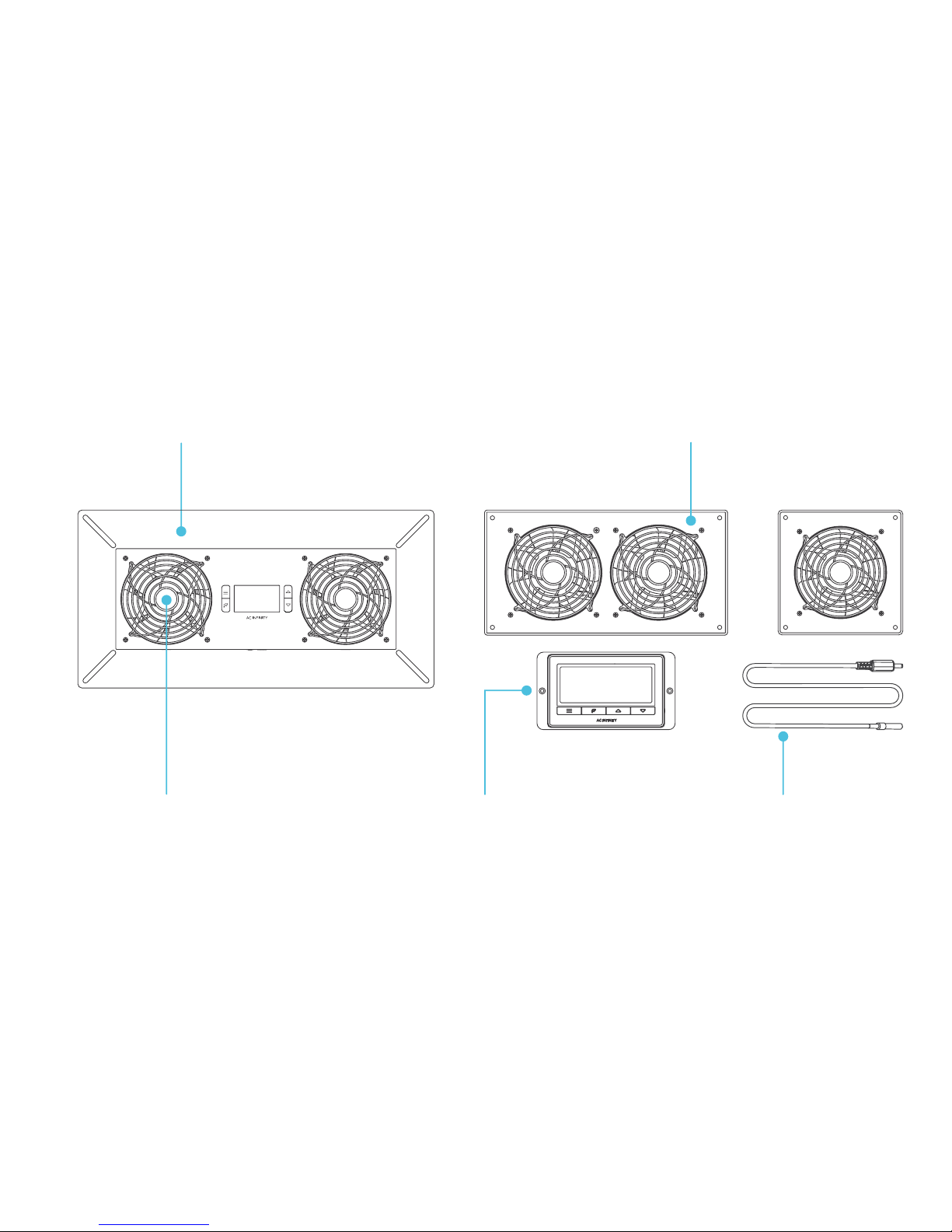

FAN
SYSTEM (x1)
FAN
SYSTEM (x1)
UNIVERSAL
CONTROLLER (x1)
UNIVERSAL
CONTROLLER (x1)
FAN
SYSTEM (x1)
WALL
ANCHORS (x4)
THERMAL
PROBE (x1)
POWER
ADAPTER (x1)
WOOD
SCREW (x4)
WOOD
SCREW (x6)
WOOD
SCREW (x6)
MACHINE
SCREWS (x6)
MACHINE
SCREWS (x6)
MACHINE
SCREWS (x4)

8
MOUNTING
STEP 1
Remove any existing grilles, vents, or covers
on ventilation opening where you wish to install
the fan unit.
STEP 2
Position the fan unit over the ventilation
opening. Depending on the model, the unit may
be facing towards or away from the wall. Please
be sure to check the airflow direction prior to
installation.

9
MOUNTING
STEP 3 (Wall and Surface Mounting)
If installing the unit onto a cabinet, wall, wood
header, rim joist, or mesh on an existing crawl
space vent, please use the unit or plastic
template to determine the mounting location.
Secure the mounting frame onto the surface
with the included wood screws. If using a
machine screw with nuts, you may need to drill
a hole. Note that models T8 and T8-N do not
include a plastic template.
STEP 3 (Foundation Block Mounting)
To install the unit onto a foundation brick or
block, mark the mounting hole locations using
the four corners of the metal face plate. Then
drill 5/16" holes with a drill bit. Install wall
anchors into openings and secure the unit into
the wall with four screws. Note that the models
T3 and T7 are designed for cabinet and wall
mounting, and do not include wall anchors and
larger type screws.
AIRTITAN T8, T8N Illustration shown above.
AIRTITAN T8, T8N Illustration shown above.

10
POWERING

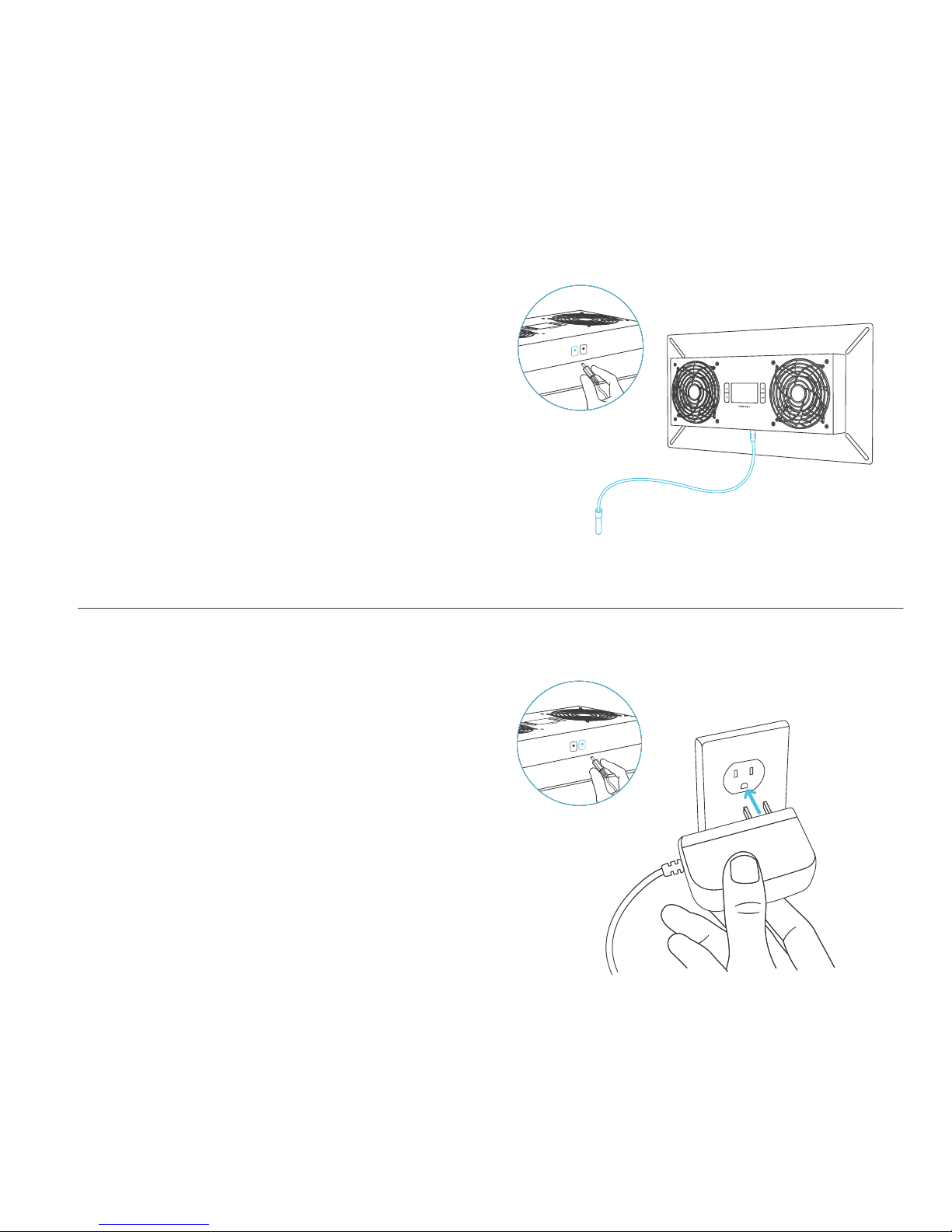

STEP 1
To set up temperature monitoring, plug the
male connector of the thermal probe into the
designated probe port located at the bottom
side of the fan unit.
STEP 2
To power the unit plug in the power, plug the
male connector of the corded power adapter
into the designated power port located at
the bottom side of the fan unit. Then plug the
adapter head into an outlet.
AIRTITAN T8 T8-N

11
POWERING
STEP 2
To power the unit plug in the power, plug the
male connector of the corded power adapter
into the designated power port located at the
bottom side of the controller. Then plug the
adapter head into an outlet.
STEP 1
Plug the fan's male molex connector into one
of the two designated probe ports located at
the bottom side of the controller.
AIRTITAN T3 T7

12
PROGRAMMING
1. MODE BUTTON
This button cycles through
each of the controller's
modes settings. Hold for
two seconds to return to
the main screen.

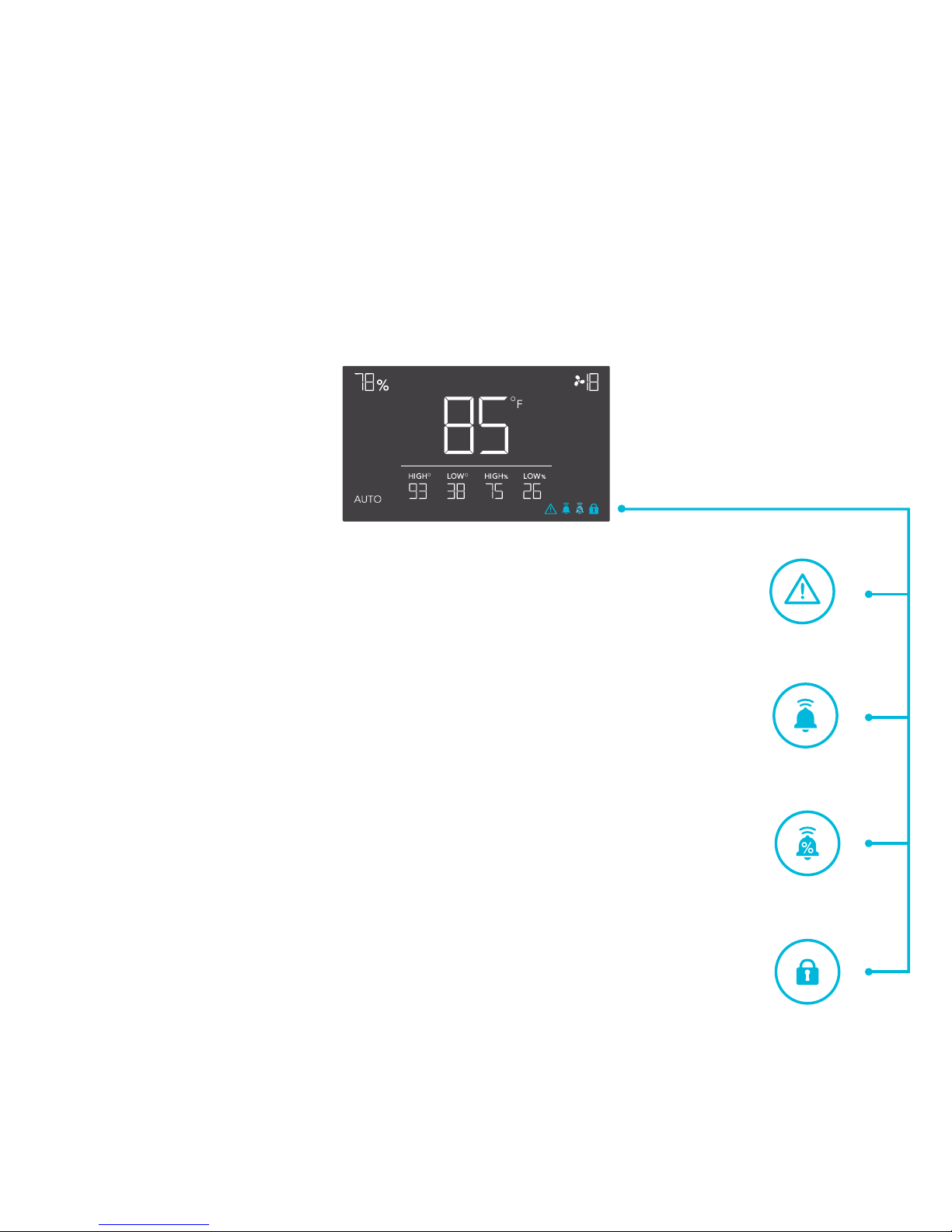

10. ALERT ICONS
The icons on the display represents fan failure, temperature alarm, humidity alarm and display lock.
The icons will flash and may emit an audible beep when triggered.
4. PROBE TEMP.
Displays the current tempera-
ture that the corded sensor
probe is measuring. Shows
“- -” if no probe is plugged in..
5. PROBE HUMIDITY
Displays the current humidity
that the corded sensor probe
is measuring. Shows “- -” if no
probe is plugged in.
7. LOW TEMP.
Displays the low temp. you
have set the fans to run when
the sensor’s temp. falls below
this setting.
8. HIGH HUMIDITY
Displays the high humidity you
have set the fans to run when
the sensor’s humidity exceeds
this setting.
9. LOW HUMIDITY
Displays the low humidity you
have set the fans to run when
the sensor’s humidity falls
below this setting.
6. HIGH TEMP.
Displays the high temp. you
have set the fans to run
when the sensor’s temp.
exceeds this setting.
2. LEAF BUTTON
This turns the display
off while programs run
in the background. Hold
for two seconds to lock
or unlock the display.
3. UP / DOWN BUTTON
This increases, decreases,
or adjusts the settings
of the controller for each
mode. Up to increases and
down to decreases.
4
5
6 7 8
9
10
1
2
3

13
PROGRAMMING
1. MODE
In this settings mode, you can set the fan’s primary program-
ing mode. Remember to return to the main screen after
you finished adjusting your settings.
ON Mode – Fans will run continuously regardless of temper-
ature or humidity. The speed the fans run at will be the speed
you have set in (2) Fan Speed.
OFF Mode – Fans will not run regardless of temperature or humidity.
AUTO Mode – For high temperature or humidity triggers, the fans will start running when the
measured value exceeds your set value. The fans will stop running when the measured value falls
below your set value by the number set as the buffer. For low temperature or humidity triggers,
the fans will start running when the measured value falls below your set value. The fans will stop
running when the measured value rises above your set value by the number set as the buffer. The
speed the fans will run at is the speed set in (2) Fan Speed.
SMART Mode – For high temperature or humidity triggers, the fans will slowly increase in speed
when the measured value exceeds your set value. When the measured value falls below your set
value, the fans will slowly decrease in speed until the fan stops. For low temperature or humidity
triggers, the fans will slowly increase in speed when the measured value falls below your set value.
When the measured value rises above your set value, the fans will slowly decrease in speed until
the fan stops, when the measured value rises above your set value. The max speed the fans will
reach is the speed set in (2) Fan Speed.
2.SPEED
In this mode, the fans will run non-stop regardless
of temperature or humidity. Pressing the up and down
buttons in this mode will change the speed of the fan.
Which ever speed is designated in this mode will also be
the speed used in ON, AUTO and SMART Mode.

14

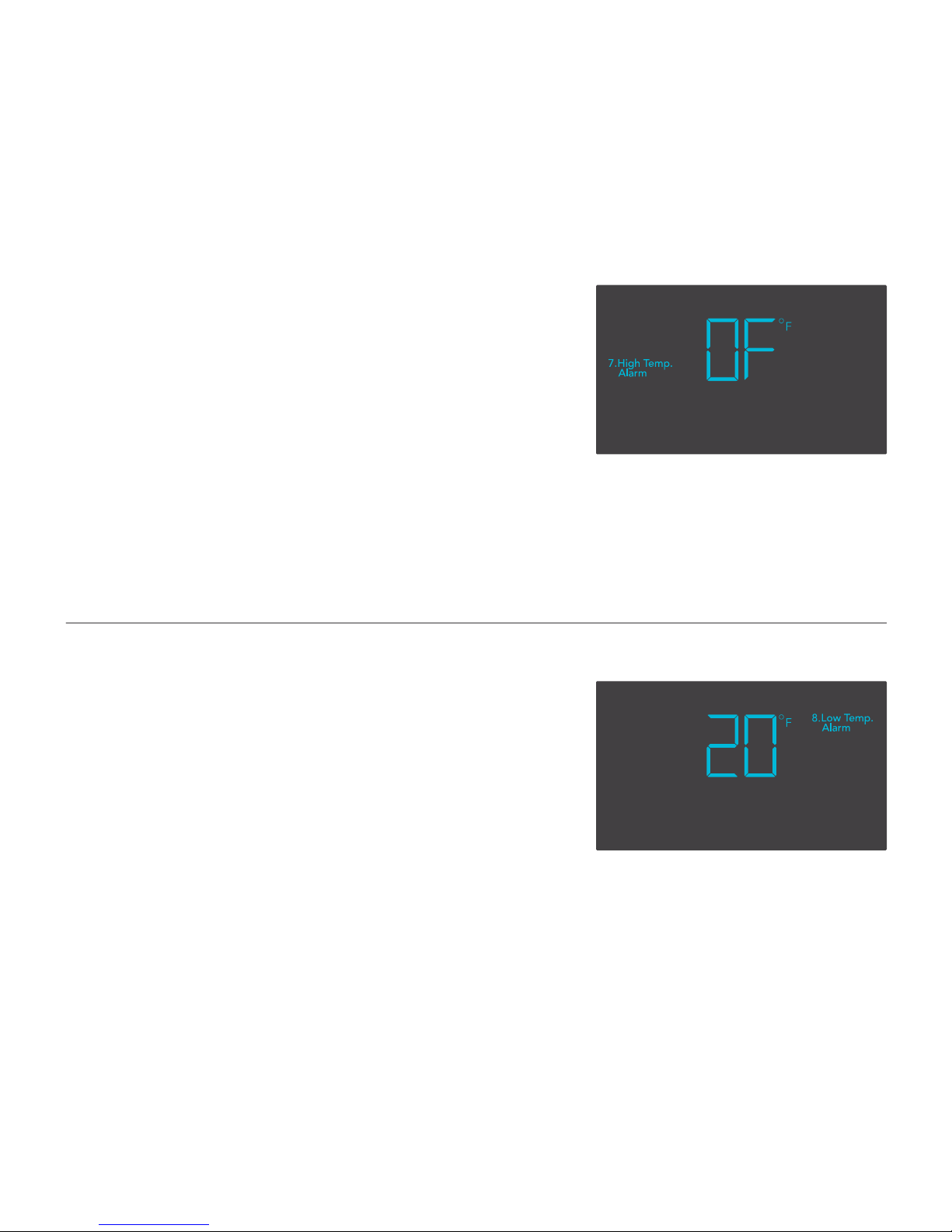

4. LOW TEMP. TRIGGER SETTING
In this settings mode, press the up and down button to
set a low temperature trigger. The fans will activate if the
probe’s measured temperature falls below the temperature
you have set in this mode. If in SMART Mode, activated
fans will slowly increase in speed until it reaches the speed
set in (2) Fan Speed; and will slowly decrease in speed
whenever the measured temperature rises above your
set temperature. If in AUTO Mode, activated fans will run
at the speed set in (2) Fan Speed; and will stop running
whenever the measured temperature rises above your
set temperature by the number as your buffer. You may
also hold the up and down button simultaneously to turn
off this trigger, in which the display will show OF for off.
Remember to return to the main screen after you finished
adjusting your settings.
3. HIGH TEMP. TRIGGER
In this settings mode, press the up and down button to
set a high temperature trigger. The fans will activate if the
probe’s measured temperature exceeds the temperature
you have set in this mode. If in SMART Mode, activated
fans will slowly increase in speed until it reaches the speed
set in (2) Fan Speed; and will slowly decrease in speed
whenever the measured temperature falls below your
set temperature. If in AUTO Mode, activated fans will run
at the speed set in (2) Fan Speed; and will stop running
whenever the measured temperature falls below your set
temperature by the number set as your buffer. You may
also hold the up and down button simultaneously to turn
off this trigger, in which the display will show OF for off.
Remember to return to the main screen after you finished
adjusting your settings.
PROGRAMMING

15
PROGRAMMING
5. HIGH HUMIDITY TRIGGER
In this settings mode, press the up and down button to
set a high humidity trigger. The fans will activate if the
probe’s measured humidity exceeds the humidity you
have set in this mode. If in SMART Mode, activated fans
will slowly increase in speed until it reaches the speed
set in (2) Fan Speed; and will slowly decrease in speed
whenever the measured humidity falls below your set
humidity. If in AUTO Mode, activated fans will run at the
speed set in (2) Fan Speed; and will stop running when-
ever the measured humidity falls below your set humidity
by the number set as your buffer. You may also hold the
up and down button simultaneously to turn off this trig-
ger, in which the display will show OF for off. Remember
to return to the main screen after you finished adjusting
your settings.
6. LOW HUMIDITY TRIGGER
In this settings mode, press the up and down button to
set a low humidity trigger. The fans will activate if the
probe’s measured humidity falls below the humidity you
have set in this mode. If in SMART Mode, activated fans
will slowly increase in speed until it reaches the speed
set in (2) Fan Speed; and will slowly decrease in speed
whenever the measured humidity rises above your set
humidity. If in AUTO Mode, activated fans will run at
the speed set in (2) Fan Speed; and will stop running
whenever the measured humidity rises above your set
humidity by the number set as your buffer. You may also
hold the up and down button simultaneously to turn off
this trigger, in which the display will show OF for off. Re-
member to return to the main screen after you finished
adjusting your settings.

16
PROGRAMMING
7. HIGH TEMPERATURE ALARM
In this settings mode, press the up and down
button to set a high temperature alarm. The
alarm will activate if the probe’s measured
temperature exceeds the temperature you have
set in this mode. When the alarm triggers, the
fan will start spinning at max speed regardless
of your other settings. You may also hold the up
and down button simultaneously to turn off this
alarm, in which the display will show OF for off.
Remember to return to the main screen after
you finished adjusting your settings.
8. LOW TEMPERATURE ALARM
In this settings mode, press the up and down
button to set a low temperature alarm. The
alarm will activate if the probe’s measured tem-
perature falls below the temperature you have
set in this mode. When the alarm triggers, the
fan will start spinning at max speed regardless
of your other settings. You may also hold the up
and down button simultaneously to turn off this
alarm, in which the display will show OF for off.
Remember to return to the main screen after
you finished adjusting your settings.

17
9. HIGH HUMIDITY ALARM
In this settings mode, press the up and down
button to set a high humidity alarm. The alarm
will activate if the probe’s measured humidity
exceeds the humidity you have set in this
mode. When the alarm triggers, the fan will
start spinning at max speed regardless of your
other settings.You may also hold the up and
down button simultaneously to turn off this
alarm, in which the display will show OF for off.
Remember to return to the main screen after
you finished adjusting your settings.
10. LOW HUMIDITY ALARM
In this settings mode, press the up and down
button to set a low humidity alarm. The alarm
will activate if the probe’s measured humidity
falls below the humidity you have set in this
mode. When the alarm triggers, the fan will
start spinning at max speed regardless of your
other settings.You may also hold the up and
down button simultaneously to turn off this
alarm, in which the display will show OF for off.
Remember to return to the main screen after
you finished adjusting your settings.
PROGRAMMING

18
PROGRAMMING
ALERT ICONS
On the bottom right of the display there are four alert icons. They are visible to show that the
system’s functions are being monitored. They will flash when the controller wishes to alert you that
a particular function is being triggered.
FAN FAILURE ALERT
The fan failure icon will flash when one or more fans in the AIRTITAN cooling
system fails. Please see page 21 for contact information regarding fan replace-
ment and exchanges.
TEMPERATURE ALARM ALERT
The temperature alarm alert icon will flash when the probe temperature reaches
or exceeds the high temp. alarm temperature you have set. The alarm will also
turn on if the probe temperature is lower than the low temp. alarm temperature.
HUMIDITY ALARM ALERT
The humidity alarm alert icon will flash when the probe humidity reaches or
exceeds the high humidity alarm humidity you have set. The alarm will also turn
on if the probe humidity is lower than the low humidity alarm humidity.
DISPLAY LOCK ALERT
This icon is not visible when the controller is unlocked. The icon will flash when
any buttons are pressed while the controller is locked. Please see page 19 for
more information.

19
PROGRAMMING
FAHRENHEIT OR CELSIUS
The temperatures displayed can be set to Fahrenheit or Celsius scale by holding up button to
change into Fahrenheit and holding down button to change into Celsius. All digits displayed will be
automatically converted to the designated scale.
DISPLAY BRIGHTNESS
To adjust the brightness of the display, please be in the main screen view, then press the up button
repeatedly to increase the brightness. Press the down button repeatedly to decrease the bright-
ness. There are three brightness settings available.
CONTROLLER LOCK
Holding the LEAF button for three or more seconds will lock the controller. The controller will still
work as programmed; however, pressing any buttons will not have an effect and will cause the
screen lock icon to flash and will make an audible beep three times a second. This option was
designed to prevent your controller settings from being changed by accident. Holding the LEAF
button again for three or more seconds will unlock the controller.
ECO-DISPLAY
To conserve energy, you can choose to set the display into Eco Mode by pressing the button with a
leaf on it to turn the display off. All programs will be operating in the background and fans will still
be triggered to run according to the settings. Press any button will turn the display back on.
BUFFER
Holding the MODE button and up or down button simultaneously, you can change the buffer to 2
or 4. For high temperature or alarm triggers, the fans will stop running when the measured value
falls below your set value by the number set as the buffer. For low temperature or alarm triggers,
the fans will stop running when the measured value rises above your set value by the number set
as the buffer.

20
AC INFINITY PRODUCTS
Register Booster Fans
The AIRTAP series is a line of register booster fans designed to
quietly increase airflow coming from your central heat and air
conditioning systems, increasing comfort for your home. Features a
thermal controller with intelligent programming that will automatically
adjust airflow strength in response to heating and cooling
temperatures you have set.
Duct Fans
The CLOUDLINE series is a line of duct fans designed to quietly ven-
tilate AV rooms and closets, as well as various DIY air circulation and
exhaust projects. Features a thermal controller with intelligent pro-
gramming that will automatically adjust duct fan speeds in response
to changing temperatures.
Project Muffin Fans
The AXIAL series fan kit is designed for various DIY projects that
requires cooling or ventilation; or as a replacement fan for many prod-
ucts on the market. Each fan kit includes fan guards and everything
needed to mount the unit onto a wall and power it through a wall
outlet. S-series models include a speed controller.
Discover the latest innovations in cooling and ventilation at acinfinity.com
