AC Infinity CLOUDRAY User manual

USER MANUALUSER MANUAL
CLOUDRAY
CIRCULATION FAN SYSTEM

3
WELCOME
Thank you for choosing AC Infinity. We are committed to product quality and friendly customer service.
If you have any questions or suggestions, please don’t hesitate to contact us. Visit www.acinfinity.com
and click contact for our contact information.
EMAIL
[e-mail]
WEB
www.acinfinity.com
LOCATION
Los Angeles, CA

4
MANUAL CODE CC2111X1
PRODUCT
CLOUDRAY A6
CLOUDRAY S6
CLOUDRAY T6
CLOUDRAY A9
CLOUDRAY S9
CLOUDRAY T9
MODEL
AC-CCA6
AC-CCS6
AC-CCT6
AC-CCA9
AC-CCS9
AC-CCT9
UPC-A
819137022416
819137022423
819137022447
819137022454
819137022461
819137022478

5
MANUAL INDEX
Manual Index .................................................................................
Product Warning ............................................................................
Recommended Usage ...................................................................
Key Features .................................................................................
Product Contents ...........................................................................
Installation .....................................................................................
Powering and Setup ......................................................................
Universal Infinity System ...............................................................
Connecting to Controllers ..............................................................
Programming ................................................................................
Other AC Infinity Products .............................................................
Warranty ........................................................................................
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 12
Page 13
Page 14
Page 15
Page 17
Page 18

6
Ensure your power source conforms to the electrical requirements of this product.
Check your local code restrictions for additional safety measures that may be needed for a
proper code compliant installation.
Read all instructions before installing and using this product.
If you are unfamiliar or have doubts about performing this product’s installation, seek the
services of a qualified, trained, and licensed professional. Inappropriate installation will void
this product’s warranty.
This product must not be used in potentially hazardous locations such as flammable,
explosive, chemical-laden or wet atmospheres.
Ducted products must always be vented to outdoor areas.
Do not cover power cords with rugs or other fabric materials.
This product has rotating parts. Safety precautions should be exercised during the installation,
operation, and maintenance of this product.
Do not insert or allow fingers or foreign objects to enter any ventilation or exhaust openings as
it may cause electric shock, fire, or damage to this product. Do not block or tamper with this
product in any manner while it is in operation.
Do not depend on the on/off programming as the sole means of shutting power from this
product. Unplug the power cord before installing, servicing, or moving this product.
Do not operate this product while its cord is damaged, or if it malfunctions, has been dropped,
or is damaged in any manner.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
PRODUCT WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:

7
RECOMMENDED USAGE
REDUCING CORD TENSION
Please make sure to provide enough slack for
the power cord and the extension cord. The fan
should be able to oscillate freely without having
to tug on its cords.
MAXIMIZING LIFESPAN
To maximize the fan's lifespan, we do not
recommend having it oscillate nonstop for more
than 18 hours per day. This will preserve the
motor by passively keeping it cool to prevent it
from wearing down.
18 hr.
ON
6 hr.
OFF

8
KEY FEATURES
COMPACT BASE
Shallower motor base
allows for closer mounting
to poles to maximize
amount of grow space.
EC MOTOR
Next generation motor runs
quieter, is more energy
efficient, and has a longer
lifespan than AC motors.
IP-44 PROTECTION
The clip fan is sealed to Ingress
Protection 44 standards, rated
with high resistance to liquids
and dust.
PWM SPEED CONTROL
Digitally controlled to enable low
speeds for gentler airflow while
expanding maximum level range
to ten fan speeds.
UIS™ COMPATIBLE
Connects with UIS
controllers for temperature,
humidity, timer, cycle, and
schedule programming.
DUAL BALL BEARINGS
The motor contains ball bearings
with an estimated 67,000 hour
lifespan. Enables the fan to be
mounted in any orientation.

9
PRODUCT CONTENTS
CABLE
MOUNT
(x1)
CABLE
TIE
(x4)
CIRCULATION
FAN
(x1)
ADAPTER
DONGLE
(x1)
EXTENSION
CORD
(x1)
GRIP
CLIP
(x1)

10
INSTALLATION
STEP 1
Twist to remove the bigger knob piece from the
grip clip.
Pull the smaller button piece from the vice grip.
STEP 2
Slide the grip clip into the swivel.
You may need to pull its clamps apart for it to fit
over the swivel. This tightness ensures the fan
will not tilt downwards on its own.

11
INSTALLATION
STEP 3
Replace the knob and button on either side of
the mounting point as desired.
STEP 4
Clamp the fan onto a pole or post.

12
POWERING AND SETUP
STEP 1
Plug the fan's power cord into an AC power
outlet to power the fan.
STEP 2
You may cable manage the cords using the
included cable ties or cable mounting set.
Adhere the tie mount onto a clean surface. Loop
the zip tie into the mount and around the cables.

13
AN INTERCONNECTED GROW SETUP
The Universal Infinity System™ is a series of controllers and devices that come together to create
a fully automated system. UIS enables our controllers to simultaneously connect with various grow
equipment such as inline fans, clip-on fans, and grow lights. Advance UIS controllers can provide
each connected UIS device with their own automated programming like temperature, humidity,
cycles, schedules, and dynamic levels, while also pairing with the AC Infinity app.
UNIVERSAL INFINITY SYSTEM

14
MOLEX CONNECTORS
To connect to previous gen controllers such T-Series controller (UNC529) or CONTROLLER
67, please use the included adapter dongle to convert the controller’s molex connector to a UIS
connector. Then use the included UIS extension cord to connect that to the CLOURDAY fan’s
UIS port.
CONNECTING TO CONTROLLERS
Model shown: CONTROLLER 67
The CLOUDRAY circulation fan can connect with
select smart controllers as part of an integrated
system using the included UIS cable. Please see
below for limitations.
UIS CONNECTORS
To connect to the latest gen controllers such
as CONTROLLER 69, please use the included
UIS extension cord to directly connect the
CLOUDRAY fan’s UIS port to the controller’s
UIS port.

15
FAN SPEED ADJUSTING
The clip fan features a single button that cycles
through the fan speed from 0-10, indicated by
the ring of LED lights below.
Press the speed button to increase the fan
speed level by one.
Pressing the button past speed 10 will cycle the
fan speed back to 0.
POWERING ON/OFF
Hold the speed button for 4 seconds to turn the
fan OFF. Pressing it again from OFF will turn
the fan ON at its last speed setting.
PROGRAMMING
Fan Speed
Indicator
A-SERIES

16
OSCILLATION
In addition to the standard features, S-Series
models can oscillate to provide airflow at a
wider angle.
Press the swivel button to activate the clip
fan's oscillation.
The oscillation function is manually activated
using the button as indicated here and cannot
be controlled using external UIS programming.
If set to off, the clip fan will not oscillate
regardless of any external programs.
If set to on, oscillation will automatically start
if the external program activates the clip fan
to turn ON. Oscillation will then automatically
stop if the external program deactivates the
clip fan to turn OFF.
PROGRAMMING
S-SERIES
Leaving the oscillation activated for more than
24 hours at a time may reduce the lifespan of
the clip fan.

17
AC INFINITY PRODUCTS
Carbon Filters
The duct carbon filter is designed to eliminate odors and chemicals
for grow tents and hydroponic spaces. It utilizes premium grade
Australian charcoal that features greater absorption power and a
longer lifespan. Enables maximum airflow pass through as part of an
intake or an exhaust system.
Grow Lights
An indoor LED grow lamp designed to simulate outdoor daytime
lighting to improve and accelerate your plant’s photosynthesis.
Using the latest Samsung LM301H diodes, this LED grow system
efficiently produces full-spectrum lighting usable during all stages of
the grow cycle.
Discover the latest innovations in cooling and ventilation at acinfinity.com

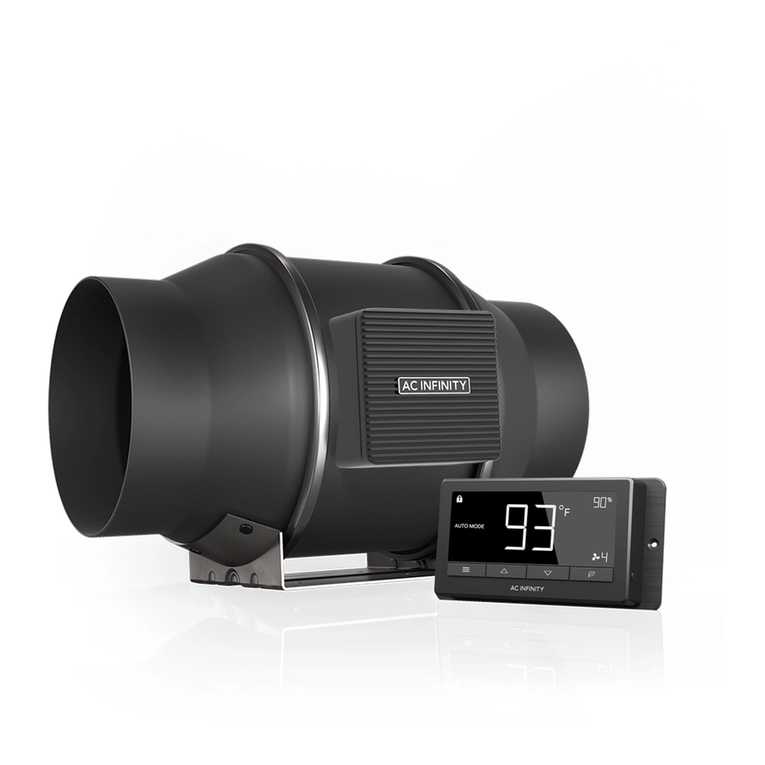

Inline Duct Fans
The CLOUDLINE series is a line of duct fans designed to quietly
ventilate AV rooms and closets, as well as various DIY air circulation
and exhaust projects. Features a thermal controller with intelligent
programming that will automatically adjust duct fan speeds in
response to changing temperatures.

18
WARRANTY
If you have any issues with this product, contact us and we’ll
happily resolve your problem or issue a full refund!
This warranty program is our commitment to you, the product sold by AC Infinity will be free from
defects in manufacturing for a period of two years from the date of purchase. If a product is found
to have a defect in material or workmanship, we will take the appropriate actions defined in this
warranty to resolve any issues.
The warranty program applies to any order, purchase, receipt, or use of any products sold by AC
Infinity or our authorized dealerships. The program covers products that have become defective,
malfunctioned, or expressively if the product becomes unusable. The warranty program goes into
effect on the date of purchase. The program will expire two years from the date of purchase. If your
product becomes defective during that period, AC Infinity will replace your product with a new one
or issue you a full refund.
The warranty program does not cover abuse or misuse. This includes physical damage, submersion
of the product in water, incorrect Installation such as wrong voltage input, and misuse for any
reason other than intended purposes. AC Infinity is not responsible for consequential loss or
incidental damages of any nature caused by the product. We will not warrant damage from normal
wear such as scratches and dings.
To initiate a product warranty claim, please contact our customer service team at
[e-mail]
