Acare ASU-200 User manual

“Acare” Suction Unit
ASU-200 User Manual
Model No.: ASU-200
Please read the instruction manual before use
Issued Date: Feb. 02, 2018
Version: 2.1

Contents
１、 Introduction ------------------------------------------------------------- 4
２、 Product Description -----------------------------------------------------4
３、 Set-up -------------------------------------------------------------------- 5
４、 Operation Instruction----------------------------------------------------5
５、 Cleaning & Maintain ----------------------------------------------------7
６、 Troubleshooting ---------------------------------------------------------7
７、 Technical Specification --------------------------------------------------8
８、 Power Adapter-----------------------------------------------------------8
９、 Symbol Definitions ------------------------------------------------------9
１０、 Electromagnetic Compatibility----------------------------------------10

Please read the instruction manual before use
Warning & Caution
1. This device is intended for use by professional. The manufacture recommends that
user train on use this device.
2. Do not place or store product where it can fall or be pulled into a tub or sink.
3. Do not place in or drop into water or other liquid.
4. Do not reach for a product that has fallen into water. Unplug immediately.
5. To reduce the risk of burns, electrocution, fire or injury.
6. This product should never be left unattended when plugged in.
7. Close supervision is necessary when this product is used by, on, or near children or
invalids.
8. Use this product only for its intended use as described in this manual, do not use
attachments not recommended by the manufacturer.
9. Never operate this product if it has a damaged cord or plug, if it is not working
properly, if it has been dropped or damaged, or dropped into water. Return the
product to the provider for examination and repair.
10. Keep the cord away from heated surfaces.
11. The device can also use for field and/or transport.

Chapter 1. Introduction
1.1 General Information
Intend Use
The device is used to remove fluids from the airway or respiratory support system and infectious materials
from wounds. The device creates a negative pressure (vacuum) that draws fluids through disposable tubing
that is connected to a collection container. The fluids are trapped in the collection container for proper
disposal. It is for use on the order of a physician only.
THIS DEVICE IS NOT INTENDED FOR HEMOSPASIA
Chapter 2. Product Description

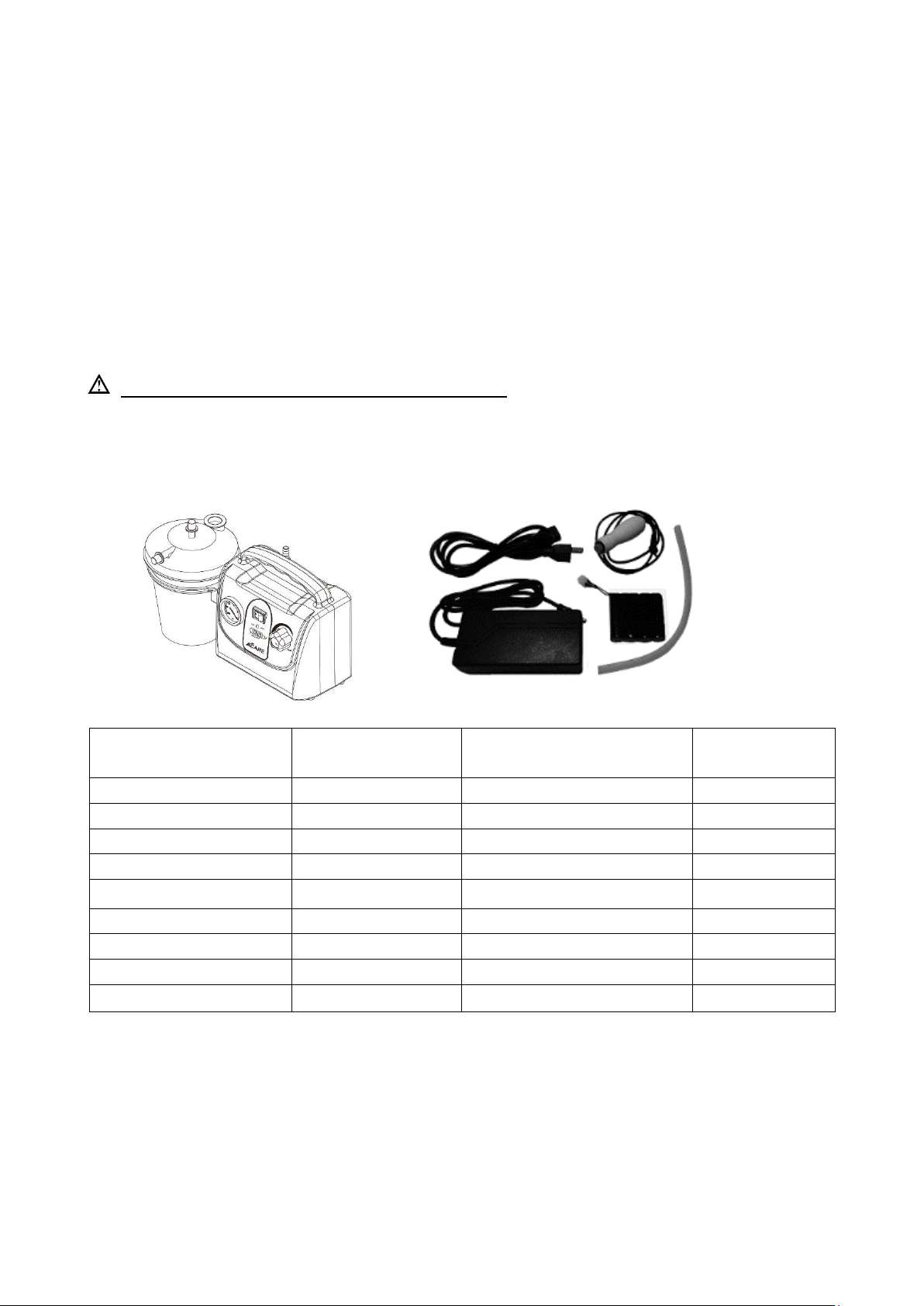

Product
Model
Specification
Standard
Accessory
(1) Suction unit
ASU-200
80 KPA

(2) Suction container
LAB-0019-00Z8
1000 ml

(3) Connection tube
φ7mm*φ12mm

(4) Bacteria filter
AHD-0012-00A1

(5) Patient tube
φ6mm*φ10mm*1800mm
(6) Remote controller
ARE-0019-00A2
(7) Battery
LB-04
2500 mAh

(8) Power adapter
UE60-180334SPA3
100-240V

(9) Carrying bag


Chapter 3. Set-up
(1) Connect the connection tube on the vacuum outlet.
(2) Connect the other side of connection tube on the suction container.
(3) Hook up the container with the container connection base.
(4) Connect either end of the suction tubing to the tubing connector then connect the other end to the
bacteria filter. Ensure that the clear side of the bacteria filter is toward elbow and container when
installing/re-installing. Do not reverse direction of filter
(5) Please assure that all connections are secure and without leaks before using.
Chapter 4. Operation Instruction

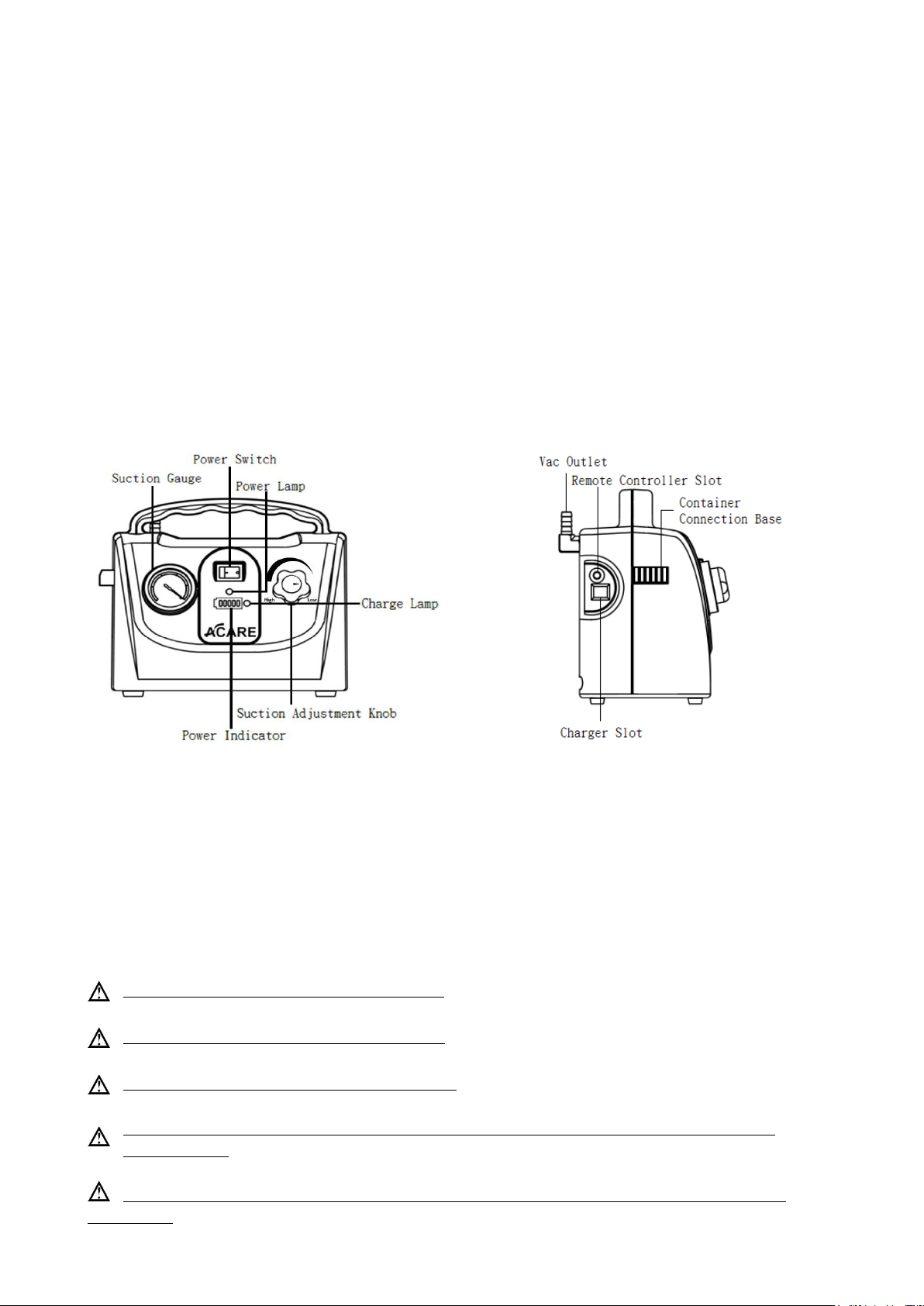

Front Panel
Device Operation
(1) Open the device.
(2) Adjust the pressure.
(3) Verify that unit is at desired suction level before beginning.
(4) Insert the suction tube to a suitable depth in patient’s nostril patient suction
(5) Close the device after use
Do Not Exceed 15 Seconds for Each Therapy
Do Not Block the Exhaust Outlet During Use
No Modification of this Equipment is Allowed
To Avoid the Risk of Electric Shock, this Equipment Must only be Connected to a Supply Mains with
Protective Earth
If the protect mechanism of the container triggered, turn off the device and disconnect the container
immediately.

Chapter 5. Cleaning & Maintain
-Device
(1) Recommend that pour the liquid in the container before met the full line.
(2) Disinfected with diluted medical alcohol to clean the device surface after use.
(3) Disinfected with diluted medical alcohol to clean the accessories, such as suction container, connection
tube, and suction tube…etc.
(4) Charge the device for 3hrs at least once per month.
(5) The reusable collection canister is single-patient use and should be replaced every 1 to 2 months.
- Bacteria Filter
(1) The filter can’t be cleaned.
(2) If the filter gets wet, or becomes contaminated or clogged, it must be replaced.
Chapter 6. Troubleshooting
Problem
Possible Cause
Solutions
Pump runs,
but no vacuum
1. Tubing isn’t connected properly.
2. Tubing breaks or leaks.
3. Container do not assembly properly.
4. Container breaks or leaks.
1. Assembly the tube properly.
2. Contact your equipment provider for repair
Unit does not
working when
power is opened
1. Switch broken.
2. PCB board broken.
Contact your equipment provider for repair
Vacuum
delivered, but
gauge did not
display the
values
1. Tubing isn’t connected properly.
2. Gauge broken
Contact your equipment provider for repair
Battery will not
hold a charge.
1. Charging IC broken
2. Battery life expires
1. Ensure that unit is equipped with battery.
2. Verify that charge light turns on.
3. Check electrical connections during
charging.
4. Contact your equipment provider for repair
Low vacuum
1. Tubing isn’t connected properly.
2. Pump broken.
3. Suction container full.
1. Assembly the tube properly.
2. Contact your
equipment provider for repair
Abnormal sound
when the device
working
1. Pump broken
2. Waste liquid or water
countercurrent to the machine
Contact your equipment provider for repair

Chapter 7. Technical Specification
Item
Specifications
Power Consumption
35VA
Max Suction Pressure
-600 mmHg (-80 Kpa)
Exhaust Air Volume
24 L/MIN
Supply Voltage
AC 100-240V, 50/60Hz / DC 18V, 3.34A
Acare Car Charger for DC 12V
Lithium Battery
14.8 VDC, 2.5 AH
Charging time: 3 hours
Using Time: 60 min, after full charged
Sound Level
<70 dB (A)
Container
1000ml
Unit
190mm(L) x 110mm (W) x 175mm (H)
Weight
1.7 Kg
Temperature
Operation: +10~+40˚C
Transport and Storage: -15~+50˚C
Humidity
10％～90％RH
Operation Pressure
700-1060hPa
Operation Height
<3000m
Patient Tube
φ6mm*φ10mm*1800mm
Output level
High vacuum/High flow
NOTE: The manufacturer reserves the right to modify the specification without notice
Chapter 8. Power Adapter
Part Number
Description
UOM
Manufacturer
UE60-180334SPAX
AC Power Cord for
ASU-200
1/ea
Dongguan Shilong Fuhua Electronic Co., Ltd.
The power adapter plug is also served to disconnect the device, not to position the equipment to make it
difficult to operate the disconnection device.

Chapter 9. Symbol Definitions
Symbol
Explain
Symbol
Explain
Type BF applied part
The patient tubing is
applied part.
IP21
Protect against solid
foreign objects of 50
mm φ& Protected
against vertically falling
water drops
Attention, Consult
accompanying
documents
SN
Serial number of the
product
Manufacturer
Consult accompanying
documents
Manufacturing Date
Authorized
representative in the
European Community.
Dispose the waste
equipment according
to the national law.

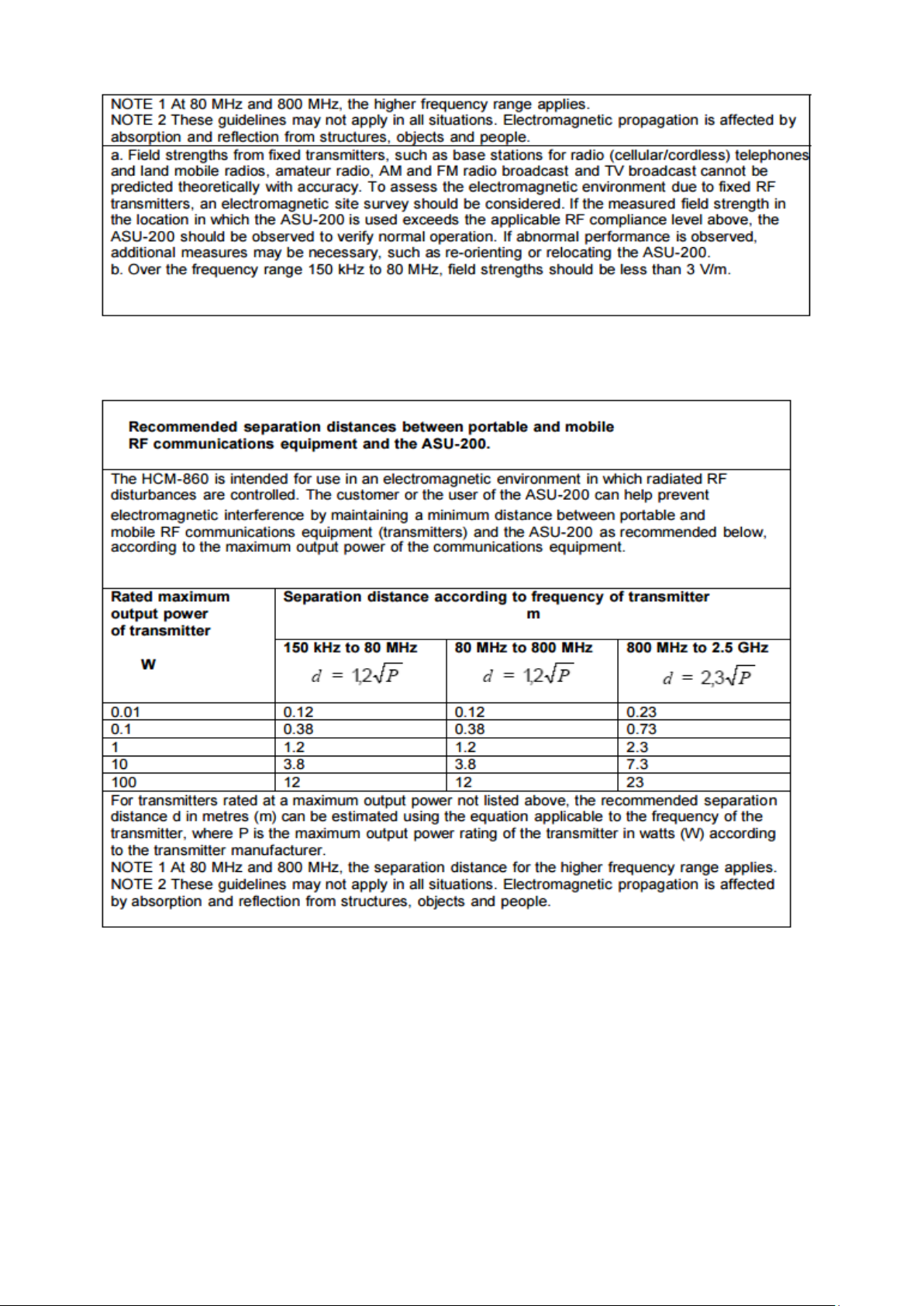

Chapter 10. Electromagnetic Compatibility

Acare Technology Co., Ltd.
Address: 6F-3, No.24, Wuquan 2nd Rd., Xinzhuang
Dist., New Taipei City 24892, Taiwan
TEL : [phone]
FAX : [phone]
http://www.acaretech.com
Made in Taiwan
2460
MEDIPRO
Villapark Business Park, Av Quitapesares 8, Building 8
Villaviciosa de Odon (Madrid) 28670, Spain
