AccuRelief MiniTENS ACRL-1000 User manual

Mini
TENS
Natural, drug-free pain relief
20 Minute Treatment – Single Patient Use
Model ACRL-1000
User Manual
Clinically
Proven

This manual is valid for the AccuRelief™ Mini TENS ACRL-1000
This instruction manual is published by Carex Health Brands.
Carex Health Brands reserves the right to improve and amend this manual at any time without prior notice.
Amendments may however be published in new editions of this manual.
All Rights Reserved. Rev. V 2.0 © 2014, 20140512
Conformity to safety standards
Carex Health Brands declares that the device complies with the following normative documents:
IEC60601-1, IEC60601-1-2, I EC60601-2-10, IEC62366,
ISO10993-5, ISO10993-10, ISO10993-1, ISO7010

3
TABLE OF CONTENTS
Introduction .............................................................................................................................. 4
Important safety precautions and warnings ............................................................................... 6
Product structure .................................................................................................................... 13
Battery information ................................................................................................................. 14
Treatment information ............................................................................................................. 15
Gel pad positioning ................................................................................................................ 17
Maintenance and cautions ..................................................................................................... 18
Disposal.................................................................................................................................. 18
Storage................................................................................................................................... 18
Technical specifications........................................................................................................... 19
Program ................................................................................................................................. 19
Troubleshooting ...................................................................................................................... 20
Important information regarding electromagnetic compatibility (EMC)....................................... 21
Explanation of symbols ........................................................................................................... 28
Warranty ................................................................................................................................. 29

4
perception. TENS does not cure any physiological
problem. It only helps control the pain. TENS does
not work for everyone. However, in most patients,
it is effective in reducing or eliminating the pain,
allowing for a return to normal activity.
How does TENS work?
Scientific theory suggests that electrical stimulation
therapy may work in several ways:
n The gentle electrical pulses move through the
skin to nerves nearby the sources of pain,
shutting out the pain message from ever
reaching the brain.
n The gentle electrical pulses increase the
production of endorphins, the body’s natural
pain killer.
INTRODUCTION
Thank you for purchasing the AccuRelief™ Mini
TENS (Model ACRL-1000) for your pain relief
solution.
Please read the complete manual carefully before
using the device for the first time, and keep this
instruction manual in a convenient place or store
with the device for future reference.
The pain reliever ACRL-1000 is a TENS stimulator.
What is TENS?
TENS stands for Transcutaneous Electrical Nerve
Stimulation. It is a noninvasive, drug-free method of
controlling pain. TENS uses tiny electrical impulses
sent through the skin to the nerves to modify pain

5
What conditions can TENS help relieve?
TENS provides pain relief for a number of different
pain conditions associated with exercise, normal
work and household activities. This product is
designed for temporary relief of muscle and joint
bone pain in the:
n Neck n Waist
n Shoulder n Upper Extremities (arms)
n Back n Lower Extremities (leg)
The pain reliever should be applied to
normal, healthy, clean and dry skin of
adult patients.
What can I treat?
The Pain Reliever can treat many different types of

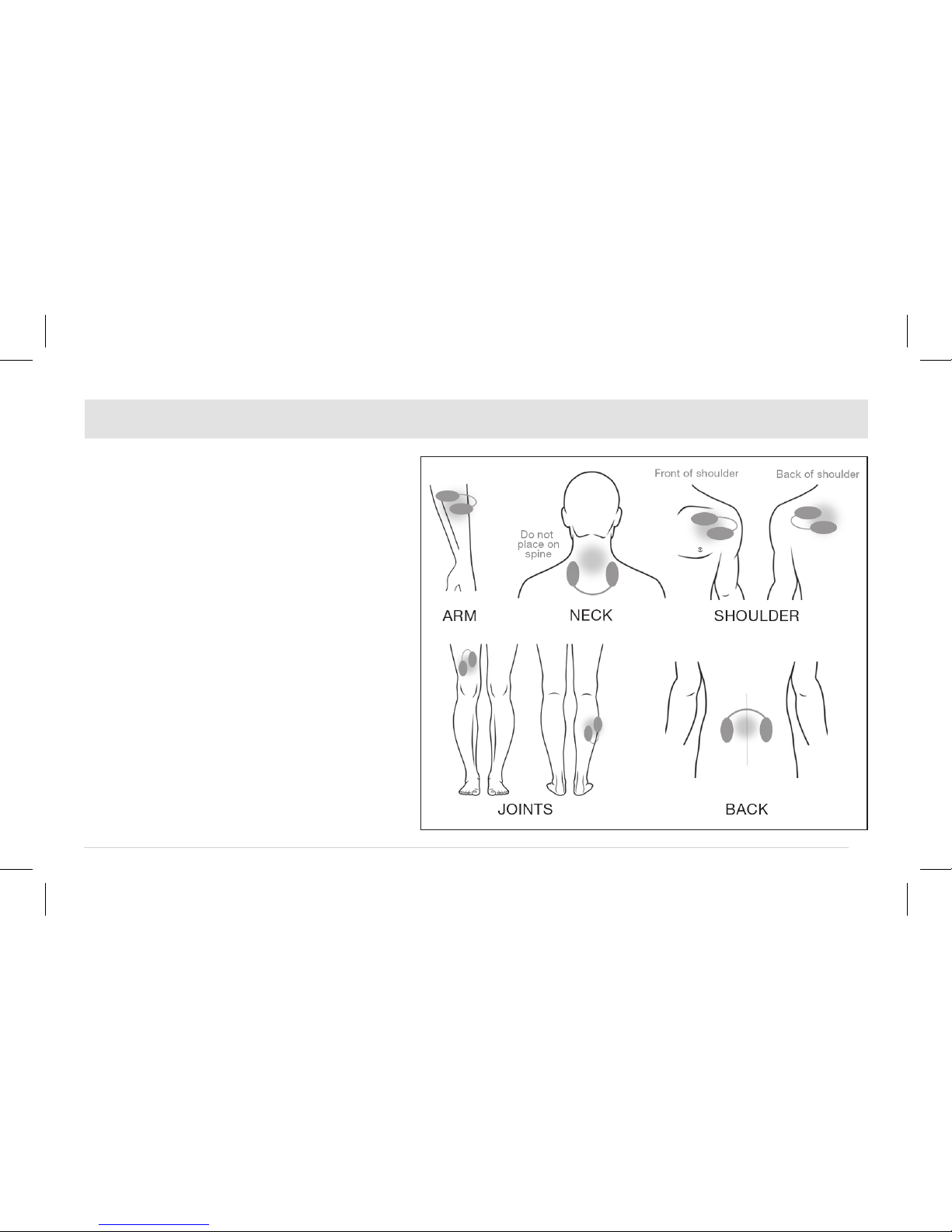

pain. Refer to diagrams on page 17 for the ideal
locations to place the gel pads for the treatment of
the most common forms of pain. For other areas
of pain, place the gel pads on either side of the
pain area.
PLEASE NOTE: Never place the gel pads on the
head, face, heart, chest area, eyes, oral cavity,
sexual organs or over the spine or bony premises.
How long can I use the Mini TENS unit?
You may use the Mini TENS unit for at least 20
minutes a day. However, initially, you may need
to wear it for longer. Please seek medical advice.
If you wear it for longer periods, please check
your skin where the gel pads have been placed to
ensure your skin does not become sore.
PLEASE NOTE: The gel pads are designed for
temporary use for approximately 7 days when
used for 20 minutes a day.
The Mini TENS ACRL-1000 contains the following
components:
n 1 x 3V CR2032 battery n 2 x gel pads
n 1 x Mini TENS n 1 x user manual
n Quick start guide

6
SAFETY SYMBOLS USED IN THIS MANUAL
Indicates a potentially hazardous situation
which, if not avoided, could result in death
or serious injury.
Indicates a potentially hazardous situation
which, if not avoided, could result in
serious injury and equipment damage.
Indicates a potentially hazardous situation
which, if not avoided, may result in minor
or moderate injury to the user, or damage
to the device or other property.
IMPORTANT SAFETY PRECAUTIONS AND WARNINGS
It is important that you read all the warning and precautions included in this manual because they
are intended to keep you safe, prevent injury and avoid a situation that could result in damage to
the device.
DANGER
This stimulator must not be used in
combination with the following medical
devices:
n Internally transplanted electronic medical
devices, such as pacemakers.
n Electronic life-support equipment, such as
respirators.
n Electronic medical devices attached to the body,
such as electrocardiographs.
Using this stimulator with other electronic medical
devices may cause erroneous operation of those
devices.

7
WARNING
Consult with your physician before using
this device, because the device may
cause lethal rhythm disturbances in certain
susceptible individuals.
DO NOT USE THIS DEVICE UNDER
THESE CONDITIONS:
n If you have a cardiac pacemaker, active
implanted defibrillator, or other implanted
metallic or electronic device. Such use
could cause electric shock, burns, electrical
interference, or death.
n Together with a life-supporting medical
electronic device such as an artificial heart, lung
or respirator.
n In the presence of electronic monitoring
equipment (e.g., cardiac monitors, ECG alarms),
which may not operate properly when the
electrical stimulation device is in use.
n On open wounds or rashes, over swollen, red,
infected, inflamed areas, or skin eruptions (e.g.,
phlebitis, thrombophlebitis, varicose veins); or
on top of, or in proximity to, cancerous lesions.
n Over areas of skin that lack normal sensation.
n On the opposite sides of your head since the
effects of stimulation of the brain are unknown.
DO NOT USE ON THESE INDIVIDUALS:
n Pregnant women, because the safety of
electrical stimulation during pregnancy has not
been established.
n Children or infants, because the device has not
been evaluated for pediatric use.
n Persons incapable of expressing their thoughts
or intentions.

8
DO NOT USE THIS DEVICE DURING
THESE ACTIVITIES:
n Bathing or showering;
n Sleeping;
n Driving, operating machinery or any activity in
which electrical stimulation can put you at risk
for injury.
PAIN MANAGEMENT WARNINGS
n If you have had medical or physical treatment
for your pain, consult with your physician before
using this device.
n If your pain does not improve, becomes
seriously chronic or severe, or continues for
more than five days, stop using the device and
consult with your physician.
n The mere existence of pain functions as a very
important warning telling us that something
is wrong. Therefore, if you suffer from any
serious illness, consult your physician in order
to confirm that it is advisable for you to use this
TENS unit.
WARNINGS AND PRECAUTIONS
REGARDING THE PADS
n Apply pads to normal, healthy, clean, dry skin
(of adult patients) because it may otherwise
disrupt the healing process.
n If you experience any skin irritation or redness
after a session, do not continue stimulation in
that area of the skin.
NEVER APPLY THE PADS TO:
n The head or any area of the face.
n Any area of the throat because this can cause
severe muscle spasms resulting in closure
of the airway, difficulty breathing, or adverse
effects on heart rhythm or blood pressure.

9
n Both sides of the thorax simultaneously (lateral
or front and back), or across your chest
because the introduction of electrical current
may cause rhythm disturbances, which could
be lethal.
CAUTION
WARNINGS AND PRECAUTIONS
REGARDING THE PADS
n Do not bend or fold because the pads may
not function properly. Place the pads onto the
plastic film provided and then store in the sealed
package when not in use.
n Do not apply ointment or any solvent to the
pads or to your skin because it will keep the
pads from functioning properly.
n The pads are already pre-gelled and will adhere
to your skin.
n To avoid damage to the adhesive surface of the
pads, put the pads only on the skin or on the
plastic film provided.
n Place the pads at least 2 inches apart on your
skin. The pads should never touch each other.
n Always place clean pads in accordance with the
illustrations provided (Refer to page 17 for pad
placement).
n Make sure the components are connected well
and the pads are fixed on the part of the body
you wish to treat or the therapy may not be
effective.
DO NOT USE YOUR PADS THIS WAY:
n Pads should not touch each other
when placed onto your skin.
n Do not place on your spine or backbone.
n Pads should not touch any metal object, such
as a belt buckle, necklace or other jewelry made
from metal.

10
n Pads should not be placed simultaneously on
the soles of both feet.
n Pads should not be placed simultaneously on
the calves of both legs.
n Do not share pads with another person. This
may cause a skin irritation or infection. Pads are
intended for use by one person.
n Do not place or relocate the pads while the
device is on.
n Always turn the power off before removing or
changing the pad location.
n Do not leave pads attached to the skin after
treatment.
CAUTION WHILE USING THE TENS UNIT
n If the TENS unit is not functioning properly or
you feel discomfort, immediately stop using the
device.
n Do not use for any other purpose except as
described in this manual.
n Do not pull on the electrode cord during
treatment.
n Do not use the TENS device while wearing
electronic devices such as watches as this may
damage the device.
n Do not use near a cell phone as this may cause
the TENS unit to malfunction.
n Do not bend or pull the end of the cord.
n Do not throw the batteries into a fire. The
batteries may explode.
n Dispose of the device, batteries, and
components according to applicable legal
regulations. Unlawful disposal may cause
environmental pollution.

11
n The size, shape and type of pads may affect the
safety and effectiveness of electrical stimulation.
Use only the AccuRelief™ brand electrode
(AccuRelief™ Supply Kit - ACRL-0002)
designed specifically for the ACRL-1000 Mini
TENS device.
GENERAL PRECAUTIONS
n The long-term effects of electrical stimulation are
unknown.
n Apply stimulation to only normal, intact, clean,
dry, and healthy skin.
n TENS is not effective in treating the original
source or cause of the pain, including
headache.
n TENS is not a substitute for pain medications
and other pain management therapies.
n TENS devices do not cure diseases or injuries.
n TENS is a symptomatic treatment and, as such,
suppresses the sensation of pain that would
otherwise serve as a protective mechanism.
n You may experience skin irritation or
hypersensitivity due to the electrical stimulation
or electrical conductive medium (gel) on the
electrodes.
n If you have suspected or diagnosed heart
disease, you should follow precautions
recommended by your physician.
n If you have suspected or diagnosed epilepsy,
you should follow precautions recommended by
your physician.
n Use caution if you have a tendency to bleed
internally, such as following an injury or fracture.
n Consult with your physician prior to using
the device after a recent surgical procedure,
because stimulation may disrupt the healing
process.

12
n This stimulation should not be applied over the
menstruating or pregnant uterus.
n This stimulation should not be applied over
areas of skin that lack normal sensation.
n Keep unit out of reach of young
children. The unit contains small pieces
that may be swallowed. Contact your
physician immediately if ingested.
n Use only the AccuRelief™ brand electrode
(AccuRelief™ Supply Kit – ACRL-0002)
designed specifically for the ACRL-1000
Mini TENS device.
POSSIBLE ADVERSE REACTIONS
n Do not use device to treat one region for
extended periods of time (more than 20 minutes
a session, up to 3 times/day) or muscles in that
region may become exhausted and sore.
n You may experience skin irritation and burns
beneath the stimulation electrodes applied to
your skin.
n You should stop using the device and consult
with your physician if you experience adverse
reactions from using the device.

13
PRODUCT STRUCTURE
Mini TENS
Back of unitFront of unit

14
1. Remove the larger
+ button from the
gel pad.
2. Using a coin, turn
the battery cover
counterclockwise
to open.
3. Place the battery
in the battery
compartment so
the positive terminal ( + ) faces upward.
4. Close the battery cover by turning it clockwise.
Then snap the electrode pad to the back of
the device.
BATTERY INFORMATION
WARNING
If battery leaks and comes into contact with
the skin or eyes, wash immediately with
large amounts of water.
The AccuRelief™ Mini
TENS ships with the
battery installed. Before
operating, pull the
plastic protective strip
from the back of the
positive “+” electrode.
NOTES:
n Remove the battery if the device is not in use for
long periods of time.
n Keep battery out of the reach of children.
n Dispose of the used battery safely according to
local regulations.
BATTERY REPLACEMENT:
12
34

15
STEP 1 Cleaning of skin
Clip excess hair from the treatment area. Wash area
with soap and water, and dry completely.

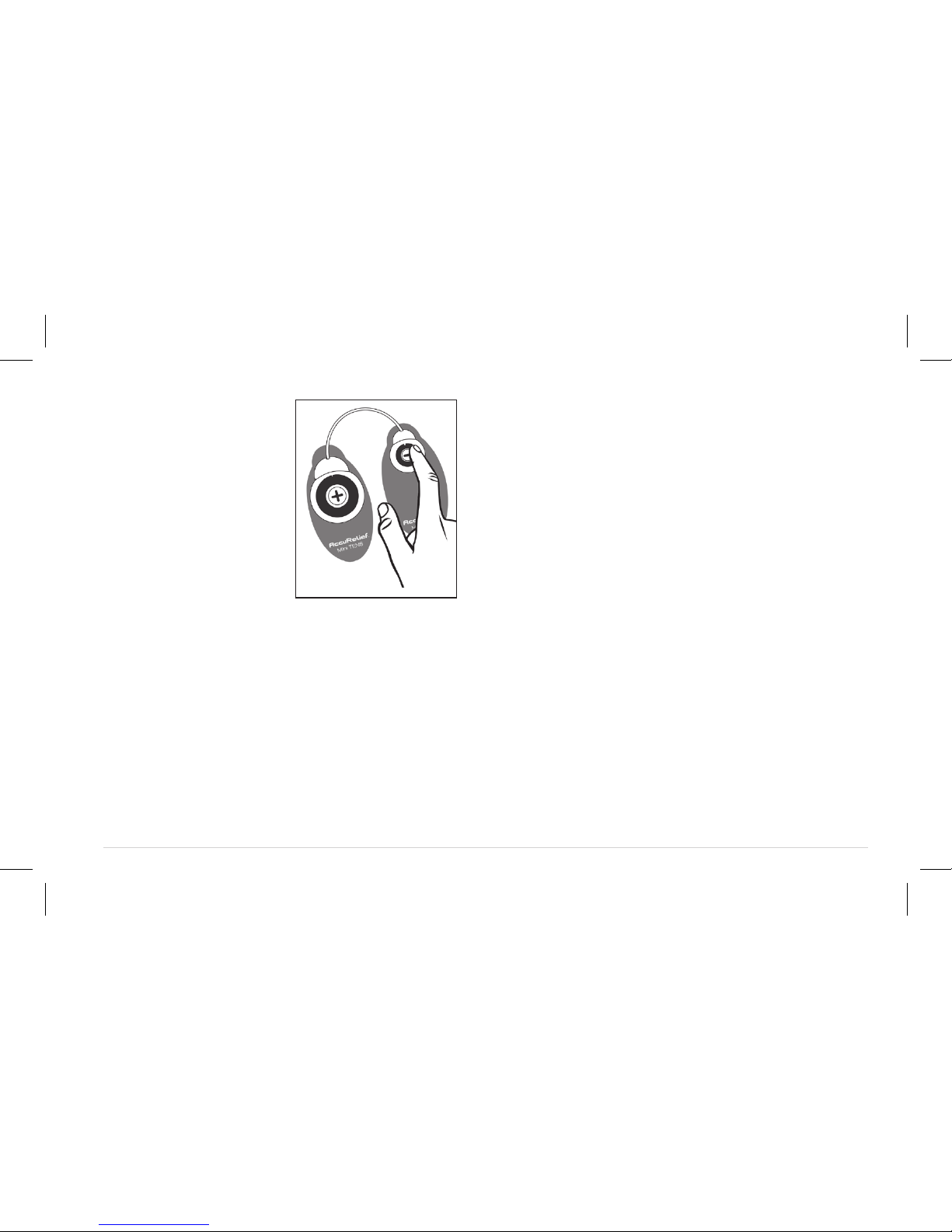

STEP 2 Preparation
of the TENS unit
Each gel pad is pre-fixed
with a stud to connect to
the back of the device,
and is protected by a
transparent film. Attach
the gel pads to the back
of the device, pressing
them in place.
NOTE: Remove clear protective film on the face of
“+” and “–” electrode buttons.
STEP 3 Placing the gel pads
Remove the layer of film
and place that side of
the gel pad to the skin,
positioning the gel pads
on the area of pain.
Press to ensure adhesion.
Please read page 17
carefully to understand
where to place the
gel pads.
PLEASE NOTE:
n GEL PADS ARE REPLACEABLE.
(AccuRelief™ Supply Kit – ACRL-0002)
n Affix the gel pads so that they do not overlap
one another and are approximately 2 inches
apart.
TREATMENT INFORMATION

16
Step 4
Operating the TENS unit
Once gel pads are securely
placed on the skin, the
TENS unit is ready for use.
1. To power on the unit,
press and hold the “+”
button for 3 seconds
until you hear a mildly
audible long beep.
2. Use the “+” button and the “–” button to adjust
the intensity to a comfortable level. NOTE: There
are 15 levels of intensity. Each time you press
the “+” button or the “–” button, you will hear a
mildly audible short beep indicating the intensity
level has changed.
If the stimulation level becomes uncomfortable,
press the “–” button to decrease the intensity to
a comfortable level.
3. To power off unit, press and hold the “–” button
for 3 seconds until you hear a mildly long beep.
NOTE: The unit will automatically power off after
the 20 minute treatment is complete.
PLEASE NOTE:
n If the continuous beeping persists, please check
if the pads are adhered well to your skin.
n Do not move the gel pads to another part of
your body without turning off the power first.
n Never stick the gel pads to each other.
n Keep the gel pads clean and do not expose to
heat or direct sunlight.
n If the gel pads do not adhere to your body or are
dirty, wipe with a damp, lint-free cloth. Do not
clean adhesive gel pads with any chemical.
n Place the gel pads on intact skin only. Do not
place on cuts or damaged skin.
n The AccuRelief™ Mini TENS is for single
person use only. Do not share device with others.
n Place the gel pads on the protective transparent
film when not in use.

17
GEL PAD POSITIONING
The TENS Unit can treat many different
types of pain. This page shows diagrams
of recommended placement of gel pads
for the most common forms of pain. For
other areas of pain, place the gel pads on
either side of the area of pain.
PLEASE NOTE: Never place the gel
pads on the head, face, heart, chest
area, eyes, oral cavity, sexual organs or
over the spine or bony premises.
• DonotimmersetheTENSunitinwater
or any liquid. Do not drop the device or
throw it from any height.
• AfterusingtheTENSunit,removethe
gel pads and place them on the protective
transparent film provided.

18
n Always use the protective film provided and then
store in sealed package when the gel pads are
not in use.
n Do not use any chemical to clean the device
or the gel pads. If you need to clean the device,
wipe with a damp, lint-free cloth.
n Do not let the gel pads dry out or expose them
to direct sunlight.
n Keep the gel pads clean.
MAINTENANCE AND CAUTIONS STORAGE
n After use, disconnect the gel pads, and then
store safely and out of the reach of children.
n Store the TENS unit in a cool, dry place,
14° F ~ 131° F (-10°C ~ 55°C); 10% ~ 90%
relative humidity.
n Do not expose the gel pads to direct sunlight
and protect them against dirt and moisture.
n If the gel pads no longer stick to your skin or
the gel pads are broken, you should replace
them with new pads. (AccuRelief™ Supply
Kit – ACRL-0002).
DISPOSAL
Used, fully-discharged batteries must be disposed
of in a specially-labeled collection container at
toxic waste collection points or through electrical
retailers. You are under legal obligation to dispose
of batteries correctly.
NOTE: Design and specifications are subject to
change without notice.

19
TECHNICAL SPECIFICATIONS
Type: Mini TENS ACRL-1000
Power supply: DC3.0V, 1×CR2032
Wave form: Bi-phase square pulse wave
Frequency: 2~125Hz
Pulse width: 100~200
μS
Output voltage: 0 – 70mA
Output intensity level: 0~15 levels
Treatment time: 20 minutes
Operating conditions: 50°F~104°F (10°C ~ 40°C);
30%RH ~ 85%RH
Storage and 14°F~122°F (-10°C ~ 50°C);
transportation conditions: 10%RH ~ 90%RH
Size: 169 (L) x 34 (W) x 10 (H) mm
Weight: 10.39 g (without battery)
Service life of device: 3 years
Service life of battery: With new battery, approx. 80 days
if used for 20 min/day in normal
conditions.
Program Frequency Pulse width Time Description
12~125 Hz 100~200 μS 2 min The frequency and pulse width are modulation
240 Hz 100/150
μS 2 min The pulse width is changed between 100 us and 150 us.
PROGRAM
The AccuRelief™ Mini TENS unit is preset with a combination program that delivers two phases of
alternating therapy. They are specified as follows:

20
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSES POSSIBLE SOLUTION
The unit cannot
power on
Is the battery exhausted? Replace the battery.
Is the battery installed correctly? Insert the battery observing polarity.
Stimulation weak
or cannot feel any
stimulation
Gel pads are dried out or dirty. Replace with new gel pads.
Gel pads cannot stick to skin well. Reconnect the pads.
Stimulation is
uncomfortable
Intensity is too high. Decrease intensity.
Is the device being operated according to the manual? Please check the manual before use.
The skin becomes
red and/or you feel
a stabbing pain
Use the gel pads on the same site every time. Re-position the gel pads.
The gel pads are not sticking to the skin properly. Ensure the gel pads are securely placed on
the skin.
The gel pads are dirty. Replace with new gel pads.
The surface of the gel pads is scratched. Replace with new gel pads.
If the unit does not operate after taking these measures, contact Carex Health Brands.
