Acer PD110z User manual

1
English
Table of Contents
Usage Notice
Precautions ...................................................................................................... 2
Introduction
Product Features .............................................................................................. 4
Package Overview ............................................................................................. 5
Product Overview .............................................................................................. 6
Main Unit ..................................................................................................... 6
Panel Control .............................................................................................. 8
Connection Ports ........................................................................................ 9
Remote Control with Mouse Function ...................................................... 10
Installation
Connecting the Projector................................................................................. 11
Powering On/Off the Projector ........................................................................ 12
Powering On the Projector ........................................................................ 12
Powering Off the Projector ....................................................................... 13
Adjusting the Projected Image ........................................................................ 14
Adjusting the Projector Height .................................................................. 14
Adjusting the Projector Focus .................................................................. 15
User Controls
Panel Control & Remote Control ..................................................................... 16
On Screen Display Menus .............................................................................. 19
How to Operate .......................................................................................... 19
User’s Info ................................................................................................. 20
Image-I (Computer Mode) .......................................................................... 22
Image-II (Computer Mode) ......................................................................... 23
Image-I (Video Mode) ................................................................................. 24
Image-II (Video Mode) ............................................................................... 25
Language (Computer / Video Mode) ........................................................... 26
Management (Computer / Video Mode) ...................................................... 27
Appendices
Troubleshooting .............................................................................................. 28
Changing the Lamp ......................................................................................... 31
Specifications ................................................................................................. 33
Compatibility Modes ....................................................................................... 34

2
English
Usage Notice
Precautions
Follow all warnings, precautions and maintenance as recommended in this
user guide to maximize the life of your unit.
Warning- Do not look into the lens. The bright light may hurt your eyes.
Warning- To reduce the risk of fire or electric shock, do not expose this product
to rain or moisture.
Warning- Please do not open or disassemble the product as this may cause
electric shock.
Warning- When changing the lamp, please allow unit to cool down, and follow
all changing instructions.
Warning- This product will detect the life of the lamp itself. Please be sure to
change the lamp when it shows warning messages.
Warning- After changing a new lamp please reset the lamp life from OSD menu.
Warning- Before switching off the product, please keep the cooling fan running
for a few minutes.
Warning- When connecting the projector to the computer, please turn off the
projector first.
Warning- When the lamp reaches the end of its life, it will burn out and may
make a loud popping sound. If this happens, the projector will not
turn back on until the lamp module has been replaced. To replace the
lamp, follow the procedures listed under “Changing the Lamp.”

3
English
Usage Notice
Do:
Turn off the product before cleaning.
Use a soft cloth moistened with mild detergent to clean the display housing.
Disconnect the plug from power outlet if the product is not being used for a long
period of time.
Do not:
Block the slots and openings on the unit provided for ventilation.
Use abrasive cleaners, waxes or solvents to clean the unit.
Operate under the following conditions:
- Extremely hot, cold or humid environments.
- In areas susceptible to excessive dust and dirt.
- Near any appliance generating a strong magnetic field.
- Place in direct sunlight.

4
English
Introduction
Product Features
This product is an SVGA single chip 0.55" DLPTM projector. Its outstanding
features include:
True SVGA, 800 x 600 addressable pixels
4.5 lbs (2 kgs) compact design
Single chip DLP™ technology
Independent white-balance adjustment, for natural picture quality
Digital zoom features
PureProgressive™ processing technology for artifact-free film materials
Full HDTV compatibility (480i/p, 1080i, 720p)
NTSC/NTSC4.43/PAL/PAL-M/PAL-N/SECAM and HDTV compatible
Fully functioning remote with optional mouse control
User-friendly multilingual on screen display menu
Advanced electronic keystone correction and high quality full digital functionality
User-friendly control panel
Luxurious carrying bag included
When set to the smallest ratio, the projector can support up to SXGA and can fully
support VGA and SVGA
150 watt user replaceable lamp
Compatible with Apple Macintosh

5
English
Introduction
Package Overview
This projector comes with all the items shown below. Check to make sure your
unit is complete. Contact your dealer immediately if anything is missing.
Projector with lens cap VGA Cable Power Cord
Battery x 2 Remote Control with
Mouse Function
Carrying Case Quick Start Card Warranty Card
D-15 to RCA-Adapter S-Video Cable User’s Guide
for YPbPr

6
English
Introduction
Product Overview
Main Unit
4
3
2
5
6
7
1

7
English

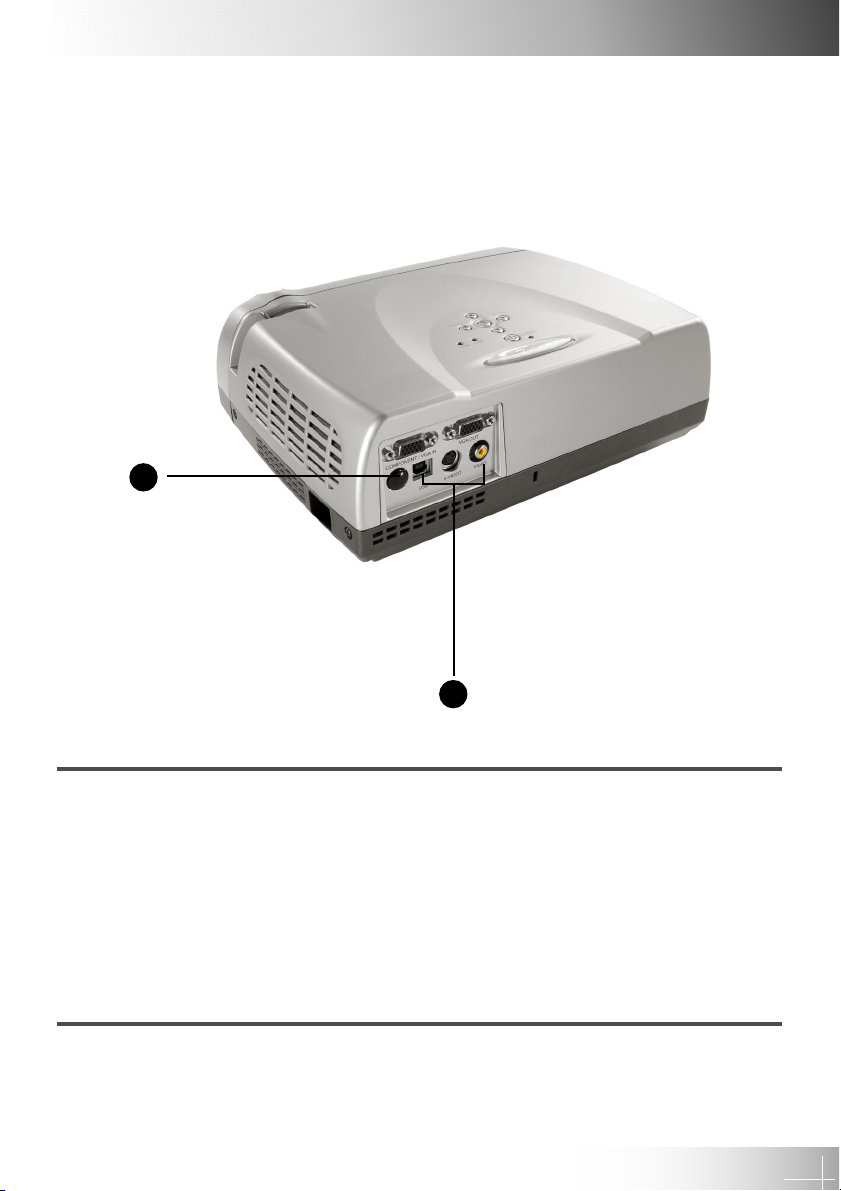

1. Panel Control
2. Focus Ring
3. Lens
4. Elevator Button
5. Remote Control Receiver
6. Power Connector
7. Elevator Foot
8. Connection Ports
Introduction
5
8

8
English
Introduction
Panel Control
1. Power Indicator Light
2. Power / Standby
3. Re-sync
4. Menu On / Off ; Enter
5. Four Directional Select Keys
6. Source
7. Temperature Warning LED
8. Lamp Warning LED
5
6
7
8
1
2
4
3

9
English
Introduction
Connection Ports
1. Connector for computer / component signal input
2. Connector for external monitor signal output
3. Kensington™ Lock
4. Composite Video Input Connector
5. S-Video Input Connector
6. USB Mouse connector port
5
2
4
6
1
3

10
English
Introduction
Remote Control with Mouse Function
1. Power / Standby 7. LED
2. Page Up 8. Optimum Setting
3. Four Directional Selector 9. Page Down
4. Source 10. Menu
5. Re-sync 11. Freeze
6. Keystone Correction 12. Hide
13. Zoom In / Zoom Out
8
9
10
11
12
13
6
5
4
3
2
1
7

11
English
Installation
Connecting the Projector
1. VGA Cable
2. Power Cord
3. S-Video Cable
4. Composite Video Cable (optional)
5 USB Cable (to connect the USB mouse to a PC; optional)
6. HDTV/Component Video Cable (optional)
To ensure the projector works well with your computer, please set the display
mode on your graphics card to less than or equal to SVGA (800 x 600) resolution.
Also ensure the refresh rate of the graphics card is compatible with the projector.
Refer to the “Compatibility Modes” section on page 34for more information.
1
53
4
6
2
6

12
English
Installation
Powering On/Off the Projector
Powering On the Projector
1. Remove the lens cap.
2. Ensure that the power cord and signal cable are securely connected.
3. Turn on the lamp by pressing “Power/Standby” on the control panel.X
The startup screen will be displayed for 20 seconds and the Power/Standby indicator
will turn solid green.
4. Turn on the source (computer, notebook, or video player, etc.) The projector will
automatically detect your source.
If the projector displays “Searching...” please make sure the signal cables
are securely connected.
If connecting multiple sources at the same time, use the “Source” button on
the remote control or projector control panel to select the desired input.
Press the “Source” button repeatedly until the desired input is displayed.
Turn on the projector first and then the computer.
Power/Standby
1

13
English
Installation
Powering Off the Projector
1. Press “Power/Standby” to turn off the projector lamp. The projector will display
the message “Power off the lamp?”
2. Press “Power/Standby” again to confirm. Otherwise the message will disappear
after 5 seconds.
3. “Power/Standby” indicator will turn green for approximatly 90 seconds. When
the green light begins flashing, the projector has entered standby mode.
If you wish to turn the projector back on, you must wait until the projector has
completed the 90-second cooling cycle and has entered standby mode. Once in
standby mode, simply press “Power/Standby” to restart the projector.
4. Disconnect the power cord from the electrical outlet and the projector.
5. Do not turn on the projector immediately following a power off procedure.
If the “TEMP” indicator begins flashing the projector will display a “Fan
Fail” warning. After a short period the “Power/Standby” indicator will flash
green for about 90 seconds and the projector will automatically shut itself down.
If this occurs please contact your local reseller or service center.
If the “TEMP” indicator turns red it indicates the projector has overheated.
The projector will display “Over Temperature. After a short period the
“Power/Standby” indicator will turn green and the projector will
automatically shut itself down. If this occurs please contact your local
reseller or service center.
If the “LAMP” indicator turns red and the “Power/Standby” indicator
turns amber, the projector will automatically shut itself down. If this occurs
please contact your local reseller or service center.

14
English
Installation
Adjusting the Projected Image
Adjusting the Projector Height
The projector is equipped with an elevator foot for adjusting the projector
height.
To raise the projector:
1. Press the elevator button X.
2. Raise the projector to the desired display angle Y, then release the button to lock
the elevator foot into position.
3. Use Zto fine-tune tilt adjustment.
To lower the projector:
1. Press the elevator button X.
2. Lower the projector then release the button Yto lock the elevator foot into position.
3. Use Zto fine-tune tilt-adjustment.
1Elevator Button
2Elevator Foot
3Elevator fine-tune adjustment

15
English
Installation
Adjusting the Projector Focus
To adjust the focus, simply rotate the focus ring until the image is clear. The projector
will focus at distances from 4.0 feet to 39.4 feet (1.2m to 12m)
Screen 29.4” 81.6” 133.8” 185.3” 237.5” 289.7”
(Diagonal)
Screen 23.5 x 17.7” 65.3 x 48.9” 107.1 x 80.3” 148.2 x 111.2” 190.0 x 142.5” 231.8 x 173.8”
Size (WxH)
Distance 4.0’ 11.1’ 18.2’ 25.2’ 32.3’ 39.4’
This graph is for reference only.

16
English
User Controls
Panel Control & Remote Control
There are two options for controlling the projector: Remote Control and Panel
Control.
Remote Control
Power / Standby
Refer to the “Power On/Off the Projector” section on page 12-13.
Optimum Setting
Press “Optimum” to select Conference Mode or Cinema Mode.
Source
Press “Source” to cycle between VGA, S-Video, Composite, and Component
sources.
Panel Control Remote Control

17
English
User Controls
Four Directional Selectors
These keys are used to control the direction operation on the OSD display.
Page Up (Computer Mode only)
Use this button to page up. This function is only available when the projector is
connected to a computer via an USB cable.
Page Down (Computer Mode only)
Use this button to page down. This function is only available when the projector is
connected to a computer via a USB cable.
Menu
Press “Menu” to launch the OSD menu and press key to select menu items.
To exit the OSD, press “Menu” again. The projector will automatically save any
changes you made.
Freeze
Press “Freeze” to pause the screen image.
Keystone + / -
Adjusts image distortion caused by tilting the projector. (± 16 degrees)
Re-sync
When “Re-sync” is pressed, the projector will automatically synchronize with the
source signal.
Hide
Pressing “Hide” will turn the entire screen black, a useful function for speakers
who require a short pause in order to change their presentation materials.

18
English
User Controls
Use the Panel Control
Power/Standby
Refer to the ‘Power On/Off the Projector” section on page 12-13.
Source
Press “Source” to cycle through VGA, S-Video, Composite and Component
sources.
Re-Sync
Automatically synchronizes the projector to the input source.
Four Directional Select Keys
Use to select items or make adjustments for your selection.
Enter
Confirm your selection of items.
Press “Menu” to launch the OSD menu and press key to select menu items.
To exit the OSD, press “Menu” again. The projector will automatically save any
changes you made.

19
English
User Controls
OSD Menus
How to Operate
The projector has a multilingual OSD that allows you to make image adjustments
and change a variety of settings. With a computer source, the OSD displayed is
the “Computer OSD”. With a video source, the OSD displayed is the “Video OSD”.
The projector will automatically detect the source.
To launch the OSD menu, press “Menu” on the remote control or panel control.
When the OSD is displayed, press key to select main items.
E.g.: Image-IImage-IILanguageManagementImage-I…
While making selection on a particular page, press “ Menu / “ key to go into the
sub menu.
Press key to select the required item and adjust the settings by key.
When a specified item is selected, the color of the item will change from yellowish
brown to blue.
E.g.: BrightnessContrastColor Temp.ZoomKeystone
White segmentBrightness...
When using the keys to adjust parameters or select desired sub menu
functions, confirm selections/modifications by pressing “ Menu / ” to revert
back to the main menu. Only the keys are enabled now.
To exit the OSD, press the “ Menu / “ button again.

20
English

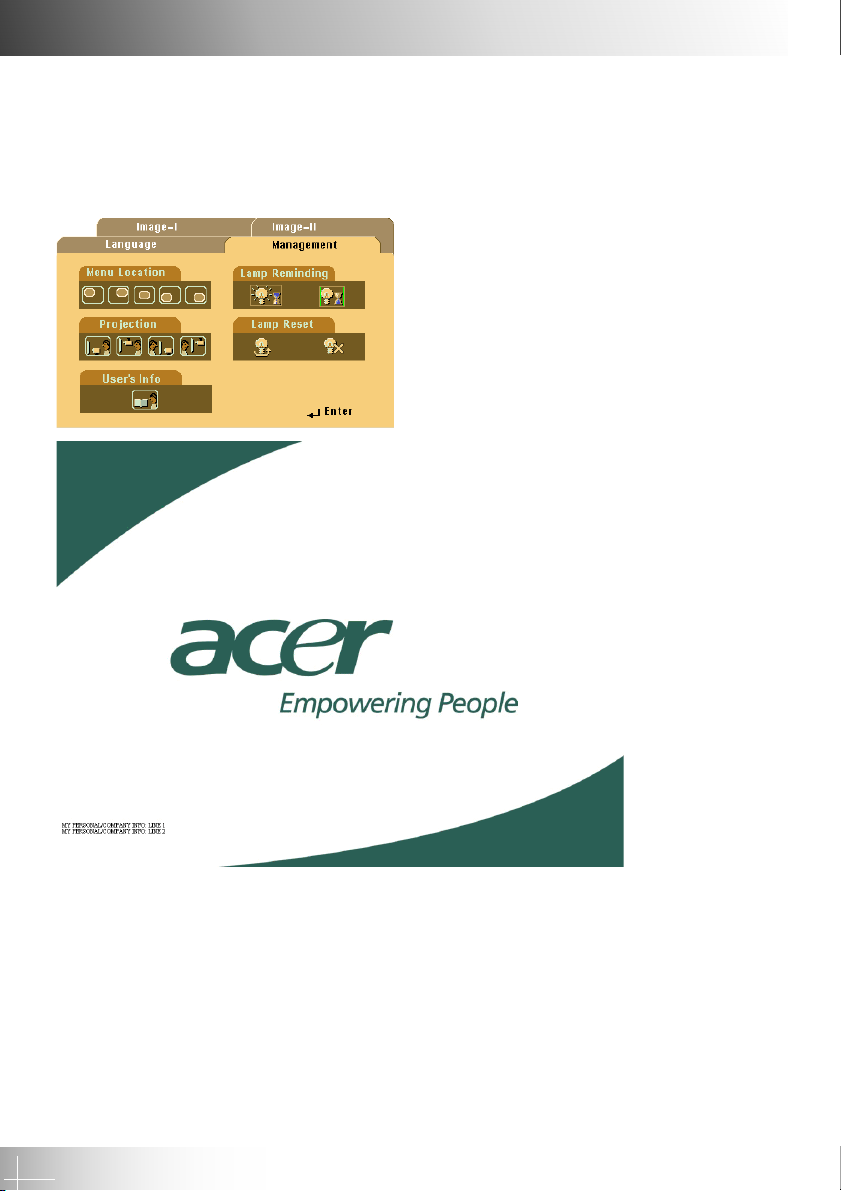

User’s Info
Edits user preferences by OSD interface. Press "Menu" to enter "User's info."
screen, you can edit as you wish. Edited User's info will display on lower left corner
of the screen when projector is powered ON.
1. Use the to select "Line1" function, and then press the "Menu" button. You
can input the character to line one.
2. Use the to select character, and then press "Menu" to confirm your
selection.
3. Use the to select "Line2" function, and then press the "Menu" button. You
can input the character to line two.
Table of contents
Other Acer Projector manuals

Acer
Acer P5227 Series User manual

Acer
Acer P3250 Refresh System manual

Acer
Acer X1160P User manual

Acer
Acer P1150 User manual

Acer
Acer P7215 User manual

Acer
Acer 7763PA - PalmPro SVGA DLP Projector User manual

Acer
Acer X1126H User manual

Acer
Acer K10 User manual

Acer
Acer SL 700X/S User manual

Acer
Acer K135 User manual

Acer
Acer S1110 Series User manual

Acer
Acer X1326AWH User manual

Acer
Acer X1160 Serie User manual

Acer
Acer S5201M Series User manual

Acer
Acer H6500/E-140/HE-802 Series User manual

Acer
Acer P1265 Series User manual

Acer
Acer PW730 Series User manual

Acer
Acer PD1320Wi Series User manual

Acer
Acer P7203B Series User manual

Acer
Acer X1110A Series User manual
