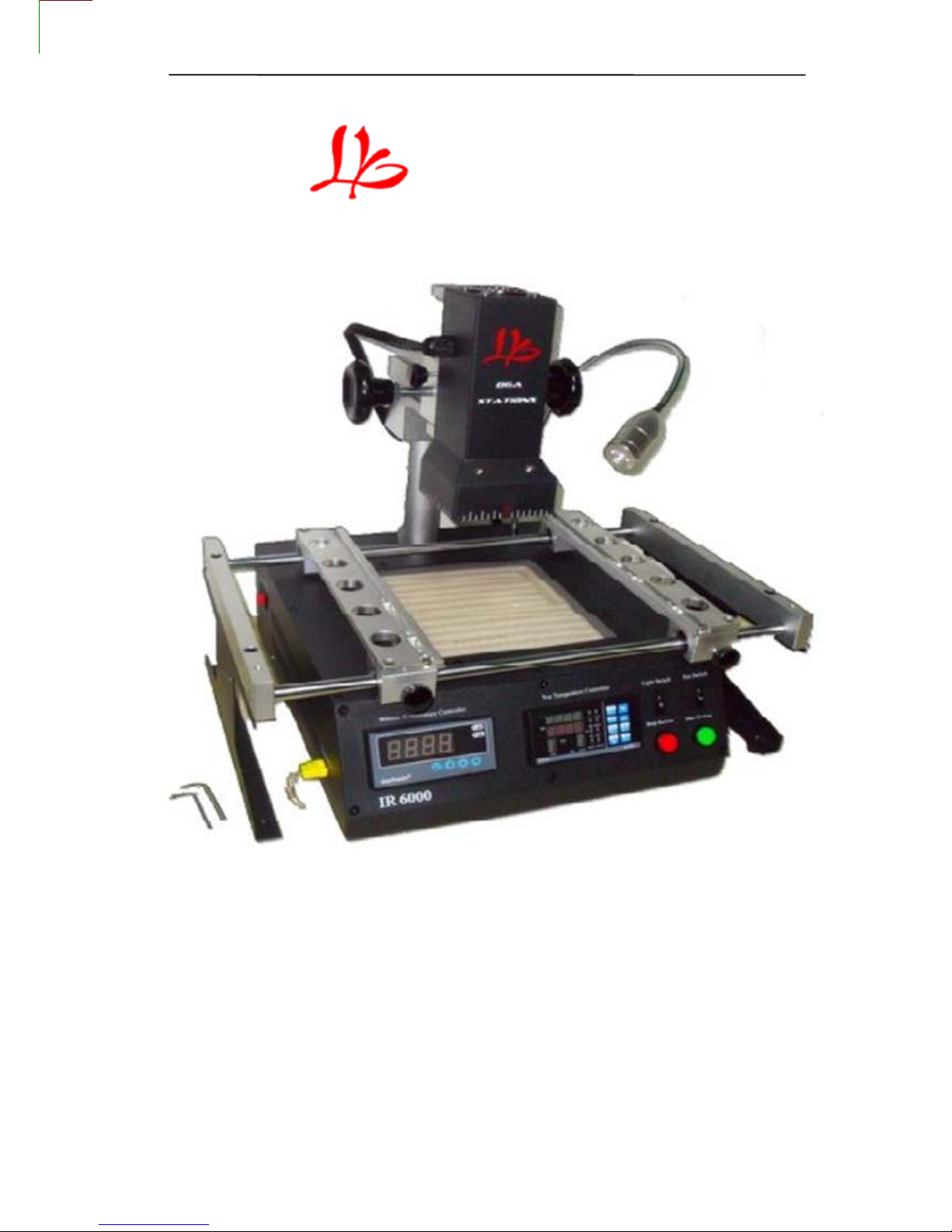

ACHI IR6000 User manual

WWW.LYBGA.COM
深圳利洋焊接设备 Shenzhen LiYang welding Equipment Co., Ltd LY
BGA Rework Station
User Manual
IR6000
1

一、LY IR6000 BGA rework stations feature
LY IR6000 BGA Rework Station is designed to meet the ever-changing demands
of today’s fast BGA Rework manufacturing environments ，Have the following
characteristics:
1、IR6000 Rework station for laptop motherboards, desktop computer motherboards,
server boards, industrial computer boards, all kinds of game boards, communications
equipment motherboards, LCD TVs and other large circuit board BGA rework….
2、IR6000 Innovative designs .An effective solution to general of infrared rework
station vulnerable to the impact of air flow. Will lead an inaccurate of temperature
control. Maximum temperature up to 400 ℃. Can easily deal with lead-free soldering
rework.
3、IR6000 can set up 8 rising temperature segments and 8 constant temperature segments
to control. It can save 10 groups of temperature curves at one time.
4、IR6000 can be connected to a computer to be controlled more conveniently with a
built-in PC RS232 serial port and proprietary Software attached to it. programmable
5、IR6000 can easily rework the variety of CPU's seat, all kinds of shielding enclosures,
replacement of various components slot。Can easily deal with lead-free soldering
rework
6、IR6000 sensitive temperature measurement sensor to obtain an accurate and
instantaneous temperature reading and monitoring。
7、IR6000 BGA rework station the technology of closed-loop temperature control ensures
accurate temperature process and even heat distribution.
8、IR6000 Machine overall system integration Design, Rework station more integrated
workbench area occupied by smaller, Didn't mixed and disorderly of cables.
9、IR6000 Linear guide type Bracket for BGA Reworks。can be locking 、adjusted by
rotating the handle, Can be very easily fixed PCB board, effectively prevent the
deformation of PCB board.
深圳利洋焊接设备 Shenzhen LiYang welding Equipment Co., Ltd LY
WWW.LYBGA.COM
2
IR6000

Safety Instructions
Ⅰ.Electrical safety
z
z
z
Make sure the supply power voltage accord with the standards----
220V-250V/50hz alternating current before installing.
To avoid possible electric shock caused serious damage, please disconnect the
power cord from the outlet temporary before moving machines.
If the machine damages, please contact us for maintenance. If the damage caused
by the users when they dismantle or repair independently, they should take on
the loss by themselves.
Ⅱ. Operating safety
z
z
z
z
z
z
z
Please carefully read the relevant information provided by the manual before
starting using this product.
Make sure the power cord has been properly connected properly before using the
products.
Installed the equipment in stable work platform to use, where the air mobility
should be small as possible. Avoid it closing to air conditioners, fans and the
other outlet.
In case of electrical short-circuit, avoid the products contacting with water.
Forbid using this equipment in flammable and explosive substances.
The operators’ hands or other parts of the body should maintain a safe distance
from the heater. Forbid touching the heater to avoid scalding.
If you have any technical questions or suggestions in the course of using this
product, please contact with our technology department., We will try our best to
solve.
Ⅲ.Environmental requirements of operation and conservation
1. Operation environment of products
深圳利洋焊接设备 Shenzhen LiYang welding Equipment Co., Ltd LY
WWW.LYBGA.COM
3

z
z
z
Operation temperature:15 ~ 45 ℃
Operation humidity:5% to 95%, non-condensing
Products should be kept in the air mobility of a smaller environment under the
welding operation.
2.Conservation environment of products
z
z
Storage temperature:-20 ~ 70 ℃
Storage humidity: 5% to 95%, non-condensing
深圳利洋焊接设备 Shenzhen LiYang welding Equipment Co., Ltd LY
WWW.LYBGA.COM
4

Basic Parameters
Heating IR
Dimension L 475mm×W480mm×H420 mm
Weight 16kg
Total weight About 17 kg, vary with the differen need of the users
Electrical Parameters
Power 220V AC
Upper Heating IR
Size of Upper heating 80mm×80 mm
Consumption of upper heating 450W
Bottom Heating IR
Size of Bottom heating 180 mm×180 mm
Consumption of Bottom heating 800W
General power 1250W
Temperature Control
Control mode of Upper Independent temperature control, high-precision closed-loop
control, precision ±0.5%, Alarm
Control mode of Bottom Independent temperature control, high-precision closed-loop
control, precision ±0.5%, NO Alarm
Rework Function
SMD
Suit for welding, remove or repair packaged devices
such as BGA,PBGA,CSP,multi-layer substrates，EMI
metallic shield product and solder/lead free Rework 、
The parameters of LY IR6000 BGA Rework Station
LY
BGA Rework Station
深圳利洋焊接设备 Shenzhen LiYang welding Equipment Co., Ltd LY
WWW.LYBGA.COM
5

welding
Size of applicable chips
Size of applicable PCB
≤70mm×70 mm
≤400mm×305 mm
Hardware description
LY IR6000 BGA Rework Station is composed of upper part of Heating Components /
Bottom Preheat Module / Bracket / Temperature Control Parts! Temperature control
Table is control the upper and lower heating, Can Simultaneously heated or first preheat,
then the upper part of heating.
1. Highly Sensitive K-temperature sensor
2. PCB Table
3. Power Switch
4. Upper Heater
5. X-Y Lifting Regulator
6. LED Auxiliary Lighting
7. Bottom Heater (Pre-Heater)
深圳利洋焊接设备 Shenzhen LiYang welding Equipment Co., Ltd LY
WWW.LYBGA.COM
6

深圳利洋焊接设备 Shenzhen LiYang welding Equipment Co., Ltd LY
8. Lighting Switch
9. Upper fan Switch
10. Start Switch
11. Stop Switch
12. Upper Programmable Temperature Control pc410
13. Bottom Temperature Control CH6
Self-help Install
PCB Table
1.
2.
3.
Installation side support.
Installation Slip.
Installation side support.
WWW.LYBGA.COM
7

深圳利洋焊接设备 Shenzhen LiYang welding Equipment Co., Ltd LY
Upper Heater
WWW.LYBGA.COM
8

深圳利洋焊接设备 Shenzhen LiYang welding Equipment Co., Ltd LY
Cable connector
Temperature sensor
WWW.LYBGA.COM
9

深圳利洋焊接设备 Shenzhen LiYang welding Equipment Co., Ltd LY

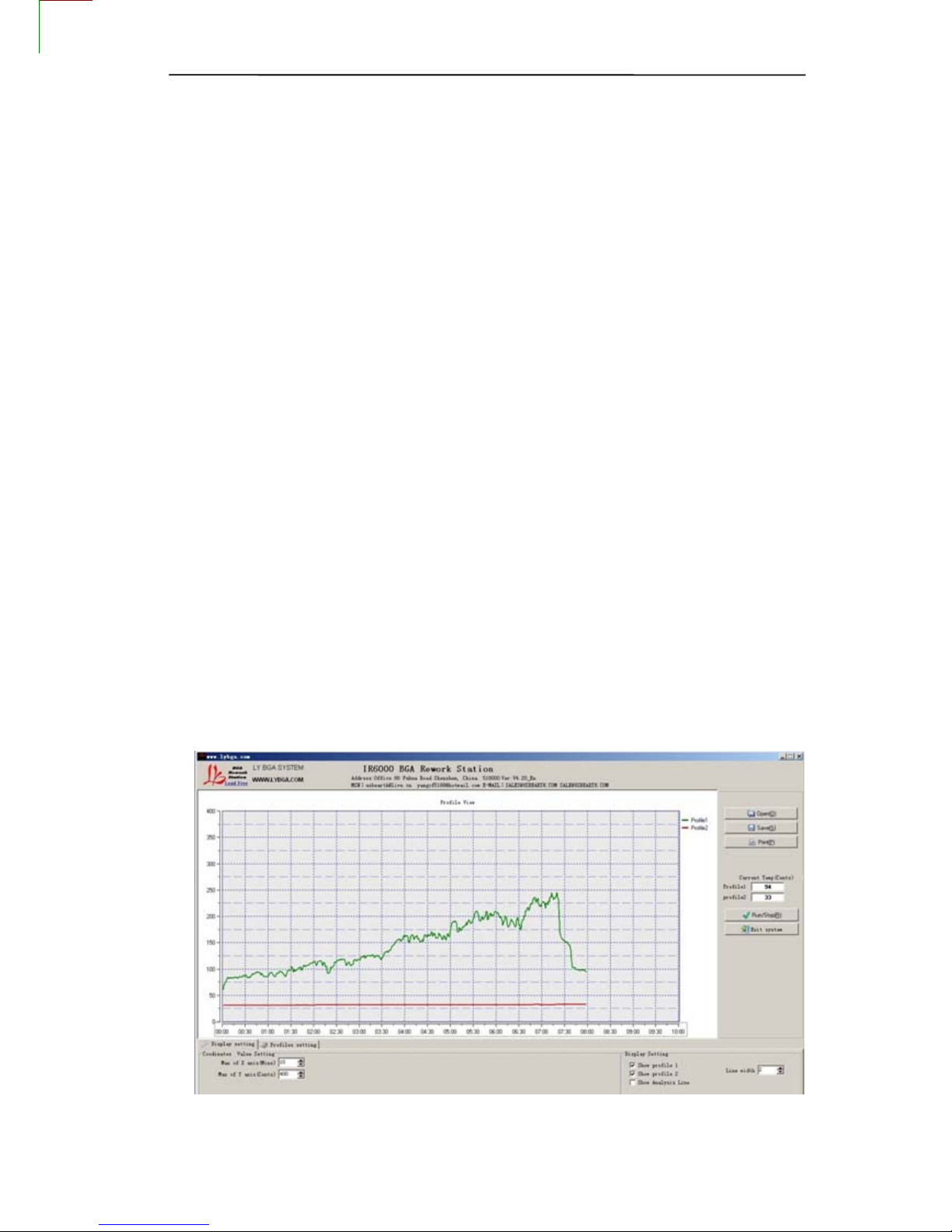

Installation of RS232 communication interface
Both suitable for Desktop & Laptop
Interface for desktop transfer cable for laptop

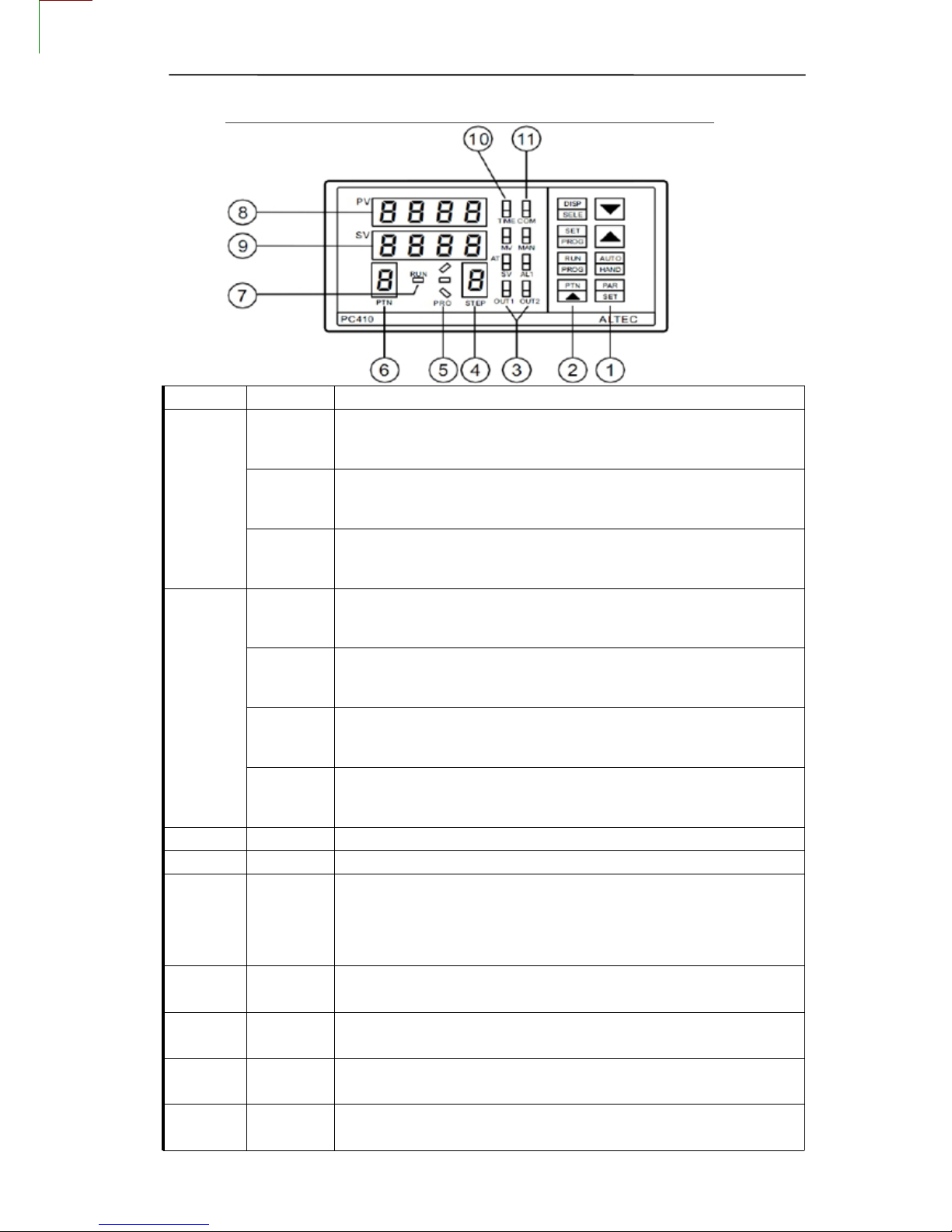

Programmer/Controller General Description
程序控制器内部已设置多个常用程序段，不要轻易尝试修改程序参数。请按 PTN 键
选择您所需要的程序段，
The programmable controller contains an in-built setpoint generator in addition to the
controller function. This setpoint generator can produce a temperature/time profile with
16 segments (0～9). When the program is running, the current setpoint from the setpoint
generator is fed to the control algorithm. The current setpoint is continuously shown on
the lower display.
WWW.LYBGA.COM
10

S.N. Item Functions
Parameters setting key
(Up key) Increase value
①
(Down key) Decrease value
Selects the program pattern number
Starts/hold the program, changes the mode from fixed value
control to program control
Program parameters setup
②
Changes the indication on SV/MV/TIME display
③OUNT Output indicator
④STEP Indicates the step number of program
⑤PRO (Program monitor indicator)
During program control, ‘/’ is lit when the PV is rising
During program control, ‘-’ is lit when the PV is constant
During program control, ‘\’ is lit when the PV is falling
⑥PTN (Pattern number display)
Indicates the pattern number ‘0～9’
⑦RUN (Program control runing indicator)
The LED indicator is lit during program control
⑧PV (PV Display)
Indicates the Process/Measured value
⑨SV It is lit when the Setting Value(SV) is being displayed on the
lower display
深圳利洋焊接设备 Shenzhen LiYang welding Equipment Co., Ltd LY
The sixteen segments are defined in the order: Ramp 1, Dwell period 1, Ramp 2, Dwell
period 2..., and are executed in succession.
WWW.LYBGA.COM
11

⑩TIME
MV
SV
(SV/MV/TIME display)
It indicates the Setting Value(SV), Manipulating Value(MV),
or Time(TIME)
(The display content can be changed by the ‘DISP/SELECT’
key)
AL1 It is lit when the Alarm1 output is ‘ON’
⑪
COM (Communication indicator)
It flashes when the controller is in active communication
with a host computer
深圳利洋焊接设备 Shenzhen LiYang welding Equipment Co., Ltd LY
zProgram Parameters Setting
Ramp Rate1:
A ramp consists of a slope(linear gradient) and a target setpoint. The control setpoint
increases or decreases at a linear ramp rate from the actual measured value until a
specified target setpoint is reached. The relative positions of the actual measured value
and the target setpoint determine whether the slope of the ramp is positive or negative.
Parameters R1, R2, R3... express the ramping rate in unites per minute(0.01~99.99),
parameters L1, L2, L3... the appropriate target setpoint in display units.
If R1 = END, the program will be ended when the program runs to the slope.
Target Setpoint 1:
The target value to which the setpoint ramps when the programmer has been placed into
RVN.
Dwell period 1:
In a Dwell period, the target setpoint, which has been attained, remains unchanged for a
fixed period. All the dwell periods are defined by their duration in minutes with
parameters D1, D2, D3...(0~9999). When the program is running, these parameter display
the time remaining in the active dwell period. If the parameter equals zero, the dwell
period is skipped.
When the controller runs in the PV displaying status:
1). Select the target program pattern number with the PTN/ key.
2). press SET/PROG key, the first program parameter appears in the upper display. The
value associated with this parameter will be shown in the lower display.
3). Use ▲and ▼key to modify the value.
4). Press the PAR/SET key, the next parameter appears. At the same time, the
modification has been saved in the memory. Use ▲and ▼key to modify the value.
Repeat this procedure till all the parameters are set. Or if there is no key operation within
16 seconds, the menu times out automatically.
WWW.LYBGA.COM
12

深圳利洋焊接设备 Shenzhen LiYang welding Equipment Co., Ltd LY

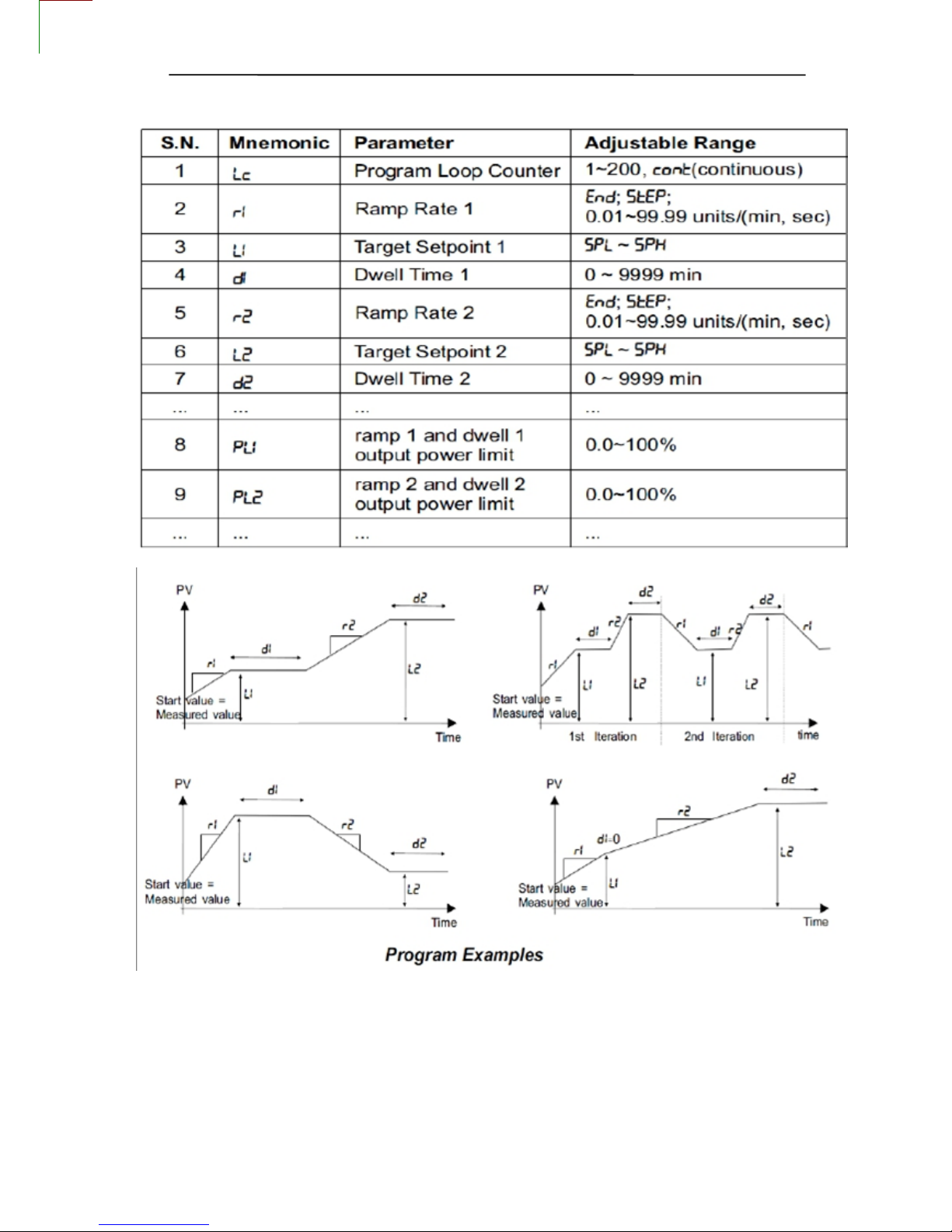

Program Parameter List
WWW.LYBGA.COM
13

深圳利洋焊接设备 Shenzhen LiYang welding Equipment Co., Ltd LY
Rework Operation Steps
1、be all set
①Fixed motherboard
②shift sensor ，sensor press close to BGA chip。
③Adjust the height of heating head with adjustment knob（Prompt：BGA chip in the middle of
heating head ，heating head away from BGA chip≥2CM。）
WWW.LYBGA.COM
14

深圳利洋焊接设备 Shenzhen LiYang welding Equipment Co., Ltd LY
2、Start heating 1、Open power switch.
2、Select the appropriate temperature program segment, and then press the start
switch. In the operation can press the stop switch, stop operating.
3、After the program is running, repairing automatic alarm, and automatically
cut off the heating power, this time you can check the following solder ball BGA chip is completely
liquefied, BGA chips should be subject to settlement, floating state
3、Heating completed and Sensor
1、Close Switch for top and bottom ，Then Moving Heating head
2、Remove motherboard ，Clear insulating tape！
3、BGA Rework Station Cooled ,Then close Total Power！
Warning：
zIf BGA Rework Station NO Cooling ，Do not close the Total Power !
zWhen the temperature is not cooled, do not touch heating module!
Prompt
1、Installed the equipment in stable work platform to use where the air mobility should be small
WWW.LYBGA.COM
15

深圳利洋焊接设备 Shenzhen LiYang welding Equipment Co., Ltd LY
as possible .Avoid it closing to air conditioners, fans and the other outlet.
2、IR6000 Rework Station sensor Direct contact with motherboard，So Temperature
display is Actual temperature。
3、In order to avoid damage to the motherboard capacitor，SO use insulation tape please ，
Maintenance completed ,then Removal of insulation tape ，So as to avoid short-circuit！
4、After removal of BGA chip ，PCB Bonding Pad Need to clean up ，Avoid cold solder joint
See BGA chip tin completely liquefied, Then To move the BGA chip，So as to avoid Bonding
Pad Damage ！
5、BGA chips should be subject to settlement, floating state Prohibited in all solder ball
did not fully liquefied, by force if removal of chips, so as to avoid pad off, chip or
motherboard scrap!
6、To improve success rate of Rework , PCB and chips need drying and processing in principle，
PCB board or chip moist heat process will occur in the burst phenomenon, the Rework
process may hear the blasting sound of a minor。According to actual situation Please，
self-control.
7、PCB board heating time is too long or repeated several times the surface heating will lead to
discoloration.
8、Users from modifying temperature parameters，Please use scrap PCB tested，Heating whole
time about 10 seconds before the end of solder balls should be fully liquefied，f the
liquefaction advanced or delayed,，！Should be regulating up/down the temperature setting.
So as to avoid heat damage to chips or low-temperature sealing-off。
9、The factory equipped with two sets of programmable temperature control table used
parameters:
The attached curve setting for reference
WWW.LYBGA.COM
16

深圳利洋焊接设备 Shenzhen LiYang welding Equipment Co., Ltd LY
WWW.LYBGA.COM
17
Rework temperature curve to set examples
1．Lead
Sn63Pb37 slope/S numeric
al value
℃
temperature℃ numeric
al value
℃
Temperature
time S
numeric
al value
S
r1 0.45 L1 85 d1 85
r2 1 L2 150 d2 40
r3 1 L3 185 d3 40
2．Lead-free
Sn96.5Ag3Cu0.5 slope/S numeric
al value
℃
temperature℃ numeric
al value
℃
Temperature
time S
numeric
al value
S
r1 0.45 L1 85 d1 92
r2 1 L2 150 d2 40
r3 1 L3 180 d3 40
r4 1 L4 220 d4 40
3. Lead
(Computer) slope/S numeric
al value
℃
temperature℃ numeric
al value
℃
Temperature
time S
numeric
al value
S
r1 0.5 L1 90 d1 90
r2 0.85 L2 135 d2 45
r3 0.8 L3 170 d3 40
r4 1 L4 185 d4 45
4. Lead-free
(Computer) slope/S numeric
al value
℃
temperature℃ numeric
al value
℃
Temperature
time S
numeric
al value
S
r1 0.45 L1 90 d1 90
r2 1 L2 145 d2 40
r3 1 L3 180 d3 50
r4 1 L4 220 d4 45
5．For XBOX slope/S numeric
al value
℃
temperature℃ numeric
al value
℃
Temperature
time S
numeric
al value
S
r1 0.40 L1 90 d1 90
r2 0.85 L2 135 d2 40
r3 1 L3 170 d3 60
r4 1 L4 220 d4 65
6．For PS3 slope/S numeric
al value
℃
temperature℃ numeric
al value
℃
Temperature
time S
numeric
al value
S
r1 0.40 L1 90 d1 90
r2 0.85 L2 135 d2 45
r3 1 L3 180 d3 60
r4 1 L4 220 d4 65
