Hakko Electronics 852 User manual

®
SMD Rrework Station
with Vacuum Pickup
Instruction Manual
●
Thank you for purchasing the Hakko 852 SMD Rework
Station. This unit features:
● Digital control and display of time and temperature
● Display of air-flow rate
● Manual and automatic modes
● Built-in vacuum pickup
Please read this manual before operating the Hakko 852.
Keep this manual readily accessible for reference.
●
TABLE OF CONTENTS
1. PACKING LIST .......................................................... 1
2. SPECIFICATIONS ..................................................... 1
3. SAFETY INSTRUCTIONS ......................................... 2
4. PART NAMES ........................................................... 3
5. PREPARATION: ASSEMBLY AND ELECTRICAL CONNECTION .. 5
6. PREPARATION: ASSEMBLY AND ELECTRICAL CONNECTION .. 7
7. OPERATION ............................................................. 8
8. PARAMETERS / INITIAL RESETTING ................... 14
9. MAINTENANCE / INSPECTION ............................. 15
10. ERROR MESSAGES .............................................. 16
11. TROUBLESHOOTING ............................................ 16
12. OPTIONAL PARTS ................................................. 17
13. PARTS LIST / STATION ......................................... 19
14. PARTS LIST / HANDPIECE .................................... 21
15. WIRING DIAGRAM ................................................. 22

1
Check the contents of the Hakko 852 package and
confirm that all the items listed below are included.
Handpiece
Handpiece
holder
2 for each pad
5 mm 
(0.2 in.) Power cord
Hakko 852 station
7.6 mm 
(0.3 in.)
1. PACKING LIST
2. SPECIFICATIONS
Hakko 852 station ................................................. 1
Power cord ........................................................... 1
Handpiece holder ................................................. 1
Pads (φ5 mm (0.2 in.), φ7.6 mm (0.3 in.)) ... 2 each
Instruction manual ................................................ 1
* This product does not include a nozzle. A large
selection of nozzles is available for the Hakko
852. Select the nozzle or nozzles suitable for
the work to be performed.
Name
Power consumption
Hakko 852
100V-300W 110V-360 W 120V-410 W
220V-550W 230V-600 W 240V-650 W
Power consumption
Capacity
Control temperature
Modes
Timer
External dimensions
Weight
30 W
7 l/min to more than 20 l/min
100 ~ 450°C./212 ~ 842°F.
(sensor)
Manual/Auto
15 ~ 999 seconds
260(l) × 180(w) × 170(h) mm.
10.2(l) × 7.1(w) × 6.7(h) in.
5 kg. (11.02 lb.)
� Station
Power
consumption
Total length
(w/o cord)
Weight
(w/o cord)
100V-270W 110V-330 W 120V-380 W
220V-520W 230V-570 W 240V-620 W
200(l) mm / 7.9(l)in.
200 g / 0.44 lb.
� Handpiece
* This product is ESD-protected.
* Specifications and design subject to change without notice.

2
3. SAFETY INSTRUCTIONS
Warnings and cautions are placed at critical points in this manual to direct the operatorʼs at-
tention to significant items. They are defined as follows:
WARNING: Failure to comply with a WARNING may result in serious injury
or death.
CAUTION : Failure to comply with a CAUTION may result in injury to the
operator, or damage to the items involved. Two examples are
given below.
CAUTION
When the power is ON, the temperature of the hot air and the nozzle ranges from
100 to 450°C. (212 to 842°F.). To avoid injury to personnel or damage to items in the
work area, observe the following:
● Do not direct the hot air toward personnel or touch the metal parts near the nozzle.
● Do not use the product near combustible gases or flammable materials.
● Advise those in the work area that the unit can reach very high temperatures and should
be considered potentially dangerous.
● Turn the power OFF when no longer using the Hakko 852 or when leaving it unattended.
● Before replacing parts or storing the unit, allow the unit to cool and then turn the power
OFF.
To prevent accidents and failures, be sure to take the following precautions:
● Do not strike the handpiece against hard surface or otherwise subject it to physical
shock.
● Be sure the unit is grounded. Always connect power to a grounded receptacle.
● Do not disassemble the pump or the vacuum pump.
● Do not modify the unit.
● Use only genuine Hakko replacement parts.
● Do not wet the unit or use the unit with wet hands.
● Remove power cord by holding the plug – not the wires.
● Do not leave the vacuum pump on for long periods of time.
● After using, do not turn the power OFF until “P-S” is displayed on the temperature dis-
play.
● Make sure the work area is well ventilated.
● The Hakko 852 is not intended for use by young children or infirm persons without super-
vision.
● Young children should be supervised to ensure that they do not play with the Hakko 852.

3
VACUUM MODE POWER
TIME AIRTEMP
AIR CONTROL
OFF
ON
Station
Handpiece
㈰Temperature setting section
㈪Timer setting section
㈫Airflow setting section
㈬Airflow meter
㈭Power switch
㈮Airflow control knob
㈫Sensor (internal)
㈰Pad ㈪Vacuum pipe ㈬Start button
㈮Vacuum button㈭Vacuum pipe control knob
㈯Mode setting section
㉀Vacuum indicator
Handpiece holder
mounting screw
Handpiece holder
mounting screw
Heater
indicator lamp
Jack for optional
foot-switch
Power receptacle
Handpiece holder
Fuse
Nozzle (not included)
This jack is for the foot-
switch only. Do not
connect any other device.
V
S
CAUTION
4. PART NAMES

4
Station
①Temperature setting section ......
(temperature setting function)
Use this section for displaying and setting the temperature. The tem-
perature range is 100 to 450°C. (212 to 842°F.). The temperature is
factory-set to 300°C. (572°F.).
UP
DOWN
..... Use these buttons to increase and decrease the tempera-
ture.
........... When this button is pressed for more than one second,
the station enters temperature setting mode. This button is
also used to finalize the temperature setting when setting
the temperature. When this button is pressed for less than
one second, the current temperature setting is displayed.
CAUTION: Both the temperature displayed and the temperature
setting refer to the temperature at the sensor.
② Timer setting section ..................
(timer setting function)
Use this section for displaying and setting the heating time in Auto
mode. The air blow time range is 15 – 999 seconds.
UP
DOWN
..... Use these buttons to increase and decrease the blow time.
........... When this button is pressed for more than one second, the
station enters timer setting mode. This button is also used
to finalize the timer setting when setting the timer. When
this button is pressed for less than one second, the current
timer setting is displayed.
③ Airflow setting section ................The airflow can be set within the range of 7 to 20l/min. Set the airflow
using the airflow control knob.
④ Airflow meter ...............................This meter indicates the airflow rate. (7l/min and above)
⑤ Power switch ...............................This switch turns the power ON and OFF.
⑥ Airflow control knob ...................This knob controls the airflow.
⑦ Mode setting section ...................
(mode setting function)
Use this section for displaying and selecting the mode. The following
three modes can be selected: MANUAL, REMOVE, and INSTALL.
Select the mode using the mode selection button.
⑧ Vacuum indicator ........................This indicator lights when the vacuum pump is in operation.
Handpiece
① Pads ..............................................The pads hold parts by suction applied through the vacuum pipe.
② Vacuum pipe ................................The pads are mounted on the tip of the vacuum pipe.
③ Sensor (internal) ..........................The sensor detects the temperature of the hot air.
④ Start button ..................................●Manual Mode
When the Start button is pressed, the unit begins blowing hot air.
When the start button is pressed again, the unit begins cooling and
stops blowing hot air after reaching 200°C. (392°F.)
●Auto Mode
When the Start button is pressed, the program begins. When the
start button is pressed again, the unit begins cooling.
⑤ Vacuum pipe control knob .........This knob controls the length of the vacuum pipe.
⑥ Vacuum button ............................This button turns the vacuum pump ON and OFF.

5
5. PREPARATION: ASSEMBLY AND ELECTRICAL CONNECTION
(Figure 1)
(Figure 2)
(Figure 3)
(M3 × 5)
(Figure 4)
(Figure 5)
(Figure 6)
Preparation: Assembly and Electrical Connectio
A. Station Assembly

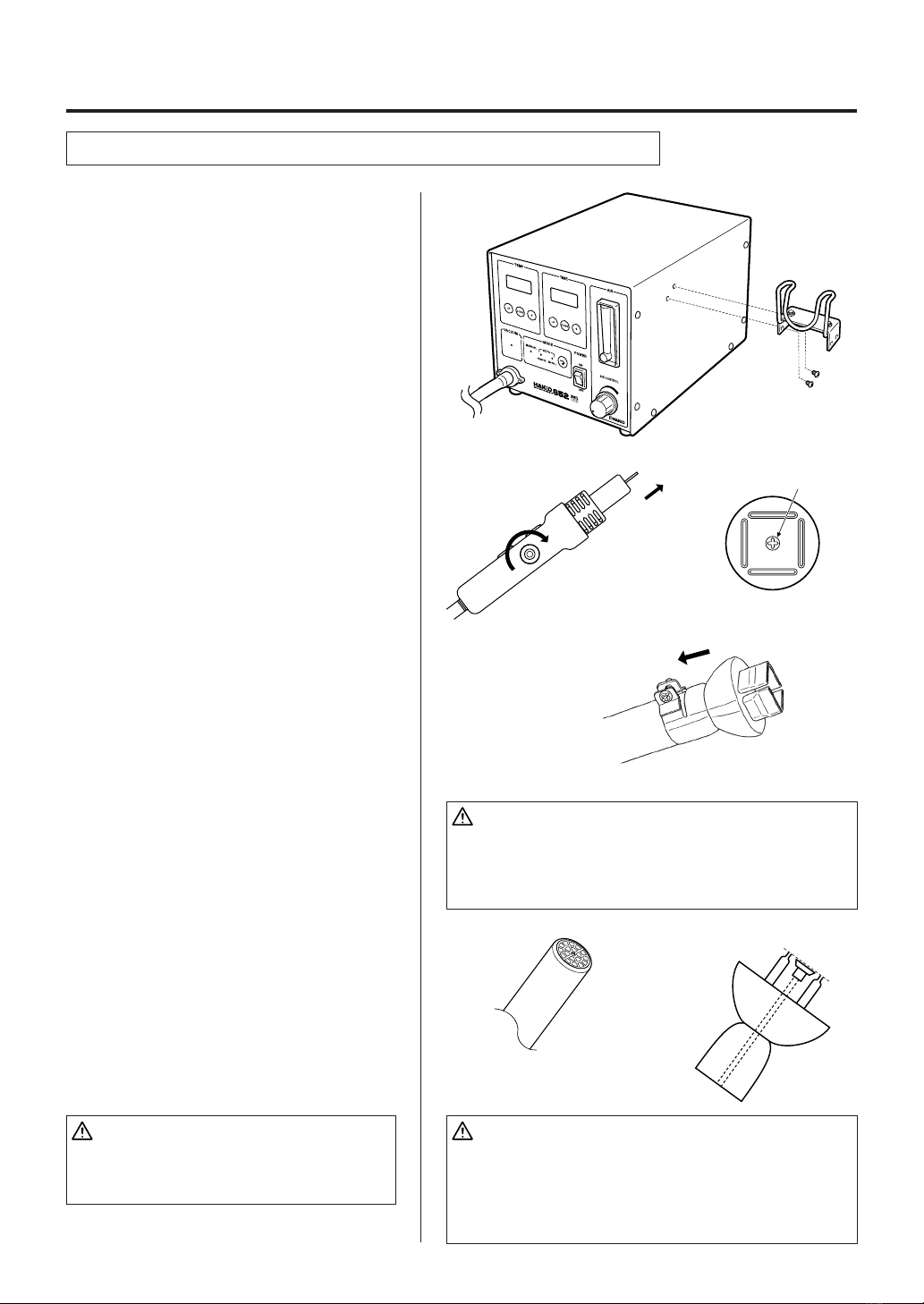

● Attach the handpiece holder.
Remove the handpiece holder mounting
screw from the side of the station. Attach
the handpiece holder to the station. (Fig-
ure 1)
(The handpiece holder can be installed
on either the left or right side.)
B. Handpiece Assembly
● Using vacuum function op-
erative nozzle (see page 17.)
1. Attach the nozzle.
a. Extend the vacuum pipe using the
vacuum pipe control knob. (Figure 2)
b. Remove the inside screw (M3 × 5)
of the nozzle. (Figure 3)
c. Loosen the nozzle mounting screw.
Pass the vacuum pipe through the
nozzle hole and attach the nozzle.
(Figure 4)
d. Tighten the nozzle mounting screw.
2. Attach the pad.
a. Attach the pad. (Figure 6)
b. Adjust the pad to an appropriate po-
sition.
Adjust the vacuum pipe so that the
pipe and pad protrude as little as
possible.
CAUTION
The nozzle and pads reach high temperatures,
get very hot. Be sure they are cool before at-
tempting to replace them.
CAUTION
● Pad
The pads do not last indefinitely. When they become deteri-
orated, replace them. Since exposure to high temperatures
causes them to deteriorate faster, Hakko recommends they
be cooled after use.
CAUTION
● Vacuum Pipe
Do not use excessive force.
When not using a nozzle, retract the vacuum pipe to the
shortest length. (Figure 5)

6
V
S
(Figure 8 ) Top View
(Figure 7)
● Using vacuum function inop-
erative nozzle (see page 18.)
Attach the nozzle.
a. Retract the vacuum pipe to the short-
est length using the vacuum pipe con-
trol knob. (Figure 5)
b. Loosen the nozzle mounting screw.
Attach the nozzle. (Figure 4)
c. Tighten the nozzle mounting screw.
CAUTION
The pad cannot be used with this type of noz-
zle.

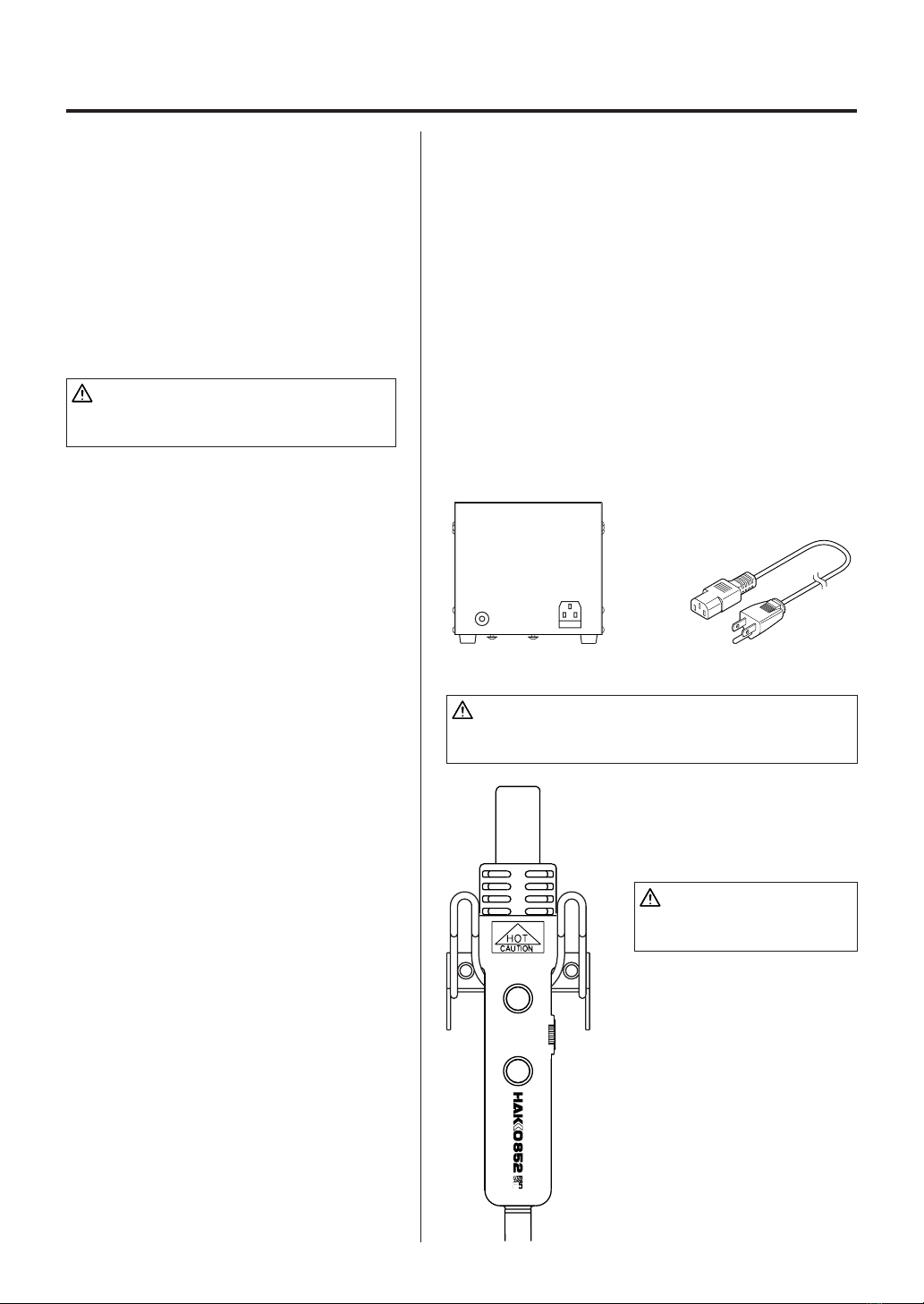

C. Electrical Connection
and Power ON
1. Connect the power cord to the power
receptacle on the back panel of the
station. (Figure 7)
2. Place the handpiece on the holder.
(Figure 8)
3. Plug the power cord into a grounded
wall socket.
4. Turn the power switch ON.
CAUTION
This product is ESD-protected. Be sure to use a grounded
wall socket.
CAUTION
When not in use, place the
handpiece on the holder.

7

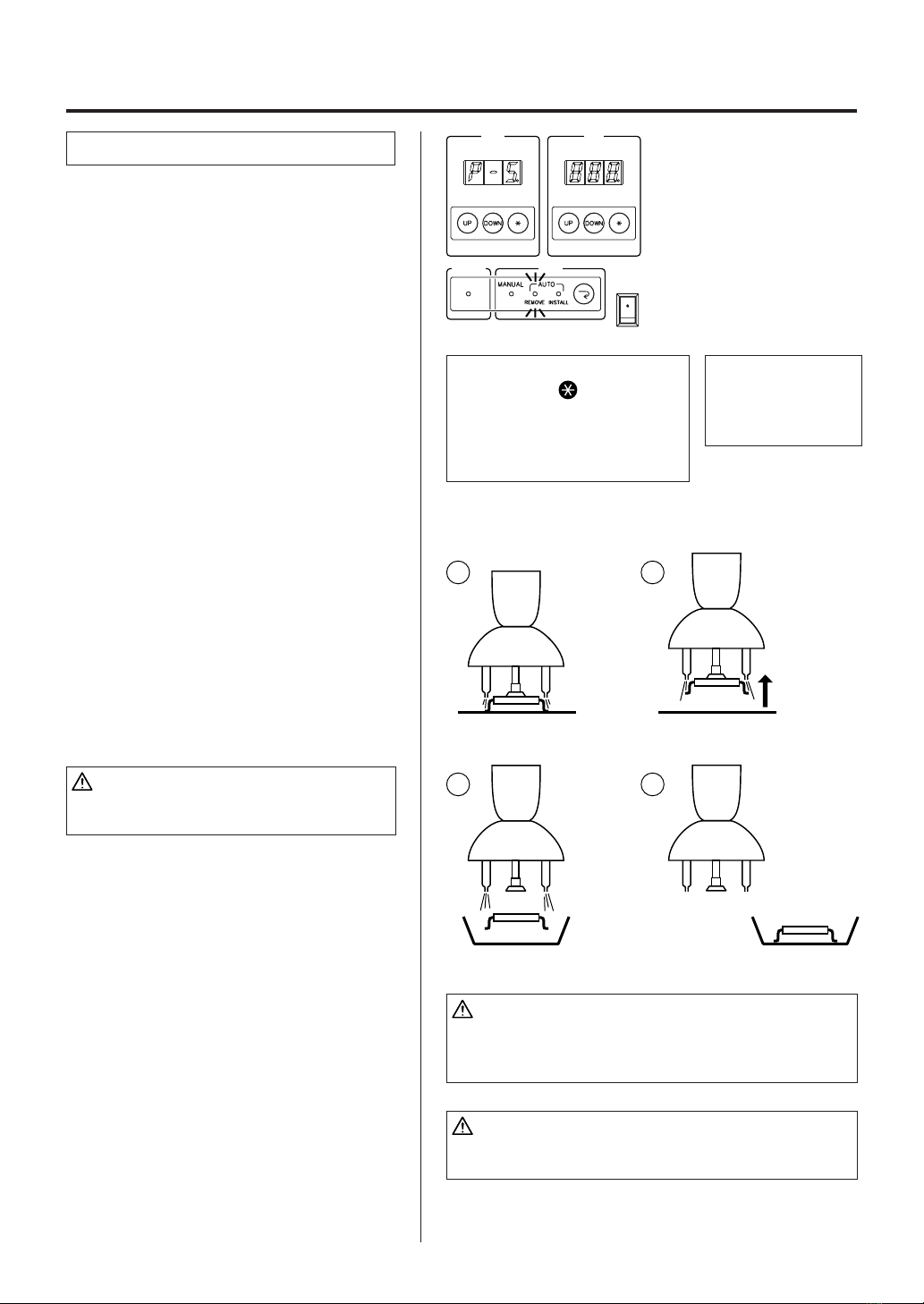

● Manual Mode (See page 8.)
In this mode, air-blow start and vacuum pump operation
are handled entirely by manual operation. Use this mode
when setting up Auto mode conditions, performing opera-
tions for which no conditions have been established, per-
forming maintenance, or executing a single operation.
● Remove Mode (AUTO) (See page 9.)
This mode is used when removing parts. After starting, the
heating time can be set by setting the timer. The vacuum
pump turns ON automatically.
● Install Mode (AUTO) (See page 10.)
This mode is used when installing parts. After starting, the
heating time can be set by setting the timer. The vacuum
pump turns OFF automatically.
6. PREPARATION: ASSEMBLY AND ELECTRICAL CONNECTION
D. Mode Selection
Select the desired mode using the mode
selection button.
The Hakko 852 provides the following
three modes:
VACUUM MODE
(Figure 9 )
MANUAL
REMOVE INSTALL
AUTO

8
When checking the
temperature setting
Press the button for less
than one second. To change
the temperature setting, see
“Setting/Changing the Tem-
perature” on page 11.
7. OPERATION
Operation in Manual Mode
●Selecting Manual Mode
Press the mode selection button and set
the mode to MANUAL.
The timer does not operate. ap-
pears on the timer display.
●Air Blow
1. Start
Press the Start button on the hand-
piece (or the foot-switch) to start the
flow of air. The hot air blows from the
tip of the nozzle, and the temperature
is controlled according to the tempera-
ture setting.
2. Stop
Press the Start switch again. Power
to the heater is shut off and cooling
begins. When the temperature falls to
200°C. (392°F.), the air stops blow-
ing and the temperature display reads
.
●Vacuum Function
This function is used to hold the compo-
nent securely to the pads.
1. Start
Press the Vacuum button on the hand-
piece. The vacuum pump turns ON
and the part is held by suction.
2. Stop
Press and hold the Vacuum button for
more than 0.3 second. The vacuum
pump turns OFF.
VACUUM MODE POWER
TIMETEMP
OFF
ON
V
S
V
S
CAUTION
To avoid damage to the equipment, do not turn the power
switch OFF until appears on the display.
CAUTION
Do not stop the hot air or the vacuum
by turning the power switch OFF.
CAUTION
Parts held by the pads are very hot. Be careful when re-
moving them from the pads.

9
VACUUM
MODE POWER
TIME
TEMP
OFF
ON
To check the temperature set-
ting, press the button for less
than one second. To change the
temperature setting, see “Setting/
Changing the Temperature” on
page 11.
To change the air
blow time, see “Set-
ting/Changing the
Time” on page 12.
7. OPERATION
Auto/Remove Mode
●Selecting Remove Mode
Press the mode selection button and set
the mode to REMOVE. This mode has
the following sequence:
① Start/hot air blow (manual)
② Vacuum ON five seconds before the
timer runs out (automatic)
③ Vacuum OFF (manual)
④ Cooling start and air blow stop
(automatic)
●Removal
●Preparation
Position the nozzle and pads over the
part you wish to remove.
① Start (heating)
Press the start button on the hand-
piece (or the foot-switch). Hot air blows
from the nozzle and melts the solder.
The timer begins counting down. (Fig-
ure 1)
CAUTION
To stop the program, press the start button.
Cooling begins.
② Suction
When five seconds remain on the tim-
er, the vacuum automatically turns ON
and the part is held by suction. Lift the
handpiece and remove the part from
the P.W.B.. (Figure 2)
③ Releasing the Part
Release the part by pressing the vac-
uum button for more than 0.3 second.
(Figure 3)
④ Stop
When the timer reaches 0, cooling be-
gins and the air stops blowing as soon
as the temperature reaches 200°C.
(392°F.).
1 2
3 4
(Figure 1) (Figure 2)
(Figure 3) (Figure 4)
CAUTION
If the vacuum button is pressed before the timer runs down
to five seconds, the vacuum pump turns ON and the re-
maining time is automatically set to five seconds.
CAUTION
The solder that remains on the substrate will be deteriorat-
ed. Remove it with a solder remover or some solder wick.

10
To check the temperature set-
ting, press the button for less
than one second. To change the
temperature setting, see “Setting/
Changing the Temperature” on
page 11.
To change the air
blow time, see “Set-
ting/Changing the
Time” on page 12.
Auto/Install Mode
●Selecting Install Mode
Press the mode selection button and set
the mode to INSTALL. This mode has the
following sequence:
① Vacuum ON (manual)
② Start/hot air blow (manual)
③ Vacuum OFF after five seconds
(automatic)
④ Cooling start and air blow stop
(automatic)
●Installation
●Preparation
Apply an appropriate amount of solder
paste to P.W.B..
① Part Suction and Positioning
Press the VACUUM button on the hand-
piece (or the foot-switch). The part is
held to the pads by suction. Position
the part over the P.W.B.. (Figure 1)
② Start
Press the START button. Hot air blows
from the nozzle and soldering begins.
(Figure 2)
③ Vacuum Stop
After five seconds, the vacuum turns
OFF and the part is released from suc-
tion. (Figure 3)
④ Stop
When the timer reaches 0, cooling
begins. Make sure the solder has
hardened before lifting the handpiece.
(Figure 4)
CAUTION
While there are many advantages to using hot
air for soldering and desoldering, it is possible for
the process to result in defects such as bridges or
solder balls. Hakko recommends that all opera-
tors be made familiar with the equipment. Be sure
to inspect each completed product.
VACUUM MODE POWER
TIMETEMP
OFF
ON
1 2
3 4
Vacuum OFF
(Figure 1) (Figure 2)
(Figure 3) (Figure 4)

11
VACUUM MODE POWER
TIME AIRTEMP
AIR CONTROL
OFF
ON
Press the button once.
Press the or button.
Temperature 
setting section
Press and hold the button 
for more than one second.

Press the button once.
Press the button once.
UP
DOWN
Press the or button.
UP
DOWN
7. OPERATION

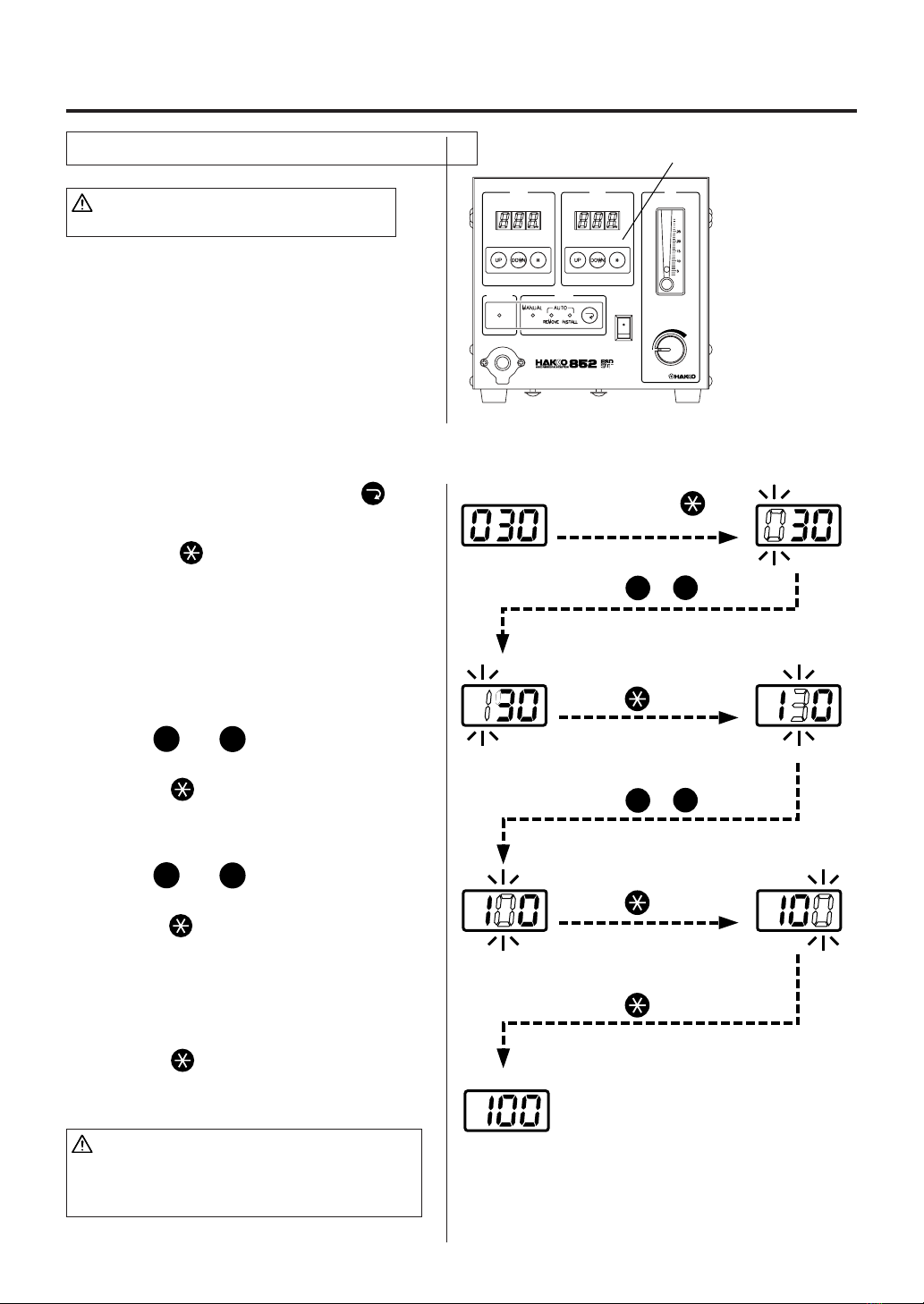

1. Press the on temperature setting
section for more than one second.
● The station goes into temperature setting
mode and the HUNDREDS digit flashes
on the display, indicating that the HUN-
DREDS digit can be entered.
2. Enter the HUNDREDS digit.
●
Use the
UP
and
DOWN
buttons to select the
desired value for the HUNDREDS digit. Only
1, 2, 3, or 4 can be selected. (In °F mode, 2,
3, 4, 5, 6, 7, and 8 can be selected). When
the desired value is displayed, press the
button. The TENS digit begins to flash.
3. Enter TENS digit.
● Use the
UP
and
DOWN
buttons to select the
desired value for the TENS digit. Any
value from 0 to 9 can be selected. When
the desired value is displayed, press the
button. The UNITS digit begins to flash.
4. Enter the UNITS digit.
● Select the desired value for the UNITS digit
in the same manner as for the TENS digit.
● Press the button.
● The temperature setting is stored in mem-
ory. Heater control begins after the new
temperature setting is displayed.
CAUTION
If the power is turned OFF before the temperature
setting procedure is completed, the new setting
value will not be stored in memory.
CAUTION
The temperature setting range is 100 – 450°C.
(212 – 842°F).
● Attempt to enter a value outside the setting range
will cause the display to begin flashing the HUN-
DREDS digit again. Reenter a correct value.
● Both the display temperature and the temperature
setting are the temperature at the sensor. (Even
with the same temperature setting, the temperature
of the hot air differs depending on the nozzle size.)
Example: Change the temperature setting from 300 to 450°C.
Setting/Changing the Temperature

12
VACUUM MODE POWER
TIME AIRTEMP
AIR CONTROL
OFF
ON
Timer setting section
Press the button once.
Press the or button.
Press and hold the button 
for more than one second.

Press the button once.
Press the button once.
UP
DOWN
Press the or button.
UP
DOWN
1. Press the mode selection button and
set the mode to REMOVE or INSTALL.
2. Press the button on timer setting
section for more than one second.
● The station goes into timer setting mode
and the HUNDREDS digit flashes on the
display, indicating that the HUNDREDS
digit can be entered.
3. Enter the HUNDREDS digit.
● Use the
UP
and
DOWN
buttons to display the
desired value for the HUNDREDS digit.
● Press the button. The TENS digit be-
gins to flash.
4. Enter the TENS digit.
● Use the
UP
and
DOWN
buttons to display the
desired value for the TENS digit.
● Press the button. The UNITS digit be-
gins to flash.
5. Enter the UNITS digit.
● Select the desired value for the UNITS digit
in the same manner as for the TENS digit.
● Press the button. The timer setting is
stored in memory. Heater control begins
after the new timer setting is displayed.
CAUTION
If the power is turned OFF before the timer setting
procedure is completed, the new setting value will
not be stored in memory.
CAUTION
The timer setting range is 15 – 999 seconds.
● Attempt to enter a value outside the setting range
will cause the display to begin flashing the HUN-
DREDS digit again. Reenter a correct value.
Example: Change the temperature setting from 300 to 450°C.
Setting/Changing the Time

13
7. OPERATION

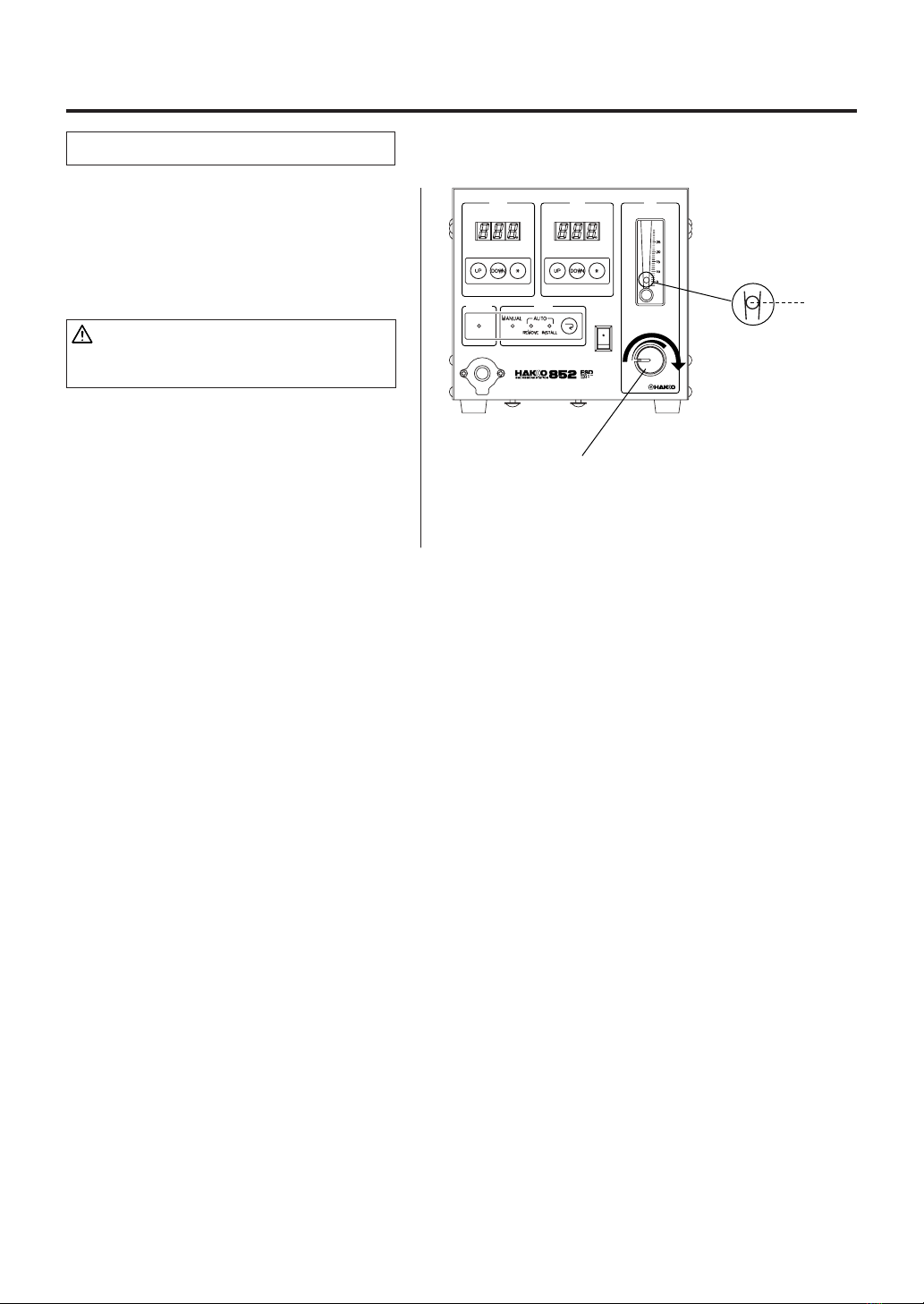

Airflow Adjustment
Adjust the flow rate of the hot air while
watching the airflow meter. The adjust-
ment range is 7l/min to 20l/min.
CAUTION
Do not apply excessive force when turning the
airflow control knob.
VACUUM MODE POWER
TIME AIRTEMP
AIR CONTROL
OFF
ON
Turn clockwise to increase the airflow.
Turn counterclockwise to decrease the airflow.

Read from 
the center 
of the ball.


14
8. PARAMETERS / INITIAL RESETTING
●Initial Reset
Turn the power switch ON while
simultaneously pressing the
UP
,
DOWN
, and
buttons on the temperature setting
section. The station will be reset to the
following initial values:
˚C/˚F selection
Power save time
Temperature setting
Timer setting 30 seconds
Mode
˚C 
30 minutes 
300˚C 
30 seconds 
Manual
●Entering the Parameters The Hakko 852 has the following three parameters:
1) °C or °F temperature display selection
2) Power save time (select 30 or 60 minutes)
3) Sensor temperature display
Once the station enters parameter mode, set the
parameters in the order shown below. After all the
parameters have been set, normal operation will be
resumed.
① °C (Celsius) or °F (Fahrenheit)
Temperature Display
1. Turn the power switch OFF .
2. Press and hold down the
UP
and
DOWN
buttons on
the temperature setting section simultaneously
and then turn the power switch ON.
3. Continue holding down both buttons until the
display shows
C
(for Celsius) or
F
(for
Fahrenheit). When the display shows
C
or
F
, the station is in parameter input mode.
● Pressing the
UP
and
DOWN
button will cause
C
or
F
to be displayed alternately.
● Press the button to select the scale. The pow-
er save time may now be entered.
② Power Save Time
The power save function automatically
turns off the hot air when it has blown
continuously for a specified amount of
time in manual mode. Power to the heat-
er is turned off and then the air is stopped
after the handpiece cools.
● When the station enters power save time setting
mode, either
30
or
60
is displayed. Either
30 minutes or 60 minutes can be selected.
● Pressing the
UP
and
DOWN
button will cause
30
or
60
to be displayed alternately.
● Press the button to enter your selection. The
sensor temperature may now be displayed.
③ Sensor Temperature Display
CAUTION
If the power is turned OFF before the param-
eter setting procedure is completed, the new
setting values will not be stored in memory.
● No data entry is required.
The value displayed is the temperature currently
detected by the sensor.
● To end parameter input mode, press the but-
ton. After displaying the temperature setting for
two seconds, the station returns to normal mode.

15
1. Unplug the power cord from the power recep-
tacle.
2. Remove the fuse holder.
3. Replace the fuse.
4. Put the fuse holder back in place.

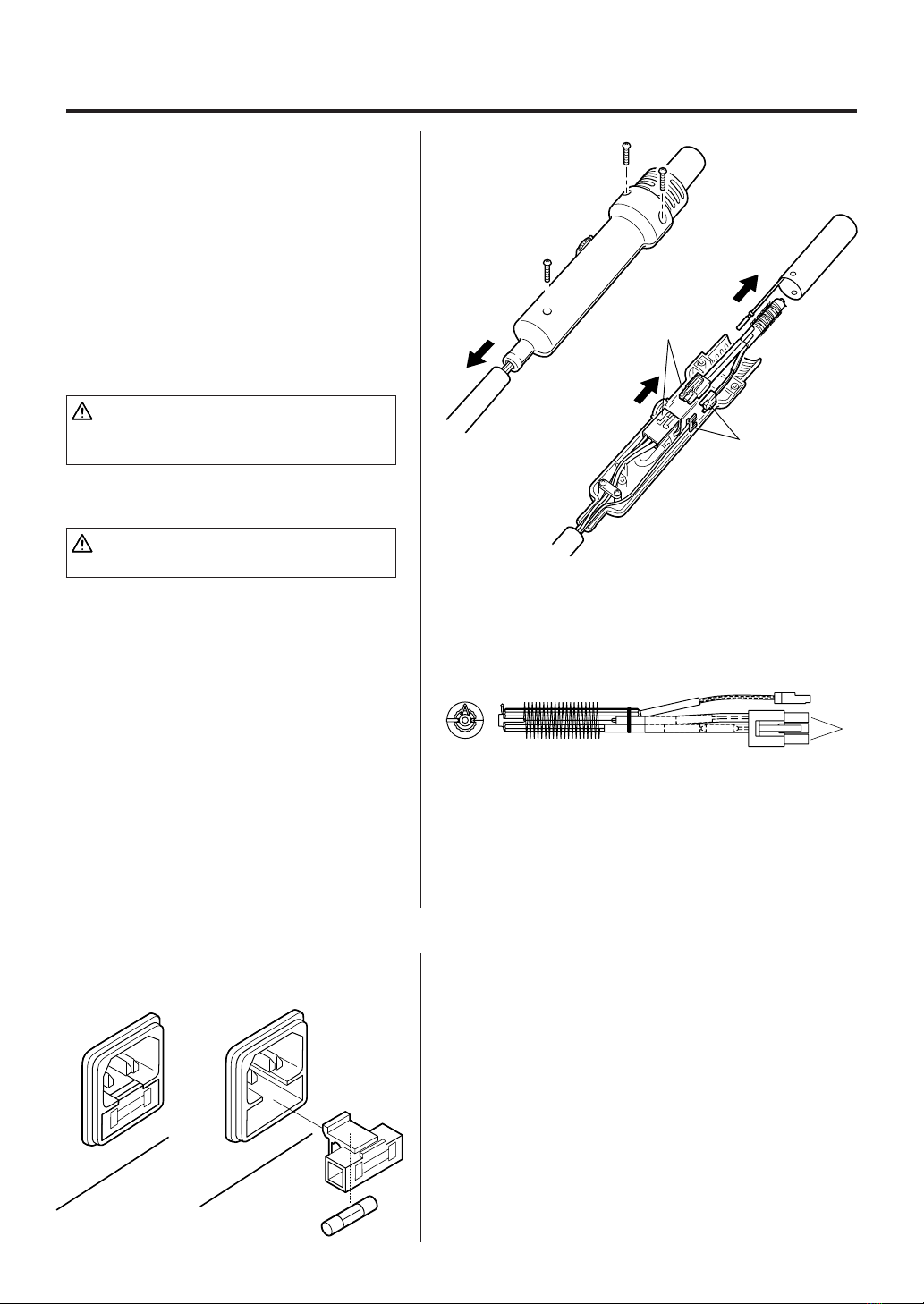

●Broken Heater or Sensor
① Open the handpiece.
1. Retract the vacuum pipe to its shortest
length.
2. Remove the three screws holding the
handpiece together.
3. Move the tube downward.
4. Remove the pipe from the protruding
portion of the handle.
CAUTION
Quartz glass and heat insulation are inside the
pipe. Be careful not to drop or lose these items.
5. Disconnect the heater sensor connec-
tor and remove the heater.
CAUTION
Do not apply excessive force to the vacuum pipe.
② Measure the resistance value.
1. Measure the resistance value (a) of the
sensor. The correct value is 0Ω.
2. Measure the resistance value (b) of the
heater. The correct values are approx-
imately 33Ω (±10%) (100-120V), 85Ω
(±10%) (220-240V) at room tempera-
ture.
If the resistance value is incorrect, re-
place the part.
(Refer to the instructions included with
the replacement part.)
●Replacing the Fuse
9. MAINTENANCE / INSPECTION
Sensor connector
Heater connector
a
b

16
This error occurs when the temperature of the hot
air is falling even though the heater is on. The
flashes to indicate the possibility of a heater failure.
10. ERROR MESSAGES
When the error detection software in the Hakko 852 detects an error, a message is dis-
played to alert the operator. See “Troubleshooting” for procedures to correct the error.
This error occurs when there is the possibility of
a sensor failure (or a failure in the sensor circuit).
flashes and the power is shut down.
Sensor Error
Heater Error
11. TROUBLESHOOTING
WARNING
● Before checking the inside of the Hakko 852 or replacing parts, be sure to disconnect the
power plug. Failure to do so may result in electric shock.
● The unit does not operate
when the power switch is
turned ON.
CHECK : Is the power cord disconnected?
ACTION : Connect it.
CHECK : Is the fuse blown?
ACTION : Investigate why the fuse blew and then
replace the fuse. If the cause can not be
determined, replace the fuse. If the fuse
blows again, send the unit in for repair.
CHECK : Is the sensor broken?
ACTION : See the procedure for checking a po-
tentially broken sensor (p.15).
CHECK : Is the heater broken?
ACTION : See the procedure for checking a po-
tentially broken heater (p.15).
CHECK : Is the station in Auto mode?
ACTION : Put the station into Auto mode.
CHECK : Is the value outside the setting range?
ACTION :
Enter a value that is within the setting range.
CHECK : Is the vacuum button being pressed for
less than 0.3 second?
ACTION : Press the vacuum button for more than 0.3
second.
● flashes, indicating a sen-
sor error.
● flashes, indicating a
heater error.
● The timer cannot be set.
● The vacuum pump does not
stop when the vacuum button
is pressed.

17
12. OPTIONAL PARTS
mm (inch)
�Nozzles
NOTE
The size in Name/
Specification indicates
the size of IC package.
�VACUUM FUNCTION OPERATIVE NOZZLES.
A1125B QFP 10 x 10
(0.39 x 0.39)
10
(0.39)
10 (0.39)
A1126B QFP 14 x 14
(0.55 x 0.55)
15
(0.59)
15 (0.59)
A1127B QFP 17.5 x 17.5
(0.68 x 0.68)
A1128B QFP 14 x 20
(0.55 x 0.78)
A1129B QFP 28 x 28
(1.1 x 1.1)
19
(0.75)
19 (0.75)
21
(0.83)
15 (0.59)
29 (1.14)
29 (1.14)
A:10.2 (0.4)
B:10.2 (0.4)
A:15.2 (0.6)
B:15.2 (0.6) A:19.2 (0.76)
B:19.2 (0.76) A:15.2 (0.6)
B:21.2 (0.83)
A:29.7 (1.17)
B:29.7 (1.17)
A1135B PLCC 17.5 x 17.5
(0.68 x 0.68)
(44 Pins)
15
(0.59)
15 (0.59)
A:18.5 (0.73)
B:18.5 (0.73)
A1136B PLCC 20 x 20
(0.78 x 0.78)
(52 Pins)
A1139B PLCC 12.5 x 7.3
(0.49 x 0.29)
(18 Pins)
A1137B PLCC 25 x 25
(0.98 x 0.98)
(68 Pins)
A1138B PLCC 30 x 30
(1.18 x 1.18)
(84 Pins)
19 (0.75)
19 (0.75)
24 (0.94)
24 (0.94)
29 (1.14)
29 (1.14)
6.9
(0.27)
6.9 (0.27)
A:21 (0.83)
B:21 (0.83) A:26 (1.02)
B:26 (1.02) A:31 (1.22)
B:31 (1.22)
A: 9 (0.35)
B:14 (0.55)
A1140B PLCC 11.5 x 11.5
(0.45 x 0.45)
(28 Pins)
A1141B PLCC 11.5 x 14
(0.45 x 0.55)
(32 Pins)
10 (0.39)
10 (0.39)
10 (0.39)
15 (0.59)
21 (0.83)
21 (0.83)
A1182B BQFP 24 x 24
(0.94 x 0.94)
18.5 (0.73)
10 (0.39)
A1187B TSOL 18.5 x 8
(0.73 x 0.31)
A:13 (0.51)
B:13 (0.51) A:15 (0.59)
B:13 (0.51)
A:24.2 (0.95)
B:24.2 (0.95)
A1257B SOP 11 x 21
(0.43 x 0.83)
11.7 (0.46)
21 (0.83)
A1259B SOP 13 x 28
(0.51 x 1.1)
13.5 (0.53)
A1260B SOP 8.6 x 18
(0.34 x 0.71)
8.7 (0.34)
19 (0.75)
A1261B QFP 20 x 20
(0.78 x 0.78)
21 (0.83)
21 (0.83)
A1262B QFP 12 x 12
(0.47 x 0.47)
12
(0.47)
12 (0.47)
29 (1.14)
A1258B SOP 7.6 x 12.7
(0.3 x 0.5)
8.2 (0.32)
11.7 (0.46)
A:12.2 (0.48)
B:12.2 (0.48)
A:20.2 (0.8)
B:20.2 (0.8)
A1263B QFP 28 x 40
(1.1 x 1.57)
39 (1.54)
29 (1.14)
A1264B QFP 40 x 40
(1.57 x 1.57)
39 (1.54)
39 (1.54)
A1265B QFP 32 x 32
(1.26 x 1.26)
31
(1.22)
31 (1.22)
A:32.2 (1.27)
B:32.2 (1.27)
A:40.2 (1.58)
B:40.2 (1.58)
A:27.7 (1.09)
B:39.7 (1.56)
A1180B BQFP 17 x 17
(0.67 x 0.67)
A1181B BQFP 19 x 19
(0.75 x 0.75)
16
(0.63)
16 (0.63)
13.6
(0.54)
13.6 (0.54)
A:18.2 (0.72)
B:18.2 (0.72) A:19.2 (0.76)
B:19.2 (0.76)
A1184B SOJ 18 x 8
(0.71 x 0.31)
10 (0.39)
19 (0.75)
A1185B TSOL 13 x 10
(0.51 x 0.39)
A1186B TSOL 18 x 10
(0.71 x 0.39)
18.2 (0.72)
11.7 (0.46)
11.9
(0.47)
10 (0.39)
A1188B PLCC 9 x 9
(0.35 x 0.35)
(20 Pins)
10
(0.39)
10 (0.39)
A1189B PLCC 34 x 34
(1.34 x 1.34)
(100 Pins)
33.5 (1.32)
33.5 (1.32)
A1203B QFP 35 x 35
(1.38 x 1.38)
A1215B QFP 42.5 x 42.5
(1.67 x 1.67)
A1214B SOJ 10 x 26
(0.39 x 1.02)
40 (1.57)
40 (1.57)
12 (0.47)
25.9 (1.02)
A:36.5 (1.44)
B:36.5 (1.44)
A:11 (0.43)
B:11 (0.43) A:42.5 (1.67)
B:42.5 (1.67)
Air flow
PLCC SOJ
QFP SOP
A
C
D
B
35.2 (1.39)
31 (1.22)
A:35.2 (1.39)
B:35.2 (1.39)
C 0.8 (0.03)
D 1.8 (0.07)
A1125B~A1129B
A1131~A1141B
A1180B~A1189B
A1203B~A1265B
C 1.0 (0.04)
D 2.0 (0.08)
A1191
C 0.8 (0.03)
D 2.0 (0.08)
A1192
No.

18
●FOOT-SWITCH
The foot-switch can be used to perform
the same operation as the start button
and the vacuum button on the handpiece.
The pitch
between the
two nozzles
is adjustable.
�VACUUM FUNCTION INOPERATIVE NOZZLES.
CAUTION Be sure not to use No. A1124 Single ø2.5 (0.09) and No. A1142 Bent Single 1.5 x 3 (0.06 x 0.12) nozzle
with the Hakko 852. These nozzles do not have space to blow hot air, using them with the 852 may result
in danger.
A1325 Dual Single ø1.5 x 5-10
(0.06 x 0.2-0.39) Adjustable Pitch
10
5
5 (0.2) 10 (0.39)
A1124B Single ø2.5
(0.09)
A1130 Single ø4.4
(0.17)
A1133 SOP 7.5 x 15
(0.3 x 0.59)
A1131 SOP 4.4 x 10
(0.17 x 0.39)
A1132 SOP 5.6 x 13
(0.22 x 0.51)
4.8 (0.19)
10 (0.39)
5.7 (0.22)
15 (0.59)
7.2 (0.28)
16 (0.63)
A1134 SOP 7.5 x 18
(0.3 x 0.7)
7.2
(0.28)
19 (0.75)
A1142B Bent Single 1.5 x 3
(0.06 x 0.12)
45°
1.5
(0.06) (I.D)
3
(0.12) (I.D)
A1183 SOJ 15 x 8
(0.59 x 0.31)
8
(0.31)
16 (0.63)
A1190 Dual Single
2.5 x 9.5
Pitch (0.09 x 0.37)
A1191
SIP 25L (0.98)
26 (1.02)
2 (0.08)
A1192
SIP 50L (1.97)
52.5 (2.07)
2 (0.08)
ø1.5 (I.D)
(0.06)
ø2.5 (I.D)
(0.09)
ø2.5 (I.D)
(0.09)
ø4.4 (I.D)
(0.17)
Foot-switch jack
Foot-switch
(sold separately)

Insert the foot-switch plug into the 
foot-switch jack on the back of the station.

19
20

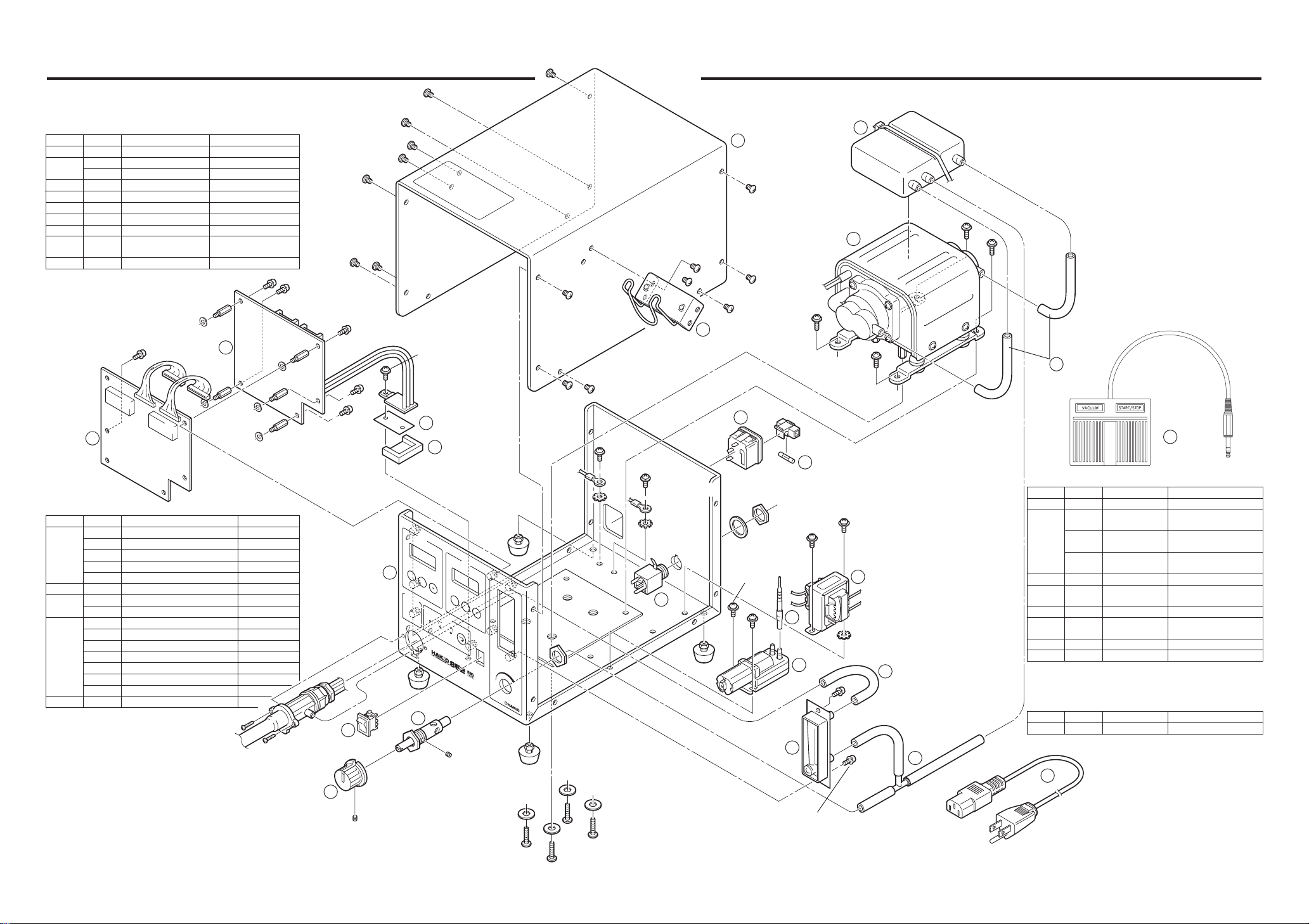

13. PARTS LIST / STATION
*Spare or repair parts do not include mounting screws, if they are not
listed on the description. Screws must be ordered separately.
Item No.
1
2
3
4
5
6
7
8
9
Part No.
B2461
B2462
B2482
B2463
B2317
B1084
B1028
B2464
B2465
B2466
Part Name
P.W.B./display
P.W.B./heat control
P.W.B./heat control
Radiation sheet
Insulation sheet
Switch
Knob
Cover
Chassis
Jack for footswitch
Description
100-120 V With triac
220-240 V With triac
With screw
With display window,
membrane sheet
Item No.
10
11
12
13
14
Part No.
B2467
B2483
B2479
B2484
B2485
B2384
B2468
B1258
B2419
B2421
B2422
B2423
B2424
B2425
B2426
B2469
Part Name
Transformer
Transformer
Transformer
Transformer
Transformer
Power receptacle
Fuse 125V-5A
Fuse 250V-3.15A
Power cord, 3 core & American plug
Power cord, 3 core, no plug
Power cord, 3 core, BS plug
Power cord, 3 core, European plug
Power cord, 3 core, European plug
Power cord, 3 core, BS plug
Power cord, 3 core, Australian plug
Vacuum pump
Description
100 V
110 V
120 V
220-230 V
240 V
100-120 V
220-240 V
India
Korea
Eur.
U.K.
Item No.
15
16
17
18
19
20
21
22
Part No.
B2470
B2471
B2480
B2481
B2472
B2473
B2474
B2475
B2476
B2477
Part Name
Tube joint
Air pump
Air pump
Air pump
Sound-proof tank
Silicone tube
Tube connector
Silicone tube
Air flow meter
Handpiece holder
Description
With silicone tube
100 V, With high nut, nylon
band, double-side tape
110-120 V, With high nut,
nylon band, double-side tape
220-240 V, With high nut,
nylon band, double-side tape
8 × 5 × 130 l mm
0.3 × 0.2 × 5.1 l in.
With silicone tube
8 × 5 × 205 l mm
0.3 × 0.2 × 8.1 l in.
assembly
Item No.
1
Part No.
B2478
Part Name
Foot-switch
Description
Option
*If you need item no. 23. Exhaust nozzle, contact your
Hakko representative.
1
2
18
20
19
13
10
11
12
15
14
21
16
22
9
7
17
3
4
5
6
8
23
1
TIME
TEMP
POWER
OFF
ON
OFF
ON
UP
DOWN
UP
DOWN
AIR
AIR CONTROL
VACUUM
MODE
AUTO
MANUAL
REMOVE INSTALL
Option
Truss screw
(Zn • black)
(M4 × 5) (16)
External tooth
lock washer
(nominal size 3)
Pan head screw
with washer
(w/Spring washer)
(M4 × 10) (4)
Pan head screw
with washer
(w/Spring, Plain washer)
(M3 × 6) (2)
Pan head screw
with washer
(w/Spring, Plain washer)
(M3 × 10) (2)
Pan head screw
with washer
(w/Spring washer)
(M4 × 6) (2)
External tooth
lock washer
(nominal size 4)
(2)
Spring washer
(nominal size 3) (5)
Truss screw
(M4 × 18) (4)
Pan head screw
with washer
(w/Spring washer)
(M3 × 6) (6)
Plain washer
polycarbonate
(nominal size 5) (4)
Pan head screw
with washer
(w/Spring, Plain washer)
(M3 × 8)
Spacer
(M3 × 12) (5)
Hexagonal socket
set screw
(M3 × 3)
Foot-switch
(sold separately)
Pan head screw
with washer
(w/Spring washer)
(M3 × 6) (2)
