aci MOD9200LON LONWORKS Owner's manual

Installation and Operation Instructions
MOD9200LON Spread Spectrum
Wireless LonWorks® Network Transceiver
AUTOMATION COMPONENTS, INC Version : 1.0
2305 Pleasant View Road I0000688
Middleton, Wisconsin 53562 Page 1 of 3
www.workaci.com [phone]
7.625"
(184.5mm)
TOP
SIDE VIEW
2.365"
(60.1mm)
Antenna
Active LED
Data Link LED
8.26"
(209.8mm)
8.78"
(223mm)
3.5"
(88.9mm)
Ø0.190 (4 PLCS.)
4.72"
(119.89mm)
TOP VIEW
RJ45
RS232
Figure #1

AUTOMATION COMPONENTS, INC Version : 1.0
2305 Pleasant View Road I0000688
Middleton, Wisconsin 53562 Page 2 of 3
www.workaci.com [phone]
General Description
ACI’s mesh network Series 2000 MOD9200LON network transceiver utilizes reliable Spread Spectrum Mesh
Network Radio technology. Together with other wireless sensors and controls, the system can be used to
transmit remote sensor readings, status/alarm indications, control signals and outputs wirelessly. It is compatible
with control networks or automation systems that utilize LonWorks® communication protocol or interface. Up
to 50 separate physical wireless sensor transmitters and/or wireless remote output (analog & digital) modules can
be used with one MOD9200LON Transceiver, and up to 100 data points, and 100 wireless outputs can be
monitored and controlled with one (1) MOD9200 Transceiver.
The maximum radio transmission distance is dependent on the building type. The maximum open air
transmission distance is one mile. In a typical commercial building with steel I-Beam construction, concrete
floors with reinforcing rod, and metal stud walls, it can be expected that transmissions will penetrate vertically
through floors and horizontally through 200 to 500 feet of walls, furniture and air.
Generally a wireless system will cover at least three floors – one floor above, and one floor below the receiver
location. In some buildings with favorable transmission characteristics the system may cover more floors.
Wireless sensor transmitters should be installed within 200 to 500 feet of the MOD9200 transceiver.
RR2552 signal repeaters can be installed as needed to increase transmission distance between sensors and
receivers.
Installation
PRECAUTIONS
SENSORS,REPEATERS AND RECEIVERS SHOULD NOT BE INSTALLED IN THE FOLLOWING AREAS:
•INSIDE METAL ENCLOSURE /PANEL
•INSIDE OR IMMEDIATELY NEXT TO ELEVATOR SHAFT /ELEVATOR BANKS
•IN FRONT OF OR IMMEDIATELY NEXT TO LARGE TREES OR LARGE BODY OF WATER
TRANSMISSION DISTANCE AND PERFORMANCE WILL BE DRASTICALLY REDUCED.
Refer to the configuration setup instruction manual for the configuration of the MOD9200LON registers and
input variables setup. A PC is required for the setup of the Transceiver.
Choose a location close to the LonWorks® network connection and away from the ground.

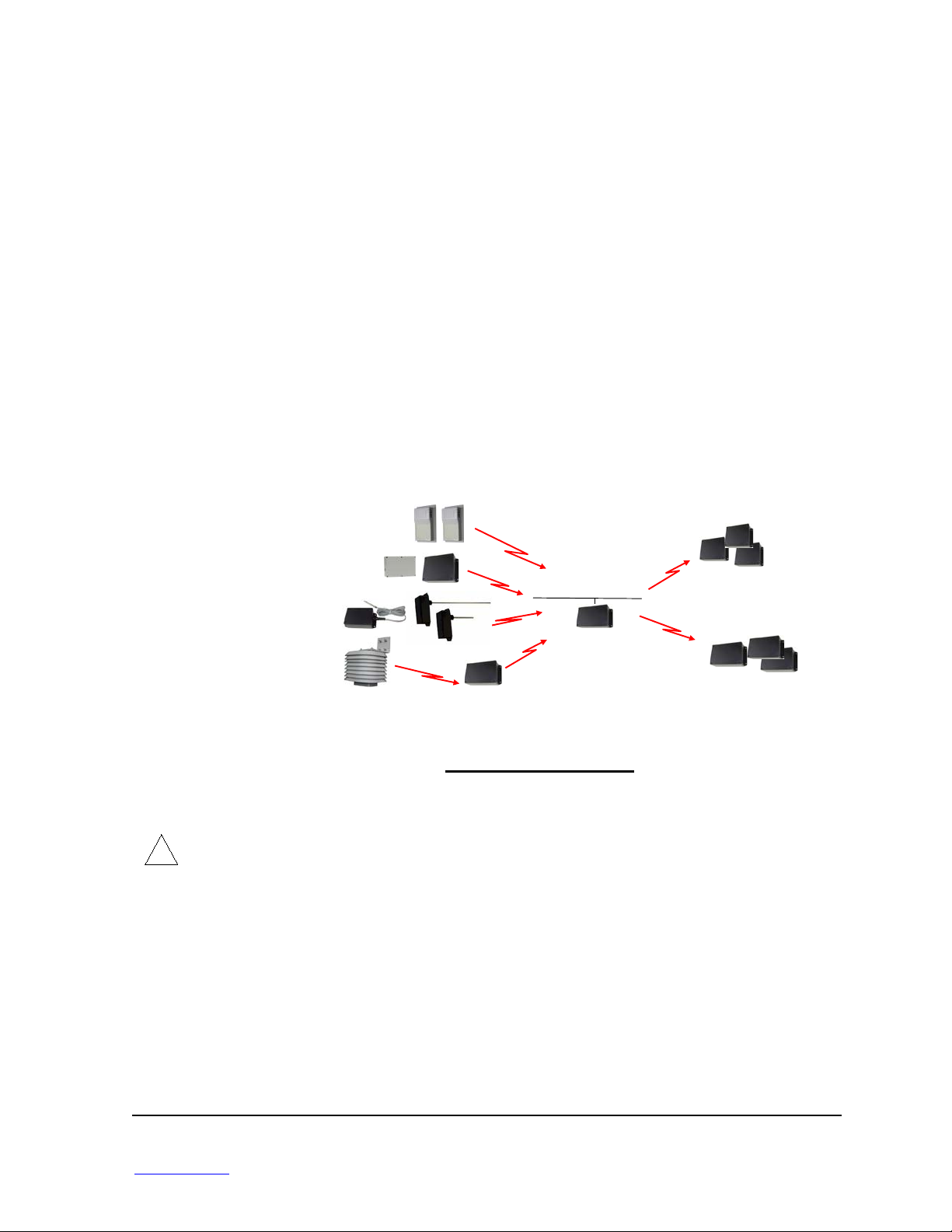

Repeater Increases
Transmission Distance, if
needed
Wireless Remote Digital/Analog
Input Modules& Energy Totalizer
Wireless OutsideAir
Temperature &
Humidity
Wireless Wall Temp. & Humidity
Sensor
Wireless Immersion &
Remote Sensors
LON FTT Network
MOD9200LON
LonWorks® Transceivers
Sub-SystemOverview
Wireless Digital
&Analog Outputs
Wireless Digital
(Relay) Outputs
!

AUTOMATION COMPONENTS, INC Version : 1.0
2305 Pleasant View Road I0000688
Middleton, Wisconsin 53562 Page 3 of 3
www.workaci.com [phone]
Mount the MOD9200LON on the wall using four #8 screws (mounting dimensions see Figure #1).
24VAC Input – Connect 24VAC 60Hz to the input terminals using 20AWG wire (See Figure #1).
FTT-10 – Use 20 or 22AWG shielded twisted pair wire to connect the Transceiver(Terminals A+ & B-) to the
LonWorks network (See Figure #1). The connection of the FTT-10 network is not polarity sensitive.
CAUTION
DO NOT USE THIS PRODUCT IN ANY SAFETY RELATED APPLICATIONS
WHERE HUMAN LIFE MAY BE AFFECTED.
PRODUCT SPECIFICATIONS
Supply
Voltage
24VAC 60Hz, 500mA nominal
RF
Data Protocol
IEEE 802.15.4-2003/2006
Operating Frequency
902-928 MHz
Output Power
+11 dBm
Receiver Sensitivity
-110 dBm
Open Field Range
One mile (line of sight)
Network
Connections
Protocol – LonWorks®
Physical Layer – FTT-10(Free Topology Twisted Pair)
Data Rate – 78kbps
LonWorks®
SNVT’s Supported
Temperature: SNVT_temp_p
Override Push Button: SNVT_occupancy
Setpoint Adjustment: SNVT_temp_p
Humidity: SNVT_lev_percent
Sensor Status/Alarms: SNVT_count
PPM: SNVT_ppm
Digital Output: SNVT_XXX
Analog Output: SNVT_lev_percent
Enclosure
Material
ABS
Rating
UL 94 5VA
Environment
Operating Temperature
32 to 150°F (0 to 65°C)
Operating Humidity
0 to 95% RH (non-condensing)
Approvals
FCC
WARRANTY SPECIFICATION
The ACI Wireless Series is covered by ACI’s Two (2) Year Limited Warranty, which is located in the front of
ACI’S SENSORS & TRANSMITTERS CATALOG or can be found on ACI’s web site: www.workaci.com.
!
