ACMER P1 User manual

www.facebook.com/groups/636514078064476/

ASSEMBLY MANUAL
Acmer 3D Electronlc Technology Co., Ltd.
MANUAL

CONTENTS / 目录
WARING / 警告
MAIN PARAMETERS / 机器参数
PARTS LIST / 配件清单
Machine description / 机器说明
Assembly Process / 装配过程
Software setting and focusing / 软件设置及对焦
FAQ
After Sale
1. Assemble the tailboard assembly and Y-axis section bar assembly
组装背板组件与Y轴型材组件
2. Assemble X-axis assembly / 组装X轴组件
3. Assemble the y-axis belt / 锁Y皮带
4. Assemble the front panel / 组装前面板
5. Assemble tank chain / 组装X、Y拖链
6. Foot pad installation / 脚垫安装
7. Pulley adjustment / 滑轮调节
8. Connect the electronic harness / 连接线束
1. Drive installation / 驱动安装
2. Software settings / 软件设置
3. Adjust focus / 调整焦距
01
02
03
04
05
06
14
22
25
CONTENTS | 目录
01

Warning: Avoid direct eye contact with the laser, and there is a risk of blindness
due to excessive stimulation
避免直接目光接触激光，过度刺激有失明风险
Warning: It is not recommended to directly look at the laser head when the
machine is working. Do not operate the laser head directly by hand. Please wear
glasses to ensure personal safety
机器上工作时 ，不建议直接看激光头 。请勿直接用手操作激光头 。请戴上眼镜 ，以确保人
身安全
Warning:Laser diode is a sensitive component, please pay attention to avoid elec-
trostatic damage (This product includes an electrostatic protection design, but
there is a possibility of damage)
请注意避免静电损坏 （该产品包括静电保护概念 ，但有损坏的可能）
Warning:Please turn off the power when the laser engraving machine is not work-
激光雕刻机不工作时请关闭电源
Warning: Avoid body contact with laser, which may cause burns
避免肢体与激光接触，有灼伤风险
Warning: Please place a metal base plate under the machine before use to prevent
the laser from directly burning the desktop
使用前请在机器下方放置底板，防止激光直接灼烧桌面
Warning: The laser engraving machine cannot directly act on any specularly reflec-
tive objects, and the laser reflection may cause injury to the operator or burn the
laser
激光雕刻机不能直接作用于镜面物体，激光反射可能会对操作员造成伤害或激光灼伤
Warning: Please keep the machine away from combustible chemicals
请将机器远离可燃化学物质
Warning: Please keep the machine away from children or pregnant women
请将机器远离儿童或者孕妇
Warning: Do not disassemble the laser without instructions
请勿擅自拆解激光器
WARING | 警告
02

Type
Machine size
Machine weight
Engraving range
Engraving accuracy
Engraving speed
Engraving method
Supporting systems
Laser power
Laser wavelength
Laser focal length
Output power
Machine material
Power supply
Power supply type
Engraving material
Engraving file format
Support software
Languages
P1
610*590*200mm
5.8KG
400*410mm
0.01mm
10000mm/min
USB connection
MAC, Windows
10000mW
450+5nm
10000mW(31mm)
72W
aluminum profile+Iron sheet
24V3A DC
24V/3A
Engraving mode Graphic engraving，document engraving，scanning engraving，
outline engraving, Pixel carving
MAIN PARAMETERS / 机器参数
NC、DXF、BMP、JPG、PNG、etc
LightBurn，LaserGRBL（Windows system only）
Chinese，English
wood, bamboo, paper, plastic, leather, PCB board,
aluminium oxide, non-reflective coating and lacquered
metal, ceramic
型号
机身尺寸
机身重量
雕刻范围
雕刻精度
雕刻速度
雕刻方式
系统支持
激光功率
激光波长
激光焦距
输出功率
机身材质
电源输入
电源类型
雕刻材料
雕刻软件
语言
雕刻文件格式
雕刻模式
03

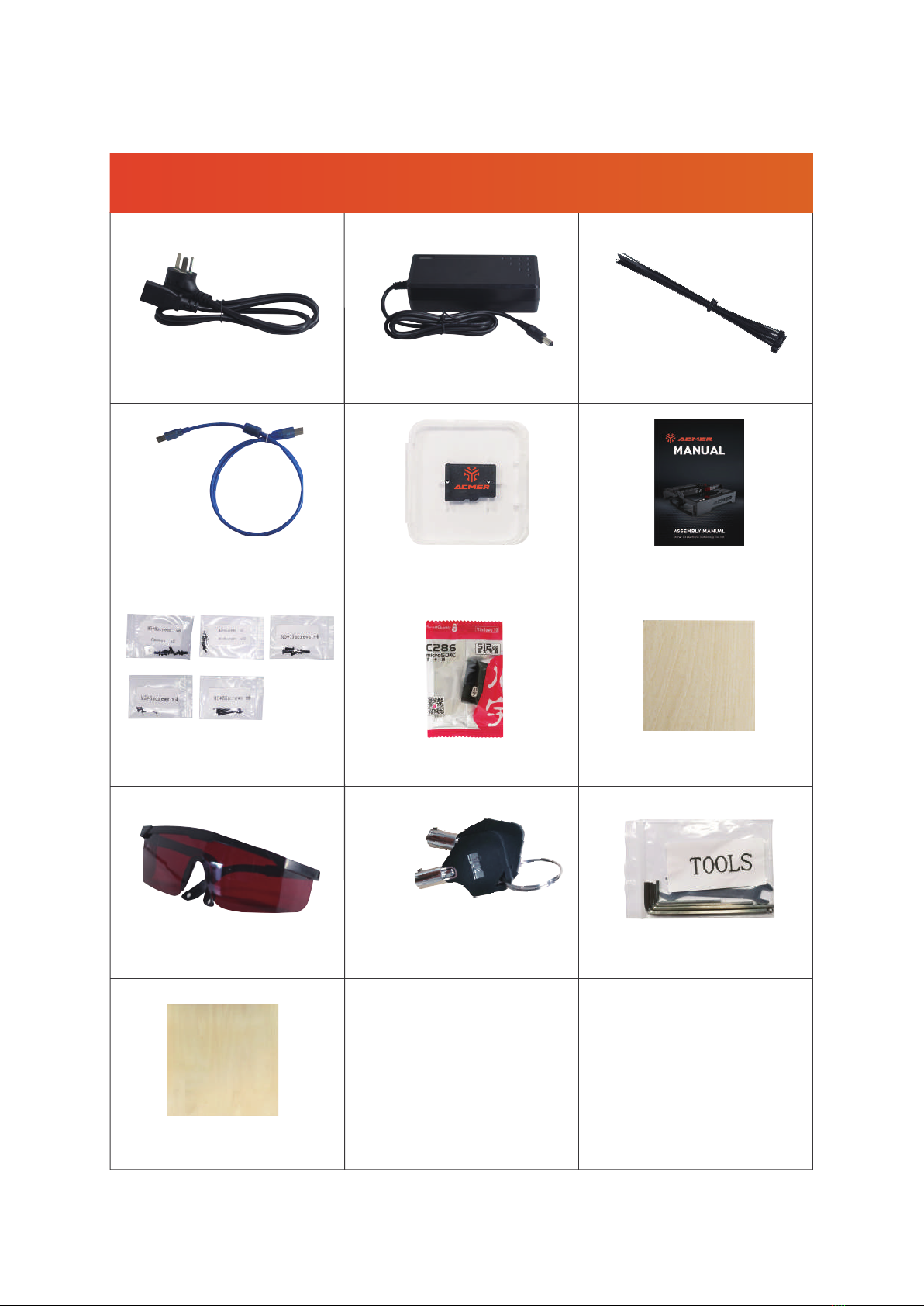

Power line 电源线 x1
USB cable USB线 x1
Screw bag 螺丝包 x1
Goggles 护目镜 x1 Keys 钥匙 x1
Adapter 电源适配器 x1
TF card 内存卡 x1
Card reader 读卡器 x1
Ribbon 扎带 x1
Manual 说明书 x1
Board 100*100 木板 x1
Board 200*200 木板 x2
Wrench 扳手 x1
PARTS LIST / 配件清单
512MB
04

Y-axis section bar assembly
Y轴型材组件
X-axis assembly
X轴组件
Front panel assembly
面板组件
Securly Lock
安全锁
1.
3.
5.
7.
2.
4.
6.
8.
Tailboard assembly
背板组件
Laser head
激光头
Switch
开关
Emergency stop switch
急停开关
Machine description | 机器说明
2
1
3
4
5
8
76
05

Required materials: X-axis assembly, Y-axis section bar assembly, open-end
wrench 1PCS, M3*8 countersunk head screw 2PCS, M3*10 round head screw
材料：X轴组件，Y轴型材组件，开口扳手 1PCS, M3*10沉头螺丝 2PCS，M3*8半圆头螺丝
4PCS

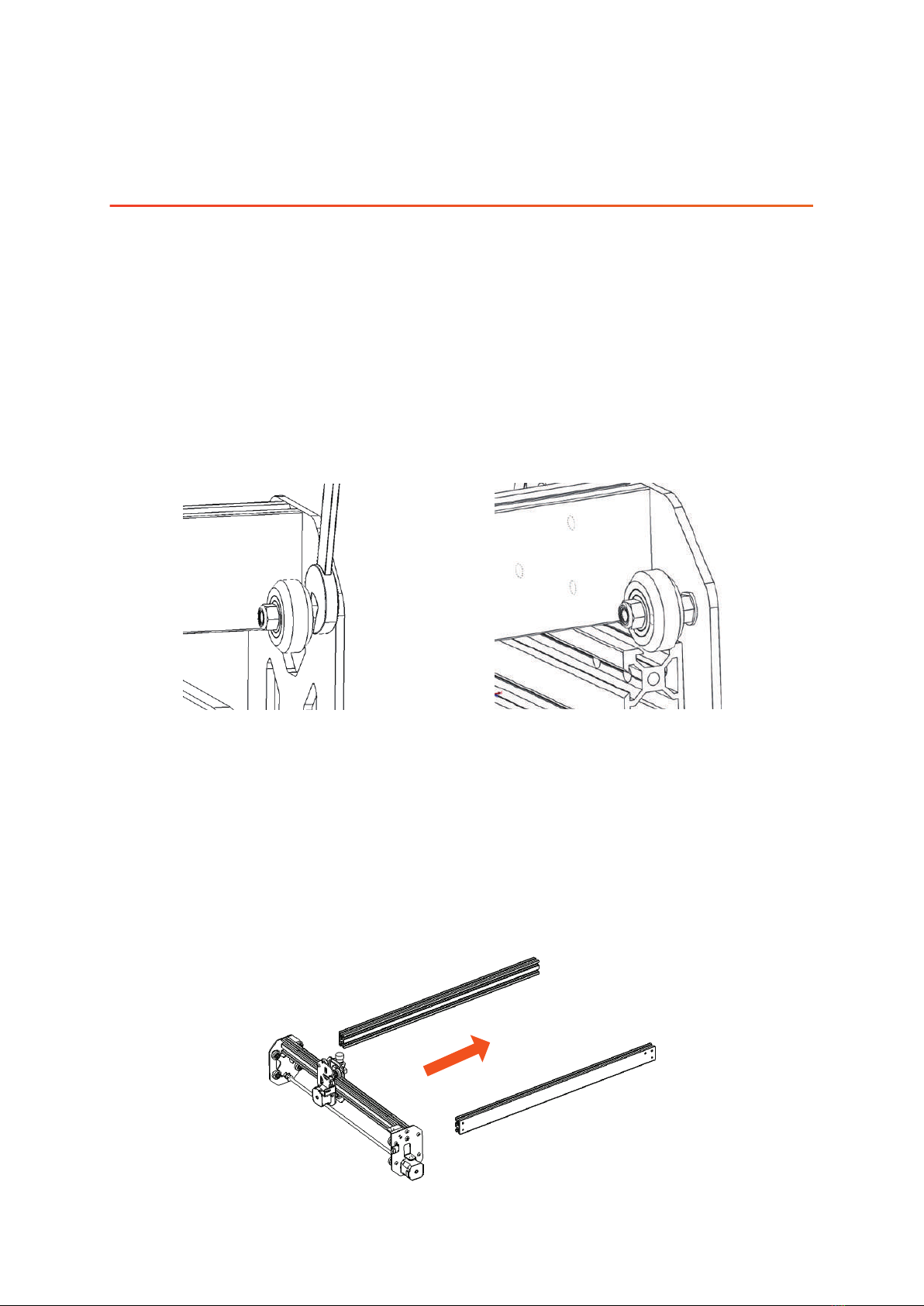

Note：Before pushing the x-axis assembly into the Y-axis section bar, it is necessary
to adjust the eccentric wheel to increase the spacing between the pulleys on both
sides, to avoid damaging the pulley due to the too close spacing between the
pulleys during installation
Note：将X轴组件推进Y轴型材之前，需要调节偏心轮将两侧滑轮间距调大，以免安装时因
滑轮间距太近，损坏滑轮。
1. Assemble X-axis assembly
组装背板组件与Y轴型材组件
1.1 Adjust pulley spacin
调整滑轮间距
1.2 Draw the x-axis assembly into the Y-axis section bar as a whole
将X轴组件整体划入Y轴型材
Assembly Process | 装配过程
06

M3*10
countersunk screws
M3*8 screws
Use two m3*10countersunk screws to lock the laser backplane onto the slider
用2颗M3*10沉头螺丝将激光背板锁紧再滑块上
Lock the laser head from the side with four m3*8 half round head screws
用四颗M3*8半圆头螺丝从侧面锁紧激光头
1.3 Assembling the laser head
组装激光头
07

Required materials: Tail plate assembly, Y-axis section bar assembly, m5*35
screws 2pcs, m5*16 screws 2pcs
材料：背板组件、Y轴型材组件、 M5*35螺丝 2PCS 、 M5*16螺丝 2PCS。
2. Assemble the tailboard assembly and Y-axis section bar assembly
组装背板组件与Y轴型材组件
2.1 Assemble the Y-axis and tailboard assembly as shown in the figure
按照如图所示方式组装Y轴和尾板组件
2.2 Lock the screws from the two holes on the side for fixation
从侧面两个孔位锁上螺丝固定
M5*35 screws
M5*16 screws
08

Required materials: Synchronous belt 2PCS, square gasket 2PCS, m5*8 round head
screw 2PCS
材料：同步带 2PCS、方形垫片2PCS、M5*8半圆头螺丝 2PCS

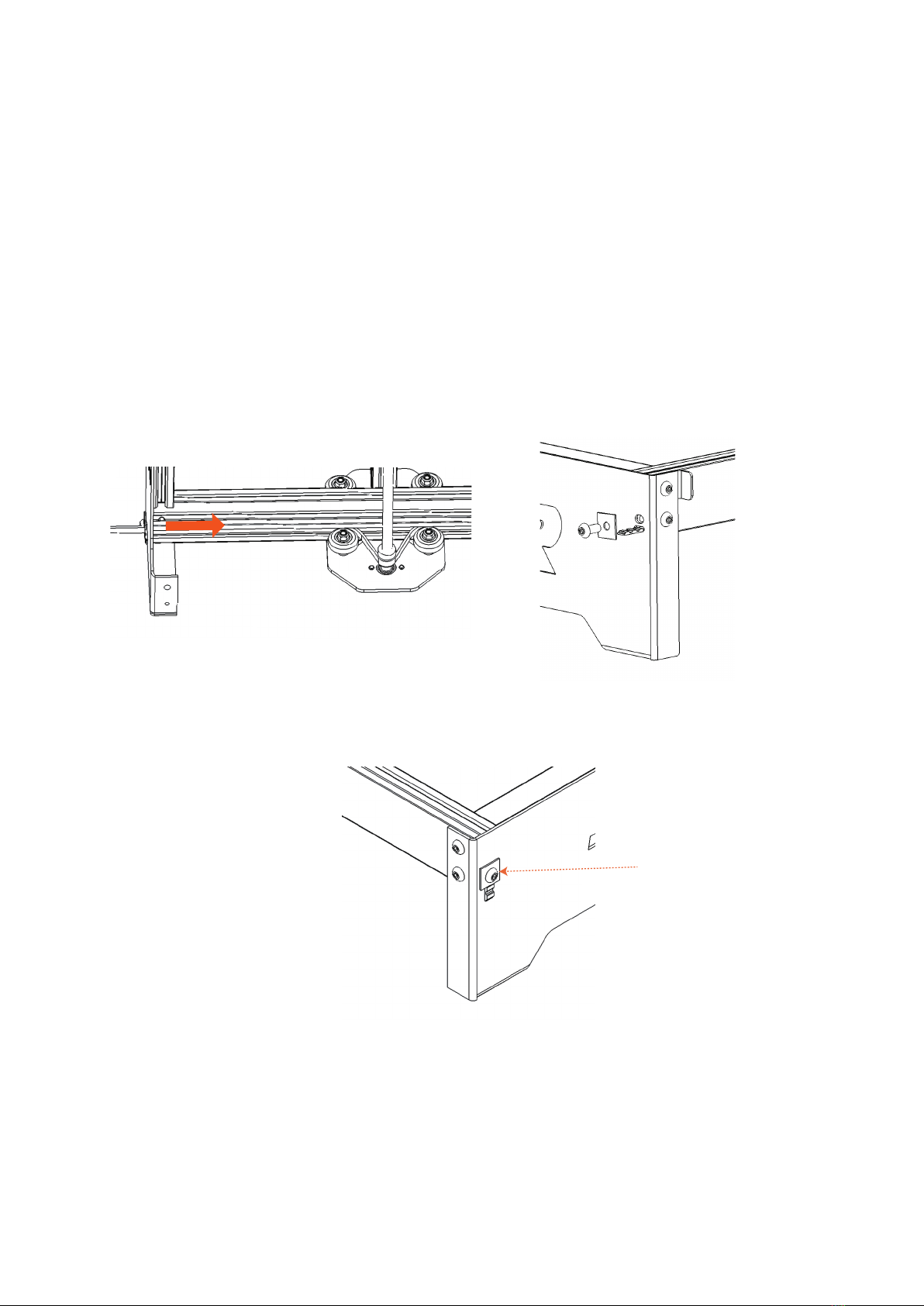

3. Assemble the y-axis belt
锁Y皮带
Required materials: M5*35 round head screws 4PCS, m5*16 round head screws 2PCS
材料：M5*35半圆头螺丝 4PCS、M5*16半圆头螺丝 2PCS

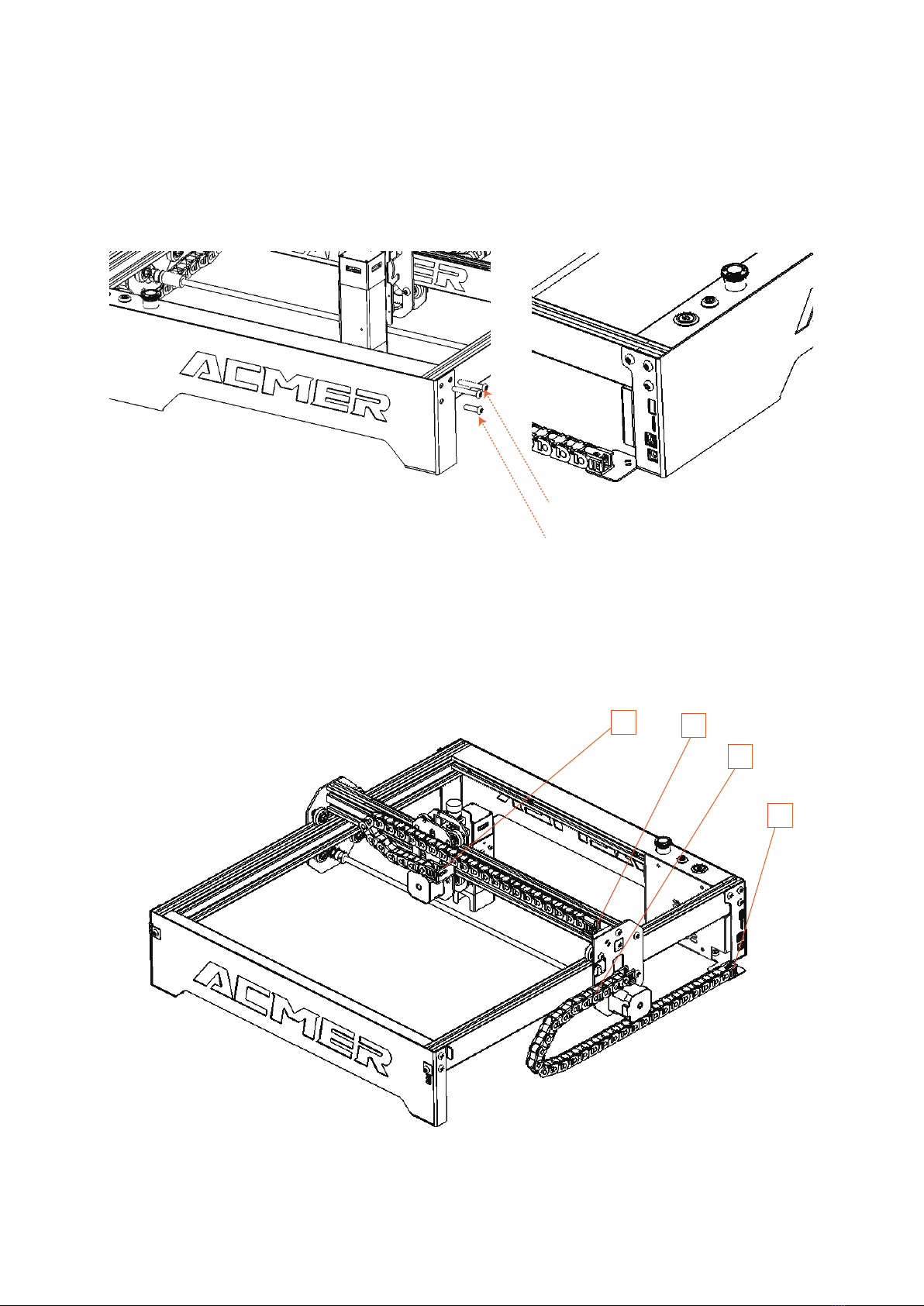

4. Assemble the front panel
组装前面板
3.1 Pass one end of the timing belt through the pulley and the timing
wheel and out of the tailboard hole
将同步带一端穿过滑轮和同步轮，从尾板孔位穿出
3.2 Pull the timing belt out of the waist hole of the back plate and compress it
with gaskets and screws
将同步带从背板腰型孔拉出，并用垫片和螺丝压紧
09
M5*8 round head screw

4.1 Align the front panel with the y-axis profile and lock it with screws
将前面板与Y轴型材对其后，用螺丝锁紧
Required materials: M3*6 countersunk head screw 12PCS
材料：M3*6沉头螺丝 12PCS
5. Assemble tank chain
组装X、Y拖链
2
3
4
1
M5*35 screws
M5*16 screws
10

12 3 4 5 6

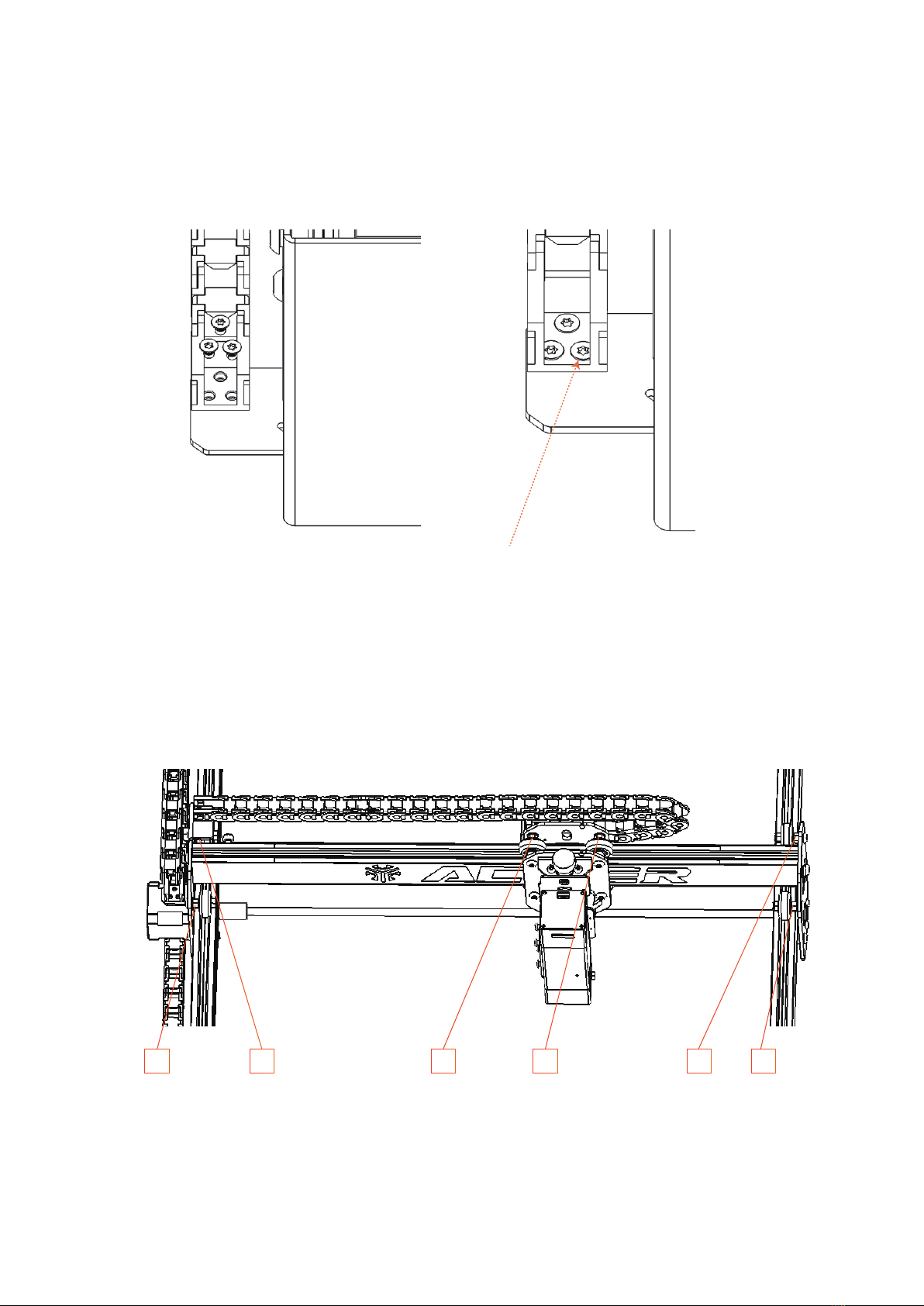

Lock the tank chain fixing holes at the four positions shown in the figure with
countersunk screws
将图示四个位置的拖链固定孔用沉头螺丝锁紧即可
Use an open-ended wrench to rotate the eccentricity of six eccentric nuts of X and Y
axes, and adjust the pulley to the state of just clamping
使用开口扳手旋转X、Y轴共六个偏心螺母的偏心距，调节滑轮至刚好卡紧的状态
6. Pulley adjustment
滑轮调节
11
M3*6 countersunk head screw

7. Connect the electronic harness
连接线束
7.1 Connect the y-axis motor wire and the y-axis limit switch harness
连接Y轴电机线、Y轴限位开关线束
Connect the Y
axis limit switch
Connect the
Y-axis motor
12
M3*6 countersunk head screw

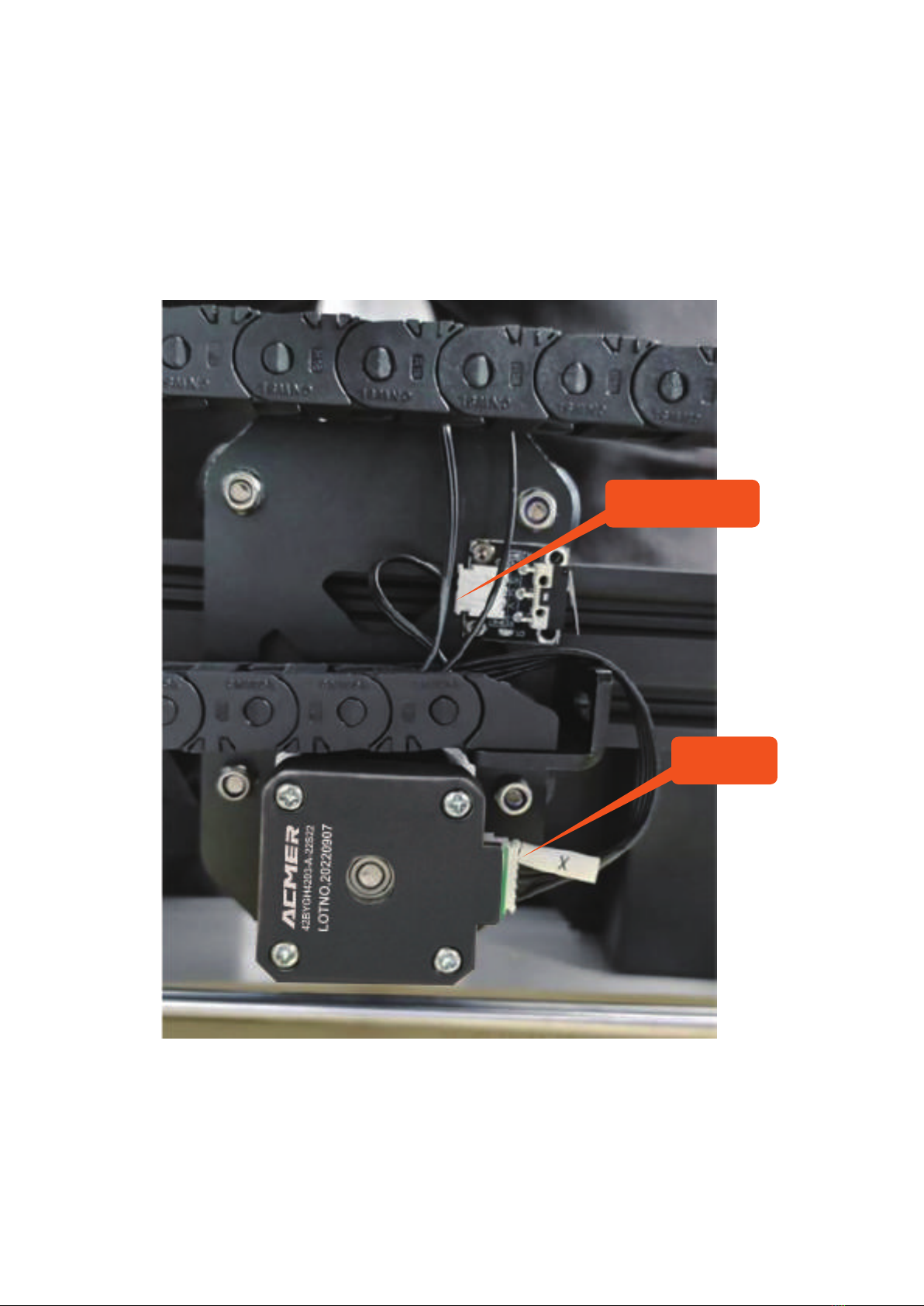

7.2 Connect X-axis motor wire, X-axis limit switch harness and laser harness
连接X轴电机线、X轴限位开关线束、激光线束
Connect the X-axis
limit switch
Connect the
Y-axis motor
13

Software setting and focusing | 软件设置及对焦
1. Drive installation
驱动安装
1.1 Find the file package "software and driver files" in the memory card delivered
with the machine, and select the software installation package corresponding to
your computer system
在跟随机器配送的内存卡中找到“软件与驱动文件”文件包，选择您电脑系统对应的软件安
1.2 Double click to start the installation software, and then click Install
双击启动安装软件，点击安装即可
Before connecting the laser engraving machine with USB cable, you need to install
ch340 driver for your computer, otherwise the computer cannot recognize the laser
engraving machine
在使用USB线连接激光雕刻机之前，需要为您的电脑安装CH340驱动，否则电脑无法识别激
光雕刻机。
14

You can import the lightburn software in the accessory USB flash drive into the
computer or log in directly https://lightburnsoftware.com/ Download the soft-
ware. The trial period of this software is 30 days. You need to pay for subsequent
use，support Windows, Mac system
您可以将附件USB闪存驱动器中的lightburn软件导入计算机或直接登录https://lightburn-
software.com/下载软件。该软件的试用期为30天。后续使用需要付费。支持Windows、
Mac系统

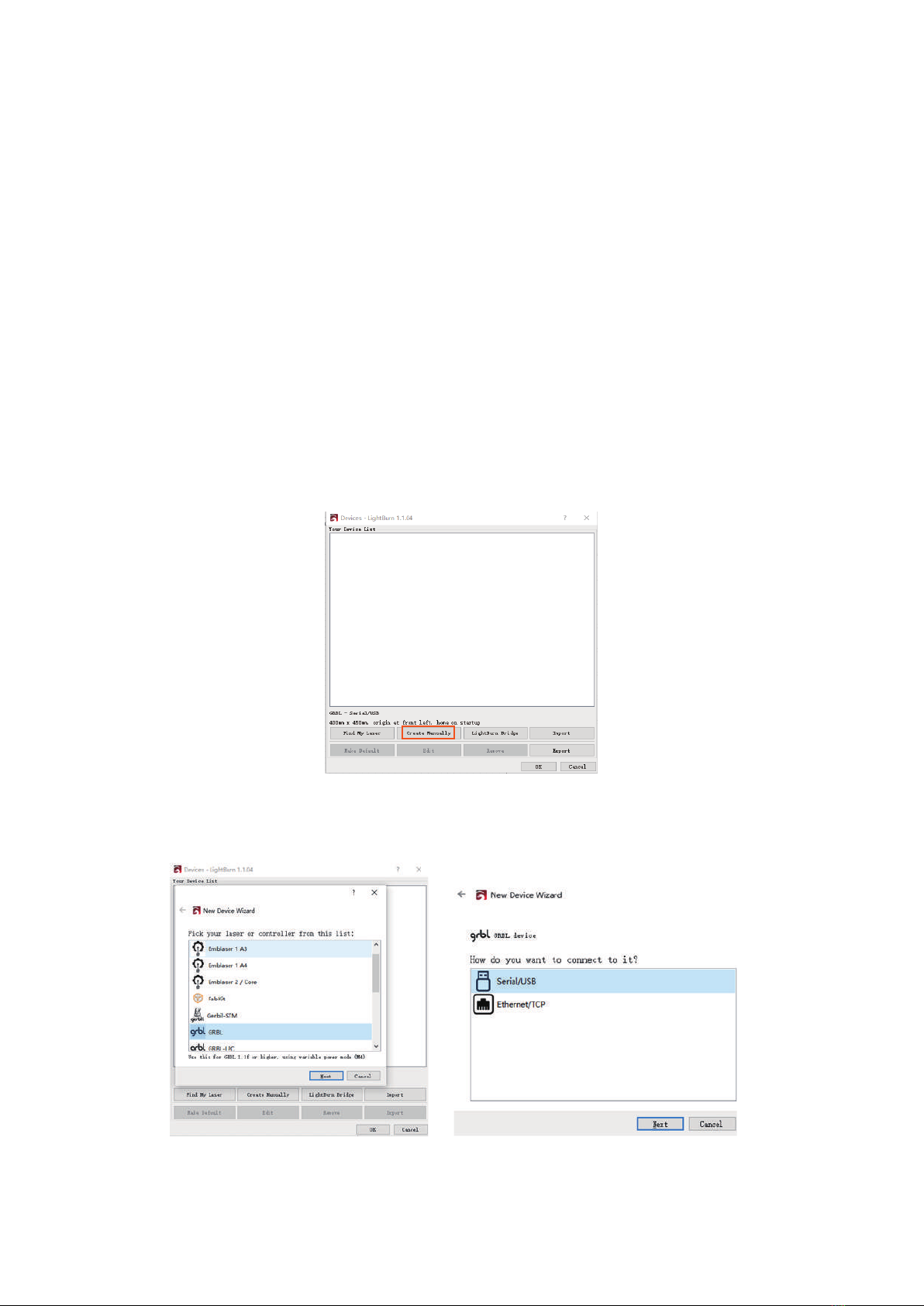

After opening the software, you will be prompted to add laser equipment and
select manual addition
打开软件后，系统将提示您添加激光设备并选择手动添加
2. Software settings
软件设置
2.1Lightburn setting
Create manually, select GRBL and create a usable area for your equipment，Select
USB connection for connection mode
手动创建，选择GRBL，并为设备创建可用区域，连接方式选择USB连接
15

Select finish machine setup
选择完成机器设置
Name your machine and set the engraving area, Select the carving origin
为您的机器命名并设置雕刻面积, 选择雕刻原点
16

This area selects the device and COM
interface to connect your device
此区域选择设备和COM接口以连接您的设备
The button in this area is the
command of the laser
engraving machine
此区域按钮为激光雕刻机指令
17

After setting up the software, you can open the testfile folder in the delivered TF
card file. We have prepared the lightburn project file. You can directly open the file
corresponding to the laser power and start your carving
在设置完软件后，可以打开配送的TF卡文件中的testfile文件夹，我们准备了lightburn
的工程文件，您可以直接打开对应激光功率的文件并开始你的雕刻
In the grid area, place the file
to be engraved in the grid
雕刻网格区域，放置要雕刻的
文件在网格内
The basic parameters of the equipment
can be set as shown in the figure
设备基本参数设置，如图设置即可
Make sure your speed is in mm/min
请确保你的速度单位是mm/min
18
