Acorn 180
Curved Stairlift
T565
27
51
75
99
3
9000_AC_TC_Combined_Multilingual 180 user manual_1220.pdf 19000_AC_TC_Combined_Multilingual 180 user manual_1220.pdf 1 2/10/2021 11:17:42 AM2/10/2021 11:17:42 AM

Acorn Stairlifts User Manual 3
ENGLISH
Before using your stairlift, please read
through these instructions carefully.
Thank you for choosing Acorn.
You can rest assured that your stairlift will provide many years of reliable service
and allow you to enjoy the full use of your home.
Your stairlift is covered by a manufacturer’s warranty for 12 months
that covers the cost of replacement parts.
USA / CANADA ONLY
Some States require that permits are obtained prior to installation,
and that a licensed engineer completes the installation.
Check your local regulatory requirements.
IMPORTANT
(QVXUHWKDWRQO\DQDXWKRUL]HGDQGTXDOL˩HG$FRUQWUDLQHGHQJLQHHULQVWDOOVDQGVHUYLFHVWKH
stairlift. Under no circumstance should anyone other than an engineer trained and authorized
to install, adjust, service or modify any mechanical or electrical device on this product.
Ensure the stairlift is only used in accordance with the user manual instruction.
Failure to follow these warnings may result in safety system compromises which could result
LQVHULRXVLQMXU\RUGHDWK$FRUQDFFHSWVQROLDELOLW\IRUSURSHUW\GDPDJHZDUUDQW\FODLPVRU
personal injury, including death, in this circumstance.
$IWHULQVWDOODWLRQUHOLDEOHRSHUDWLRQDQGFRQWLQXDOVDIHRSHUDWLRQUHTXLUHVUHJXODUVHUYLFH
DQGLQVSHFWLRQ$VWKHRZQHU\RXDUHUHVSRQVLEOHIRUHQVXULQJWKDWUHJXODUVHUYLFHDQG
inspections occur in a timely manner.
MAINTENANCE
The Stair lift owner is required to inspect the following functions every 2 months:
General operation of the Stair lift.
The operation of the safety sensors.
Rail and carriage are free of debris.
2QFHD\HDULWLVPDQGDWRU\WRFDOO\RXU$FRUQDXWKRUL]HGGHDOHUWRSHUIRUPWKH
annual inspection, that includes all maintenance and safety inspections and repairs
where necessary.
Regular maintenance is essential for keeping your stairlift in proper operating condition.
We strongly recommend that you only use authorized engineers to perform all
required maintenance, service and repair work.
$FRUQLQNHHSLQJZLWKLWVSROLF\RIFRQWLQXDOGHYHORSPHQWUHVHUYHVWKHULJKWWRFKDQJH
VSHFL˩FDWLRQZLWKRXWSULRUQRWLFH$OOPHDVXUHPHQWVDUHDSSUR[LPDWH$OOLPDJHVDUH
shown for illustrative purposes only. Product may vary slightly.
9000_AC_TC_Combined_Multilingual 180 user manual_1220.pdf 29000_AC_TC_Combined_Multilingual 180 user manual_1220.pdf 2 2/10/2021 11:17:59 AM2/10/2021 11:17:59 AM

Acorn Stairlifts User Manual
4
ENGLISH
IMPORTANT SAFETY NOTES
IMPORTANT!
$OZD\VZHDUWKHVHDWEHOW
ensure it is fastened securely
at all times during operation.
DANGER!
Do not allow children
to play with the stairlift.
Use by children should
always be supervised.
WARNING!
Ensure other members of your
household or visitors are aware that
the stairlift is installed. Make them
aware of any potential trip hazards
(rail, hinge, footplate).
DANGER!
The stairlift is designed to carry
one person at a time. Never
attempt to carry more than
one person.
'R127H[FHHGSXEOLVKHG
weight capacity. Operating
DQ\OLIWLQJGHYLFHH[FHHGLQJ
weight capacity could result
in serious injury.
DANGER!
Ensure that household pets
are out of harm’s way before
using the stairlift.
Acorn Stairlifts User Manual
4

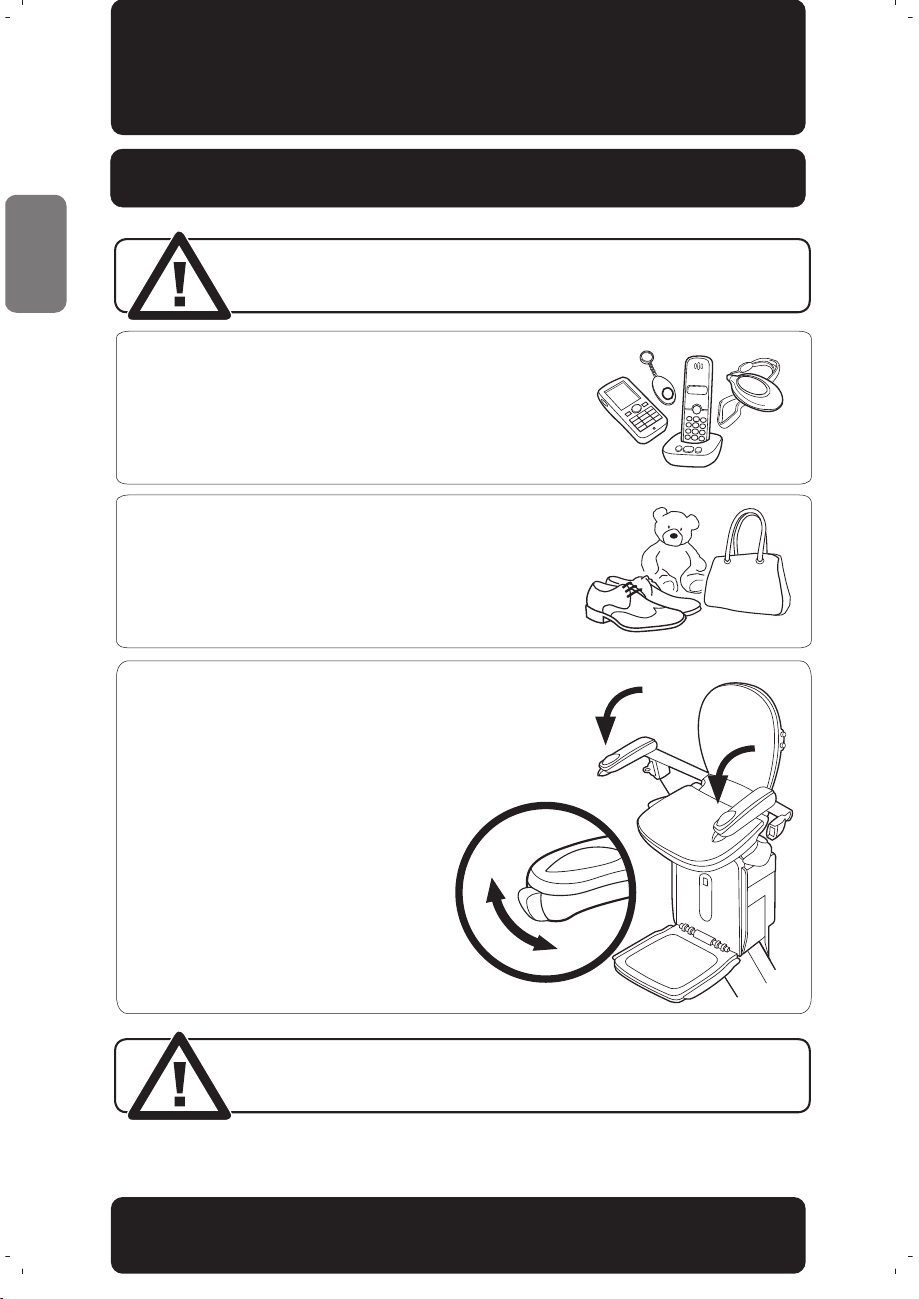

PLEASE READ THE FOLLOWING BEFORE USE
WARNING!
Do not transport food, animals,
laundry or any other items. Do
not use the stairlift for anything
other than its intended use.
WARNING!
Ensure that the stairway is not
being used by others and is
clear of articles or obstructions
before using the stairlift.
WARNING!
To avoid injury do not make
contact with moving parts.
IMPORTANT!
Please ensure that you can
alert others in case you
HQFRXQWHUGL˫FXOWLHVZKHQ
using the stairlift
IMPORTANT!
To guard against
injury, important
safety precautions
should be observed.
IMPORTANT!
5HOD[DQGVLWZHOOEDFN
in the seat with your
arms on the armrests
and your feet well
back on the footrest.
9000_AC_TC_Combined_Multilingual 180 user manual_1220.pdf 39000_AC_TC_Combined_Multilingual 180 user manual_1220.pdf 3 2/10/2021 11:17:59 AM2/10/2021 11:17:59 AM

Acorn Stairlifts User Manual 5
ENGLISH
IMPORTANT SAFETY NOTES
Acorn Stairlifts User Manual 5
PLEASE READ THE FOLLOWING BEFORE USE

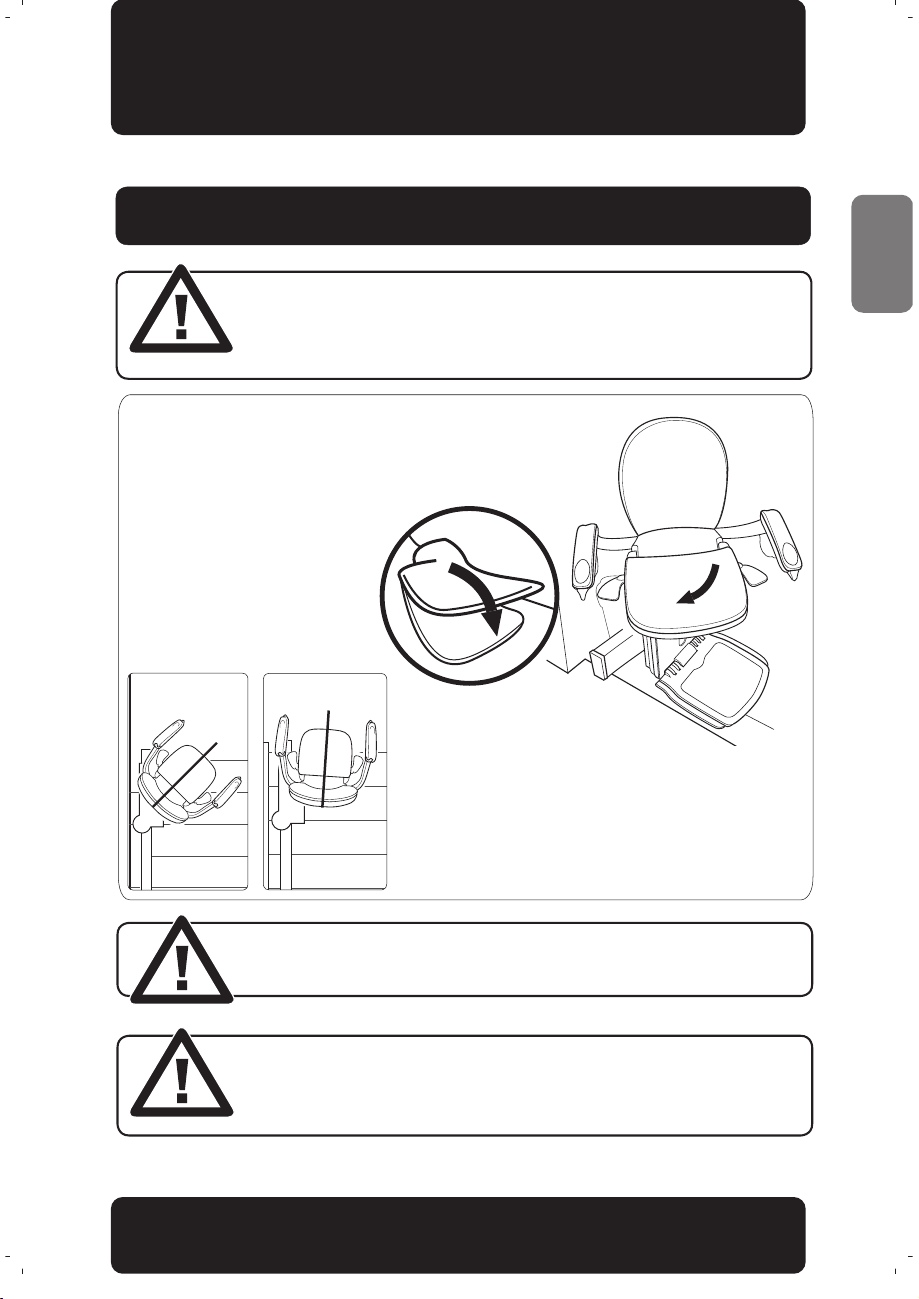

WARNING!
,IDVWDQGDUGWRS˩QLVKUDLOLV
installed, the seat will be required to
VZLYHOWRHQWHUDQGH[LWWKHVWDLUOLIW
$OZD\VHQVXUHWKHVHDWLVURWDWHG
and locked in position at a 45ʈ
or 80ʈangle when entering and
H[LWLQJWKHVWDLUOLIW
WARNING!
Do not disconnect the power
supply. This will make the stairlift
batteries lose their charge, and the
stairlift will not operate.
WARNING!
The stairlift must not be used
IRU˩UH˩JKWLQJRUIRUHYDFXDWLRQ
GXULQJD˩UH
WARNING!
Ensure that the swivel seat
is in the locked position
before and during travel and before
JHWWLQJRQRUR˨WKHVWDLUOLIW
DANGER!
Ensure that there are no articles
of your clothing (scarves, dressing
gowns, cardigans) that could
become trapped in the stairlift
mechanism, as this could result in
SHUVRQDOLQMXU\DQGRUGDPDJHWR
WKHHTXLSPHQW$OZD\VFKHFNWKDW
your clothing is clear of the stairlift
and rail before operation.
CAUTION!
It is possible for small items to
be dropped onto the stairlift rail and
then slide down the rail and into the
stairlift mechanism. If you suspect
that any foreign object has become
trapped in the equipment, consult
\RXU$FRUQUHSUHVHQWDWLYHEHIRUH
further use.
DANGER!
$OZD\VFRQVXOW\RXU$FRUQ
representative if the need
for an authorized engineer
should arise.
WARNING!
Do not operate the stairlift if
XQGHUWKHLQ˪XHQFHRIDOFRKRO
or drugs. If unsure, ask your
physician for advice.
WARNING!
Do not use the stairlift if you
have not been given a
demonstration by the
installation engineer.
PLEASE KEEP THESE SAFETY NOTES TO HAND
FOR EASE OF REFERENCE
9000_AC_TC_Combined_Multilingual 180 user manual_1220.pdf 49000_AC_TC_Combined_Multilingual 180 user manual_1220.pdf 4 2/10/2021 11:17:59 AM2/10/2021 11:17:59 AM

Acorn Stairlifts User Manual
6
ENGLISH

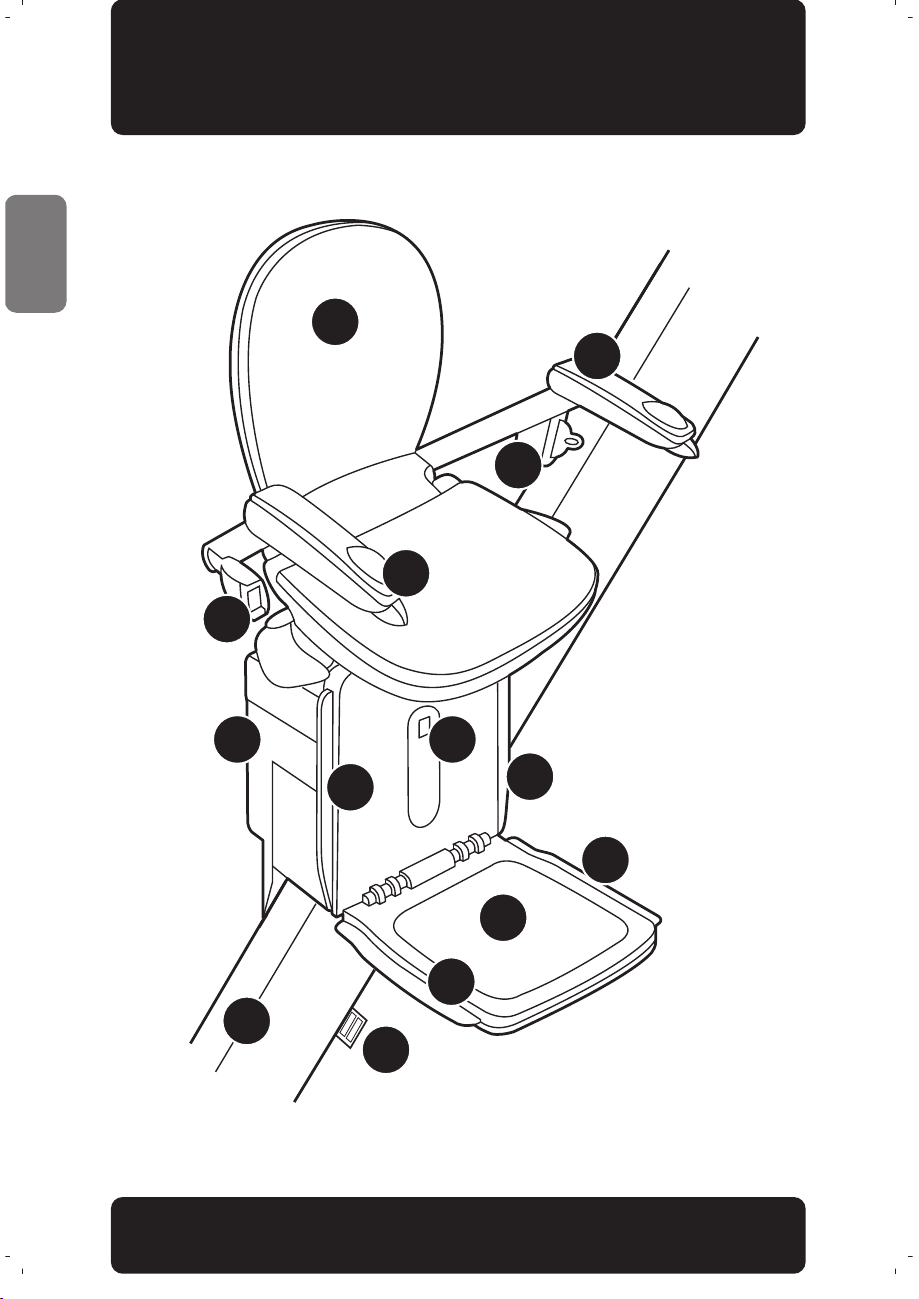

YOUR STAIRLIFT
1
3
2
5
4
6
7
8
10
9
11
4
4
4
9000_AC_TC_Combined_Multilingual 180 user manual_1220.pdf 59000_AC_TC_Combined_Multilingual 180 user manual_1220.pdf 5 2/10/2021 11:17:59 AM2/10/2021 11:17:59 AM

Acorn Stairlifts User Manual 7
ENGLISH
YOUR STAIRLIFT
7KH$FRUQ&XUYHG6WDLUOLIWLVDQHOHFWULFDOO\SRZHUHGVWDLUOLIWGHVLJQHG
for domestic use. If used correctly, it will provide many years of safe,
reliable service. It is designed to carry one person weighing no more than
NJOEVVWRQH
It is important for your safety that you study this manual to
completely familiarise yourself with your stairlift.
The pictures in this manual show a stairlift on the left hand side
of the stairs. Stairlifts on the opposite side of the stairs operate
LQH[DFWO\WKHVDPHZD\
Seat
Armrest
Status indicator
Safety Edges
Footrest
Charging points
Rail
Carriage
Seat swivel release paddle
Seatbelt
Direction controller
1
2
3
4
5
6
7
8
9
10
11
9000_AC_TC_Combined_Multilingual 180 user manual_1220.pdf 69000_AC_TC_Combined_Multilingual 180 user manual_1220.pdf 6 2/10/2021 11:17:59 AM2/10/2021 11:17:59 AM

Acorn Stairlifts User Manual
8
ENGLISH
This is a quick start reference guide to help get you started using your
$FRUQFXUYHGVWDLUOLIWIt is important for your safety that you study
this manual to completely familiarise yourself with your stairlift.

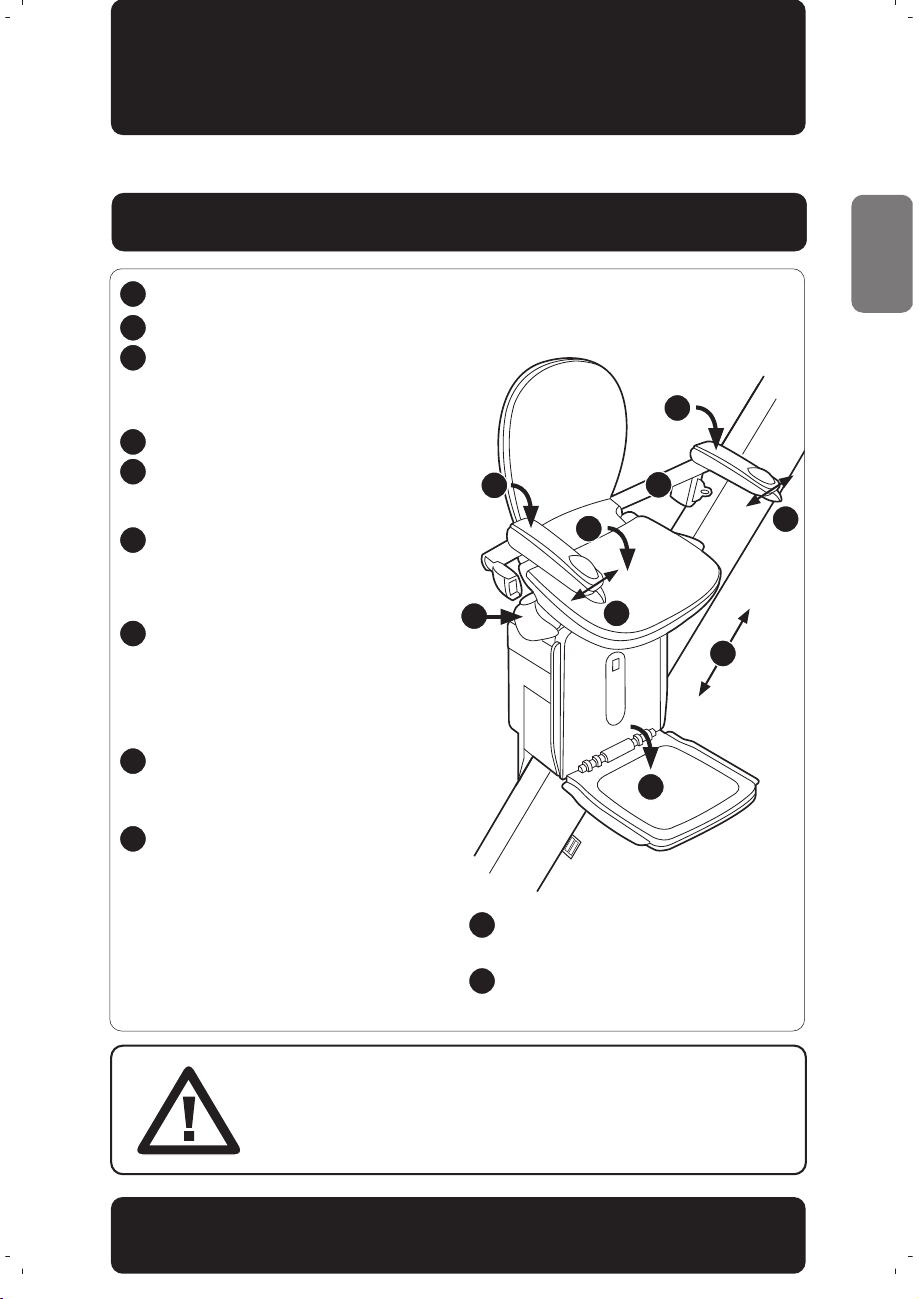

QUICK USER GUIDE
SEATBELT
Retract the seatbelt
and pull over lap
Push seatbelt into the
buckle until it clicks
IMPORTANT - Seatbelt must be
worn during operation.
1
2
FOLDING ARMS,
SEAT & FOOTREST
Fold down the arms,
seat and footrest.
Both arms of the seat must
be completely down for the
stairlift to operate.
The stairlift can still be called
with the remote controls with
the arms in any position.

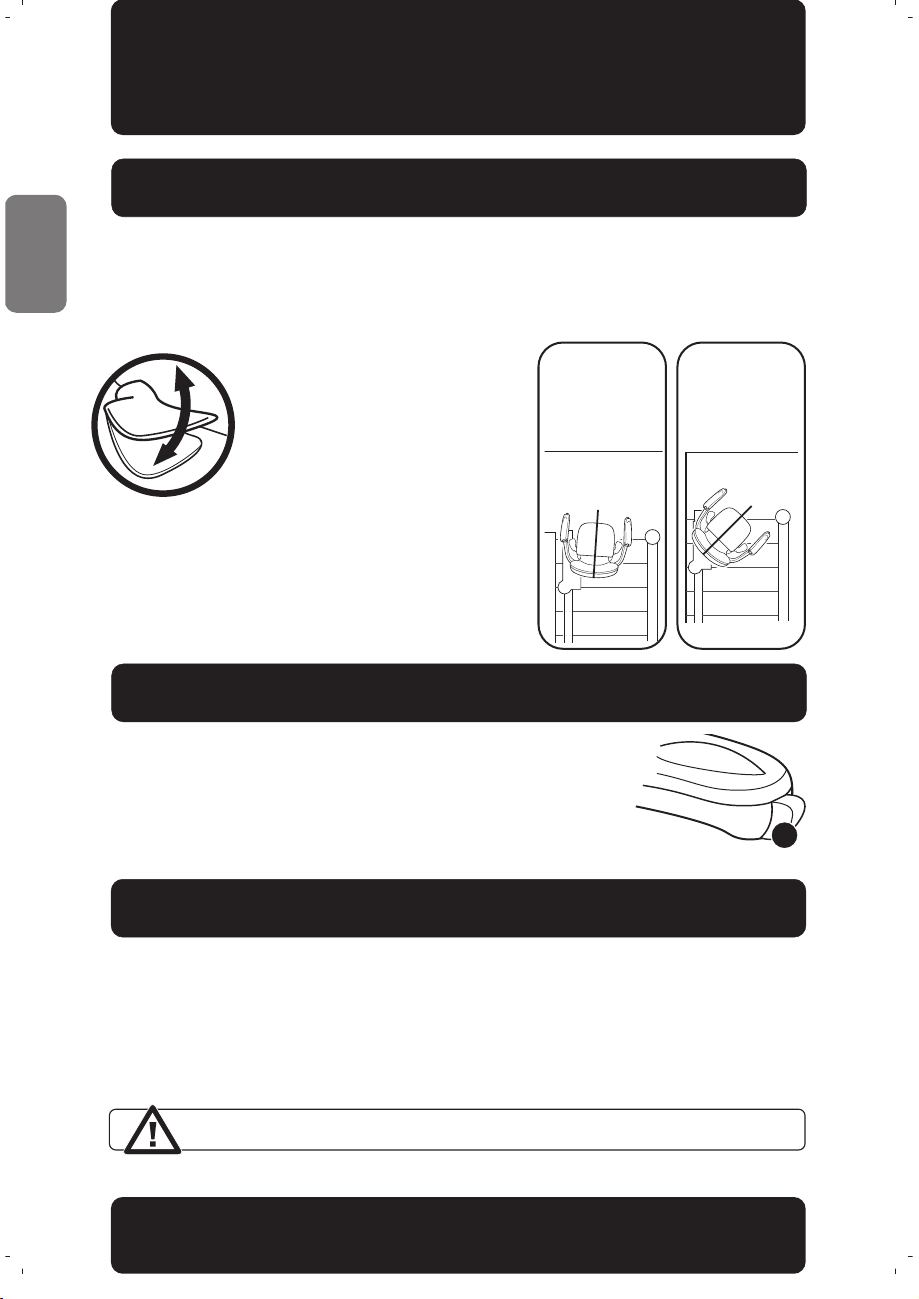

SWIVEL SEAT
If a standard top
˩QLVKUDLOLVLQVWDOOHG
the seat will be required to
VZLYHOWRHQWHUDQGH[LW
the stairlift.
$WWKHWRSRIWKHVWDLUVSXVK
down on the lever to swivel
WKHVHDWrDQGrWRH[LW
the lift.
The seat must be swivelled
back and lock into position
before operating the stairlift.
TURNING THE LIFT ON
1Insert and
turn key
clockwise.
2Push switch
until green
light shows.
1
1
2
2
1
2
21
9000_AC_TC_Combined_Multilingual 180 user manual_1220.pdf 79000_AC_TC_Combined_Multilingual 180 user manual_1220.pdf 7 2/10/2021 11:18:00 AM2/10/2021 11:18:00 AM

Acorn Stairlifts User Manual 9
ENGLISH
QUICK USER GUIDE
1
2

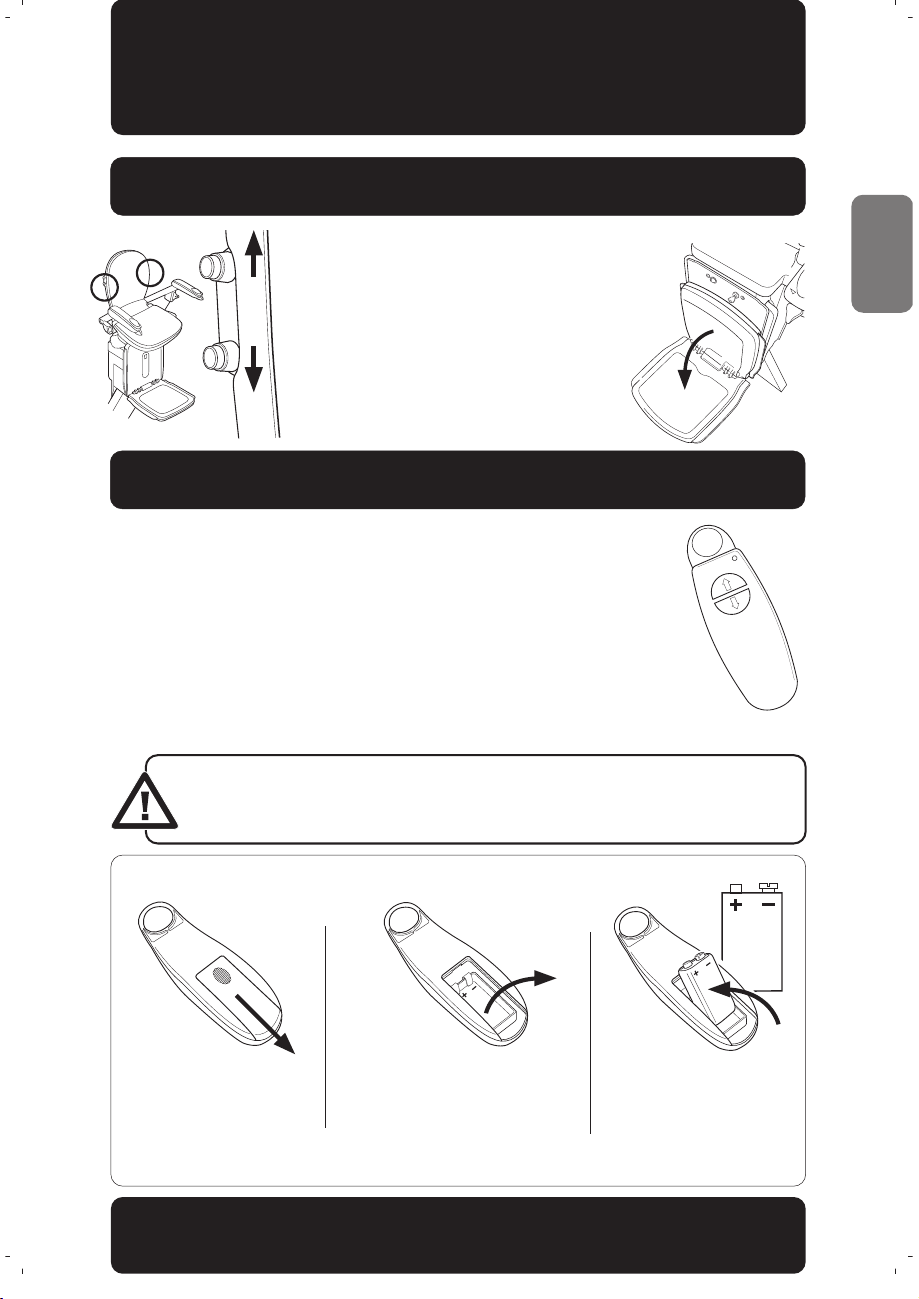

REMOTE CONTROL
1 Press the up
arrow for the
stairlift to
go up.
2 Press the
down arrow
for the stairlift
to go down.
HINGE OPERATION
 'LVHPEDUNPRXQWWKHOLIW
at the bottom of the stairs.
Using the remote control,
move the lift up to an
intermediate charge point
LI˩WWHGRUWKHWRS
charge point.
The hinge will fold
automatically to allow
access through the
doorway that was
obstructed.



1
2
1
1
2
2
3
1
1
2
2
Before operating the
powered hinge, ensure
that the area is clear
OPERATING THE LIFT
1 Press the switch towards
the stairs to go up.
2 Press the switch away
from the stairs to
go down.
2
1
1
1
1
1
2
2
2
2
1
1
2
2
2
2
IMPORTANT - Do not disembark
until the Stairlift has reached the
top and bottom of the stairs.
IMPORTANT - When operating
the lift for others, make sure
that the user’s arms are kept
inside the armrests at all times
and you keep a clear line of
sight with the Stairlift.
9000_AC_TC_Combined_Multilingual 180 user manual_1220.pdf 89000_AC_TC_Combined_Multilingual 180 user manual_1220.pdf 8 2/10/2021 11:18:01 AM2/10/2021 11:18:01 AM

Acorn Stairlifts User Manual
10
ENGLISH
The stairlift is moved up and down the stairs by the user operating the direction
controller on the armrest. Arms must be completely in the down position
for the stairlift to operate. The stairlift can still be called with the remote
controls with the arms in any position.
STAIRLIFT OPERATION
GENERAL OPERATION
When not in use, please ensure that the seatbelt
is kept clear of the stairlift rail.
Make sure the seat is locked into position before
JHWWLQJRQRUR˨WKHVWDLUOLIW
IMPORTANT - Do not disembark until the Stairlift has
reached the top and bottom of the stairs.
9000_AC_TC_Combined_Multilingual 180 user manual_1220.pdf 99000_AC_TC_Combined_Multilingual 180 user manual_1220.pdf 9 2/10/2021 11:18:01 AM2/10/2021 11:18:01 AM

Acorn Stairlifts User Manual 11
ENGLISH
STAIRLIFT OPERATION
CHARGING YOUR STAIRLIFT
The stairlift batteries are recharged from charging points when the stairlift is in its
parked position at the top and the bottom of the stairs or parking on an intermediate
SRLQWLIDKLQJHLV˩WWHG7KHFKDUJLQJSRLQWVDUHFRQQHFWHGWRWKHPDLQVHOHFWULFLW\
supply through a DC power supply.
If there is a mains electricity supply failure, or if the supply
WR\RXUVWDLUOLIWLVVZLWFKHGR˨LWZLOOFRQWLQXHWRRSHUDWHIRU
several journeys. However, the batteries will eventually lose
their charge and the stairlift will not operate.
IMPORTANT INFORMATION
It is imperative to ensure there is a continual supply of power
to the stairlift. The stairlift batteries can cover short-term
interruptions to the power supply, but without a supply of
power, will eventually become too low to be recharged. If this
happens, the batteries will have to be replaced by an engineer,
which is not covered by the manufacturer’s warranty, and is
a chargeable service.

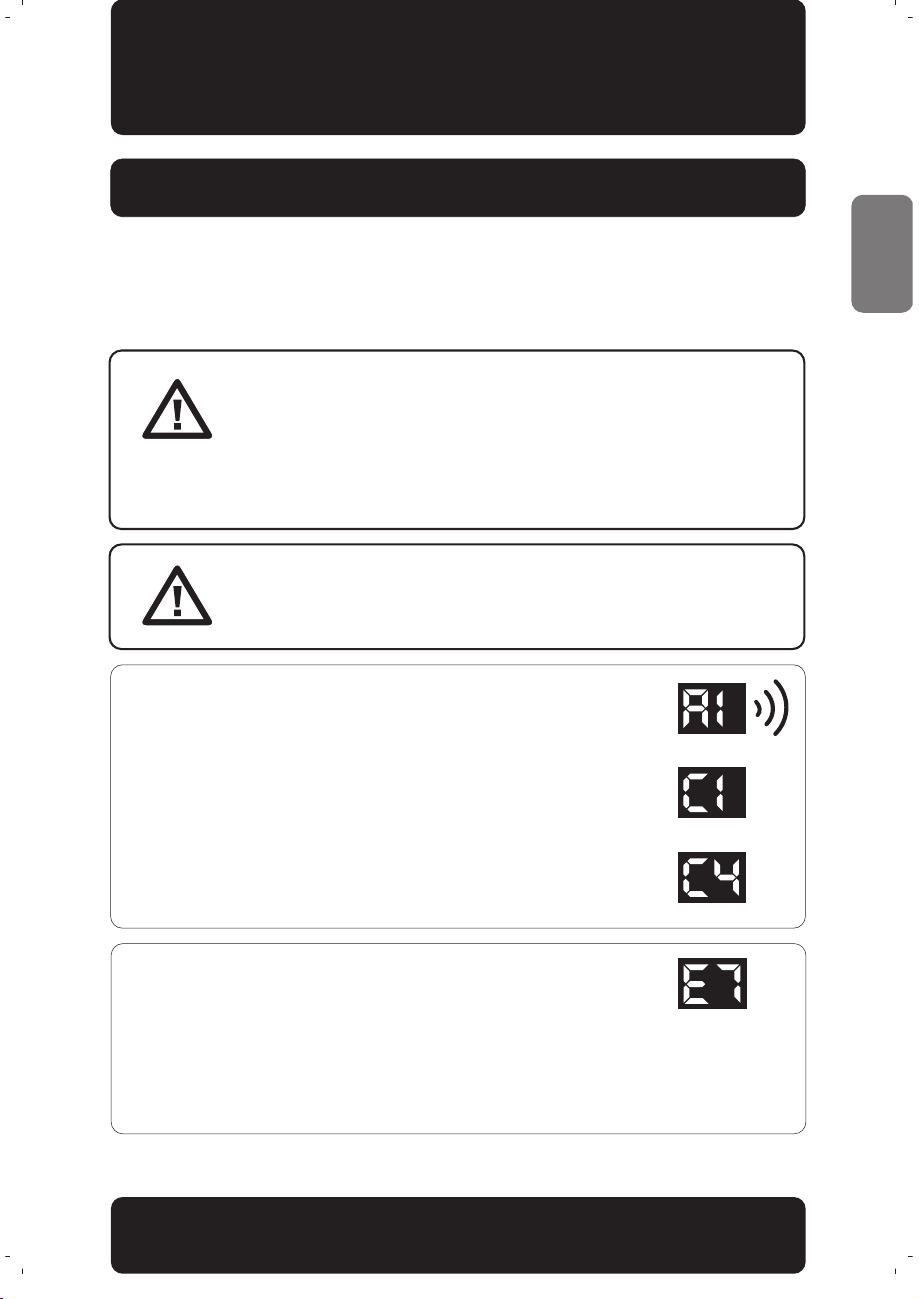

,IWKHEDWWHULHVDUHQRWEHLQJUHFKDUJHG\RXZLOOVHH$˪DVKLQJRQWKH
fault indicator, and hear a beep alarm. The stairlift will beep intermittently
for 60 seconds and stop entering hibernation mode. The stairlift will beep
intermittently every 20 seconds and the fault indicator will go blank..
To ensure that the batteries are kept fully charged, the mains electricity
supply should always be switched on and the stairlift parked on its
charge points. The symbol will display C1 when charging or C4 when fully
charged.
If the batteries have lost their charge because the mains electricity supply
KDVEHHQVZLWFKHGR˨RULQWHUUXSWHGDOORZWKHPWRUHFKDUJHEHIRUHXVLQJ
the stairlift.
NOT CHARGING
CHARGING
CHARGED
If the stairlift has not been charging due to lack of mains power (during a
power interruption), or the lift has been used frequently enough to show
a low battery sign (E7) on the digital display, the stairlift will allow the
user to bring the unit DOWN to the nearest charging station. The unit will
not allow the user to travel in the UP direction until the batteries are
VX˫FLHQWO\FKDUJHG
LOW BATTERY
9000_AC_TC_Combined_Multilingual 180 user manual_1220.pdf 109000_AC_TC_Combined_Multilingual 180 user manual_1220.pdf 10 2/10/2021 11:18:01 AM2/10/2021 11:18:01 AM

Acorn Stairlifts User Manual
12
ENGLISH
STAIRLIFT OPERATION
SAFE OPERATION
Before operating your stairlift, ensure that there are no obstructions on the
VWDLUFDVH7KHVWDLUOLIWLV˩WWHGZLWK˩YHVDIHW\HGJHV
1 & 2: Each side of the carriage.
3 & 4: Each side of the footrest.
5: Under the footrest.
If these encounter any obstruction, the stairlift will stop immediately. Move the
stairlift back in the opposite direction and remove the obstruction.
Do not allow children to play with the stairlift. Do not exceed the
safe weight limit (see label under seat). Always use the seatbelt.
1
2
3
4
5
9000_AC_TC_Combined_Multilingual 180 user manual_1220.pdf 119000_AC_TC_Combined_Multilingual 180 user manual_1220.pdf 11 2/10/2021 11:18:01 AM2/10/2021 11:18:01 AM

Acorn Stairlifts User Manual 13
ENGLISH
STAIRLIFT OPERATION
1
2
3
4
5
6
7
8
9
The Acorn 180 Curved Stairlift is a modular system, designed for easy assembly
and maintenance utilising the rack and pinion method of travel along the rail,
which is still the most reliable system available. This method is used with
customer safety paramount throughout design and manufacture. You may
experience some small bumps or jolts during use of the stairlift; this is normal
for this type of technology
Lower the footrest.
Lower the seat and arms.
Hold down one of the swivel paddles
and swivel the seat until it locks into its
operating position as shown. (At the top
of the stairs only). See Page 14
Sit in the seat and fasten the seatbelt.
7KHDUPVDUH˩WWHGZLWKVDIHW\LQWHUORFNV
and must be completely down in position
for the stairlift to work.
Press the direction controller in the
direction of travel. There will be an audible
beep to signal that a command has
been received.
After a short delay, the stairlift will begin
WRPRYHVORZO\DW˩UVWXQWLOLWUHDFKHV
full speed. Keep the controller pressed
down continually throughout the journey.
The stairlift will slow down around certain
bends for your comfort and safety.
The stairlift will automatically slow down
and stop when it reaches the end of its
travel.
To swivel the seat, hold down one of the
seat paddles and rotate the seat. Release
the paddle and keep rotating until it locks
into position, partly or fully around. (At the
top of the stairs only).
10
11
USING YOUR STAIRLIFT
1
2
2
3
4
6
6
7
2
It is now safe to undo the seatbelt and
leave the stairlift.
You may at this point swivel the seat
back into its locked position and fold the
footrest, arms and seat up.
IMPORTANT - Do not disembark
until the Stairlift has reached the
top and bottom of the stairs.
9000_AC_TC_Combined_Multilingual 180 user manual_1220.pdf 129000_AC_TC_Combined_Multilingual 180 user manual_1220.pdf 12 2/10/2021 11:18:01 AM2/10/2021 11:18:01 AM

Acorn Stairlifts User Manual
14
ENGLISH
STAIRLIFT OPERATION
SWIVEL SEAT
POWERED SWIVEL SEAT
POWERED HINGE
,IDSRZHUHGVHDWLV˩WWHGDWWKHWRSRIWKHVWDLUVRQO\UHOHDVH
the direction controller on the arm rest and press again in the
UP direction. The seat will begin to swivel round automatically.
It is important that the seatbelt is undone ONLY when
the seat has fully swivelled and it is safe to leave the stairlift.
,ID3RZHUHGKLQJHLV˩WWHGWKH6WDLUOLIWZLOORSHUDWHWKHKLQJHDXWRPDWLFDOO\
When the lift reaches or leaves the programmed hinge zone, the Stairlift will stop
and the powered hinge will be automatically raised or lowered. This will allow the
user to operate the hinge whilst in a line of sight. At the bottom of the stairs, once
\RXKDYH˩QLVKHGXVLQJWKHVWDLUOLIWSUHVVLQJWKHXSEXWWRQRQWKHUHPRWHKDQGVHW
ZLOODXWRPDWLFDOO\UXQWKHOLIWWRHLWKHUDQLQWHUPHGLDWHFKDUJHSRLQWLI˩WWHGRUWKH
top of charge point. Disembark/mount the lift at the bottom of the stairs.
1
,IDVWDQGDUGWRS˩QLVKUDLOLVLQVWDOOHGWKHVHDWZLOOEHUHTXLUHGWRVZLYHO
to enter and exit the stairlift.
When the unit reaches the upper end of the track, it will stop automatically.
7KHVHDWPXVWQRZEHWXUQHGWRPDNHJHWWLQJRQDQGR˨WKHVWDLUOLIWVDIH
To turn the seat, depress and
hold down the seat swivel lever
at the side of the seat pad.
This will then allow the seat to
be rotated to face the staircase
landing. The seat will lock
in position at 45º and 80º.
Make sure the seat is locked into position
EHIRUHJHWWLQJRQRUR˨WKHVWDLUOLIW
It is important that the seatbelt is undone
ONLY when the seat has fully swivelled and
it is safe to leave the stairlift.
45ʈswivel is
used on a
narrow size
landing.
80ʈswivel is
used on a
standard size
landing.
45ʈ
80ʈ
LANDING LANDING
Before operating the powered hinge, ensure that the area is clear
9000_AC_TC_Combined_Multilingual 180 user manual_1220.pdf 139000_AC_TC_Combined_Multilingual 180 user manual_1220.pdf 13 2/10/2021 11:18:01 AM2/10/2021 11:18:01 AM

Acorn Stairlifts User Manual 15
ENGLISH
REMOTE CONTROLS
The stairlift must be in its correct operating condition, with the seat
facing forward and switched on before using the remote controls.
The direction controls can be used to call the stairlift. Press the up or
down buttons continuously until the stairlift stops at the end of its
travel. Do not leave the stairlift parked part way up the stairs unless an
LQWHUPHGLDWHFKDUJHSRLQWLV˩WWHGWKHQLWFDQEHVHQWWRWKLVSRLQW
for re-charging.
Press the up button to send the stairlift to its autopark position.
It is recommended that remote control batteries are replaced annually.
STAIRLIFT OPERATION
9v PP3
%$77(5<
Slide the battery cover
R˨WKHUHYHUVHRIWKH
remote control.
Remove the battery. Please take old
batteries to a recycling centre or a
collection point at your local electrical
store or supermarket.
Insert the new battery
EDVH˩UVWDQGSXVKGRZQ
˩UPO\WRPDNH6OLGHWKH
cover on.
HOW TO CHANGE THE REMOTE BATTERY
POWERED FOOTREST
,ID3RZHUHG)RRWUHVWLV˩WWHGDWWKHWRS
or bottom of the stairs, after the stairlift
comes to a stop, undo the seat belt and
leave the stairlift. Using the buttons located
along both sides of the seat, lower or raise
the footrest as required. Alternatively, the
Powered Footrest can be raised by
pressing both buttons of the remote
handset at the same time.
Please ensure that the battery is connected correctly. If the battery is
connected wrong it could damage the remote and may require replacing.
IMPORTANT - When operating the lift for others, make sure that
the user’s arms are kept inside the armrests at all times and you
keep a clear line of sight with the stairlift.
9000_AC_TC_Combined_Multilingual 180 user manual_1220.pdf 149000_AC_TC_Combined_Multilingual 180 user manual_1220.pdf 14 2/10/2021 11:18:01 AM2/10/2021 11:18:01 AM

Acorn Stairlifts User Manual
16
ENGLISH
OPERATIONAL PROBLEMS
DIAGNOSTIC DISPLAY
When the stairlift is switched on, the diagnostic display underneath the
seat is illuminated. During normal operation it will display these symbols:
7KHVWDLUOLIWLVVZLWFKHGR˨RULQVOHHSPRGH see page 20 .
The stairlift is ready to use but the batteries are not being charged - Check mains
electricity supply is switched on and the stairlift is parked on its charge points.
Moving Up (arm switch control)
Moving Down (arm switch control)
Moving Up (Remote control)
Moving Down (Remote control)
Lift waiting for hinge to operate
Batteries are charging
Batteries are fully charged
Down side foot sensitive safety edge has been activated - Check for obstructions.
Up side foot sensitive safety edge has been activated - Check for obstructions.
Under foot plate sensitive safety edge has been activated - Check for obstructions.
Down side sensitive safety edge has been activated - Check for obstructions.
Up side sensitive safety edge has been activated - Check for obstructions.
The seat is swivelled away from its operating position.
Battery low – Bring the unit down to the nearest charging station. The unit won’t allow the user to
WUDYHOLQWKH83GLUHFWLRQXQWLOWKHEDWWHULHVDUHVX˫FLHQWO\FKDUJHGDQGWKHFRGHKDVFOHDUHG
%DWWHU\˪DWɷ$XGLEOHDODUPɷ3UHVVWKHDUPVZLWFKFRQWURORUWKHUHPRWHFRQWURORQFH
to stop the alarm. Bring the unit down to the nearest charging station.
If this symbol is displayed, DO NOT use the hand winder in the down direction as
this could damage the stairlift. Contact your stairlift supplier immediately.
9000_AC_TC_Combined_Multilingual 180 user manual_1220.pdf 159000_AC_TC_Combined_Multilingual 180 user manual_1220.pdf 15 2/10/2021 11:18:02 AM2/10/2021 11:18:02 AM

Acorn Stairlifts User Manual 17
ENGLISH
In the unlikely event that a problem should occur, contact your authorised dealer for assistance.
DEALER STAMP
OPERATIONAL PROBLEMS
HAND WINDING
In an emergency, the stairlift may be hand wound to clear any obstruction.
If this symbol is displayed, DO NOT hand-wind the stairlift
in the down direction because this could damage it.
(QVXUHWKHVWDLUOLIWLVVZLWFKHGR˨ZLWKWKHRQR˨KROGLQJVZLWFK
Remove the round cover on top of the carriage (marked with an Emergency
Handwind label).
Fit the hand winder onto the hexagonal spindle and follow the instructions on
the label inside the round cover.
23
LIFT WILL STILL NOT RUN
1
2
3
9000_AC_TC_Combined_Multilingual 180 user manual_1220.pdf 169000_AC_TC_Combined_Multilingual 180 user manual_1220.pdf 16 2/10/2021 11:18:02 AM2/10/2021 11:18:02 AM

Acorn Stairlifts User Manual
18
ENGLISH
OPERATIONAL PROBLEMS
LIFT OPERATION INTERRUPTED DURING USE
IMPORTANT!
OBSERVE THE FOLLOWING POINTS BEFORE USING THE STAIRLIFT
• Please ensure that you can alert others in
FDVH\RXHQFRXQWHUGL˫FXOWLHVZKHQXVLQJ   
the stairlift
• Ensure that the stairway is not being used by others
and is clear of articles or obstructions
• Remain calm on the stairlift, ensuring that both
arms are in the down position.
• Release the direction controller on the
arm rest and press again in the
OPPOSITE direction.
In the unlikely event that you need to disembark the stairlift
mid travel, always attempt to swivel the seat towards the stairs.
9000_AC_TC_Combined_Multilingual 180 user manual_1220.pdf 179000_AC_TC_Combined_Multilingual 180 user manual_1220.pdf 17 2/10/2021 11:18:02 AM2/10/2021 11:18:02 AM

Acorn Stairlifts User Manual 19
ENGLISH
OPERATIONAL PROBLEMS
DISEMBARKING THE STAIRLIFT IN
CASE OF EMERGENCY
IMPORTANT!
In the unlikely event that you need to disembark the
stairlift mid travel, always attempt to swivel the seat
towards the stairs.
Turn the seat, depressing an holding the seat
swivel lever at the side of the seat pad. (Powered
swivel units can be rotated manually without the
need of depressing the seat pads).
This will then allow the seat
to be rotated to face
the staircase.
The seat will lock at a 45oor 80oangle.
IMPORTANT!
MAKE SURE THE SEAT IS LOCKED INTO POSITION BEFORE
ATTEMPTING TO DISEMBARK THE STAIRLIFT
IMPORTANT!
IT IS IMPORTANT THAT THE SEATBELT IS UNDONE ONLY
WHEN THE SEAT HAS BEEN FULLY SWIVELLED TO FACE THE
STAIRCASE AND LOCKED INTO POSITION.
80
o
45o
9000_AC_TC_Combined_Multilingual 180 user manual_1220.pdf 189000_AC_TC_Combined_Multilingual 180 user manual_1220.pdf 18 2/10/2021 11:18:02 AM2/10/2021 11:18:02 AM

Acorn Stairlifts User Manual
20
ENGLISH
CARE AND MAINTENANCE
Wipe the seat, carriage and rail down with a dry cloth.
CLEANING
Replace the remote control batteries annually. See Page 15.
REMOTE CONTROLS
SERVICING
SLEEP MODE
Acorn promotes responsible recycling.
Do not attempt to dispose of the stairlift yourself
,WLVUHFRPPHQGHGWKDW\RXU$FRUQ6WDLUOLIWEHVHUYLFHGHYHU\
months by your stairlift supplier to ensure it remains safe and reliable.
7KHHTXLYDOHQWFRQWLQXRXV$:HLJKWHGVRXQGSUHVVXUHOHYHORI
WKLVHTXLSPHQWGRHVQRWH[FHHGGE$
)RUVDIHW\UHDVRQVRQO\$FRUQVSHFL˩HGSDUWVVKRXOGEHXVHG8VH
RISDUWVWKDWDUHQRW$FRUQDSSURYHGFRXOGD˨HFWWKHVDIHW\
of your stairlift.
If the stairlift is not parked on a charge point, or in the event of a
SRZHUIDLOXUHWKHVWDLUOLIWZLOOɺEHHSɻFRQWLQXRXVO\IRUDSSUR[LPDWHO\
60 seconds, after which the stairlift will enter SLEEP MODE. The
Stairlift will beep intermittently every 20 seconds and the fault
indicator will go blank. The user can ‘wake’ the stairlift at any time
by using the paddle controls or remote control handset. Once
woken, park the stairlift on a charge point as normal.
FCC
7KHHTXLSPHQWKDVEHHQWHVWHGDQGFRPSOLHVIXOO\ZLWK&ODVV$RI&)5SDUWFHUWL˩FDWLRQ
,IQRWLQVWDOOHGFRUUHFWO\E\DQ$FRUQ4XDOL˩HG7HFKQLFLDQWKHUHPD\EHVRPHLQWHUIHUHQFHZLWK
RWKHUKRXVHKROGHTXLSPHQWLH79DQG5DGLRUHFHSWLRQ7KLVFDQEHUHFWL˩HGE\PRYLQJWKLV
HTXLSPHQWWRDGL˨HUHQWORFDWLRQ
9000_AC_TC_Combined_Multilingual 180 user manual_1220.pdf 199000_AC_TC_Combined_Multilingual 180 user manual_1220.pdf 19 2/10/2021 11:18:02 AM2/10/2021 11:18:02 AM

Acorn Stairlifts User Manual 21
ENGLISH
SERVICE RECORD
Service Date:
Next Service Due:
Engineer Signature:
Customer Signature:
Service Date:
Next Service Due:
Engineer Signature:
Customer Signature:
Service Date:
Next Service Due:
Engineer Signature:
Customer Signature:
Service Date:
Next Service Due:
Engineer Signature:
Customer Signature:
9000_AC_TC_Combined_Multilingual 180 user manual_1220.pdf 209000_AC_TC_Combined_Multilingual 180 user manual_1220.pdf 20 2/10/2021 11:18:02 AM2/10/2021 11:18:02 AM
