Acoustic Research AWS53 User manual
Introduction
The Acoustic Research Portable Wireless Speaker with 3.5mm jack lets you enjoy your music
anywhere, at home or on the go, with two ways to connect to your music. The 900MHz wireless
transmitter gives you 150ft* of room to roam from your audio source, great for outdoor
entertaining at home, with crystal-clear wireless audio. The speaker’s 3.5mm jack offers
a convenient connection option to use anywhere you go—just connect your MP3 player or
smartphone to the speaker, and enjoy!
This manual covers various connection options and detailed operating instructions for making
the AR Wireless Speaker System a valued part of your lifestyle. If, after having reviewed the
instructions, you have any questions, please call toll-free 1-800-732-6866 or visit
www.acoustic-research.com.
*Range may vary according to environment.
Important Information
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
CAUTION Caution: To reduce the risk of electric shock, do not remove cover (or back). No user
serviceable parts inside. Refer servicing to qualied service personnel.
Product Information
Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record the
serial and model numbers in case you need them. These numbers are located on the product.
Model No.: _____________________________________________________________________________________________
Purchase Date: _________________________________________________________________________________________
Dealer/Address/Phone: __________________________________________________________________________________
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Clean only with dry cloth.
6. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
7. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that
produce heat.
8. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
9. Unplug this apparatus during lightning storms or when unused for long periods of time.
10. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
Care and Maintenance
• Always use a soft cloth to clean the speaker and transmitter. Never use any product containing alcohol or other solvents
as they may damage the surface.
• Use caution when plugging the power transformers in an AC outlet to avoid the risk of electric shock.
• If the speaker are used outside on a deck or patio, make sure you take them indoors in the event of a rainstorm to
prevent possible damage.
• Do not operate or store the system in extreme temperatures (below 32ºF/0ºC and above 122ºF/50ºC).
L M R
DC
IN

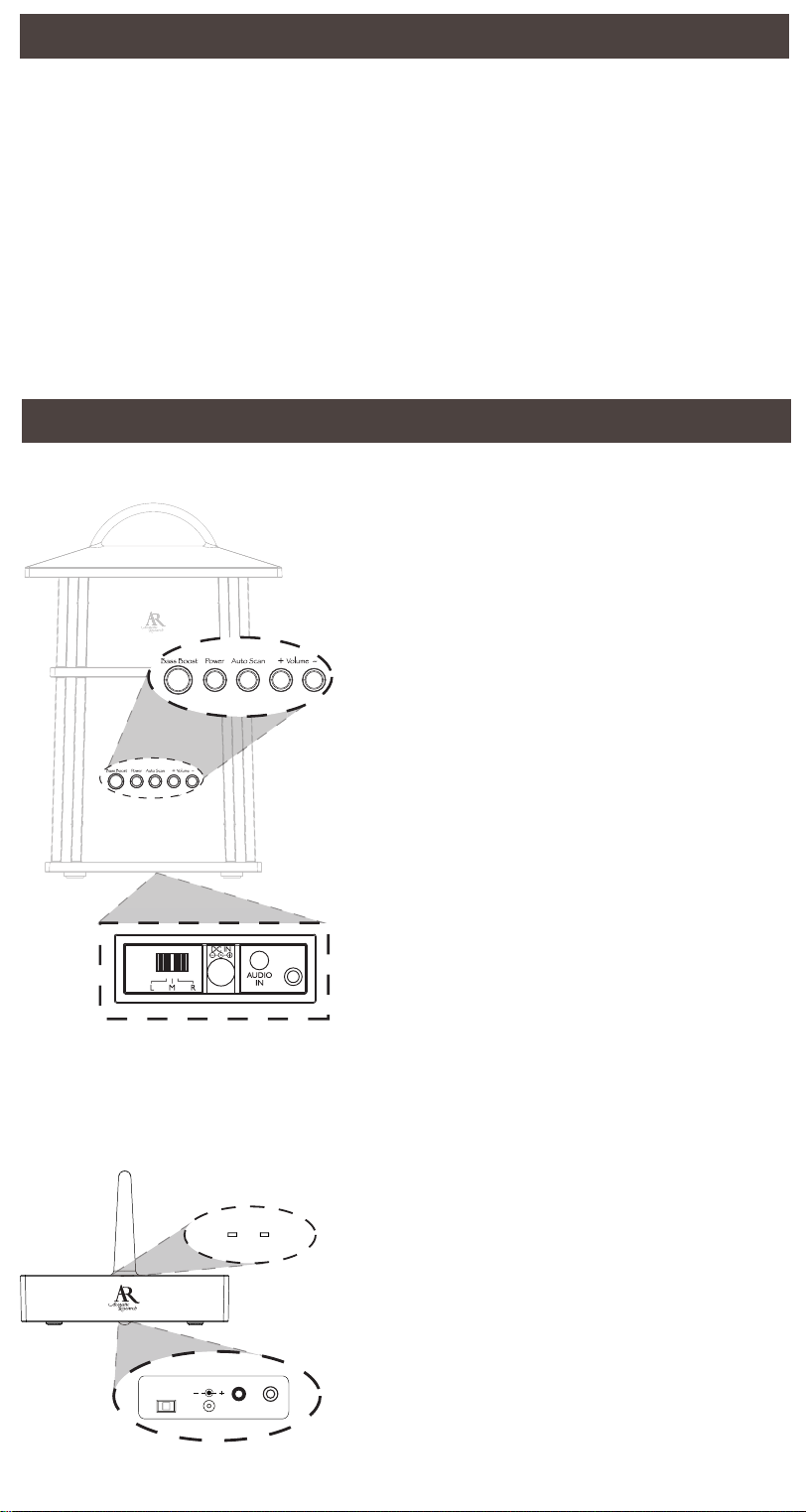

Tour of the Speaker System
Tour of the Speaker System
3.5mm audio in cable

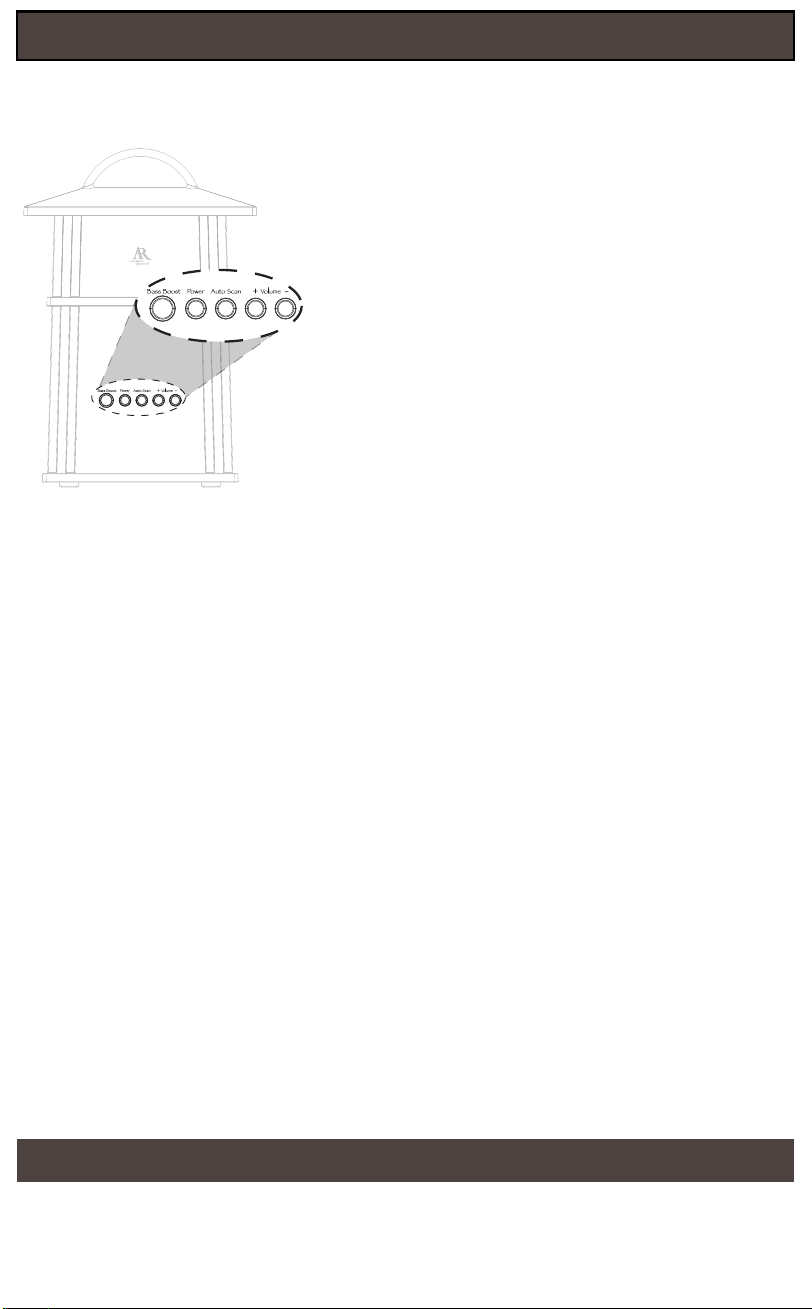

Speaker
Front Panel
POWER/LINKED indicator (not shown) blinks
when the speaker is rst powered on; it turns solid
blue when the speaker is tuned to the transmitter
Rear Panel
Bass Boost button turns the speaker’s bass
enhancement on and off
Power button turns the speaker on and off
Auto Scan button rescans for the transmitter’s
signal
Volume +/– buttons adjust the volume level
Bottom Panel
L/M/R switch determines if the speaker plays sound
in mono as a stand-alone speaker, or plays the left or
right track in a stereo pair with an additional AWS53
DC IN receives the small round end of one of the
included 9V 1200mA AC power adapters; remove the
protective cover to insert the adapter
AUDIO IN connects directly to your MP3 player,
smartphone, or other portable audio device, using
the 3.5mm audio in cable provided
Battery Compartment Cover (not shown)
remove to install 6 AA batteries
Carrying
handle
Transmitter
SIGNAL indicator lights green when the audio is
present and the transmitter is broadcasting
POWER indicator lights when the transmitter is on
CHANNEL 1 2 3 lets you nd the best transmission
frequency for your environment
DC IN jack receives the small round end of the
included 12V 200mA AC power adapter
AUDIO IN (R / L) connects to your sound source
using one of the connection options shown here
Included Accessories
Note: These power units should be
plugged in so that they stay vertical
or lie at.
Back panel

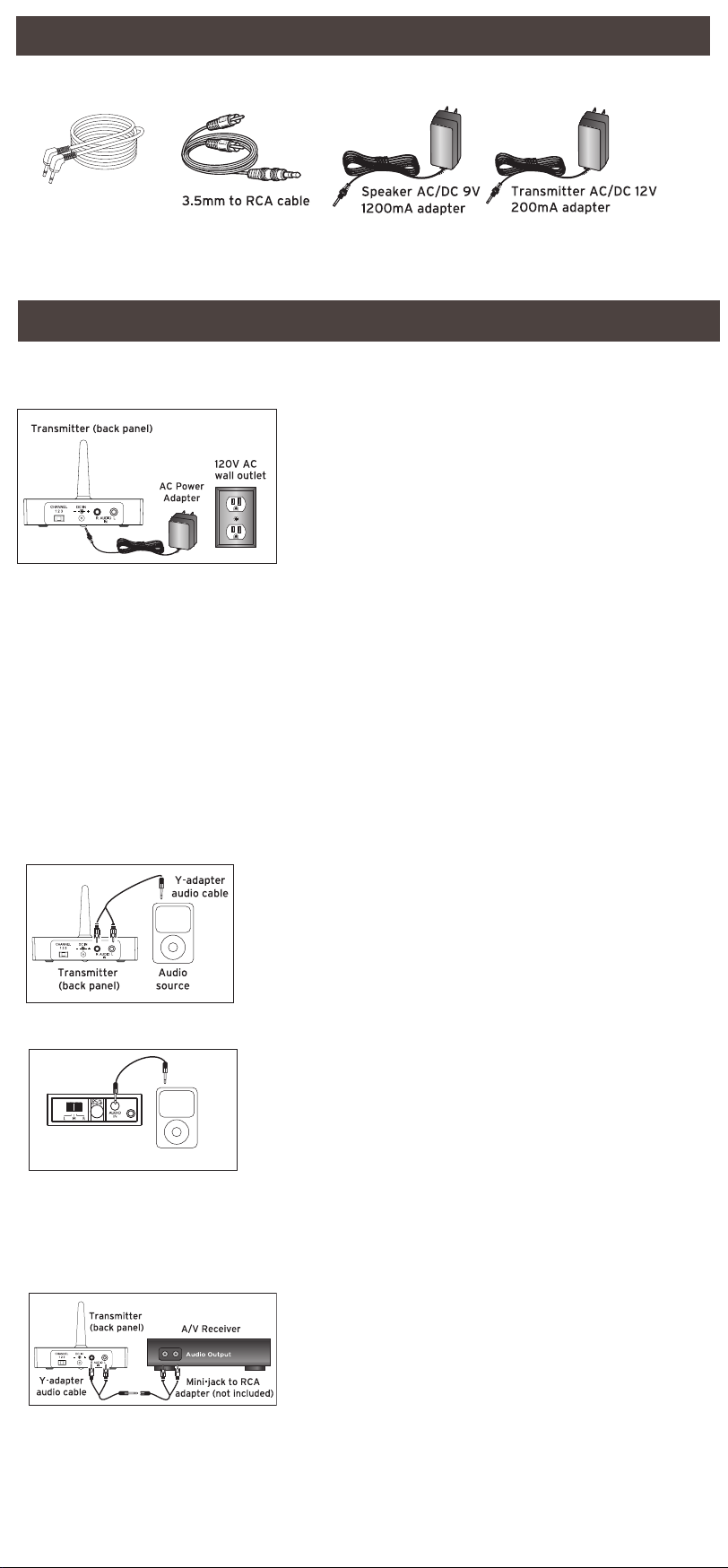

Connecting the Speaker System
Connecting the Speaker System
Powering the Transmitter
Connect the small, round plug from the transmitter AC
power adapter to the transmitter’s DC IN jack. Plug the
other end of the transmitter AC power adapter into any
standard 120V AC wall outlet.
Note: Be sure to use the AC power adapter rated 12V DC
200 mA (it has the smaller diameter plug).
Connecting to an Audio Source
Connecting to an MP3 player, smartphone, or other portable audio
device
This speaker offers two ways to listen to audio from a portable audio device: using the wireless
transmitter or connecting directly to the audio source.
Using the wireless transmitter
1. Plug the stereo plugs on the provided Y-adapter audio cable
into the AUDIO IN jacks on the back of the transmitter.
2. Plug the mini-plug end of the provided Y-adapter into the
headphone output of your MP3 player or other portable audio
device.
Using a direct connection
1. Connect one end of the provided 3.5mm audio in cable to the
AUDIO IN jack on the bottom of the speaker.
2. Connect the other end of the cable to the headphone output
on your MP3 player or other portable audio device.
Warning: This product is designed to work with line level outputs or headphone outputs only.
DO NOT connect it directly to speaker outputs as it will permanently damage the transmitter.
Connecting to an A/V Receiver
AC Power Adapters
1. Insert the small, round plug from the speaker AC
power adapter into the DC IN jack on the bottom of
the speaker.
2. Plug the other end of the speaker AC power adapter
into any standard 120V AC wall outlet.
Note: Be sure to use the speaker AC power adapter rated 9V DC 1200 mA.
Warning: This product is water-resistant, not waterproof. Avoid prolonged exposure to wet
environments, such as rain, mist, dew, etc. In other words, you can take it out, just don’t leave it out.
To avoid electrical shock, use this product with caution near water sources if powered with the
AC adapter. Never submerge in water.
AA Batteries
1. Remove the battery compartment cover on the bottom of the speaker.
2. Insert six (6) AA batteries (not included) into the speaker following the polarity (”+” and “-”)
as diagrammed inside the battery compartment.
3. Replace the battery compartment cover on the bottom of the speaker.
Note: Place the rubber cap in the speaker power input jack when using batteries.
DO NOT mix batteries with different chemistry types (for example, a zinc battery with an alkaline
battery). DO NOT mix new and used batteries. DO NOT leave batteries installed in the product when
not in use for long periods. Always remove old, weak or worn-out batteries promptly and recycle or
dispose of them in accordance with local and national regulations.
Powering the Speaker
There are two options to power your wireless speaker: using the included AC power adapter or
using 6 AA batteries (not included).
DC IN
CHANNEL
1 2 3
R AUDIO L
IN
SIGNAL POWER
Top panel
A
Audio source
Speaker
(bottom panel)
3.5mm
audio in cable
1. Plug the stereo plugs on the provided Y-adapter audio
cable into the AUDIO IN jacks on the back of the
transmitter (make sure to match the colors on the plugs
and jacks).
2. Plug the mini-plug end of the provided Y-adapter into a
mini-jack to RCA adapter (not included).
3. Connect the stereo plugs on the mini-jack to RCA adapter to the corresponding left and right
audio outputs of your A/V receiver, amp, or other audio source.
Model AWS53
Installation and Operation Manual
PORTABLE
Wireless
Speaker
WITH 3.5MM JACK
Note: There is no transmitter ON/OFF switch. The transmitter is designed to be left plugged
in and powered at all times. If you will not be using the AWS53 for an extended period of time,
unplug the transmitter AC power adapter.
2. Set the channel select switch on the back of the transmitter
to one of the transmitter’s three broadcast frequencies: 1,
2 or 3. If you experience poor reception or interference, try
choosing a different frequency by moving the channel select
switch to another position.
When the transmitter is receiving an audio signal and is
ready, the SIGNAL indicator turns solid green.
DC IN
CHANNEL
1 2 3
R AUDIO L
IN
Channel
select
switch
Adjusting the Transmitter
1. Turn on your audio source (for example, A/V receiver, MP3 player, stereo, etc.) and play
music at a normal listening volume.
Note
If the SIGNAL indicator on the transmitter does not turn on, please check the following:
- Conrm the transmitter AC power adapter is securely connected.
- Conrm the cable from the transmitter is securely connected to the audio source output
(MP3 player, A/V receiver, etc.).
- Conrm the audio source is playing audio and is turned up.
Using the Speaker System
Introduction
The Acoustic Research Portable Wireless Speaker with 3.5mm jack lets you enjoy your music
anywhere, at home or on the go, with two ways to connect to your music. The 900MHz wireless
transmitter gives you 150ft* of room to roam from your audio source, great for outdoor
entertaining at home, with crystal-clear wireless audio. The speaker’s 3.5mm jack offers
a convenient connection option to use anywhere you go—just connect your MP3 player or
smartphone to the speaker, and enjoy!
This manual covers various connection options and detailed operating instructions for making
the AR Wireless Speaker System a valued part of your lifestyle. If, after having reviewed the
instructions, you have any questions, please call toll-free 1-800-732-6866 or visit
www.acoustic-research.com.
*Range may vary according to environment.
Important Information
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
CAUTION Caution: To reduce the risk of electric shock, do not remove cover (or back). No user
serviceable parts inside. Refer servicing to qualied service personnel.
Product Information
Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record the
serial and model numbers in case you need them. These numbers are located on the product.
Model No.: _____________________________________________________________________________________________
Purchase Date: _________________________________________________________________________________________
Dealer/Address/Phone: __________________________________________________________________________________
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Clean only with dry cloth.
6. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
7. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that
produce heat.
8. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
9. Unplug this apparatus during lightning storms or when unused for long periods of time.
10. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
Care and Maintenance
• Always use a soft cloth to clean the speaker and transmitter. Never use any product containing alcohol or other solvents
as they may damage the surface.
• Use caution when plugging the power transformers in an AC outlet to avoid the risk of electric shock.
• If the speaker are used outside on a deck or patio, make sure you take them indoors in the event of a rainstorm to
prevent possible damage.
• Do not operate or store the system in extreme temperatures (below 32ºF/0ºC and above 122ºF/50ºC).
L M R
DC
IN
Tour of the Speaker System
Tour of the Speaker System
3.5mm audio in cable
Speaker
Front Panel
POWER/LINKED indicator (not shown) blinks
when the speaker is rst powered on; it turns solid
blue when the speaker is tuned to the transmitter
Rear Panel
Bass Boost button turns the speaker’s bass
enhancement on and off
Power button turns the speaker on and off
Auto Scan button rescans for the transmitter’s
signal
Volume +/– buttons adjust the volume level
Bottom Panel
L/M/R switch determines if the speaker plays sound
in mono as a stand-alone speaker, or plays the left or
right track in a stereo pair with an additional AWS53
DC IN receives the small round end of one of the
included 9V 1200mA AC power adapters; remove the
protective cover to insert the adapter
AUDIO IN connects directly to your MP3 player,
smartphone, or other portable audio device, using
the 3.5mm audio in cable provided
Battery Compartment Cover (not shown)
remove to install 6 AA batteries
Carrying
handle
Transmitter
SIGNAL indicator lights green when the audio is
present and the transmitter is broadcasting
POWER indicator lights when the transmitter is on
CHANNEL 1 2 3 lets you nd the best transmission
frequency for your environment
DC IN jack receives the small round end of the
included 12V 200mA AC power adapter
AUDIO IN (R / L) connects to your sound source
using one of the connection options shown here
Included Accessories
Note: These power units should be
plugged in so that they stay vertical
or lie at.
Back panel
Connecting the Speaker System
Connecting the Speaker System
Powering the Transmitter
Connect the small, round plug from the transmitter AC
power adapter to the transmitter’s DC IN jack. Plug the
other end of the transmitter AC power adapter into any
standard 120V AC wall outlet.
Note: Be sure to use the AC power adapter rated 12V DC
200 mA (it has the smaller diameter plug).
Connecting to an Audio Source
Connecting to an MP3 player, smartphone, or other portable audio
device
This speaker offers two ways to listen to audio from a portable audio device: using the wireless
transmitter or connecting directly to the audio source.
Using the wireless transmitter
1. Plug the stereo plugs on the provided Y-adapter audio cable
into the AUDIO IN jacks on the back of the transmitter.
2. Plug the mini-plug end of the provided Y-adapter into the
headphone output of your MP3 player or other portable audio
device.
Using a direct connection
1. Connect one end of the provided 3.5mm audio in cable to the
AUDIO IN jack on the bottom of the speaker.
2. Connect the other end of the cable to the headphone output
on your MP3 player or other portable audio device.
Warning: This product is designed to work with line level outputs or headphone outputs only.
DO NOT connect it directly to speaker outputs as it will permanently damage the transmitter.
Connecting to an A/V Receiver
AC Power Adapters
1. Insert the small, round plug from the speaker AC
power adapter into the DC IN jack on the bottom of
the speaker.
2. Plug the other end of the speaker AC power adapter
into any standard 120V AC wall outlet.
Note: Be sure to use the speaker AC power adapter rated 9V DC 1200 mA.
Warning: This product is water-resistant, not waterproof. Avoid prolonged exposure to wet
environments, such as rain, mist, dew, etc. In other words, you can take it out, just don’t leave it out.
To avoid electrical shock, use this product with caution near water sources if powered with the
AC adapter. Never submerge in water.
AA Batteries
1. Remove the battery compartment cover on the bottom of the speaker.
2. Insert six (6) AA batteries (not included) into the speaker following the polarity (”+” and “-”)
as diagrammed inside the battery compartment.
3. Replace the battery compartment cover on the bottom of the speaker.
Note: Place the rubber cap in the speaker power input jack when using batteries.
DO NOT mix batteries with different chemistry types (for example, a zinc battery with an alkaline
battery). DO NOT mix new and used batteries. DO NOT leave batteries installed in the product when
not in use for long periods. Always remove old, weak or worn-out batteries promptly and recycle or
dispose of them in accordance with local and national regulations.
Powering the Speaker
There are two options to power your wireless speaker: using the included AC power adapter or
using 6 AA batteries (not included).
DC IN
CHANNEL
1 2 3
R AUDIO L
IN
SIGNAL POWER
Top panel
A
Audio source
Speaker
(bottom panel)
3.5mm
audio in cable
1. Plug the stereo plugs on the provided Y-adapter audio
cable into the AUDIO IN jacks on the back of the
transmitter (make sure to match the colors on the plugs
and jacks).
2. Plug the mini-plug end of the provided Y-adapter into a
mini-jack to RCA adapter (not included).
3. Connect the stereo plugs on the mini-jack to RCA adapter to the corresponding left and right
audio outputs of your A/V receiver, amp, or other audio source.
Model AWS53
Installation and Operation Manual
PORTABLE
Wireless
Speaker
WITH 3.5MM JACK
Note: There is no transmitter ON/OFF switch. The transmitter is designed to be left plugged
in and powered at all times. If you will not be using the AWS53 for an extended period of time,
unplug the transmitter AC power adapter.
2. Set the channel select switch on the back of the transmitter
to one of the transmitter’s three broadcast frequencies: 1,
2 or 3. If you experience poor reception or interference, try
choosing a different frequency by moving the channel select
switch to another position.
When the transmitter is receiving an audio signal and is
ready, the SIGNAL indicator turns solid green.
DC IN
CHANNEL
1 2 3
R AUDIO L
IN
Channel
select
switch
Adjusting the Transmitter
1. Turn on your audio source (for example, A/V receiver, MP3 player, stereo, etc.) and play
music at a normal listening volume.
Note
If the SIGNAL indicator on the transmitter does not turn on, please check the following:
- Conrm the transmitter AC power adapter is securely connected.
- Conrm the cable from the transmitter is securely connected to the audio source output
(MP3 player, A/V receiver, etc.).
- Conrm the audio source is playing audio and is turned up.
Using the Speaker System
Introduction
The Acoustic Research Portable Wireless Speaker with 3.5mm jack lets you enjoy your music
anywhere, at home or on the go, with two ways to connect to your music. The 900MHz wireless
transmitter gives you 150ft* of room to roam from your audio source, great for outdoor
entertaining at home, with crystal-clear wireless audio. The speaker’s 3.5mm jack offers
a convenient connection option to use anywhere you go—just connect your MP3 player or
smartphone to the speaker, and enjoy!
This manual covers various connection options and detailed operating instructions for making
the AR Wireless Speaker System a valued part of your lifestyle. If, after having reviewed the
instructions, you have any questions, please call toll-free 1-800-732-6866 or visit
www.acoustic-research.com.
*Range may vary according to environment.
Important Information
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
CAUTION Caution: To reduce the risk of electric shock, do not remove cover (or back). No user
serviceable parts inside. Refer servicing to qualied service personnel.
Product Information
Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record the
serial and model numbers in case you need them. These numbers are located on the product.
Model No.: _____________________________________________________________________________________________
Purchase Date: _________________________________________________________________________________________
Dealer/Address/Phone: __________________________________________________________________________________
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Clean only with dry cloth.
6. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
7. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that
produce heat.
8. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
9. Unplug this apparatus during lightning storms or when unused for long periods of time.
10. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
Care and Maintenance
• Always use a soft cloth to clean the speaker and transmitter. Never use any product containing alcohol or other solvents
as they may damage the surface.
• Use caution when plugging the power transformers in an AC outlet to avoid the risk of electric shock.
• If the speaker are used outside on a deck or patio, make sure you take them indoors in the event of a rainstorm to
prevent possible damage.
• Do not operate or store the system in extreme temperatures (below 32ºF/0ºC and above 122ºF/50ºC).
L M R
DC
IN
Tour of the Speaker System
Tour of the Speaker System
3.5mm audio in cable
Speaker
Front Panel
POWER/LINKED indicator (not shown) blinks
when the speaker is rst powered on; it turns solid
blue when the speaker is tuned to the transmitter
Rear Panel
Bass Boost button turns the speaker’s bass
enhancement on and off
Power button turns the speaker on and off
Auto Scan button rescans for the transmitter’s
signal
Volume +/– buttons adjust the volume level
Bottom Panel
L/M/R switch determines if the speaker plays sound
in mono as a stand-alone speaker, or plays the left or
right track in a stereo pair with an additional AWS53
DC IN receives the small round end of one of the
included 9V 1200mA AC power adapters; remove the
protective cover to insert the adapter
AUDIO IN connects directly to your MP3 player,
smartphone, or other portable audio device, using
the 3.5mm audio in cable provided
Battery Compartment Cover (not shown)
remove to install 6 AA batteries
Carrying
handle
Transmitter
SIGNAL indicator lights green when the audio is
present and the transmitter is broadcasting
POWER indicator lights when the transmitter is on
CHANNEL 1 2 3 lets you nd the best transmission
frequency for your environment
DC IN jack receives the small round end of the
included 12V 200mA AC power adapter
AUDIO IN (R / L) connects to your sound source
using one of the connection options shown here
Included Accessories
Note: These power units should be
plugged in so that they stay vertical
or lie at.
Back panel
Connecting the Speaker System
Connecting the Speaker System
Powering the Transmitter
Connect the small, round plug from the transmitter AC
power adapter to the transmitter’s DC IN jack. Plug the
other end of the transmitter AC power adapter into any
standard 120V AC wall outlet.
Note: Be sure to use the AC power adapter rated 12V DC
200 mA (it has the smaller diameter plug).
Connecting to an Audio Source
Connecting to an MP3 player, smartphone, or other portable audio
device
This speaker offers two ways to listen to audio from a portable audio device: using the wireless
transmitter or connecting directly to the audio source.
Using the wireless transmitter
1. Plug the stereo plugs on the provided Y-adapter audio cable
into the AUDIO IN jacks on the back of the transmitter.
2. Plug the mini-plug end of the provided Y-adapter into the
headphone output of your MP3 player or other portable audio
device.
Using a direct connection
1. Connect one end of the provided 3.5mm audio in cable to the
AUDIO IN jack on the bottom of the speaker.
2. Connect the other end of the cable to the headphone output
on your MP3 player or other portable audio device.
Warning: This product is designed to work with line level outputs or headphone outputs only.
DO NOT connect it directly to speaker outputs as it will permanently damage the transmitter.
Connecting to an A/V Receiver
AC Power Adapters
1. Insert the small, round plug from the speaker AC
power adapter into the DC IN jack on the bottom of
the speaker.
2. Plug the other end of the speaker AC power adapter
into any standard 120V AC wall outlet.
Note: Be sure to use the speaker AC power adapter rated 9V DC 1200 mA.
Warning: This product is water-resistant, not waterproof. Avoid prolonged exposure to wet
environments, such as rain, mist, dew, etc. In other words, you can take it out, just don’t leave it out.
To avoid electrical shock, use this product with caution near water sources if powered with the
AC adapter. Never submerge in water.
AA Batteries
1. Remove the battery compartment cover on the bottom of the speaker.
2. Insert six (6) AA batteries (not included) into the speaker following the polarity (”+” and “-”)
as diagrammed inside the battery compartment.
3. Replace the battery compartment cover on the bottom of the speaker.
Note: Place the rubber cap in the speaker power input jack when using batteries.
DO NOT mix batteries with different chemistry types (for example, a zinc battery with an alkaline
battery). DO NOT mix new and used batteries. DO NOT leave batteries installed in the product when
not in use for long periods. Always remove old, weak or worn-out batteries promptly and recycle or
dispose of them in accordance with local and national regulations.
Powering the Speaker
There are two options to power your wireless speaker: using the included AC power adapter or
using 6 AA batteries (not included).
DC IN
CHANNEL
1 2 3
R AUDIO L
IN
SIGNAL POWER
Top panel
A
Audio source
Speaker
(bottom panel)
3.5mm
audio in cable
1. Plug the stereo plugs on the provided Y-adapter audio
cable into the AUDIO IN jacks on the back of the
transmitter (make sure to match the colors on the plugs
and jacks).
2. Plug the mini-plug end of the provided Y-adapter into a
mini-jack to RCA adapter (not included).
3. Connect the stereo plugs on the mini-jack to RCA adapter to the corresponding left and right
audio outputs of your A/V receiver, amp, or other audio source.
Model AWS53
Installation and Operation Manual
PORTABLE
Wireless
Speaker
WITH 3.5MM JACK
Note: There is no transmitter ON/OFF switch. The transmitter is designed to be left plugged
in and powered at all times. If you will not be using the AWS53 for an extended period of time,
unplug the transmitter AC power adapter.
2. Set the channel select switch on the back of the transmitter
to one of the transmitter’s three broadcast frequencies: 1,
2 or 3. If you experience poor reception or interference, try
choosing a different frequency by moving the channel select
switch to another position.
When the transmitter is receiving an audio signal and is
ready, the SIGNAL indicator turns solid green.
DC IN
CHANNEL
1 2 3
R AUDIO L
IN
Channel
select
switch
Adjusting the Transmitter
1. Turn on your audio source (for example, A/V receiver, MP3 player, stereo, etc.) and play
music at a normal listening volume.
Note
If the SIGNAL indicator on the transmitter does not turn on, please check the following:
- Conrm the transmitter AC power adapter is securely connected.
- Conrm the cable from the transmitter is securely connected to the audio source output
(MP3 player, A/V receiver, etc.).
- Conrm the audio source is playing audio and is turned up.
Using the Speaker System
Introduction
The Acoustic Research Portable Wireless Speaker with 3.5mm jack lets you enjoy your music
anywhere, at home or on the go, with two ways to connect to your music. The 900MHz wireless
transmitter gives you 150ft* of room to roam from your audio source, great for outdoor
entertaining at home, with crystal-clear wireless audio. The speaker’s 3.5mm jack offers
a convenient connection option to use anywhere you go—just connect your MP3 player or
smartphone to the speaker, and enjoy!
This manual covers various connection options and detailed operating instructions for making
the AR Wireless Speaker System a valued part of your lifestyle. If, after having reviewed the
instructions, you have any questions, please call toll-free 1-800-732-6866 or visit
www.acoustic-research.com.
*Range may vary according to environment.
Important Information
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
CAUTION Caution: To reduce the risk of electric shock, do not remove cover (or back). No user
serviceable parts inside. Refer servicing to qualied service personnel.
Product Information
Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record the
serial and model numbers in case you need them. These numbers are located on the product.
Model No.: _____________________________________________________________________________________________
Purchase Date: _________________________________________________________________________________________
Dealer/Address/Phone: __________________________________________________________________________________
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Clean only with dry cloth.
6. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
7. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that
produce heat.
8. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
9. Unplug this apparatus during lightning storms or when unused for long periods of time.
10. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
Care and Maintenance
• Always use a soft cloth to clean the speaker and transmitter. Never use any product containing alcohol or other solvents
as they may damage the surface.
• Use caution when plugging the power transformers in an AC outlet to avoid the risk of electric shock.
• If the speaker are used outside on a deck or patio, make sure you take them indoors in the event of a rainstorm to
prevent possible damage.
• Do not operate or store the system in extreme temperatures (below 32ºF/0ºC and above 122ºF/50ºC).
L M R
DC
IN
Tour of the Speaker System
Tour of the Speaker System
3.5mm audio in cable
Speaker
Front Panel
POWER/LINKED indicator (not shown) blinks
when the speaker is rst powered on; it turns solid
blue when the speaker is tuned to the transmitter
Rear Panel
Bass Boost button turns the speaker’s bass
enhancement on and off
Power button turns the speaker on and off
Auto Scan button rescans for the transmitter’s
signal
Volume +/– buttons adjust the volume level
Bottom Panel
L/M/R switch determines if the speaker plays sound
in mono as a stand-alone speaker, or plays the left or
right track in a stereo pair with an additional AWS53
DC IN receives the small round end of one of the
included 9V 1200mA AC power adapters; remove the
protective cover to insert the adapter
AUDIO IN connects directly to your MP3 player,
smartphone, or other portable audio device, using
the 3.5mm audio in cable provided
Battery Compartment Cover (not shown)
remove to install 6 AA batteries
Carrying
handle
Transmitter
SIGNAL indicator lights green when the audio is
present and the transmitter is broadcasting
POWER indicator lights when the transmitter is on
CHANNEL 1 2 3 lets you nd the best transmission
frequency for your environment
DC IN jack receives the small round end of the
included 12V 200mA AC power adapter
AUDIO IN (R / L) connects to your sound source
using one of the connection options shown here
Included Accessories
Note: These power units should be
plugged in so that they stay vertical
or lie at.
Back panel
Connecting the Speaker System
Connecting the Speaker System
Powering the Transmitter
Connect the small, round plug from the transmitter AC
power adapter to the transmitter’s DC IN jack. Plug the
other end of the transmitter AC power adapter into any
standard 120V AC wall outlet.
Note: Be sure to use the AC power adapter rated 12V DC
200 mA (it has the smaller diameter plug).
Connecting to an Audio Source
Connecting to an MP3 player, smartphone, or other portable audio
device
This speaker offers two ways to listen to audio from a portable audio device: using the wireless
transmitter or connecting directly to the audio source.
Using the wireless transmitter
1. Plug the stereo plugs on the provided Y-adapter audio cable
into the AUDIO IN jacks on the back of the transmitter.
2. Plug the mini-plug end of the provided Y-adapter into the
headphone output of your MP3 player or other portable audio
device.
Using a direct connection
1. Connect one end of the provided 3.5mm audio in cable to the
AUDIO IN jack on the bottom of the speaker.
2. Connect the other end of the cable to the headphone output
on your MP3 player or other portable audio device.
Warning: This product is designed to work with line level outputs or headphone outputs only.
DO NOT connect it directly to speaker outputs as it will permanently damage the transmitter.
Connecting to an A/V Receiver
AC Power Adapters
1. Insert the small, round plug from the speaker AC
power adapter into the DC IN jack on the bottom of
the speaker.
2. Plug the other end of the speaker AC power adapter
into any standard 120V AC wall outlet.
Note: Be sure to use the speaker AC power adapter rated 9V DC 1200 mA.
Warning: This product is water-resistant, not waterproof. Avoid prolonged exposure to wet
environments, such as rain, mist, dew, etc. In other words, you can take it out, just don’t leave it out.
To avoid electrical shock, use this product with caution near water sources if powered with the
AC adapter. Never submerge in water.
AA Batteries
1. Remove the battery compartment cover on the bottom of the speaker.
2. Insert six (6) AA batteries (not included) into the speaker following the polarity (”+” and “-”)
as diagrammed inside the battery compartment.
3. Replace the battery compartment cover on the bottom of the speaker.
Note: Place the rubber cap in the speaker power input jack when using batteries.
DO NOT mix batteries with different chemistry types (for example, a zinc battery with an alkaline
battery). DO NOT mix new and used batteries. DO NOT leave batteries installed in the product when
not in use for long periods. Always remove old, weak or worn-out batteries promptly and recycle or
dispose of them in accordance with local and national regulations.
Powering the Speaker
There are two options to power your wireless speaker: using the included AC power adapter or
using 6 AA batteries (not included).
DC IN
CHANNEL
1 2 3
R AUDIO L
IN
SIGNAL POWER
Top panel
A
Audio source
Speaker
(bottom panel)
3.5mm
audio in cable
1. Plug the stereo plugs on the provided Y-adapter audio
cable into the AUDIO IN jacks on the back of the
transmitter (make sure to match the colors on the plugs
and jacks).
2. Plug the mini-plug end of the provided Y-adapter into a
mini-jack to RCA adapter (not included).
3. Connect the stereo plugs on the mini-jack to RCA adapter to the corresponding left and right
audio outputs of your A/V receiver, amp, or other audio source.
Model AWS53
Installation and Operation Manual
PORTABLE
Wireless
Speaker
WITH 3.5MM JACK
Note: There is no transmitter ON/OFF switch. The transmitter is designed to be left plugged
in and powered at all times. If you will not be using the AWS53 for an extended period of time,
unplug the transmitter AC power adapter.
2. Set the channel select switch on the back of the transmitter
to one of the transmitter’s three broadcast frequencies: 1,
2 or 3. If you experience poor reception or interference, try
choosing a different frequency by moving the channel select
switch to another position.
When the transmitter is receiving an audio signal and is
ready, the SIGNAL indicator turns solid green.
DC IN
CHANNEL
1 2 3
R AUDIO L
IN
Channel
select
switch
Adjusting the Transmitter
1. Turn on your audio source (for example, A/V receiver, MP3 player, stereo, etc.) and play
music at a normal listening volume.
Note
If the SIGNAL indicator on the transmitter does not turn on, please check the following:
- Conrm the transmitter AC power adapter is securely connected.
- Conrm the cable from the transmitter is securely connected to the audio source output
(MP3 player, A/V receiver, etc.).
- Conrm the audio source is playing audio and is turned up.
Using the Speaker System
Introduction
The Acoustic Research Portable Wireless Speaker with 3.5mm jack lets you enjoy your music
anywhere, at home or on the go, with two ways to connect to your music. The 900MHz wireless
transmitter gives you 150ft* of room to roam from your audio source, great for outdoor
entertaining at home, with crystal-clear wireless audio. The speaker’s 3.5mm jack offers
a convenient connection option to use anywhere you go—just connect your MP3 player or
smartphone to the speaker, and enjoy!
This manual covers various connection options and detailed operating instructions for making
the AR Wireless Speaker System a valued part of your lifestyle. If, after having reviewed the
instructions, you have any questions, please call toll-free 1-800-732-6866 or visit
www.acoustic-research.com.
*Range may vary according to environment.
Important Information
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
CAUTION Caution: To reduce the risk of electric shock, do not remove cover (or back). No user
serviceable parts inside. Refer servicing to qualied service personnel.
Product Information
Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record the
serial and model numbers in case you need them. These numbers are located on the product.
Model No.: _____________________________________________________________________________________________
Purchase Date: _________________________________________________________________________________________
Dealer/Address/Phone: __________________________________________________________________________________
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Clean only with dry cloth.
6. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
7. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that
produce heat.
8. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
9. Unplug this apparatus during lightning storms or when unused for long periods of time.
10. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
Care and Maintenance
• Always use a soft cloth to clean the speaker and transmitter. Never use any product containing alcohol or other solvents
as they may damage the surface.
• Use caution when plugging the power transformers in an AC outlet to avoid the risk of electric shock.
• If the speaker are used outside on a deck or patio, make sure you take them indoors in the event of a rainstorm to
prevent possible damage.
• Do not operate or store the system in extreme temperatures (below 32ºF/0ºC and above 122ºF/50ºC).
L M R
DC
IN
Tour of the Speaker System
Tour of the Speaker System
3.5mm audio in cable
Speaker
Front Panel
POWER/LINKED indicator (not shown) blinks
when the speaker is rst powered on; it turns solid
blue when the speaker is tuned to the transmitter
Rear Panel
Bass Boost button turns the speaker’s bass
enhancement on and off
Power button turns the speaker on and off
Auto Scan button rescans for the transmitter’s
signal
Volume +/– buttons adjust the volume level
Bottom Panel
L/M/R switch determines if the speaker plays sound
in mono as a stand-alone speaker, or plays the left or
right track in a stereo pair with an additional AWS53
DC IN receives the small round end of one of the
included 9V 1200mA AC power adapters; remove the
protective cover to insert the adapter
AUDIO IN connects directly to your MP3 player,
smartphone, or other portable audio device, using
the 3.5mm audio in cable provided
Battery Compartment Cover (not shown)
remove to install 6 AA batteries
Carrying
handle
Transmitter
SIGNAL indicator lights green when the audio is
present and the transmitter is broadcasting
POWER indicator lights when the transmitter is on
CHANNEL 1 2 3 lets you nd the best transmission
frequency for your environment
DC IN jack receives the small round end of the
included 12V 200mA AC power adapter
AUDIO IN (R / L) connects to your sound source
using one of the connection options shown here
Included Accessories
Note: These power units should be
plugged in so that they stay vertical
or lie at.
Back panel
Connecting the Speaker System
Connecting the Speaker System
Powering the Transmitter
Connect the small, round plug from the transmitter AC
power adapter to the transmitter’s DC IN jack. Plug the
other end of the transmitter AC power adapter into any
standard 120V AC wall outlet.
Note: Be sure to use the AC power adapter rated 12V DC
200 mA (it has the smaller diameter plug).
Connecting to an Audio Source
Connecting to an MP3 player, smartphone, or other portable audio
device
This speaker offers two ways to listen to audio from a portable audio device: using the wireless
transmitter or connecting directly to the audio source.
Using the wireless transmitter
1. Plug the stereo plugs on the provided Y-adapter audio cable
into the AUDIO IN jacks on the back of the transmitter.
2. Plug the mini-plug end of the provided Y-adapter into the
headphone output of your MP3 player or other portable audio
device.
Using a direct connection
1. Connect one end of the provided 3.5mm audio in cable to the
AUDIO IN jack on the bottom of the speaker.
2. Connect the other end of the cable to the headphone output
on your MP3 player or other portable audio device.
Warning: This product is designed to work with line level outputs or headphone outputs only.
DO NOT connect it directly to speaker outputs as it will permanently damage the transmitter.
Connecting to an A/V Receiver
AC Power Adapters
1. Insert the small, round plug from the speaker AC
power adapter into the DC IN jack on the bottom of
the speaker.
2. Plug the other end of the speaker AC power adapter
into any standard 120V AC wall outlet.
Note: Be sure to use the speaker AC power adapter rated 9V DC 1200 mA.
Warning: This product is water-resistant, not waterproof. Avoid prolonged exposure to wet
environments, such as rain, mist, dew, etc. In other words, you can take it out, just don’t leave it out.
To avoid electrical shock, use this product with caution near water sources if powered with the
AC adapter. Never submerge in water.
AA Batteries
1. Remove the battery compartment cover on the bottom of the speaker.
2. Insert six (6) AA batteries (not included) into the speaker following the polarity (”+” and “-”)
as diagrammed inside the battery compartment.
3. Replace the battery compartment cover on the bottom of the speaker.
Note: Place the rubber cap in the speaker power input jack when using batteries.
DO NOT mix batteries with different chemistry types (for example, a zinc battery with an alkaline
battery). DO NOT mix new and used batteries. DO NOT leave batteries installed in the product when
not in use for long periods. Always remove old, weak or worn-out batteries promptly and recycle or
dispose of them in accordance with local and national regulations.
Powering the Speaker
There are two options to power your wireless speaker: using the included AC power adapter or
using 6 AA batteries (not included).
DC IN
CHANNEL
1 2 3
R AUDIO L
IN
SIGNAL POWER
Top panel
A
Audio source
Speaker
(bottom panel)
3.5mm
audio in cable
1. Plug the stereo plugs on the provided Y-adapter audio
cable into the AUDIO IN jacks on the back of the
transmitter (make sure to match the colors on the plugs
and jacks).
2. Plug the mini-plug end of the provided Y-adapter into a
mini-jack to RCA adapter (not included).
3. Connect the stereo plugs on the mini-jack to RCA adapter to the corresponding left and right
audio outputs of your A/V receiver, amp, or other audio source.
Model AWS53
Installation and Operation Manual
PORTABLE
Wireless
Speaker
WITH 3.5MM JACK
Note: There is no transmitter ON/OFF switch. The transmitter is designed to be left plugged
in and powered at all times. If you will not be using the AWS53 for an extended period of time,
unplug the transmitter AC power adapter.
2. Set the channel select switch on the back of the transmitter
to one of the transmitter’s three broadcast frequencies: 1,
2 or 3. If you experience poor reception or interference, try
choosing a different frequency by moving the channel select
switch to another position.
When the transmitter is receiving an audio signal and is
ready, the SIGNAL indicator turns solid green.
DC IN
CHANNEL
1 2 3
R AUDIO L
IN
Channel
select
switch
Adjusting the Transmitter
1. Turn on your audio source (for example, A/V receiver, MP3 player, stereo, etc.) and play
music at a normal listening volume.
Note
If the SIGNAL indicator on the transmitter does not turn on, please check the following:
- Conrm the transmitter AC power adapter is securely connected.
- Conrm the cable from the transmitter is securely connected to the audio source output
(MP3 player, A/V receiver, etc.).
- Conrm the audio source is playing audio and is turned up.
Using the Speaker System
About Variable-Level Audio Outputs:
A variable-level output, such as a headphone jack or certain RCA-type outputs, provides an
audio signal that changes with the volume level set on the audio source. As the volume of the
audio source is adjusted up and down, so is the audio signal strength sent to the transmitter.
This can affect the quality of sound generated by the speaker, and may require an adjustment
of the volume level of the audio source to produce a signal strong enough for the transmitter.
Hint: On most bookshelf-type or compact stereo systems, inserting a headphone plug into
the headphone jack results in automatic cutoff of the regular, or hard-wired speakers.
Hint: Most TVs, regardless of age or price, have variable outputs. If you are unsure which
of your TV audio outputs is xed, refer to the TV instruction manual. Some TVs have
outputs that can switch between variable and xed. When given a choice, xed is always
recommended.
Troubleshooting
The following troubleshooting guide takes you through some of the more common problems
associated with the installation and/or operation of a wireless system. If the problem persists,
please call toll-free at 1-800-732-6866 or visit www.acoustic-research.com.
Issue: Cause and solution:
No sound • Check that the transmitter AC power adapter is fully inserted into the wall outlet and
the power cord from the AC adapter is rmly connected to the transmitter power
input jack.
• Conrm that the speaker is turned on and tuned to the transmitter—
the indicator light on the front of the speaker should be solid blue (not blinking).
• If you’re using the power adapters, conrm that both (for the speaker and for the
transmitter) are fully inserted into their wall outlets and the adapter power cords are
rmly connected to the power input jacks on the transmitter or speaker.
or
• If you’re using batteries for the speaker, check that they are fresh and inserted with
correct polarity (+, –).
• Check that the audio source component (stereo, MP3 player, etc.) is turned on and
transmitting sound as it normally should.
• Make sure the volume on your audio source is turned up.
• Check that the speaker volume is turned up.
• If you are using a Tape 2 Monitor output from your receiver/amp as the audio
output, check that you have pressed the Tape Monitor/Tape 2 button on the front of
the receiver. This will turn on the Tape 2 outputs, which may not have been active.
Issue: Cause and solution:
No sound/
distortion/
static
• When using battery power, make sure the batteries are fresh and replace if
necessary.
• Check that the speaker’s indicator light is solid blue (not blinking) when an audio
source is connected to the transmitter
• Change the position of the channel select switch (1, 2 or 3) to change the operating
frequency. Then press the AutoScan button on the speaker’s back panel to make the
speaker retune.
• Change the location of the transmitter. Place it as high and away from obstructions
as possible. Avoid placing the transmitter directly on top of or behind a TV.
• Move the transmitter and speaker closer together. Sending the signal through
certain materials, such as glass, tile, and metal, can decrease the effective
transmitting distance of the system.
More Helpful Information
About Fixed-Level Audio Outputs
A xed-level, or line-level, audio output is considered ideal since it provides an audio signal
unchanged by adjustments to the audio source volume control.
Hint: Fixed-level audio outputs from stereo receivers/amps will typically be designated as
Tape (or Record) outputs or DVR/DVD-R audio output connections.
Fixed-level outputs from TVs are usually marked as ‘Constant,’ ‘Fixed,’ or ‘Select.’ If they are not
marked as such, they are probably variable outputs (see “About Variable-Level Audio Outputs” on
the next page). Outputs from DVD players are almost always xed.
Hint: When connecting to the audio outputs of a DVD player, remember that the DVD player
must be showing a TV channel for sound to be produced.
Trademark(s) ® Registered www.acoustic-research.com MADE IN CHINA AWS53 US IB 00
12 Month Limited Warranty
Specifications
Transmitter
• Omni-directional 900MHz broadcast
• Effective transmitting range:
up to 150 ft. (45m)*
• Phase-locked loop circuitry (PLL)
• Automatic level control (ALC)
• 3 selectable broadcast frequencies
• Stereo audio input
Speaker
• Push-button, auto-lock tuning
• 2-way acoustic design:
2” tweeter, 3.5” woofer
• 5 Watt RMS internal amplier
• Omni-directional sound
• Frequency response: 40Hz - 15kHz
• Left/Mono/Right switch
• Operates using supplied AC adapter or six (6)
AA batteries (not included)
*Maximum range; results may vary according to environment.
Audiovox Electronics Corporation (the “Company”) warrants to the original retail purchaser of this product that
should this product or any part thereof, under normal use and conditions, be proven defective in material or
workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced
(at the Company’s option) without charge for parts and repair labor. To obtain repair or replacement within
the terms of this Warranty, the product along with any accessories included in the original packaging is to be
delivered with proof of warranty coverage (e.g. dated bill of sale), specication of defect(s), transportation
prepaid, to the Company at the address shown below. Do not return this product to the Retailer.
This Warranty is not transferable and does not cover product purchased, serviced or used outside the United
States or Canada. The warranty does not extend to the elimination of externally generated static or noise, to
costs incurred for the installation, removal or reinstallation of the product.
The warranty does not apply to any product or part thereof which, in the opinion of the company, has suffered or
been damaged through alteration, improper installation, mishandling, misuse, neglect, accident or exposure to
moisture. This warranty does not apply to damage caused by an AC adapter not provided with the product, or by
leaving non-rechargeable batteries in the product while plugged into an AC outlet.
THE EXTENT OF THE COMPANY’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR
REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY’S LIABILITY EXCEED THE
PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT.
This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES, INCLUDING
ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL BE
LIMITED TO DURATION OF THIS WARRANTY. ANY ACTION FOR BREACH OF ANY WARRANTY HEREUNDER,
INCLUDING ANY IMPLIED WARRANTY, MUST BE BROUGHT WITHIN A PERIOD OF 24 MONTHS FROM THE DATE
OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL OR
INCIDENTAL DAMAGES WHATSOEVER. No person or representative is authorized to assume for the Company
any liability other than expressed herein in connection with the sale of this product.
Some states/provinces do not allow limitations on how long an implied warranty lasts or the exclusion or
limitation of incidental or consequential damage so the above limitations or exclusions may not apply to you.
This Warranty gives you specic legal rights and you may also have other rights which vary from state/province
to state/province.
U.S.A.:Audiovox Electronics Corp., 150 Marcus Blvd., Hauppauge, New York 11788
CANADA: Audiovox Return Center, c/o Genco, 6685 Kennedy Road, Unit #3 Door 16, Mississauga Ontario L5T
3A5
1. Press the Power button on the back of the speaker to
turn it on.
If you’re using the wireless transmitter, the indicator
light on the front of the speaker blinks while the
speaker is tuning to the transmitter. This indicator
light turns solid blue when the speaker is tuned to
the transmitter--you should hear sound coming from
the speaker now.
Note: If the speaker is not tuned or if the
transmitter is not connected properly, the indicator
light will continue blinking. If this occurs, please see
the Troubleshooting section of this manual.
If you’re using a direct connection to your audio source (via audio cable), all you need to do
is start playback on your audio source‚ you should start hearing sound from the speaker.
IMPORTANT: The indicator light on the front of the speaker indicates the status of the
wireless connection only. If you’re not using the transmitter (or if you’re out of range of the
transmitter) it will keep blinking until it nds the transmitter. This is normal.
2. Adjust the volume on the speaker as desired.
Note: Make sure your audio source is turned up at least to 75%of full volume (but not so
loud that the sound becomes distorted).
3. If you’re using the wireless transmitter, set up the speaker for mono or stereo operation
using the switch on the bottom of the AWS53 speaker.
a) Monaural operation: The monaural mode (mono) is recommended when using a single
AWS53 by itself. For monaural operation, set the L/M/R switch to “M” on each speaker.
b) Stereo operation: You need an additional AWS53 speaker for the stereo option. Set the
L/M/R switch to “L” on the speaker located to the left from the listener, and set the other
speaker to the “R” position.
Notes:
The speaker automatically retunes if it loses the transmitter’s signal. You can also press the
AutoScan button on the back of the speaker to retune the speaker at any time.
The transmitter turns off automatically if there is no audio signal present for a prolonged period.
Interference in the form of static and/or distortion can sometimes be heard. If this occurs,
conrm the transmitter/speaker adjustments and indicators. If the problem persists, refer to the
Troubleshooting section of this manual.
Using the Speaker System
Turning the Speaker Off
1. Press Power button on the back of the speaker to turn the speaker off.
2. Conrm that the speaker is off by verifying that the indicator light on the speaker’s front
panel is no longer illuminated.
Adjusting the Speaker
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communication. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Regulations state that unauthorized changes or modications to this equipment may void the user’s
authority to operate it.
Industry Canada Regulatory Information
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following
two conditions: 1) this device may not cause interference and 2) this device must accept any interference,
including interference that may cause undesired operation of the device.
This class B digital apparatus complies with Canadian ICES-003.
IC Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment.
About Variable-Level Audio Outputs:
A variable-level output, such as a headphone jack or certain RCA-type outputs, provides an
audio signal that changes with the volume level set on the audio source. As the volume of the
audio source is adjusted up and down, so is the audio signal strength sent to the transmitter.
This can affect the quality of sound generated by the speaker, and may require an adjustment
of the volume level of the audio source to produce a signal strong enough for the transmitter.
Hint: On most bookshelf-type or compact stereo systems, inserting a headphone plug into
the headphone jack results in automatic cutoff of the regular, or hard-wired speakers.
Hint: Most TVs, regardless of age or price, have variable outputs. If you are unsure which
of your TV audio outputs is xed, refer to the TV instruction manual. Some TVs have
outputs that can switch between variable and xed. When given a choice, xed is always
recommended.
Troubleshooting
The following troubleshooting guide takes you through some of the more common problems
associated with the installation and/or operation of a wireless system. If the problem persists,
please call toll-free at 1-800-732-6866 or visit www.acoustic-research.com.
Issue: Cause and solution:
No sound • Check that the transmitter AC power adapter is fully inserted into the wall outlet and
the power cord from the AC adapter is rmly connected to the transmitter power
input jack.
• Conrm that the speaker is turned on and tuned to the transmitter—
the indicator light on the front of the speaker should be solid blue (not blinking).
• If you’re using the power adapters, conrm that both (for the speaker and for the
transmitter) are fully inserted into their wall outlets and the adapter power cords are
rmly connected to the power input jacks on the transmitter or speaker.
or
• If you’re using batteries for the speaker, check that they are fresh and inserted with
correct polarity (+, –).
• Check that the audio source component (stereo, MP3 player, etc.) is turned on and
transmitting sound as it normally should.
• Make sure the volume on your audio source is turned up.
• Check that the speaker volume is turned up.
• If you are using a Tape 2 Monitor output from your receiver/amp as the audio
output, check that you have pressed the Tape Monitor/Tape 2 button on the front of
the receiver. This will turn on the Tape 2 outputs, which may not have been active.
Issue: Cause and solution:
No sound/
distortion/
static
• When using battery power, make sure the batteries are fresh and replace if
necessary.
• Check that the speaker’s indicator light is solid blue (not blinking) when an audio
source is connected to the transmitter
• Change the position of the channel select switch (1, 2 or 3) to change the operating
frequency. Then press the AutoScan button on the speaker’s back panel to make the
speaker retune.
• Change the location of the transmitter. Place it as high and away from obstructions
as possible. Avoid placing the transmitter directly on top of or behind a TV.
• Move the transmitter and speaker closer together. Sending the signal through
certain materials, such as glass, tile, and metal, can decrease the effective
transmitting distance of the system.
More Helpful Information
About Fixed-Level Audio Outputs
A xed-level, or line-level, audio output is considered ideal since it provides an audio signal
unchanged by adjustments to the audio source volume control.
Hint: Fixed-level audio outputs from stereo receivers/amps will typically be designated as
Tape (or Record) outputs or DVR/DVD-R audio output connections.
Fixed-level outputs from TVs are usually marked as ‘Constant,’ ‘Fixed,’ or ‘Select.’ If they are not
marked as such, they are probably variable outputs (see “About Variable-Level Audio Outputs” on
the next page). Outputs from DVD players are almost always xed.
Hint: When connecting to the audio outputs of a DVD player, remember that the DVD player
must be showing a TV channel for sound to be produced.
Trademark(s) ® Registered www.acoustic-research.com MADE IN CHINA AWS53 US IB 00
12 Month Limited Warranty
Specifications
Transmitter
• Omni-directional 900MHz broadcast
• Effective transmitting range:
up to 150 ft. (45m)*
• Phase-locked loop circuitry (PLL)
• Automatic level control (ALC)
• 3 selectable broadcast frequencies
• Stereo audio input
Speaker
• Push-button, auto-lock tuning
• 2-way acoustic design:
2” tweeter, 3.5” woofer
• 5 Watt RMS internal amplier
• Omni-directional sound
• Frequency response: 40Hz - 15kHz
• Left/Mono/Right switch
• Operates using supplied AC adapter or six (6)
AA batteries (not included)
*Maximum range; results may vary according to environment.
Audiovox Electronics Corporation (the “Company”) warrants to the original retail purchaser of this product that
should this product or any part thereof, under normal use and conditions, be proven defective in material or
workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced
(at the Company’s option) without charge for parts and repair labor. To obtain repair or replacement within
the terms of this Warranty, the product along with any accessories included in the original packaging is to be
delivered with proof of warranty coverage (e.g. dated bill of sale), specication of defect(s), transportation
prepaid, to the Company at the address shown below. Do not return this product to the Retailer.
This Warranty is not transferable and does not cover product purchased, serviced or used outside the United
States or Canada. The warranty does not extend to the elimination of externally generated static or noise, to
costs incurred for the installation, removal or reinstallation of the product.
The warranty does not apply to any product or part thereof which, in the opinion of the company, has suffered or
been damaged through alteration, improper installation, mishandling, misuse, neglect, accident or exposure to
moisture. This warranty does not apply to damage caused by an AC adapter not provided with the product, or by
leaving non-rechargeable batteries in the product while plugged into an AC outlet.
THE EXTENT OF THE COMPANY’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR
REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY’S LIABILITY EXCEED THE
PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT.
This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES, INCLUDING
ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL BE
LIMITED TO DURATION OF THIS WARRANTY. ANY ACTION FOR BREACH OF ANY WARRANTY HEREUNDER,
INCLUDING ANY IMPLIED WARRANTY, MUST BE BROUGHT WITHIN A PERIOD OF 24 MONTHS FROM THE DATE
OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL OR
INCIDENTAL DAMAGES WHATSOEVER. No person or representative is authorized to assume for the Company
any liability other than expressed herein in connection with the sale of this product.
Some states/provinces do not allow limitations on how long an implied warranty lasts or the exclusion or
limitation of incidental or consequential damage so the above limitations or exclusions may not apply to you.
This Warranty gives you specic legal rights and you may also have other rights which vary from state/province
to state/province.
U.S.A.:Audiovox Electronics Corp., 150 Marcus Blvd., Hauppauge, New York 11788
CANADA: Audiovox Return Center, c/o Genco, 6685 Kennedy Road, Unit #3 Door 16, Mississauga Ontario L5T
3A5
1. Press the Power button on the back of the speaker to
turn it on.
If you’re using the wireless transmitter, the indicator
light on the front of the speaker blinks while the
speaker is tuning to the transmitter. This indicator
light turns solid blue when the speaker is tuned to
the transmitter--you should hear sound coming from
the speaker now.
Note: If the speaker is not tuned or if the
transmitter is not connected properly, the indicator
light will continue blinking. If this occurs, please see
the Troubleshooting section of this manual.
If you’re using a direct connection to your audio source (via audio cable), all you need to do
is start playback on your audio source‚ you should start hearing sound from the speaker.
IMPORTANT: The indicator light on the front of the speaker indicates the status of the
wireless connection only. If you’re not using the transmitter (or if you’re out of range of the
transmitter) it will keep blinking until it nds the transmitter. This is normal.
2. Adjust the volume on the speaker as desired.
Note: Make sure your audio source is turned up at least to 75%of full volume (but not so
loud that the sound becomes distorted).
3. If you’re using the wireless transmitter, set up the speaker for mono or stereo operation
using the switch on the bottom of the AWS53 speaker.
a) Monaural operation: The monaural mode (mono) is recommended when using a single
AWS53 by itself. For monaural operation, set the L/M/R switch to “M” on each speaker.
b) Stereo operation: You need an additional AWS53 speaker for the stereo option. Set the
L/M/R switch to “L” on the speaker located to the left from the listener, and set the other
speaker to the “R” position.
Notes:
The speaker automatically retunes if it loses the transmitter’s signal. You can also press the
AutoScan button on the back of the speaker to retune the speaker at any time.
The transmitter turns off automatically if there is no audio signal present for a prolonged period.
Interference in the form of static and/or distortion can sometimes be heard. If this occurs,
conrm the transmitter/speaker adjustments and indicators. If the problem persists, refer to the
Troubleshooting section of this manual.
Using the Speaker System
Turning the Speaker Off
1. Press Power button on the back of the speaker to turn the speaker off.
2. Conrm that the speaker is off by verifying that the indicator light on the speaker’s front
panel is no longer illuminated.
Adjusting the Speaker
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communication. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Regulations state that unauthorized changes or modications to this equipment may void the user’s
authority to operate it.
Industry Canada Regulatory Information
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following
two conditions: 1) this device may not cause interference and 2) this device must accept any interference,
including interference that may cause undesired operation of the device.
This class B digital apparatus complies with Canadian ICES-003.
IC Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment.
About Variable-Level Audio Outputs:
A variable-level output, such as a headphone jack or certain RCA-type outputs, provides an
audio signal that changes with the volume level set on the audio source. As the volume of the
audio source is adjusted up and down, so is the audio signal strength sent to the transmitter.
This can affect the quality of sound generated by the speaker, and may require an adjustment
of the volume level of the audio source to produce a signal strong enough for the transmitter.
Hint: On most bookshelf-type or compact stereo systems, inserting a headphone plug into
the headphone jack results in automatic cutoff of the regular, or hard-wired speakers.
Hint: Most TVs, regardless of age or price, have variable outputs. If you are unsure which
of your TV audio outputs is xed, refer to the TV instruction manual. Some TVs have
outputs that can switch between variable and xed. When given a choice, xed is always
recommended.
Troubleshooting
The following troubleshooting guide takes you through some of the more common problems
associated with the installation and/or operation of a wireless system. If the problem persists,
please call toll-free at 1-800-732-6866 or visit www.acoustic-research.com.
Issue: Cause and solution:
No sound • Check that the transmitter AC power adapter is fully inserted into the wall outlet and
the power cord from the AC adapter is rmly connected to the transmitter power
input jack.
• Conrm that the speaker is turned on and tuned to the transmitter—
the indicator light on the front of the speaker should be solid blue (not blinking).
• If you’re using the power adapters, conrm that both (for the speaker and for the
transmitter) are fully inserted into their wall outlets and the adapter power cords are
rmly connected to the power input jacks on the transmitter or speaker.
or
• If you’re using batteries for the speaker, check that they are fresh and inserted with
correct polarity (+, –).
• Check that the audio source component (stereo, MP3 player, etc.) is turned on and
transmitting sound as it normally should.
• Make sure the volume on your audio source is turned up.
• Check that the speaker volume is turned up.
• If you are using a Tape 2 Monitor output from your receiver/amp as the audio
output, check that you have pressed the Tape Monitor/Tape 2 button on the front of
the receiver. This will turn on the Tape 2 outputs, which may not have been active.
Issue: Cause and solution:
No sound/
distortion/
static
• When using battery power, make sure the batteries are fresh and replace if
necessary.
• Check that the speaker’s indicator light is solid blue (not blinking) when an audio
source is connected to the transmitter
• Change the position of the channel select switch (1, 2 or 3) to change the operating
frequency. Then press the AutoScan button on the speaker’s back panel to make the
speaker retune.
• Change the location of the transmitter. Place it as high and away from obstructions
as possible. Avoid placing the transmitter directly on top of or behind a TV.
• Move the transmitter and speaker closer together. Sending the signal through
certain materials, such as glass, tile, and metal, can decrease the effective
transmitting distance of the system.
More Helpful Information
About Fixed-Level Audio Outputs
A xed-level, or line-level, audio output is considered ideal since it provides an audio signal
unchanged by adjustments to the audio source volume control.
Hint: Fixed-level audio outputs from stereo receivers/amps will typically be designated as
Tape (or Record) outputs or DVR/DVD-R audio output connections.
Fixed-level outputs from TVs are usually marked as ‘Constant,’ ‘Fixed,’ or ‘Select.’ If they are not
marked as such, they are probably variable outputs (see “About Variable-Level Audio Outputs” on
the next page). Outputs from DVD players are almost always xed.
Hint: When connecting to the audio outputs of a DVD player, remember that the DVD player
must be showing a TV channel for sound to be produced.
Trademark(s) ® Registered www.acoustic-research.com MADE IN CHINA AWS53 US IB 00
12 Month Limited Warranty
Specifications
Transmitter
• Omni-directional 900MHz broadcast
• Effective transmitting range:
up to 150 ft. (45m)*
• Phase-locked loop circuitry (PLL)
• Automatic level control (ALC)
• 3 selectable broadcast frequencies
• Stereo audio input
Speaker
• Push-button, auto-lock tuning
• 2-way acoustic design:
2” tweeter, 3.5” woofer
• 5 Watt RMS internal amplier
• Omni-directional sound
• Frequency response: 40Hz - 15kHz
• Left/Mono/Right switch
• Operates using supplied AC adapter or six (6)
AA batteries (not included)
*Maximum range; results may vary according to environment.
Audiovox Electronics Corporation (the “Company”) warrants to the original retail purchaser of this product that
should this product or any part thereof, under normal use and conditions, be proven defective in material or
workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced
(at the Company’s option) without charge for parts and repair labor. To obtain repair or replacement within
the terms of this Warranty, the product along with any accessories included in the original packaging is to be
delivered with proof of warranty coverage (e.g. dated bill of sale), specication of defect(s), transportation
prepaid, to the Company at the address shown below. Do not return this product to the Retailer.
This Warranty is not transferable and does not cover product purchased, serviced or used outside the United
States or Canada. The warranty does not extend to the elimination of externally generated static or noise, to
costs incurred for the installation, removal or reinstallation of the product.
The warranty does not apply to any product or part thereof which, in the opinion of the company, has suffered or
been damaged through alteration, improper installation, mishandling, misuse, neglect, accident or exposure to
moisture. This warranty does not apply to damage caused by an AC adapter not provided with the product, or by
leaving non-rechargeable batteries in the product while plugged into an AC outlet.
THE EXTENT OF THE COMPANY’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR
REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY’S LIABILITY EXCEED THE
PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT.
This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES, INCLUDING
ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL BE
LIMITED TO DURATION OF THIS WARRANTY. ANY ACTION FOR BREACH OF ANY WARRANTY HEREUNDER,
INCLUDING ANY IMPLIED WARRANTY, MUST BE BROUGHT WITHIN A PERIOD OF 24 MONTHS FROM THE DATE
OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL OR
INCIDENTAL DAMAGES WHATSOEVER. No person or representative is authorized to assume for the Company
any liability other than expressed herein in connection with the sale of this product.
Some states/provinces do not allow limitations on how long an implied warranty lasts or the exclusion or
limitation of incidental or consequential damage so the above limitations or exclusions may not apply to you.
This Warranty gives you specic legal rights and you may also have other rights which vary from state/province
to state/province.
U.S.A.:Audiovox Electronics Corp., 150 Marcus Blvd., Hauppauge, New York 11788
CANADA: Audiovox Return Center, c/o Genco, 6685 Kennedy Road, Unit #3 Door 16, Mississauga Ontario L5T
3A5
1. Press the Power button on the back of the speaker to
turn it on.
If you’re using the wireless transmitter, the indicator
light on the front of the speaker blinks while the
speaker is tuning to the transmitter. This indicator
light turns solid blue when the speaker is tuned to
the transmitter--you should hear sound coming from
the speaker now.
Note: If the speaker is not tuned or if the
transmitter is not connected properly, the indicator
light will continue blinking. If this occurs, please see
the Troubleshooting section of this manual.
If you’re using a direct connection to your audio source (via audio cable), all you need to do
is start playback on your audio source‚ you should start hearing sound from the speaker.
IMPORTANT: The indicator light on the front of the speaker indicates the status of the
wireless connection only. If you’re not using the transmitter (or if you’re out of range of the
transmitter) it will keep blinking until it nds the transmitter. This is normal.
2. Adjust the volume on the speaker as desired.
Note: Make sure your audio source is turned up at least to 75%of full volume (but not so
loud that the sound becomes distorted).
3. If you’re using the wireless transmitter, set up the speaker for mono or stereo operation
using the switch on the bottom of the AWS53 speaker.
a) Monaural operation: The monaural mode (mono) is recommended when using a single
AWS53 by itself. For monaural operation, set the L/M/R switch to “M” on each speaker.
b) Stereo operation: You need an additional AWS53 speaker for the stereo option. Set the
L/M/R switch to “L” on the speaker located to the left from the listener, and set the other
speaker to the “R” position.
Notes:
The speaker automatically retunes if it loses the transmitter’s signal. You can also press the
AutoScan button on the back of the speaker to retune the speaker at any time.
The transmitter turns off automatically if there is no audio signal present for a prolonged period.
Interference in the form of static and/or distortion can sometimes be heard. If this occurs,
conrm the transmitter/speaker adjustments and indicators. If the problem persists, refer to the
Troubleshooting section of this manual.
Using the Speaker System
Turning the Speaker Off
1. Press Power button on the back of the speaker to turn the speaker off.
2. Conrm that the speaker is off by verifying that the indicator light on the speaker’s front
panel is no longer illuminated.
Adjusting the Speaker
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communication. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Regulations state that unauthorized changes or modications to this equipment may void the user’s
authority to operate it.
Industry Canada Regulatory Information
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following
two conditions: 1) this device may not cause interference and 2) this device must accept any interference,
including interference that may cause undesired operation of the device.
This class B digital apparatus complies with Canadian ICES-003.
IC Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment.
About Variable-Level Audio Outputs:
A variable-level output, such as a headphone jack or certain RCA-type outputs, provides an
audio signal that changes with the volume level set on the audio source. As the volume of the
audio source is adjusted up and down, so is the audio signal strength sent to the transmitter.
This can affect the quality of sound generated by the speaker, and may require an adjustment
of the volume level of the audio source to produce a signal strong enough for the transmitter.
Hint: On most bookshelf-type or compact stereo systems, inserting a headphone plug into
the headphone jack results in automatic cutoff of the regular, or hard-wired speakers.
Hint: Most TVs, regardless of age or price, have variable outputs. If you are unsure which
of your TV audio outputs is xed, refer to the TV instruction manual. Some TVs have
outputs that can switch between variable and xed. When given a choice, xed is always
recommended.
Troubleshooting
The following troubleshooting guide takes you through some of the more common problems
associated with the installation and/or operation of a wireless system. If the problem persists,
please call toll-free at 1-800-732-6866 or visit www.acoustic-research.com.
Issue: Cause and solution:
No sound • Check that the transmitter AC power adapter is fully inserted into the wall outlet and
the power cord from the AC adapter is rmly connected to the transmitter power
input jack.
• Conrm that the speaker is turned on and tuned to the transmitter—
the indicator light on the front of the speaker should be solid blue (not blinking).
• If you’re using the power adapters, conrm that both (for the speaker and for the
transmitter) are fully inserted into their wall outlets and the adapter power cords are
rmly connected to the power input jacks on the transmitter or speaker.
or
• If you’re using batteries for the speaker, check that they are fresh and inserted with
correct polarity (+, –).
• Check that the audio source component (stereo, MP3 player, etc.) is turned on and
transmitting sound as it normally should.
• Make sure the volume on your audio source is turned up.
• Check that the speaker volume is turned up.
• If you are using a Tape 2 Monitor output from your receiver/amp as the audio
output, check that you have pressed the Tape Monitor/Tape 2 button on the front of
the receiver. This will turn on the Tape 2 outputs, which may not have been active.
Issue: Cause and solution:
No sound/
distortion/
static
• When using battery power, make sure the batteries are fresh and replace if
necessary.
• Check that the speaker’s indicator light is solid blue (not blinking) when an audio
source is connected to the transmitter
• Change the position of the channel select switch (1, 2 or 3) to change the operating
frequency. Then press the AutoScan button on the speaker’s back panel to make the
speaker retune.
• Change the location of the transmitter. Place it as high and away from obstructions
as possible. Avoid placing the transmitter directly on top of or behind a TV.
• Move the transmitter and speaker closer together. Sending the signal through
certain materials, such as glass, tile, and metal, can decrease the effective
transmitting distance of the system.
More Helpful Information
About Fixed-Level Audio Outputs
A xed-level, or line-level, audio output is considered ideal since it provides an audio signal
unchanged by adjustments to the audio source volume control.
Hint: Fixed-level audio outputs from stereo receivers/amps will typically be designated as
Tape (or Record) outputs or DVR/DVD-R audio output connections.
Fixed-level outputs from TVs are usually marked as ‘Constant,’ ‘Fixed,’ or ‘Select.’ If they are not
marked as such, they are probably variable outputs (see “About Variable-Level Audio Outputs” on
the next page). Outputs from DVD players are almost always xed.
Hint: When connecting to the audio outputs of a DVD player, remember that the DVD player
must be showing a TV channel for sound to be produced.
Trademark(s) ® Registered www.acoustic-research.com MADE IN CHINA AWS53 US IB 00
12 Month Limited Warranty
Specifications
Transmitter
• Omni-directional 900MHz broadcast
• Effective transmitting range:
up to 150 ft. (45m)*
• Phase-locked loop circuitry (PLL)
• Automatic level control (ALC)
• 3 selectable broadcast frequencies
• Stereo audio input
Speaker
• Push-button, auto-lock tuning
• 2-way acoustic design:
2” tweeter, 3.5” woofer
• 5 Watt RMS internal amplier
• Omni-directional sound
• Frequency response: 40Hz - 15kHz
• Left/Mono/Right switch
• Operates using supplied AC adapter or six (6)
AA batteries (not included)
*Maximum range; results may vary according to environment.
Audiovox Electronics Corporation (the “Company”) warrants to the original retail purchaser of this product that
should this product or any part thereof, under normal use and conditions, be proven defective in material or
workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced
(at the Company’s option) without charge for parts and repair labor. To obtain repair or replacement within
the terms of this Warranty, the product along with any accessories included in the original packaging is to be
delivered with proof of warranty coverage (e.g. dated bill of sale), specication of defect(s), transportation
prepaid, to the Company at the address shown below. Do not return this product to the Retailer.
This Warranty is not transferable and does not cover product purchased, serviced or used outside the United
States or Canada. The warranty does not extend to the elimination of externally generated static or noise, to
costs incurred for the installation, removal or reinstallation of the product.
The warranty does not apply to any product or part thereof which, in the opinion of the company, has suffered or
been damaged through alteration, improper installation, mishandling, misuse, neglect, accident or exposure to
moisture. This warranty does not apply to damage caused by an AC adapter not provided with the product, or by
leaving non-rechargeable batteries in the product while plugged into an AC outlet.
THE EXTENT OF THE COMPANY’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR
REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY’S LIABILITY EXCEED THE
PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT.
This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES, INCLUDING
ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL BE
LIMITED TO DURATION OF THIS WARRANTY. ANY ACTION FOR BREACH OF ANY WARRANTY HEREUNDER,
INCLUDING ANY IMPLIED WARRANTY, MUST BE BROUGHT WITHIN A PERIOD OF 24 MONTHS FROM THE DATE
OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL OR
INCIDENTAL DAMAGES WHATSOEVER. No person or representative is authorized to assume for the Company
any liability other than expressed herein in connection with the sale of this product.
Some states/provinces do not allow limitations on how long an implied warranty lasts or the exclusion or
limitation of incidental or consequential damage so the above limitations or exclusions may not apply to you.
This Warranty gives you specic legal rights and you may also have other rights which vary from state/province
to state/province.
U.S.A.:Audiovox Electronics Corp., 150 Marcus Blvd., Hauppauge, New York 11788
CANADA: Audiovox Return Center, c/o Genco, 6685 Kennedy Road, Unit #3 Door 16, Mississauga Ontario L5T
3A5
1. Press the Power button on the back of the speaker to
turn it on.
If you’re using the wireless transmitter, the indicator
light on the front of the speaker blinks while the
speaker is tuning to the transmitter. This indicator
light turns solid blue when the speaker is tuned to
the transmitter--you should hear sound coming from
the speaker now.
Note: If the speaker is not tuned or if the
transmitter is not connected properly, the indicator
light will continue blinking. If this occurs, please see
the Troubleshooting section of this manual.
If you’re using a direct connection to your audio source (via audio cable), all you need to do
is start playback on your audio source‚ you should start hearing sound from the speaker.
IMPORTANT: The indicator light on the front of the speaker indicates the status of the
wireless connection only. If you’re not using the transmitter (or if you’re out of range of the
transmitter) it will keep blinking until it nds the transmitter. This is normal.
2. Adjust the volume on the speaker as desired.
Note: Make sure your audio source is turned up at least to 75%of full volume (but not so
loud that the sound becomes distorted).
3. If you’re using the wireless transmitter, set up the speaker for mono or stereo operation
using the switch on the bottom of the AWS53 speaker.
a) Monaural operation: The monaural mode (mono) is recommended when using a single
AWS53 by itself. For monaural operation, set the L/M/R switch to “M” on each speaker.
b) Stereo operation: You need an additional AWS53 speaker for the stereo option. Set the
L/M/R switch to “L” on the speaker located to the left from the listener, and set the other
speaker to the “R” position.
Notes:
The speaker automatically retunes if it loses the transmitter’s signal. You can also press the
AutoScan button on the back of the speaker to retune the speaker at any time.
The transmitter turns off automatically if there is no audio signal present for a prolonged period.
Interference in the form of static and/or distortion can sometimes be heard. If this occurs,
conrm the transmitter/speaker adjustments and indicators. If the problem persists, refer to the
Troubleshooting section of this manual.
Using the Speaker System
Turning the Speaker Off
1. Press Power button on the back of the speaker to turn the speaker off.
2. Conrm that the speaker is off by verifying that the indicator light on the speaker’s front
panel is no longer illuminated.
Adjusting the Speaker
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communication. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Regulations state that unauthorized changes or modications to this equipment may void the user’s
authority to operate it.
Industry Canada Regulatory Information
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following
two conditions: 1) this device may not cause interference and 2) this device must accept any interference,
including interference that may cause undesired operation of the device.
This class B digital apparatus complies with Canadian ICES-003.
IC Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment.
Other manuals for AWS53
1
Table of contents
Other Acoustic Research Portable Speakers manuals
