ACOUSTIC SOLUTIONS DX 333 User manual

DX 333 INSTRUCTION MANUAL
May we take this opportunity to thank you for purchasing this
DX 333 Home Theatre System. Please note the listed precautions and
take time to study the operating instructions, this will ensure that you
gain maximum enjoyment from the DX 333.
Manufactured under license from Dolby Laboratories. “DOLBY”,
“AC-3”, “PRO LOGIC” and the double-D symbol are trademarks of
Dolby Laboratories.
Condential unpublished works 1992-1997 Dolby Laboratories Inc.
All rights reserved.
CONTENTS
©
P1 Welcome
P2 Safety instructions
P3 Main features
P4 Remote control features
P5 System connection
P6 Loudspeaker connection
P7 System function and operation
P8 Troubleshooting
1

CAUTION: To reduce the risk of electric shock, do not remove any
cover. No user-serviceable parts inside. Refer any servicing to
qualied service personnel.
IMPORTANT SAFETY INSTRUCTIONS
• Read and keep these instructions available for future reference.
• For indoor use only.
• The unit must only be connected to a suitable mains power supply
using the mains power lead provided.
• To reduce the risk of re or electrical shock, do not expose this
unit to rain or moisture.
• Unplug the unit from the wall socket during lightning storms and
when it is not going to be used for a long period of time.
• When the system is not going to be used for some time, remove
the batteries from the remote control to avoid damage caused by
battery leakage or corrosion, and unplug the unit.
• Take care that foreign objects do not enter, or liquids are not
spilled, into the enclosure through any openings. If this should
happen, refer to qualied service personnel before attempting to
use.
• Ensure adequate ventilation - do not cover the sub woofer unit with
curtains, etc.
• Do not install near any heat source, such as radiators, or other
equipment that produces heat.
• Protect the mains power cable from being damaged.
• Use only the satellite speakers and remote control provided.
• The DX 333 system is double insulated, when servicing only use
identical replacement parts.
SAFETY INSTRUCTIONS
UK MAINS PLUG DETAILS
For your convenience a mains plug with a fuse (5 Amp) has been
tted to this appliance. For your safety please observe the following
information.
The DX 333 is designed to operate on AC mains supply between 220
and 240 volts, 50 Hz.
The wires in the mains lead are coloured in accordance with the
following code:
BLUE NEUTRAL
BROWN LIVE
Under no circumstances should the Neutral or Live wires be connected to
the ‘E’ (Earth) terminal.
CAUTION
RISK OF ELECTRIC SHOCK!
DO NOT OPEN!
2

• Built-in 5.1 Dolby Digital AC-3 decoder for direct connection with
any DVD featuring digital audio output to give full cinema
surround sound experience.
• Built-in six channel power amplier.
• Full function remote control, including channel levels and tone
controls.
• System features microcomputer processing, producing high-
denition audio clarity from digital technology.
• Dolby Digital special effects to enhance listening pleasure.
• Matching satellite speakers for wall or stand mounting.
• Satellite speakers are magnetically-shielded, and will have no inuence
on the TV picture.
• Credit card sized remote control.
MAIN FEATURES FRONT/REAR PANEL LAYOUT
®
3

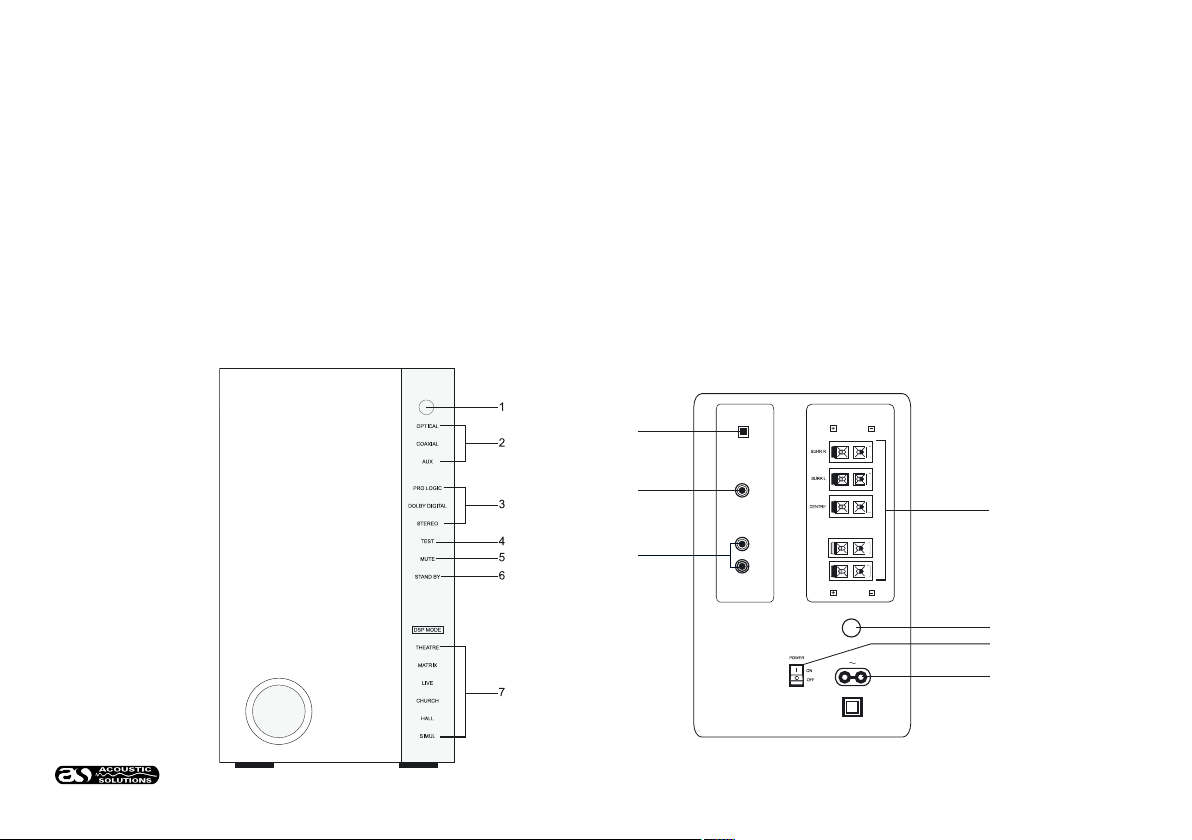

1. Remote control receiver
2. Input mode indicator (Optical, Coaxial or Auxiliary)
3. Operating mode indicator (Pro logic, Dolby digital or Stereo)
4. Test function indicator
5. Mute indicator
6. Standby indicator
7. DSP mode indicator (Theatre, Matrix, Live, Church, Hall, Simulated)
8. AC power socket
9. Power Switch
10. Fuse holder
11. AUX input terminals
12. Coaxial input terminal
13. Optical input terminal
14. Satellite speaker connection terminals
 
 
 


 
  
 








Insert the battery observing the correct (+) and (-) polarity.
NOTE: If the remote control unit only works when operated near to the
DX 333, replace the battery. Use a CR 2025 3V lithium battery only.
REMOTE CONTROL FEATURES
4
1. Standby selector
2. DSP effect selector
3. Listening mode selector
4. Test function selector
5. Optical input selector
6. Coaxial input selector
7. Auxiliary input selector
8. Mute button
9. Centre, surround & subwoofer channels level adjustment
10. Bass level adjustment
11. Treble level adjustment
12. Bypass button
13. Master volume button
Note: Do not place objects between the remote control unit and the
remote control receiver (see front panel features). Operating this remote
control unit while simultaneously operating the remote control unit of
another piece of equipment may cause interference.

It is recommended that the mains power is OFF until all connections have been made and checked.
A. Connection to a stereo sound source (CD player, TV, Tuner, etc). Use the RCA phono lead to connect to the RIGHT and
LEFT channels of the stereo sound system to the Auxiliary input connectors.
B. Digital input from a DVD player. Use either the provided coaxial digital lead (yellow) to the coaxial input socket (12 on rear
panel) or a suitable optical lead (not supplied) to the optical connector (13 on rear panel).
SYSTEM CONNECTION
5

LOUDSPEAKER CONNECTIONS
Ensure the correct polarity (+) and (-) of all speaker leads. Check to make sure there are no wires touching on the speaker terminals, and that all
wires are rmly clamped into the terminals.
6

1. First make sure that all connections are correctly made:
• Connect the power plug to a suitable mains socket and switch the
DX 333 system ON using the power switch (9).
2. Select the desired input:
• Select AUX (7) on the remote control unit to listen to the analogue
stereo sound source connected to the AUX inputs on the rear panel.
• Select COAXIAL (6) on the remote control unit to listen to the digital
audio source connected to the COAXIAL input connector on the rear
panel.
• Select OPTICAL (5) on the remote control unit to listen to the digital
audio source connected to the OPTICAL input connector on the rear
panel.
3. Listening mode selecting:
• Depending on the type of input selected, pressing the DSP EFFECT
button (2) allows you to select one of the Dolby Digital listening
modes: Theatre, Matrix, Live, Church, Hall, Simul (simulated)
• According to the type of digital input, pressing LISTEN MODE (3)
allows you to select the Dolby Digital decoding options of PRO
LOGIC or STEREO. The DX 333 automatically detects the type of
signal being input from a DVD player, and highlights “Dolby Digital”
if a 5.1 Dolby Digital signal is input, “PRO LOGIC” if the input signal
is Pro Logic, or “Stereo” if a stereo signal is being input.
NOTE: Many DVD discs support multi-soundtrack options, so the
digital signal input to the DX 333 will be determined by the DVD
player settings. The DX 333 stores the last settings when
switched off, and will restore these settings when next switched on.
SYSTEM FUNCTION AND OPERATION
4. Adjusting the volume levels:
• The volume of the Centre, Surround (rear) and Sub Woofer channels
can be individually set according to personal preference and room
conditions.
• Selecting TEST (4) outputs a white noise signal to facilitate setting
the volume levels the Centre, Surround and Sub Woofer channels.
• Use the +/- buttons (9) to set the sound level of each channel. Press
TEST (4) again to switch off the test tone.
5. Tone adjustment:
• The system tone can be adjusted using the BASS +/- buttons (13)
and TREBLE +/- buttons (14) in the range of +/- 10 dB.
6. Standby:
• If the DX 333 is not going to be used for a while, selecting
STANDBY (1) switches the system into standby (power save) mode,
indicated by the STANDBY indicator on the front panel.
Reselecting STANDBY (1) restores the system to normal operation,
with all previous settings.
NOTE: If the DX 333 is not going to be used for a period of time, it is
recommended to switch OFF the system with the power switch.
7. Mute:
• To temporarily mute the sound output of the DX 333, select MUTE
(8). The MUTE indicator on the front panel indicates the system is
muted. To restore the system to normal operation, reselect MUTE
(8).
7

TROUBLESHOOTING
System does not switch on:
• Check mains lead securely tted to a working mains outlet socket.
No sound from one or more channels:
• There is a short delay after switching on before the system starts
functioning.
• Check all speakers connections are correct and all leads are
secured.
• Check all input leads are correctly wired and all connectors are
securely tted.
• Check the settings of the input device (DVD player, etc.)
• Check channel volume settings.
• Check that the MUTE or STANDBY function is not selected.
Volume level low:
• Check master volume setting.
• Check individual channel volume settings.
Sound distortion:
• Check all inputs are correctly wired up.
• Check input device settings.
• Check that the volume level is not set too high.
Remote control not operating correctly:
• Check the battery, if the remote controller only works when close
to the DX 333, the battery is getting low - replace with suitable
CR 2025 sized battery.
• Check there is nothing obscuring the remote signal sensor on
the front panel.
• Check the sub woofer unit is not in direct sunlight, as this can
reduce the effectiveness of the remote controller.
8
We trust you are completely satised with this product from Acoustic
Solutions Limited, however please feel free to contact us if you experience
any difculties, or if you would like to express your views regarding our
products
Please write to:
Acoustic Solutions Limited.
Grand Union Buildings
54 High Street
Weedon Bec
Northampton
NN7 4QD
United Kingdom
Telephone [phone]
Fax: [phone]
www.acousticsolutions.co.uk
email: [email protected]
Through the process of continuous improvement, Acoustic Solutions
Limited reserves the right to change or alter specications without prior
notice. E&OE

REV: 1/029/1.0
