Acrel ADL3000-E Owner's manual

201
ADL3000-E
Installation and operation instruction V3.2
ACREL Co,. Ltd.

Declare
The copyright is the property of Acrel. Any information in any
paragraph or section cannot be extracted, copied or otherwise reproduced
or propagated. Otherwise offenders shall take all consequences.
All rights are reserved.
Acrel reserves the right to modify the product specifications herein
without notification. Please consult the local agent about the latest
specifications before placing a purchase order.

Content
1 General......................................................................................................................................... 1
2 Type description.......................................................................................................................... 1
3 Function description................................................................................................................... 1
4 Technical parameter....................................................................................................................2
5 Outline.......................................................................................................................................... 3
6 Wiring and installing.................................................................................................................. 3
7 Function description................................................................................................................... 6
8 Operation and display................................................................................................................ 7
9 Communication description.....................................................................................................11

1
1 General
ADL3000-E is a smart meter designed for power supply system, industrial and mining
enterprises and utilities to calculate the electricity consumption and manage the electric demand. It
features the high precision, small size and simple installation. It integrates the measurement of all
electrical parameters with the comprehensive electricity metering and management provides
various data on previous 12 months, checks the 31st harmonic content and the total harmonic
content, realizes the remote communication and the remote control with switching input and relay
output and boasts the alarm output. It is fitted with RS485 communication port and adapted to
MODBUS-RTU. ADL3000-E can be used in all kinds of control systems, SCADA systems and
energy management systems. All meters meet the related technical requirements of electricity
power meter in the IEC62053-21、IEC62053-22 standards.

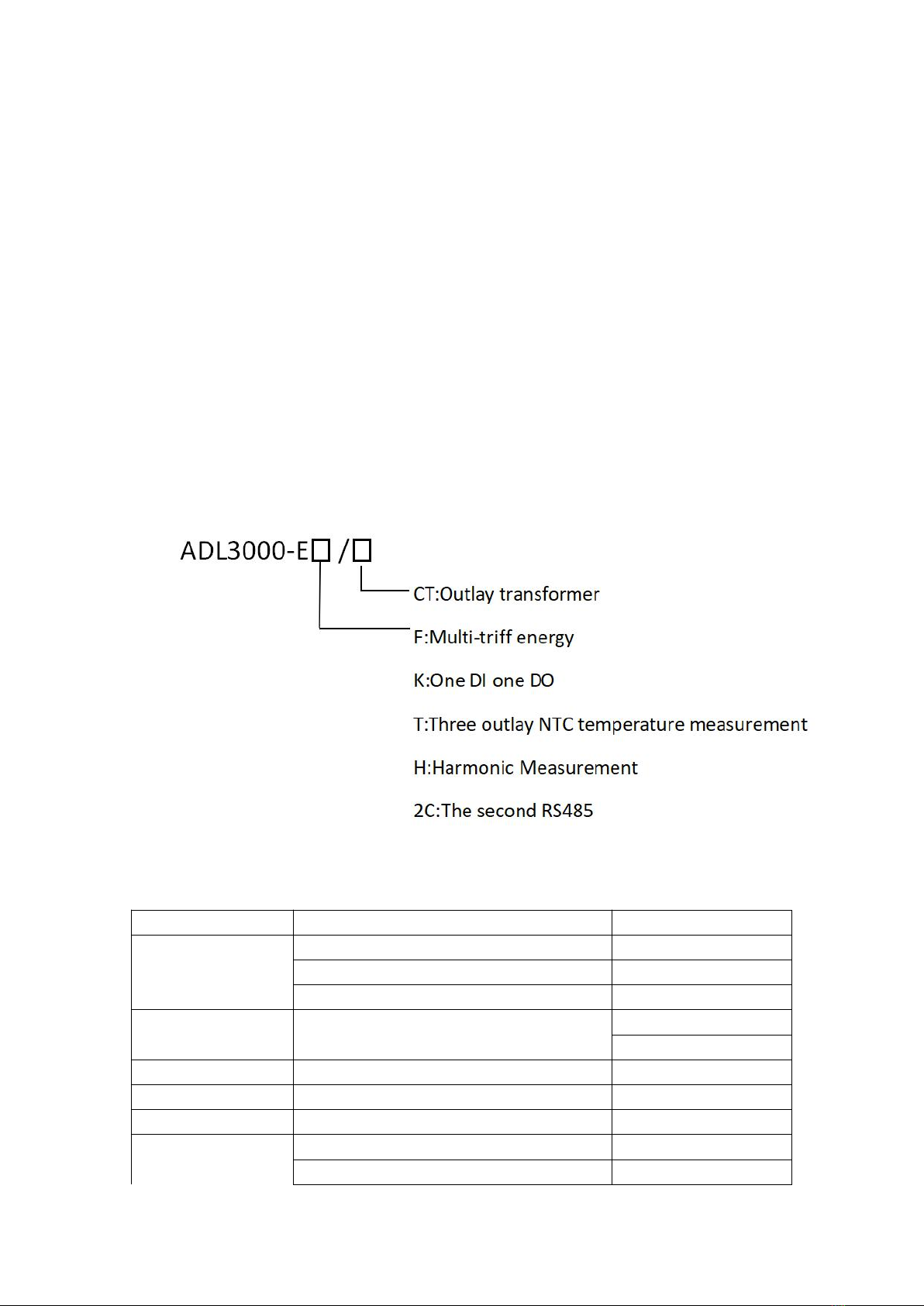

2 Type description
3 Function description
Function
Function description
Function provide
Measurement of kWh
Active kWh (positive and negative)
■
Reactive kWh (positive and negative)
■
A, B, C phase positive active kWh
■
Measurement of
electrical parameters
U、IP、Q、S、PF、F
■
■
Measurement of
2~31ST Voltage and current harmonic
□Note 1
LCD Display
8 bits section LCD display, background light
■
Key programming
4 keys to communication and set parameters
■
Pulse output
Active pulse output
■
Reactive pulse output
□Note 2

2
Clock pulse output
□Note 2
Multi-tariff and
functions
Active switch input
□Note 3
Switch output
□Note 2
Adapt 4 time zones, 2 time interval lists, 14
time interval by day and 4 tariff rates
□
Max demanded kWh and time happened
□
Frozen data on last 48 months, last 90days
□
Date, time
□
Communication
Infrared communication
■
The first communication path:
Communication interface: RS485,
Communication protocol: MODBUS-RTU
□
The second communication path:
Communication interface: RS485,
Communication protocol: MODBUS-RTU
□Note 3
Temperature
measurement
Support 3 outlay NTC temperature
□Note 4
“■” means standard, “□” means optional.
Note:
1: Harmonic is a standard while choosing outlay transformer, optional for other situation.
2: Reactive pulse output, clock pulse output and switching output: Choose one of these
three.
3: Active switching, the second communication path: Choose one of these two.
4: Both 1 and 2 cannot be chosen while choosing temperature measurement.
4 Technical parameter
Specification
3 phase 3 wires, 3 phase 4 wires
Voltage
Reference voltage
3×100V、3×380V、3×57.7/100V、3×220/380V
Consumption
<10VA(Single phase)
Impedance
>2MΩ
Accuracy class
Error±0.2%
Current
Input current
3×1(6)A，3×1(6)A(Outlay transformer)，3×10(80)A，3×
10(100)A(Outlay transformer)
Consumption
<1VA(Single phase rated current)
Accuracy class
Error±0.2%
Power
Active, reactive, apparent power, error±0.5℅
Frequency
45～65Hz，Error±0.2%
Temperature
-40℃～99℃
Energy
Active energy(Accuracy class:0.5, 1), reactive energy(Accuracy
class 2)
Clock
≤0.5s/d
Energy pulse output
1 active optocoupler output, 1 reactive optocoupler output
Switching output
1 Switching output, Maximum allowed voltage: DC/AC 220V
Switching input
1 optocoupler input,Maximum allowed voltage: DC/AC 220V

3
Width of pulse
80±20ms
Pulse constant
6400imp/kWh,400imp/kWh(Correspond with the basic current)
Interface and communication
RS485：Modbus RTU
Range of communication
address
Modbus RTU:1~ 247；
Baud rate
1200bps~19200bps
Relative temperature
-25℃~+55℃
Relative humidity
≤95℅(No condensation)
5 Dimension drawings
Fig1 connect via CT
8
Fig2 direct connect
Note：The torque of direct connect should not be greater than 4.0N·m，and the torque of connect
via CT should not be greater than 2.0N·m。

4
6 Wiring and installing
6.1 Wiring sample of voltage and current

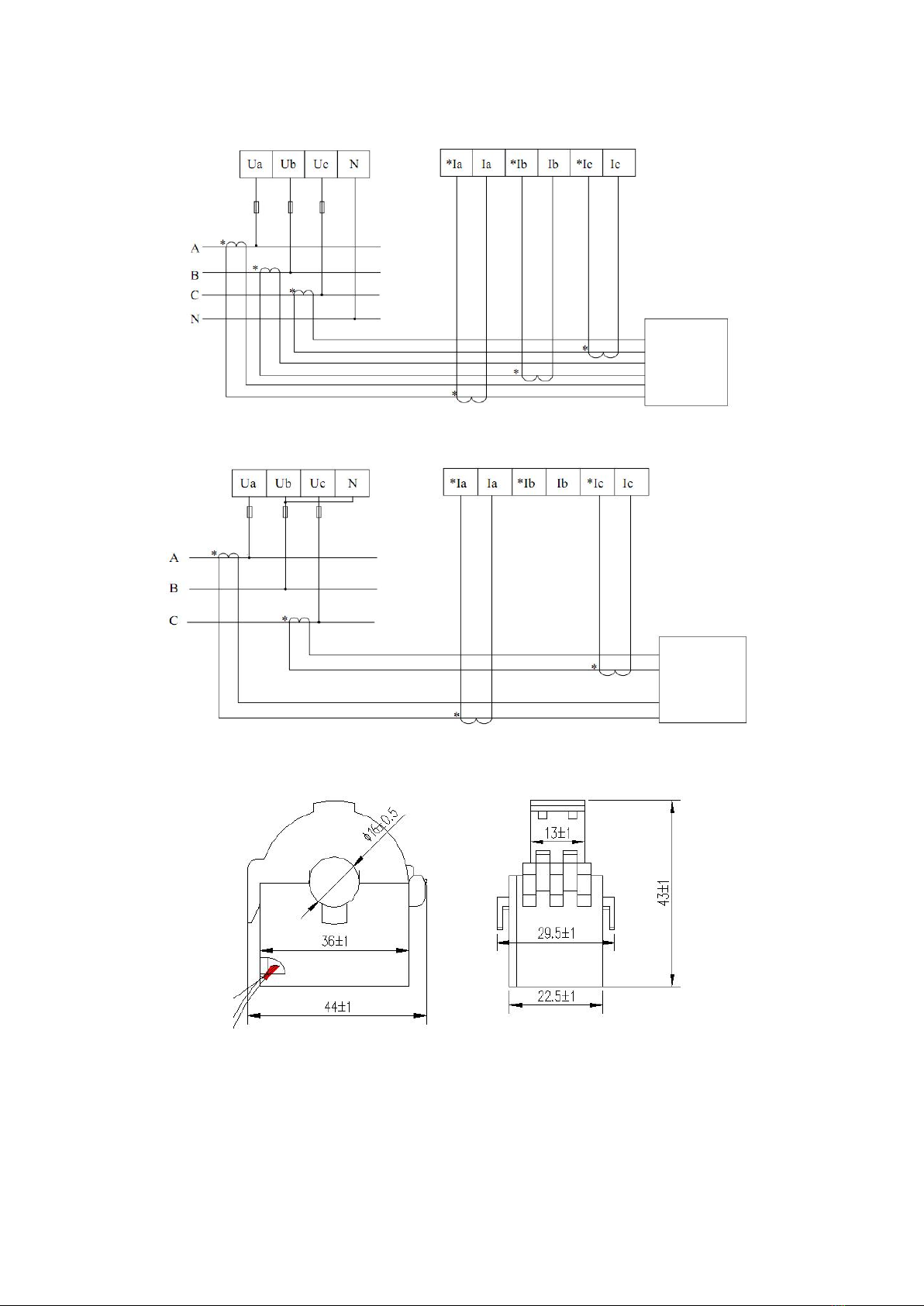

Fig 3 Three phase four lines connect via CT
Fig 4 Three phase four lines direct connect
Fig 5Three phase three lines connect via CT

5
Fig 6 Three phase three lines direct connect
Fig 7 Three phase four lines, 3CT
Fig 8 Three phase three lines, 2CT
Fig 9 Outline of transformer
Note: The method of wiring is: input downward and output downward.
6.2 Switching input, output, NTC temperature terminals
Load
Load

6
Fig 10 Communication, pulse connection
Fig 11 Communication, pulse connection
Fig 12 Outlay NTC temperature measurement
Switching output is relay output, can achieve the remote-control and alarm output.
The switch input adapts the method of on-off signal input and powered by outer power supply.
It can be gotten by meter when there is a change of on or off via a switching input module. The
parameter of switching input can not only get and show the state of local switching information
but also achieve the communication via RS485, which called “remote information” function.
Note: (17-18) are active energy pulse, (60,61,62,69) are NTC temperature measurement port,
(15,16) are clock pulse, (19,20) are reactive energy pulse, (40,41) are switch output and multiplex
with (60,61), (24,25) are 2 path of communication, (30，39) are switch input and multiplex with
(62,69).
7 Function description
7.1 Measurement
The meter can measure all electrical parameters such as voltage, current, active power,
reactive power, apparent power, power factor, frequency, 31st harmonic and total harmonic. The
value format of voltage, current, frequency and power are listed as below.
Example: U = 220.1V，f = 49.98Hz, I = 1.99A，P = 0.439kW

7
7.2 Calculating
The meter can calculate the current active energy, forward active energy, reversing active
energy, forward reactive energy and reversing reactive energy.
7.3 Timing
The meter has 2 time lists, and can be divided into 4 time zones per year. Each time list can
be divided into 8 time periods and 4 tariff (F1、F2、F3、F4). The main purpose of multi-tariff is
promote the energy efficiency and economic benefits.
7.4 Demand
There are some definitions on demand:
Demand
The average power in the demand cycle.
Maximum demand
The maximum value of demand in a period of time.
Slip time
A recurrence method to measure the demand from any time point
during a period shorter than the demand period. The demand
measured by this means is called sliding demand. The recurrence
time is sliding window time.
Demand cycle
The time period between two same average value of demand.
The default demand cycle is 15 minutes, slip time is 1 minute.
The meter can measure 4 kinds of maximum demand: forward active, reversing active,
inductance performance reactive, capacitance performance reactive maximum demand and the
occur time.
7.5 History data statistics
The meter can record last 48 months or last 90 days history energy in each tariff.
7.6 Switching input and output
The switch input adapts the method of on-off signal input and powered by outer power supply.
It can be gotten by meter when there is a change of on or off via a switching input module. The
parameter of switching input can not only get and show the state of local switching information
but also achieve the communication via RS485, which called “remote information” function.
7.7 Temperature measurement
The meter support three path of outlay NTC temperature measurement, the range of
temperature is -40℃~99℃.
8 Operation and display
8.1 Key function description
Key symbol
Key name
Function
Menu
Enter/quit menu

8
Voltage and current, up
Check the voltage and current
Leftward and change flash in
programming menu
Power, down
Check the power
Rightward and change the value on flash
Energy, enter
Check the energy
Enter in programming menu
8.2 Display menu
The meter will show the forward active energy after powering. The customers can change the
information showing by pressing the keys. The menu description is listed as below:
Voltage on A, B, C phase, Current on A, B, C phase, Frequency, Date, Time,
Address, Version, Test on display
Total active/reactive/apparent power and on A, B, C phase, Total power factor and
on A, B, C phase, Forward/reversing active/reactive maximum demand
Total forward/reserving active/reactive energy, forward/reserving active/reactive
spike/peak/flat/valley energy, forward active energy on A, B, C phase.
Note:
1 All the display menus above are in the model of ADL3000-EF three phases four lines with
multi-tariff rate function and can be changed by the keys.
2 There will not be power or power factor on each phase and will only show total power and
power factor (Active, reactive, apparent) under the three phase three lines.
3 There will not be date, time, maximum demand and energy by time without the function of
multi-tariff rate.

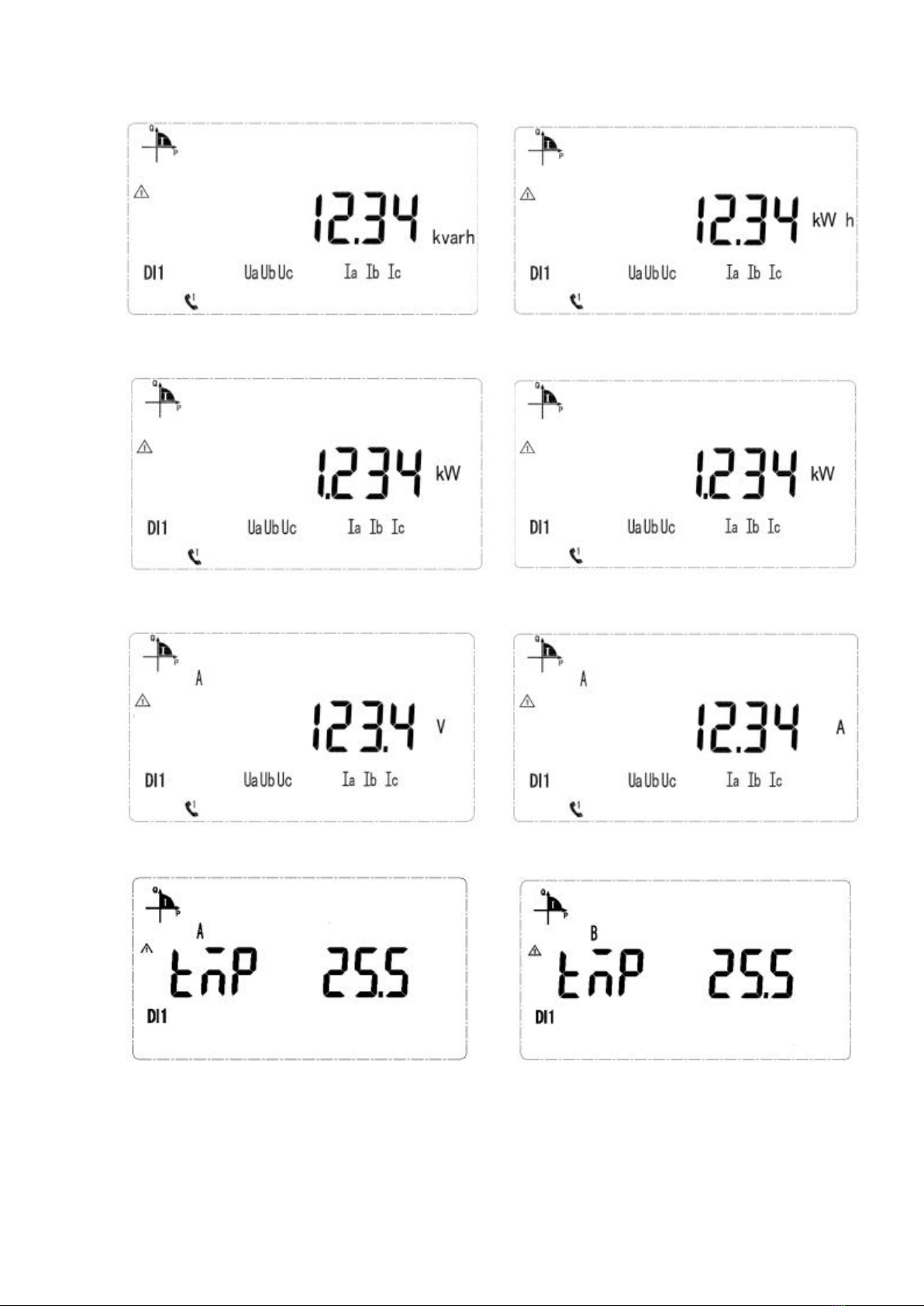

Current forward active energy 12.34kWh
Current reversing active energy 12.34kWh

9
Current forward reactive energy 12.34kWh
Current forward active spike energy 12.34kWh
Current total power is 1.234kW
Current forward active demand is 1.234kW
Voltage on A phase is 123.4V
Current on A phase is 12.34A
Temperature on T1 is 25.5 cent degree
Temperature on T2 is 25.5 cent degree

10
Temperature on T3 is 25.5 cent degree
Note: There are parts of the display function, and other menus are familiar with the example above.
The customers can understand the meaning refer to the above examples.

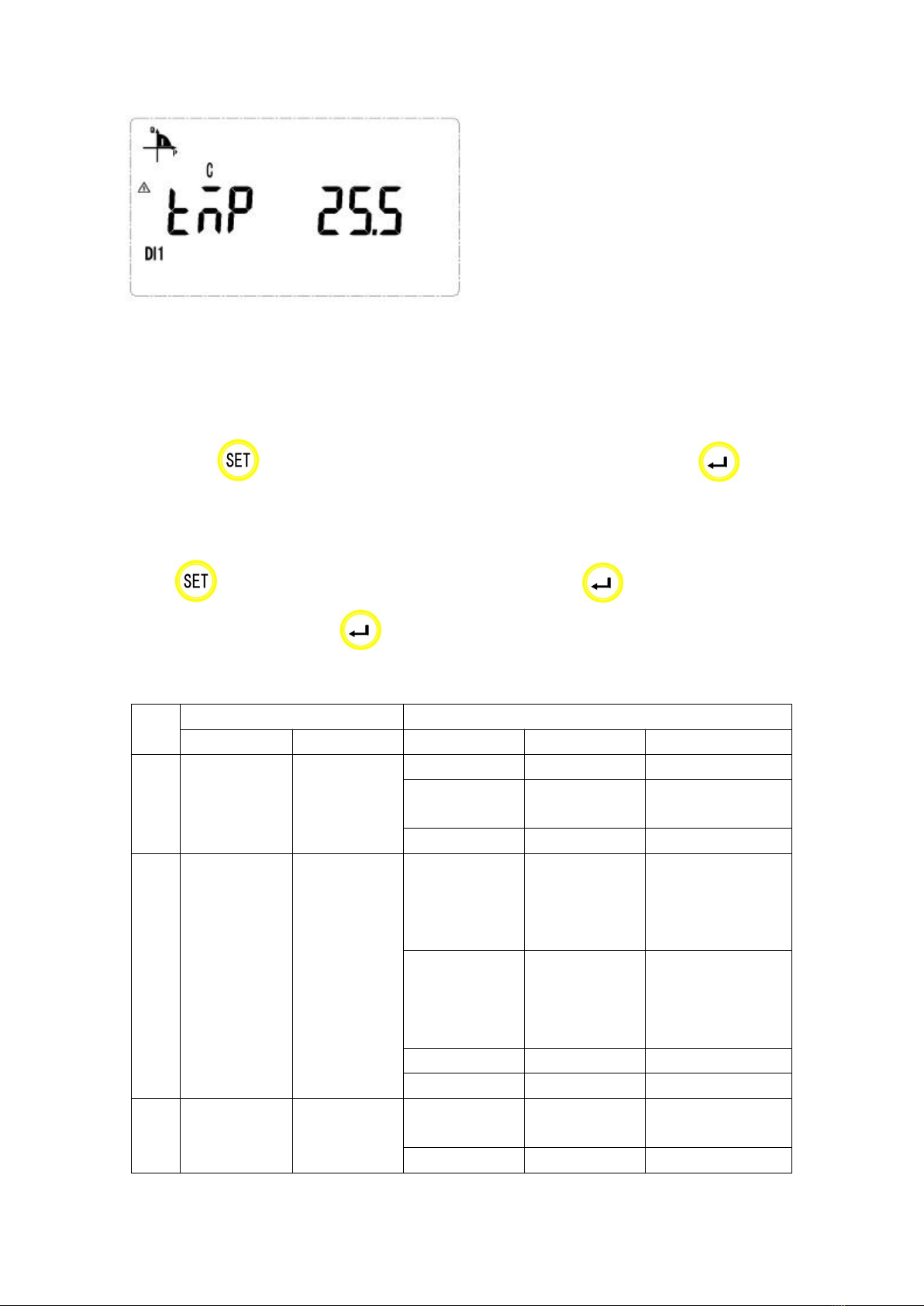

8.3 Key Menu
Press at any main menu and get in “PASS” interface, and then press show
“0000”, and enter the code. If you enter a wrong code, it will show “fail” and back to main menu;
and if you enter a right code, you can set the parameter. After setting the parameter and
press , it will show “save” and save the change by pressing in “yes” interface and
quit without save by pressing in “no” interface.
8.4 Data settings
Num
First menu
Second menu
Symbol
Mean
Symbol
Mean
Range
1
BUS
Communicati
on settings
ADDR
Address setting
1-247
Baud
Baud rate
19200、9600、
4800、2400、1200
Parity
Parity
None、Even
2
SyS
System
settings
PL
Network
3P4L:
3 phase 4 lines
3P3L:
3 phase 3 lines
EF.E
Multi-tariff rate
EF:
Multi-tariff rate
E:
No multi-tariff rate
Code
Code setting
1-9999
LED
Time of light
1-9999
3
In.
Transformer
settings
Pt
Voltage
transformer
1-9999
Ct
Current
1-9999

11
transformer
Note: Customers can choose None or Even under Modbus protocol.
9 Communication description
The meter adapts MODBUS-RTU protocol, and the baud rate can be chosen from 1200bps、
2400 bps、4800 bps、9600bps and 19200 bps. The parity is None.
The meter needs shielded twisted pair conductors to connect. Customers should consider the
whole network’s parameters such like communication wire’s length, the direction, communication
transformer and network cover range, etc.
Note:
Wiring should follow the wiring requirements;
Connect all the meter in the RS485 net work even some do not need to communication, which is
benefit for error checking and testing;
Use two color wires in connecting wires and all the A port use the same color.
No longer than 1200 meters of RS485 bus line.
9.1 ADDR list
MODBUS-RTU protocol has 03H and 10H command to read and write registers respectively.
The following chart is registers’address list:
Address
Variable
Length
R/W
Notes
0000H
Current total active energy
4
R
E=data*PT*CT*0.01
Data：data read in
the communication,
Pt：voltage ratio
CT：current ratio
Unit:kWh (active)
kVarh(reactive)
This formula is
applicable to all
electric energy
values.
0002H
Current spike total active energy
4
R
0004H
Current peak total active energy
4
R
0006H
Current flat total active energy
4
R
0008H
Current valley total active energy
4
R
000AH
Current forward active total energy
4
R
000CH
Current forward active spike energy
4
R
000EH
Current forward active peak energy
4
R
0010H
Current forward active flat energy
4
R
0012H
Current forward active valley energy
4
R
0014H
Current reversing active total energy
4
R

12
0016H
Current reversing active spike
energy
4
R
0018H
Current reversing Active peak
energy
4
R
001AH
Current reversing active flat energy
4
R
001CH
Current reversing Active valley
energy
4
R
001EH
Current total reactive energy
4
R
0020H
Current total reactive spike energy
4
R
0022H
Current total reactive peak energy
4
R
0024H
Current total reactive flat energy
4
R
0026H
Current total reactive valley energy
4
R
0028H
Current forward reactive total
energy
4
R
002AH
Current forward reactive spike
energy
4
R
002CH
Current forward reactive peak
energy
4
R
002EH
Current forward reactive flat energy
4
R
0030H
Current forward reactive valley
energy
4
R
0032H
Current reversing reactive total
energy
4
R
0034H
Current reversing reactive spike
energy
4
R
0036H
Current reversing reactive peak
energy
4
R
0038H
Current reversing reactive flat
energy
4
R
003AH
Current reversing reactive valley
energy
4
R
003CH
Time: second, minute
2
R/W
003DH
Time: hour, day
2
R/W

13
003EH
Time: month, year
2
R/W
003FH
high byte
First communication path：Address
1
R/W
1～247
003FH
low byte
First communication path：Baud rate
1
R/W
1：9600pbs
2：4800pbs
3：2400pbs
4：1200pbs
0040H
Pulse constant
2
R
0041H
Time table number of the first time
zone
Time zone 1 start date: day
2
R/W
Time table No.:
1: the first time
table
2: the second time
table
0042H
Time zone 1 start date: month
Time table number of the second
time zone
2
R/W
0043H
Time zone 2 start date: day
Time zone 2 start date: month
2
R/W
0044H
Time table number of the third time
zone
Time zone 3 start date: day
2
R/W
0045H
Time zone 3 start date: month
Time table number of the fourth
time zone
2
R/W
0046H
Time zone 4 start date: day
Time zone 4 start date: month
2
R/W
0047H
Rate no. of period 1
Start of period 1: minute
2
R/W
The first time list:
Rate No.:
1: sharp
2: peak
3: flat
4: Valley
0: no rate
0048H
Start of period 1: hour
Rate no. of period 2
2
R/W
0049H
Start of period 2: minute
Start of period 2: hour
2
R/W
004AH
Rate no. of period 3
Start of period 3: minute
2
R/W
004BH
Start of period 3: hour
Rate no. of period 4
2
R/W
004CH
Start of period 4: minute
Start of period 4: hour
2
R/W
004DH
Rate no. of period 5
Start of period 5: minute
2
R/W
004EH
Start of period 5: hour
Rate no. of period 6
2
R/W

14
004FH
Start of period 6: minute
Start of period 6: hour
2
R/W
0050H
Rate no. of period 7
Start of period 7: minute
2
R/W
0051H
Start of period 7: hour
Rate no. of period 8
2
R/W
0052H
Start of period 8: minute
Start of period 8: hour
2
R/W
0053H
Rate no. of period 1
Start of period 1: minute
2
R/W
The second time list
Rate No.:
1: sharp
2: peak
3: flat
4: Valley
0: no rate
0054H
Start of period 1: hour
Rate no. of period 2
2
R/W
0055H
Start of period 2: minute
Start of period 2: hour
2
R/W
0056H
Rate no. of period 3
Start of period 3: minute
2
R/W
0057H
Start of period 3: hour
Rate no. of period 4
2
R/W
0058H
Start of period 4: minute
Start of period 4: hour
2
R/W
0059H
Rate no. of period 5
Start of period 5: minute
2
R/W
005AH
Start of period 5: hour
Rate no. of period 6
2
R/W
005BH
Start of period 6: minute
Start of period 6: hour
2
R/W
005CH
Rate no. of period 7
Start of period 7: minute
2
R/W
005DH
Start of period 7: hour
Rate no. of period 8
2
R/W
005EH
Start of period 8: minute
Start of period 8: hour
2
R/W
005FH
Rate no. of period 9
Start of period 9: minute
2
R/W
0060H
Start of period 9: hour
2
R/W
0061H
Voltage of A phase
2
R
U=data*PT*0.1
Unit:V
0062H
Voltage of B phase
2
R
0063H
Voltage of C phase
2
R

15
0064H
Current of A phase
2
R
I=data*CT*0.01
Unit:A
0065H
Current of B phase
2
R
0066H
Current of C phase
2
R
0067H-
0076H
Reserve
0077H
Frequency
2
R
F= data*0.01
Unit:Hz
0078H
Voltage between A-B
2
R
U=data*PT*0.1
Unit:V
0079H
Voltage between C-B
2
R
007AH
Voltage between A-C
2
R
007BH
Forward active maximum demand
2
R
Keep 3 decimal
places for the
maximum demand;
007CH
Time of occurrence :minute,hour
2
R
007DH
Time of occurrence :day,month
2
R
007EH
Reversing active maximum demand
2
R
007FH
Time of occurrence :minute,hour
2
R
0080H
Time of occurrence :day,month
2
R
0081H
Maximum forward demand for
reactive power
2
R
0082H
Time of occurrence :minute,hour
2
R
0083H
Time of occurrence :day,month
2
R
0084H
Maximum reversing demand for
reactive power
2
R
0085H
Time of occurrence :minute,hour
2
R
0086H
Time of occurrence :day,month
2
R
0087H
Forward active energy of A phase
4
R

16
0089H
Forward active energy of B phase
4
R
008BH
Forward active energy of C phase
4
R
008DH
Voltage transfer(PT)
2
R/W
008EH
Current transfer(CT)
2
R/W
008FH
State of DIDO, over-voltage, loss-
voltage
2
R
0090H
Reserve
2
R
0091H
high byte
Running state 1
1
R/W
0091H
low byte
Running state 2
1
R/W
0092H
Zero sequence current
2
R
0093H
Voltage imbalance
2
R
unit 0.1%
0094H
Current imbalance
2
R
0095H
First communication path：
Testing byte（High 8 bytes）
Stop byte（Low 8 bytes）
2
R/W
testing byte：
0：none
2：even
stop byte：
0: 1 stop byte
1: 2 stop bytes
0096H
Second communication path：
Address（High 8 bytes）
Baud rate（Low 8 bytes）
2
R/W
Same as the first
communication
path
0097H
Second communication path：
Testing byte（High 8 bytes）
Stop byte（Low 8 bytes）
2
R/W
Same as the first
communication
path
0098H-
00B1H
Reserved
00B2H
Rate no. of period 9
Start of period 9: minute
2
R/W
The first time list:
Rate No.:
1: sharp
2: peak
3: flat
4: Valley
0: no rate
00B3H
Start of period 9: hour
Rate no. of period 10
2
R/W
00B4H
Start of period 10: minute
Start of period 10: hour
2
R/W
00B5H
Rate no. of period 11
2
R/W

17
Start of period 11: minute
00B6H
Start of period 11: hour
Rate no. of period 12
2
R/W
00B7H
Start of period 12: minute
Start of period 12: hour
2
R/W
00B8H
Rate no. of period 13
Start of period 13: minute
2
R/W
00B9H
Start of period 13: hour
Rate no. of period 14
2
R/W
00BAH
Start of period 14: minute
Start of period 14: hour
2
R/W
00BBH
Rate no. of period 9
Start of period 9: minute
2
R/W
The second time list
Rate No.:
1: sharp
2: peak
3: flat
4: Valley
0: no ratet
00BCH
Start of period 9: hour
Rate no. of period 10
2
R/W
00BDH
Start of period 10: minute
Start of period 10: hour
2
R/W
00BEH
Rate no. of period 11
Start of period 11: minute
2
R/W
00BFH
Start of period 11: hour
Rate no. of period 12
2
R/W
00C0H
Start of period 12: minute
Start of period 12: hour
2
R/W
00C1H
Rate no. of period 13
Start of period 13: minute
2
R/W
00C2H
Start of period 13: hour
Rate no. of period 14
2
R/W
00C3H
Start of period 14: minute
Start of period 14: hour
2
R/W
00C4H
…
0163H
Reserved
0164H
Active power of A phase
4
R
PQS=data*PT*CT*0.
001
Unit:KW(active)
kVar(reactive)
kVA(apparent)
Active power and
0166H
Active power of B phase
4
R
0168H
Active power of C phase
4
R
016AH
Total active power
4
R
016CH
Reactive power of A phase
4
R
