ADL400
Installation and operation instruction V1.3
ACREL Co.,Ltd

Declaration
The copyright is the property of Acrel. Any information in any
paragraph or section cannot be extracted, copied or otherwise reproduced
or propagated. Otherwise offenders shall take all consequences.
All rights are reserved.
Acrel reserves the right to modify the product specifications herein
without notification. Please consult the local agent about the latest
specifications before placing a purchase order.

说明书修订记录
Data
Old
New
Change
2019.11.13
V1.0
1、First version
2020.04.30
V1.0
V1.1
2、Heading 6.2 changed
2020.08.24
V1.1
V1.2
3、Figure 4 Figure 6 changed
2021.04.08
V1.2
V1.3
4、Correction of key setting flow chart

content
1General................................................................................................................................... - 1 -
2Type description.................................................................................................................... - 1 -
3Function description............................................................................................................. - 1 -
4Technical parameter............................................................................................................. - 2 -
5Outline.................................................................................................................................... - 3 -
6Wiring and installing............................................................................................................ - 3 -
7Function description............................................................................................................. - 5 -
8Operation and display............................................................................................................ - 6 -
9Communication description...............................................................................................- 11 -

- 1 -
1 General
ADL400 is a smart meter designed for power supply system, industrial and mining
enterprises and utilities to calculate the electricity consumption and manage the electric demand. It
features the high precision, small size and simple installation. It integrates the measurement of all
electrical parameters with the comprehensive electricity metering and management provides
various data on previous 48 months, checks the 31st harmonic content and the total harmonic
content. It is fitted with RS485 communication port and adapted to MODBUS-RTU .ADL400 can
be used in all kinds of control systems, SCADA systems and energy management systems. The
meter meet the related technical requirements of electricity meter in the IEC62053-21standards.
2 Type description
3 Function description
Table 1 Function description list
Function
Function description
Function provide
Measurement
of kWh
Active kWh (positive and negative)
■
Reactive kWh (positive and
negative)
■
A. B, C split phase positive active
energy
■
Measurement
of electrical
parameters
U、I
■
P、Q、S、PF、F
■
Measurement
of harmonics
2~31ST Voltage and current
harmonic
■
LCD Display
12 bits section LCD display,
background light
■
Key
programming
3 keys to communication and set
parameters
■
Pulse output
Active pulse output
■

- 2 -
Multi-tariff and
functions
Adapt 4 time zones, 2 time interval
lists, 14 time interval by day and 4
tariff rates
□
Max demand and occurrence time
□
Frozen data on last 48 months, last
90days
□
Date, time
□
Communicatio
n
Communication interface: RS485,
Communication protocol:
MODBUS-RTU
■
4 Technical parameter
Table 2 technical parameter descriptions
project
performance parameter
Specification
3 phase 3 wires, 3 phase 4 wires
Meas
urem
ent
Vo
lta
ge
Reference
voltage
3×100V、3×380V、3×57.7/100V、3×220/380V
Consumptio
n
<10VA(Single phase)
Impedance
>2MΩ
Accuracy
class
Error±0.2%
Cu
rre
nt
Input
current
3×1(6)A，3×10(80)A
Consumptio
n
<1VA Single phase rated current
Accuracy
class
Error±0.2%
Power
Active, reactive, apparent power, error±0.5℅
Frequency
45～65Hz，Error±0.2%
Meter
ing
Energy
Active energy(Accuracy class: 0.5)
reactive energy(Accuracy class 2)
Clock
≤0.5s/d
Digit
signa
l
Energy pulse
output
1 active photocoupler output
pulse
Width of pulse
80±20ms
Pulse constant
400imp/kWh,10000imp/kWh(Correspond with the basic
current)
com
mu
nic
atio
Interface and
communication
protocol
RS485 口：Modbus RTU
RS485：Modbus RTU
Range of
Modbus RTU:1~ 247；

- 3 -
n
communication
address
Baud rate
1200bps~19200bps
envir
on
me
nt
working
temperature
-25℃~+55℃
Relative humidity
≤95℅(No condensation)
5 Dimension drawings
Fig1 direct connect
Fig2 connect via CT
Note：The torque of direct connect should not be greater than 3-4N·m，and the torque of connect
via CT should not be greater than 1.5-2N·m。
6 Wiring and installing
6.1 Wiring sample of voltage and current

- 4 -

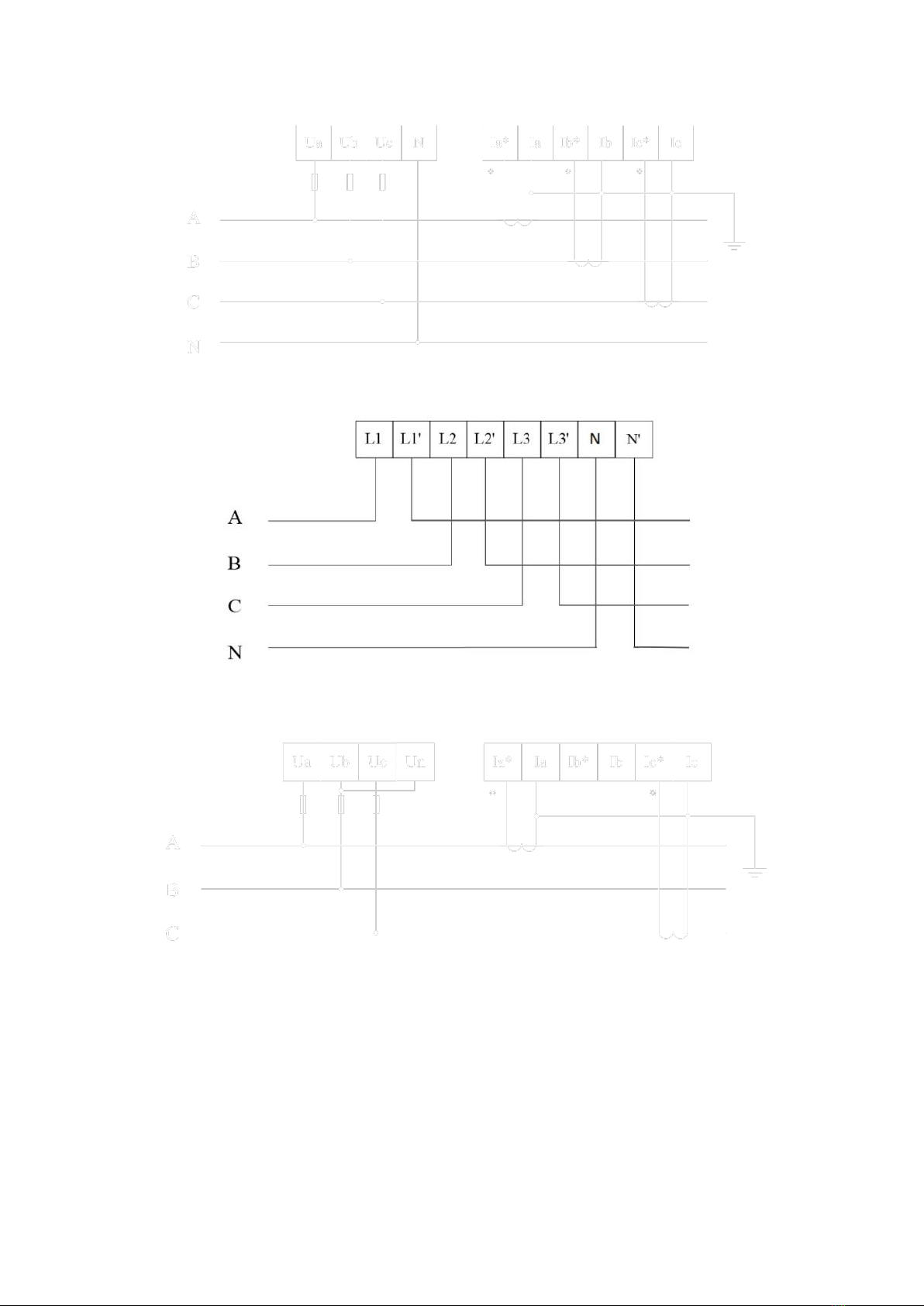

Fig 3 Three phase four lines connect via CT
Fig 4 Three phase four lines direct connect
Fig 5 Three phase three lines connect via CT

- 5 -
Fig6 Three phase three lines direct connect
6.2 Wiring diagram of communication and pulse terminals
Fig 7 Communication, pulse connection
7 Function description
7.1 Measurement
It can measure the electrical parameter,include U、I、P、Q、S、PF、F、1~31th harmonic。
If：U = 220.1V，f = 49.98Hz, I = 1.99A，P = 0.439kW
Such as:U = 220.1V，f = 49.98Hz, I = 1.99A，P = 0.439kW
7.2 Calculating
Can measure the active energy、forward active energy、reversing active energy、forward
reactive energy、reversing reactive energy。
7.3 Timing
Two timing table，four time zone，one table have fourteen timing，four rate。
7.4 Demand
The description about demand:
Table 3 Demand description list
Demand
The average power in the demand cycle.
Maximum
demand
The maximum value of demand in a period of time.

- 6 -
Slip time
A recurrence method to measure the demand from any time point
during a period shorter than the demand period. The demand
measured by this means is called sliding demand. The recurrence
time is sliding window time.
Demand
cycle
The time period between two same average value of demand.
The default demand cycle is 15 minutes, slip time is 1 minute.
The meter can measure 4 kinds of maximum demand: forward active, reversing active,
inductive reactive, capacitive reactive maximum demand and the occur time.
7.5 History data statistics
The meter can record last 48 months or last 90 days history energy in each tariff.
8 Operation and display
8.1 Key function description
Table 4 Key’s function description
icon
Name
Function
Voltage and current, up
Check the voltage and current
Leftward and change flash in
programming menu
Power, down
Check the power
Rightward and change the value
on flash
Energy, enter
Check the energy
In/out programming menu
Save changes
8.2 Display menu
The meter will show the forward active energy after powering. The customers can change the
information showing by pressing the keys. The menu description is listed as below:
Table 5 display descriptions
Three-phase voltage Three phase line voltage
Three-phase Current Frequency

- 7 -
Harmonic content of three phase Harmonic content of three phase
Voltage Current
Phase angle Time
Check bit, baud rate, table address,
software version number, full display detection;
Three phase active power Total active power
Three phase reactive power Total reactive power

- 8 -

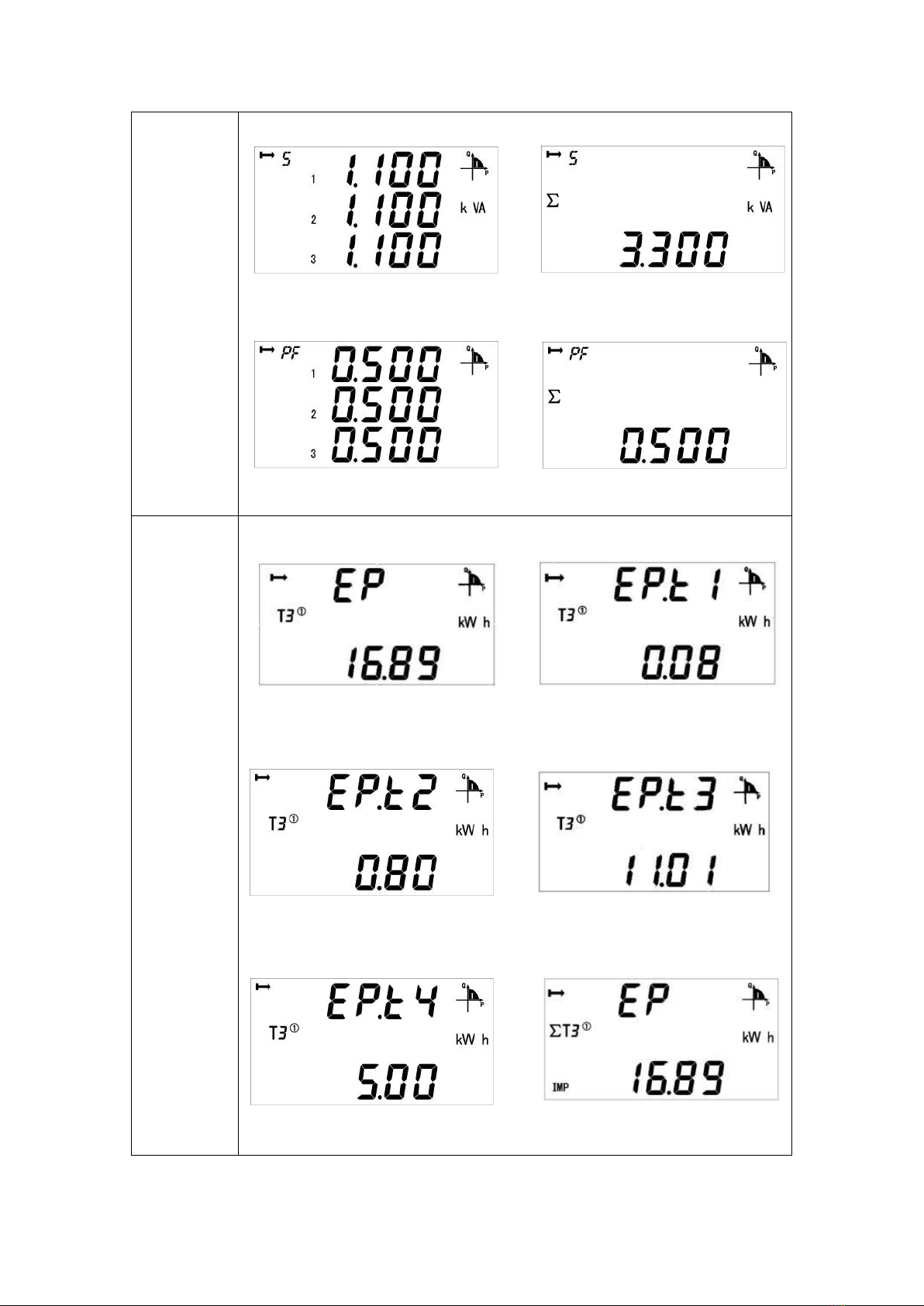

Three phase apparent power Total apparent power
Three phase power factor Total power factor
T3 represents the normal period, ①represents the first time table
Current total active energy Current spike active energy
Current peak active energy Current flat active energy
Current valley active energy Current forward active total energy

- 9 -
Current reversing active total energy Current total reactive energy
Current reactive spike energy Current reactive peak energy
Current reactive flat energy Current reactive valley energy
Current forward reactive total energy Current reversing reactive total energy
Current forward active energy Current forward active energy
on A phase on B phase

- 10 -
Current forward active energy on C phase
Note:
1 All the display menus above are in the model of ADL400 three phases four lines with
multi-tariff rate function and can be changed by the keys.
2 There will not be power or power factor on each phase and will only show total power and
power factor (Active, reactive, apparent) under the three phase three lines.
3 There will not be date, time, maximum demand and energy by time without the function of
multi-tariff rate.
8.3 Key Menu
Keep press at any main menu and get in “PASS” interface, and then press
show “0000”, and enter the code. If you enter a wrong code, it will show “fail” and back
to main menu; and if you enter a right code, you can set the parameter. After setting the parameter
and keep press , it will show “save” and save the change by pressing in “yes” interface
and quit without save by pressing in “no” interface.

- 11 -
8.4 Date settings
Num
Second menu
Symbol
Mean
Range
1
ADDR
Communicate’s ADDR
settings
1-254
2
Baud
Baud choose
1200、2400、4800、
9600、19200
3
Pari
Parity choose
None、Odd、Even
4
LED
Backlight time
0-255minutes，more
than 250 stay
light-on
5
PL
Wiring sample
3P4L:3 phase 3
wires
3P3L:3 phase 4
wires
6
DIR
direction of current
no-Forward
yes-Reverse
7
Pt
Voltage transformer
settings
1-9999
8
Ct
Current transformer
settings
1-9999
9
CoDE
Code settings
1-9999
9 Communication description
The meter adapts MODBUS-RTU protocol, and the baud rate can be chosen from 1200bps、
2400 bps、4800 bps、9600bps and 19200 bps. The parity is None.
The meter needs shielded twisted pair conductors to connect. Customers should consider the
whole network’s parameters such like communication wire’s length, the direction, communication
transformer and network cover range, etc.
Note:
1、Wiring should follow the wiring requirements;
2、Connect all the meter in the RS485 net work even some do not need to communication,
which is benefit for error checking and testing;
3、Use two color wires in connecting wires and all the A port use the same color.
4、No longer than 1200 meters of RS485 bus line.
9.1 ADDR List
MODBUS-RTU protocol has 03H and 10H command to read and write registers respectively.
The following chart is registers’address list:

- 12 -
Table 8 communication address list
Address
Variable
Length
R/W
Notes
0000H
Current total active energy
4
R
0002H
Current spike active energy
4
R
0004H
Current peak active energy
4
R
0006H
Current flat active energy
4
R
0008H
Current valley active energy
4
R
000AH
Current forward active total energy
4
R
000CH
Current forward active spike energy
4
R
000EH
Current forward active peak energy
4
R
0010H
Current forward active flat energy
4
R
0012H
Current forward active valley energy
4
R
0014H
Current reversing active total energy
4
R
0016H
Current reversing active spike energy
4
R
0018H
Current reversing Active peak energy
4
R
001AH
Current reversing active flat energy
4
R
001CH
Current reversing Active valley energy
4
R
001EH
Current total reactive energy
4
R
kVarh。
Int
Keep 2 decimal places
0020H
Current reactive spike energy
4
R
0022H
Current reactive peak energy
4
R
0024H
Current reactive flat energy
4
R
0026H
Current reactive valley energy
4
R
0028H
Current forward reactive total energy
4
R
002AH
Current forward reactive spike energy
4
R
002CH
Current forward reactive peak energy
4
R
002EH
Current forward reactive flat energy
4
R
0030H
Current forward reactive valley energy
4
R
0032H
Current reversing reactive total energy
4
R
0034H
Current reversing reactive spike
energy
4
R
0036H
Current reversing reactive peak energy
4
R
0038H
Current reversing reactive flat energy
4
R
003AH
Current reversing reactive valley
energy
4
R
003CH
Time：second、minute
2
R/W
003DH
Time：hour、day
2
R/W
003EH
Time：month、year
2
R/W
003FH
First communication path：
Address（high 8 bit）
Baud（low 8 bit）
2
R/W
baud：
0：1200
1：2400
2：4800
3：9600
4：19200

- 13 -
0040H
pulse constant
2
R
0041H
First time zone address
First time zone start data:day
2
R/W
Time zone number：
1：First time zone
2：Second time zone
0042H
First time zone start data:month
Second time zone address
2
R/W
0043H
Second time zone start data:day
Second time zone start data:month
2
R/W
0044H
Third time zone address
Third time zone start data:day
2
R/W
0045H
Third time zone start data:month
Fourth time zone address
2
R/W
0046H
Fourth time zone start data:day
Fourth time zone start data:month
2
R/W
0047H-0060H
reserve
0061H
Voltage of A phase
2
R
Resolution：0.1V
0062H
Voltage of B phase
2
R
0063H
Voltage of C phase
2
R
0064H
Current of A phase
2
R
Resolution：0.01A
0065H
Current of B phase
2
R
0066H
Current of C phase
2
R
0067H
Active power of A phase
2
R
Complement form
Resolution：0.001kWh
0068H
Active power of B phase
2
R
0069H
Active power of C phase
2
R
006AH
Total active power
2
R
006BH
Reactive power of A phase
2
R
Complement form
Resolution：0.001KVar
006CH
Reactive power of B phase
2
R
006DH
Reactive power of C phase
2
R
006EH
Total reactive power
2
R
006FH
Apparent power of A phase
2
R
Complement form
Resolution：0.001KVA
0070H
Apparent power of B phase
2
R
0071H
Apparent power of C phase
2
R
0072H
Total apparent power
2
R
0073H
Power factor of A phase
2
R
Complement form
Resolution：0.001
0074H
Power factor of B phase
2
R
0075H
Power factor of C phase
2
R
0076H
Total power factor
2
R
0077H
frequency
2
R
Resolution：0.01
0078H
Voltage between A-B
2
R
0079H
Voltage between C-B
2
R
007AH
Voltage between A-C
2
R

- 14 -
007BH
Forward active maximum demand
2
R
Resolution：0.001
007CH
Time of occurrence for the forward
active maximum amount:minute、hour
2
R
007DH
Time of occurrence for the forward
active maximum amount:day、month
2
R
007EH
Reversing active maximum demand
2
R
007FH
Time of occurrence for the Reversing
active maximum demand
amount:minute、hour
2
R
0080H
Time of occurrence for the Reversing
active maximum demand amount:day、
month
2
R
0081H
Maximum forward demand for
reactive power
2
R
0082H
Time of occurrence for the forward
reactive maximum amount:minute、
hour
2
R
0083H
Time of occurrence for the forward
reactive maximum amount:day、month
2
R
0084H
Maximum reversing demand for
reactive power
2
R
0085H
Time of occurrence for the reversing
reactive maximum amount:minute、
hour
2
R
0086H
Time of occurrence for the reversing
reactive maximum amount:day、month
2
R
0087H
Forward active energy of A phase
4
R
0089H
Forward active energy of B phase
4
R
008BH
Forward active energy of C phase
4
R
008DH
PT
2
R/W
008EH
CT
2
R/W
008FH
Reserve
2
R
0090H
Reserve
2
R
0091H
Running state
2
R/W
0092H
Zero sequence current
2
R
0093H
Voltage imbalance
2
R
Int
Resolution：0.001
0094H
Current imbalance
2
R
0095H
First communication path：
Address（high 8 bit）
Baud（low 8 bit）
2
R/W
parity bit：
0：None
1：Odd
2：Even）
stop bit：
0：1one stop bit

- 15 -
1：2two stop bit
0096H-0098H
Reserve
009FH-00A5H
reserve
00A6H
Code
2
R/W
1-9999
00A7H-00B1
reserve
00B2H
...
00BAH
9-14 period of time Parameters setting
information
The first time list
00BBH
...
00C3H
9-14 period of time Parameters setting
information
The second time list
00C4H-00C9H
Reserve
00CAH
The back light time
2
R/W
0-255minutes，more
than 250 stay light-on
00CBH-0120H
reserve
0121H
Daily frozen time:Hour
2
R/W
0122H
Monthly frozentime:day、hour
2
R/W
0123H-0163H
Reserve
0164H
Active power of A phase
4
R
Complement form
Resolution：0.0001KW
0166H
Active power of B phase
4
R
0168H
Active power of C phase
4
R
016AH
Total active power
4
R
016CH
Reactive power of A phase
4
R
Complement form
Resolution：
0.0001kvarh
016EH
Reactive power of B phase
4
R
0170H
Reactive power of C phase
4
R
0172H
Total reactive power
4
R
0174H
Apparent power of A phase
4
R
Complement form
Resolution：
0.0001KVA
0176H
Apparent power of B phase
4
R
0178H
Apparent power of C phase
4
R
017AH
Total apparent power
4
R
017CH-017FH
reserve
0180H
Maximum forward active demand a
day
2
R
0181H
Occur time:minute、hour
2
R
0182H
Maximum reversing active demand a
day
2
R
0183H
Occur time:minute、hour
2
R
0184H
Maximum forward reactive demand a
day
2
R
0185H
Occur time:minute、hour
2
R

- 16 -
Resolution：0.001
Occur time:minute、
hour
0186H
Maximum reversing reactive demand a
day
2
R
0187H
Occur time:minute、hour
2
R
0188H
Maximum forward active demand last
day
2
R
0189H
Occur time:minute、hour
2
R
018AH
Maximum reversing active demand
last day
2
R
018BH
Occur time:minute、hour
2
R
018CH
Maximum forward reactive demand
last day
2
R
018DH
Occur time:minute、hour
2
R
018EH
Maximum reversing reactive demand
last day
2
R
018FH
Occur time:minute、hour
2
R
0190H
Maximum forward active demand last
2 days
2
R
0191H
Occur time:minute、hour
2
R
0192H
Maximum reversing active demand
last 2 days
2
R
0193H
Occur time:minute、hour
2
R
0194H
Maximum forward reactive demand
last 2 days
2
R
0195H
Occur time:minute、hour
2
R
0196H
Maximum reversing reactive demand
last 2 days
2
R
0197H
Occur time:minute、hour
2
R
0198H
Current forward active demand
2
R
0199H
Current reversing active demand
2
R
019AH
Current forward reactive demand
2
R
019BH
Current reversing reactive demand
2
R
019BH-01FFH
Reserve
0200H
Maximum voltage on A phase
2
R
0201H
Occur date：month、day
2
R
0202H
Occur time：hour、minute
2
R
0203H
Maximum voltage on B phase and
occur time
6
R
0206H
Maximum voltage on C phase and
occur time
6
R
0209H
Maximum current on A phase and
occur time
6
R
020CH
Maximum current on B phase and
6
R
