Acrel DTSD1352 Owner's manual

201
DTSD1352
安装使用说明书 V2.0（阳光电源定制）
Installation and operation instruction V2.0
ACREL Co.,Ltd

申明 Declare
版权所有，未经本公司之书面许可，此手册中任何段落、章节内
容均不得摘抄、拷贝或以任何形式复制、传播，否则一切后果由违者
自负。
本公司保留一切法律权利。
The copyright is the property of Acrel. Any information in any
paragraph or section cannot be extracted, copied or otherwise reproduced
or propagated. Otherwise offenders shall take all consequences.
All rights are reserved.
本公司保留对本手册所描述之产品规格进行修改的权利，恕不另
行通知。订货前，请垂询当地代理商以获悉本产品的最新规格。
Acrel reserves the right to modify the product specifications herein
without notification. Please consult the local agent about the latest
specifications before placing a purchase order.

目录 Content
1 概述 General.............................................................................................................................1
2 型号说明 Type description......................................................................................................1
3 产品功能 Function description...............................................................................................1
4 技术参数 Technical parameter ...............................................................................................3
5 外形尺寸 Dimension drawings................................................................................................4
6 接线与安装 Wiring and installing ..........................................................................................4
7 主要功能特点 Function description .......................................................................................6
8操作与显示 Operation and display.........................................................................................8
9 通信说明 Communication description.................................................................................12
10 铭牌与包装 Nameplate & Packaging...................................................................................31

1
1 概述 General
DTSD1352 导轨式多功能电能表，是主要针对电力系统，工矿企业，公用设施的电能统
计、管理需求而设计的一款智能仪表，产品具有精度高、体积小、安装方便等优点。集成全
部电力参数测量及全面的电能计量及考核管理，提供上 12 月的各类电能数据统计。具有 31
次分次谐波与总谐波含量检测，带有开关量输入和开关量输出可实现“遥信”和“遥控”功
能，并具备报警输出。带有 RS485 通信接口，可选用 MODBUS-RTU。该电力仪表可广泛应
用于各种控制系统，SCADA 系统和能源管理系统中。性能指标符合国标 IEC62053-21、
IEC62053-22 对电能表的各项技术要求。
DTSD1352 is a smart meter designed for power supply system, industrial and mining
enterprises and utilities to calculate the electricity consumption and manage the electric demand. It
features the high precision, small size and simple installation. It integrates the measurement of all
electrical parameters with the comprehensive electricity metering and management provides
various data on previous 12 months, checks the 31st harmonic content and the total harmonic
content, realizes the remote communication and the remote control with switching input and relay
output and boasts the alarm output. It is fitted with RS485 communication port and adapted to
MODBUS-RTU. DTSD1352 can be used in all kinds of control systems, SCADA systems and
energy management systems. All meters meet the related technical requirements of electronic
power meter in the IEC62053-21、IEC62053-22 standards.
2 型号说明 Type description
DTSD1352
C：RS485
F：Multi-tariff energy
K：1DI1DO
T：3 outlay NTC temperature
measurement
H：Harmonic Measurement
2C：The second RS485
3 产品功能 Function description
功能
Function
功能说明
Function description
功能配置
Function provide
电能计量
Measurement of kWh
有功电能计量（正、反向）
Active kWh (positive and negative)
■
无功电能计量（正、反向）
Reactive kWh (positive and negative)
■
A、B、C分相正向有功电能
A, B, C phase positive active kWh
■
电量测量
U、I、P、Q、S、PF、F
■

2
Measurement of
electrical parameters
■
谐波测量
Measurement of
2~31 次谐波电压电流
2~31ST Voltage and current harmonic
□注 Note 1
LCD 显示
LCD Display
8位段式 LCD 显示、背光显示
8 bits section LCD display, background light
■
按键编程
Key programming
4按键可编程通信、变比等参数
4 keys to communication and set parameters
■
脉冲输出
Pulse output
有功脉冲输出
Active pulse output
■
无功脉冲输出
Reactive pulse output
□注 Note 2
时钟脉冲输出
Clock pulse output
□注 Note 2
LED 报警
LED alarm
失压、过压报警
Alarm on voltage loss and overvoltage
■
复费率及附带功能
Multi-tariff and
functions
有源开关量输入
Active switch input
□注 Note 3
开关量输出
Switch output
□注 Note 2
支持 4个时区、2个时段表、
14 个日时段、4个费率
Adapt 4 time zones, 2 time interval lists, 14
time interval by day and 4 tariff rates
□
最大需量及发生时间
Max demanded kWh and time happened
□
上48 月、上 90 日历史冻结数据
Frozen data on last 48 months, last 90days
□
日期、时间
Date, time
□
通讯
Communication
红外通讯
Infrared communication
■
第一路通讯：RS485 接口，
支持 Modbus
The first communication path:
Communication interface: RS485,
Communication protocol: MODBUS-RTU
□
第二路通讯：RS485 接口，
支持 Modbus
The second communication path:
Communication interface: RS485,
Communication protocol: MODBUS-RTU
□注 Note 3
测温
Temperature
支持 3外置 NTC 测温
Support 3 outlay NTC temperature
□注 Note 4

3
measurement
“■”表示标配, “□”表示选配 “■” means standard, “□” means optional
注：1：外置互感器规格时，谐波测量为标配，其余规格均为选配。
2：默认无功脉冲、时钟脉冲、开关量输出三选一；
3：有源开关量和第二路通讯二选一；
4：选配测温功能时 1、2所述选配功能均不可选。
Note:
1: Harmonic is a standard while choosing outlay transformer, optional for other situation.
2: Reactive pulse output, clock pulse output and switching output: Choose one of these
three.
3: Active switching, the second communication path: Choose one of these two.
4: Both 1 and 2 cannot be chosen while choosing temperature measurement.
4 技术参数 Technical parameter
规格
Specification
三相三线、三相四线
3 phase 3 wires, 3 phase 4 wires
电压
Voltage
参比电压
Reference voltage
3×100V、3×380V、3×57.7/100V、3×220/380V、3×
230/400V
测量范围
Measurement range
0.8Un~1.15Un
功耗
Consumption
<10VA(单相)(Single phase)
阻抗
Impedance
>2MΩ
精度等级
Accuracy class
误差 Error±0.2%
电流
Current
输入电流
Input current
3×1(6)A，3×1(6)A(互感器外置)(Outlay transformer)，3×
10(80)A
功耗
Consumption
<1VA(单路额定电流)(Single phase rated current)
精度等级
Accuracy class
误差 Error±0.2%
功率 Power
有功、无功、视在功率，误差±0.5℅
Active, reactive, apparent power, error±0.5℅
电网频率 Frequency
45～65Hz，误差 Error±0.2%
电能 Energy
有功电能（准确度等级 0.5S 级，1级）无功电能（准确度等
级2级）
Active energy(Accuracy class:0.5, 1), reactive energy(Accuracy
class 2)
时钟 Clock
≤0.5s/d
电量脉冲输出
Energy pulse output
1路有功光耦输出、1路无功光耦输出
1 active optocoupler output, 1 reactive optocoupler outpu
开关量输出
Switching output
1路开关量输出
1 Switching output
开关量输入
Switching input
1路光耦输入
1 optocoupler input
脉冲宽度
Width of pulse
80±20ms

4
脉冲常数
Pulse constant
6400imp/kWh,400imp/kWh（与基本电流对应）(Correspond
with the basic current)
接口与通信规约
Interface and communication
RS485：Modbus RTU
通信地址范围
Range of communication
address
Modbus RTU:1~ 255；
波特率 Baud rate
1200bps~19200bps
工作温度
Operation temperature
-30℃~+60℃
存储温度
Storage temperature
-30℃~+70℃
相对湿度
Relative humidity
≤95%（无凝露）(No condensation)

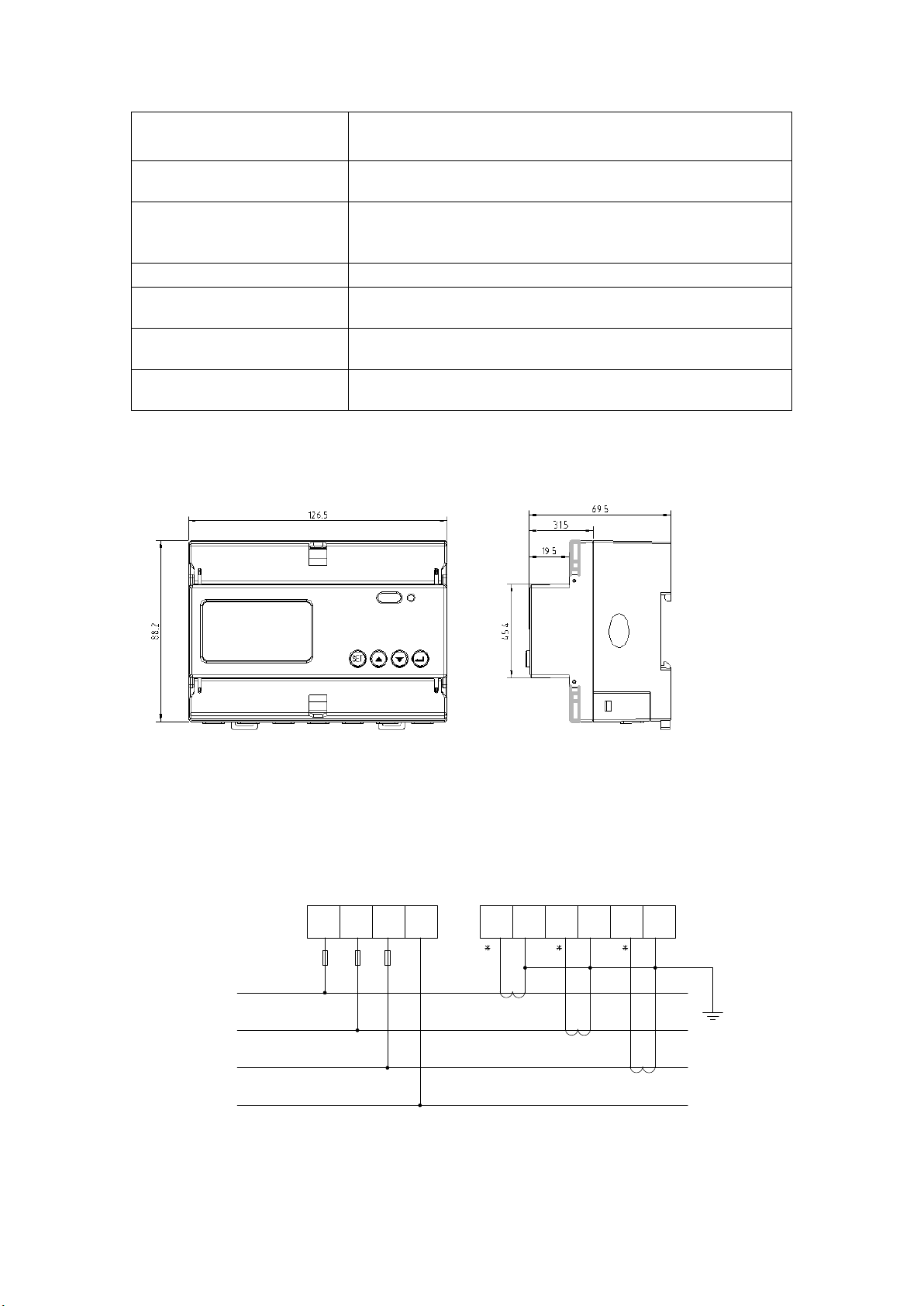

5 外形尺寸 Dimension drawings
图1 外形尺寸图（单位：mm）
Fig 1 Outline (unit: mm)
6 接线与安装 Wiring and installing
6.1 电压电流接线示意图 Wiring sample of voltage and current
Ua Ub Uc N Ia* Ia Ib* Ib Ic* Ic
A
B
C
N
图2 三相四线经互感器接入
Fig 2 Three phase four lines connect via CT

5

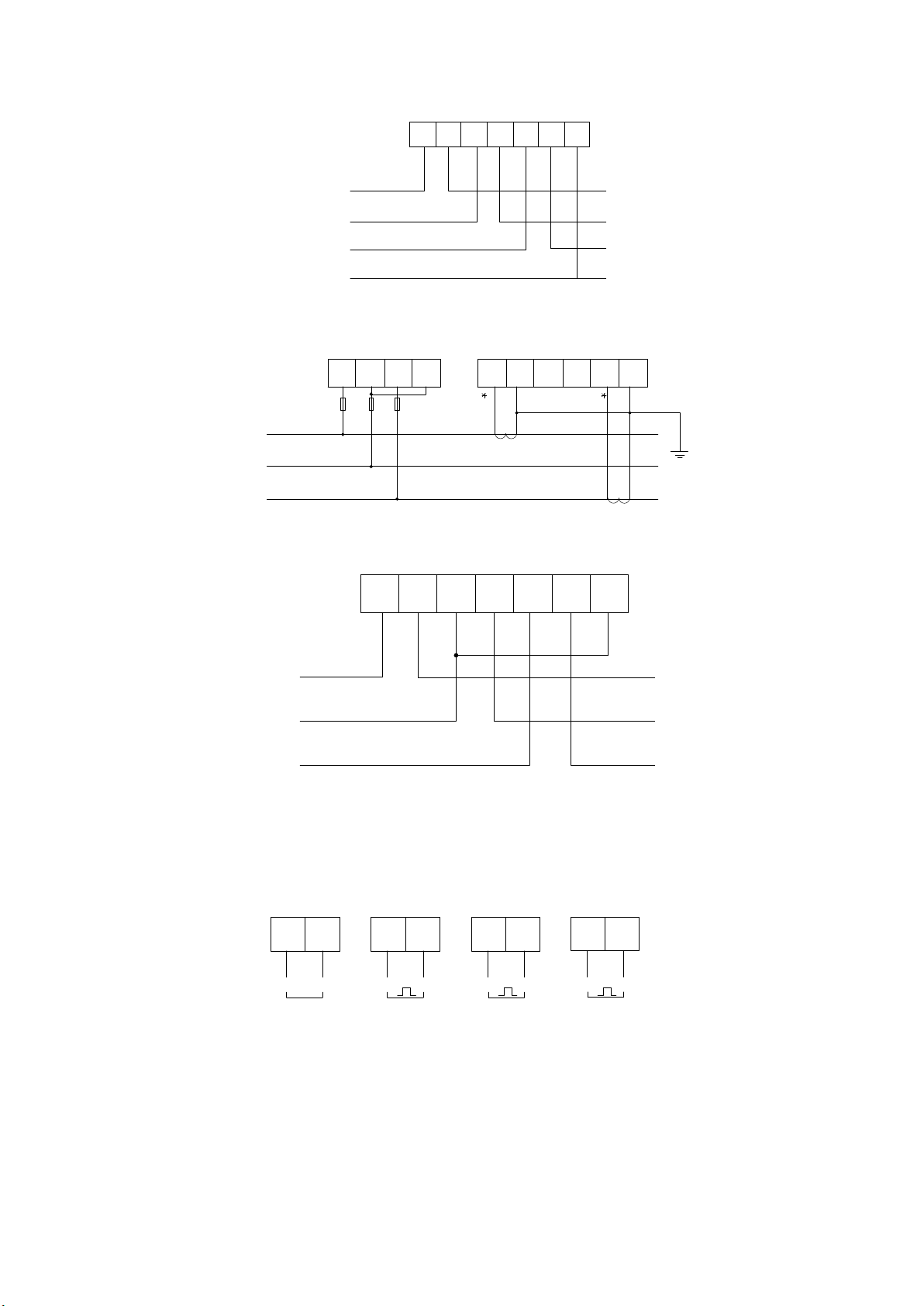

NL1 L1' L2 L2' L3 L3'
A
B
C
N
图3 三相四线直接接入
Fig 3 Three phase four lines direct connect
Ua Ub Uc Ia* Ia Ib* Ib Ic* Ic
A
B
C
N
图4 三相三线经互感器接入
Fig 4 Three phase three lines connect via CT
L1 L1' L2 L2' L3 L3'
A
B
C
N
图5 三相三线直接接入
Fig 5 Three phase three lines direct connect
6.2 开关量输入、输出、NTC 测温端子
Switching input, output, NTC temperature measurement.
21 22 17 18 15 16
A1 B1
1路通讯
Ep+
有功电能脉冲 时钟脉冲
Ep- TP+ TP-
19 20
无功电能脉冲
Eq+ Eq-
图6 通讯、脉冲接线
Fig 6 Communication, pulse connection

6

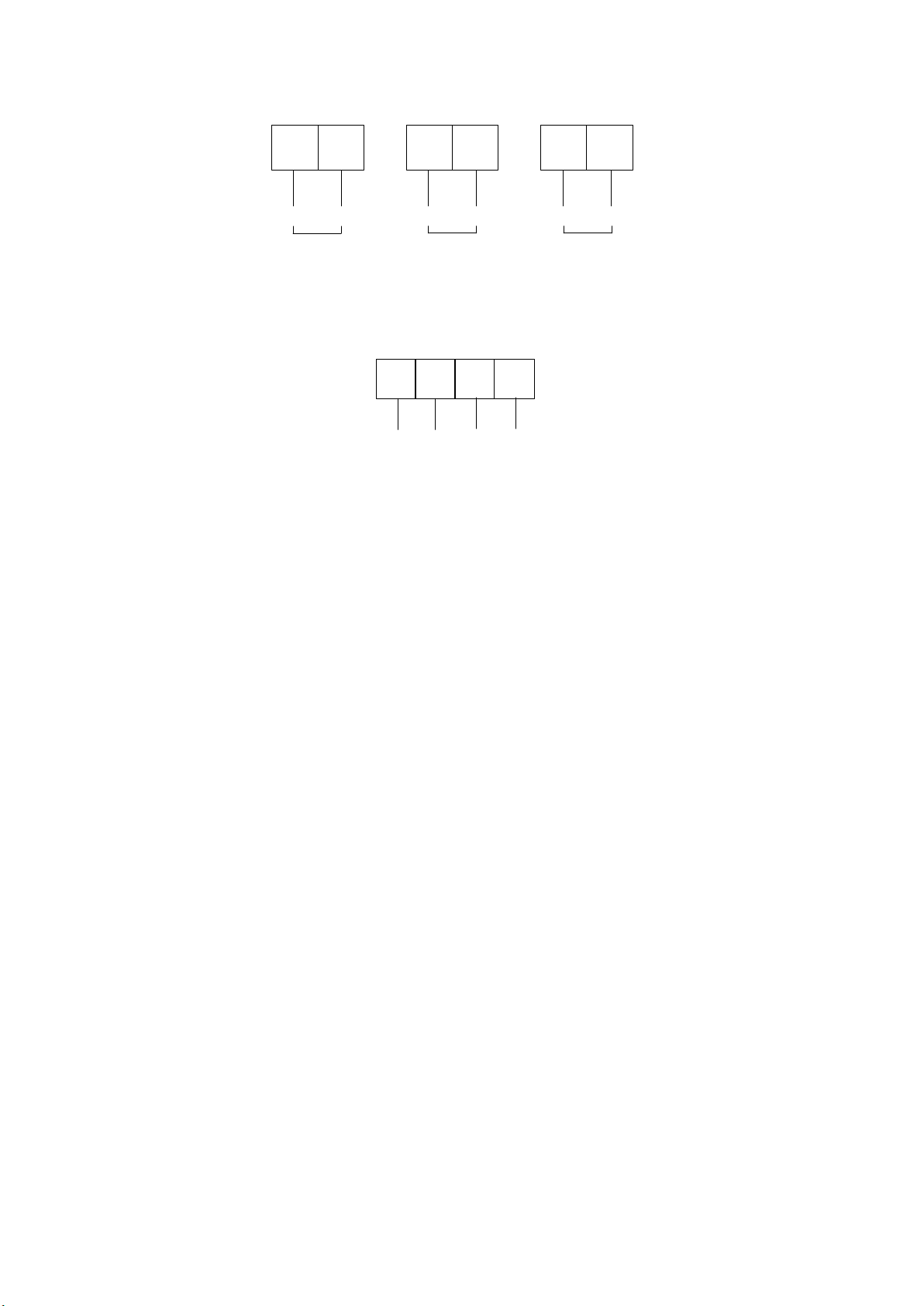

30 39 40 41
DI1 COM1
开关量输入 开关量输出
24 25
A2 B2
2路通讯
DO1+ DO1-
图7通讯、开关量接线
Fig 7 Communication, pulse connection
60 61
T2
62 69
T1 T3 COM
图8外置 NTC 测温
Fig 8 Outlay NTC temperature measurement
开关量输出为继电器输出，可实现“遥控”和报警输出。
开关量输入是采用开关信号输入方式，由外部电源供电。当外部接通或断开时，经过仪
表开关输入模块采集其接通或断开信息并通过仪表本地显示。开关量输入不仅能够采集和显
示本地的开关信息，同时可以通过仪表的 RS485 实现远程传输功能，即“遥信”功能。
Switching output is relay output, can achieve the remote-control and alarm output.
The switch input adapts the method of on-off signal input and powered by outer power supply.
It can be gotten by meter when there is a change of on or off via a switching input module. The
parameter of switching input can not only get and show the state of local switching information
but also achieve the communication via RS485, which called “remote information”function.
注：（17-18）有功电能脉冲，（21-22）RS485 通讯，（60-61-62-69）三路 NTC 测温
端口，（15-16）时钟脉冲、（19-20）无功电能脉冲、（40-41）开关量输出与（60-61）端
子复用，（24-25）2路通讯、（31-39）开关量输入与（62-69）端子复用。
Note: (17-18) are active energy pulse, (21-22) are RS485,(60,61,62,69) are NTC temperature
measurement port, (15,16) are clock pulse, (19,20) are reactive energy pulse, (40,41) are switch
output and multiplex with (60,61), (24,25) are 2 path of communication, (31,32) are switch input
and multiplex with (62,69).
7 主要功能特点 Function description
7.1 测量功能 Measurement
能测量全电力参数包括电压 U、电流 I、有功功率 P、无功功率 Q、视在功率 S、功率
因数 PF、频率、31 次分次谐波及总谐波含量。其中电压 U保留 1位小数，频率 F保留 2位
小数，电流 I保留 2位小数，功率 P保留 3位小数。
如：U = 220.1V，f = 49.98Hz, I = 1.99A，P = 0.439kW

7
The meter can measure all electrical parameters such as voltage, current, active power,
reactive power, apparent power, power factor, frequency, 31st harmonic and total harmonic. The
value format of voltage, current, frequency and power are listed as below.
Example: U = 220.1V，f = 49.98Hz, I = 1.99A，P = 0.439kW
7.2 计量功能 Calculating
能计量当前组合有功电能，正向有功电能，反向有功电能，正向无功电能，反向无功
电能。
The meter can calculate the current active energy, forward active energy, reversing active
energy, forward reactive energy and reversing reactive energy.
7.3 分时功能 Timing
两套时段表，一年可以分为 4个时区，每套时段表可设 8个日时段，4个费率(F1、F2、
F3、F4 即尖峰平谷) 。分时计费的基本思想就是把电能作为一种商品，利用经济杠杆，用
电高峰期电价高，低谷时电价低，以便削峰填谷，改善用电质量，提高综合经济效益。
The meter has 2 time lists, and can be divided into 4 time zones per year. Each time list can
be divided into 8 time periods and 4 tariff (F1、F2、F3、F4). The main purpose of multi-tariff is
promote the energy efficiency and economic benefits.
7.4 需量功能 Demand
有关需量的相关概念如下：
There are some definitions on demand:
需量
Demand
需量周期内测得的平均功率叫需量
The average power in the demand cycle.
最大需量
Maximum demand
在指定的时间区内需量的最大值叫最大需量
The maximum value of demand in a period of time.
滑差时间
Slip time
从任意时刻起，按小于需量周期的时间递推测量需量的方法，所
测得的需量叫滑差式需量。递推时间叫滑差时间
需量周期
Demand cycle
连续测量平均功率相等的时间间隔, 也叫窗口时间
The time period between two same average value of demand.
缺省需量周期为 15 分钟，滑差时间为 1分钟。
能测量 4种最大需量即正向有功、反向有功、感性无功、容性无功最大需量以及最大
需量发生的时间。
The default demand cycle is 15 minutes, slip time is 1 minute.
The meter can measure 4 kinds of maximum demand: forward active, reversing active,
inductance performance reactive, capacitance performance reactive maximum demand and the
occur time.
7.5 历史数据统计功能 History data statistics
能统计上 48 月的历史电能（各费率电能）和上 90 日的历史电能（各费率电能）。
The meter can record last 48 months or last 90 days history energy in each tariff.
7.6 开关量输入输出功能 Switching input and output
有一路开关量输出，一路开关量输入，开关量输出为继电器输出，可以实现“遥控”和

8
报警输出。开关量输入不仅能够采集和显示本地的开关信息，同时可以通过仪表的 RS485
实现远程传输功能，即“遥信”功能。
The switch input adapts the method of on-off signal input and powered by outer power supply.
It can be gotten by meter when there is a change of on or off via a switching input module. The
parameter of switching input can not only get and show the state of local switching information
but also achieve the communication via RS485, which called “remote information”function.
7.7 测温功能 Temperature measurement
支持三路外置 NTC 测温功能，测温范围为-40℃~99℃。
The meter support three path of outlay NTC temperature measurement, the range of
temperature is -40℃~99℃.
8 操作与显示 Operation and display
8.1 按键功能说明 Key function description
按键图标
Key symbol
按键名称
Key name
按键功能
Function
菜单键
Menu
进入/退出菜单
Enter/quit menu
电压电流类，向上键
Voltage and current, up
查看界面中查看电压电流
编程界面中左移及闪烁移位
Check the voltage and current
Leftward and change flash in
programming menu
功率类，向下键
Power, down
查看界面中查看功率
编程界面中右移及修改闪烁位
Check the power
Rightward and change the value on flash
电能类，编程确定键
Energy, enter
查看界面中查看电能
编程界面中确定保存设置
Check the energy
Enter in programming menu
8.2 显示界面 Display menu
上电后显示正向有功电能。可通过三类查看键实现翻屏显示。各类显示界面顺序说明如
下：
The meter will show the forward active energy after powering. The customers can change the
information showing by pressing the keys. The menu description is listed as below:
A相电压、B相电压、C相电压、A相电流、B相电流、C相电流、频率、
日期、时间、通信地址、软件版本号、全显检测；
Voltage on A, B, C phase, Current on A, B, C phase, Frequency, Date, Time,
Address, Version, Test on display
A相有功功率、B相有功功率、C相有功功率、总有功功率、A相无功功率、
B相无功功率、C相无功功率、总无功功率、A相视在功率、B相视在功率、

9
C相视在功率、总视在功率、A相功率因数、B相功率因数、C相功率因数、
总功率因数、正向有功最大需量、反向有功最大需量、正向无功最大需量、
反向无功最大需量；
Total active/reactive/apparent power and on A, B, C phase, Total power factor and
on A, B, C phase, Forward/reversing active/reactive maximum demand
正向有功总电能、反向有功总电能、正向无功总电能、反向无功总电能、正
向有功尖电能、正向有功峰电能、正向有功平电能、正向有功谷电能、反向
有功尖电能、反向有功峰电能、反向有功平电能、反向有功谷电能、正向无
功尖电能、正向无功峰电能、正向无功平电能、正向无功谷电能、反向无功
尖电能、反向无功峰电能、反向无功平电能、反向无功谷电能、A相正向有
功电能、B相正向有功电能、C相正向有功电能。
Total forward/reserving active/reactive energy, forward/reserving active/reactive
spike/peak/flat/valley energy, forward active energy onA, B, C phase.
说明：
1、以上所列为 DTSD1352 三相四线带有复费率功能的仪表所有显示界面名称，三个按
键可切换不同类型的显示内容，切换顺序如上所述；
2、对于 DTSD1352 三相三线的仪表，不显示分相功率与功率因数，只有总功率（有功、
无功、视在）和总功率因数。
3、对于 DTSD1352 不带有复费率功能的仪表，不显示日期、时间、各类最大需量及各
类的分时电能（即尖、峰、平、谷四种费率时段的电能）。
Note:
1 All the display menus above are in the model of DTSD1352 three phases four lines with
multi-tariff rate function and can be changed by the keys.
2 There will not be power or power factor on each phase and will only show total power and
power factor (Active, reactive, apparent) under the three phase three lines.
3 There will not be date, time, maximum demand and energy by time without the function of
multi-tariff rate.
当前正向有功总电量 12.34kWh
Current forward active energy 12.34kWh
当前反向有功总电量 12.34kWh
Current reversing active energy 12.34kWh

10

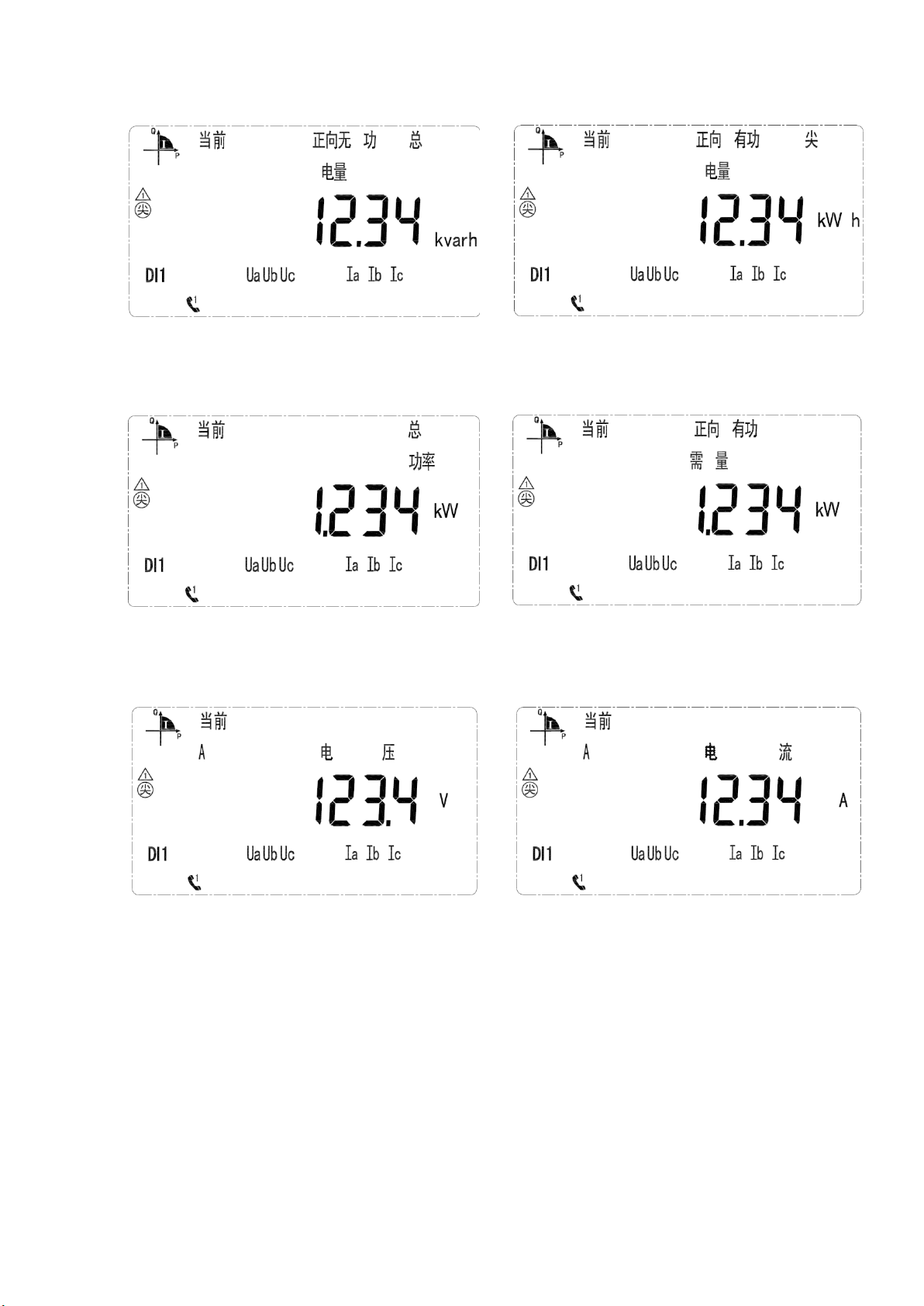

当前正向无功总电量 12.34kvarh
Current forward reactive energy 12.34kWh
当前正向有功尖电量 12.34kWh
Current forward active energy 12.34kWh
当前总功率 1.234kW
Current power is 1.234kW
当前正向有功需量 1.234kW
Current forward active demand is 1.234kW
当前 A相电压为 123.4V
Voltage on A phase is 123.4V
当前 A相电流为 12.34A
Current on A phase is 12.34A

11
当前 T1 温度为 25.5 摄氏度
Temperature on T1 is 25.5 cent degree
当前 T2 温度为 25.5 摄氏度
Temperature on T2 is 25.5 cent degree
当前 T3 温度为 25.5 摄氏度
Temperature on T3 is 25.5 cent degree
注：以上只是显示界面的一部分，其他界面显示模式与上图类似，可根据界面中显示的信息
来判断显示含义。
Note: There are parts of the display function, and other menus are familiar with the example above.
The customers can understand the meaning refer to the above examples.
8.3 编程界面 Key Menu
在测量显示菜单中的任一显示项下，按 可进入“PASS”界面，再按 显示
“0000”，提示输入密码后再按 ，若密码输入错误，则返回“0000”可重新输入；若
密码输入正确，则可进行参数设置。设置完成后按 进入“SAVE”界面，“YES”下
按 则保存后退出，“no”下按 则不保存直接退出。
Press at any main menu and get in “PASS”interface, and then press show
“0000”, and enter the code. If you enter a wrong code, it will show “fail”and back to main menu;
and if you enter a right code, you can set the parameter. After setting the parameter and press
, it will show “save”and save the change by pressing in “yes”interface and quit

12
without save by pressing in “no”interface.
8.4 可设置数据项 Data settings
序号
Num
一级菜单 First menu
二级菜单 Second menu
符号 Symbol
含义 Mean
符号 Symbol
含义 Mean
范围 Range
1
BUS
通讯设置
Communicati
on settings
ADDR
通讯地址设置
Address setting
1-247
Buad
波特率选择
Baud rate
19200、9600、
4800、2400、1200
Parity
校验选择
Parity
None、Even
2
SyS
系统设置
System
settings
PL
网络选择
Network
3P4L:三相四线
3 phase 4 lines
3P3L:三相三线
3 phase 3 lines
EF.E
复费率选择
Multi-tariff rate
EF:复费率
Multi-tariff rate
E:非复费率
No multi-tariff rate
CoDE
密码设置
Code setting
1-9999
LED
背光时间设置
Time of light
1-9999
3
In.
变比设置
Transformer
settings
Pt
电压变比
Voltage
transformer
1-9999
Ct
电流变比
Current
transformer
1-9999
注： Modbus 协议模式可进行 None、Even 切换
Note: Customers can choose None or Even under Modbus protocol,
9 通信说明 Communication description
仪表 RS485 通信接口支持 MODBUS-RTU 通信协议，通信口波特率可在 1200bps、2400
bps、4800 bps、9600bps 和19200 bps 之间设置，校验位为无校验。
仪表的 RS485 通信口要求使用屏蔽双绞线连接，布线时要考虑整个网络的布局：如通
信线缆的长度、走向、上位机的位置、网络末端的匹配电阻、通信转换器、网络可扩展性、
网络覆盖范围、环境的电磁干扰情况等因素，都要综合考虑。
The meter adapts MODBUS-RTU protocol, and the baud rate can be chosen from 1200bps、
2400 bps、4800 bps、9600bps and 19200 bps. The parity is None.

13
The meter needs shielded twisted pair conductors to connect. Customers should consider the
whole network’s parameters such like communication wire’s length, the direction, communication
transformer and network cover range, etc.
注：
在布线工程上要严格按要求施工；
对于暂时不需要通信的仪表都要将他们连接到 RS-485 网络上，以便于诊断和测试；
进行 RS-485 电缆连接时，尽量使用双色双绞线，所有的 485 通信口“A”端接同一种颜色，
“B”端接另一种颜色。
RS-485 总线(从上位机通信口开始到任一被连接的仪表终端通信口)长不超过 1200 米。
Note:
Wiring should follow the wiring requirements;
Connect all the meter in the RS485 net work even some do not need to communication, which is
benefit for error checking and testing;
Use two color wires in connecting wires and all the A port use the same color.
No longer than 1200 meters of RS485 bus line.
9.1 地址表 Address table
仪表支持 MODBUS-RTU 协议中的 03H 命令与 10H 命令，03H 为读多个寄存器，10H
为写多个寄存器，协议数据格式请自行查询。下表为仪表的寄存器地址表：
MODBUS-RTU protocol has 03H and 10H command to read and write registers respectively.
The following chart is registers’address list:
数据地址
Address
数据名称
Variable
长度
Length
读/写
R/W
备注
Notes
0000H
当前总有功电能
Current total electricity
4
R
0002H
当前总有功尖电能
Current spike electric energy
4
R
0004H
当前总有功峰电能
Current peak electric energy
4
R
0006H
当前总有功平电能
Current flat electric energy
4
R
0008H
当前总有功谷电能
Current valley electric energy
4
R
000AH
当前正向总有功电能
Current forward active total
electric energy
4
R
000CH
当前正向有功尖电能
Current forward active spike
4
R

14
electric energy
000EH
当前正向有功峰电能
Current forward active peak electric
energy
4
R
0010H
当前正向有功平电能
Current forward active flat electric
energy
4
R
0012H
当前正向有功谷电能
Current forward active valley
electric energy
4
R
0014H
当前反向有功总电能
Current reversing active total
electric energy
4
R
0016H
当前反向有功尖电能
Current reversing active spike
electric energy
4
R
0018H
当前反向有功峰电能
Current reversing Active peak
electric energy
4
R
001AH
当前反向有功平电能
Current reversing active flat
electric energy
4
R
001CH
当前反向有功谷电能
Current reversing Active valley
electric energy
4
R
001EH
当前总无功电能
Current total reactive electric
energy
4
R
0020H
当前总无功尖电能
Current total reactive spike
electric energy
4
R
0022H
当前总无功峰电能
4
R

15
Current total reactive peak electric
energy
0024H
当前总无功平电能
Current total reactive flat electric
energy
4
R
0026H
当前总无功谷电能
Current total reactive valley
electric energy
4
R
0028H
当前正向无功总电能
Current forward reactive total
electric energy
4
R
002AH
当前正向无功尖电能
Current forward reactive spike
electric energy
4
R
002CH
当前正向无功峰电能
Current forward reactive spike
electric energy
4
R
002EH
当前正向无功平电能
Current forward reactive flat
electric energy
4
R
0030H
当前正向无功谷电能
Current forward reactive valley
electric energy
4
R
0032H
当前反向无功总电能
Current reversing reactive total
electric energy
4
R
0034H
当前反向无功尖电能
Current reversing reactive spike
electric energy
4
R
0036H
当前反向无功峰电能
Current reversing reactive peak
electric energy
4
R
0038H
当前反向无功平电能
Current reversing reactive flat
electric energy
4
R
003AH
当前反向无功谷电能
Current reversing reactive valley
electric energy
4
R

16
003CH
日期时间 Date，time
6
R/W
003FH 高字节
第一路通讯通信地址
First communication path：Address
1
R/W
1～247
003FH 低字节
第一路通讯波特率
First communication path：Baud rate
1
R/W
1：9600pbs
2：4800pbs
3：2400pbs
4：1200pbs
0040H
脉冲常数 Pulse constant
2
R
0041H
…
0046H
4个时区
4 time zones
3×4
R/W
时区表
Time zone table
0047H
…
0052H
1-8时段参数设置信息
1-8period of time Parameters setting
information
3×8
R/W
第一套时段表
The first time list
0053H
…
0060H
1-9时段参数设置信息
1-9period of time Parameters setting
information
3×9
R/W
第二套时段表
The second time
list
0061H
A相电压 Voltage of A phase
2
R
0062H
B相电压 Voltage of B phase
2
R
0063H
C相电压 Voltage of C phase
2
R
0064H
A相电流 Electricity of A phase
2
R
0065H
B相电流 Electricity of B phase
2
R
0066H
C相电流 Electricity of C phase
2
R
0067H-0076H
保留 Reserve
2
R
0077H
频率 Frequency
2
R
0078H
A-B 线电压
Voltage between A-B
2
R
0079H
C-B 线电压
2
R

17
Voltage between C-B
007AH
A- C线电压
Voltage between A-C
2
R
007BH
正向有功最大需量
Forward active maximum demand
2
R
007CH
发生时间
Time of occurrence for the forward
active maximum amount
4
R
007EH
反向有功最大需量
Reversing active maximum demand
2
R
007FH
发生时间
Time of occurrence for the reversing
active maximum amount
4
R
0081H
正向无功最大需量
Maximum forward demand for reactive
power
2
R
0082H
发生时间
Time of occurrence for the forward
reactive maximum amount
4
R
0083H
反向无功最大需量
Maximum reversing demand for
reactive power
2
R
0085H
发生时间
Time of occurrence for the reversing
reactive maximum amount
4
R
0087H
A相正向有功电能
Forward active electric energy of A
phase
4
R
0089H
B相正向有功电能
Forward active electric energy of B
phase
4
R
008BH
C相正向有功电能
Forward active electric energy of C
phase
4
R
008DH
电压变比 PT
Voltage transfer
2
R/W
