Acromag AP57X User manual

AP57X Cable Breakout
(5028-621)
USER’S MANUAL
ACROMAG INCORPORATED
30765 South Wixom Road
Wixom, MI 48393-2417 U.S.A.
Tel: [phone]
Fax: [phone]
Copyright 2018, Acromag, Inc., Printed in the USA.
Data and specifications are subject to change without notice.
8501142A

AP57X Cable Breakout
USER’S MANUAL
Acromag, Inc. Tel: [phone] - 1 -
http://www.acromag.com
- 1 -
www.acromag.com
Table of Contents
Table of Contents
1.0 GENERAL INFORMATION..........................................................................................2
1.1 Intended Audience .......................................................................................................2
1.2 Preface.........................................................................................................................2
1.2.1 Trademark, Trade Name and Copyright Information .................................................................. 2
1.2.3 Environmental Protection Statement ......................................................................................... 2
1.3 AcroPack AP57X Cable Breakout Information................................................................2
1.3.1 Ordering Information ................................................................................................................. 3
2.0 PREPARATION FOR USE..............................................................................................4
2.1 Unpacking and Inspecting.............................................................................................4
2.2 Field I/O Connectors.....................................................................................................4
Table 2.1 Field I/O Connector Pin Assignments ..................................................................................... 5
FIGURE 1 CONNECTOR LOCATIONS .................................................................................6
3.0 SPECIFICATIONS............................................................................................................7
3.1 Physical ........................................................................................................................7
CERTIFICATE OF VOLATILITY ...........................................................................................8
REVISION HISTORY ...............................................................................................................8

AP57X Cable Breakout
USER’S MANUAL
Acromag, Inc. Tel: [phone] - 2 -
http://www.acromag.com
- 2 -
www.acromag.com
1.0 GENERAL INFORMATION
1.1 Intended Audience
This users’ manual was written for technically qualified personnel who will
be working with I/O devices using the AcroPack module. It is not intended
for a general, non-technical audience that is unfamiliar with I/O devices and
their application.
1.2 Preface
The information contained in this manual is subject to change without
notice, and Acromag, Inc. (Acromag) does not guarantee its accuracy.
Acromag makes no warranty of any kind with regard to this material,
including, but not limited to, the implied warranties of merchantability and
fitness for a particular purpose. Further, Acromag assumes no responsibility
for any errors that may appear in this manual and makes no commitment to
update, or keep current, the information contained in this manual. No part
of this manual may be copied or reproduced in any form, without the prior
written consent of Acromag,
1.2.1 Trademark, Trade Name and Copyright Information
© 2018 by Acromag Incorporated.
All rights reserved. Acromag and Xembedded are registered trademarks of
Acromag Incorporated. All other trademarks, registered trademarks, trade
names, and service marks are the property of their respective owners.
1.2.2 Environmental Protection Statement
This product has been manufactured to satisfy environmental protection
requirements where possible. Many components used (structural parts,
circuit boards, connectors, etc.) are capable of being recycled. Final
disposition of this product after its service life must be conducted in
accordance with applicable country, state, or local laws or regulations.
1.3 AcroPack AP57X Cable Breakout Information
The AP57X Cable Breakout panel will mate directly to all 68-pin AcroPack
Carriers. The breakout panel and short 68-pin male to male 1 foot cable
(seen below) will bring the 1553 primary, secondary, IRIG, Trigger, and
Discrete signals from the AP571/2 module out to the field.

AP57X Cable Breakout
USER’S MANUAL
Acromag, Inc. Tel: [phone] - 3 -
http://www.acromag.com
- 3 -
www.acromag.com
1.3.1 Ordering Information
The AcroPack ordering options are given in the following table.
Model Number
Description
5028-621
AP5X Cable Breakout Panel
Note 1: Operating temperature range for models:-40oCto 85oC.

AP57X Cable Breakout
USER’S MANUAL
Acromag, Inc. Tel: [phone] - 4 -
http://www.acromag.com
- 4 -
www.acromag.com
2.0 PREPARATION FOR USE
IMPORTANT PERSONAL AND PRODUCT SAFETY CONSIDERATIONS
It is very important for the user to consider the possible safety implications
of power, wiring, component, sensor, or software failures in designing any
type of control or monitoring system. This is especially important where
personal injury or the loss of economic property or human life is possible. It
is important that the user employ satisfactory overall system design. It is
understood and agreed by the Buyer and Acromag that this is the Buyer's
responsibility.
WARNING: This interfaces to boards with static sensitive components and
should only be interconnected at a static-safe workstation.
2.1 Unpacking and Inspecting
Upon receipt of this product, inspect the shipping carton for evidence of
mishandling during transit. If the shipping carton is badly damaged or water
stained, request that the carrier's agent be present when the carton is
opened. If the carrier's agent is absent when the carton is opened and the
contents of the carton are damaged, keep the carton and packing material
for the agent's inspection.
For repairs to a product damaged in shipment, refer to the Acromag Service
Policy to obtain return instructions. It is suggested that salvageable shipping
cartons and packing material be saved for future use in the event the
product must be shipped.
2.2Field I/O Connectors
The AP57X breakout panel provides a mating interface between the AP
modules via the carrier board 68 pin field I/O connector. The 100 pin ST5-
50-1.50-L-D-P-TR Samtec connector is used on the AcroPack card as board to
board interconnect. This connector will mate with the 100 pin SS5-50-3.00-
L-D-K-TR Samtec connector on the carrier. The stack height is 4.5mm.

AP57X Cable Breakout
USER’S MANUAL
Acromag, Inc. Tel: [phone] - 5 -
http://www.acromag.com
- 5 -
www.acromag.com
Pin assignments are unique to each AP model. Table 2.1 lists signal pin
assignments for the module field I/O connector.
Table 2.1 Field I/O Connector Pin Assignments
Field I/O Signal
AP57X Cable Breakout
AcroPack
Module ST5
Pin Number
J1
15PIN DB151
J2
Secondary
Female
Jack2
J3
Primary
Female
Jack3
J4
68 Pin Champ
Carrier
Connector4
MIL_CH1_PRI_PAD_N
1 Outer
1
2
MIL_CH1_PRI_PAD_P
2 Center Tap
35
1
MIL_CH1_SEC_PAD_N
1 Outer
2
6
MIL_CH1_SEC_PAD_P
2 Center Tap
36
5
GND
3
10
GND
C
37
9
IRIG_CON_OUT
15
6
22
IRIG_CON_IN
8
40
21
Trigger_OUT1
10
7
26
Trigger_IN1
12
41
25
DISC_IO1
3
8
30
DISC_IO2
4
42
29
DISC_IO3
5
9
34
DISC_IO4
6
43
33
GND
10
38
GND
44
37
GND
11
42
GND
45
41
RT_ADR2_IN
2
19
74
RT_ADR1_IN
1
53
73
GND
21
82
GND
55
81
Notes (2.1):
1. J1 –15PIN DB15 Manufacturer Name: KYCON Part: K66X-E15S-N-VESA
2. J2 –Secondary Female Jack Manufacturer Name: MILESTEK Part: CBBJR79
3. J3 –Primary Female Jack Manufacturer Name: MILESTEK Part: CBBJR79
4. J4 –Carrier Field I/O 68-pin Champ Manufacturer Name: TE Connectivity Part: 5796055-1

AP57X Cable Breakout
USER’S MANUAL
Acromag, Inc. Tel: [phone] - 6 -
http://www.acromag.com
- 6 -
www.acromag.com

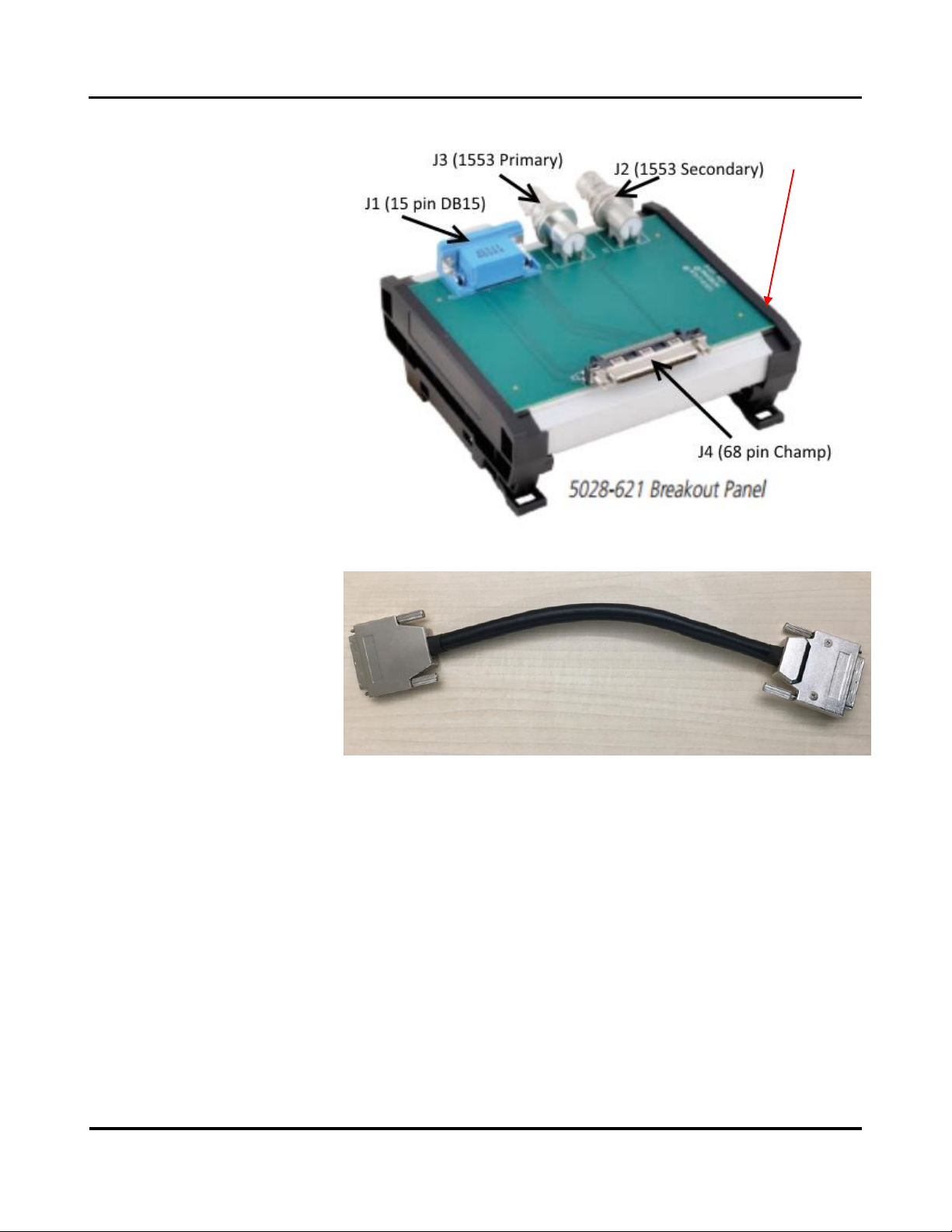

Figure 1 Connector Locations
Figure 2 Male to Male 1 foot
cable
Signal Descriptions:
See the AME1553-1-AP Hardware Manual for detailed description of the
field I/O signals.

AP57X Cable Breakout
USER’S MANUAL
Acromag, Inc. Tel: [phone] - 7 -
http://www.acromag.com
- 7 -
www.acromag.com
3.0 SPECIFICATIONS
3.1 Physical
Height: 54 mm (2.126 in)
Height defines feet bottom to top of J2 and J3 connectors
Length: 101.73 mm (4.01 in)
Width: 72.26 mm (2.84 in)
Weight Breakout Panel: 4.832 oz (136.984 g)
Weight Cable 4.0912 oz (115.984 g)
Unit Weight (does not include shipping material

AP57X Cable Breakout
USER’S MANUAL
Acromag, Inc. Tel: [phone] - 8 -
http://www.acromag.com
- 8 -
www.acromag.com
Certificate of Volatility
Acromag Model
5028-621
AP57X Breakout Panel
Manufacturer:
Acromag, Inc.
30765 Wixom Rd
Wixom, MI 48393
Volatile Memory
Does this product contain Volatile memory (i.e. Memory of whose contents are lost when power is removed)
□Yes ■No
Non-Volatile Memory
Does this product contain Non-Volatile memory (i.e. Memory of whose contents is retained when power is removed)
□Yes ■No
Acromag Representative
Name:
Russ Nieves
Title:
Sales and Marketing
Email:
[email protected]
Office Phone:
248-295-0310
Office Fax:
248-624-9234
Revision History
Release Date
Version
EGR/DOC
Description of Revision
07 NOV 2018
A
LMP/MJO
Initial Acromag release.
