HP 16089A Operation manual

HP 16089A, B, CKelvin Clip Leads
HP 16089D Alligator Clip Leads
Operation and Service Manual
mrjm Hewlett
mf/!M PACKARD
HP Part No. 16089-90000
Microfiche Part No. 16089-90050
Printed in JAPAN November, 1991

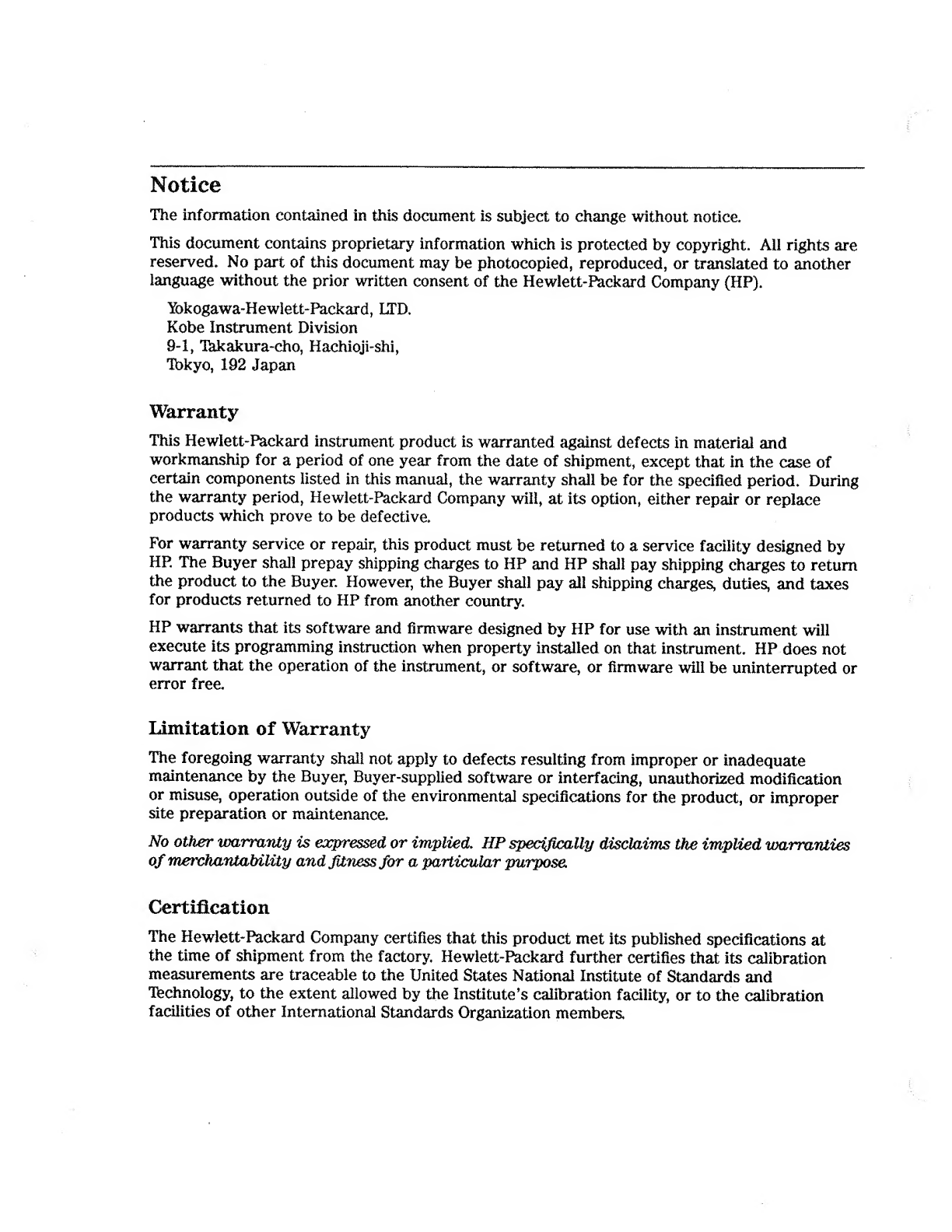

Notice
The information contained in this document is subject to change without notice.
This document contains proprietary information which is protected by copyright. All rights are
reserved. No part of this document may be photocopied, reproduced, or translated to another
language without the prior written consent of the Hewlett-Packard Company (HP).
Yokogawa-Hewlett-Packard, LTD.
Kobe Instrument Division
9-1, Takakura-cho, Hachioji-shi,
Tbkyo, 192 Japan
Warranty
This Hewlett-Packard instrument product is warranted against defects in material and
workmanship for aperiod of one year from the date of shipment, except that in the case of
certain components listed in this manual, the warranty shall be for the specified period. During
the warranty period, Hewlett-Packard Company will, at its option, either repair or replace
products which prove to be defective.
For warranty service or repair, this product must be returned to aservice facility designed by
HP. The Buyer shall prepay shipping charges to HP and HP shall pay shipping charges to return
the product to the Buyer. However, the Buyer shall pay all shipping charges, duties, and taxes
for products returned to HP from another country.
HP warrants that its software and firmware designed by HP for use with an instrument will
execute its programming instruction when property installed on that instrument, HP does not
warrant that the operation of the instrument, or software, or firmware will be uninterrupted or
error free.
Ldmitation of Warranty
The foregoing warranty shall not apply to defects resulting from improper or inadequate
maintenance by the Buyer, Buyer-supplied software or interfacing, unauthorized modification
or misuse, operation outside of the environmental specifications for the product, or improper
site preparation or maintenance.
No other warrarUy is expressed or implied. HPspecifically disclaims the implied toarranties
ofmerchantability and fitness for aparticular purpose.
Certification
The Hewlett-Packard Company certifies that this product met its published specifications at
the time of shipment from the factory. Hewlett-Packard further certifies that its calibration
measurements are traceable to the United States National Institute of Standards and
Tfechnology, to the extent allowed by the Institute’s calibration facility, or to the calibration
facilities of other International Standards Organization members.

Exclusive Remedies
The remedies provided herein are the buyer's sole and exclusive remedies. HPshall not be
liablefor any direct, indirect, special, incidental, or consequential damages, whether based on
contract, tort, or any other legal theory.
Assistance
Product maintenance agreements and other customer assistance agreements are available for
Hewlett-Packard products.
If you need assistance, contact your nearest Hewlett-Packard Sales and Service Office.
Addresses are provided at the back of this manual.
©Copyright 1991, Yokogawa-Hewlett-Packard, LTD.

Manual Printing History
The manual printing date and part number indicate its current edition. The printing date
changes when anew edition is printed. (Minor corrections and updates which are incorporated
at reprint do not cause the date to change.) The manual part number changes when extensive
technical changes are incorporated.
November 1991 First Edition

Safety Siimmary
The following general safety precautions must be observed during all phases of operation,
service, and repair of this instrument. Failure to comply with these precautions or with specific
WARNINGS given elsewhere in this manual violates safety standards of design, manufacture,
and intended use of the instrument.
The Hewlett-Rickard Company assumes no liability for the customer'sfailure to comply with
these requirements.
Do NOT operate in an Explosive Atmosphere
Do not operate the instrument in the presence of flammable gasses or fumes Operation of any
electrical instrument in such an environment constitutes asafety hazard.
Keep Away from Live Circuits
Operating personnel must not remove instrument covers Component replacement and
internal adjustments must be made only by qualified maintenance personnel. Do not replace
components with the power cable connected. Under certain conditions, dangerous voltages
may exist even with the power cable removed, lb avoid irgury, always disconnect power and
discharge circuits before touching them.
Do NOT Service or Adjust While Alone
Do not attempt internal service or adjustment unless another person, capable of turning ofl"
power and capable of rendering first aid and resuscitation, is present.
Do NOT Substitute Parts or Modify Instrument
Because of the danger of introducing additional hazards, do not substitute parts or perform
unauthorized modifications to the instrument. Return the instrument to aHewlett-Packard
Sales and Service Office for service and repair to ensure the safety features are maintained.
Dangerous Procedure Warnings
Warnings, such as the example below, precede POTENTJALLY DANGEROUS PROCEDURES
throughout this manual. Instructions contained in the warnings must be followed.
Warning
0
Dangerous voltages, capable of causing death, are present in this
instrument. Use extreme caution when handling, testing, and adjusting
this instrument.

Safety Symbols
Genera] definitions of safety symbols used on equipment or in manuals.
±,
Instruction manual symbol: the product will be marked with this symbol when
it is necessary for the user to refer to the instruction manual in order to
protect against damage to the instrument.
Indicates dangerous voltage (terminals fed from the interior by voltage
exceeding 1000 volts must be so marked).
Protective ground terminal. For protection against electrical shock in case of
afault in the instrument. Used with wiring terminals to indicate the terminal
which must be connected to ground before operating equipment.
Low-noise or noiseless, clean ground (earth) terminal. Used for asignal
common, as well as providing protection against electrical shock in case
of afault in the instrument. Aterminal marked with this symbol must be
connected to ground in the manner described in the installation (Operation)
manual, and before operating the equipment.
Frame or chassis terminal. Aconnection to the frame (chassis) of the
equipment which normally includes all exposed metal structures
Alternating current (power line).
Direct current (power line).
Alternating or direct current (power line).
Warning
Caution
Note
<0
Warning denotes ahazard. It calls attention to aprocedure, practice, condition
or the like, which, if not correctly performed or adhered to, could result in
injury or death to personnel.
Caution sign denotes ahazard. It calls attention to aprocedure, practice,
condition or the like, which, if not correctly performed or adhered to, could
result dxinmge to or destruction of part or all of the product.
Note denotes important information. It calls attention to aprocedure, practice,
condition or the like, which is essential to highlight.

Contents
1. General Information
Introduction
Using the HP 16089A, B, C, D!.!! .
Product Description
Accessories Supplied
Operating and Safety Precautions
Operating
Service
Specifications
Common Specifications for the HP 16089A, B, C, D. .
Specifications for the HP 16089A, B, C
Specifications for the HP 16089D
Supplemental Performance Characteristics
Supplemental Performance Characteristics of HP 16089
A
Supplemental Performance Characteristics of HP 16089B
Supplemental Performance Characteristics of HP 16089C
Supplemental Performance Characteristics of HP 16089D
2. Preparation for Use
Introduction
Initial Inspection
HP 16089A
HP 16089B
HP 16089C
HP 16089D '
;
Ambient Environmental Considerations
Operating and Storage
Connecting the Test Leads for Use
Packaging the Test Leads
3. Operation
Introduction
HP 16089A, B, C
HP 16089D
OPEN and SHORT Correction !
’
Shorting Bar
Operation
4. Service
Introduction
Replaceable Parts
HP 16089AReplaceable Parts
HP 16089B Replaceable Parts
HP 16089C Replaceable Parts
HP 16089D Replaceable Parts
1-1
1-1
1-1
1-2
1-2
1-2
1-2
1-3
1-3
1-3
1-3
1-3
1-3
1-3
1-4
1-4
2-1
2-1
2-2
2-3
2-4
2-5
2-6
2-6
2-6
2-6
3-1
3-1
3-2
3-3
3-4
3-4
4-1
4-1
4-1
4-1
4-2
4-3
Contents-t

Figures
2-1. HP 16089A Product Overview 2-2
2-2. HP 16089B Product Overview 2-3
2-3. HP 16089C Product Overview 2-4
2-4. HP 16089D Product Overview 2-5
2-
5. Connecting the Tsst Leads 2-6
3-
1. HP 16089A, B, CTest Leads Features 3-1
3-2. HP 16089D Test Leads Features 3-2
3-3. Making aShorting Bar for the HP 16089B and HP 16089C 3-3
3-4. Making aShorting Bar for the HP 16089A and HP 16089D 3-3
3-
5. Connecting the DUT to the HP 16089D 3-5
4-
1. Kelvin Clip Connections 4-2
Tkbles
1-
1. Furnished Accessories 1-2
2-
1. Contents of HP 16089A 2-2
2-2. Contents of HP 16089B 2-3
2-3. Contents of HP 16089C 2-4
2-4. Contents of HP 16089D 2-5
4-1. 16089AReplaceable Parts 4-1
4-2. 16089B Replaceable Parts 4-1
4-3. 16089C Replaceable Parts 4-2
4-4. 16089D Replaceable Parts 4-3
4-5. Clip and Cable Correspondence 4-3
Contents-2

General Information
1
Introduction
The purpose of this manual is to enable you to use your HP 16089A, B, CKelvin Clip and
HP 16089D Alligator Clip Leads efficiently and confidently. This manual contains both general
and specific information. Ib use the HP 16089A, B, C, Dto perform aspecific function (without
having to read the entire manual), follow the directions in “Using the HP 16089A, B, C, D”.
Using the HP 16089A, B, C, D
Tb install the HP 16089A, B, C, D, turn to Chapter 2.
lb operate the HP 16089A, B, C, D, turn to Chapter 3.
lb order replaceable parts for the HP 16089A, B, C, D, turn to “Replaceable Parts” in
Chapter 4.
Product Description
The HP 16089A, B, C, Dhas been designed to operate specifically with the following
four-terminal-pair type LCR meters and impedance analyzers:
HP 4263A HP 4277A HP 4192A
HP 4274A HP 4278A HP 4194A
HP 4275A HP 4284A
HP 4276A HP 4285A
The HP 16089A, B, C, Dmake it possible to measure odd-shaped components that cannot be
measured with conventional test fixtures The HP 16089A, HP 16089B, and HP 16089C consist
of adirect attachment, four-terminal-pair type test leads that are equipped with two insulated
Kelvin clipa Three sizes of Kelvin clips are provided. The HP 16089A Kelvin Clip Leads is
equipped with two large Kelvin clips, the HP 16089B Kelvin Clip Leads is equipped with
middle size clips and the HP 16089C Kelvin Clip Leads is equipped with small size clipa The
HP 16089D consists of adirect attachment, four-terminal-pair type test leads that are equipped
with four alligator clipa
General Information 1-1

Accessories Supplied
The following accessories are supplied with the HP 16089A, B, C, D:
Tkble 1-1. Furnished Accessories
Description Part Number Quantity
Operation and Service Manual P/N 16089-90000 1
Operating and Safety Precautions
Operating
You need observe only normal precautions in handling and operating the HP 16089A, B, C, D.
Do not exceed the operating input power, voltage, and current level and signal type
appropriate for the instrument being used, refer to your instrument’s operation manual.
Caution
e
Electrostatic discharge (esd) can damage the highly sensitive microcircuits
in your instrument. ESD damage is most likely to occur as the test leads are
being connected or disconnected. Protect them from ESD damage by wearing a
grounding strap that provides ahigh resistance path to ground. Alternatively,
ground yourself to discharge any static charge built-up by touching the
outer shell of any grounded instrument chassis before touching the test port
connectors.
Never touch the test clip contacts.
Use awork station equipped with an anti-static work surface.
Service
The voltage levels found in these test leads when used with the intended instruments do not
warrant more than normal safety precautions for operator safety. Nevertheless, service should
be performed only by qualified personnel.
1-2 General Information

Specifications
This section lists the complete HP 16089A, B, C, Dspecifications. These specifications are
the performance standards and limits against which the HP 16089A, B, C, Dis tested. When
shipped from the factory, the HP 16089A, B, C, Dmeets the following specifications:
Common Specifications for the HP 16089A, B, C, D
Applicable Instrument HP 4263A, HP 4274A\ HP 4275A, HP 4276A, HP 4277A^
HP 4278AS HP 4284A\ HP 4285Ai, HP 4192A^ HP 4194Ai
Maximum dc Bias Voltage ±42 Vpeak max
Frequency Range 5Hz to 100 kHz
Operating Ifemperature 0to 55® C
Operating Humidity <95% RH (®40®C)
Non-operating Tbrnperature -40 to 70 °C
Non-operating Humidity <95% RH (®40®C)
Weight 300 g
^Except for the frequency range over 100 kHz.
Specifications for the HP 16089A, B, C
Cable Length 0.94 m
Specifications for the HP 16089D
Cable Length 1.3m
Supplemental Performance Characteristics
This section gives supplemental performance characteristica Supplemental performance
characteristics are not specifications, but are typical characteristics included as additional
information for the operator. Supplemental performance characteristics are not guaranteed.
Supplemental Performance Characteristics of HP 16089A
Applicable DUT size
Diameter of DUT’s terminals <15 mm
Supplemental Performance Characteristics of HP 16089B
Applicable DUT size
Diameter of DUT’s terminals <7.0 mm
Length of DUT’s terminals >3 mm
General Information f-3

Supplemental Performance Characteristics of HP 16089C
Applicable DUT size
Diameter of DUT's terminals <1 mm
Space between DUT’s terminals >2 mm
Length of DUT’s terminals >2 mm
Supplemental Performance Characteristics of HP 16089D
mApplicable DUT size
Diameter of DUT’s terminals <5 mm
14 General Information

2
Preparation for Use
Introduction
This chapter explains how to install the HP 16089A, B, CKelvin Clip Leads and HP 16089D
Alligator Clip Leads. The topics covered include initial inspection, ambient environmental
considerations, connecting the test leads for use, and repackaging the test leads for shipment.
Initial Inspection
These test leads have been carefully inspected electrically and mechanically before being
shipped from the factory. They should be in perfect physical condition, no scratches, dents or
the like, and they should be in perfect electrical condition. Verify this by carefully performing
an incoming inspection to check the test lead set for signs of physical damage and missing
contents. If any discrepancy is found, notify the carrier and Hewlett-Packard. Your HP sales
office will arrange for repair and replacement without waiting for the claim to be settled.
1. Inspect the shipping container for damage, and keep the shipping materials until the
inspection is completed.
2. Verify that the shipping container contains everything shown in Figure 2-1, Figure 2-2,
Figure 2-3, and Figure 2-4 and listed in Ihble 2-1, Table 2-2, Table 2-3, and Thble 2-4.
3. Inspect the exterior of the HP 16089A, B, C, Dfor any signs of damage.
Preparation for Use 2-1

HP 16089A
Figure 2-1. HP I6089A Product Overview
Tkble 2-1. Contents of HP 16089A
Description HP Part Number Quantity
®Kelvin Clip Leads 16089-60001 1
0Operation and Service Manual^ 16089-90000 1
1Operation and Service Manual is not shown in Figure 2-1.
2-2 Praparation for Use

HP 16089B
Figure 2-2. HP 16089B Product Overview
Ikble 2-2. Contents of HP 16089B
Description HP Part Number Quantity
(D Kelvin Clip Leads
(2) Operation and Service Manual^ 16089-60002
16089-90000
1Operation and Service Manual is not shown in Figure 2-2.
Preparation for Use 2-3

HP 16089C
Figure 2-3. HP 16089C Product Overview
Ikble 2-3. Contents of HP 16089C
Description HP Part Number Quantity
0Kelvin Clip Leads 16089-60003 1
0Operation and Service Manual^ 16089-90000 1
IOperation and Service Manual is not shown in Figure 2-3.
24 Preparation for Use

HP 16089D
Figure 2-4. HP 16089D Product Overview
Ikble 2-4.Ck)ntents of HP 160S9D
Description HP Part Number"
d) Alligator Clip Leads 16089-60004
(2) Operation and Service Manual^ 16089-90000
lOperation and Service Manual is not shown in Figure 2-4.
Quantity
1
1
Preparation for Use 2-5

Ambient Environmental Considerations
Operating and Storage
The HP 16089A, B, C, Dmust be operated within an ambient temperature range of 0“C to 55°C
and relative humidity up to 95% at 40® C(non-condensing).
The HP 16089A, B, C, Dmay be stored within atemperature range of -40® Cto +70®, and at a
relative humidity of up to 95% at +40®C (non-condensing).
Connecting the Test Leads for Use
Packaging the Test Leads
If shipment to aHewlett-Packard service center is required, each test lead set should be
repackaged using the original factory packaging materials
Alteratively, comparable packaging materials may be used. Wrap the test leads in heavy paper
and pack in anti-static plastic packing material. Use sufficient shock absorbing material on all
sides of the HP 16089A, B, C, Dto provide athick, firm cushion and to prevent movement.
Seal the shipping container securely and mark it FRAGILE.
2®S Preparation for Use

HP 16089D
Figure 3-2. HP 16089D Itest Leads Features
1. Alligator Clips (red). These are connected to the high terminal of the DUT.
2. Alligator Clips (black). These are connected to the low terminal of the DUT,
3. Vmarkers. These show the Hpot and Lpot terminals.
4. Fbur-termvnal-pair BNC terminals. These terminals are connected to the UNKNOWN
terminals of your instrument.
3*2 Operation
