ACPC4610E/CC User’s Manual CompactPCI Bus PMC Carrier
__________________________________________________________________
__________________________________________________________________________
Acromag, Inc. Tel: [phone] Fax: [phone] Email:[e-mail] http://www.acromag.com
2
IMPORTANT SAFETY CONSIDERATIONS
You must consider the possible negative effects of power, wiring,
component, sensor, or software failure in the design of any type of
control or monitoring system. This is very important where property
loss or human life is involved. It is important that you perform
satisfactory overall system design and it is agreed between you and
Acromag, that this is your responsibility.
1.0 General Information
KEYFEATURES…………...………….…………….. 3
SIGNAL INTERFACE PRODUCTS…………………… 3
2.0 PREPARATION FOR USE
UNPACKING AND INSPECTION...…………………... 4
CARD CAGE CONSIDERATIONS.........…………….. 4
Non-Isolation Considerations........................... 4
Rear I/O Connector……………….……………… 5
CompactPCI Bus Connector.…………………... 6
3.0 SERVICE AND REPAIR
SERVICE AND REPAIR ASSISTANCE...……….…... 7
PRELIMINARY SERVICE PROCEDURE...………….. 7
WHERE TO GET HELP………………………………… 7
4.0 SPECIFICATIONS
PHYSICAL.................................................................. 8
CONNECTORS………………………………………….. 8
ENVIRONMENTAL....…….…………………………….. 8
POWER REQUIREMENTS...………………………….. 9
CompactPCI BUS COMPLIANCE……………………. 9
RELIABILITY PREDICTION....................................... 9
APPENDIX
MODEL TRANS-C4610 / TRANS-C5210..………… 10
MODEL 5028-432………………………………………. 11
MODEL 5025-288………………………………………. 11
DRAWINGS
MODEL ACPC4610E…………..………………………. 12
MODEL ACPC4610CC.………..………………………. 13
4502-096 ACPC4610 BLOCK DIAGRAM…………… 14
MODEL TRANS-C4610 / TRANS-C5210..………… 15
4502-089 TRANS-C4610 SCHEMATIC……………… 16
4502-151 TRANS-C5210 SCHEMATIC……………… 17
4501-919 MODEL 5028-432…………………………… 18
4501-920 MODEL 5025-288…………………………… 19
Certificate of Volatility………………………………… 20
Trademarks are the property of their respective owners.
TABLE OF
CONTENTS
The information of this manual
may change without notice.
Acromag makes no warranty
of any kind with regard to this
material, including, but not
limited to, the implied
warranties of merchantability
and fitness for a particular
purpose. Further, Acromag
assumes no responsibility for
any errors that may appear in
this manual and makes no
commitment to update, or
keep current, the information
contained in this manual. No
part of this manual may be
copied or reproduced in any
form without the prior written
consent of Acromag, Inc.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

ACPC4610E/CC User’s Manual CompactPCI Bus PMC Carrier
___________________________________________________________________
__________________________________________________________________________
Acromag, Inc. Tel: [phone] Fax: [phone] Email:[e-mail] http://www.acromag.com
3
The ACPC4610E/CC is a 3U CompactPCI Bus Non-Intelligent PMC
carrier board designed for the 32-bit 33MHz or 66MHz CompactPCI bus.
The carrier card uses a PLX Technology
R
Bridge Chip (PCI6540) to interface
between the CompactPCI bus and one PMC mezzanine I/O module card.
Model ACPC4610E is an air-cooled extended temperature product which
can be used for front and rear PMC mezzanine I/O modules. Front I/O can
be accessed through the front panel. Rear I/O can be accessed though the
J2 connector on the carrier.
•ESD Strip on ACPC4610E Board - The ACPC4610E board has been
designed to provide electrostatic discharge (ESD) capability by using an
ESD strip on the board per IEEE1101.10.
•Injector/Ejector Handle - The ACPC4610E uses a modern
injector/ejector handle, which pushes the board into the rack during
installation and has a positive self-locking mechanism so it cannot be
unlocked accidentally. This handle is fully IEEE 1101.10 compliant and
is needed to give leverage to install and remove the board.
•EMC Front Panel - The ACPC4610E uses the preferred EMC front
panel per IEEE 1101.10 specification.
Model ACPC4610CC is a conduction cooled product which is usually
only used for rear Conduction Cooled PMC mezzanine I/O modules. Rear
I/O can be accessed though the J2 connector on the carrier.
•Conduction Cooled Frame - The ACPC4610CC board has a custom
conduction cooled assembly consisting of a conduction cooled frame,
thermo bars, ejector/injectors and Wedge-Loks
R
designed to thermally
conduct heat away from the Conduction Cooled PMC modules per
ANSI/VITA 30.1-2001.
Model TRANS-C4610 Transition Module: This module plugs into the
rear backplane directly behind the ACPC4610E carrier board. The field I/O
connections are made through the backplane to the J2 connector of the
carrier board and then routed to a 68 pin SCSI-3 connector P1, on the
transition module, for rear exit from the card cage. This module is available
for use in card cages which provide rear exit for I/O connections via 80 mm
wide transition modules (transition modules can only be used in card cages
specifically designed for them). It is a single-height (3U), single-slot module
and adheres to the CompactPCI mechanical dimensions and IEEE Standard
(1101.11-1998), with a printed circuit board depth of 80mm, which is a
standard transition module depth. The transition module connects to
Acromag Termination Panel (Model 5025-288) using a round 68 conductor
shielded cable (Model 5028-432) to the rear of the card cage, and to the
ACPC4610E board within the card cage.
Model TRANS-C5210 Transition Module: Same as TRANS-C4610,
except I/O signals routed as differential pairs for the FPGA PMC Modules.
Model 5028-432: A 2-meter cable, with a male SCSI-3 connector at both
ends and 34 twisted pairs. This cable is used for connecting the TRANS-
C4610/-C5210 board to Model 5025-288 termination panels.
Model 5025-288: DIN-rail mountable panel provides 68 screw terminals
for universal field I/O termination. Connects to the TRANS-C4610/-C5210
board, via SCSI-3 to twisted pair cable, Model 5028-432.
1.0 GENERAL
INFORMATION
MODEL ACPC4610E
KEY FEATURES
MODEL ACPC4610CC
KEY FEATURES
CompactPCI Transition
Module
SIGNAL INTERFACE
PRODUCTS
Cables
Termination Panel
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

ACPC4610E/CC User’s Manual CompactPCI Bus PMC Carrier
__________________________________________________________________
__________________________________________________________________________
Acromag, Inc. Tel: [phone] Fax: [phone] Email:[e-mail] http://www.acromag.com
4
Upon receipt of this product, inspect the shipping carton for evidence of
mishandling during transit. If the shipping carton is badly damaged or
water stained, request that the carrier's agent be present when the carton
is opened. If the carrier's agent is absent when the carton is opened and
the contents of the carton are damaged, keep the carton and packing
material for the agent's inspection.
For repairs to a product damaged in shipment, refer to the Acromag
Service Policy to obtain return instructions. It is suggested that salvageable
shipping cartons and packing material be saved for future use in the event
the product must be shipped.
This board is physically protected with packing material and electrically
protected with an anti-static bag during shipment. However, it is
recommended that the board be visually inspected for evidence of
mishandling prior to applying power.
Refer to the specifications for loading and power requirements. Be sure
that the system power supplies are able to accommodate the power
requirements of the system boards, plus the installed Acromag board, within
the voltage tolerances specified.
In an air cooled assembly, adequate air circulation must be provided to
prevent a temperature rise above the maximum operating temperature and
to prolong the life of the electronics. If the installation is in an industrial
environment and the board is exposed to environmental air, careful
consideration should be given to air-filtering.
In a conduction cooled assembly, adequate thermo conduction must be
provided to prevent a temperature rise above the maximum operating
temperature.
The board is non-isolated, since there is electrical continuity between the
CompactPCI bus and PMC module grounds. As such, the field I/O
connections are not isolated from the system. Care should be taken in
designing installations without isolation to avoid noise pickup and ground
loops caused by multiple ground connections.
2.0 PREPARATION
FOR USE
UNPACKING AND
INSPECTION
WARNING: This board
utilizes static sensitive
components and should
only be handled at a static-
safe workstation.
CARD CAGE
CONSIDERATIONS
IMPORTANT: Adequate air
circulation must be
provided to prevent a
temperature rise above the
maximum operating
temperature.
Non-Isolation
Considerations
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

ACPC4610E/CC User’s Manual CompactPCI Bus PMC Carrier
___________________________________________________________________
__________________________________________________________________________
Acromag, Inc. Tel: [phone] Fax: [phone] Email:[e-mail] http://www.acromag.com
5
The model ACPC4610E/CC carrier field I/O connections are made through
the rear via J2 for a single PMC mezzanine I/O module card.
Table 2.1 indicates the pin assignments for the CompactPCI I/O signal
mapping at the J2 connector. The connector consists of 22 rows of six pins
labeled A, B, C, D, E and F. Pin A1 is located near the center of the board,
viewed from the front component side. J2 is used to route a single PMC
Module’s field signals from the carrier to the backplane.
IMPORTANT: Model ACPC4610E/CC cannot be used in 64 bit cPCI or PXI
systems as rear I/O (J2) is mapped to the same connector as the additional
control lines for 64-bit cPCI or PXI.
Pin Row A Row B Row C Row D Row E Row F
1 VI/O 64 63 62 61 GND
2 60 59 58 57 56 GND
3 55 54 53 52 51 GND
4 50 49 48 47 46 GND
5 45 44 43 42 41 GND
6 40 39 38 37 36 GND
7 35 34 33 32 31 GND
8 30 29 28 27 26 GND
9 25 24 23 22 21 GND
10 20 19 18 17 16 GND
11 15 14 13 12 11 GND
12 10 9 8 7 6 GND
13 5 4 3 2 1 GND
14 +3.3V +3.3V +3.3V +5V +5V GND
15 NC NC NC NC NC GND
16 NC NC NC NC NC GND
17 NC NC NC NC NC GND
18 NC NC NC NC NC GND
19 NC NC NC NC NC GND
20 NC NC NC NC NC GND
21 NC NC NC NC NC GND
22 NC NC NC NC NC GND
Notes:
1. Entries in the table are of the PMC J14 pin number.
2. NC is no connections, NOT USED by this carrier board.
3. VI/O NOT USED by this carrier board.
Rear I/O Connector
Table 2.1: CompactPCI I/O
Signals J2 Connections
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

ACPC4610E/CC User’s Manual CompactPCI Bus PMC Carrier
__________________________________________________________________
__________________________________________________________________________
Acromag, Inc. Tel: [phone] Fax: [phone] Email:[e-mail] http://www.acromag.com
6
Table 2.2 indicates the pin assignments for the 32-bit CompactPCI bus
signals at the J1 connector. The connector consists of 25 rows of six pins
labeled A, B, C, D, E and F. Pin A1 is located at the lower right hand corner
of the connector if the board is viewed from the front component side.
Refer to the CompactPCI bus specification for additional information on
the CompactPCI bus signals.
Pin Row A Row B Row C Row D Row E Row F
1 +5V -12v TRST# +12V +5V GND
2 TCK +5V TMS TDO TDI GND
3 INTA# INTB# INTC# +5V INTD# GND
4 IPM*PWR HEAL*# V(I/0) INTP INTS GND
5 BR*A5 BR*B5 RST# GND GNT# GND
6 REQ# GND +3.3V CLK AD[31] GND
7 AD[30] AD[29] AD[28] GND AD[27] GND
8 AD[26] GND V(I/O) AD[25] AD[24] GND
9 C/BE[3]# IDSEL AD[23] GND AD[22] GND
10 AD[21] GND +3.3V AD[20] AD[19] GND
11 AD[18] AD[17] AD[16] GND C/BE[2]# GND
12 GND
13 KEY AREA GND
14 GND
15 +3.3V FRAM# IRDY# BD SEL# TRDY# GND
16 DEVSEL# GND V(I/O) STOP# LOCK# GND
17 +3.3V IP*SCL IPM*DA GND PERR# GND
18 SERR# GND +3.3V PAR C/BE[1]# GND
19 +3.3V AD[15] AD[14] GND AD[13] GND
20 AD[12] GND V(I/O) AD[11] AD[10] GND
21 +3.3V AD[9] AD[8] M66EN C/BE[0]# GND
22 AD[7] GND +3.3V AD[6] AD[5] GND
23 +3.3V AD[4] AD[3] +5V AD[2] GND
24 AD[1] +5V V(I/O) AD[0] ACK64# GND
25 +5V REQ64# ENUM# +3.3V +5V GND
Notes:
1. Pound (#) is used to indicate an active-low signal.
2. BOLD ITALIC Logic Lines are NOT USED by this carrier board.
CompactPCI Bus
Connectors for J1
Table 2.2: CompactPCI
Bus J1 Connections
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

ACPC4610E/CC User’s Manual CompactPCI Bus PMC Carrier
___________________________________________________________________
__________________________________________________________________________
Acromag, Inc. Tel: [phone] Fax: [phone] Email:[e-mail] http://www.acromag.com
7
Surface-Mounted Technology (SMT) boards are generally difficult to
repair. It is highly recommended that a non-functioning board be returned to
Acromag for repair. The board can be easily damaged unless special SMT
repair and service tools are used. Further, Acromag has automated test
equipment that thoroughly checks the performance of each board. When a
board is first produced and when any repair is made, it is tested, placed in a
burn-in room at elevated temperature, and retested before shipment.
Please refer to Acromag's Service Policy Bulletin or contact Acromag for
complete details on how to obtain parts and repair.
Before beginning repair, be sure that all of the procedures in Section 2,
Preparation For Use, have been followed. Also, refer to the documentation
of your PMC module to verify that it is correctly configured. Replacement of
the board with one that is known to work correctly is a good technique to
isolate a faulty board.
If you continue to have problems, your next step should be to visit the
Acromag worldwide web site at http://www.acromag.com. Our web site
contains the most up-to-date product and software information.
Choose the “Support” hyperlink in our website’s top navigation row then
select “Embedded Board Products Support” or go to
http://www.acromag.com/subb_support.cfm to access:
•Application Notes
•Frequently Asked Questions (FAQ’s)
•Knowledge Base
•Tutorials
•Software Updates/Drivers
An email question can be submitted from within the Knowledge Base or
through the “Contact Us” hyperlink at the top of any web page.
Acromag’s application engineers can also be contacted directly for
technical assistance via telephone or FAX through the numbers listed at the
bottom of this page. When needed, complete repair services are also
available.
3.0 SERVICE AND
REPAIR
SERVICE AND REPAIR
ASSISTANCE
PRELIMINARY SERVICE
PROCEDURE
CAUTION: POWER MUST
BE TURNED OFF
BEFORE REMOVING OR
INSERTING BOARDS
WHERE TO GET HELP
www.acromag.com
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

ACPC4610E/CC User’s Manual CompactPCI Bus PMC Carrier
__________________________________________________________________
__________________________________________________________________________
Acromag, Inc. Tel: [phone] Fax: [phone] Email:[e-mail] http://www.acromag.com
8
Physical Configuration 3U CompactPCI 5V/3.3V Board
Height 3.937 inches (100.0 mm)
Depth 6.299 inches (160.0 mm)
Board Thickness 0.063 inches (1.60 mm)
Unit Weight:
Model ACPC4610E 0.35 pounds (0.16 Kg)
Model ACPC4610CC 0.50 pounds (0.23 Kg)
J1 (CompactPCI Bus) PCI Specification Version 2.3
& CompactPCI Specification
PICMG 2.0 R3.0. Connector
interfaces to the PLX Technology
R
Bridge Chip (PCI6540) primary
side. Type “A” right-angle female
connector, 110 contacts with upper
shield.
Note: This board is universal 3.3V or 5V signal tolerant.
J2 (CompactPCI Rear I/O) PMC on CompactPCI
Specification PICMG 2.3 R1.0.
Utilizes Type “B” right-angle female
connector, 110 contacts with upper
shield.
Not compatible with 64 bit
CompactPCI or PXI.
J11, 12 PMC bus connectors (Molex
71439-0164 or equivalent)
interfaces to the PLX Technology
Bridge Chip (PCI6540) secondary
side.
J14 PMC Rear I/O connector (Molex
71439-0164 or equivalent)
interfaces J2.
Models: ACPC4610E, ACPC4610CC and TRANS-C4610/-C5210
Operating Temperature: -40 to 85
o
C
Relative Humidity: 5-95% Non-Condensing.
Storage Temperature: -55°C to 100°C.
4.0 SPECIFICATIONS
PHYSICAL
Connectors
ENVIRONMENTAL
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

ACPC4610E/CC User’s Manual CompactPCI Bus PMC Carrier
___________________________________________________________________
__________________________________________________________________________
Acromag, Inc. Tel: [phone] Fax: [phone] Email:[e-mail] http://www.acromag.com
9
Also, designed to meet the following environmental standards per
ANSI/VITA47-2005(R2007).
Model ACPC4610E & TRANS-C4610/-C5210
•Environmental Class EAC6
•Operating Temperature: AC3 (-40 to 70
o
C)
•Vibration Class: V2
•Shock 20g
Model ACPC4610CC
•Environmental Class ECC4
•Operating Temperature: CC4 (-40 to 85
o
C)
•Vibration Class: V3
•Shock 40g
3.3 VDC
(±5%)* Typical 135 mA Max. 150 mA
5.0 VDC
(±5%)* Typical 50 mA Max. 70 mA
3.3 VDC
(±5%) Per PMC Module Maximum**
5.0 VDC
(±5%) Per PMC Module Maximum**
+12 VDC
(±5%) Per PMC Module Maximum**
-12 VDC
(±5%) Per PMC Module Maximum**
* With no PMC module installed +12 VDC and -12VDC not used.
** Maximum power of 7.5 Watts (Total of all supplies) per PMC standard.
Maximum Power for Rear Transition Modules:
3.3 VDC Maximum 3 Amps (Fused at 4 Amps)
5.5 VDC Maximum 2 Amps (Fused at 3 Amps)
Note: Model TRANS-C4610 does not use 3.3 VDC or 5.0 VDC power.
This device meets or exceeds all written PCI Specification Version 2.3 &
CompactPCI Specification PICMG 2.3 R1.0
Non-Isolated: PCI bus and field commons have a direct electrical
connection.
PMC Compatibility: Pin assignment conform to PCI Bus Specification,
Revision 2.3 and PMC Specification, P1386.1
Signaling: 3.3V signaling as required by the PMC module, 5V signaling
PMC modules may tolerate 3.3V signaling.
PCI Bus Clock: This product is not guaranteed to function with a
CompactPCI bus clock frequency greater than 66MHz.
PLX Technology Bridge Chip (PCI6540): For more information on
this bridge chip go to www.plxtech.com.
Mean Time Between Failure: 2,558,049 hours (ACPC4610E/CC) @ 25
o
C,
Using MIL-HDBK-217F, Notice 2.
POWER
REQUIREMENTS
CompactPCI Bus
Compliance
Reliability Prediction
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

ACPC4610E/CC User’s Manual CompactPCI Bus PMC Carrier
__________________________________________________________________
__________________________________________________________________________
Acromag, Inc. Tel: [phone] Fax: [phone] Email:[e-mail] http://www.acromag.com
10
Type: Transition module for ACPC4610 boards.
Application: To repeat field I/O signals of PMC modules for rear exit from
CompactPCI card cages. This module is available for use in card cages
which provide rear exit for I/O connections via 80 mm wide transition
modules (transition modules can only be used in card cages specifically
designed for them). It is a single-height (3U), single-slot module and
adheres to the CompactPCI mechanical dimensions and IEEE Standard
(1101.11-1998), with a printed circuit board depth of 80mm, which is a
standard transition module depth. The transition module connects to

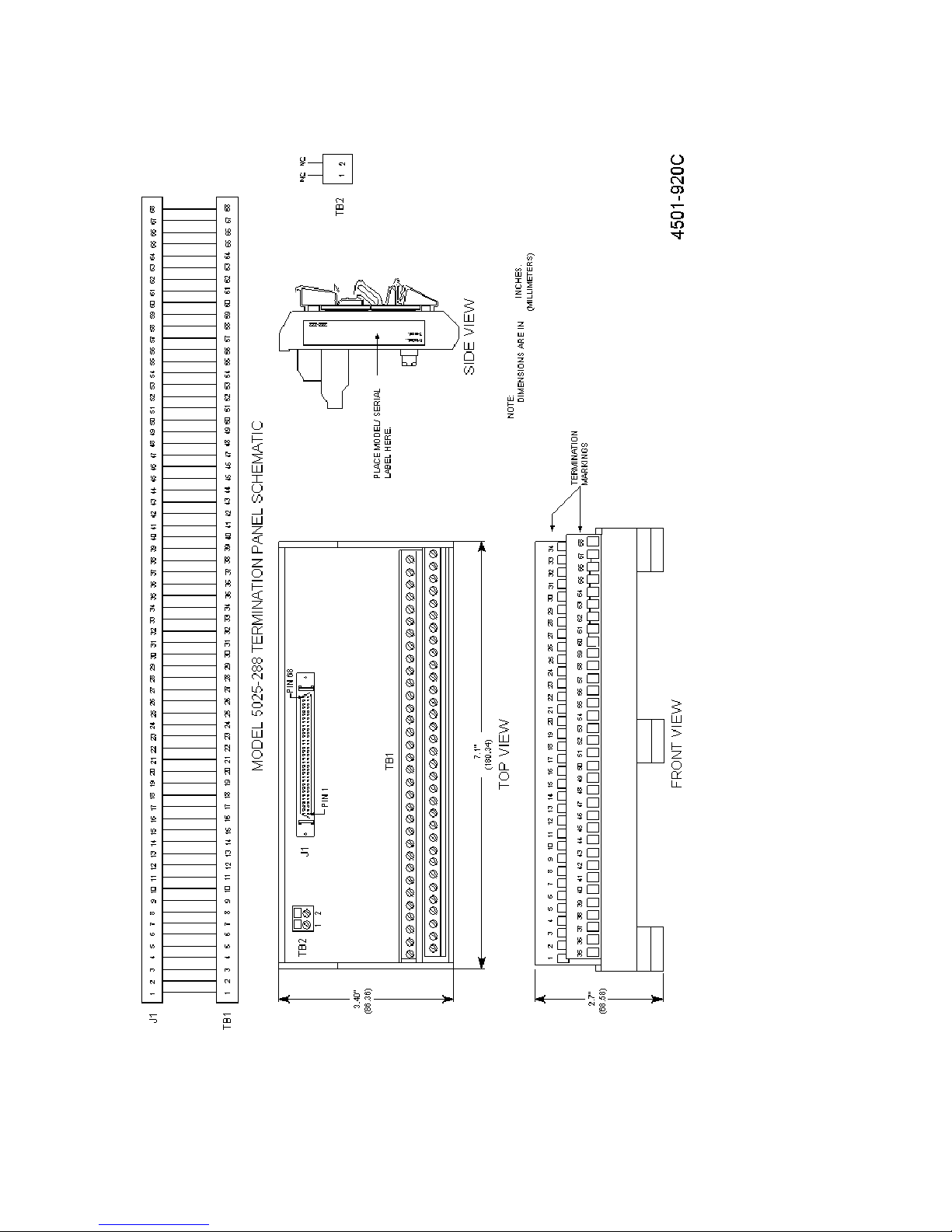

Acromag Termination Panel (Model 5025-288) using a round 68
conductor shielded cable (Model 5028-432) to the rear of the card cage,
and to ACPC4610 board within the card cage.

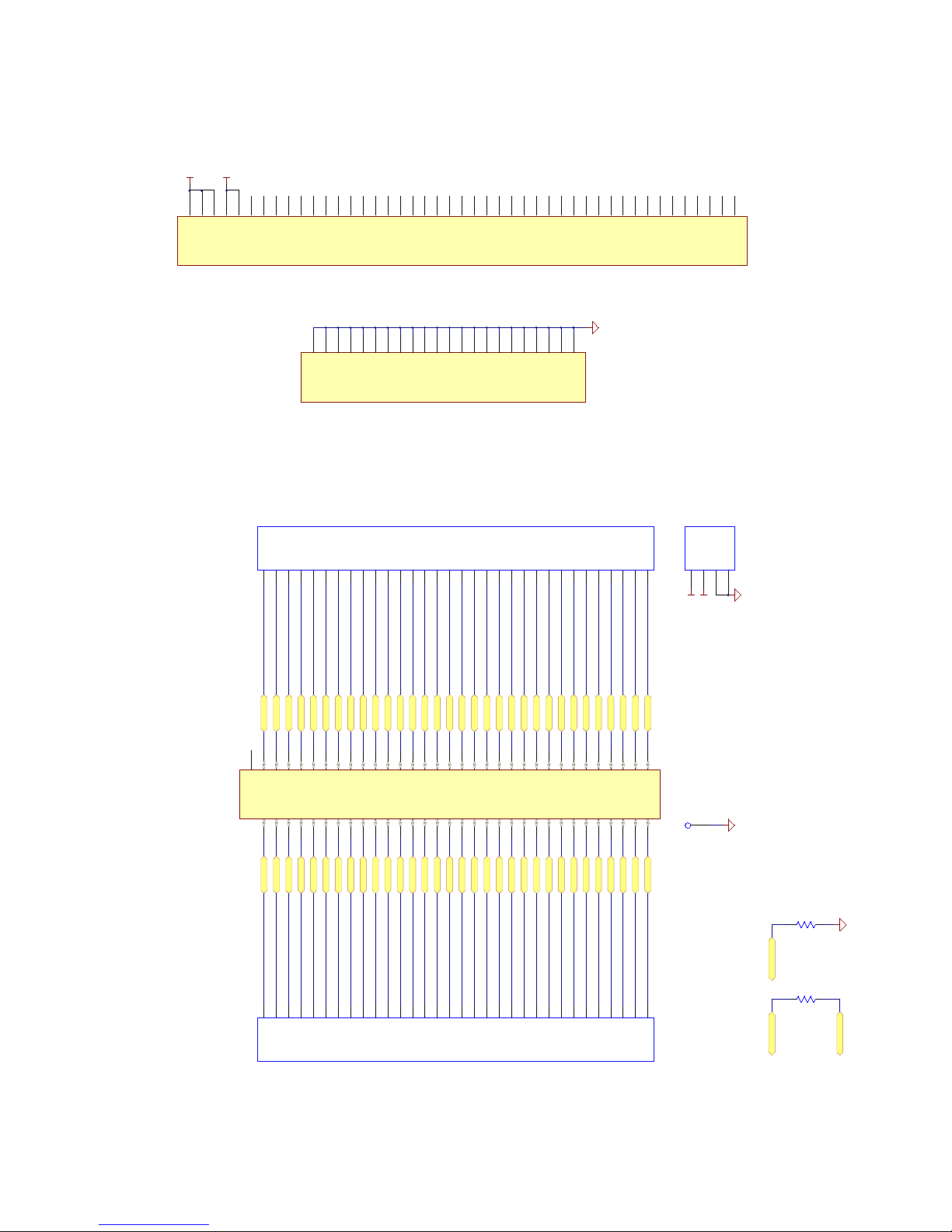

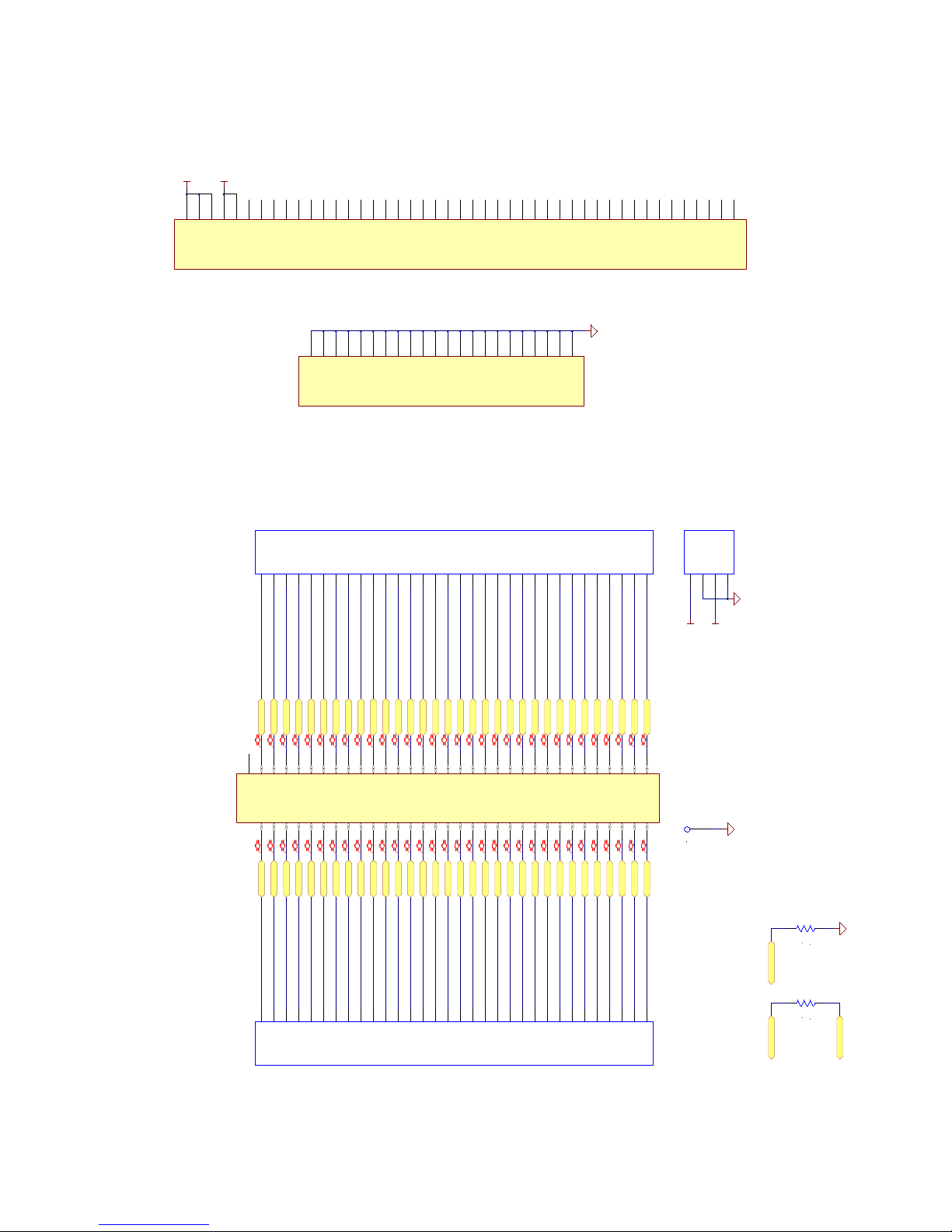

Schematic and Physical Attributes: See page 15 and 16.
Field Wiring: 68 pin SCSI-2 connector P1.
Connections to ACPC4610: Connections are made though the PC board
connector J2 (110 signals, female right angle with upper ground shield).
The transition module plugs directly behind the ACPC4610 board into the
3U CompactPCI bus backplane within the card cage system.
Mounting: Transition module is inserted into a 3U-size, 80 mm width slot at
the rear of the CompactPCI bus card cage. (Directly behind ACPC4610
board.
Printed Circuit Board: Four-layer, military-grade FR-4 epoxy glass circuit
board, 0.063 inches thick.
Operating Temperature: -40°C to +85°C.
Storage Temperature: -55°C to +100°C.
Shipping Weight: 0.25 pounds (0.11Kg) packed.
Type: Transition module for ACPC4610 boards. Same as TRANS-C4610,
except I/O signals routed as differential pairs for the FPGA PMC
Modules.
Application: To repeat field I/O signals of PMC modules for rear exit from
CompactPCI card cages. This module is available for use in card cages
which provide rear exit for I/O connections via 80 mm wide transition
modules (transition modules can only be used in card cages specifically
designed for them). It is a single-height (3U), single-slot module and
adheres to the CompactPCI mechanical dimensions and IEEE Standard
(1101.11-1998), with a printed circuit board depth of 80mm, which is a
standard transition module depth. The transition module connects to
Acromag Termination Panel (Model 5025-288) using a round 68
conductor shielded cable (Model 5028-432) to the rear of the card cage,
and to ACPC4610 board within the card cage.
Schematic and Physical Attributes: See page 15 and 17.
Field Wiring: 68 pin SCSI-2 connector P1.
Connections to ACPC4610: Connections are made though the PC board
connector J2 (110 signals, female right angle with upper ground shield).
The transition module plugs directly behind the ACPC4610 board into the
3U CompactPCI bus backplane within the card cage system.
Mounting: Transition module is inserted into a 3U-size, 80 mm width slot at
the rear of the CompactPCI bus card cage. (Directly behind ACPC4610
board.
Printed Circuit Board: Four-layer, military-grade FR-4 epoxy glass circuit
board, 0.063 inches thick.
Operating Temperature: -40°C to +85°C.
Storage Temperature: -55°C to +100°C.
Shipping Weight: 0.25 pounds (0.11Kg) packed.
APPENDIX
MODEL TRANS-C4610
MODEL TRANS-C5210
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

ACPC4610E/CC User’s Manual CompactPCI Bus PMC Carrier
___________________________________________________________________
__________________________________________________________________________
Acromag, Inc. Tel: [phone] Fax: [phone] Email:[e-mail] http://www.acromag.com
11
Type: Round shielded cable, 68-wires (SCSI-3 male connector at both
ends). The cable length is 2 meters (6.56 feet). This shielded cable is
recommended for all I/O applications (both digital I/O and precision
analog I/O).
Application: Used to connect Model 5025-288 termination panel to the
ACPC4610 Board.
Length: Standard length is 2 meters (6.56 feet). Consult factory for other
lengths. It is recommended that this length be kept to a minimum to
reduce noise and power loss.
Cable: 68 conductors, 28 AWG on 0.050 inch centers (permits mass
termination for IDC connectors), foil/braided shield inside a PVC jacket.
Connectors: SCSI-3, 68-pin male connector with back shell.
Keying: The SCSI-3 connector has a “D Shell”.

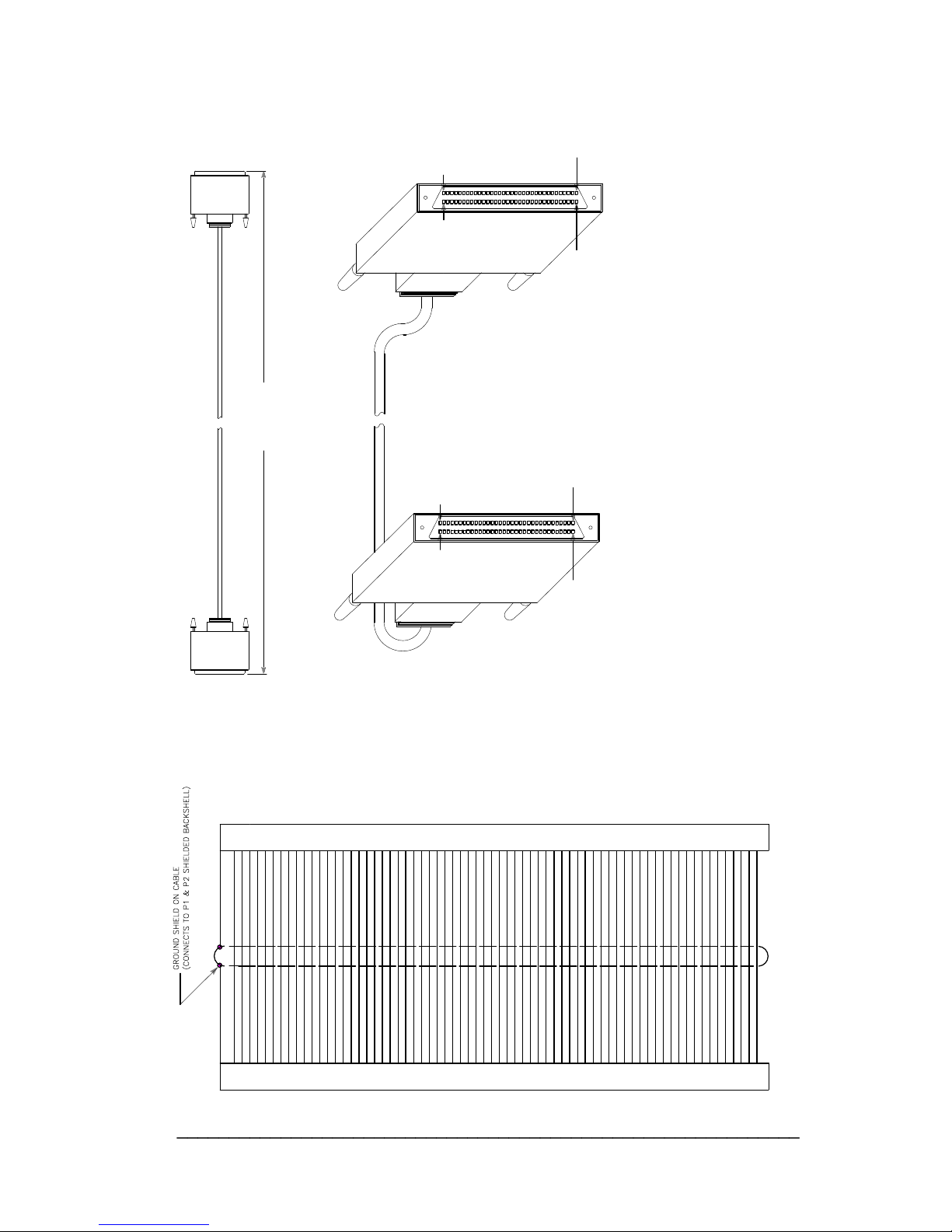

Schematic and Physical Attributes: See Drawing 4501-919.
Electrical Specifications: 30 VAC per UL and CSA (SCSI-3 connector
spec.’s). 1 Amp maximum at 50% energized (SCSI-3 connector
spec.’s).
Operating Temperature: -30°C to +80°C.
Storage Temperature: -40°C to +85°C.
Shipping Weight: 1.0 pound (0.5Kg), packed.
Type: Termination Panel For CompactPCI Boards
Application: To connect field I/O signals to the CompactPCI Board.
Termination Panel: Acromag Part 4001-066. The 5025-288 termination
panel facilitates the connection of up to 68 field I/O signals and connects
to the CompactPCI Board (connectors only) via a round shielded cable
(Model 5028-432). Field signals are accessed via screw terminal strips.
The terminal strip markings on the termination panel (1-68) correspond
to field I/O (pins 1-68) on the CompactPCI board. Each CompactPCI
board has its own unique pin assignments. Refer to the CompactPCI
board manual for correct wiring connections to the termination panel.
Schematic and Physical Attributes: See Drawing 4501-920.
Field Wiring: 68-position terminal blocks with screw clamps. Wire range 12
to 26 AWG.
Mounting: Termination panel is snapped on the DIN mounting rail.
Printed Circuit Board: Military grade FR-4 epoxy glass circuit board, 0.063
inches thick.
Operating Temperature: -40°C to +100°C.
Storage Temperature: -40°C to +100°C.
Shipping Weight: 1.0 pounds (0.5kg) packaged.
MODEL 5028-432
MODEL 5025-288
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

ACPC4610E/CC User’s Manual CompactPCI Bus PMC Carrier
__________________________________________________________________
__________________________________________________________________________
Acromag, Inc. Tel: [phone] Fax: [phone] Email:[e-mail] http://www.acromag.com
12
Model: ACPC4610E
J1J2
F1
A
1
F25
A
25
F1
A
1
A22
F22
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

ACPC4610E/CC User’s Manual CompactPCI Bus PMC Carrier
___________________________________________________________________
__________________________________________________________________________
Acromag, Inc. Tel: [phone] Fax: [phone] Email:[e-mail] http://www.acromag.com
13
Model: ACPC4610CC
J1J2
A1
F1F1
A
1
F25
A
25
A22
F22
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

ACPC4610E/CC User’s Manual CompactPCI Bus PMC Carrier
__________________________________________________________________
__________________________________________________________________________
Acromag, Inc. Tel: [phone] Fax: [phone] Email:[e-mail] http://www.acromag.com
14
J1
J12 J11
J2
J14
Compact PCI BUS
PMC CONNECTORS
PMC SLOT 1
4502-096B
+5 VDC +3.3 VDC
ACPC4610 BLOCK DIAGRAM
REAR FIELD I/O FOR PMC SLOT 1
F1 3 AMP FUSE
F2 4 AMP FUSE
PLX TECHNOLOGY PCI6540 INTERFACE BRIDGE CHIP
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

ACPC4610E/CC User’s Manual CompactPCI Bus PMC Carrier
___________________________________________________________________
__________________________________________________________________________
Acromag, Inc. Tel: [phone] Fax: [phone] Email:[e-mail] http://www.acromag.com
15
Model: TRANS-C4610 / TRANS-C5210
TP1
P1
R2 R1
RJ2
A1
A22
F22
F1
1
34 68
35
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

ACPC4610E/CC User’s Manual CompactPCI Bus PMC Carrier
__________________________________________________________________
__________________________________________________________________________
Acromag, Inc. Tel: [phone] Fax: [phone] Email:[e-mail] http://www.acromag.com
16
IO1 1 IO2 2 IO3 3 IO4 4 IO5 5 IO6 6 IO7 7 IO8 8 IO9 9
IO10 10 IO11 11 IO12 12 IO13 13 IO14 14 IO15 15 IO16 16 IO17 17 IO18 18 IO19 19 IO20 20 IO21 21 IO22 22 IO23 23 IO24 24 IO25 25 IO26 26 IO27 27 IO28 28 IO29 29 IO30 30 IO31 31 IO32 32
IO33
33
IO34
34
IO35
35
IO36
36
IO37
37
IO38
38
IO39
39
IO40
40
IO41
41
IO42
42
IO43
43
IO44
44
IO45
45
IO46
46
IO47
47
IO48
48
IO49
49
IO50
50
IO51
51
IO52
52
IO53
53
IO54
54
IO55
55
IO56
56
IO57
57
IO58
58
IO59
59
IO60
60
IO61
61
IO62
62
IO63
63
IO64
64
IO65
65
IO66
66
IO67
67
IO68
68
1
TP1
GND
TRANS-C4610
P1A P1B
P1, FIELD I/O SCSI-3 CONNECTOR - PMC SLOT "A"
P1C
V(I/O) A1
64 B1 63 C1 62 D1 61 E1 60 A2 59 B2 58 C2 57 D2 56 E2 55 A3 54 B3 53 C3 52 D3 51 E3 50 A4 49 B4 48 C4 47 D4 46 E4 45 A5 44 B5 43 C5 42 D5 41 E5 40 A6 39 B6 38 C6 37 D6 36 E6 35 A7 34 B7 33 C7
32
D7
31
E7
30
A8
29
B8
28
C8
27
D8
26
E8
25
A9
24
B9
23
C9
22
D9
21
E9
20
A10
19
B10
18
C10
17
D10
16
E10
15
A11
14
B11
13
C11
12
D11
11
E11
10
A12
09
B12
08
C12
07
D12
06
E12
05
A13
04
B13
03
C13
02
D13
01
E13
RJ2C
RIO0_N RIO1_N
RIO0_P RIO1_P
RIO2_N RIO3_N
RIO2_P RIO3_P
RIO4_N RIO5_N
RIO4_P RIO5_P
RIO6_N RIO7_N
RIO6_P RIO7_P
RIO8_N RIO9_N
RIO8_P RIO9_P
RIO10_N RIO11_N
RIO10_P RIO11_P
RIO12_N RIO13_N
RIO12_P RIO13_P
RIO14_N RIO15_N
RIO14_P RIO15_P
RIO17_N
RIO17_P
RIO18_N RIO19_N
RIO18_P RIO19_P
RIO20_N RIO21_N
RIO20_P RIO21_P
RIO22_N RIO23_N
RIO22_P RIO23_P
RIO24_N RIO25_N
RIO24_P RIO25_P
RIO26_N RIO27_N
RIO26_P RIO27_P
RIO28_N RIO29_N
RIO28_P RIO29_P
RIO30_N RIO31_N
RIO30_P RIO31_P
RIO16_N
RIO16_P
GND F10 GND F11 GND F12 GND F13 GND F14 GND F15 GND F16 GND F17 GND F18 GND F19 GND F20 GND F21 GND F22 GND F1 GND F2 GND F3 GND F4 GND F5 GND F6 GND F7 GND F8 GND F9
RJ2A
GND
+3.3V A14 +3.3V B14 +3.3V C14
+5V D14 +5V E14
NC A15 NC A16 NC A17 NC A18 NC A19 NC A20 NC A21 NC A22 NC B15 NC B16 NC B17 NC B18 NC B19 NC B20 NC B21 NC B22 NC C15 NC C16 NC C17 NC C18 NC C19 NC C20 NC C21 NC C22 NC D15 NC D16 NC D17 NC D18 NC D19 NC D20 NC D21 NC E15 NC E16 NC E17 NC E18 NC E19 NC E20 NC E21 NC D22 NC E22
RJ2B
ESDSTRIP1 ESDSTRIP3
ESDSTRIP2
GND
10M
R1
10M
R2
+3.3V +5V
GND
+3.3V
+5V
4502-089B
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

ACPC4610E/CC User’s Manual CompactPCI Bus PMC Carrier
___________________________________________________________________
__________________________________________________________________________
Acromag, Inc. Tel: [phone] Fax: [phone] Email:[e-mail] http://www.acromag.com
17
IO1 1 IO2 2 IO3 3 IO4 4 IO5 5 IO6 6 IO7 7 IO8 8
IO9
9
IO10
10
IO11
11
IO12
12
IO13
13
IO14
14
IO15
15
IO16
16
IO17 17 IO18 18 IO19 19 IO20 20 IO21 21 IO22 22 IO23 23 IO24 24
IO25
25
IO26
26
IO27
27
IO28
28
IO29
29
IO30
30
IO31
31
IO32
32
IO33
33
IO34
34
IO35 35 IO36 36 IO37 37 IO38 38 IO39 39 IO40 40 IO41 41 IO42 42
IO43
43
IO44
44
IO45
45
IO46
46
IO47
47
IO48
48
IO49
49
IO50
50
IO51 51 IO52 52 IO53 53 IO54 54 IO55 55 IO56 56 IO57 57 IO58 58
IO59
59
IO60
60
IO61
61
IO62
62
IO63
63
IO64
64
IO65
65
IO66
66
IO67
67
IO68
68
1
TP1
GND
TRANS-C5210
P1 A P1 B
P1, FIELD I/O SCSI-3 CONNECTOR - PMC SLOT "A"
P1 C
V(I/O) A1
64 B1 63 C1 62 D1 61 E1 60 A2 59 B2 58 C2 57 D2 56 E2 55 A3 54 B3 53 C3 52 D3 51 E3 50 A4 49 B4 48 C4 47 D4 46 E4 45 A5 44 B5 43 C5 42 D5 41 E5 40 A6 39 B6 38 C6 37 D6 36 E6 35 A7 34 B7 33 C7
32
D7
31
E7
30
A8
29
B8
28
C8
27
D8
26
E8
25
A9
24
B9
23
C9
22
D9
21
E9
20
A10
19
B10
18
C10
17
D10
16
E10
15
A11
14
B11
13
C11
12
D11
11
E11
10
A12
09
B12
08
C12
07
D12
06
E12
05
A13
04
B13
03
C13
02
D13
01
E13
J2C
RIO1_P
RIO1_N
RIO0_P
RIO0_N RIO2_N RIO3_N
RIO2_P RIO3_P
RIO4_N RIO5_N
RIO4_P RIO5_P
RIO6_N RIO7_N
RIO6_P RIO7_P
RIO8_N RIO9_N
RIO8_P RIO9_P
RIO10_N RIO11_N
RIO10_P RIO11_P
RIO12_N RIO13_N
RIO12_P RIO13_P
RIO14_N RIO15_N
RIO14_P RIO15_P
RIO17_N
RIO17_P
RIO18_N RIO19_N
RIO18_P RIO19_P
RIO20_N RIO21_N
RIO20_P RIO21_P
RIO22_N RIO23_N
RIO22_P RIO23_P
RIO24_N RIO25_N
RIO24_P RIO25_P
RIO26_N RIO27_N
RIO26_P RIO27_P
RIO28_N RIO29_N
RIO28_P RIO29_P
RIO30_N RIO31_N
RIO30_P RIO31_P
RIO16_N
RIO16_P
GND F10 GND F11 GND F12 GND F13 GND F14 GND F15 GND F16 GND F17 GND F18 GND F19 GND F20 GND F21 GND F22 GND F1 GND F2 GND F3 GND F4 GND F5 GND F6 GND F7 GND F8 GND F9
J2A
GND
+3.3V A14 +3.3V B14 +3.3V C14
+5V D14 +5V E14
NC A15 NC A16 NC A17 NC A18 NC A19 NC A20 NC A21 NC A22 NC B15 NC B16 NC B17 NC B18 NC B19 NC B20 NC B21 NC B22 NC C15 NC C16 NC C17 NC C18 NC C19 NC C20 NC C21 NC C22 NC D15 NC D16 NC D17 NC D18 NC D19 NC D20 NC D21 NC E15 NC E16 NC E17 NC E18 NC E19 NC E20 NC E21 NC D22 NC E22
J2B
ESDSTRIP1 ESDSTRIP3
ESDSTRIP2
GND
10M
R1
10M
R2
+3.3V +5V
GND
+3.3V
+5V
4502-151A
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

ACPC4610E/CC User’s Manual CompactPCI Bus PMC Carrier
__________________________________________________________________
__________________________________________________________________________
Acromag, Inc. Tel: [phone] Fax: [phone] Email:[e-mail] http://www.acromag.com
18
65 29
.
65
64
66 59 58
61
60
54
53 56
55
49 48
51
50
44
43 46
45
39
38
41
40
33
36 34 35
28 30 23
22 25 24
18
17
19
18 17
20
19
P2
12 15 14
13
12
15
14
8
7 9
10
8
7
9
10
3
2 5
4
2 5
4
3
P2 P1
64 66
2 METERS
61 60
59
58
54 53 56
55
49 48
51
50
43
44
46
45
39 38
41
40 33
36
35 34
28 30 29 23 22
25
24
PIN 1 PIN 35 PIN 1 PIN 35
20
P1
13
SCHEMATIC
4501-919C
63
62
68
67
P2 P1
42
47
52
57
21
27
26
31
32 37
1
6
11 16
1
6
11
16
63 62
67
68
42
47
52
57
PIN 34 PIN 34 PIN 68
21 27 26 31 32 37
FRONT VIEW
PIN 68
(78.72 INCHES, +4.0 / -0.0 INCHES)
MODEL 5028-432
SCSI-3 68 PIN CABLE ASSEMBLY, SHIELDED
TOP VIEW
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

ACPC4610E/CC User’s Manual CompactPCI Bus PMC Carrier
___________________________________________________________________
__________________________________________________________________________
Acromag, Inc. Tel: [phone] Fax: [phone] Email:[e-mail] http://www.acromag.com
19
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
