Technical Specifications V1.12
ACR38UPocketMate
SmartCardReader

ACR38U-N1 – Technical Specifications [e-mail]
Version 1.12 www.acs.com.hk
Page 2 of 8
Table of Contents
1.0. Introduction .............................................................................................................3
1.1. Smart Card Reader................................................................................................................3
1.2. Ingenious Design...................................................................................................................3
1.3. Ease of Integration.................................................................................................................3
2.0. Features ...................................................................................................................4
3.0. Supported Card Types............................................................................................5
3.1. MCU Cards............................................................................................................................5
3.2. Memory-based Smart Cards..................................................................................................5
4.0. Typical Applications................................................................................................6
5.0. Technical Specifications.........................................................................................7

ACR38U-N1 – Technical Specifications [e-mail]
Version 1.12 www.acs.com.hk
Page 3 of 8
1.0.Introduction
ACR38U PocketMate is a smart card reader that has more to it than meets the eye. As small and
elegant looking as it is, this smart card reader is capable of supporting demanding smart card
applications using full-sized contact smart cards. It provides the perfect balance between reliable
functionality and design aesthetics to meet your security needs in many fields, including e-Banking, e-
Payment, and e-Government.
1.1. Smart Card Reader
ACR38U PocketMate supports ISO 7816 Class A, B,
and C smart cards (5 V, 3 V, and 1.8 V) and
microprocessor cards with the T=0, T=1 protocol. In
addition, it supports a wide variety of memory cards in
the market, including the Department of Defense
Common Access Card (CAC). This makes it ideal for a
broad range of solutions, such as PIV Application,
Physical and Logical Access Control, Digital Signature,
and Online Banking.
It connects with computers through its USB Full Speed
interface and has a smart card read/write speed of
344 Kbps. This small device proves to be a powerful
smart card reader as it houses the ACR38 core, which
has been proven to support highly demanding smart
card applications.
1.2. Ingenious Design
The highly compact ACR38U PocketMate is specifically designed to be brought and used anytime,
anywhere. No larger than a standard USB token, it transforms into a smart card reader for full-sized
contact smart cards with just a single swivel motion.
1.3. Ease of Integration
Being a PC/SC and CCID compliant device, ACR38U PocketMate can easily be integrated in a
compter-based environment. Its drivers are compatible with operating systems such as Windows®,
Linux® and Mac OS®. In addition, ACR38U PocketMate may now be used on mobile devices running
the Android™ platform with versions 3.1 and later.
With its various features, ACR38U PocketMate is the perfect smart card reader for your smart card
solution.

ACR38U-N1 – Technical Specifications [e-mail]
Version 1.12 www.acs.com.hk
Page 4 of 8
2.0.Features
•USB 2.0 Full Speed Interface
•Plug-and-Play – CCID support brings utmost mobility
•Swivel Motion Design
•Smart Card Reader:
oSupports ISO 7816 Class A, B and C (5 V, 3 V, 1.8 V) cards
oSupports CAC (Common Access Card)
oSupports J-LIS Card
oSupports microprocessor cards with T=0 and T=1 protocol
oSupports memory cards
oSupports PPS (Protocol and Parameters Selection)
oFeatures Short Circuit Protection
•Application Programming Interface:
oSupports PC/SC
oSupports CT-API (through wrapper on top of PC/SC)
•Supports Android™ 3.1 and later1
•Compliant with the following standards:
oEN60950/IEC 60950
oISO 7816
oUSB Full Speed
oEMV™ Level 1 (Contact)
oPC/SC
oCCID
oCE
oFCC
oRoHS 2
oREACH
oFIPS 201 (USA)
oTAA (USA)
oJ-LIS (Japan)
oVCCI (Japan)
oMicrosoft®WHQL
1Uses an ACS-defined Android Library

ACR38U-N1 – Technical Specifications [e-mail]
Version 1.12 www.acs.com.hk
Page 5 of 8
3.0.Supported Card Types
3.1. MCU Cards
ACR38U PocketMate operates with MCU cards following either the T=0 or T=1 protocol. It also works
with CAC cards, ideal for US PIV and PKI applications.
3.2. Memory-based Smart Cards
ACR38U PocketMate works with several memory-based smart cards such as:
•Cards following the I2C bus protocol (free memory cards) with maximum 128 bytes page with
capability, including:
oAtmel®: AT24C01/02/04/08/16/32/64/128/256/512/1024
oSGS-Thomson: ST14C02C, ST14C04C
oGemplus: GFM1K, GFM2K, GFM4K, GFM8K
•Cards with secure memory IC with password and authentication, including:
oAtmel®: AT88SC153 and AT88SC1608
•Cards with intelligent 1 KB EEPROM with write-protect function, including:
oInfineon®: SLE4418, SLE4428, SLE5518 and SLE5528
•Cards with intelligent 256-byte EEPROM with write-protect function, including:
oInfineon®: SLE4432, SLE4442, SLE5532 and SLE5542
•Cards with ‘104’ type EEPROM non-reloadable token counter cards, including:
oInfineon®: SLE4406, SLE4436, SLE5536 and SLE6636
•Cards with Intelligent 416-bit EEPROM with internal PIN check, including:
oInfineon®: SLE4404
•Cards with Security Logic with Application Zone(s), including:
oAtmel®: AT88SC101, AT88SC102 and AT88SC1003

ACR38U-N1 – Technical Specifications [e-mail]
Version 1.12 www.acs.com.hk
Page 6 of 8
4.0.Typical Applications
•e-Government
•e-Banking and e-Payment
•e-Healthcare
•Public Key Infrastructure
•Network Security
•Access Control
•Loyalty Program

ACR38U-N1 – Technical Specifications [e-mail]
Version 1.12 www.acs.com.hk
Page 7 of 8
5.0.Technical Specifications

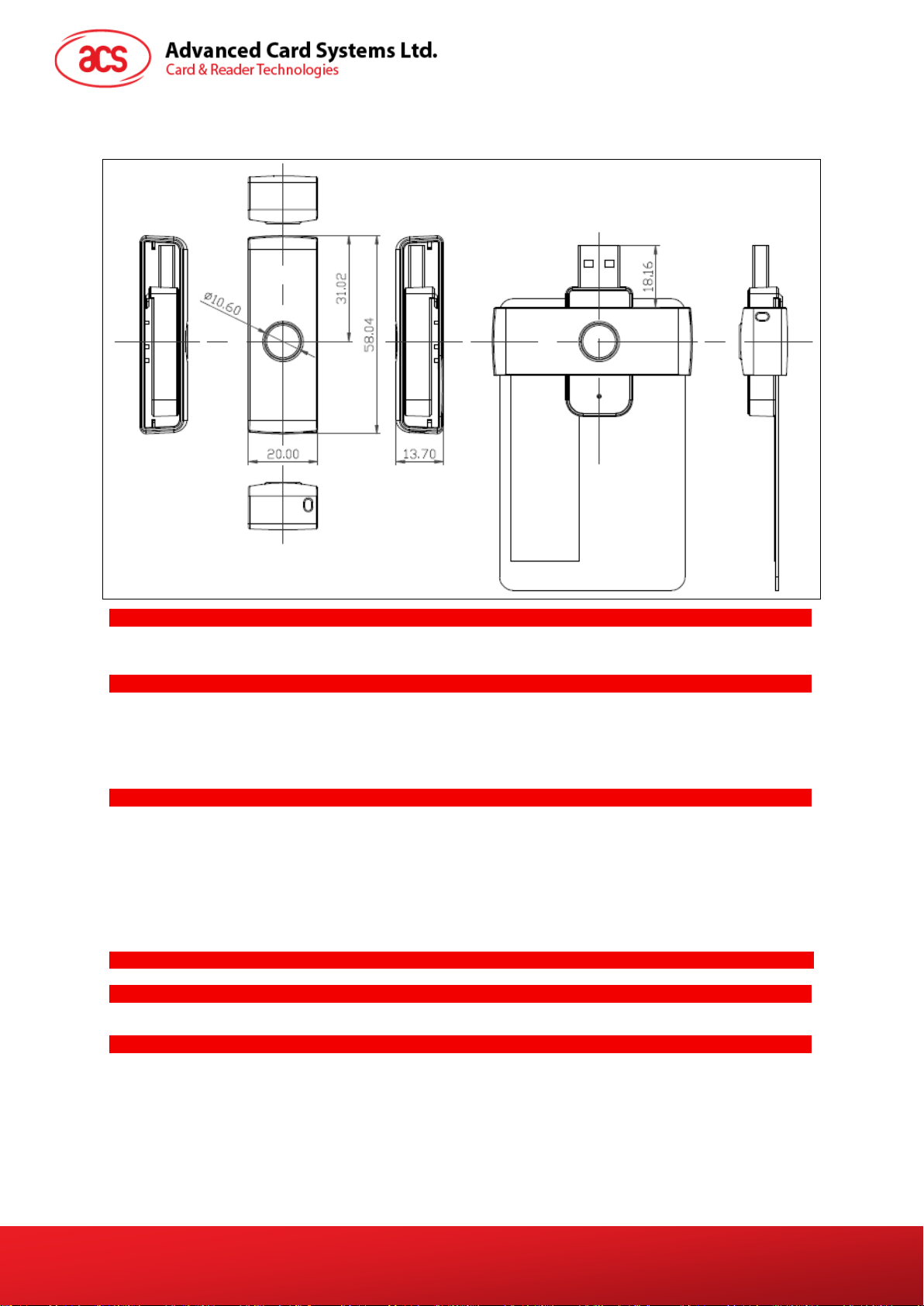

Physical Characteristics
Dimensions .................................... 58.0 mm (L) × 20.0 mm (W) × 13.7 mm (H)
Weight............................................ 12 g
Color .............................................. Black
USB Host Interface
Protocol.......................................... USB CCID
Type............................................... Four Lines: +5 V, GND, D+ and D-
Connector Type.............................. Standard Type A
Power Source................................. From USB port
Speed............................................. USB Full Speed (12 Mbps)
Supply Voltage............................... 5 V
Contact Smart Card Interface
Number of Slots ............................. 1 Full-sized Card Slot
Standard ........................................ ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V)
Protocol.......................................... T=0; T=1; Memory Card Support
Supply Current............................... Max. 50 mA
Smart Card Read/Write Speed....... 9.6 Kbps – 344 Kbps
Short Circuit Protection ................. (+5) V/GND on all pins
Clock Frequency............................ 4.0 MHz
Card Connector.............................. Contact
Card Insertion Cycles..................... Min. 100,000
Built-in Peripheral
LED................................................ Green
Application Programming Interface
PC-linked Mode.............................. PC/SC
....................................................... CT-API (through wrapper on top of PC/SC)
Operating Conditions
Temperature................................... 0 °C - 50 °C
Humidity......................................... Max. 90% (non-condensing)
MTBF ............................................. 500,000 hrs

ACR38U-N1 – Technical Specifications [e-mail]
Version 1.12 www.acs.com.hk
Page 8 of 8
Certifications/Compliance
EN60950/IEC 60950, ISO 7816, USB Full Speed, EMV™ Level 1 (Contact), PC/SC, CCID, CE, FCC, RoHS 2,
REACH, FIPS 201 (USA), TAA (USA), J-LIS (Japan), VCCI (Japan), Microsoft® WHQL
Device Driver Operating System Support
Windows® Embedded Compact 7, Windows® ME, Windows® 98, Windows® 2000, Windows® XP,
Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10
Windows® Server 2003, Windows® Server 2008, Windows® Server 2008 R2, Windows® Server 2012,
Windows® Server 2012 R2
Linux®, Mac OS®, Android™ 3.1 and later
