ACT Technology ACTsmart2 Series User manual
ACTsmart2 system Network System
Product Overview
ACTsmart2 System allows easy configuration and
maintenance of the ACTsmart2 devices. It consists
of a Windows PC application (ACTWin Smart), the
ACTsmart2 controller unit and a cable to connect
the controller to the PC. The ACTsmart2 devices
are available as Proximity, PIN and Proximity and
PIN only. For cards and fobs for the ACTsmart2
System, please use ACTProx cards and fobs
(see our Ordering Section for further details).
Main Features
Simple graphical interface
Digital keypad backlighting (ACTsmart2 1080/1090)
1 to 8 doors
1000 users
16 user groups
100,000 event log on PC
1,000 event log buffer on controller
Flash upgrade facility
Built in translation facility
Rapid on the fly downloading
Choice of reader types Proximity, Pin
and Proximity and Pin only
Installation / Specification Guidelines
The ACTsmart2 system is designed to suit
access control systems for small to medium
sized enterprises or facilities
The lock and door controls are contained in the
reader and no other controller other than the
ACTsmart2 controller is required
The ACTsmart2 system is strictly an access control
system. Please review the comparison chart on the
reverse side of this leaflet to ensure it is suitable for
customer’s requirements
The maximum cabling distance between the PC
and the Smart2 controller is 30 metres
The maximum network cabling for the readers
is 1.4km of twisted screen pair or category 5
The controller, readers etc require a 12volt
dc supply
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●

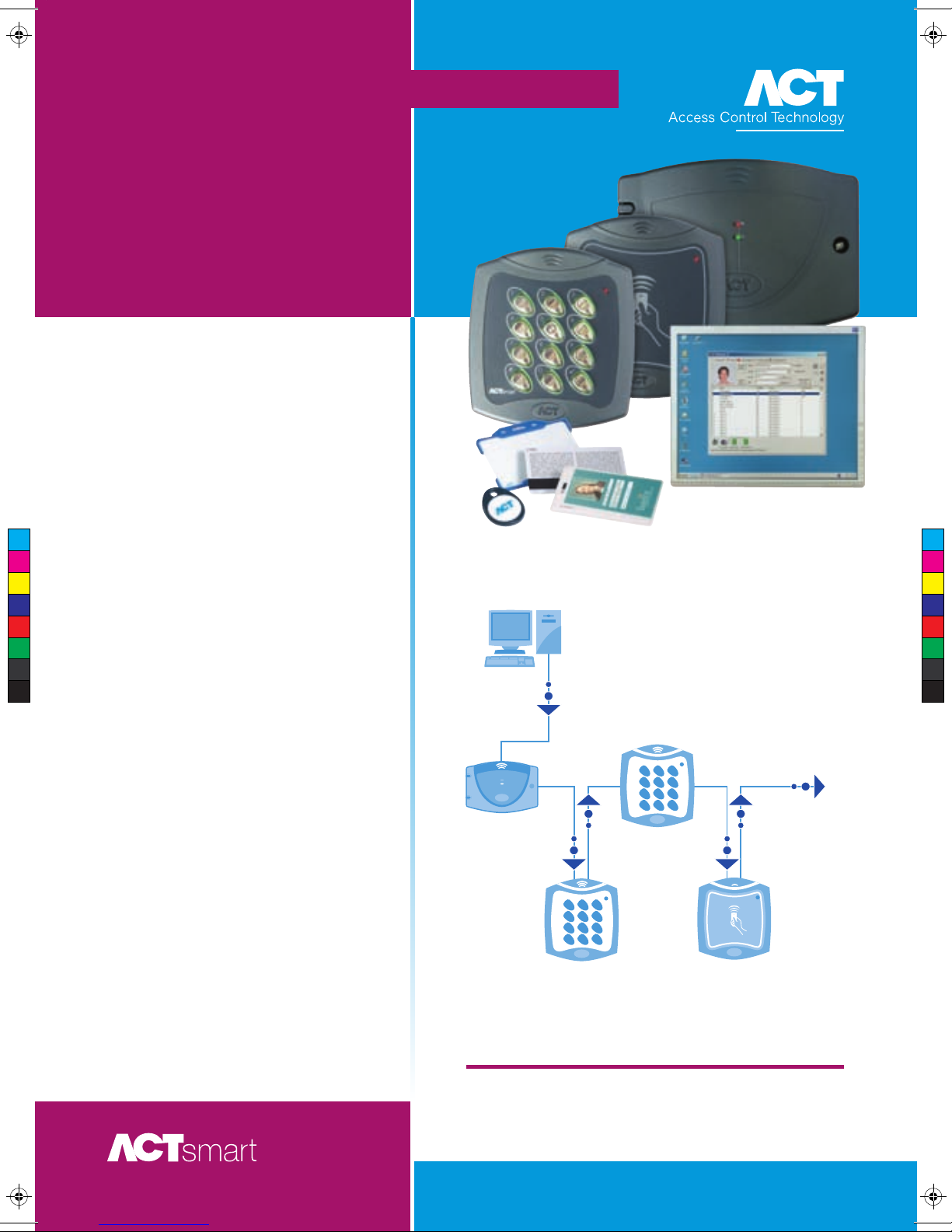

ACTsmart2 System Schematic
ACTsmart2 System
ACTsmart2 Readers networked to a PC via an ACTsmart2 Controller
For full functionality use 12 volts DC only
ACTsmart2
Controller
ACTsmart2 1080
Pin & Proximity
ACTsmart2 1090
Pin Only
Max 8 Units
ACTsmart2 1070
Proximity Only
C
M
Y
CM
MY
CY
CMY
K

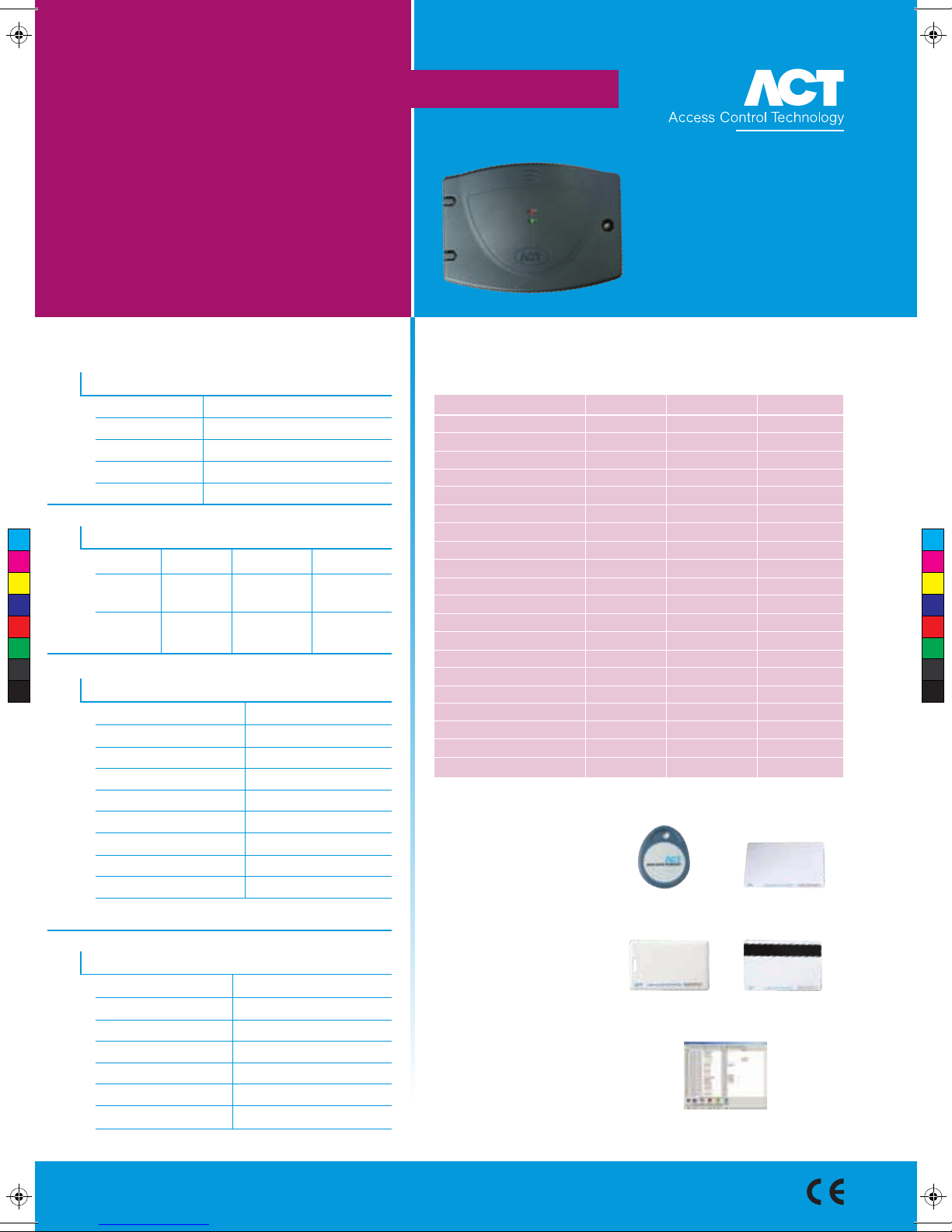

ACTsmart2 system Network System
ACTsmart2 Controller
Product Specification
Operating Voltage: 12 Volts DC
Current Consumption: 200 mA max
Weight: 340 grams
Operating Temperature: -10 to +50 C
Dimensions (HxWxD): 110 x 190 x 57 mm
Mounting: Surface
Installation: Indoor
ACTsmart2 Readers - Specification
Operating Voltage: 12 - 24 Volts AC/DC
Current Consumption: 80 mA
Weight: 200 grams
Operating Temperature: -10 to +50 C
Dimensions (HxWxD): 110 x 100 x 35 mm
Mounting: Surface or flush
Installation: Indoor or outdoor (IP67)
Cabling Chart
From To Cable Restriction
Ordering Information
PC
Controller
Controller
Readers
Twisted
screen pair
Twisted
screen pair
30m
1.4km
daisy chain
Access Control Technology Unit C1, South City Business Park, Tallaght, Dublin 24, Ireland.
Controller
Proximity reader
Pin & Prox reader
Pin only reader
Smart Lock
Proximity card
Proximity fob
Proximity Half Shell Card
Prox & Mag Stripe Card
ACTsmart2 controller*
ACTsmart2 1070
ACTsmart2 1080
ACTsmart2 1090
ACTsmart Lock
ACTProx ISO-B*
ACTProx Fob-B*
ACTProx HS-B*
ACTProx DUO-B*
* These cards and fobs are compatible with the ACTpro-X
and ACTsmart2 proximity reader range
* The above table is for comparative reasons only. If the features of ACTWin Pro or ACTWin Lite are
required, the ACTpro 1000/2000/3000 controllers and ACTpro readers will have to be specified
Operating system
CPU
Ram
CD-ROM Drive
1 serial port
Windows 2000, XP, 2003, Vista
Pentium II (300Mhz or better)
64 Mb or better
Yes
Yes
PC specifications for ACTWin Smart
ACTProx Fob
Extremely robust with a
max read range of 8cm
ACTProx ISO Card
Suitable for ID printing with
max read range of 10cm
ACTProx HS Card
Half shell card with a
max read range of 10cm
ACTProx DUO Card
Prox & mag stripe with
max read range of 10cm.
Suitable for ID printing.
ACTsmart2
Controller
ACT PC program comparison chart
ACTWin Smart
Software
ACTProx HS Card ACTProx DUO card
ACTProx fob ACTProx ISO card
Feature
Doors
Users
User Groups
Time zones
Event log
Anti passback support
Timed anti passback support
Roll call reports
Access control reports
Time & attendance reports
User tracking
Door command facility
Administrator audit trail
Pass word protection
SQL server
TCP/IP support
Upload facility
Real time download
Photo ID for each user
Client server
ACTWin Smart
8
1000
16
16
100,000
Yes
Yes
Yes
Yes
Yes
Yes
ACTWin Lite*
64
30,000
1000
256
Infinite
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
ACTWin Pro*
2000
30,000
1000
256
Infinite
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
C
M
Y
CM
MY
CY
CMY
K
