ACTi CAM-7200 series Instructions for use

IP Indoor Fixed Dome
(with DC 12V / PoE)
CAM-7200 series
Ver. 070309
Hardware User’s Manual

0-1
0PRECAUTIONS
1. Read these instructions
All the safety and operating instructions should be read before the product is
operated.
2. Heed all warnings
All warnings on the product and in the instruction manual should be adhered to.
The symbol indicates the following items, please carefully read the
description next to each symbol.
a. Failure to follow the safety instruction given may directly endanger
people, cause damage to the system or to other equipment.
b. The requirements to make this device work, including hardware,
computer settings, network settings, and operation procedures.
c. The tips to make using this device easier, more convenient and more
efficient.
3. Servicing
Do not attempt to service this video product yourself as opening or removing
covers may expose you to dangerous voltage or other hazards. Refer all servicing
to qualified service personnel.
Trademarks
All names used in this manual for hardware and software are probably registered
trademarks of respective companies.
Liability
Every care has been taken during writing this manual. Please inform your local office
if you find any inaccuracies or omissions. We cannot be held responsible for any
typographical or technical errors and reserve the right to make changes to the product
and manuals without prior notice.
FCC/CE Regulation
NOTE: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses,
0

0-2
and can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his
own expense.

0-3
Table of Contents
0PRECAUTIONS________________________________________________ 0-1
Trademarks ________________________________________________________________ 0-1
Liability ___________________________________________________________________ 0-1
FCC/CE Regulation__________________________________________________________ 0-1
1INTRODUCTION ______________________________________________ 1-1
1.1 Package Contents _______________________________________________ 1-1
1.2 Features and Benefits ____________________________________________ 1-2
1.3 Safety Instructions ______________________________________________ 1-4
1.4 Physical Description _____________________________________________ 1-6
2Installation Procedure __________________________________________ 2-12
2.1 Connect the IP Indoor Fixed Dome________________________________ 2-12
2.1.1 Remove the cover ___________________________________________________ 2-12
2.1.2 Open the dome bottom________________________________________________ 2-12
2.1.3 Insert the cable______________________________________________________ 2-12
2.1.4 Connect the cables to connectors________________________________________ 2-13
2.1.5 Select a cable exit and cut _____________________________________________ 2-13
2.1.6 Fasten the dome bottom back __________________________________________ 2-14
2.2 Mount the IP Indoor Fixed Dome (Surface)_________________________ 2-15
2.2.1 Place the camera on the surface and aim to your shooting direction_____________ 2-15
2.2.2 Fasten the camera with 2 screws ________________________________________ 2-15
2.3 Mount the IP Indoor Fixed Dome (Flush) __________________________ 2-16
2.3.1 Flush Bracket Contents _______________________________________________ 2-16
2.3.2 Assembly the Flush Ring______________________________________________ 2-16
2.3.3 Fasten Dome to Flush Bracket__________________________________________ 2-17
2.3.4 Cut a hole on the ceiling ______________________________________________ 2-17
2.3.5 Insert the Flush Bracket into the hole ____________________________________ 2-18
2.3.6 Fix the Flush ring____________________________________________________ 2-18
2.4 Mount the IP Indoor Fixed Dome (Wall) ___________________________ 2-20
2.4.1 Wall Mount Bracket contents __________________________________________ 2-20
2.4.2 Mount Bracket on the wall ____________________________________________ 2-20
2.4.3 Mount Camera to the Bracket __________________________________________ 2-20

0-4
3Adjust the camera______________________________________________ 3-21
3.1 Adjust zoom and focus __________________________________________ 3-21
3.2 Adjust CCD functions___________________________________________ 3-21

1-1
1INTRODUCTION
1.1 Package Contents
CAM-7200 series Power Adaptor (Option)
(DC12V / PoE)
Product CD Accessory
Warranty Card
1

1-2
1.2 Features and Benefits
The CAM-7200 series is a cutting-edge digital video transmission device. It
can compress and transmit real time images with outstanding images quality
(D1, 720x480) at reasonable bandwidth through a standard TCP/IP network.
That is because it is Ethernet (LAN and WAN) ready and has the powerful
ARM9 SoC and the MPEG-4 compression ASIC inside. In addition, with
these powerful hardware platform, excellent SDK support and powerful
respective apparatuses (e.g. the transcoder), this CAM-7200 series is your
best choice building up either conventional IP surveillance system or
intelligent IP surveillance system.
zReal-time MPEG-4 Compression
With hardware MPEG-4 compression chip inside, the composite video
inputs can be efficiently compressed into MPEG-4 bit stream without
any delay. The ASIC base compression engine can support not only
CIF, but also FULL D1 image resolution.
zQoS Enabled Video Streaming
For real-time video streaming requirements, the CAM-7200 series
implemented the 802.1pQ features inside the SoC as the streaming
engine to make sure the video streaming package is forwarded faster
than normal TCP/UDP packet.
zAutomatic Frame Rate Control
The CAM-7200 series supports automatic/manual streaming frame rate
control, especially for multiple clients’ concurrent access the same
video stream in different network bandwidth.
zDigital Time Code Embedded
The “Digital Time Code Embedded” function is to embed the
recording time in the MPEG bit stream. Therefore, each image frame
has its respective time when it was recorded. It is very useful when
users want to find the video at an exact time or between a certain time
intervals.
zBuild-in LAN and WAN (Low Latency PPPoE Supported) Ports
The CAM-7200 series provides two terminal blocks. One is WAN and
the other is LAN. The WAN port connects to the internet and LAN
port connects to the local network. Since the internet’s bandwidth is
very critical, the WAN port is equipped with a low latency PPPoE

1-3
(Point-to-Point over Ethernet) which has excellent transmission speed
and enables the CAM-7200 series to connect to an ADSL or a cable
modem.
zDDNS Supported
The CAM-7200 series supports DDNS (Dynamic Domain Name
Server), users can set the CAM-7200 series at a virtual domain name
(such as cam1.Taipei.xxx) at dynamic IP. Everyone can use the virtual
domain name to view the video anywhere that has the access to the
internet.
zBuild-in Hardware Motion Detection
No more external motion sensors are required. Each CAM-7200 series
can be set up to 3 detection areas. By tuning the object size and
sensitivity, it is very reliable to fit into your environment. Besides,
hardware motion detection delivers better sensitivity and responds
faster than software motion detection.
zBundle Powerful Surveillance Software
To extend the capabilities of the CAM-7200 series, a powerful
surveillance program is included in the package and is very free to use.
Users can easily utilize the existing PC to be a digital video recorder.
Schedule recording and manual recording keep every important image
recorded in the local hard disk. Reliable and accurate motion detection
with instant warning makes you responsive in every condition. Quick
and simple search and playback function lets you easily find the
images you want.
zSoftware Development Kit Support
The CAM-7200 series can be integrated or controlled by user’s
application program through the Streaming Library or ActiveX control.
With its high level programming interface, software developer’s time
and efforts to is highly reduced.

1-4
1.3 Safety Instructions
zDon’t use the power supply with other voltages
This device is likely to be damaged or damage other equipments /
personnel, if you use a power supply with different voltage than the
one included with this device. All warranty of this product will be
voided in the situations above.
zDon’t open the housing of the product
zCleaning
Disconnect this video product from the power supply before cleaning.
zAttachments
Do not use attachments not recommended by the video product
manufacturer as they may cause hazards.
zWater and Moisture
Do not use this video product near water, for example, near a bathtub,
washbowl, kitchen sink, or laundry tub, in a wet basement, or near a
swimming pool and the like.
zDon’t use accessories not recommended by the manufacturer
zOnly install this device and the power supply in a dry place
protected from weather
zServicing
Do not attempt to service this video product yourself as opening or
removing covers may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service personnel.
zDamage Requiring service
Disconnect this video product from the power supply immediately and
refer servicing to qualified service personnel under the following
conditions.
1. When the power-supply cord or plug is damaged.
2. If liquid has been spilled, or objects have fallen into the video
product.
3. If the video product has been exposed to rain or water directly.
4. If the video product does not operate normally by following the

1-5
operating Instructions in this manual. Adjust only those controls
that are covered by the instruction manual as an improper
adjustment . Other controls may result in damage and will often
require extensive work by a qualified technician to restore the
video product to its normal operation.
zSafety Check
Upon completion of any service or repairs to this video product, ask
the service technician to perform safety checks to determine that the
video product is in proper operating condition.

1-6
1.4 Physical Description

1-7
1. DI/O
z
DI: To Trigger Logic Level 0: 0~0.4V; Normal Logic Level 1:
3.3~30V
PIN NAME DESCRIPTION
1 GND Ground Pin
2 DI Digital Input
3 GND Ground Pin
4 DO Digital Output

1-8
DO: To Trigger Logic Level 0: 0.1~0.6V; Normal Logic Level1:
2.4~5V
2. Power Input
Please use DC12V power Input. Please follow the description on
the connector to connect to power.
3. Analog Video Output
The CAM-7200 series supports one channel analog video output.
4. WAN port
The IP Camera connects to the WAN (wide area network) via a
standard terminal block. Supporting NWAY, this IP camera can
auto detect the speed of local network segment
(10Base-T/100Base-TX Ethernet). The WAN port is for FTTH
and can connect to an xDSL or cable modem.
The Network connector is Terminal block instead of RJ-45 port,
please based on the label color on the connector to connect.
With PoE built-in product, you can power the IP camera via
WAN port, LAN port or DC input. You can power the IP camera
with multiple power inputs at the same time. If you do, the IP
PIN NAME DESCRIPTION
1 12V Power Input
2 GND Ground Pin
NOTE: Please be careful while you do cabling
arrangement for network cable. It might cause the
network to fail (some lines of cable might be broken).

1-9
camera will get the power from the first power input plugged into
it.
5. Screw Holes
These screw holes are used to fasten the CAM-7200 series.
6. LAN port
The IP Camera connects to the LAN (local area network) via a
standard terminal block. Supporting NWAY, this IP camera can
auto detect the speed of local network segment
(10Base-T/100Base-TX Ethernet).
With PoE built-in product, you can power the IP camera via
WAN port, LAN port or DC input. You can power the IP camera
with multiple power inputs at the same time. If you do, the IP
camera will get the power from the first power input plugged into
it.
7. Audio Input
GND MIC
NOTE: You may find a support package for help you
getting familiar with PoE. Please visit our web site, and
get the support document TS-00040.
NOTE: Please be careful while you do cabling
arrangement for network cable. It might cause the
network to fail (some lines of cable might be broken).
NOTE: You may find a support package for help you
getting familiar with PoE. Please visit our web site, and
get the support document TS-00040.

1-10
8. Reset Button
Step 1: Switch off IP camera by disconnecting the power cable
Step 2: Using a suitable pointed object, press and continue to hold
the Reset Button depressed. While continuing to hold the
reset button depressed, reconnect the power cable.
Step 3: Keep holding the reset button depressed around 6 seconds,
release the reset button. The unit will start up with factory
default settings
9. Cable Exit
These cable exits are used for cables to go through. Please cut it
with tools.
10. Zoom Lever
Move this lever to adjust the optical zoom. After adjusting, rotate
it clockwise to fix it.
11. Focus Lever
Move this lever to adjust the Focus. After adjusting, rotate it
clockwise to fix it.
12. CCD Functions DIP-switch
zAuto Electronic Shutter Speed Mode
AES On: 1/50 (60) sec. ~ 1/100,000 sec;
AES Off: 1/50 (60) sec.
PIN NAME DESCRIPTION
1 GND Ground Pin
2 MIC MIC signal
Item Description ON OFF
F.L. Flickerless Default
AGC Auto Gain Control Default
BLC Backlight Compensation Default
AES Auto Electric Shutter Default

1-11
zBack Light Compensation
ON/OFF (Switchable)
zFlickless
ON/OFF (Switchable)
zAutomatic Gain Control
ON/OFF (Switchable)
13. Video DC level Adjustment
Rotate it adjust the overall lighting for this camera.

2-12
2Installation Procedure
There are three types of installation of this CAM-7200 series.
Surface mount Flush mount Wall mount
Pictures
Optional Bracket
required
●●
The mounting procedure can be divided into two parts,
1st: Connect the CAM-7200 series
2nd: Mount the CAM-7200 series
2.1 Connect the IP Indoor Fixed Dome
2.1.1 Remove the cover
Please remove the dome cover first.
2.1.2 Open the dome bottom
Release these 3 screws to open the dome bottom.
2.1.3 Insert the cable
You have to insert the cable from dome bottom to the dome front to connect
to connectors. There are three holes at the dome bottom for you to insert
cable. Please follow for Please inset the cable as below.
Hole1: WAN cable, Analog Video cable
Hole2: LAN cable, Audio cable
2

2-13
Hole3: Power cable, DI/DO cable
For example,
2.1.4 Connect the cables to connectors
Please follow the instruction at Chapter 2 for how to connect to each
connector.
2.1.5 Select a cable exit and cut
There are three cable exits for cable to run out the CAM-7200 series. Please
elect according to your installation and use appropriate tool to cut.

2-14
2.1.6 Fasten the dome bottom back
Reverse what you do in 2.1.2 to fasten the dome bottom.

2-15
2.2 Mount the IP Indoor Fixed Dome
(Surface)

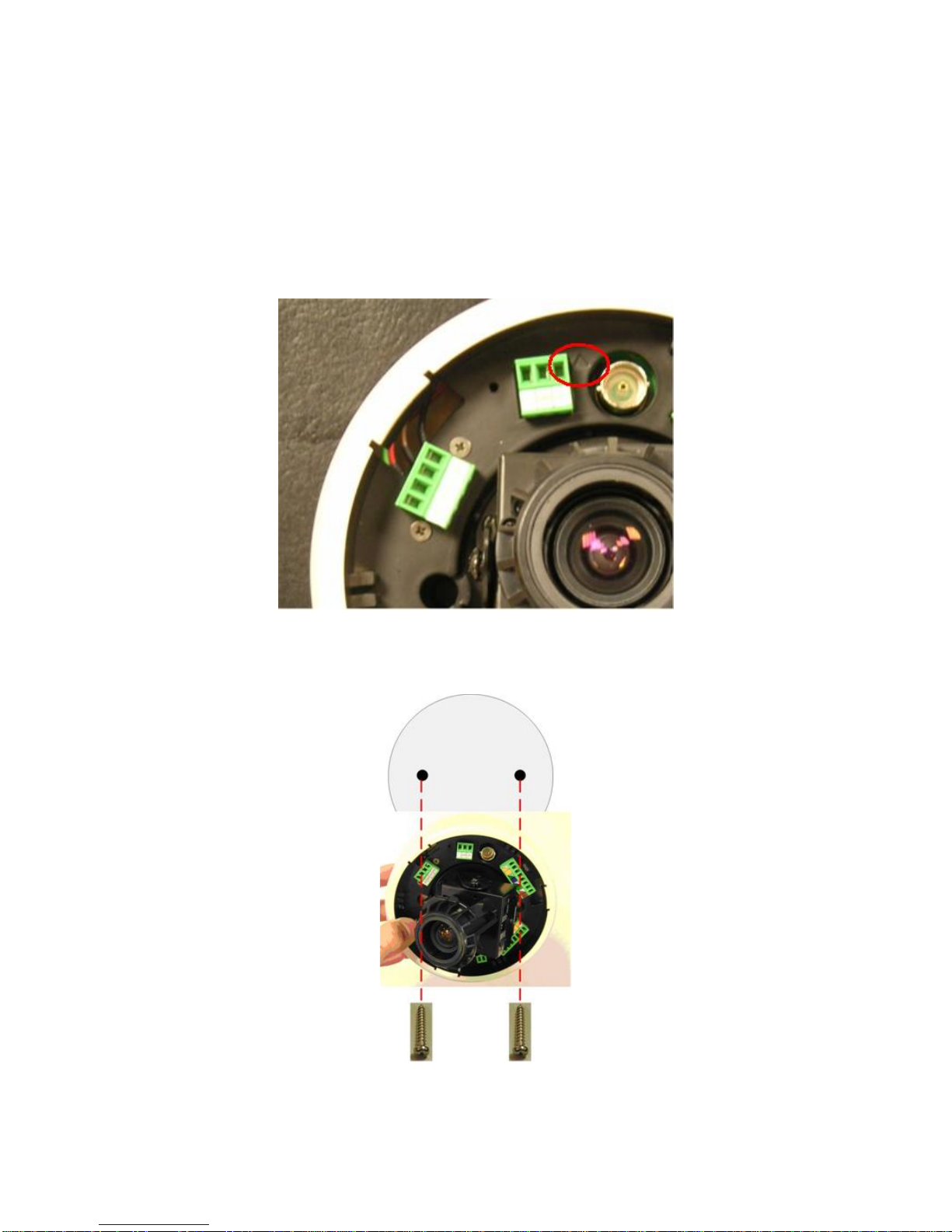

2.2.1 Place the camera on the surface and aim to your
shooting direction
Please aim the arrow here to your shooting direction.
2.2.2 Fasten the camera with 2 screws
Please aim the arrow here to your shooting direction.
