Acument Avdel T10 User manual

Hydro-Electric Power Tool
T10 Installation To o l
I n s t r u c t i o n M a n u a l

3
Contents
Safety 4
Specifications
Intent of Use 5
Tool Specification 5
Tool Dimensions 5
Putting into Service
Principle of Operation 6
Preparation for Use 6
Operating Instructions 6
Nose Assemblies
Fitting Instructions for N10 7
Fitting Instructions for N11 8
Maintenance
Dismantling Instructions 9
Assembling the Tool 9
General Assembly of Installation Tool 10
General Assembly Parts List 11
Servicing the Tool
Daily / Weekly 12
Every 1200 Working Hours (at least once a year) 12
Hydraulic Oil General Safety Data 12
Fault Diagnosis
Symptom, Possible Cause & Remedy 13-14
Avdel UK Limited policy is one of continuous product development and improvement and we reserve the right to change the specification of any product without prior notice.
Warranty
The ninety day warranty herein expressed shall be the exclusive warranty on items
manufactured by seller and shall be in the place and stead of any other warranty, expressed or
implied, including but not limited to the implied warranties of merchantability and fitness for a
particular purpose.
Seller shall not be liable for any loss or damage resulting from delays or non-fulfilment or
orders owing to strikes, fires, accidents, transportation companies or for any reason or
reasons beyond the control of seller or its suppliers.
All warranty claims must be submitted to the seller in writing, within 90 days from date of
shipment, and no returns will be accepted without written permission.
Other provisions hereof notwithstanding, seller shall not be liable for any loss of business
profits or any incidental or consequential damages incurred by Buyer or any third person in
connection with the items or use thereof, however caused.
Tool Warranty
Seller expressly disclaims any warranty express or implied, as to the condition, design,
operation, merchantability or fitness for use of any tool, or part(s) thereof not manufactured by
seller. The only warranties made with respect to such tool or part(s) thereof are those made
by the manufacturer thereof and seller agrees to cooperate with buyer in enforcing such
warranties when such action is necessary. Seller agrees to repair or replace F.O.B. seller's
plant, any tool or part(s) thereof manufactured by it and proved to seller to be defective due to
faulty workmanship or material.

4
Safety
1Do not use outside the design intent.
2Do not use equipment with this tool/machine other than that recommended by Avdel UK Limited.
3Any modification undertaken by the customer to the tool/machine shall be the customer’s entire responsibility.
4Always disconnect the tool from the hydrapac before attempting to adjust, remove or fit the nose assembly.
5Do not operate a tool/machine that is directed towards any person(s).
6Always adopt a firm footing or a stable position before operating the tool/machine.
7It is recommended that ear and eye protection be worn by the operator and those in the vicinity.
8Do not fit flexible hoses rated at less than 10 000 psi (69 mPa) working pressure.
9The operating pressure shall not exceed 8000 psi (55.2 mPa).
10 Care shall be taken to ensure that spent pintails are not allowed to create a hazard.
11 The flexible pintail deflector T108 must always be attached to the tool and in good condition.
12 Take care to avoid entanglement of loose clothes, ties, long hair, cleaning rags etc. in the moving parts of the tool.
13 The tool should be kept clean and dry for the best possible grip.
14 When carrying the tool from place to place keep hands away from the trigger to avoid inadvertent start up.
This instruction manual must be read with particular attention to the following safety rules, by any person
installing, operating, or servicing this tool.
CAUTIONS
AVDEL RECOMMENDS THAT ONLY HYDRAPAC UNITS BE USED TO DRIVE INSTALLATION TOOLS, AS OTHER MAKES OF
HYDRAULIC POWER UNITS MAY NOT OPERATE AT THE SAFE DESIGNED WORKING PRESSURES.
ENSURE THAT THERE IS ADEQUATE CLEARANCE FOR THE TOOL OPERATOR'S HANDS BEFORE PROCEEDING.
DO NOT ABUSE THE TOOL BY DROPPING OR USING IT AS A HAMMER.
KEEP DIRT AND FOREIGN MATTER OUT OF THE HYDRAULIC SYSTEMS OF THE TOOLS AS THIS WILL CAUSE THE TOOL
AND HYDRAPAC TO MALFUNCTION

5
In t en t o f Us e
Tool Specification

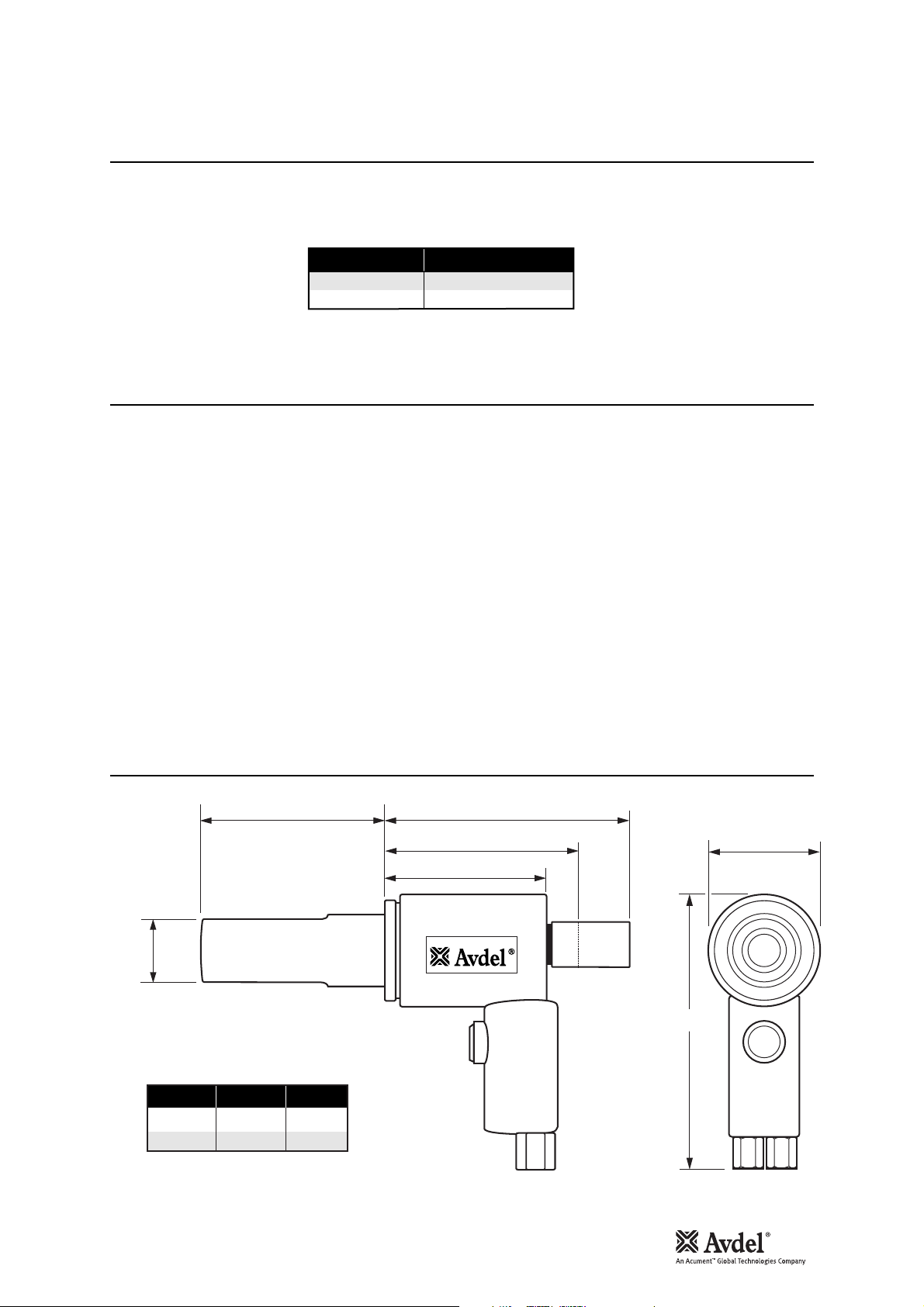

Tool Dimensions
Specifications
The T10 Installation Tool is basically a Piston and Cylinder Assembly. When coupled Hydraulically and Electrically to a compatible Hydraulic
Power Source and the relevant Nose Assembly is attached, it is then used to install 5 to 10 mm Lockbolts in Industrial Environments.
N10 89 mm 28 mm
N11 86 mm 29 mm
158 mmA
118 mm
98 mm
60 mm
176 mm
D
NOSE A D
NOSE NUMBER FASTENER
N10 10mm (3/18") Avdelok®
N11 10mm (3/18") Avbolt®
Length 158 mm 6.25 in
Body Diameter 60 mm 2.36 in
Height 176 mm 6.93 in
Weight 3.5 kg 7.7 lbs
Stroke 25 mm 1 in
Pull pressure 55.2 mPa 8000 PSI
Return Pressure 20.7 mPa 3000 PSI
Hydraulic Oil ISO VG 46 OR EQUIVALENT
Fastener Range 5 to 10 mm incl. M.G. & Blind Fasteners
Noise Level Below reportable levels
Sound Power Below reportable levels
Vibration Below reportable levels

6
Pr i nc i pl e o f Op e ra t io n
Pr e p ar a ti o n fo r U se
Operating Instructions
Maintenance
When both hoses and control cord are connected to the Hydrapac, the pull and return cycles of the tool are controlled by depressing and
releasing the trigger switch located in the handle respectively.
When the switch is depressed the solenoid valve located in the Hydrapac is energised and directs the pressurised oil flow to the pull side
of the piston in the tool. This also allows the oil in the return side of the tool to return to the tank. The piston/collet assembly now moves
towards the rear of the tool allowing the 'O' Ring type cushion to push the follower and jaws forward. If a Hydraloc pin has been inserted in
the nose for assembly, the jaw set will clamp onto the pintail and assembly will commence.
The cycle of installation will first clamp the joint to be fastened and then as the anvil continues to move forward the collar will be swaged
into the locking grooves of the pin. At the end of the swaging cycle the anvil will come hard up against the joint and as movement
continues the pintail will be broken off.
The trigger switch must be released immediately after pin break occurs. Releasing the trigger switch will cause the solenoid to de-
energise and reverse the flow of pressurised oil.
Pressurised oil will now flow into the return side of the installation tool with the oil in the pull side returning to the tank.
The forward movement of the piston/collet assembly will eject the installed fastener from the anvil and as the forward movement
continues, the jaw release mechanism will partly open the jaws to allow the next fastener to be inserted into the nose.
When the piston returns to the fully forward position the pressure build up in the system will cause the Hydrapac to go into idle mode. This
keeps the installation tool in the forward position.
Please note that with all electric Hydrapacs there is a built in "Sleep Mode" which in effect means that the electric motor will automatically
switch off if the trigger switch is not operated for approximately 10 seconds. The Hydrapac will automatically start up on depression of
the tool trigger switch. (The diesel Hydrapac does not have a "Sleep Mode".)
•Attach the proper nose assembly to tool per instructions on the nose assembly data sheet.
•Ensure the Hydrapac is not running.
•Connect hoses and the control cord to the Hydrapac.
•Start the Hydrapac. Depress and release the trigger switch a few times to almost the full stroke of the tool to circulate hydraulic fluid.
Observe action of tool. Check for fluid leaks and ensure that in the idler mode the piston is in the fully forward position.
To install a Hydraloc Fastener
•Check work and remove excessive gap. (Gap is the space between components of the Joint. Gap is excessive if not enough pintail
sticks through the collar for the nose assembly jaws to grab onto.)
•Put Hydraloc pin into hole.
•Slide Hydraloc collar over pin. (The bevelled end of the collar must be towards the nose assembly and tool.)
•Push nose assembly onto pin until the nose assembly anvil stops against the collar. Tool and nose assembly must be held at right
angles (90°) to the work.
•Depress tool trigger switch to start installation cycle.
•When the forward motion of the nose assembly anvil stops and the pintail breaks off, release the switch. The tool will go into its return
stroke and push off the installed fastener. At the end of the return stroke the jaws will partially release the expended pintail which can
then be pushed through the jaws with the next installation and then ejected through the rear of the tool.
•Once the installed fastener been ejected, the tool and nose assembly is ready for the next installation.
CAUTION
DO NOT ATTEMPT TO BREAK OFF A PINTAIL WITHOUT THE INSTALLATION OF A COLLAR AS THIS WILL CAUSE THE
UNSECURED PORTION OF THE HYDRALOC PIN TO EJECT FROM THE NOSE AT A HIGH SPEED AND FORCE.
IMPORTANT
Read the safety rules on page 4 carefully

7

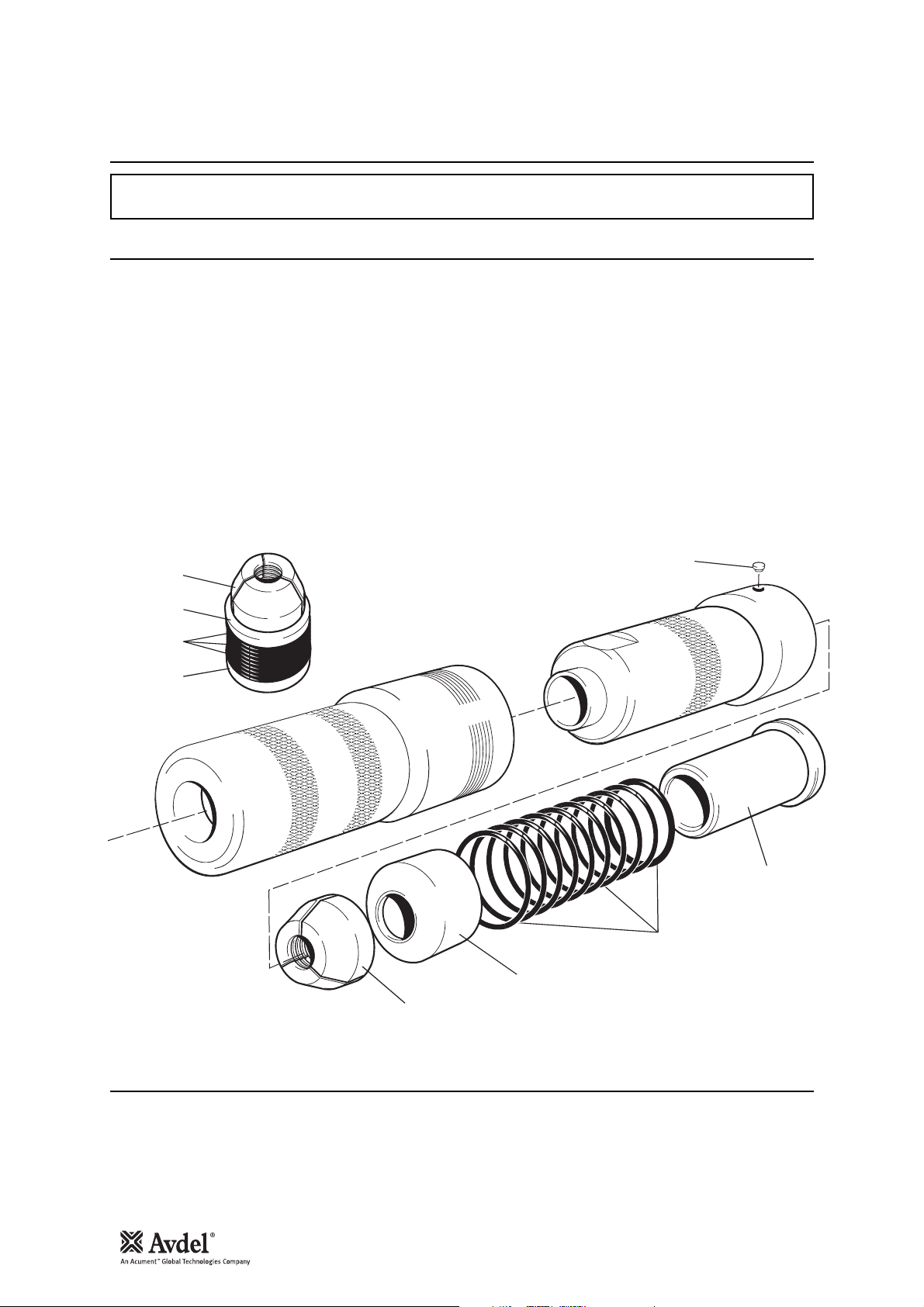

Fi t ti n g In s tr u ct i on s
Di s ma n tl i ng t h e No s e As s em bl y
N10 for 10 mm (3/8") Avdelok®
Ensure the installation tool piston rod is in the fully forward position.
Assemble the sleeve, 'O' rings, follower and jaws by "stacking" vertically in that order.
Place the collet over the stack, slide to the end of the bench or table and with a finger, push the stack to the front of the collet.
With the tool in the vertical position, screw the collet onto the piston rod until it is flush with the end of the collet adaptor. Rotate the
collet in either direction until the collet lock situated in the side of the collet slots into the nearest groove on the collet adaptor. The
lock should be flush with the exterior of the collet.
Slide the anvil over the collet and screw into the anvil adaptor until it is firm. Note, there is a locking 'O' Ring which will create a
resistance to the final few turns of the anvil. It is imperative that the anvil be hand tightened up against the rear locking face.
'O'-RINGS
10 OFF
R113
FOLLOWER
N107
SLEEVE
N108
ANVIL
N101
COLLET LOCK
MS23
COLLET
N102
JAWSET
JS01
JAWS
FOLLOWER
'O'-RINGS
SLEEVE
STACKING
IMPORTANT
Nose assembly parts must be assembled clean and dry. Do Not lubricate with oil or grease.
•Unscrew the anvil.
•Unscrew the collet.
•Remove the components.
•Clean and check all components in particular the jaw set.

8
Fi t ti n g In s tr u ct i on s
Di s ma n tl i ng t h e No s e As s em bl y
N11 for 10 mm (3/8") Avbolt®
Ensure the installation tool piston rod is in the fully forward position.
Assemble the sleeve, 'O' rings, follower and jaws by "stacking" vertically in that order.
Place the collet over the stack, slide to the end of the bench or table and with a finger, push the stack to the front of the collet.
With the tool in the vertical position, screw the collet onto the piston rod until it is flush with the end of the collet adaptor. Rotate the
collet in either direction until the collet lock situated in the side of the collet slots into the nearest groove on the collet adaptor. The
lock should be flush with the exterior of the collet.
Slide the anvil over the collet and screw into the anvil adaptor until it is firm. Note, there is a locking 'O' Ring which will create a
resistance to the final few turns of the anvil. It is imperative that the anvil be hand tightened up against the rear locking face.
ANVIL
N111
COLLET LOCK
MS23
COLLET
N112
JAWSET
JS11
'O-RINGS'
10 OFF
R113
FOLLOWER
N117
SLEEVE
N118
JAWS
FOLLOWER
'O'-RINGS
SLEEVE
STACKING
IMPORTANT
Nose assembly parts must be assembled clean and dry. Do Not lubricate with oil or grease.
•Unscrew the anvil.
•Unscrew the collet.
•Remove the components.
•Clean and check all components in particular the jaw set.

9
Dismantling Instructions
As s em b li n g th e To ol
Maintenance
•Uncouple the two Hydraulic Hoses and disconnect the Control Cord .
•Unscrew and remove the Anvil by hand.
•Unscrew the Collet and remove the inner assembly by hand.
•Loosen the Grub Screw 14 using a 2 mm Allen Key.
•Unscrew the Anvil Retainer 4.
•Place a tray under tool to catch the oil.
•If a hand pump is available, connect to female coupling and slowly pump Piston 10 out of Cylinder 15.
•Otherwise clamp the Piston 10 in a soft jawed vice and tap the Cylinder 15 backwards with a soft mallet.
•Remove the Brass Plug 1by inserting a sharp object(eg. a small screwdriver) into the keyway and levering out the plug.
•Unscrew the Collet Adaptor 2.
•Remove the Gland 7.
•Inspect and replace 'O' Rings and Back-up Rings as per the Service Kit 27 if necessary.
IMPORTANT
Be sure the Hydrapac is turned off before removing tool or nose.
Examine and replace all worn parts. Fit new 'O' Rings and Back-up Rings (Service Kit 27).
•Apply hydraulic oil to all 'O' rings, back-up rings and contact surfaces before fitting.
•Fit new 'O' Rings 6, 9and Back-up Rings 5, 8to the Gland 7.
•Fit 'O' Ring 12 and Back-up Ring 11 to Piston 10.
•Fit 'O' Ring 16 and Back-up Ring 17 into the rear of the Cylinder 15.
•Install the Piston 10 into the Cylinder 15.
•Install the Gland 7.
•Install the Anvil Retainer 4.
•Re-clamp the Grub Screw 14 using a 2 mm Allen Key.
•Refit the Collet Adaptor 2
•Align the hole with the Keyway.
•Insert the Brass Plug 1.
•Bleed the Tool.
To Bleed the Tool:
•Couple the short Tool Hoses directly onto a HydraPAc or compatible Hydraulic Power Source. Note Do not use long extension
Hoses as these will prevent the air from escaping into the HydraPAc.
•Plug in a HydraPac Test Trigger.
•Position the Tool so that the Piston Rod side faces vertically up.
•Cycle a few times.
•Reverse the vertical position and cycle again.
Item numbers in bold refer to the general assembly drawing and parts list on pages 12-13.

10

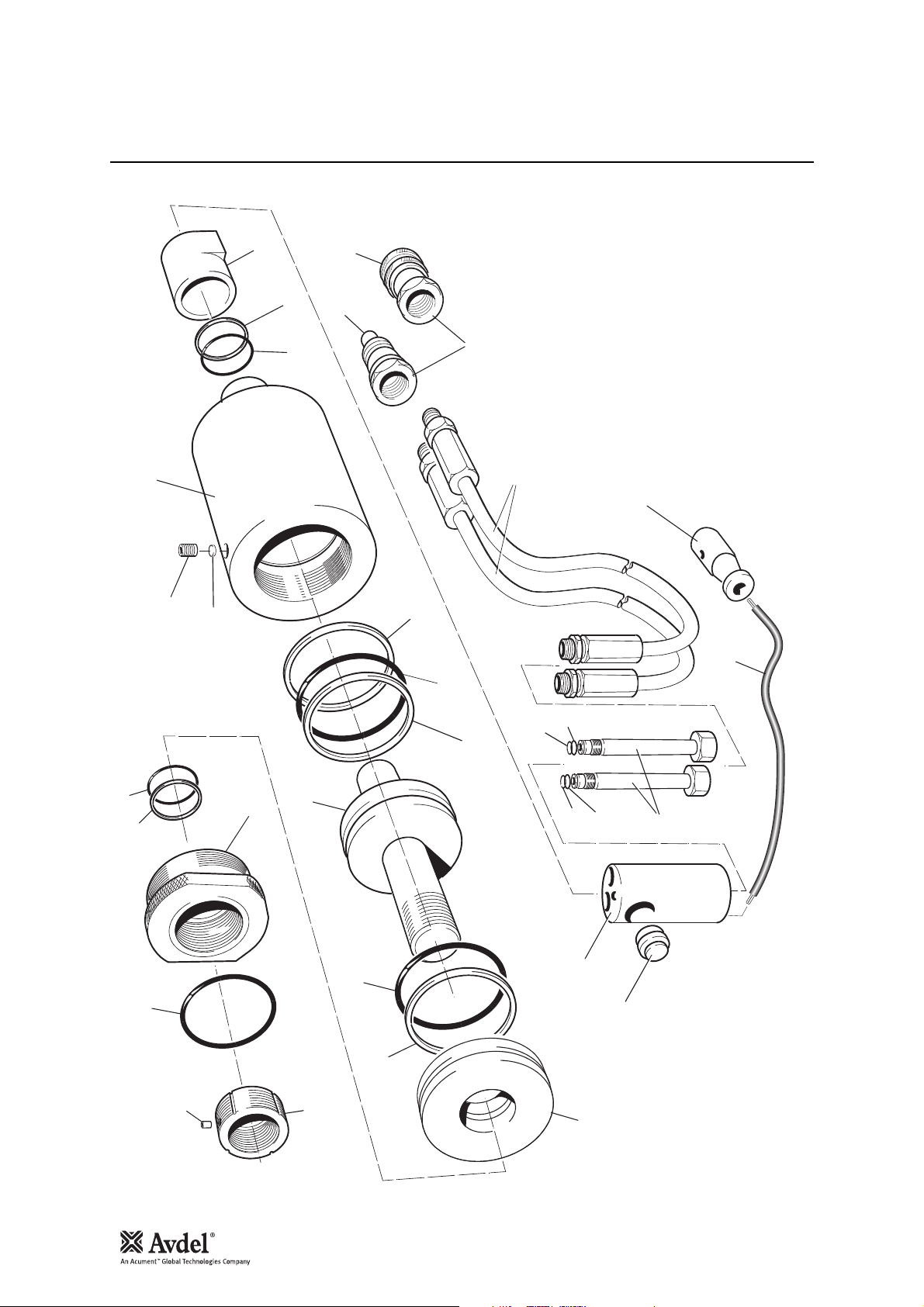

General Assembly of T10 Installation To o l
11
11
13
14
15
16 17
18
12
7
18
19
21
21
22
23
24
25
26
20
20
9
10
8
6
5
3
4
1
2
PR
*
*
*
*
**
*
*
*
*
*
*
*
*
*
SUPPLIED ONLY
AS SERVICE KIT
27

11
Par ts List for T10 Installation To o l
ITEM PART Nº DESCRIPTION QTY SERVICE KIT
T10 INSTALLATION TOOL PARTS LIST
* 'O' Rings and Back-up Rings only supplied in Service Kit SK10
1 MS24 BRASS PLUG 1 2 T107 COLLET ADAPTOR 1 3 R227 'O' RING 1 * 4 T104 ANVIL RETAINER 1 5 B116 BACK-UP RING 1 * 6 R116 'O' RING 1 * 7 T103 GLAND 1 8 B129 BACK-UP RING 2 * 9 B114 BACK-UP RING 1 * 10 T102 PISTON 1 11 B220 BACK-UP RING 2 * 12 R220 'O' RING 1 * 13 M515 PAD 1 14 G511 GRUBSCREW 1 15 T101 CYLINDER 1 16 R114 'O' RING 1 * 17 B114 'O' RING 1 * 18 I111142 TRIGGER SWITCH 1 19 T106 HANDLE 1 20 R010 'O' RING 2 * 21 B010 BACK-UP RING 2 * 22 T105 HANDLE STEM 2 23 C106 CONTROL CORD 1 24 C112 MALE PLUG 1 25 HS02 HYDRAULIC HOSE 2 26 HS01 QUICK COUPLER SET 1 27 SK10 SERVICE KIT 1 *

12
Da i ly
Wee k l y
S e r vi c e To o ls
Hy d ra u li c O il G e ne r al S a fe ty D a ta
Ev e ry 1 2 00 w o rk i ng h o ur s ( at l ea s t on c e a ye a r)
Servicing the To o l
•Check for oil leaks.
•Check the stroke of tool.
•Check for worn anvil indicated by score marks on the installed collar. This can also be confirmed by referring to the installed data
in the fastener catalogue. Excessive wear can cause the anvil to rupture.
•Check function of pull pressure safety valve.
•Dismantle and clean the nose assembly especially the jaws.
•Check for oil leaks.
The tool should be completely dismantled and worn components replaced including 'O' rings and back-up rings.
•Open Ended Flat Spanners - 17, 19, 24
•Allen Keys - 2 mm, 6 mm
•150 mm Engineers Vice with Jaw Guards
•Hydraulic Hand Pump if Available
First Aid
SKIN:
Under normal conditions skin irritation will not occur, contaminated skin should however be washed thoroughly with soap and water.
Launder contaminated clothing.
ORAL:
If swallowed and person is conscious give water or milk. Do not induce vomiting unless on advice of medical personnel. Take person
to nearest medical centre.
EYES:
Flush immediately with water for several minutes
DISPOSAL:
Remove all spills with inert absorbent material. Ventilate spill area. Place contaminated materials in a disposable container and
dispose in a manner consistent with local regulations.
Fire
FLASH POINT: 200°C.
Extinguish with either dry chemical, foam or carbon dioxide. Do not enter confined space without self contained breathing apparatus.
Handling
Use barrier cream or oil resistant gloves.
Storage
Undercover and consistent with local regulations for inflammable material.

13
Fault Diagnosis
Tool fails to operate Inoperative Hydrapac Check power supply to Hydrapac
Loose or disconnected control cord Check for loose or broken wires
Defective switch assembly Replace switch assembly
Faulty hydraulic hose couplings Replace faulty couplings
Tool leaks hydraulic Depending on what leaks occur, Check and replace 'O' rings
oil defective or worn 'O' rings, loose and back-up rings, or
hydraulic hose connections at tool tighten hydraulic hose
Hydraulic oil Restriction in hydraulic line Check couplings and replace
overheats if necessary
1
Tool operates Low or erratic hydraulic See Hydrapac instruction
erratically and fails pressure supply manual
to install fastener Defective or excessively worn Replace 'O' ring and back-up
properly piston, 'O' ring and back-up rings rings
and back-up rings in tool
Excessive wear or scoring of Check and replace defective
sliding surface of tool parts parts
2
Pull grooves on Operator not pushing nose Instruct operator in proper
fastener pintail completely onto fastener pintail installation methods
stripped during pull before operating tool
stroke Incorrect fastener length Use correct length fastener
Worn or damaged jaw segments Check and replace jaw set
Metal chips accumulated in pull Clean jaw segments
grooves of jaw segments
Excessive sheet gap Eliminate excessive gap
Collar of Hydraloc Improper tool operation See 2
fastener not Worn anvil in nose Check and replace anvil
completely swaged
Tool "hang up" on Improper tool operation See 1
swaged collar Hydrapac in idler mode Switch Hydrapac off and
on and restart by
depressing trigger switch
Pintail of fastener Pull grooves on fastener stripped See 2
fails to break Improper tool operation Instruct operator in correct
tool operation
continued overleaf
Sy m pt o m Po s si b le C a use Re m ed y Pa g e Re f

14
Fault Diagnosis
Jaw segments do not Improper operation of jaw Check internal parts of the
maintain proper follower collet for wear i.e. jaws,
position in collet follower, cushion and end cap.
Clean before reassembling
Hydraulic couplers Defective or worn 'O' ring in Replace 'O' ring and back-up ring
leak oil coupler body
Pintail fails to release Incorrect assembly of Nose See Instructions pages 7, 8, 9 or 10
Sy m pt o m Po s si b le C a use Re m ed y Pa g e Re f

15
Welwyn Garden City - date of issue
This box contains a power tool which is in
conformity with Machines Directive
89/392/EEC. The ‘Declaration of Conformity’
is contained within.
De cla rat ion of Confo rmi ty
We, Avdel UK Limited, Watchmead Industrial Estate, Welwyn Garden City, Herts, AL7 1LY
declare under our sole responsibility that the product:
Model: T10
Serial No. ................................................
to which this declaration relates is in conformity with the following standards:
EN ISO 12100 - parts 1 & 2
BS EN ISO 8662 - part 6 BS EN ISO 11202
BS EN ISO 3744 BS EN 982
ISO EN 792 part 13 - 2000 BS EN 983
following the provisions of the Machine Directive 89/392/EC
(as amended by Directive 91/368/EC, 93/44/EC as superceded by 98/37/EC and 93/68/EC)
A. Seewraj - Product Engineering Manager - Automation Tools

Manual No. Issue Change Note No. Date
B 07/044 02-07
B2 07/103 03-07
07900-00820
www.avdel-global.com
© A v d e l U K L i m i t e d 2 0 0 7
AUSTRALIA
Acument Australia Pty Ltd.
891 Wellington Road
Rowville, Victoria 3178
Tel: [phone]
Fax: [phone]
Email: [email protected]
CANADA
Avdel Canada, a Division of Acument
Canada Limited
87 Disco Road
Rexdale
Ontario M9W 1M3
Tel: [phone]
Fax: [phone]
Email: [email protected]
CHINA
Acument China Ltd.
RM 1708, 17/F., Nanyang Plaza,
57 Hung To Rd., Kwun Tong
Hong Kong
Tel: [phone]
Fax: [phone]
Email: [email protected]
FRANCE
Avdel France S.A.S.
33 bis, rue des Ardennes
BP4
75921 Paris Cedex 19
Tel: [phone]
Fax: [phone]
Email: [email protected]
GERMANY
Avdel Deutschland GmbH
Klusriede 24
30851 Langenhagen
Tel: [phone]
Fax: [phone]
Email: [email protected]
ITALY
Avdel Italia S.r.l.
Viale Lombardia 51/53
20047 Brugherio (MI)
Tel: [phone]
Fax: [phone]
Email: [email protected]
JAPAN
Acument Japan Kabushiki Kaisha
Center Minami SKY,
3-1 Chigasaki-Chuo, Tsuzuki-ku,
Yokohama-city, Kanagawa Prefecture
Japan 224-0032
Tel: [phone]
Fax: [phone]
Email: [email protected]
SINGAPORE
Acument Asia Pacific (Pte) Ltd.
#05-03/06 Techlink
31 Kaki Bukit Road 3
Singapore, 417818
Tel: [phone]
Fax: [phone]
Email: [email protected]
SOUTH KOREA
Acument Korea Ltd.
212-4, Suyang-Ri,
Silchon-Eup, Kwangju-City,
Kyunggi-Do, Korea, 464-874
Tel: [phone]
Fax: [phone]
Email: [email protected]
SPAIN
Avdel Spain S.A.
C/ Puerto de la Morcuera, 14
Poligono Industrial Prado Overa
Ctra. de Toledo, km 7,8
28919 Leganés (Madrid)
Tel: [phone]
Fax: [phone]
Email: [email protected]
UNITED KINGDOM
Avdel UK Limited
Pacific House
2 Swiftfields
Watchmead Industrial Estate
Welwyn Garden City
Hertfordshire
AL7 1LY
Tel: [phone]
Fax: [phone]
Email: [email protected]
USA
Avdel USA LLC
614 NC Highway 200 South
Stanfield,
North Carolina 28163
Tel: [phone]
Fax: [phone]
Email: [email protected]
