Summary
This document is the product manual for the Eco NX-Silver, and includes
safety, product specifications, installation, and maintenance information.
Table of Contents
Product Overview
Safety Information and Warnings
Warnings and Safety Precautions
Product Information
Specifications
Overview of Your Eco NX-Silver Water Purifier
Installation Guide
Installation Instructions
Mounting the Unit
Conditioning and Powering the Unit
Indicator Light
Maintenance
Regular Maintenance
Winterizing
Trouble Shooting
Standard Terms and Conditions
Warranty
Appendix A: Faucet Installation Instructions
3
4
4
5
5
5
6
7
8
8
8
9
9
9
9
10
10
12

Advanced UV-LED Water Purification | acuvatech.com Page 3
Acuva Eco NX-Silver
OWNER’S PRODUCT MANUAL
Product Overview
Congratulations on your purchase of the Eco NX-Silver UV-LED water
purification system. This is our most compact and economical system that is
ideally suited for single faucet applications, ice-makers, and water fountain
upgrades. It fits easily under your sink in your home, cottage, RV and boat,
and provides safe drinking water that is convenient, low maintenance and
environmentally friendly.
Acuva’s water disinfection systems take water purification to the next
level of eciency and convenience by utilizing two well-established and
proven technologies: UVC disinfection and UVC-LEDs. Using patented
IntensebeamTM technology, Eco NX-Silver exposes harmful microorganisms
such as bacteria and other pathogens to the UV dose recommended by the
NSF (National Sanitation Foundation) standard.
The Eco NX-Silver water purification system is powered by 12V DC – either
directly or via 110V to 240V AC (using a power adapter). The Eco NX-Silver
operates on-demand, meaning its internal flow sensor will activate UV-LEDs
only when water is flowing through the system, improving energy eciency
and extending the life-time of the system.
Our mission is to provide universal access to safe drinking water and we are
proud that you have chosen our solution. Enjoy the peace of mind that your
Eco NX-Silver will deliver and please contact us if you have any questions.
The Eco NX-Silver is certified by IAPMO R&T to NSF/ANSI 55 Class “B” for the
supplemental bacterial treatment of disinfected public drinking water or other
drinking water that has been tested and deemed acceptable for human consumption
by the state or local health agency having jurisdiction. The system is only designed
to reduce normally occurring non-pathogenic nuisance microorganisms. Class B
systems are not intended for treatment of contaminated water. It is also certified by
IAPMO R&T to NSF/ANSI 372.

Acuva Eco NX-Silver
OWNER’S PRODUCT MANUAL
Advanced UV-LED Water Purification | acuvatech.com Page 4
Safety Information and Warnings
This section contains important information regarding the safe installation
and operation of the Eco NX-Silver (the “device”).
PLEASE READ CAREFULLY.
Installation or operation of the device in a manner contrary to this manual
may result in property damage or personal injury.
Acuva recommends that the device be installed by a qualified technician
who complies with applicable state and local regulations.
Warnings and Safety Precautions
DANGER
Do not store the device in freezing conditions.
Do not allow water to freeze in the device.
Do not use the device if damaged or dropped.
Do not submerge the device under water.
Do not connect to AC power without an AC to DC power adapter; this
device uses DC only.
This product is not ignition protected. Do not install in an engine
compartment or other areas where explosive vapours may be present.
WARNING
A steady blue indicator light (illuminating the Acuva logo) on the device
and smart faucet (if installed) while water is flowing is the only indication
that the water is safe to drink. If the blue light is not lit while the faucet
is open, please check the “Troubleshooting” section of this manual.
The UV device includes fragile parts, including parts made from glass.
The device should not be dropped and must be transported/carried
with sucient care.
Install the device in an accessible and visible location for continuous
monitoring of the LED indicators and/or in case of any leakage.
CAUTION
Minor condensation may occur on the device in humid weather and
with cold water temperatures (less than the dew point temperature).
Condensation drips may be noticed coming from inside the unit.

Advanced UV-LED Water Purification | acuvatech.com Page 5
Acuva Eco NX-Silver
OWNER’S PRODUCT MANUAL
Product Information
Specifications
Certification NSF/ANSI-55 Class “B” and NSF/ANSI 372
Dose Delivery >16 mJ/cm2
Certified Flow Rate 1.2 L/min
Water Inlet Fitting ¼” OD Push-to-Connect
Water Outlet Fitting ¼” OD Push-to-Connect
Input Voltage 11-16V DC
Power Consumption (Active) Approx. 14.0W
Power Consumption (Standby) Approx. 0.1W
Maximum Water Temperature 40oC
Maximum Working Pressure 100 PSI
Minimum Working Pressure 12 PSI
LED Life-time 1,000 hr (on demand)
Maximum Ambient Relative Humidity 70%
Overview of Your Eco NX-Silver Water Purifier
Indicator Light

Acuva Eco NX-Silver
OWNER’S PRODUCT MANUAL
Advanced UV-LED Water Purification | acuvatech.com Page 6
Installation Guide
Acuva systems are designed for ease of installation. Eco systems require a
flow restricter to maintain a constant flow rate.
Item No. Description Quantity
1 ½” PEX to ¼” OD Tee/Shut-o Valve 1
2 ⁄” OD Tube 1
3 Filter Clip 1
4In-line filter 1
5 Eco NX-Silver* 1
6 Flow Restricter 1
7 Power Plug Cable 1
8 Smart Faucet 1
*Item No. 5 (Eco NX-Silver) is certified for NSF 55 and 372 and other
installation components are not included as part of the certification.
Installation with Smart Faucet Installation without Smart Faucet

Advanced UV-LED Water Purification | acuvatech.com Page 7
Acuva Eco NX-Silver
OWNER’S PRODUCT MANUAL
Installation Guide
1. Find an under-counter position for the Eco NX-Silver and pre-filter to be
mounted, allowing space for all tubing to be connected without needing
to bend to the point of pinching or folding.
2. Mount the DIN-rail (shown in the “Mounting the Unit” diagram) that will
support the device with two #10 wood screws and the filter clips (item
no. 3) for the pre-filter with the two remaining screws.
3. To install the ½” PEX-1/4” OD Tee & shuto valve (item no. 1) to the cold-
water line, ensure the cold-water line is not under pressure by turning o
the water and/or cutting the flow with an upstream valve. Expect some water
to drain from the cold-water line while cutting it. Insert the ½” cold-water
lines to the ½” female ends of the Tee, pushing the tubes into the Tee as
far as possible and pulling slightly to assure that the seal is secure.
4. Cut a length of the 1/4” tubing (item no. 2) that will connect the Tee to
the pre-filter (item no. 4). Insert the tube into the 1/4” OD female end
of the Tee, pushing the tube into the Tee as far as possible, then pulling
slightly to assure that the seal is secure.
5. Connect the 1/4” tube from the Tee into the inlet side of the pre-filter
while making sure that water will flow in the proper direction as indicated
on the filter. Push the tube into the filter as far as possible and pull
slightly to ensure it is properly sealed. Snap the pre-filter into its wall-
mounted clips.
6. To install the Eco NX-Silver (item no. 5), mount it to the DIN-rail as seen in
the “Mounting the Unit” figure.
7. Cut a length of 1/4” tubing that will connect the pre-filter to the Eco NX-
Silver’s inlet and push both ends of the tubing into place.
8. Cut a length of 1/4” tubing that will connect the device and the output
faucet or appliance, and install the flow restricter (item no. 6) at a point
along the tube that is convenient – noting the flow direction of the
restricter. Connect the tubing to the desired water faucet or appliance.
For faucet installation instructions, see Appendix A.
Eco NX-Silver Installation

Acuva Eco NX-Silver
OWNER’S PRODUCT MANUAL
Advanced UV-LED Water Purification | acuvatech.com Page 8
Installation Guide
1. Engage the spring-loaded mechanism of the mounting clips on the device
by hooking the clip onto the bottom edge of the DIN-rail and applying
slight pressure upwards.
2. As bottom portion engages, tilt the upper hook towards the DIN-rail.
3. Release the spring mechanism once the unit is mounted on the rail.

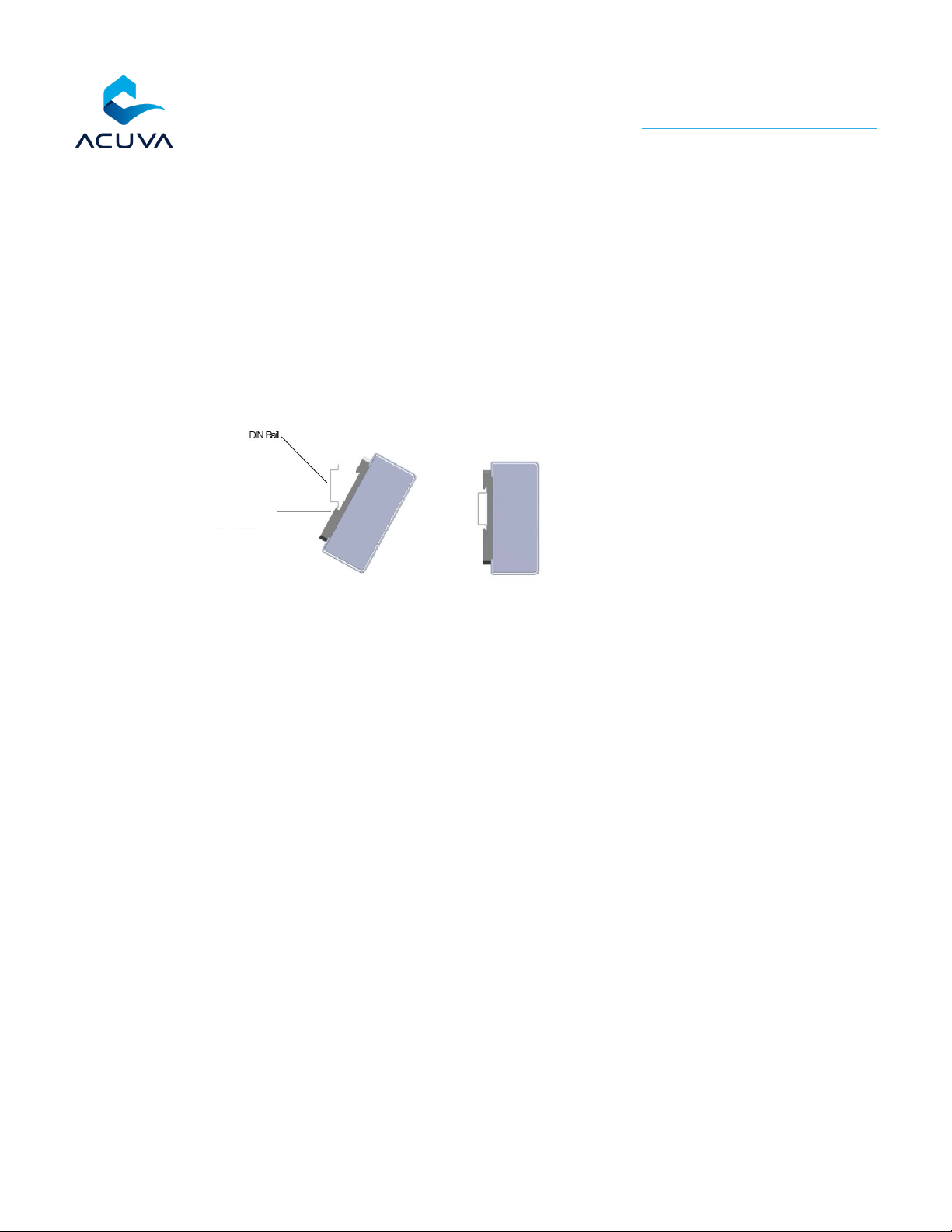

Mounting the Unit
Indicator Light
The Acuva logo lights up to indicate various modes of use.
No Light: The device is idle or no power is connected.
Blue Light: The device is active and sterilizing water.
Green Light: The device is undergoing its self-cleaning protocol. This 30
second protocol occurs at start up as well as after every 12 hours of idle
time and can be safely interrupted to dispense water.
Conditioning and Powering the Unit
1. Once the device is connected to the cold-water line, allow water to flow
through the system for 1-2 minutes until any bubbles are released from
the line. During this time, ensure all connections are tight and sealed.
2. Connect the DC power source or AC to DC power adapter to the device.
Hand-tighten the nut to the threaded jack to secure it.
3. If there is no water flow on powering up, the Acuva logo should glow
green for 30 seconds.
4. Turn on the faucet. The logo will glow blue which indicates the water
purification is in progress. If the smart faucet is installed, its base will glow
blue as well.
5. Turn o the faucet and the device will automatically go into standby mode.
Note: If there is a fault, the indicator light will turn red or yellow. Please consult the
Troubleshooting section.
Spring-Loaded
Mechanism

Advanced UV-LED Water Purification | acuvatech.com Page 9
Acuva Eco NX-Silver
OWNER’S PRODUCT MANUAL
Maintenance
The Eco NX-Silver is designed to give years of trouble-free use. Acuva
products use state-of-the-art UV-LEDs, meaning there are no mercury bulbs
to replace. However, there are some simple tasks that should be performed
to ensure continued operation.
1. Check monthly that none of the connectors are leaking.
2. Replace the in-line filter after winterization or as per the instructions on
the filter label.
Note: The small quartz windows inside the Eco unit do not reach high
temperatures to encourage mineral build-up (scaling) as with UV lamp
systems. As a result, no significant scaling or loss of performance due to
scaling over time is expected.
Regular Maintenance
Winterizing
WARNING
Frozen pipes mean cracked pipes. Failure to properly winterize the
Acuva Eco NX-Silver before it is exposed to freezing temperatures can
lead to damage and water leakage.
If the device is installed in a Recreational Vehicle (RV) ensure that the
RV is winterized as per its owner’s manual.
Trouble Shooting
Indicator LED State Fault Condition Comments to User
Off (No water flow) No Fault -
Off
(Water flow)
The unit is not powered
Verify that the unit is connected to power
and that the input voltage is within
specifications (11-16V).
The flow direction is
reversed
Ensure the inlet and outlet tubes are
connected to the respective fittings
marked “IN” and “OUT” on the device.
The flow rate is too low
The flow sensor inside the unit requires a
minimal water flow to activate the system
(approx. 0.3 Lpm). Ensure there is enough
water pressure in the line to reach this
flow. (12 PSI)
Red UV-LED fault
Unplug and plug in the device’s power
jack. If this fault persists, contact Acuva
for support.
Yellow Blinking Low input voltage Verify that the input voltage is above 11
volts.

Acuva Eco NX-Silver
OWNER’S PRODUCT MANUAL
Advanced UV-LED Water Purification | acuvatech.com Page 10
Standard Terms and Conditions
The sale and use of all Acuva products is governed by the Acuva
Technologies Inc. Standard Terms and Conditions of Sale and Use (the
“Agreement”), a copy of which is available at www.acuvatech.com.
The Agreement contains important terms that, among other things, aect
Acuva’s liability and your legal remedies against Acuva. Please read the
Agreement carefully as, by purchasing the Acuva product, you have agreed
to be bound by the entire Agreement including the limited warranty,
limitations of liability and methods of resolving disputes. In the event of any
inconsistency between this manual and the Agreement, the Agreement
shall prevail.
Warranty
As set out in the Agreement, Acuva products come with the following
limited warranty.
SCOPE AND PERIOD
Limited Warranty
Acuva warrants to you that the Product will be free from defects in
materials and workmanship under normal use for 1 year from the original
date of purchase by you (the “Warranty Period”). The limited warranty
in this Agreement (the “Limited Warranty”) is not transferable by you. All
subsequent purchasers acquire the Product “as is” without benefit of the
Limited Warranty. Where you purchased the Product from Acuva’s Site
or other online vendors the date of purchase is the date of the purchase
invoice issued to you by Acuva or such online vendors by email. Where you
purchased the Product from an authorized reseller at a physical location,
the date of purchase is the date of the invoice issued to you at the physical
location.
DEFECTS
In the event Acuva determines that the Product is defective, Acuva may
in its discretion: (i) replace the defective Product with a new Product; or
(ii) refund to you the purchase price you paid for the Product. ‘DEFECTS’
SECTION IS NOT APPLICABLE TO RESIDENTS OF QUEBEC.

Advanced UV-LED Water Purification | acuvatech.com Page 11
Acuva Eco NX-Silver
OWNER’S PRODUCT MANUAL
Warranty Cont’d
REPLACEMENT
Where the Product is replaced during the Warranty Period, except as
otherwise prohibited by applicable laws, the warranty for the replaced
Product, as applicable, will expire upon the expiration of the original
Warranty Period. Any warranty service or support under this Limited
Warranty is conditioned upon your return of the Product to Acuva. Where
there has been a replacement of the Product, the Product, as provided
pursuant to this limited warranty, becomes your property and the Product
being replaced becomes Acuva’s property. Where there is a refund, you will
return the Product to Acuva and such Product becomes Acuva’s property.
Acuva may condition a refund or replacement on you returning the product
or require you to provide a credit card number, which will be charged
only if you fail to return the Product. ‘REPLACEMENT’ SECTION IS NOT
APPLICABLE TO RESIDENTS OF QUEBEC.
EXCLUSIONS
The limited warranty does not apply:
1. To normal wear and tear;
2. If the Product was not purchased from Acuva or its authorized retailers;
3. To damage caused by misuse, corrosion, moisture or liquids, proximity or
exposure to heat or external environment, accident, abuse, misuse,
neglect, improper installation or misapplication;
4. To physical damage to the Product;
5. To any software, whether or not supplied by Acuva.

Acuva Eco NX-Silver
OWNER’S PRODUCT MANUAL
Advanced UV-LED Water Purification | acuvatech.com Page 12
Appendix A: Faucet Installation Instructions
1. Drill a 3/4” hole into the counter-top where the Smart Faucet will be
inserted.
2. Thread the faucet cable into the 3/4” hole and insert the faucet stem into
the hole.
3. Thread the faucet power cord through the plastic spacer under the
counter to ensure that the cord is not pinched against the counter when
the faucet is fastened into place, making sure that the spacer’s O-ring
seal is facing up to seal against the counter.
4. Add the plastic threaded fastener to the faucet stem and tighten the
fastener against the spacer to secure the faucet into place. Make sure
that the faucet is positioned properly as required before tightening the
fastener.
5. To connect the ¼” water line to the faucet stem, slip the hex nut onto the
tube, followed by the plastic ferrule and plastic tube support. Press the
tube end and ferrule to the bottom of the faucet stem and tighten the hex
nut by hand, then tighten the nut with a wrench while being careful not to
over-tighten.
