Savio F100 Livingponds Filter Specification sheet

17-SV-04
Livingponds Filter
™
Operating Manual & Installation Guide
Read entire instructions prior to assembly and operation.
F100 F200
Model F100
SAV i O Livingponds
Waterfall Filter
™
Model F200
SAV i O Livingponds
Versatile Filter
™

Operating Capacities
2
3
This guide covers the installation of SAV i O Livingponds Filter
™
models F100 & F200. These
filters are identical in many respects of installation. In steps of assembly where there
are differences these differences are highlighted in the text.
Recommended Flow
Savio filters are designed to operate 24 hours a day throughout the season.
Maximum pump flow for Waterfall Filter
™
model F100 is 5,000 GPH.
Maximum pump flow for Versatile Filter
™
model F200 is 3,000 GPH.

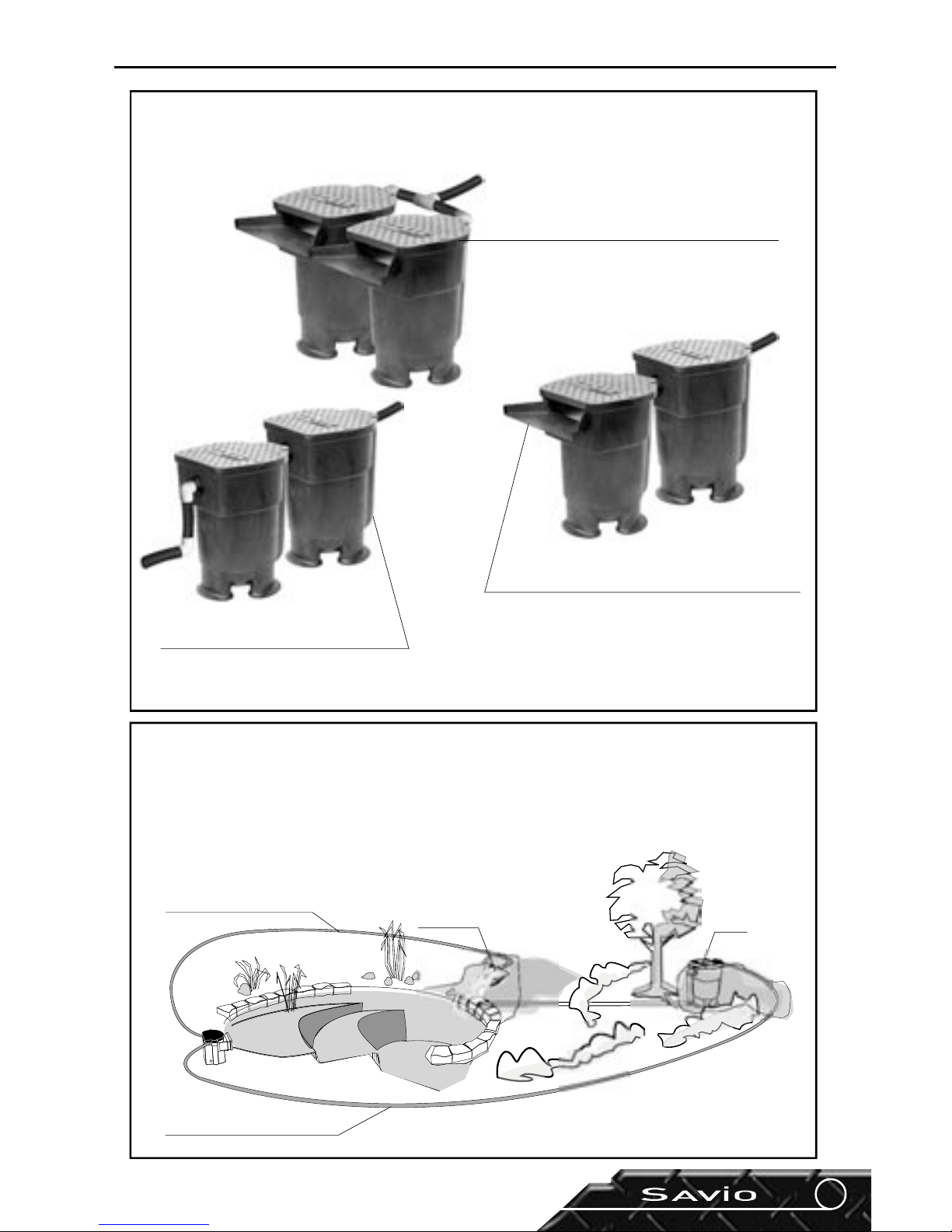

For greater filtration demands, use multiple units (Illustrated on page 12).
Complement your SAV i O Livingponds Filter
™ with a
SAV i O Skimmerfilter
™
to further
reduce maintenance and improve water quality.
Tools needed:
• Phillips Screwdriver • Shovel • Measuring Tape • Wet Weld Glue • Wet Weld Primer
• Utility Knife • Level • Large Wrench • Teflon Tape
SAV i O Livingponds Filters
™
are designed for use in water garden applications
where low maintenance and healthy pond ecology are desired. Two models of
SAV i O Livingponds Filters
™
are available. Waterfall model F100 creates an instant
waterfall drape or curtain. Versatile model F200 can discharge directly into the top
of a waterfall or be placed remotely.
SAV i O Engineering, Inc. provides a manufacturer’s limited warranty of 5 years from original
purchase date. Warranty is non-transferable. Within the warranty period SAV i O will repair
materials with manufacturing deficiencies at their discretion. This warranty does not cover
any faults caused by improper use, installation and handling of the device or as a result of
wear and tear. SAV i O Engineering, Inc. does not assume liability for consequential damage
caused by the failure of the SAV i O Livingponds Filter.
™
Warranty is void if the product is not
used in accordance with instructions. For warranty claims, please contact your dealership.
Warranty (Send in the enclosed warranty card)

Operating Capacities
1
Livingponds Filter
Operating Manual & Specifications
Congratulations, you have just purchased the highest quality
bio-mechanical filter available. Savio Livingponds Filters
™
remove
free floating solid wastes and planktonic algae, as well as toxic
chemical compounds associated with organic and metabolic
activities. Please review the specifications and operating capabilities
of your new Livingponds Filter
™
prior to installation.
™
Livingponds Filter
™
Livingponds Filter
4







 









































F10 0 F200
F10 0 F200
F10 0 F200
F10 0 F200
Read entire instructions prior to installing the unit.
Read entire instructions prior to installing the unit.
2
3

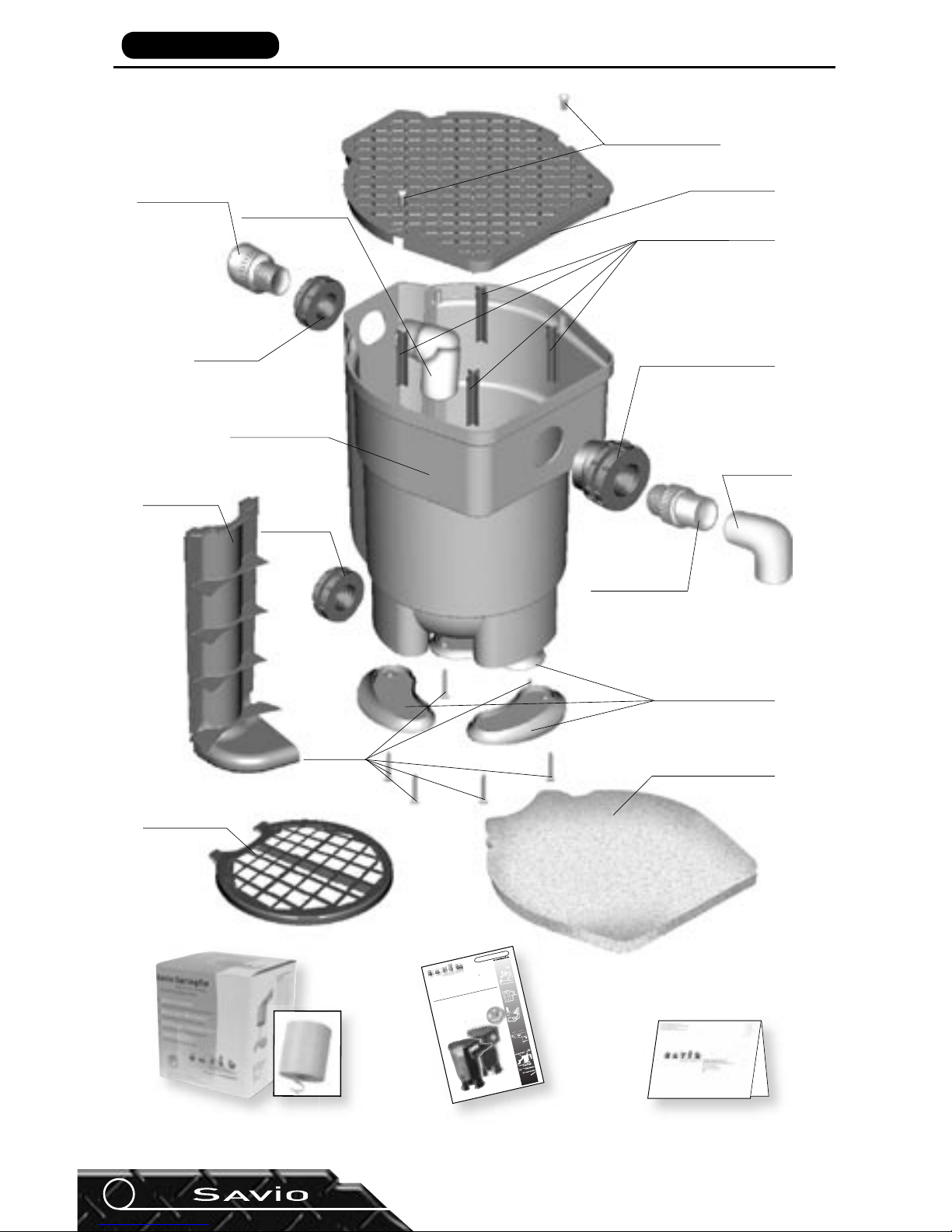

Waterfall Filter (Model F100)
non-skid lid
# RF004
Waterfall Weir
# RF010
baffle
# RF005
4 media stabilizers
# RF008
1.5”
bottom drain
bulkhead
# RF014
1.5” inlet
bulkhead
# RF014 weir seal
# RF013
1.5” inlet
male adapter
# 436015
2 nylon lid bolts
# RF003
1.5” 90º inlet
threaded elbow
# 410015
(4) 1” ss screws
# RF003
waterfall filter
housing
# RF002
top polishing mat
# RF001
media grate
# RF006
stabilization feet
# RF007
(6)1”ss
screws
# RF003
3 small
weir screws
# RF003
operating
manual
# LT12
warranty card
# LT10
SAV i O Springflo
Bio Filter Media™
# SF01
Components:

1
Livingponds Filter
Operating Manual & Specifications
Congratulations, you have just purchased the highest quality
bio-mechanical filter available. Savio Livingponds Filters
™
remove
free floating solid wastes and planktonic algae, as well as toxic
chemical compounds associated with organic and metabolic
activities. Please review the specifications and operating capabilities
of your new Livingponds Filter
™
prior to installation.
™
Livingponds Filter
™
Livingponds Filter
4







 









































F10 0 F200
F10 0 F200
F10 0 F200
F10 0 F200
Read entire instructions prior to installing the unit.
Read entire instructions prior to installing the unit.
4
5
non-skid lid
# RF004
2” discharge
bulkhead
# RF015
baffle
# RF005
4 media stabilizers
# RF008
1.5”
bottom drain
bulkhead
# RF014
1.5” inlet
bulkhead
# RF014
1.5” inlet
male adapter
# 436015
2 nylon lid bolts
# RF003
1.5” 90º inlet
threaded elbow
# 410015
waterfall filter
housing
# RF002
media grate
# RF006
stabilization feet
# RF007
(6) 1” ss
screws
# RF003
operating
manual
# LT12
warranty card
# LT10
SAV i O Springflo
Bio Filter Media™
# SF01
2” outlet
male adapter
# 433020
2” 90°
discharge elbow
# 406020
top polishing mat
# RF001
Versatile Filter (Model F200)
Components:

4
5
option
F200 units can be located at a point
lower than the pond, this configuration
has some special plumbing
requirements (see appendix, page 15 for
more information).
Filter Placement

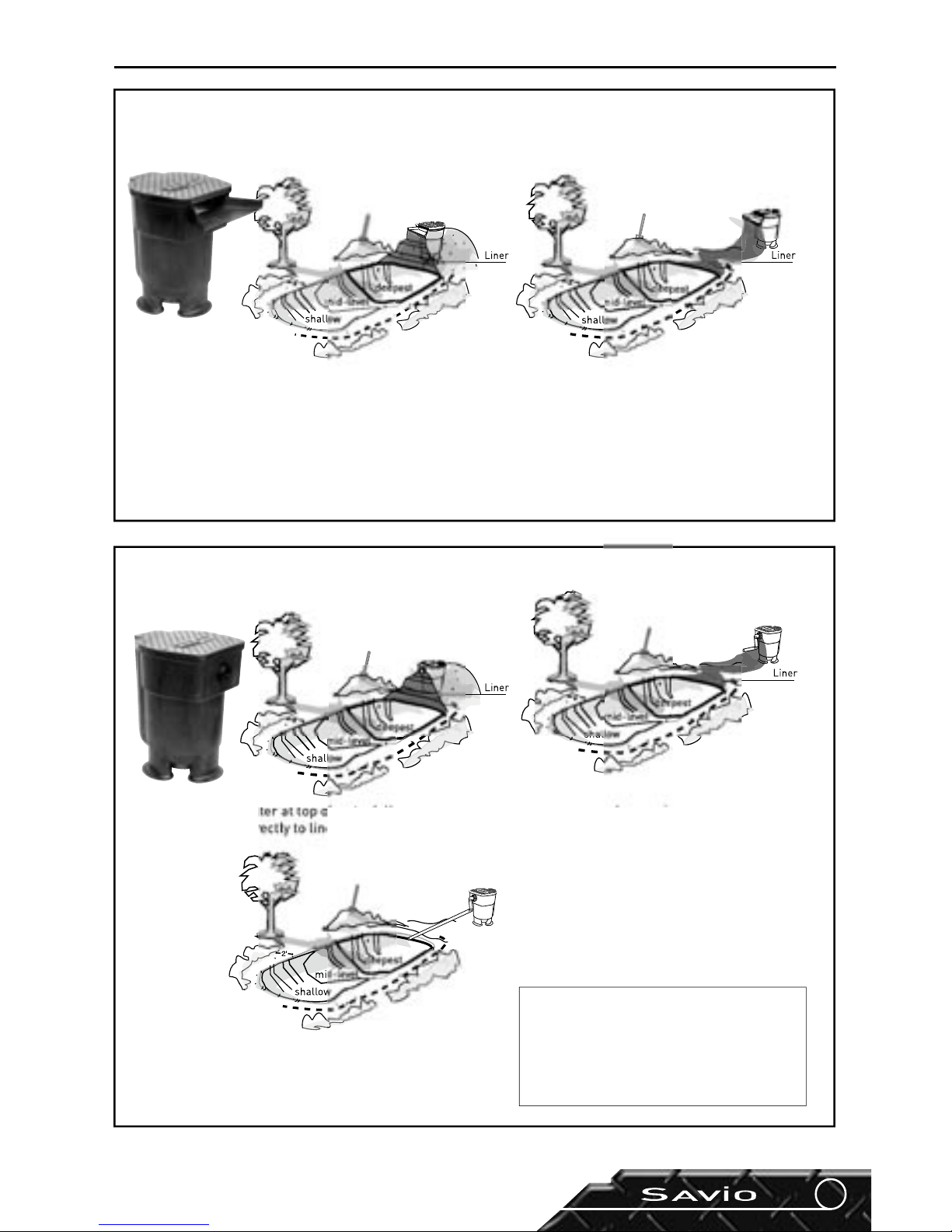

Choose a location for the SAViO Waterfall Filter™ at the highest point in the system, at the
top of the waterfall or streambed. Place the waterfall opposite the primary viewing area
for maximum effect.
Filter at top of waterfall attached
directly to liner.
Filter at top of waterfall.
Waterfall Filter Model F100
Filter at top of stream.
Versatile Filter Model F200
The Livingponds Versatile Filter™ can be connected
directly to the liner or located up to up to 10’ away from
the pond, behind a wall, fence or other screen.
Filter with discharge piping attached.
(See remote installation page 10)
Filter placed remotely within 10’ of pond.
(See remote installation page 11)

6
7
Filter Assembly
Attach Inlet and Drain Bulkheads
Attach Feet
Follow the instructions below to pre-assemble filter before installation. Set aside internal
components for later installation.

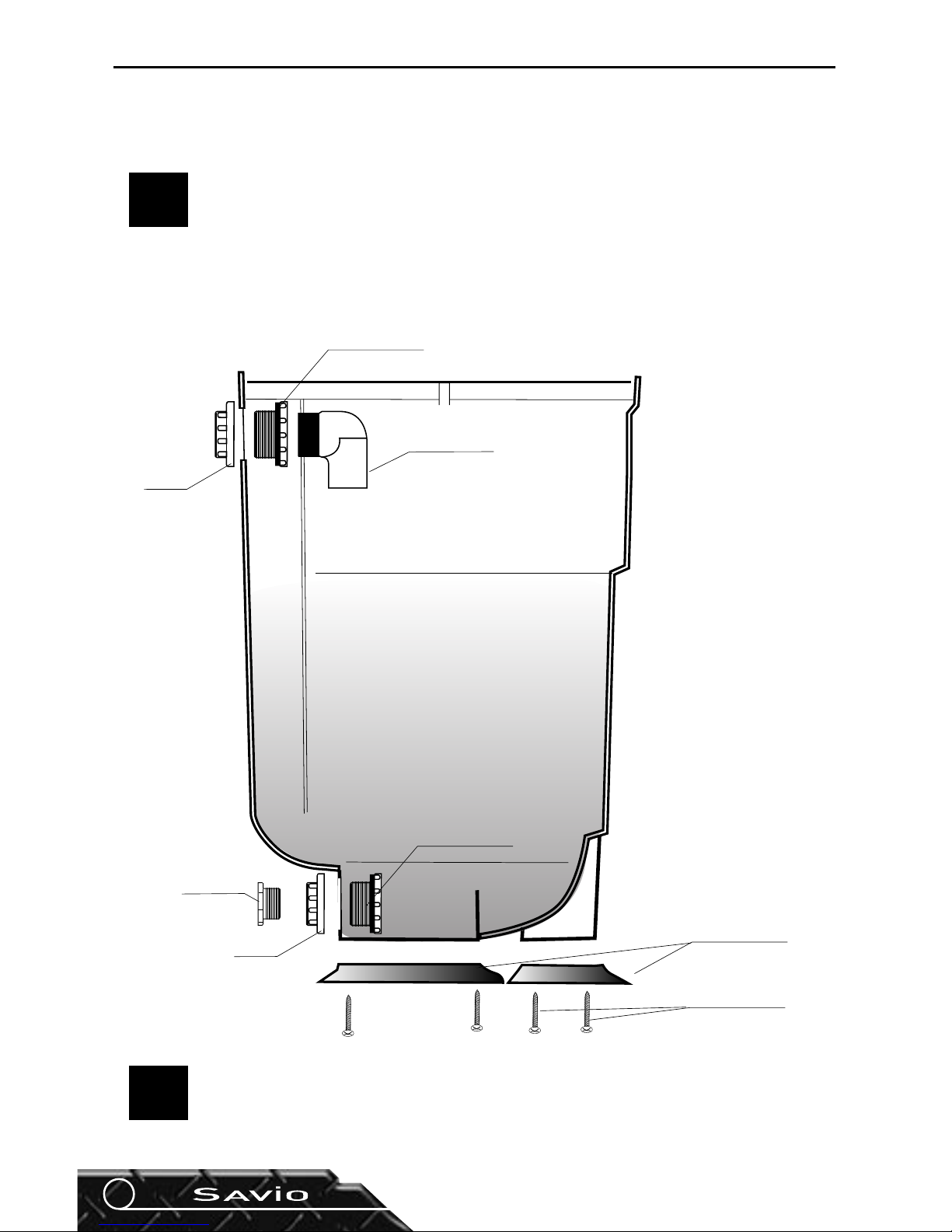

To attach inlet and bottom drain bulkheads put the gaskets and large side
of the bulkheads on the inside of the filter housing. Install the lock nut on
the outside with the smooth surface facing the filter housing. Lock nuts
are reverse threaded - tighten using a counterclockwise motion.
bulkhead gasket
lock nut
1.5” 90º inlet
threaded elbow
Filter
Cutaway
View
bulkhead gasket
lock nut
1
2
Attach stabilization feet to skimmer using six 1” ss screws provided.
stabilization feet
drain plug
1” ss screws

6
7
Livingponds Filter
Bottom Drain Kit
Connect Plumbing
Attach threaded male pipe adapter to
the bulkhead at the top of the filter.
Apply primer and glue to PVC.
(SAV i O Aqua Flex PVC™ shown - not
included)
Apply teflon tape to threads on
male pipe adapter.
12
34
While glue is still wet, attach PVC
to the male adapter.
The filter bottom drain kit
saves time and makes periodic
maintenance simpler. This kit is
available through your retailer.
Attach Inlet and Drain Bulkheads
option - Drain Installation
If you purchased a filter bottom drain kit,
install it at this time. Follow the instructions
provided. To connect, simply remove the
drain plug installed during initial assembly.

8
9
12
Bury the filter for stability. Level the
unit so that it is ” lower in front than
in back (when the filter is placed it
should slightly toward the pond).
Excavated soil from the pond can be used
to create a runway for a waterfall. Use a
retaining wall of blocks to provide shape
and underlying structure.
Pull liner over the face of Livingponds
Filter.™ Cut liner to shape of opening, as
shown.
Slide waterfall weir into place. Ensure that
the rubber weir seal is firmly compressed
between the weir and filter chamber, with
flat side of seal facing toward the filter body.
34
(Model F100)
Install Waterfall Filter

�
slide liner between
filter & bottom
weir supports
8
9
8
Place underlayment and liner.
Position rockwork to create drops
and cascades.
Insert and gently tighten four 1” ss
screws into the holes in the waterfall
weir. Do not over tighten (weir mounts
will not contact filter mounts).
Gently lift weir front. Next slide liner
upward between filter and bottom
weir supports.
5
tack liner in place
with 3 small weir
screws (included)
liner
6
7
Carefully secure the liner to the
Livingponds Filter™ to maintain a
watertight transition between the filter
and waterfall.
(Model F100)
Install Waterfall Filter
Install Waterfall Filter

screw large
bulkhead side
with gasket
through liner
and filter
filter
interior
Side View
liner
11
Instructions for attaching waterfall liner directly to front of the filter.
(For remote installation & pipe discharge options see page 11).
Attach the outlet bulkhead with the
gasket and large side of the bulkhead on
the outside of the filter housing. (Note:
This is the opposite of the inlet bulkhead
installation performed on page 6)
Pull liner up flush against face of filter. Hold liner flat against filter and find the
center of hole.
Carefully cut a hole to the size of outlet
with a utility knife.
Attach bulkhead. See diagram below.
12
3 4
10
(Model F200)
Install Versatile Filter

11
11

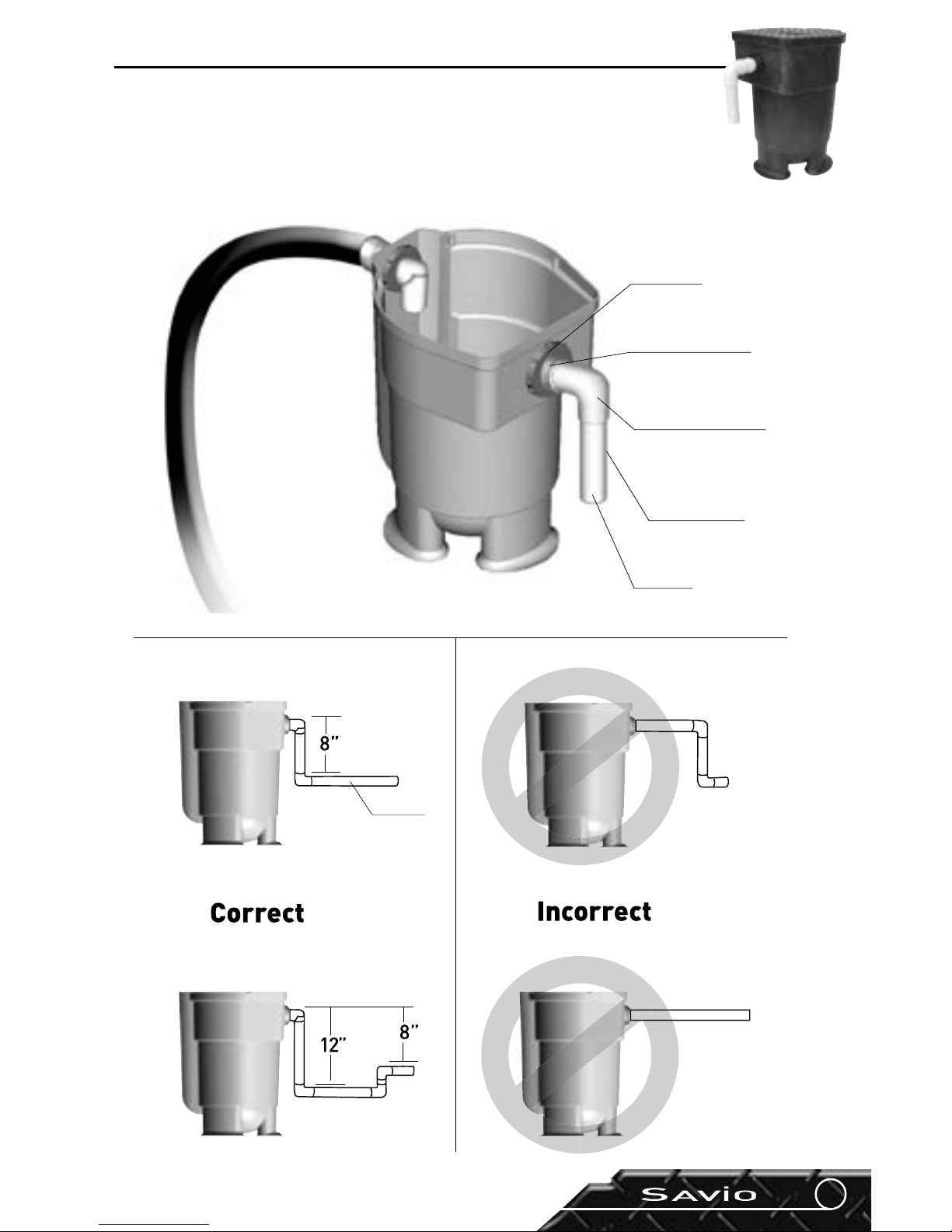

For remote installations with pipe discharge it is critical to have an 8” minimum
vertical drop at the filter outlet (see below). A maximum 10’ pipe run can be achieved
with this plumbing configuration.
Note:
Use PVC primer
and glue for
smooth SLIP
fittings and teflon
tape on threaded
fittings.
2” outlet
male adapter
8” minimum
straight
vertical drop
2” discharge
bulkhead
2” 90º
discharge elbow
2” PVC
2” PVC
(Model F200)
Remote Install / Pipe Discharge

12
12
34
56
12
Final Assembly
Slide baffle down grooves inside filter. Lower media grate into position.
Hold filter media, pull from the
bottom center of the roll. Media will
self dispense to fill filter chamber.
Place filter mat pad on top of the
SAV i O Springflo Bio Filter Media.™
Insert media stabilizers into
underside of lid.
Put lid into place, secure with
nylon bolts provided. Start pump
and allow filter to fill with water.

Start Ecosystem
13
Once the filter is installed and the pond is complete add SAV i O Natural Beneficial Bacteria™ to help
establish and maintain the pond (sold separately). The living bacteria develop on filter media, the waterfall
bed and pond liner. They help control green water, chemical toxins and pond waste. After four days fish
can be added.
It takes approximately four weeks for the bio-filter to establish. During that time feed lightly and do not
add more fish to the original starter group until four weeks have passed and the water is tested for nitrite
and ammonia.
Add SAV i O bacteria monthly, when cleaning the filter, after water changes and when handling fish. The
unique formulation helps break down waste, remove toxins, reduces maintenance and protects fish.
Filter cleaning is typically required two or three times a year if the filter is properly sized and the pond
is not overstocked. Once the pond is established SAV i O Springflo Bio Filter Media™ (included) is coated
with healthy living bacteria. Avoid over cleaning which shocks beneficial bacteria, interferes with filter
performance and pond health. Do not use chlorinated water, hot water or chemicals. Do not allow the
media to media to dry out during cleanings.
Filter Maintenance
1) Shut off the pump.
2) Remove the Livingponds Filter™ lid.
3) Remove filter mat and gently rinse in a bucket of water taken from the pond.
4) Reach in and vigorously shake the Springflo media to dislodge debris.
5) Drain or empty dirty water from the filter. ( A filter bottom drain is recommended
for ease of draining)
6) Return the filter mat to the filter and put the lid into place.
7) Turn on the pump and re-start system.
Periodic Maintenance
Equipment Winterization
Prepare for winterization when ice persistently develops on the pond. This generally occurs in mid-
to-late November in agricultural zones 4-6. Keep equipment winterized until late February or early
March when water temperature consistently rises to 40º Fahrenheit or higher.
Fall Winterization procedure
1) Disconnect, clean and store submersible pump.
2) Completely clean and drain filter and filter media.
3) Drain any plumbing lines not buried below frost level (18”-24” in agricultural zones 4-6).
4) Use plumber’s heat tape on pipes and shut off valves. Insulate pump house and exterior pumps
and valves.
13

14
15
14
Replacement parts for livingponds Filters™
Code Item
RFOO3 1” ss screws
RFOO3 small weir screws
RFOO3 nylon lid bolts
SF01 SAViO Springflo Bio Filter Media™
RFOO1 filter mat
RFO14 1.5” bulkheads
RFO15 2” discharge bulkhead (model F200)
RFO13 waterfall weir seal (model F100)
RFO10 waterfall weir (model F100)
LT12 instruction manual
RFOO2 waterfall filter housing (model F100)
Code Item
RFO16 versatile filter housing (model F200)
RFOO6 media grate
RFOO4 non-skid lid
RFOO7 stabilization feet
RFOO8 media stabilizers
410015 1.5” 90º inlet threaded elbow
RFOO5 baffle
406020 2” 90º discharge elbow (model F200)
433020 2” outlet male adapter (model F200)
436015 1.5” inlet male adapter
Troubleshooting
Water flows slowly
from filter.
a) I. Check pump operation.
II. Remove any obstruction.
b) Remove obstruction.
a) Pump is turned off or obstructed.
b) Feed line is obstructed.
Pond water will
not clear.
a) Add beneficial bacteria and wait 3-4 weeks.
b) Add a second filter and/or a UV.
c) See maintenance section for
proper care of media.
d) Reduce fish population or increase filtration.
a) Bacteria have not established.
b) Filter is too small for pond.
c) Filter media over-cleaned.
d) Pond is overstocked.
a) Clean filter media. Add beneficial bacteria.
a) Filter needs cleaning.
Filter smells.
Faults Possible Causes Remedies
Filter overflows. a) Remove obstruction.
b) Read instructions for proper assembly of filter
and correct problem.
c) Read instructions for proper assembly of filter
and correct problem.
a) Outlet is obstructed.
b) 90º downspout not installed
at intake.
c) Improper plumbing configuration.

Pump #1 to Waterfall
Pump #2 to Remote Filter
Versatile
Filter
Waterfall
14
15
15
Appendix: Alternate Installations
Remote Location
Run one or more units to increase filtration and/or waterfall effects
Two SAV i O Livingponds Waterfall Filters™
operating in tandem.
filtration capacity: 10,000 gallons
max flow rate: 10,000 gph
If necessary the SAV i O Livingponds Versatile Filter™ can be installed at a point
lower than the pond, separate from the waterfall, using its own pump or using a
tee to direct water flow in two directions.
SAV i O Livingponds Versatile Filter™
operating in series with a Waterfall Filter.™
filtration capacity: 9,000 gallons
max flow rate: 3,000 gph
Multiple Filters
Two SAV i O Livingponds Versatile
Filters™ operating in series.
filtration capacity: 9,000 gallons
max flow rate: 3,000 gph

16
Skimmerfilters™
Water Master Pumps™
Livingponds Filters™Pond Packages
Ultraviolet Clarifiers
Aqua Flex PVC™
Greenex
®
Micro Granules
Water Treatments
Springflo Bio Filter
Media™
Black Foam
Automated Water
Level Sensor™
Advanced water gardening products for healthy, clean living ponds.
Innovative, precision engineered solutions
SAV i O Engineering, Inc.
8 Water Garden Way
Santa Fe, NM 87508 USA
http://www.savio.cc • email: [e-mail]
Customer Service Information
