Adam Equipment GK User manual

© Adam Equipment Company 2011
Adam Equipment
GK INDICATOR
(P.N. 305669264, Revision K1, July 2011)
V1.17 GK-H scales for Europe
V2.25 EC Approved scale
V3.32 GK scale for Europe
V4.07 GK-H scale for USA
V5.32 GK scales for USA

© Adam Equipment Company 2011
Easy Reference:
Model name of the indicator:
Serial number of the unit:
Software revision number
(Displayed when power is first turned on):
Date of Purchase:
Name of the supplier and place:

© Adam Equipment Company 2011
1
CONTENTS
1. INTRODUCTION..................................................................................... 3
2. SPECIFICATIONS .................................................................................. 5
3. INSTALLATION ...................................................................................... 7
3.1. UNPACKING..................................................................................... 7
4. LOCATING.............................................................................................. 7
5. CONNECTION ........................................................................................ 8
6. DISPLAY............................................................................................... 11
6.1. SYMBOLS AND INDICATORS....................................................... 11
7. CALIBRATION COUNTER FOR APPROVED INDICATORS.............. 12
8. BATTERY ............................................................................................. 14
9. BACKLIGHT ......................................................................................... 14
10. AUTO POWER OFF........................................................................... 14
11. OPERATION...................................................................................... 15
11.1. ZEROING..................................................................................... 15
11.2. TARING........................................................................................ 15
11.2.1 MANUAL TARE...................................................................... 15
11.2.2 PRESET TARE (NOT AVAILABLE ON GK-M APPROVED
INDICATORS)....................................................................................... 16
11.3. WEIGHING................................................................................... 17
11.4. PARTS COUNTING ..................................................................... 17
11.5. CHECK-WEIGHING..................................................................... 20
11.5.1 SETTING UP WHILE WEIGHING .......................................... 21
11.5.2 SETTING UP WHILE PARTS COUNTING OR % WEIGHING 22
11.6. LIMITS STORING AND RECALLING.......................................... 22
11.7. PERCENT WEIGHING................................................................. 24
11.8. ANIMAL (DYNAMIC) WEIGHING ................................................ 27
11.8.1 ANIMAL WEIGHING PROCEDURE....................................... 28
11.9. ACCUMULATED TOTAL............................................................. 29
11.9.1 MANUAL ACCUMULATION................................................... 29
11.9.2 AUTOMATIC ACCUMULATION............................................. 31
12. RS-232 SPECIFICATION................................................................... 32
12.1. INPUT COMMANDS FORMAT.................................................... 37
13. CALIBRATION................................................................................... 38
14. PARAMETER SETTINGS.................................................................. 39
14.1. CHECK WEIGHING PARAMETERS............................................ 39
14.2. RS-232 PARAMETERS ............................................................... 42
14.3. INDICATOR PARAMETERS........................................................ 44
14.4. PERCENT WEIGHING AND ANIMAL WEIGHING ...................... 46
15. ERROR MESSAGES ......................................................................... 47
16. SERVICE PARAMETERS.................................................................. 49
16.1. ACCESS TO PARAMETERS....................................................... 49

© Adam Equipment Company 2011
2
16.2. USING “2006” TO ENTER THE SERVICE PARAMETERS ........ 50
16.2.1 F1 -CALIBRATION................................................................. 52
16.2.2 F2–DECIMAL POINT POSITION............................................ 53
16.2.3 F3 – CAPACITY..................................................................... 53
16.2.4 F4 –INITIAL ZERO RANGE.................................................... 54
16.2.5 F5 -RE-ZERO RANGE........................................................... 54
16.2.6 F6 -SUCCESSIVE TARE........................................................ 55
16.2.7 F7 –ADC COUNTS................................................................. 55
16.2.8 F8 –ZERO MODE.................................................................. 56
16.2.9 F9 –LOW VOLTAGE DETECTION......................................... 56
16.2.10 F10 –CALIBRATION COUNT (GK-M ONLY).......................... 57
16.2.11 F10 –AUTO ZERO RANGE (NOT AVAILABLE ON GK-M) .... 57
17. REPLACEMENT PARTS AND ACCESSORIES................................ 58
18. SERVICE INFORMATION.................................................................. 59
19. APPENDIX......................................................................................... 61

© Adam Equipment Company 2011
3
1. INTRODUCTION
•The GK indicator provides an accurate, fast and versatile general
purpose indicator with parts counting, percent weighing and check-
weighing functions.
•The GK has LEDs to indicate when a weight is below the low limit,
between the limits or above the high limit next to the display. These
can work in conjunction with an audible alarm for check weighing as
well as LCD showing LO, OK and HI.
•The GK is supplied with a RS-232 bi-directional interface and real time
clock (RTC).
•The GK has a sealed keypad with colour coded membrane switches and
a large easy to read liquid crystal type display (LCD) supplied with a
backlight.
•Includes automatic zero tracking, semi-automatic & pre-set tare,
accumulation facility that allows the weight to be stored and recalled as
an accumulated total.
•OIML Approved models, GK-M, do not allow pounds units, have
calibration controlled by jumpers or passcodes and other limitations as
noted in the manual.

© Adam Equipment Company 2011
4

© Adam Equipment Company 2011
5
2. SPECIFICATIONS
INPUT SECTION
Load Cells
Up to 4 , 350 ohm load cells
Minimum 87 ohms, maximum 1120 ohms
Connection
6 wires
2 excitation, 2 sense, 2 signal
Excitation
5Vdc
Sensitivity
0.15uv/d (GK-M, 1.5uv/e)
Linearity
0.01% FS
Zero Range
0- 10mv
Signal range
0-40mv
ADC Sensitivity
Approximately 0.02 µv/ADC count
DIGITAL SECTION
Maximum Range
Typically 1kg – 30000kg
Divisions
Up to 30,000, (GK –M, 3000 or less)
Weigh units
kg / g for Europe, Asia, Africa
kg / g / lb / oz / lb:oz for USA
kg only for GK-M series
Stabilisation Time
2 Seconds typical
Operating
Temperature
-10°C - 40°C
14°F - 104°F
Power supply
230 VAC 50/60 Hz
12V 800ma adaptor for USA verisons
Battery
Internal rechargeable battery
Calibration
Automatic External
Display
6 digits LCD digital displays
with capacity tracker and symbols for units
Indicator Housing
ABS Plastic
Overall
Dimensions
(wxdxh)
260 x 170 x 115mm
10.2” x 6.7” x 4.5”
Net Weight
2 kg / 1 lb
Applications
Weighing and check weighing
Functions
Weighing, Check Weighing, Parts counting, check-counting, , Animal
Weighing, Accumulating memory,
Interface
RS-232 bi-directional interface
English, German, French, Spanish selectable text
For approved indicators the input specifications is limited to 1.5 µv per division and
the number of divisions is limited to 3000d. Kilograms only.

© Adam Equipment Company 2011
6

© Adam Equipment Company 2011
7
3. INSTALLATION
3.1. UNPACKING
This indicator must be connected to a load cell platform and calibrated as necessary
to match the platform and user requirements. See Section 15 for set-up
information.
The users application and the technical specifications of the platform or load cell will
determine the necessary configuration.
4. LOCATING
•The scales should not be placed in a location that will
reduce the accuracy.
•Avoid extremes of temperature. Do not place in direct
sunlight or near air conditioning vents.
•
Avoid unsuitable tables. The table or floor must be rigid
and not vibrate.
•
Avoid unstable power sources. Do not use near large
users of electricity such as welding equipment or large
motors.
•Do not place near vibrating machinery.
•
Avoid high humidity that might cause condensation.
Avoid direct contact with water. Do not spray or
immerse the scales in water.
•Avoid air movement such as from fans or opening doors.
Do not place near open windows or air-conditioning
vents.
•
Keep the scales clean. Do not stack material on the
scales when they are not in use.

8 © Adam Equipment Company 2011
5. CONNECTION
This indicator must be connected to a load cell platform and calibrated as necessary
to match the platform and user requirements.

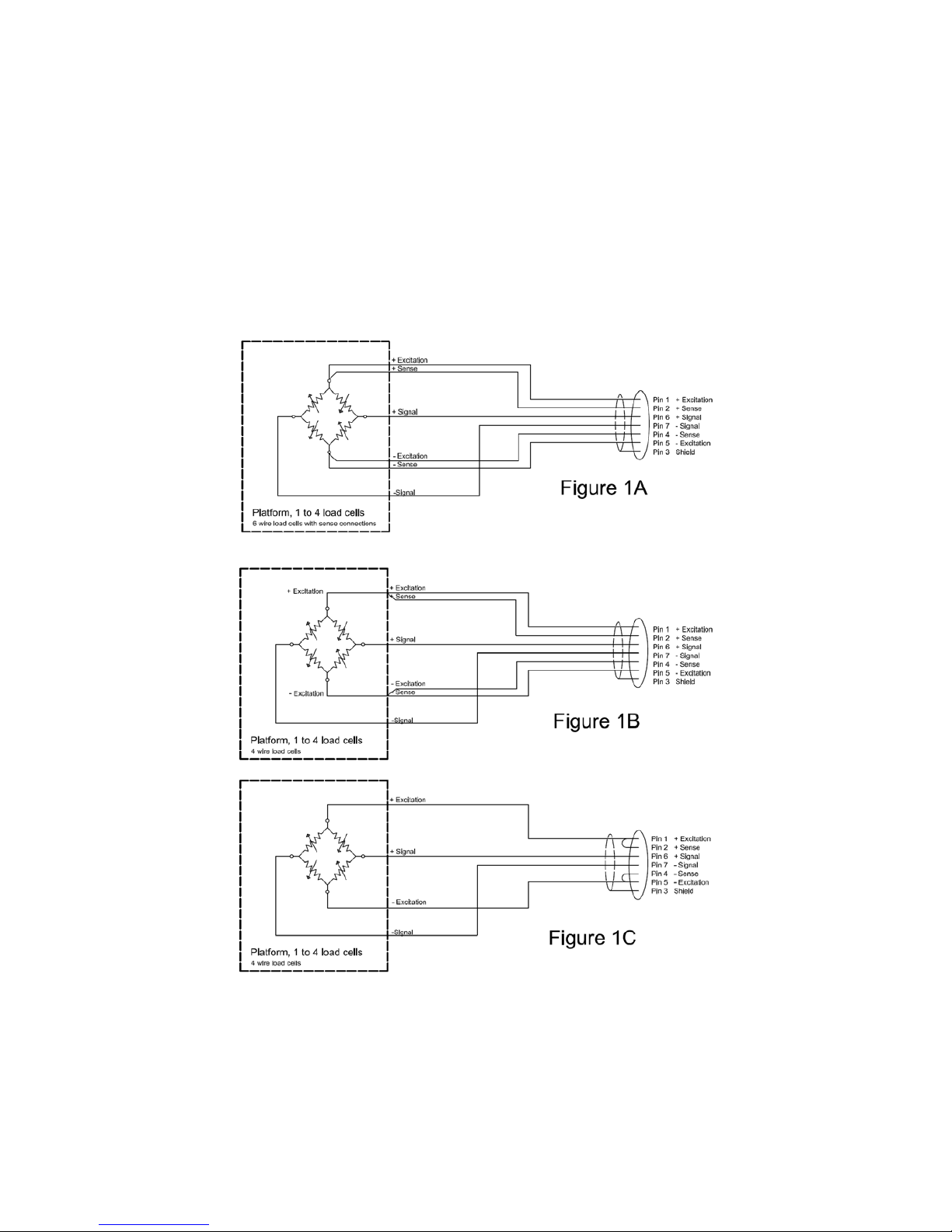

The GK has a connector configured for a 6 wire load cell. Connect the load
cells/platform to the indicator as shown below. The cable length should be as short
as possible, using a large size wire to minimise errors due to resistance in the leads.
GK-M model must use the 6 wire connection and has certain limitations for wire size
and length. Refer to the Approval Test Certificate for details.
