ADAPT SOLUTIONS ASENTO EV-COLC15R User manual

ASENTO
INSTALLATION MANUAL
EV-COLC15R
CHEVROLET COLORADO/ GMC CANYON
CREW CAB
2015 & UP
PASSENGER SIDE

18
15
217
1
19
SCALE 1:6
20
1 of 6
21
22

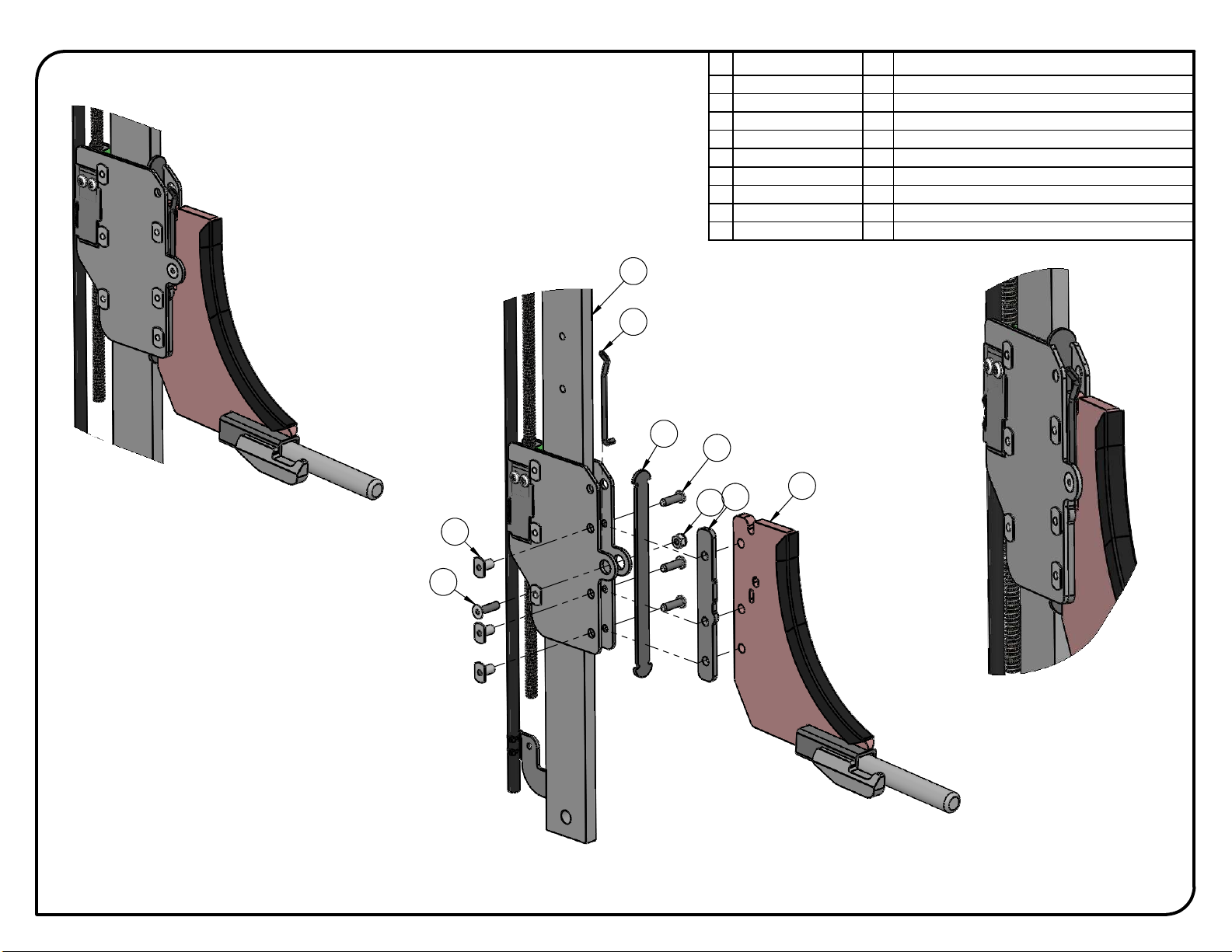

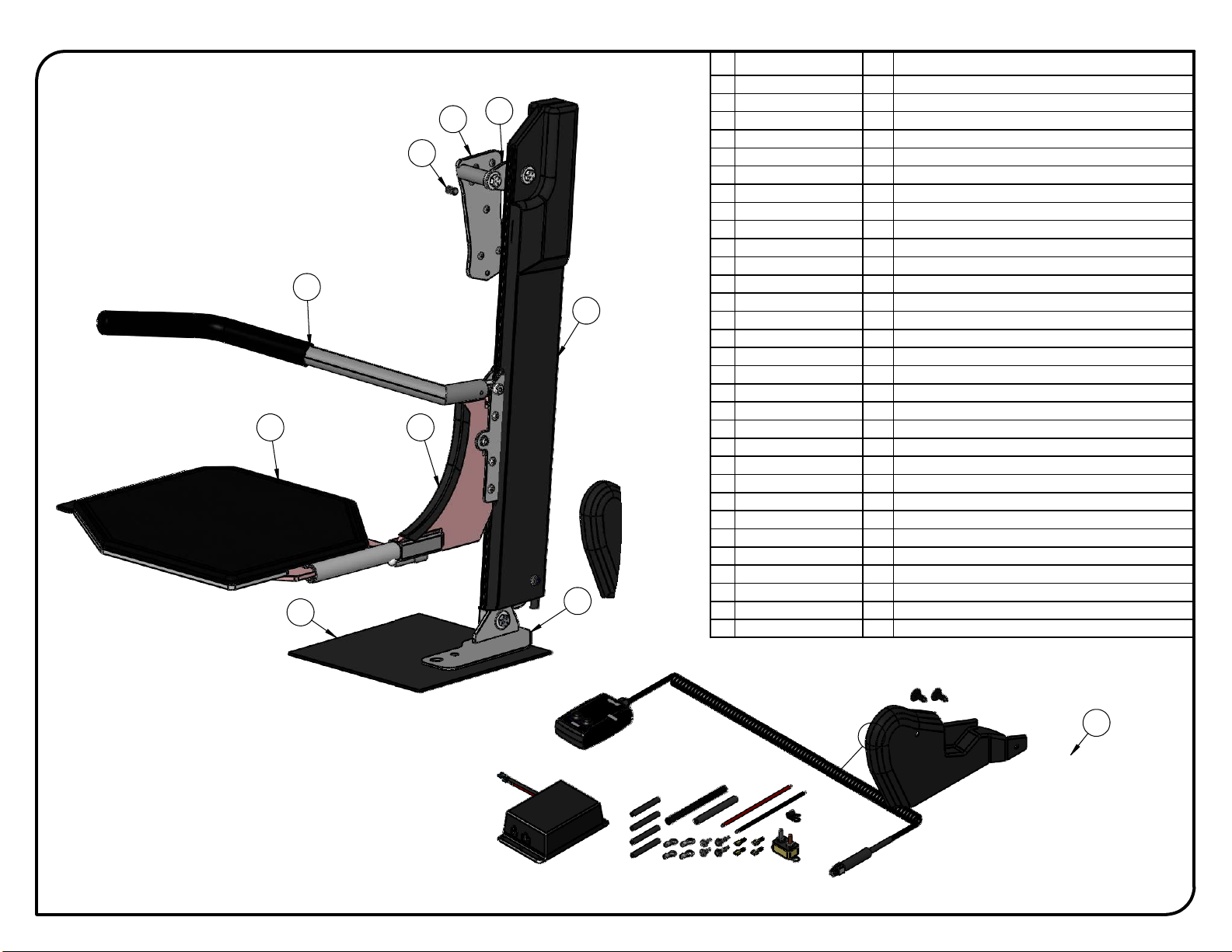

ITEM PART NUMBER QTY DESCRIPTION
1 EV000-01 1 Support Assembly
2 EV100-05R 1 Slider -Right-
3 EV113-01 1 Slider Spacer
4 EV122-01 1 Spring Rod
5 L-EV141-01 1 Front Slider
6 PRD 333-105 1 Nylon Insert Locknut 1/4-20
7 PRD 333-107M 1 Nylon Insert Locknut 5/16-18 Thin
8 PRD 337-194P 3 Socket Head Cap Screw Zinc Plated 1/4-20 UNC x 7/8"
9 PRD 338-169P 1 Flat Head Socket Cap Screw Zinc Plated 1/4-20 x 1
10 PRD 341-103P 2 Flat Washer Zinc Plated I.D. 3/16 USS
11 PRD 400-289 1 Nylon Insert Locknut Stainless 10-24
12 PRD 400-583 1 Pan Head Machine Screw Phillips Stainless 10-24 x 5/8
13 MC 90594A027P 3 Tab base weld nut with barrel zinc plated 1/4 x 9/16
14 U-EV-UNI-01 1 Machined Socket Shoulder Screw
15 EV300-02R 1 Safety Arm -Right-
16 EV400-01R 1 Transfert Platform -Right-
17 XLS430B-01R 1 Transfer Plate Cushion -Right- Black
18 EV600B-01 1 Pillar Trim -Black-
19 EV700-AL 1 Electrical Kit
20 EV-COLC15R-00 1 Installation Kit -Right-
21 EV-COLC15B-04 1 Floor Cover -Black-
22 EV-COLC15RB-05 1 Seat Trim -Right- Black
EV-COLC15R
ADAPT SOLUTIONS
|[email protected]|866.641.0419|418.889.9838 fax
PART NUMBER
Chevrolet Colorado ASENTO -Right-
DESCRIPTION
KIT ASENTO CHEVROLET COLORADO CREW CAB 2015+

22
15
217
20
18
21
23
30
19
SCALE 1:6
31
2 of 6
ITEM PART NUMBER QTY DESCRIPTION
1 EV000-01 1 Support Assembly
2 EV100-05R 1 Slider -Right-
3 EV113-01 1 Slider Spacer
4 EV122-01 1 Spring Rod
5 L-EV141-01 1 Front Slider
6 PRD 333-105 1 Nylon Insert Locknut 1/4-20
7 PRD 333-107M 1 Nylon Insert Locknut 5/16-18 Thin
8 PRD 337-194P 3 Socket Head Cap Screw Zinc Plated 1/4-20 UNC x 7/8"
9 PRD 338-169P 1 Flat Head Socket Cap Screw Zinc Plated 1/4-20 x 1
10 PRD 341-103P 2 Flat Washer Zinc Plated I.D. 3/16 USS
11 PRD 400-289 1 Nylon Insert Locknut Stainless 10-24
12 PRD 400-583 1 Pan Head Machine Screw Phillips Stainless 10-24 x 5/8
13 MC 90594A027P 3 Tab base weld nut with barrel zinc plated 1/4 x 9/16
14 U-EV-UNI-01 1 Machined Socket Shoulder Screw
15 EV300-02R 1 Safety Arm -Right-
16 EV400-01R 1 Transfert Platform -Right-
17 XLS430B-01R 1 Transfer Plate Cushion -Right- Black
18 EV600B-01 1 Pillar Trim -Black-
19 EV700-AL 1 Electrical Kit
20 EV-COLC15R-01 1 Floor Adapter -Right-
21 EV-COLC15R-02 1 "B" Pillar Adapter -Right-
22 EV-COLC15-03 1 Pillar "Upper" Fixing
23 PRD 149-563 1 Socket set screw cone point 3/8-16 x 3/4
24 PRD 302-172P 1 Hex Cap Bolt Zinc Plated 3/8-16 x 3/4 G5
25 PRD 302-175P 1 Hex Cap Bolt Zinc Plated 3/8-16 x 1 G5
26 PRD 302-177P 1 Hex Cap Bolt Zinc Plated 3/8-16 x 1 1/4 G5
27 PRD 333-108 1 Nylon Insert Locknut 3/8-16
28 PRD 341-108P 3 Flat Washer Zinc Plated I.D. 3/8 USS
29 PRD BTT66 6 Button Head Stainless 3/16 x 9/16
30 EV-COLC15B-04 1 Floor Cover -Black-
31 EV-COLC15RB-05 1 Seat Trim -Right- Black
EV-COLC15R
ADAPT SOLUTIONS
|[email protected]|866.641.0419|418.889.9838 fax
PART NUMBER
Chevrolet Colorado ASENTO -Right-
DESCRIPTION
KIT ASENTO CHEVROLET COLORADO CREW CAB 2015+

1
5
8
9
6
4
7
2
3
SCALE 1:4
SCALE 1:4
SCALE 1:3
3 of 6
ITEM PART NUMBER QTY DESCRIPTION
1 EV000-01 1 Support Assembly
2 EV100-05R 1 Slider -Right-
3 L-EV141-01 1 Front Slider
4 EV113-01 1 Slider Spacer
5 EV122-01 1 Spring Rod
6 MC 90594A027P 3 Tab base weld nut with barrel zinc plated 1/4 x 9/16
7 PRD 333-105 1 Nylon Insert Locknut 1/4-20
8 PRD 337-194P 3 Socket Head Cap Screw Zinc Plated 1/4-20 UNC x 7/8"
9 PRD 338-169P 1 Flat Head Socket Cap Screw Zinc Plated 1/4-20 x 1
EV-COLC15R
ADAPT SOLUTIONS
|[email protected]|866.641.0419|418.889.9838 fax
PART NUMBER
Chevrolet Colorado ASENTO -Right-
DESCRIPTION
KIT ASENTO CHEVROLET COLORADO CREW CAB 2015+

SCALE 1:4
3
9
6
1
74
8
2
5
6
4 of 6
ITEM PART NUMBER QTY DESCRIPTION
1 EV-COLC15R-01 1 Floor Adapter -Right-
2 EV-COLC15B-04 1 Floor Cover -Black-
3 EV600B-01 1 Pillar Trim -Black-
4 PRD 302-177P 1 Hex Cap Bolt Zinc Plated 3/8-16 x 1 1/4 G5
5 PRD 333-108 1 Nylon Insert Locknut 3/8-16
6 PRD 341-103P 2 Flat Washer Zinc Plated I.D. 3/16 USS
7 PRD 341-108P 1 Flat Washer Zinc Plated I.D. 3/8 USS
8 PRD 400-289 1 Nylon Insert Locknut Stainless 10-24
9 PRD 400-583 1 Pan Head Machine Screw Phillips Stainless 10-24 x 5/8
EV-COLC15R
ADAPT SOLUTIONS
|[email protected]|866.641.0419|418.889.9838 fax
PART NUMBER
Chevrolet Colorado ASENTO -Right-
DESCRIPTION
KIT ASENTO CHEVROLET COLORADO CREW CAB 2015+

SCALE 1:3
1
62
5
3 5
4
5 of 6
ITEM PART NUMBER QTY DESCRIPTION
1 EV-COLC15R-02 1 "B" Pillar Adapter -Right-
2 EV-COLC15-03 1 Pillar "Upper" Fixing
3 PRD 302-172P 1 Hex Cap Bolt Zinc Plated 3/8-16 x 3/4 G5
4 PRD 302-175P 1 Hex Cap Bolt Zinc Plated 3/8-16 x 1 G5
5 PRD 341-108P 2 Flat Washer Zinc Plated I.D. 3/8 USS
6 PRD BTT66 6 Button Head Stainless 3/16 x 9/16
EV-COLC15R
ADAPT SOLUTIONS
|[email protected]|866.641.0419|418.889.9838 fax
PART NUMBER
Chevrolet Colorado ASENTO -Right-
DESCRIPTION
KIT ASENTO CHEVROLET COLORADO CREW CAB 2015+

SCALE 1:5
4
5
1
3
2
6 of 6

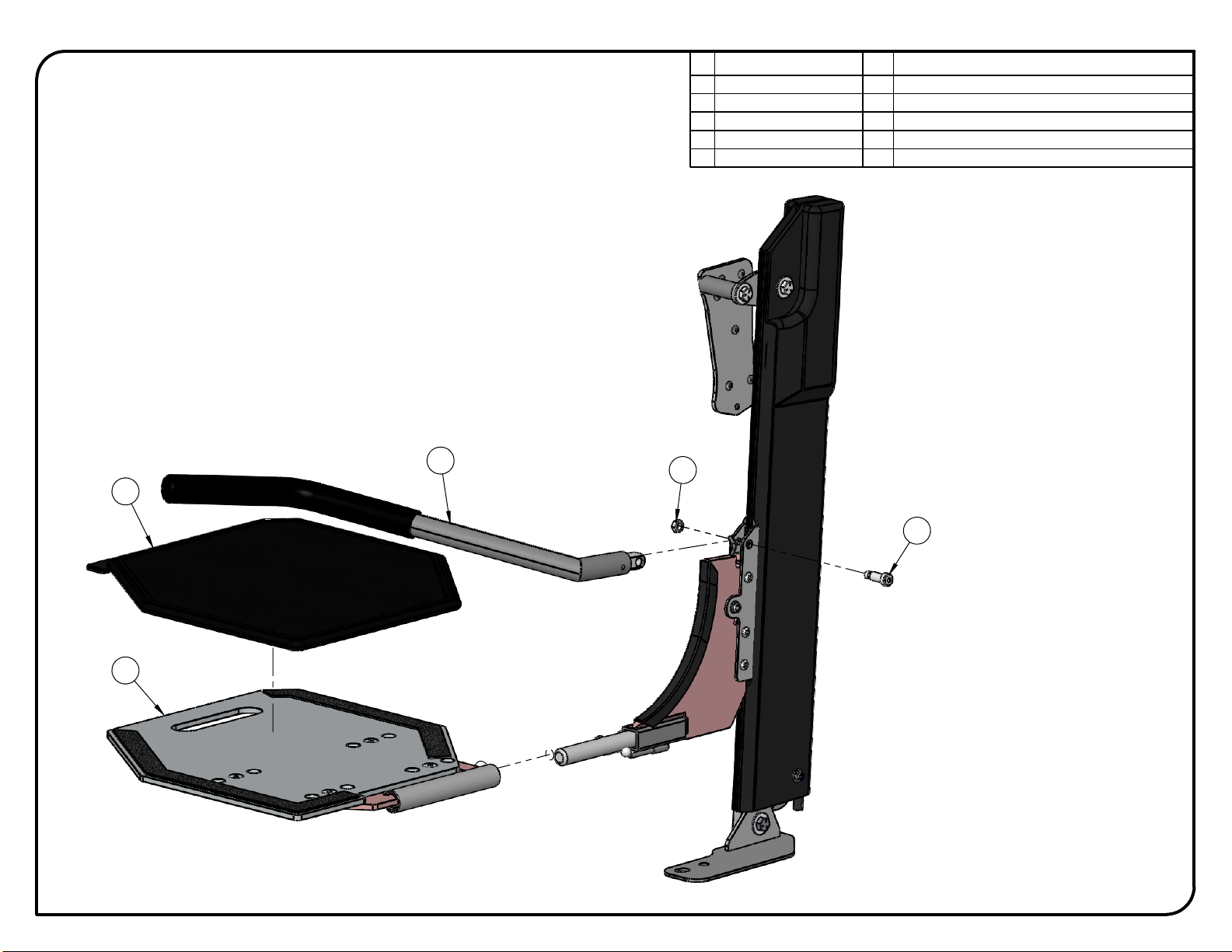

ITEM PART NUMBER
QTY
DESCRIPTION
1 EV300-02R 1 Safety Arm -Right-
2 EV400-01R 1 Transfert Platform -Right-
3 XLS430B-01R 1 Transfer Plate Cushion -Right- Black
4 U-EV-UNI-01 1 Machined Socket Shoulder Screw
5 PRD 333-107M 1 Nylon Insert Locknut 5/16-18 Thin
EV-COLC15R
ADAPT SOLUTIONS
|[email protected]|866.641.0419|418.889.9838 fax
PART NUMBER
Chevrolet Colorado ASENTO -Right-
DESCRIPTION
KIT ASENTO CHEVROLET COLORADO CREW CAB 2015+

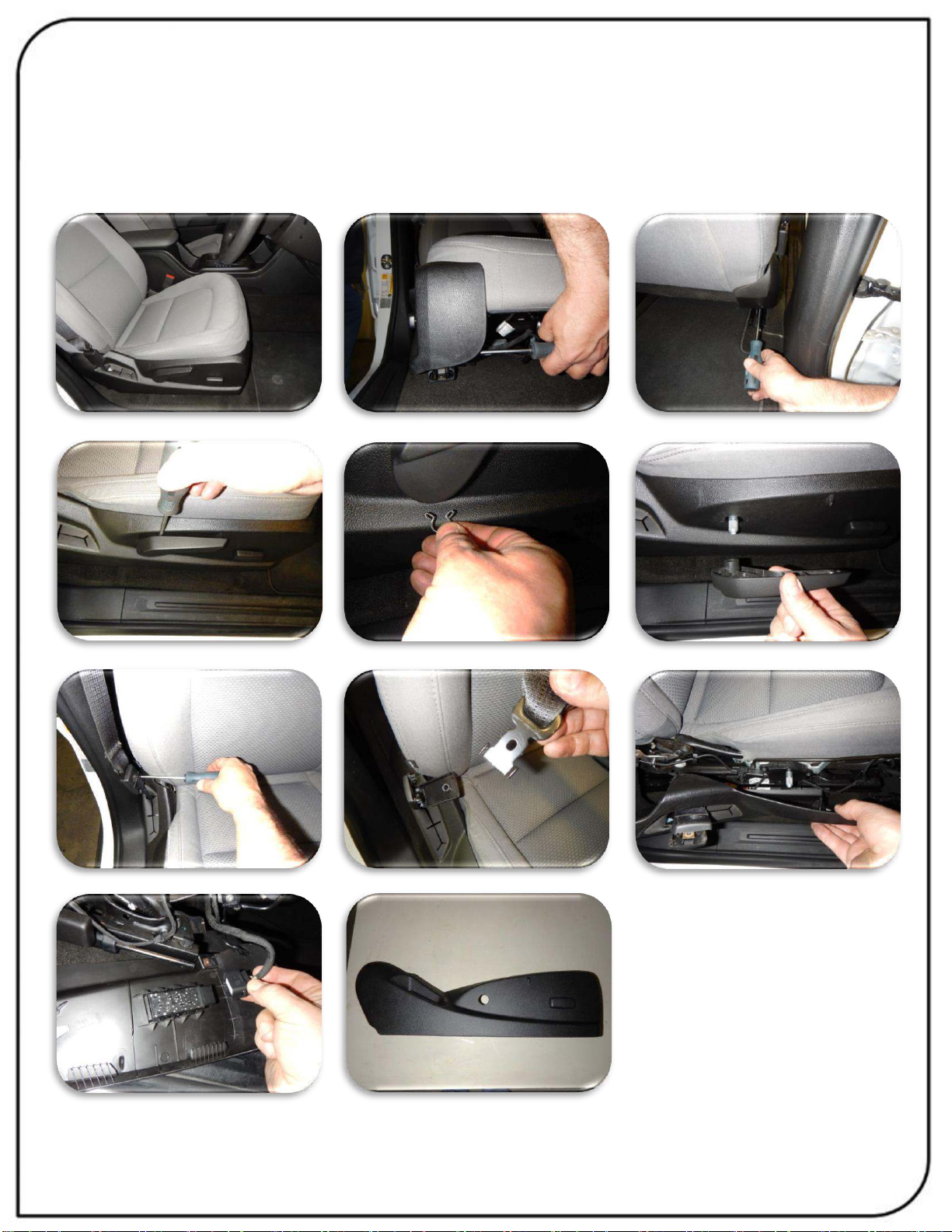

1. The first step of the installation will be to remove the left hand side plastic seat trim.

2. The plastic trim will have to be modified to allow clearance for the ASENTO. Cut along the red
doted lines.Then reinstall the trim.
3. Drill a ¼-inch hole in the trim support, then install the provided seat trim # EV-COLC15L-05 with the
provided Christmas tree and the self-tapping screw at the back.

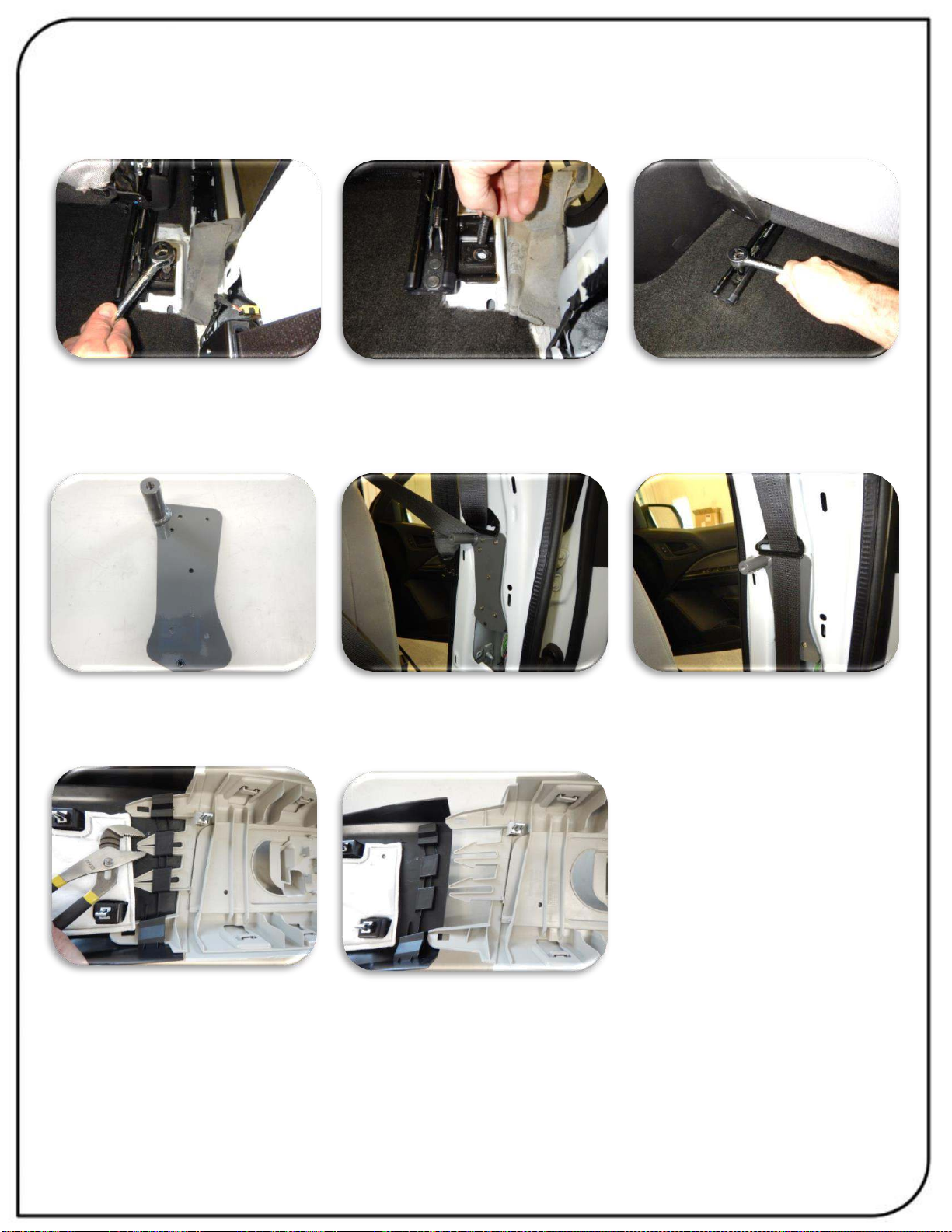

4. Remove the b pillar trim.
5. Remove the seat belt tensioner bolt.

6. Remove the rear seat bolt mounting bolts.

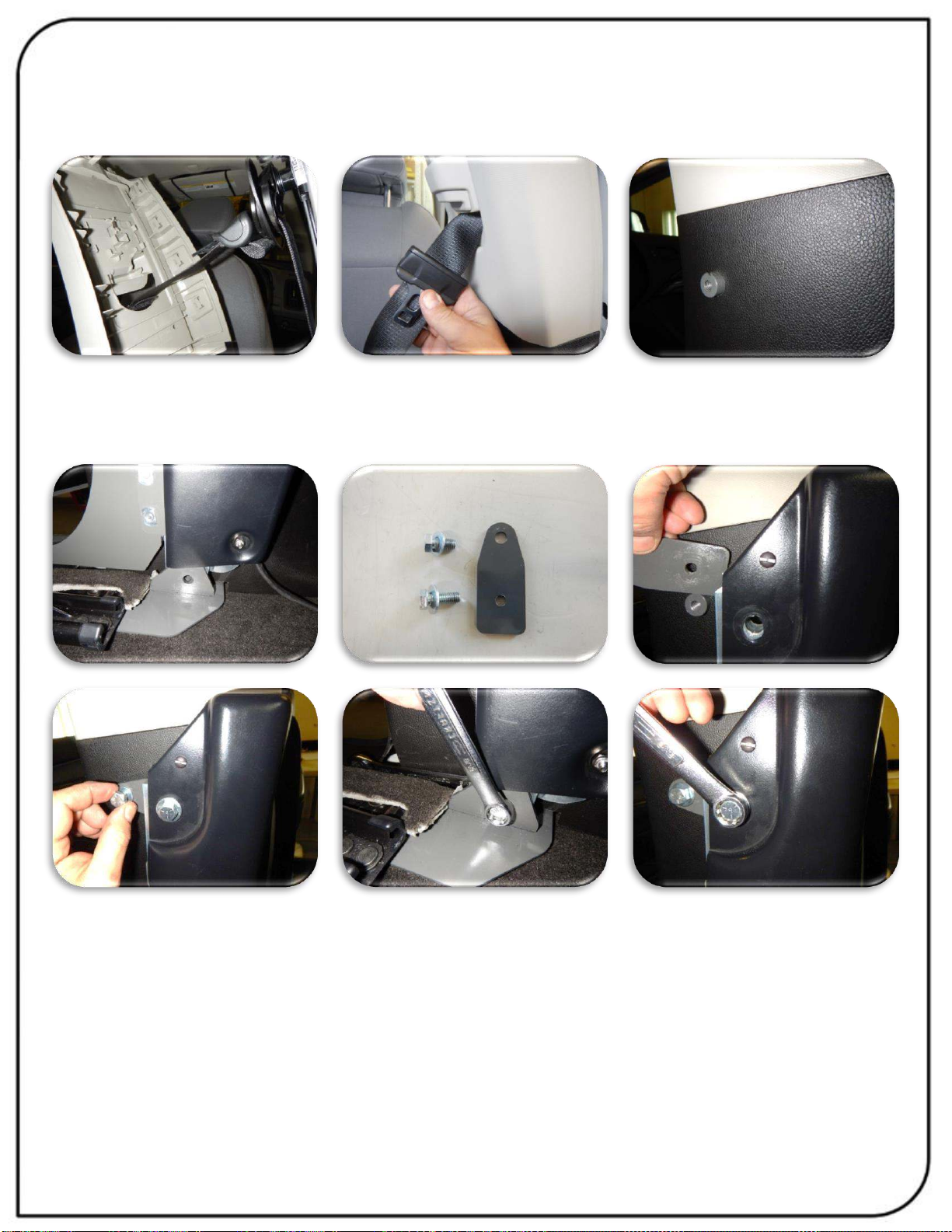

7. Install the b pillar adapter # EV-COLC15R-02 by drilling the corresponding holes and fixing with the
provided 3/16 x 11/16 pop rivets.
8. Remove the top halve of the b pillar trim from the bottom halve.

9. The lower half of the b pillar trim will have to be modified to allow the ASENTO to fit. Cut out a
notch at the bottom of the b pillar. Follow the measurements and the provided stencil.
91/2 inches
2 inches
5/8 inches

10. Install the provided pointed allen screw into the threaded hole on the b-pillar adapter. Take the b-
pillar trim, install it onto the b-pillar and tap it onto the pointed allen screw to mark the point that the
b-pillar will have to be drilled and then remove the allen screw. A 3/4 hole will have to be drilled to
allow the b pillar adapter to pass through the plastic.
11. The plastic clip on the upper b pillar trim which is in line with the drilled hole will have to be removed.
12. Run the power and ground cable for the ASENTO. Follow the instructions as detailed in the
attached document: ELECTRICAL INSTALLATION (Found at the end of this manual.)

13. Install the provided fabric cover # EV-COLC15B-04. Line up the two holes with the rear seat
mounting.
14. Install the ASENTO floor adapter bracket # EV-COLC15R-01 using the OEM bolts.

15. Reinstall the b pillar trim.
16. Install the ASENTO using the 3/8x1’’1/4 bolt and nut at the bottom and the # EV-
COLC15R-02 b pillar bracket with 3/8x3/4 bolt and the 3/8x1’’bolt.

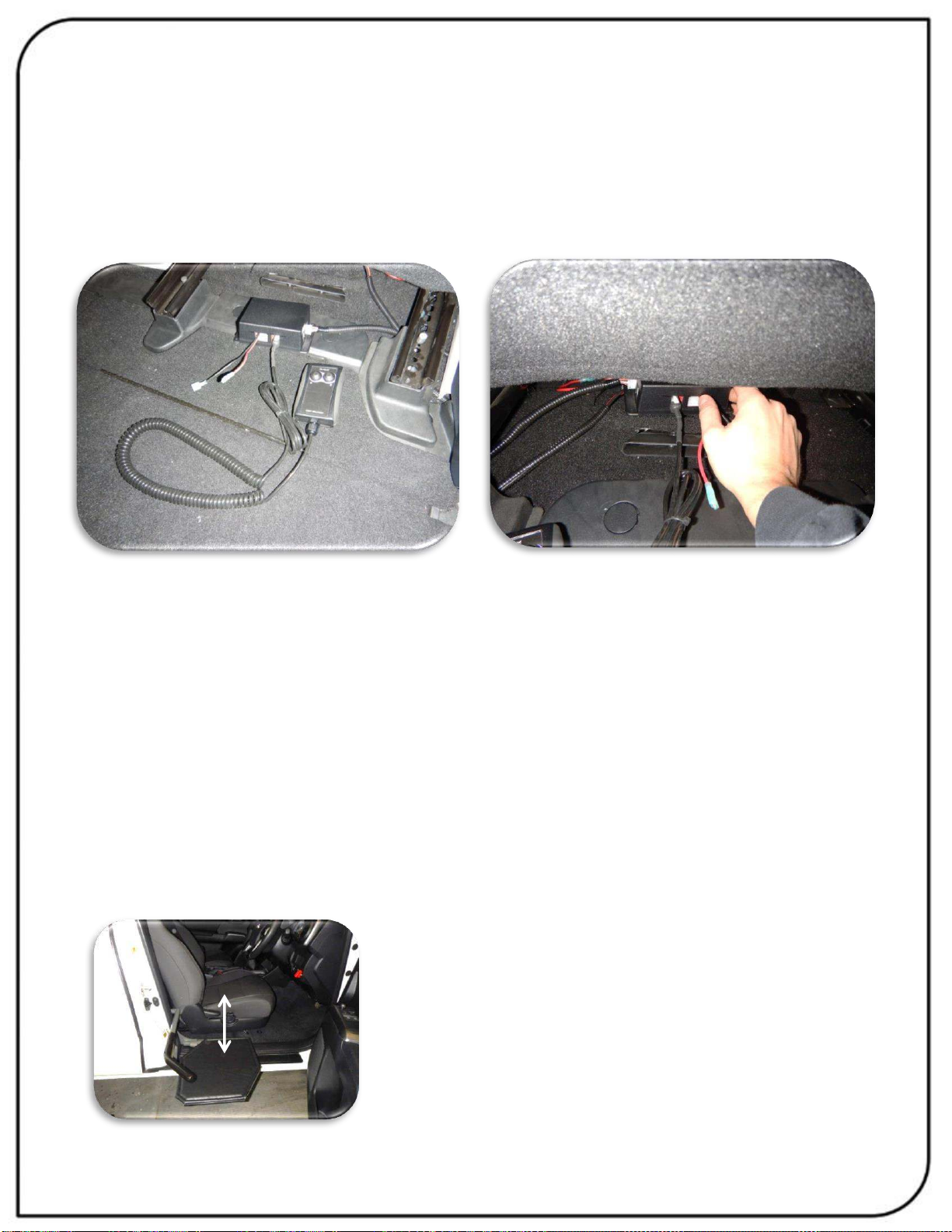

17. Connect the ASENTO control box to the ASENTO. Connect the control box to the
pendant and to the 12-volt power supply. Then attach the control box under the seat
in a place where it cannot be damaged by the seat moving. Place the hand
pendant in a place convenient to the client. NOTE: Once the 12-volt power is
connected the ASENTO will beep to signify that it is ready to be programmed.
18. Before the ASENTO can be used it will have to be programmed. Once the control
box is connected to the 12-volt power supply and has beeped to signify that it is
active, the ASENTO will be in reduced power mode. To program, press the up
button until the ASENTO stops and beeps then press the down button until it stops
and beeps. The ASENTO will now leave reduced power mode and be fully
functional. NOTE: As the ASENTO is moving it will beep continually to signify that it is
in reduced power mode. Once the upper and lower limits have been programmed,
the ASENTO will leave reduced power mode and stop beeping.

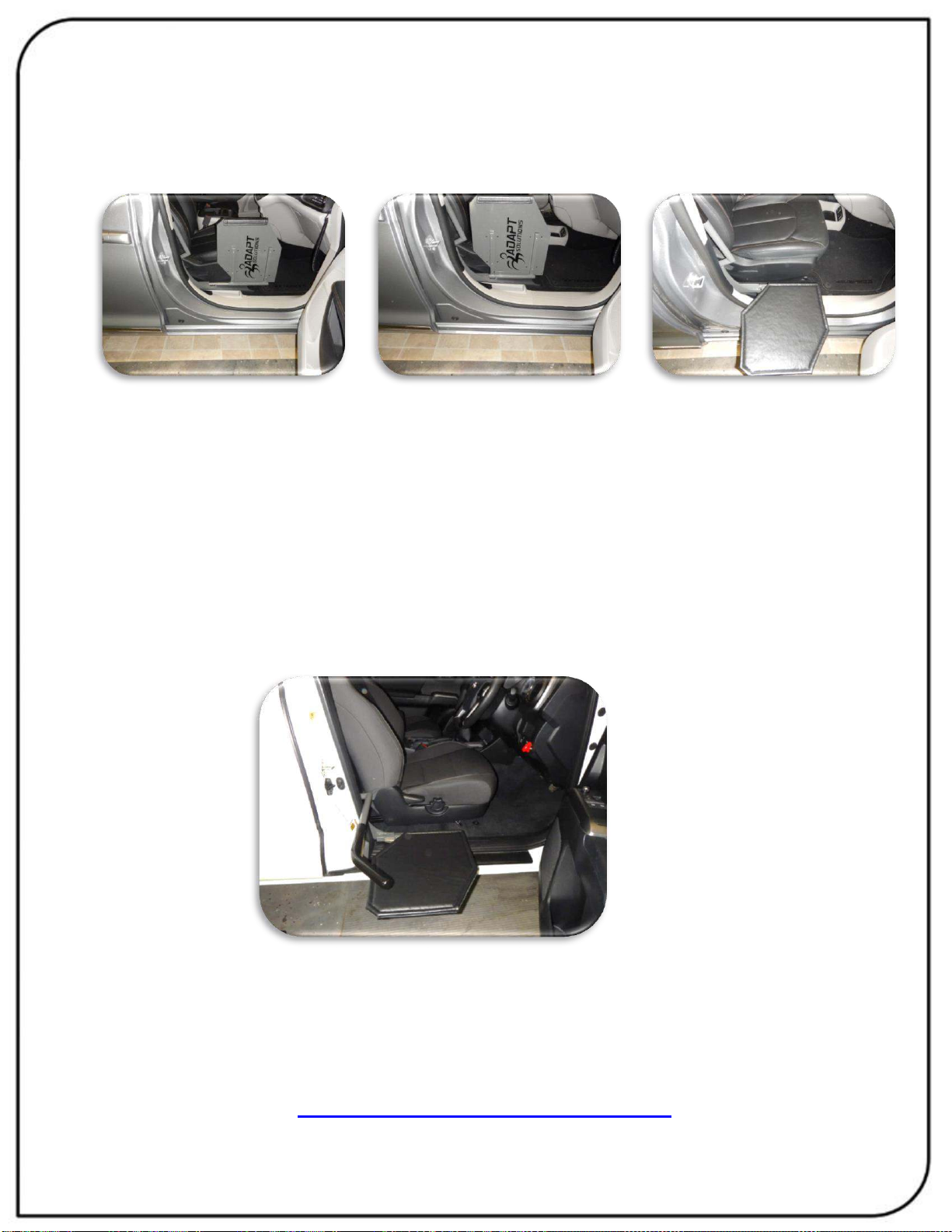

19. Install the transfer board by sliding it onto the chrome shaft of the ASENTO. Make
sure that it slides all the way onto the shaft.
Final Inspection:
Make sure all bolts are all properly fastened.
Make sure that ASENTO works well with and without a passenger.
Make sure the door closes properly.
(Note: It is normal for the ASENTO to touch the door panel trim.)
Please note that our Technical Support Department is available Monday thru Friday
from 7:30 am to 5:00 pm. (Eastern Standard Time) Toll free 1-866-641-0419 or by e-mail.
[email protected]

ELECTRICAL INSTALLATION FOR ASENTO
1. Thread the lead power cable (red +) under the doorstep molding and through the
firewall. WARNING: Pass through a grommet in the firewall to prevent the cable from
chaffing.
2. Install the circuit breaker near the battery and then
connect the battery to the circuit breaker.
3. Attach the ground wire (black -) to the vehicle’s frame,
under the doorstep molding using a self-tapping screw.
(NOTE: It is preferable to locate it in a spot where the sheet
metal is doubled-up to insure a better ground.)
4. Connect the power cable (red+) and the ground cable
(black -) to the electronic module (black box). Place the
electronic module under the seat and secure it in place
using “Velcro”. Secure all the wires in a loom. Reconnect
the battery.
5. Thread the flat hand held control wire (black telephone wire) under
the doorstep molding and up under the dash. Secure the wire in place
under the dash with a tie wrap and secure the hand held control on the
dash using “Velcro”.
WARNING: Place the hand held control in a safe place so that the door
does not risk cutting off the wire.

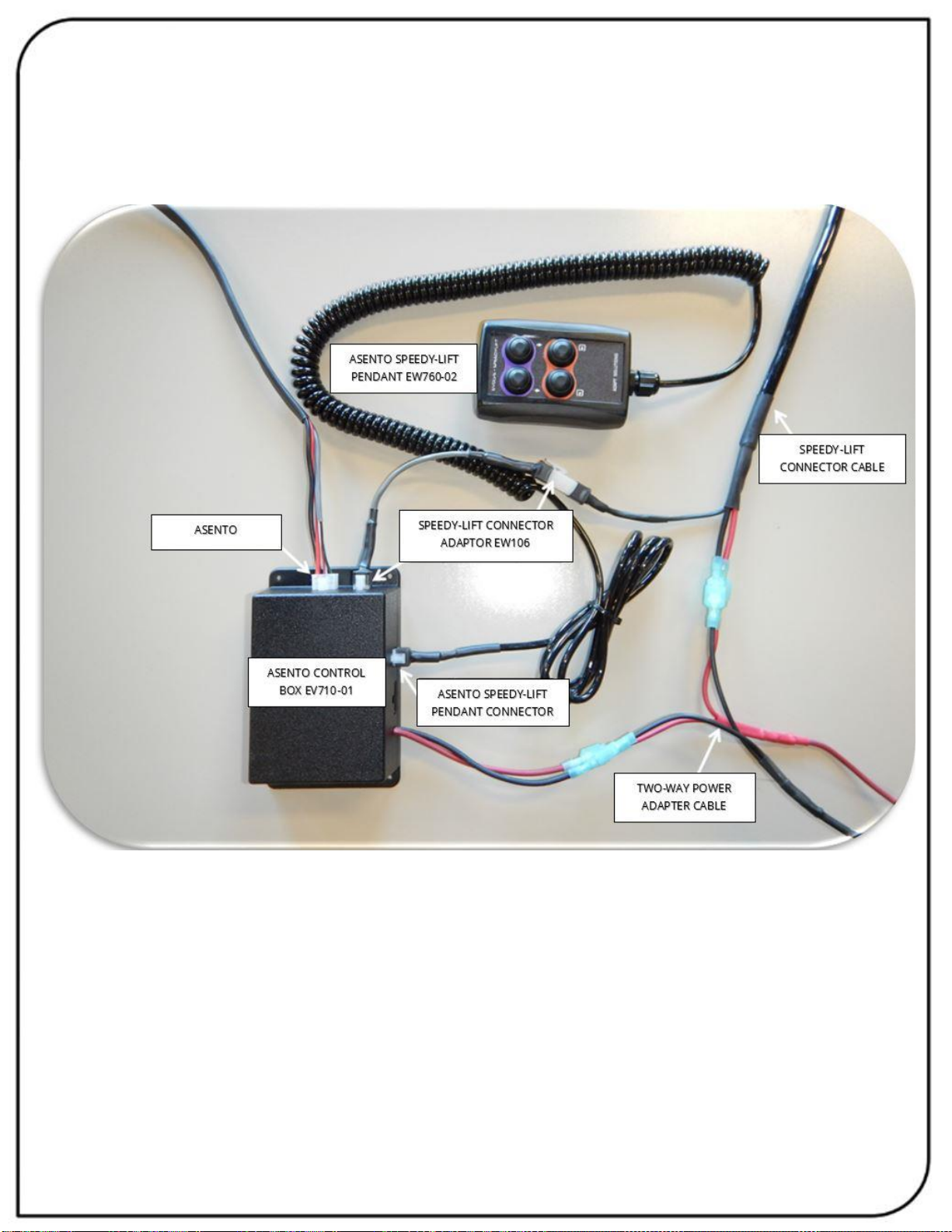

ELECTRICAL BOX CONNECTIONS
