TrueNet®CopperTen™Augmented Category 6 Solutions
Building for Bandwidth

THE GIGABIT THRESHOLD WILL FALL
Not long ago, 100 Mbps seemed like enough.
Then Gigabit seemed like enough. Today, when
it comes to planning a cabling infrastructure,
10Gbps has emerged as the next step for satiating
enterprise network bandwidth requirements.
There always has been—and always will be—
a need for more bandwidth. Data-intensive
applications such as network storage and sharing
of imaging and engineering documents alone can
stretch the limits of a cabling system.
Yet what promises to incite bandwidth growth
on a broader scale is the explosion of IP-based
applications: VoIP, WiFi, industrial Ethernet, IPTV,
video conferencing, security cameras, HVAC and
lighting controls, RFID, access controls, badge
readers, and many others on the shelf and in
the lab. This cumulative effect of more IP-based
applications is propelling more data over the
structured cabling system—and demanding more
bandwidth to support these applications.
Historically, a LAN cabling system endures multiple
replacements of switches, routers, PCs, and
other active electronics. On average, the cabling
system remains intact through three generations
of networking gear. With a life cycle of 15 or
more years, the LAN cabling system installed
today is expected to support the next networking
protocol. This was the case with Category 5e and
Category 6. This will be true with 10Gbps cabling
systems, too.
With Augmented Category 6 standards to be
adopted in 2006, Gigabit is no longer the plan-
ning target for building the 15-year structured
cabling system.
E-Mail
Static Web Pages
Interactive Web
Integrated Messaging
CRM
ERP
Voice Over IP
Streaming Video
Video Downloading
High Performance
Computing
Storage WANs
Video Conferencing
Telepresence
Richness of Applications
10 Gbps
1 Gbps
100 Mbps
10 Mbps
Bandwidth Required
IP Factory
Intelligent Buildings
RFID
more
adj. in greater quantity, amount, measure, degree, or number
New emerging
applications will drive
networks past 1 gigabit.

CopperTen™Augmented Category 6 Solutions
PIONEERING AUGMENTED CATEGORY 6
The IEEE knew that achieving 10 Gbps transmission at 100 meters required at least 18 Gbps from an
Ethernet cabling solution. This Shannon’s Capacity measurement accounts for inherent noise from
active hardware. However, by late 2003, the IEEE seriously considered abandoning copper for 10 Gbps
Ethernet at 100 meters because no manufacturer could meet the requirements—relegating 10 Gbps
to fiber or only 55 meter UTP.
Two months later, at the November 2003 meeting of the IEEE subcomittee, ADC demonstrated the
world’s first design for an unshielded twisted pair cable that was fully backwards compatible with Cat-
egory 6 and able to support 18 Gbps of Shannon’s capacity. As a result of this breakthrough innovation
by ADC, the IEEE 10Gbps working group voted unanimously (86-0) to move forward with developing
an Augmented Category 6 standard for 10Gbps transmission over UTP, now known as IEEE 802.3an.
In April 2004, ADC introduced CopperTen™—the world’s first Augmented Category 6 solution including
cable, connectors, patch panels and patch cords. Today, independent lab tests confirm performance in
live installations. By the end of 2005, over 20 million installed feet of CopperTen Augmented Category
6 cable confirms ADC’s leadership position with 10Gbps UTP solutions.
Following ADC’s lead, the industry is moving to adopt standards for 10G over UTP and installations are
advancing globally. As early as 2007, industry analysts foresee installation of Augmented Category 6
surpassing that of Category 5e systems.
GROWTH BY CATEGORY
A world leader in high-performance network infrastructure, ADC is focused on customer-driven tech-
nology and innovation. Holding over 10,000 patents on designs by engineers throughout the United
States, United Kingdom, Germany, Australia, and India, ADC continues to leverage its experienced
global resources to help you maximize your network’s performance.
0%
10%
20%
30%
40%
50%
60%
70%
80%
Cat 5
Cat 5e
Cat 6
Augmented
Cat 6
1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008
o•rig•i•nal
adj. pertaining to the origin or beginning of something

CopperTen™Augmented Category 6 Solutions
-95
-90
-85
-80
-75
-70
-65
-60
-55
-50
-45
0 100 200 300 400 500
Limit
Pair 12
Pair 36
Pair 45
Pair 78
TIA/ISO C6 Channel Power Sum Alien NEXT – Reverse
Frequency (MHz)
Amplitude (dB)
A
A STAR IS BORN
Building a cabling solution for today’s and tomorrow’s
network requires more than luck. It requires ingenuity
in product development.
ADC was first to market with an end-to-end Aug-
mented Category 6 solution using innovative designs
that reduce the effects of both insertion (signal) loss
and alien crosstalk, the signal noise generated largely
from adjacent cables.
One such innovation is the patent-pending eccentric star filler used for CopperTen cable. This revo-
lutionary, offset filler creates an oblong cable shape that produces distance between cable pairs. In a
bundle, the oblong-shaped cable also creates natural separation between adjacent cables. By effectively
maintaining the distance between the same twist pairs, alien crosstalk is negated in a six around one
bundle. The result is outstanding electrical performance in a compact, unshielded twisted pair cable.
COPPERTEN ALIEN NEXT CHANNEL PERFORMANCE
in•no•va•tion
adj. introduction of new things or methods
10G performance is assured through ADC’s
patent-pending CopperTen cable technology.

CopperTen™Augmented Category 6 Solutions
ADVANCING THE PATCH CORD
The weakest link in any channel is the patch cord. This is especially true under the high-frequency
operation of Augmented Category 6 systems.
When you build for the long term, you need patch cords as reliable as the cable behind the walls. That
is why ADC patch cords are made with stranded conductors for improved mechanical durability of the
much handled patch cord. This is no ordinary stranded cord because, in the manufacturing process,
ADC uses a machine die to compact individual strands into a form that resembles a solid conductor.
You get the best of both worlds—electrical performance of a solid conductor combined with the
flexibility and durability of a stranded conductor.
There is a reason we make our own patch cords. No one does it better.
crafts•man•ship
adj. the quality of being highly skilled
10G patch cords are different; you must use
stranded conductor cords for optimal performance.

CopperTen™Augmented Category 6 Solutions
PERFORMANCE IS IN THE AIR
When it comes to conductor insulation properties,
nothing beats air. It has worked for ADC’s TrueNet
Category 5e and 6 cables since 2002. And it is central
to the construction of the compact, high-performance
CopperTen Augmented Category 6 cable.
CopperTen cable uses ADC’s patent-pending AirES®
(Air Enhanced System) technology that combines
traditional FEP with air pockets for conductor insula-
tion. Using this superior conductor insulation, there
is simply less crosstalk between pairs. One benefit is
stronger signal strength. Another benefit is reduced twisting of pairs, providing
lower propagation delay that is so critical for zero bit errors in data communications.
Air is more than the ideal conductor
insulation. It is also a lightweight, highly
flexible and noncombustible filler material.
With AirES technology inside, the outside
diameter of CopperTen cables is an average
of 11% smaller than competitive Augmented
Category 6 cables (.295 vs. .330). AirEs cable
is proven to be lighter, more flexible, and
easier to pull and route through pathways.
You’ll achieve higher fill densities and save on
installation hours.
For ADC, the proof is in the air. The same
AirES technology in use in hundreds of
millions of installed feet of ADC Category
5e/6 cable is at work in CopperTen. That’s
proof enough.
proof
adj. of tested or proven strength or quality
AirES
Conductor
Industry Standard
Conductor
AirES
4 pr. UTP Cable
Industry Standard
4 pr. UTP Cable
“AirES was the difference in bringing our
installation in on time and under budget.”
IT Director, Multinational Corporation

CopperTen™Augmented Category 6 Solutions
INTEGRATED SOLUTION FROM ONE MANUFACTURER
ADC delivers Augmented Category 6 channel solutions with an inclusive portfolio of products
designed, tested and built by a single global manufacturer. Each component features innovative
designs to meet the strict performance requirements of IEEE 802.3an, TIA-B.2-10 and ISO 11801
Edition 2.1 draft standards for 10 Gbps transmission—designs that position each product for ready
compliance when 10 Gbps standards are adopted.

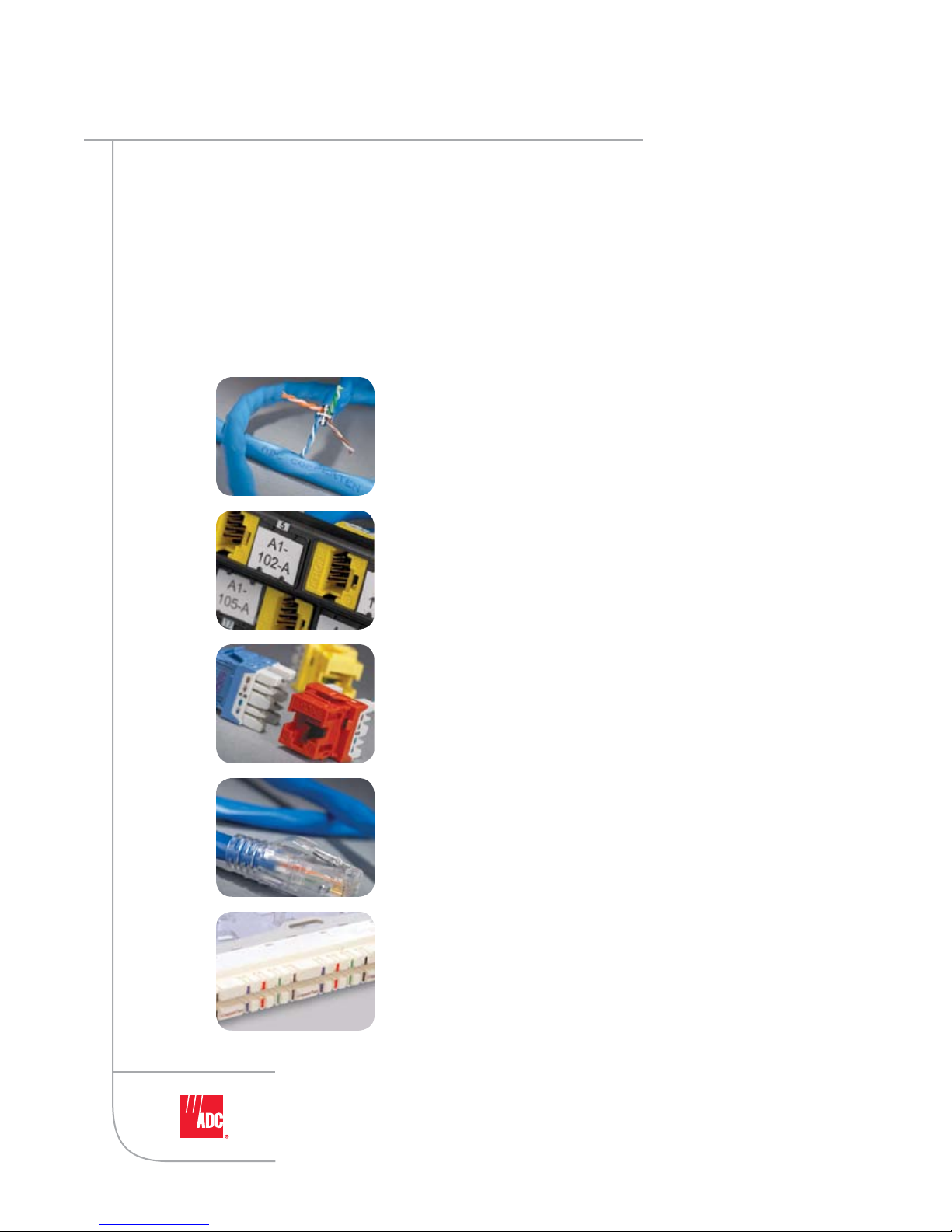

CopperTen Augmented Category 6 Cable
The world’s first UTP cable to enable 10Gbps over a full 100 meters,
CopperTen cable employs an offset star filler and proven AirES®insulation
for a smaller, lightweight, high-performance cable for riser and plenum
applications.
CopperTen Augmented Category 6 Patch Panels
Offset jack positioning and a composite (not metal) frame reduces alien
crosstalk between connectors.
CopperTen Modular Jacks
Each modular jack is laser tuned, trimming each board to guarantee
performance out to 500 MHz. LSA-PLUS®silver-plated 45° angled contacts
offer the most secure and reliable connection available while allowing
termination with a KRONE or a standard 110 tool.

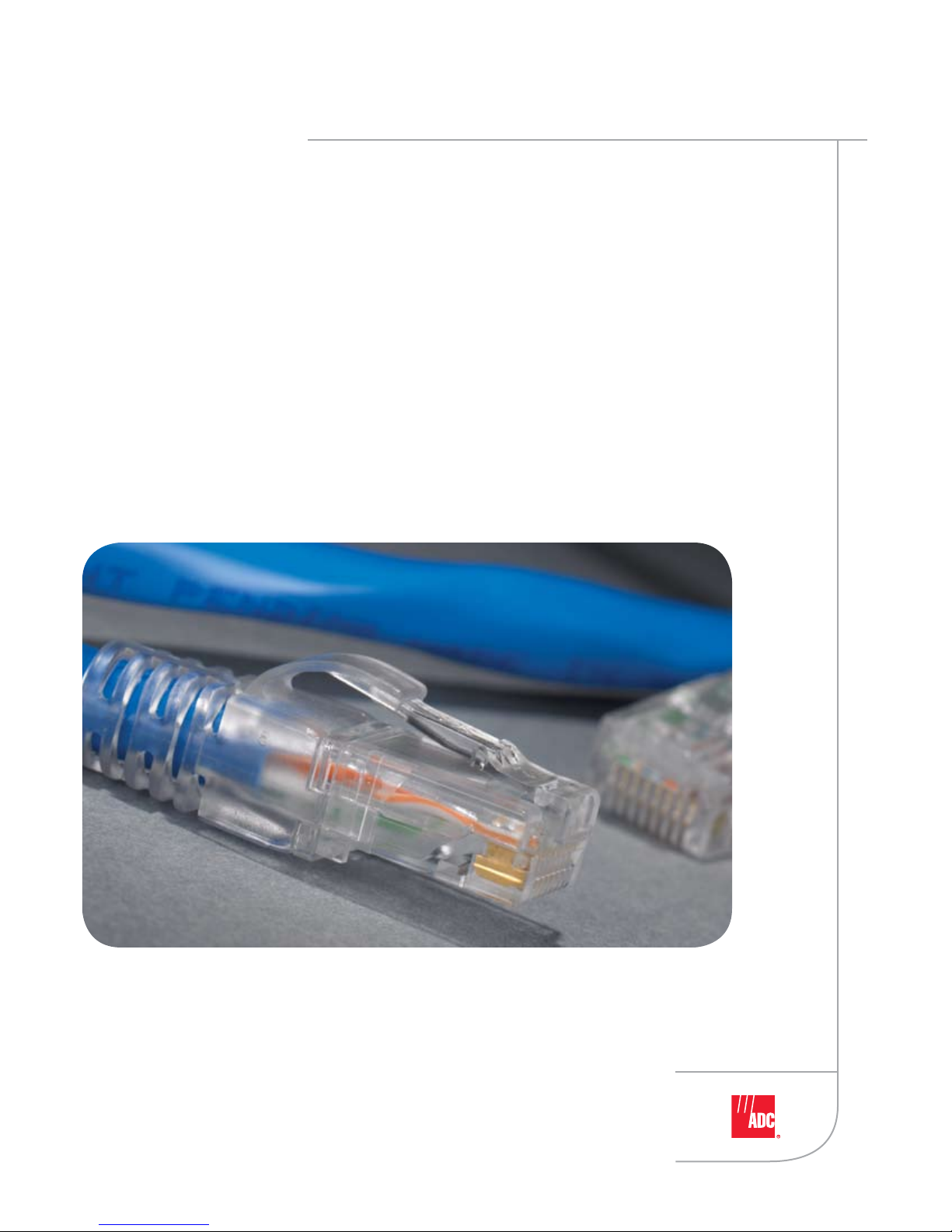

CopperTen Stranded Patch Cords
Through an ingenious manufacturing process, CopperTen patch cords
deliver the electrical performance of a solid conductor with the flexibility,
mechanical durability, and peace of mind of a stranded cord.
CopperTen Augmented Category 6 Consolidation Points
A True Augmented Category 6 block solution, the CopperTen Block is a
20-pair solution ideal for consolidation points. The CopperTen block incor-
porates LSA-PLUS technology to offer superior performance while allowing
termination with a KRONE or a standard 110 tool. The CopperTen block’s
unique disconnect design also allows for circuit access without disrupting
cables for advanced functions like make-before-break test access.
com•plete
adj. having all parts or elements, lacking nothing

CopperTen™Augmented Category 6 Solutions
CopperTen Augmented Category 6 Solutions are an integral part of ADC’s TrueNet®Structured Cabling
System, the high-performance structured cabling solution that meets all of your unique network needs.
TRUE END-TO-END SOLUTIONS
Your complete network infrastructure needs are met by a single global manufacturer. The TrueNet system
includes cable, connectivity, and cable management solutions for fiber, 10 Gbps, and Category 6/5e from
the data center to the desktop.
TRUE PERFORMANCE
With TrueNet, you can push networks to the performance edge. Innovative products that exceed
industry standards support advanced applications today and tomorrow.
TRUE RELIABILITY
Mission-critical networks rely upon trusted TrueNet infrastructure. Built and tested in ADC’s world-class
facilities, TrueNet is backed by the industry’s only true Zero Bit-Error Warranty for standards-based
solutions that guarantees signal integrity and throughput.

CopperTen™Augmented Category 6 Solutions
BUY WITH CONFIDENCE
Install TrueNet CopperTen infrastructure and forget about it. That is a valuable proposition for the
IT manager and the CFO.
The right structured cabling system meets today’s standards yet is designed to anticipate change.
CopperTen is backwards compatible to Category 6. It is also guaranteed to exceed IEEE 802.3an
specifications for 10Gbps transmission for distances up to 100 meters. Guaranteed.
Even though a relatively small item in the IT budget, structured cabling can be expensive if not done
properly. The operating costs of troubleshooting and maintaining a poorly installed, inferior quality
system can mount. From a capital perspective, recabling a network that is only five years old offers
a poor return on investment. Spotty performance, fixing bad channels, and frequent recabling are
disruptive to the organization—slowing productivity in every department.
Fifteen years is indeed a long time in the IT world. Yet that should be the service life goal for the
cabling plant. Invest in CopperTen and be assured of performance, reliability, and standards compat-
ibility to support today’s applications and tomorrow’s technology innovations.
OUR WARRANTY, OUR RISK
Installed by a certified TrueNet®Value-Added Reseller, ADC’s CopperTen system provides you with peace
of mind knowing your cabling system will not be a source of failures or errors for the life of your facility.
For 20 years, a certified TrueNet installation protects you from defects in material or workmanship.
All components are warranted to exceed ANSI/TIA/EIA 568-B and addendum standards. The certified
system will also exceed requirements of the latest ISO and TIA drafts (TIA 568B.2 Addendum 10 and
ISO 11801 Edition 2.1).
The certified system is also covered with a five-year throughput Zero Bit-Error Warranty, meeting the
IEEE 802.3ab specifications.
See TrueNet CopperTen Product and System Performance Warranty for complete details.
val•u•a•ble
adj. having considerable worth and usefulness

CopperTen™Augmented Category 6 Solutions
BUILD FOR BANDWIDTH WITH COPPERTEN
No manufacturer has sold and installed more feet of cable or more end-to-end channels of Augmented
Category 6 systems than ADC. We pioneered 10Gbps Ethernet over UTP. We’ve had a product on the
market longer than any manufacturer. Our warranty and reputation remove any doubts that CopperTen is
the correct solution for a cabling plant that will support your network requirements today and in the future.
We perform for every one of our clients every day. Read what they have to say:
Engineering & Design Firms Deploy ADC’s CopperTen
“We operate a variety of CAD systems that require us to transfer multi-megabit files all over the
place. In fact, we generate 25 gigs of new or revised data each week. As standards are changing,
we have to stay current and competitive. We have to be ready for the future by investing in the best
infrastructure, such as ADC’s CopperTen. We get paid by the hour, and the more work we produce
during that hour, the more value our customers receive. We expect this network system to last and
are pleased we won’t have to rewire again for years.”
Business Development Director, Synchroness, Denver
Banks and Financial Institutions Deploy ADC’s CopperTen
“With the rapid growth in Internet banking, it has been necessary for us to explore the most robust,
high-performance and future-proof technology available in the industry and we chose ADC’s Cop-
perTen. We strongly believe that deploying CopperTen is crucial to delivering mission-critical services
to our retail and corporate customers now and in the future.”
Network Architect, ABSA Bank, South Africa
Colleges and Universities Deploy ADC’s CopperTen
“Access to video is an important part of just about every curriculum. Students in digital media
design and other fields require access to very large files. Our goal is for students to access their ap-
plications from anywhere on the campus. ADC’s CopperTen allows us to not only deliver advanced
services in the classroom that benefit our students and faculty, but also to consolidate four telecom
closets into one by eliminating unnecessary active equipment. This is a substantial financial benefit
to the university.”
Technical Services Manager, The Ohio State University
per•form•ance
adj. the efficiency with which something fulfills its intended purpose

Web Site: www.adc.com
From North America, Call Toll Free: 1-800-366-3891 • Outside of North America: [phone]
Fax: [phone] • For a listing of ADC’s global sales office locations, please refer to our Web site.
ADC Telecommunications, Inc., P.O. Box 1101, Minneapolis, Minnesota USA 55440-1101
Specifications published here are current as of the date of publication of this document. Because we are continuously
improving our products, ADC reserves the right to change specifications without prior notice. At any time, you may
verify product specifications by contacting our headquarters office in Minneapolis. ADC Telecommunications, Inc.
views its patent portfolio as an important corporate asset and vigorously enforces its patents. Products or features
contained herein may be covered by one or more U.S. or foreign patents. An Equal Opportunity Employer.
102333AE 3/06 Original © 2006 ADC Telecommunications, Inc. All Rights Reserved
CopperTen™Augmented Category 6 Solutions
TrueNet CopperTen products are available through these ADC partners:
Premier National
Anixter Inc. 800-323-8166 www.anixter.com
Graybar 800-GRAYBAR www.graybar.com
Preferred National
Accu-Tech Corp. 770-740-2240 www.accu-tech.com
Premier Regional
Famous Telephone Supply 800-321-9122 www.famoustelephone.com
John B. Rudy Co. 310-639-0594 www.jbrudy.com
Preferred Regional
Best Enterprises 800.657.0172 www.best-ent.com
Metro Wire & Cable 978-562-6288 www.metwire.com
