Introduction
WELCOME
Thank you for choosing the ADDERLink™ INFINITY 4000 (aka ALIF4000) high
performance extenders. The ALIF4000 range offers dual-head 4K, audio and USB
delivered over a single ber connection. Pixel-perfect color, accurate picture quality at
4K60 and USB2.0 with fast switching.
Product in brief
• Dual-head 4K, video, audio and USB over a single ber connection,
• Pixel-perfect, color accuracy at 4K60,
• Bi-directional analog audio,
• Adder’s USB True Emulation for fast switching,
• Backwards compatibility with existing ALIF range,
• Plug and play.
ALIF4000 RX
10 Gigabit
Switching
ALIF4000 RX
ALIF4000 RX
ALIF4000 TX
ALIF4000 RX
ALIF4000 TX
IMPORTANT: When using AIM to congure ALIF
units, it is vital that all units that you wish to
locate and control are set to their factory default
settings. Otherwise they will not be located by
the AIM server. If necessary, perform a manual
factory reset on each ALIF unit.
Note: If you are using one or more ALIF4000
transmitters within an installation managed by
an AIM server, the AIM server must be running
rmware version 4.9 or above.
Linking
ALIF4000 units can be linked in two mains ways: Direct or Networked.
Direct linking
Where ALIF4000 transmitters and receivers are directly linked to each other, very
little conguration action is required, provided that they both have their factory default
settings in place - just link them together. If the standard settings have been changed in a
previous installation, you merely need to perform a manual factory reset on each unit.
Networked linking
Where ALIF4000 units are connected via networked links, you can either congure them
individually, or congure them collectively using an AIM server:
• ConguringnetworkedALIFunitsindividually - You need to specify the network
addresses of the ALIF4000 units so that they can locate each other. This can be done
using via OSD on the console connected to the RX unit by pressing CTRL + A LT + C.
• ConguringnetworkedALIFunitscollectively - The ADDERLink™ INFINITY
Management (AIM) server allows you to congure, control and coordinate any number
of ALIF transmitters and receivers from a single application.
Safety
Please refer to the safety booklet provided in the box before use of this product.
See Start of Life: AIM or Point to Point conguration

INSTALLATION
3
CONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX
TechnicalSpecications
Operating/storageconditions
Operating temperature: 0 to 50ºC / 32 to 122ºF
Storage temperature: 0 to 60ºC / 32 to 140ºF
Storage and operating relative humidity: 10 to 90% non-condensing
Altitude: < 2000m
Power
External power: 12VDC, 3A
Typical power consumption: 20W
BTU: 68.24BTU/hr
Physical
Dimensions (L)210mm /8.3” x (W)215mm/8.5” x
(D)40mm/1.6”
Weight: 1.8kg / 4 lbs
Materials
Aluminium and steel construction
Connectors
Local Unit - Transmitter (TX)
Computer: 2x display port, 2x USB type B,
2x 3.5mm audio jack sockets,
1x DB9 socket.
Ethernet: 2x 8p8c (RJ45), 2x SFP+ cages.
Power: 3 pin Kycon socket.
Remote Unit - Receiver (RX)
Desk: 2x display port, 5x USB type A,
2x 3.5mm audio jack sockets,
1x 3.5mm SPDIF socket.
Ethernet: 1x 8p8c (RJ45), 2x SFP+ cages.
Power: 3 pin Kycon socket.
USB
4 ports of USB2.0 with USB True Emulation to support keyboard, mouse and touch.
1 additional port provides transparent high speed USB2.0, best suited to mass storage,
web cams, headsets and microphones.
USB device seen as: 7 or 13 port hub
Maxvideoresolution
Supports 4K UHD or DCI and refresh rates to 60Hz
Audio
Analog Line in/out 2 channel 16bit 48KHz 1V RMS in / 1V RMS out
Ethernet
10GbE (No 10/100/1000 support)
PackingBox
Dimensions: (L) 285mm /11.2” x (W) 245mm/9.6” x
(D)145mm/5.7”
Weight: 2.5kg / 5.5lb
Approvals/Compliance
CE and FCC: See the compliance web page for the full list
Productinformationlabels
The product information labels are located on the base of each unit.

INSTALLATION
4
CONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX

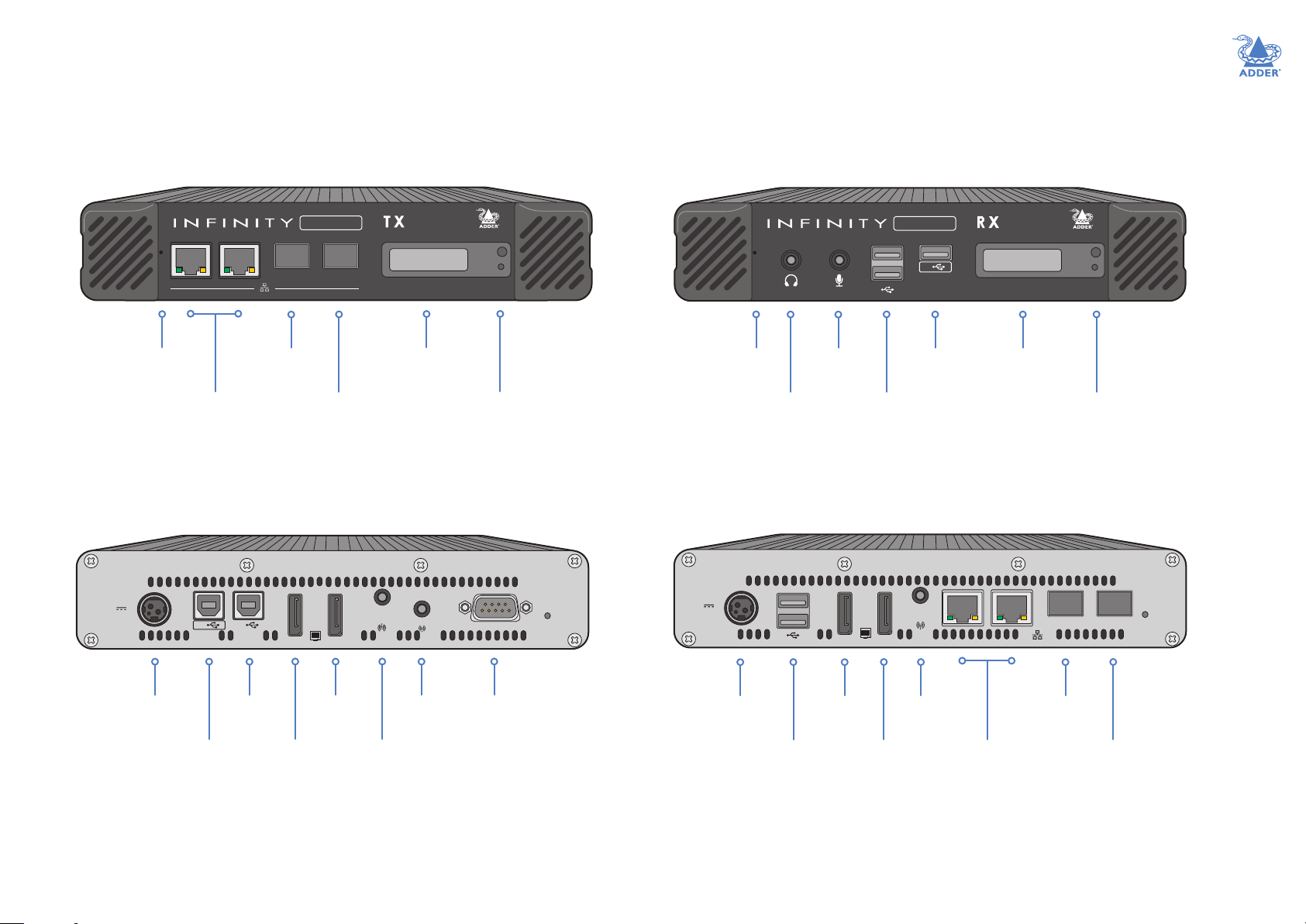

ALIF4000UNITFEATURES
The ALIF4000 units are housed within durable, vented enclosures with connectors situated on the front and rear panels. The smart front faces
also feature an OLED information screen with control button (to scroll through the various informational pages) and also a status indicator.
Transmitter-rear
Reserved
USB
Power
in
12
4
12
optical
OUT
AUX
IN
12V
3A
Secondary
videoin
Primary
videoin
Audio
out
Audio
in
Reserved
Receiver-rear
1
12 2
4
5
34
optical
OUT
12V
3A
Primary
display
USB
Power
in
Secondary
display
Audio
out
Reserved
Primary
SFPport
Secondary
SFPport
Transmitter-front
AdderLink
4000
TRANSMIT
2
3
1
4
Reserved
Reset
switch
OLED
screen
Control
button
andstatus
indicator
Primary
SFPport
Secondary
SFPport
Receiver-front
AdderLink
4000
RECEIVE
2
3
1
Microphone
Headphones USB
USB2.0
transparent
highspeed
port
Reset
switch
OLED
screen
Control
button
andstatus
indicator

INSTALLATION
5
CONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX
AdderLink
4000
TRANSMIT
2
3
1
4
SUPPLIEDITEMS
2xAudiocable2m
(3.5mmstereojacks)
ALIF4000TXpackage
ALIF4000RXpackage
Informationwallet
containing:
Four self-adhesive rubber feet
Quick start guide
Safety document
Informationwallet
containing:
Four self-adhesive rubber feet
Quick start guide
Safety document
ALIF4000TXunit
ALIF4000RXunit
2xUSBcable2m(typeAtoB)
Part number: VSC24
Poweradapterwith
locking connector
andcountry-specic
powercord
AdderLink
4000
2
3
1
RECEIVE
Poweradapterwith
locking connector
andcountry-specic
powercord
2xDisplayport
videocable2m

INSTALLATION
6
CONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX

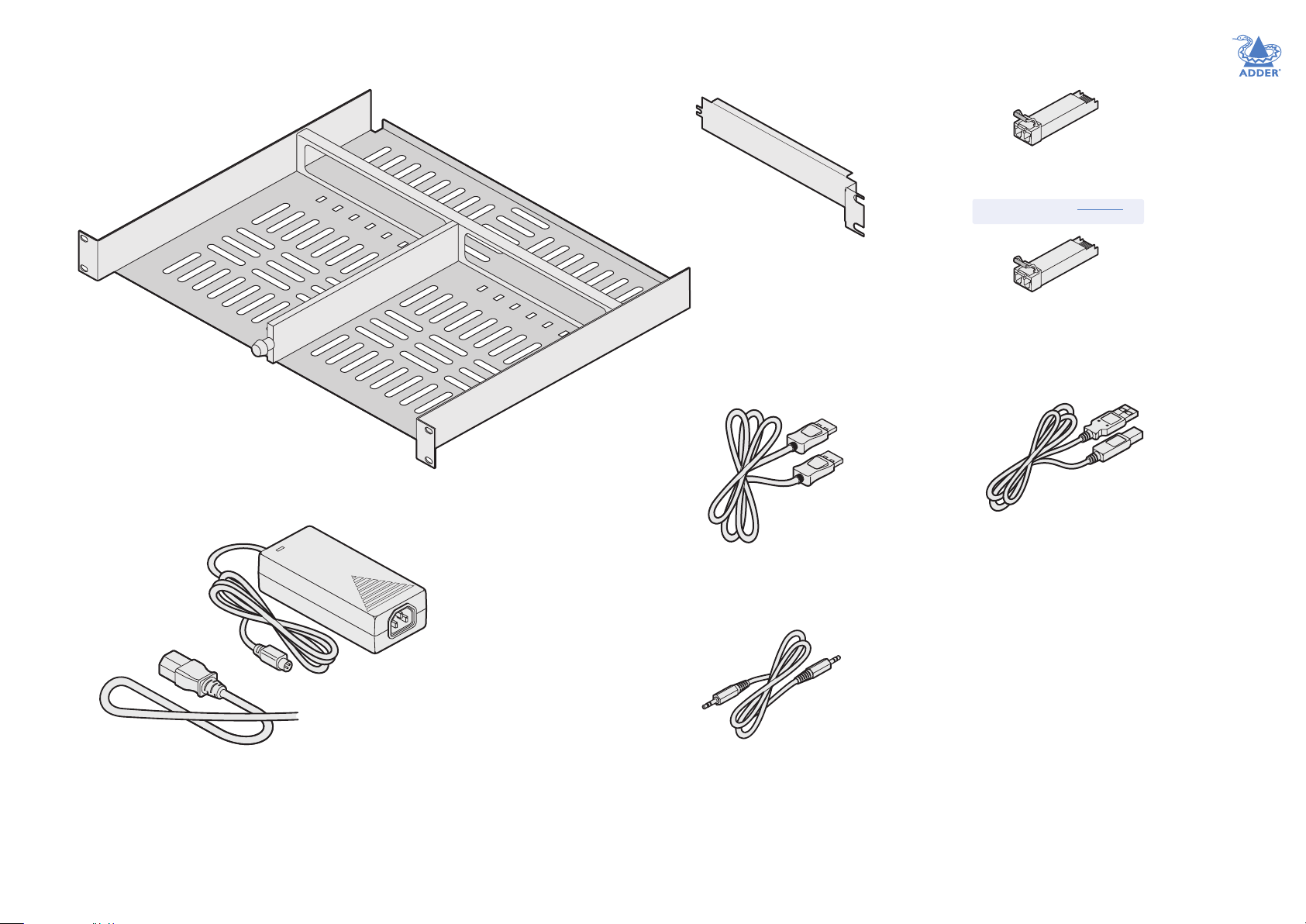

OPTIONALEXTRAS
Dualunit19”(1U)rack-mountshelf
Part number: RMK12
Audiocable2m
(3.5mmstereojacks)
Part number: VSC22
USBcable2m(typeAtoB)
Part number: VSC24
10GbEsinglemodeberSFPmodule
Part number: SFP-SM-LC-10G
10GbEmultimodeberSFPmodule
Part number: SFP-MM-LC-10G
Please refer to the table in Appendix F for
information about ber modules and cables.
Replacementpoweradapter
with locking connector
Part number: PSU-IEC-12VDC-5A
Country-specicpowercords
CAB-IEC-AUS (Australia)
CAB-IEC-EURO (Central Europe)
CAB-IEC-UK (United Kingdom)
CAB-IEC-USA (United States)
CAB-IEC-JP (Japan)
CAB-IEC-CN (China)
Displayportvideocable2m
Part number: VSCD10A
Rackmountblankingplate
Part number: RMK12-BP

7
INSTALLATIONCONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX
MOUNTING
Please see Appendix G for details about mounting options for the ALIF units.
IMPORTANT:WhenmountingtheALIFunits(andtheirpoweradapters),
ensurethattheventsarenotobscuredandthatthereissufcientairow.
Theoperatingtemperaturerangeis0to40ºC(0to104ºF)andmustnot
beexceeded.Eachpoweradapterisratedatamaximumof68.24BTU/hr.
Installation
CONNECTIONS
Installation involves linking the ALIF4000 TX unit to various ports on the host computer,
while the ALIF4000 RX unit is attached to your peripherals (collectively known as the
Console:
Click a connection to see details
IMPORTANT: When using an ADDERLink™ INFINITY Management box to
congure ALIF units, it is vital that all ALIF units that you wish to locate and control
are set to their factory default settings. Otherwise they will not be located by the
AIM server. If necessary, perform a factory reset on each ALIF unit.
Please also see Appendix B - Tips for success when networking ALIF units
ALIF4000 RXALIF4000 TX
VIDEO
LINK
page8
VIDEO
DISPLAY
page 12
FIBRE LINK
page11
USB
DEVICES
page13
USB
LINK
page9
AUDIO
LINKS
page8
SERIAL
LINK
page9 POWER
IN
page10
POWER
IN
page14
MIC &
SPEAKERS
page 12
Suitable for installation in Information
Technology Rooms in accordance with
Article 645 of the National Electrical
Code and NFPA 75
HT

8
INSTALLATIONCONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX
1 2
optical
OUT
AUX
IN
1 2
1 2
optical
IN

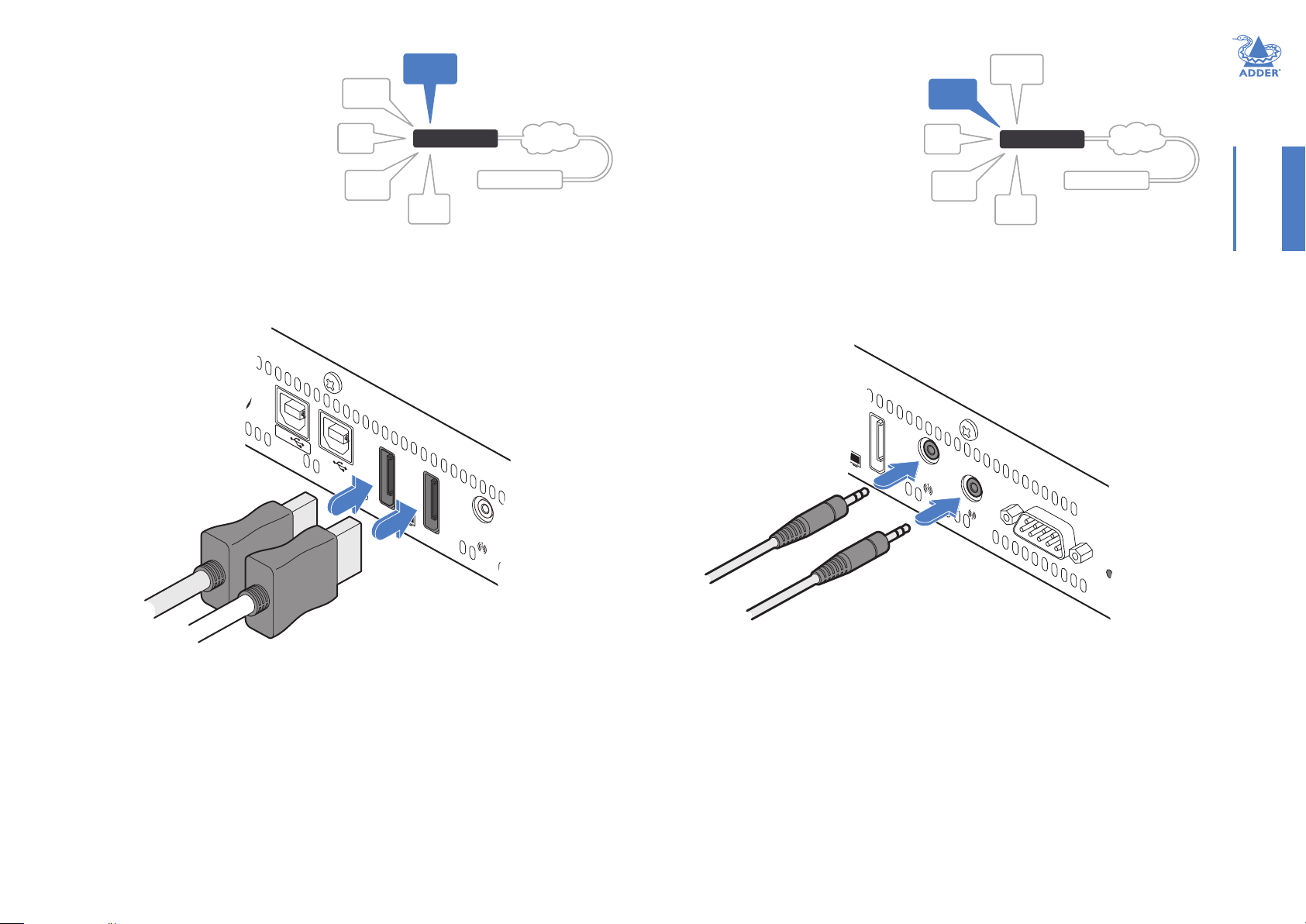

TXvideolinks
The TX unit supports two display port
connections, each up to 4K UHD (3840 x
2160) or DCI (4096 x2160), with refresh
rates up to 60Hz.
2 Connect the plug at the other end of the cable(s) to the
corresponding video output socket(s) of the host computer.
ALIF4000 RX
ALIF4000 TX
VIDEO
LINK
LINK
USB
LINK
AUDIO
LINKS
POWER
IN
SERIAL
LINK
Tomakeavideolink
1 Connect your digital video link cable(s) to the display port
socket(s) on the TX unit rear panel:
Toprimary
videooutput
port
Tosecondary
videooutput
port
TXaudiolinks
The TX unit supports two way stereo
digital sound so that you can use a remote
microphone as well as speakers.
2 [Where a microphone is to be used]: Connect a second audio link cable
between the OUT socket on the TX unit rear panel and the Line In
socket of the host computer.
Tomakeaudiolinks
1 Connect an audio link cable between the opticalIN socket on the TX
unit rear panel and the speaker output socket of the host computer.
Speakerlinkfrom
hostcomputer
Microphonelink
tohostcomputer
ALIF4000 RX
ALIF4000 TX
VIDEO
LINK
LINK
USB
LINK
AUDIO
LINKS
POWER
IN
SERIAL
LINK

9
INSTALLATIONCONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX
1
1 2
12V
3A
44
TXUSBlinks
The TX unit has two USB type B sockets on
the rear panel.
Note: If the transparent high speed USB2.0 port on the RX front
panel is not required then the link to input port 2 here is not
required.
2 Connect the type A connectors of the supplied cables to USB
sockets on the host computer.
USBlinkfrom
hostcomputer
(supplies ports
2 to 5 on RX)

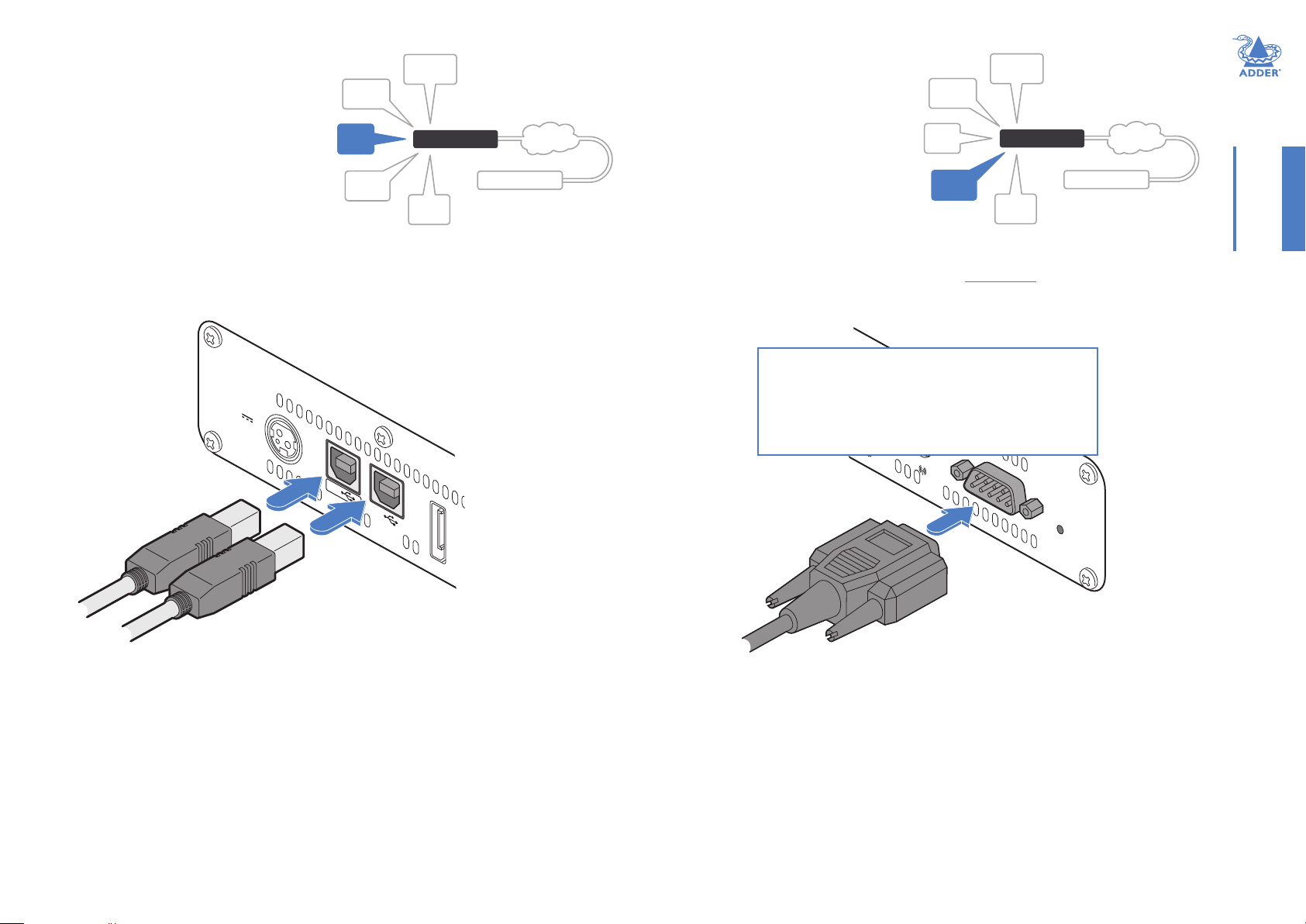

TomakeaUSBlink
1 Connect the type B connectors of the supplied USB cables to the
USB ports on the TX unit rear panel.
TXAUX(serial)port
The AUX port is an RS232 serial port
that allows extension of RS232 signals up
to a baud rate of 115200. The port has
software ow control, but no hardware
ow control.
ToconnecttheAUXport
1 Connect a suitable serial ‘null-modem’ cable (see Appendix F for pin-out) between a
vacant serial port on your computer and the AUX port on the right hand side of the
ALIF rear panel.
2
optical
OUT
AUX
IN
Serial(null-modem)link
fromyourcomputer
ALIF4000 RX
ALIF4000 TX
VIDEO
LINK
LINK
USB
LINK
AUDIO
LINKS
POWER
IN
SERIAL
LINK
ALIF4000 RX
ALIF4000 TX
VIDEO
LINK
LINK
USB
LINK
AUDIO
LINKS
POWER
IN
SERIAL
LINK
Note: Serial port function not
available in initial release. To be
added in later revisions.
USBlinkfrom
hostcomputer
(supplies port 1
on RX)

10
INSTALLATIONCONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX
1
12V
3A
1 2
12V
3A
44
TXpowerin
Each unit is supplied with a power
adapter and country-specic power
cord. The supplied power adapter uses
a locking-type plug to help prevent
accidental disconnection; please follow
the instructions shown on the right
when disconnecting a power adapter.

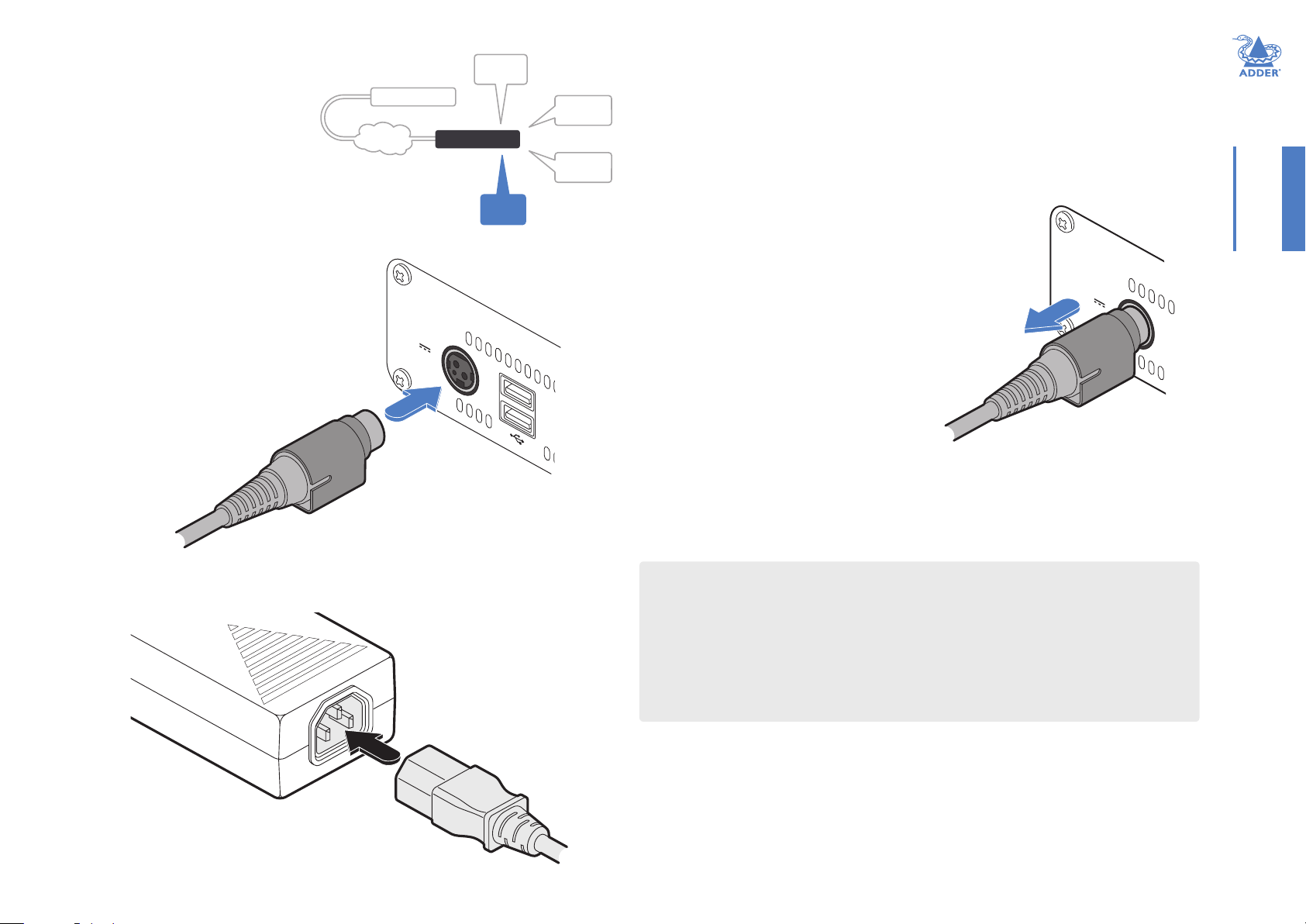

Toconnectthepoweradapter
1 Attach the output plug of the supplied
power adapter to the power input
socket on the left side of the rear
panel. As you insert the plug, pull back
slightly on the outer body to assist
the locking mechanism until the plug
is fully inserted.
2 Insert the IEC connector of the supplied country-specic
power cord to the socket of the power adapter.
3 Connect the power cord to a nearby mains supply socket.
Todisconnectthepoweradapter
1 Isolate the power adapter from the mains supply.
2 Grasp the outer body of the power adapter plug
where it connects with the node.
3 Gently pull the body of the outer plug away from
the node. As the body of the plug slides back, it will
release from the socket and you can fully withdraw
the whole plug.
IMPORTANT:Pleasereadandadheretotheelectricalsafetyinformation
givenwithintheSafetyinformationbookletprovidedwiththisproduct.In
particular,donotuseanunearthedpowersocketorextensioncable.
Note: The unit and the power adapter generate heat when in operation and will become
warm to the touch. Do not enclose them or place them in locations where air cannot circulate
to cool the equipment. Do not operate the equipment in ambient temperatures exceeding
40 degrees Centigrade. Do not place the products in contact with equipment whose surface
temperature exceeds 40 degrees Centigrade.
Fromthe
poweradapter
Gentlypullbacktheplugouter
bodytoreleasethelock
ALIF4000 RX
ALIF4000 TX
VIDEO
LINK
LINK
USB
LINK
AUDIO
LINKS
POWER
IN
SERIAL
LINK

11
INSTALLATIONCONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX
2 Make your connection(s) between
the chosen SFP module and either
the other ALIF4000 unit or to a
suitable network ber switch:
Connect the transmit and receive ber optic links to the sockets on the Fiber
Channel SFP module. Then close the latch over the link connectors to lock them into
place.
Note: SFP-SM-LC-10G modules require OS1 or OS2 single mode ber.
SFP-MM-LC-10G modules require OM1, OM2, OM3 or OM4 multi-mode ber.
Transmitand
receiveberlinks
1 Insert the appropriate optional SFP
module (SFP-MM-LC-10G or SFP-
SM-LC-10G) into socket 3 located on
the front panel of the TX unit...
LINK
LINK
ALIF4000 TX
VIDEO
LINK
USB
LINK
AUDIO
LINKS
POWER
IN
SERIAL
LINK
ALIF4000 RX
VIDEO
DISPLAY
USB
DEVICES
MIC &
SPEAKERS
POWER
IN
4000
TRANSMIT
2
34
TX/RXhighspeedlinks
ALIF4000 units can be either connected directly to each other or via a high speed
(10GB) network. Currently, the connections must be Fiber Channel over Ethernet
(FCoE). A single ber link (using SFP port 3) is sufcient to provide full 4K operation
between ALIF4000 units. Where required, a second ber link can be used (via SFP port 4)
to provide link redundancy.

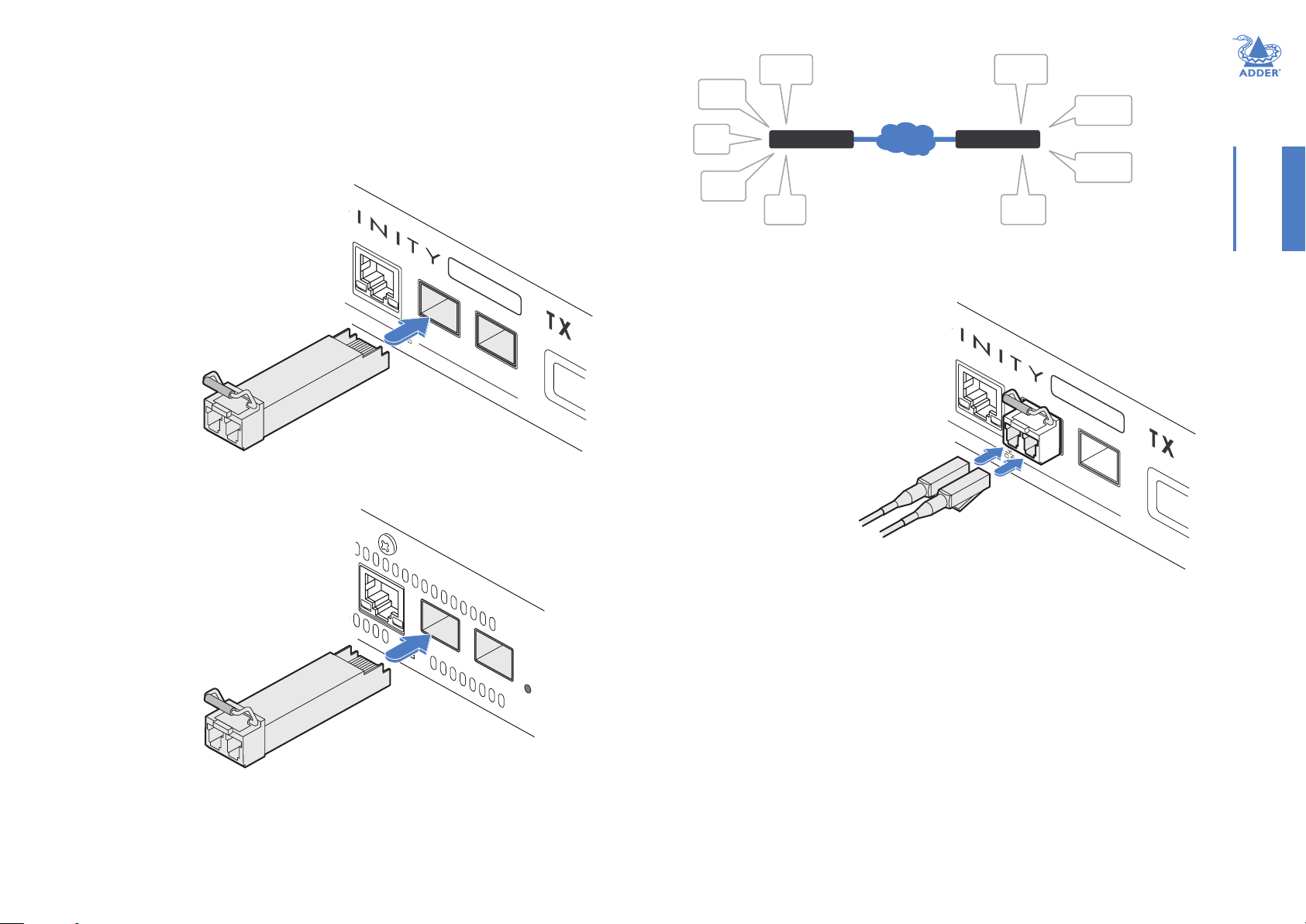

TolinkALIF4000unitsviaber
1 2 3 4
4000
TRANSMIT
2
34
...and the rear panel of the RX unit:

12
INSTALLATIONCONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX
1 2
4
5
optical
OUT
RXvideodisplay
The RX unit supports two video
displays, each up to 4K UHD (3840
x 2160) or DCI (4096 x2160), with
refresh rates up to 60Hz.
2 If required, connect the lead from the second video display to the
display port socket marked ‘2’ on the RX unit rear panel.
Toconnectvideodisplays
1 Connect the lead from the primary video display to the display port
socket marked ‘1’ on the RX unit rear panel:
To
secondary
videodisplay
To
primary
video
display
ALIF4000 TX
LINK ALIF4000 RX
VIDEO
DISPLAY
USB
DEVICES
MIC &
SPEAKERS
POWER
IN
RXmicrophone&speakers
The RX unit can support a
microphone as well as speakers
providing the necessary connections
have been made between the TX unit
and the host computer.
Toconnectamicrophone(orlinein)and/orspeakers
ALIF4000 TX
LINK ALIF4000 RX
VIDEO
DISPLAY
USB
DEVICES
MIC &
SPEAKERS
POWER
IN
AdderLink
4 0
2
3
1 Connect the lead from a
mono microphone to the
3.5mm socket labeled on
the front panel.
2 Connect the lead from
stereo speakers to the
3.5mm socket labeled on
the front panel.

13
INSTALLATIONCONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX
RXUSBdevices
The ALIF RX unit has ve USB ports
(three on the front panel and two on
the rear) to which peripherals may be
connected.
Note: USB socket 1 on the front panel is
transparent high speed USB2.0 port and
is very useful for mass storage, web cams,
headsets and microphones.
To connect more than four peripherals,
one or more USB hubs may be used. The total current that may be drawn from the USB
ports is 1.2A, which should be sufcient for a keyboard, mouse (no more than 100mA
each) and any two other devices (500mA maximum each). If more power for USB
devices is required, use a powered USB hub.
ALIF4000 TX
LINK ALIF4000 RX
VIDEO
DISPLAY
USB
DEVICES
MIC &
SPEAKERS
POWER
IN
4000
RECEIVE
2
3
1
1
4
5
2V
A

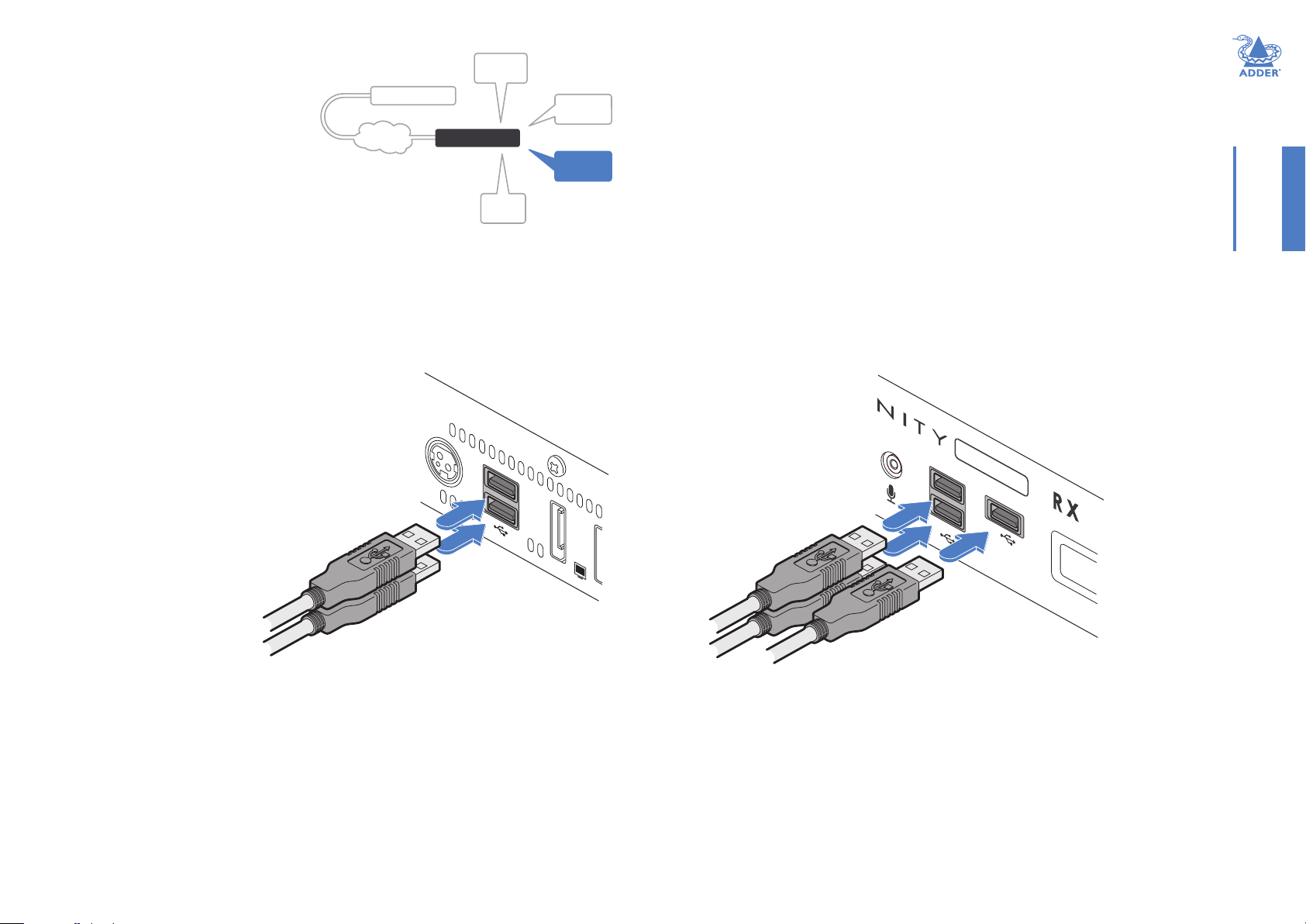

ToconnectUSBdevices
1 Connect the lead from the device to any
of the USB sockets on the front and rear
panels of the RX unit.
Note: Socket 1 is a
transparent high speed
USB2.0 port and is very
useful for mass storage,
web cams, headsets and
microphones.
Note: USB sockets 2 to 5 are all derived from the USB link 1 on
the TX unit. The RX unit transparent high speed USB2.0 port
labeled 1 here is derived from USB link 2 on the TX unit. If this
high speed USB 2.0 port is not required then there is no need to
connect USB link 2 on the TX unit.

14
INSTALLATIONCONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX
ALIF4000 TX
LINK ALIF4000 RX
VIDEO
DISPLAY
USB
DEVICES
MIC &
SPEAKERS
POWER
IN
1
12V
3A
RXpowerin
Each unit is supplied with a power
adapter and country-specic power
cord. The supplied power adapter uses
a locking-type plug to help prevent
accidental disconnection; please follow
the instructions shown on the right
when disconnecting a power adapter.
Toconnectthepoweradapter
1 Attach the output plug of the supplied
power adapter to the power input
socket on the left side of the rear
panel. As you insert the plug, pull back
slightly on the outer body to assist
the locking mechanism until the plug
is fully inserted.
2 Insert the IEC connector of the supplied country-specic power cord to the socket of
the power adapter.
3 Connect the power cord to a nearby mains supply socket.
Todisconnectthepoweradapter
1 Isolate the power adapter from the mains supply.
2 Grasp the outer body of the power adapter plug
where it connects with the node.
3 Gently pull the body of the outer plug away from
the node. As the body of the plug slides back, it will
release from the socket and you can fully withdraw
the whole plug.
IMPORTANT:Pleasereadandadheretotheelectricalsafetyinformation
givenwithintheSafetyinformationbookletprovidedwiththisproduct.In
particular,donotuseanunearthedpowersocketorextensioncable.
Note: The unit and the power adapter generate heat when in operation and will become
warm to the touch. Do not enclose them or place them in locations where air cannot circulate
to cool the equipment. Do not operate the equipment in ambient temperatures exceeding
40 degrees Centigrade. Do not place the products in contact with equipment whose surface
temperature exceeds 40 degrees Centigrade.
Fromthe
poweradapter
Gentlypullbacktheplugouter
bodytoreleasethelock
4
5
12V
3A

15
INSTALLATIONCONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX
Conguration
ALIF4000CONFIGURATIONVIAWEBPAGES
Each ALIF4000 unit hosts its own internal set of web pages which contain all
conguration details and settings (see also Start of Life, shown right). You will need to use
a computer connected to the same network as each ALIF4000 unit to access the web
pages. Additionally, on the console attached to the ALIF4000 RX unit, you can access its
conguration details via the On Screen Display (OSD) by pressing CTRL + A LT + C.
TomanuallycongureALIF4000unitsviatheirwebpages
Run a web browser on your computer and enter the IP address of the required
ALIF4000 unit:
The default addresses (when using SFP port 3) are TX: 169.254.1.33
RX: 169.254.1.32
The default addresses (if using SFP port 4) are TX: 169.254.1.43
RX: 169.254.1.42
If the IP address of a unit has been changed, you can either:
• Discover the unit’s main IP address by pressing the small
button on the front panel next to the OLED screen to
reveal the value for IP Address 3 (or IP Address 4).
• Alternatively, providing it is appropriate to do so, perform a manual factory reset (see
next page) to restore the default address.
The opening page should be displayed:
IP Address 3
169.254.1.33
For explanations of the options within each page, please see Appendix A.
StartofLife:AIMorPointtoPointconguration
To streamline initial conguration processes, all ALIF4000 units employ a Start of Life
(SoL) procedure when they are in an uncongured state; either because they are new or
because they have undergone a factory reset.
When an uncongured ALIF4000 unit boots, its SoL procedure will guide it to
automatically determine which of two modes it should adopt:
• AIMmode - place itself into the control of a specic AIM server on the network,
whereupon the ALIF4000 will be assigned suitable conguration details to t within
the network of similar units.
• P2Pmode - place itself into Point to Point (P2P) mode to allow manual conguration
of links with other ALIF4000 units.
The SoL procedure follows this basic logic ow to determine the correct mode:
Once the mode has been set, either to AIM or P2P, the ALIF4000 will remain in that
mode until it undergoes a factory reset.
If you are an RX unit,
seek out and list
ALIF4000 TX endpoints
on the network.
SoL:
Is a DHCP
server
available?
Y
Y
N
N
Does the
DHCP have a valid
Option 125
instruction?
Enter AIM mode
Place yourself under
control of the AIM server
listed in the Option 125
instruction.
Enter P2P mode
Assign yourself a link-local
(169.254.x.x) address.
HT

16
INSTALLATIONCONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX
PERFORMINGAMANUALFACTORYRESET
A factory reset returns ALIF4000 unit to its default conguration.
Toperformamanualfactoryreset
1 Power on the ALIF4000 unit.
2 Use a long narrow implement
(e.g. a straightened-out paper clip)
to press-and-hold the recessed
reset button on the front panel
for roughly ten seconds, until the
status indicator turns blue (Note:
alternating red/green indications will
occur during the ten second period
while the button is still pressed).
3 Release the reset switch. The
indicator will remain blue for
a short while (less than ten
seconds) while ALIF4000 unit congures itself and should then change to green if all
connections are correct; or orange if one or more of the video, USB and/or network
links are missing.
Note: If you are performing a factory reset and intend to disconnect the power immediately
after the reset, you must wait at least 30 seconds after you have released the reset button
for it to complete the process.
AdderLink

17
INSTALLATIONCONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX
In operation, many ALIF4000 installations require no intervention once congured. The
TX and RX units take care of all connection control behind the scenes so that you can
continue to work unhindered.
FRONTPANELINDICATIONS
The front panel of each ALIF4000 unit features an OLED information screen plus a single
indicator capable of producing numerous color and ash patterns to provide a useful
guide to operation.
OLEDscreen
Press and release the button to wake the OLED screen and begin showing information.
Press the button repeatedly to change between subjects:
Operation
Indicatorcolorandashpatterns
The single front panel indicator uses varying color and ashing patterns to signal key
status :
Off No power.
Green All services present as compared to the conguration required.
Amber Running but video, USB or network link missing (or not connected
to another ALIF unit).
Red Booting before processor loaded or failed.
Blue Factory reset mode active.
Red/green ash Booting into factory recovery mode.
Red/blue ash Upgrade mode active.
Fast green ash Identify mode active.
IP Address 3
169.254.1.33
Video Source 1
[email protected]
MAC Address 4
000F5802E7A7
Serial No.
1904A0000164
Software Version
1.00A
BaseIPaddress
Internalrmwareversion
Videosource
MACaddresses
Serialnumber
HT

18
INSTALLATIONCONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX
This chapter contains a variety of information, including the following:
• Getting assistance - see right
• Appendix A - Conguration pages
• Appendix B - Tips for success when networking ALIF units
• Appendix C - Troubleshooting
• Appendix D - Glossary
• Appendix E - RS232 ‘null-modem’ cable pinout
• Appendix F - Fiber modules and cables
• Appendix G - Using the optional ALIF4000 rack shelf
• Appendix H - Open source licenses
GETTINGASSISTANCE
If you are still experiencing problems after checking the information contained within this
guide, then please refer to the Support section of our website:
www.adder.com
Further information
HT

19
INSTALLATIONCONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX
APPENDIXA-Congurationpages
This section covers the web page conguration for the ALIF4000 units:
• RX - General Information
• RX - UI Settings
• RX - Presets
• RX - Ports
• RX - Network
• RX - Transmitters
• RX - Diagnostics and Statistics
• RX - System
• TX - General Information
• TX - UI Settings
• TX - Ports
• TX - Network
• TX - Diagnostics and Statistics
• TX - System
