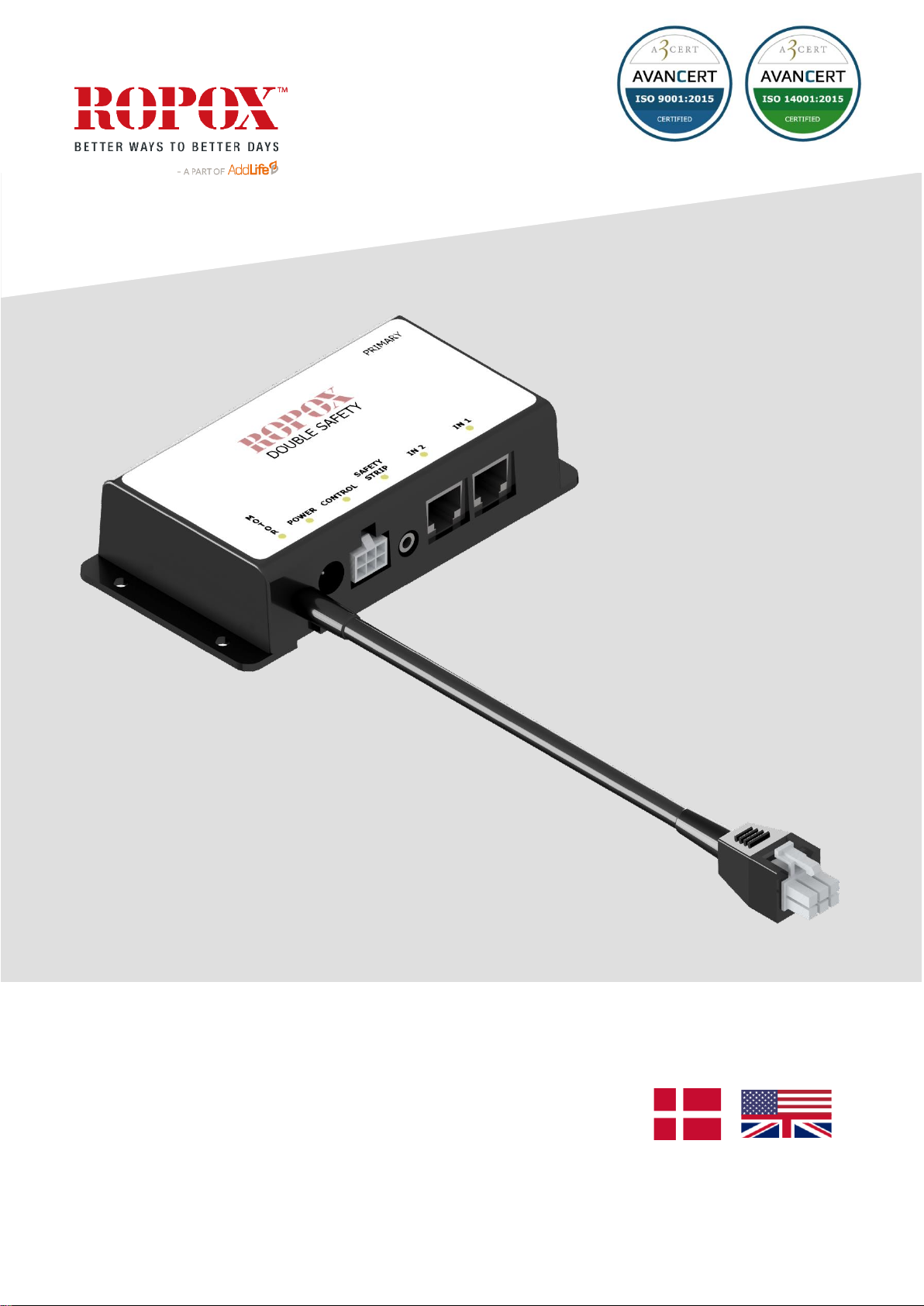

AddLife ROPOX FlexiPlus User manual

Dobbeltvirkende klemsikkerhed for FlexiPlus /
Double safety for FlexiPlus
Brugermanual / User Guide
30-90580
TF 200.0055 / Rev 02 / 04-12-2023
Side 2
Page 10

2
TF 200.0055 / Rev 2
Indhold
Anvendelse........................................................................................................................................................ 3
Funktion......................................................................................................................................................... 3
Komponentliste.................................................................................................................................................. 4
Forklaring........................................................................................................................................................... 5
Ledningsdiagram ............................................................................................................................................... 6
Montageanvisning.............................................................................................................................................. 7
Funktionsafprøvning .......................................................................................................................................... 9
Fejlfinding .......................................................................................................................................................... 9

3
TF 200.0055 / Rev 2

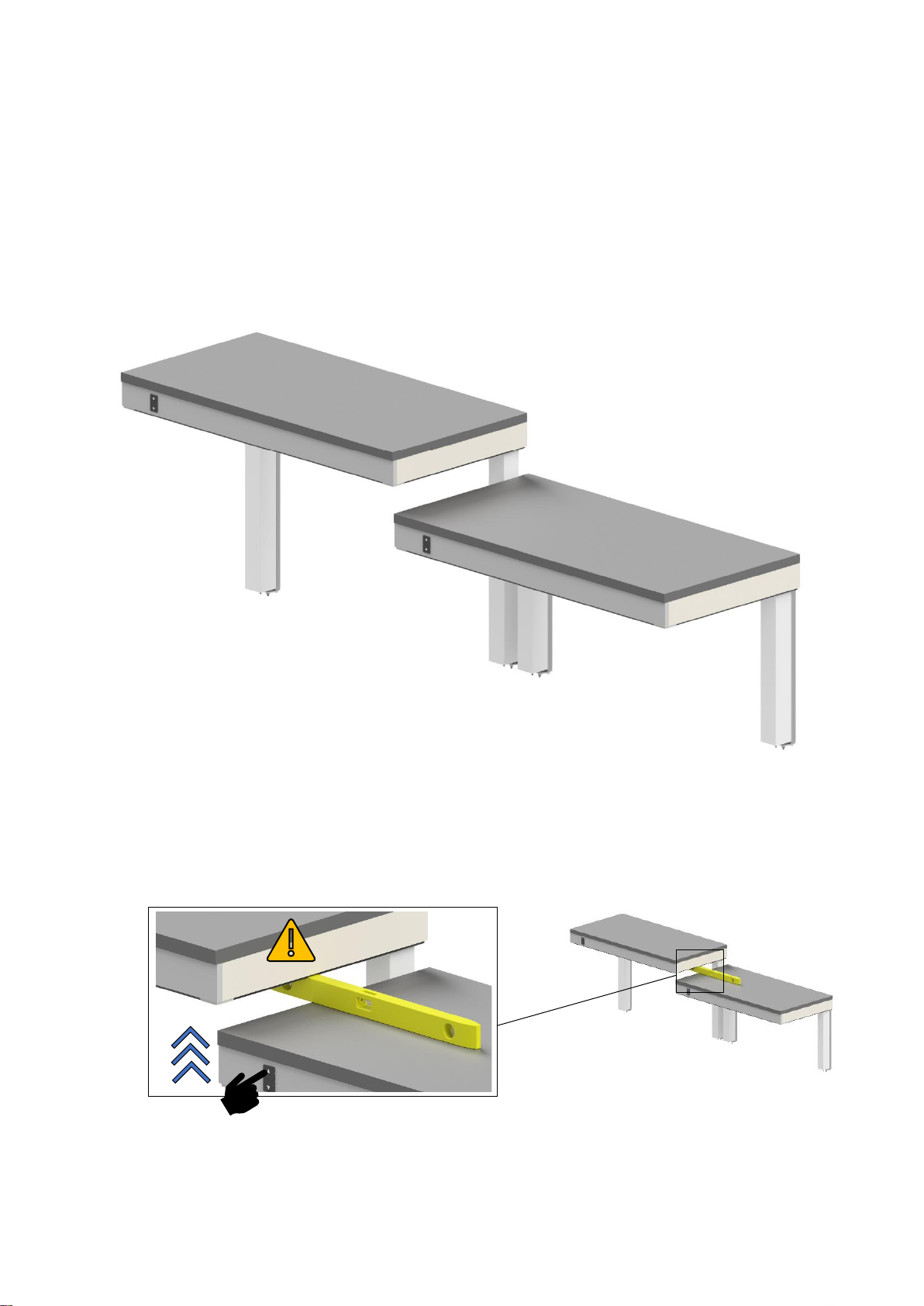

Anvendelse
Til produktet Ropox FlexiPlus kan der i tilfælde af to sidestillede borde anvendes en dobbeltvirkende
klemsikkerhed, som minimerer klemrisikoen mellem de to borde. Den dobbeltvirkende klemsikkerhed er et
intelligent system, da klemlisterne mellem bordene kommunikerer med hinanden, således det ene bord
stopper kørsel, hvis der kommer noget i klemme på det andet bord.
Det anbefales ALTID at anvende den dobbeltvirkende klemsikkerhed ved to sidestillede FlexiPlus borde.
Inden montage påbegyndes, se afsnit komponentliste, og sørg for at alle dele er til stede.
Funktion
Den dobbelte klemsikkerhed fungerer ved at lade de to klemlister kommunikere med hinanden. På denne
måde undgår man klemfarer i begge retninger. F.eks., hvis et stel har en genstand placeret på bordpladen,
og det rager ud over kanten, hvis denne genstand rammer det andet stels klemliste, vil det første stel stoppe
med at køre, og i stedet køre retur.

4
TF 200.0055 / Rev 2
Komponentliste
1x Box Primær
93000217
1x Box Sekundær
93000218
1x Strømforsyning
93000216
1x RJ45 Spiralkabel
93000215
2x Klemliste kabel
97000257
2x Klemliste
30*69000-010
2x Endemodstand
30*69000-014
6x Plasthjørne
97701-624
1x Hobbykniv
97004020
2x VHB Surface Cleaner Klud
97002939
8x Spånpladeskruer M3.5x12
95123512
7x Klæbesokkel
96000155
7x Kabelstrips

5
TF 200.0055 / Rev 2
Forklaring
Jack-stik
Molex-stik
RJ45-stik
Bemærk!
Spiralkablet mellem boksene skal altid gå fra input 1 til input 2!
Strøm skal kun tilkobles den primære boks!
Tilslutning af strøm
(kun primær)
Tilslutning af kontrolboks i 6-pol
hun Molex-stik med motor kabel
Tilslutning af klemliste
med jack-stik
Tilslutning af spiralkabel
RJ45-stik i primær boks
Tilslutning af spiralkabel
RJ45-stik i sekundær boks
Tilslutning af motor kabel i
6-pol hun Molex-stik i motor

6
TF 200.0055 / Rev 2
Ledningsdiagram
Motor
Motor
Strøm
System 1 (Primær)
System 2 (Sekundær)
Kontrolboks 2
Kontrolboks 1
Spiralkabel
Klemliste kabel
Klemliste
Endestop
Klemliste kabel
Klemliste
Endestop

7
TF 200.0055 / Rev 2
Montageanvisning
Når dobbelt klemsikkerheden til FlexiPlus monteres, anbefales det at følge ledningsdiagrammet. Bemærk, at
det ikke har nogen betydning, hvilket FlexiPlus stel, som kobles til den primære eller sekundære boks. Hver
stel skal have hver sin boks.
a) Start med den primære boks.
Indsæt det motor kabel, som går fra boksen i MOTOR, i motor benet. Det kan være et
vilkårligt ben. Det anbefales dog at anvende et af ”yder” benene.
Hvis kablet ikke kan nå, anvend et af motor kablerne der følger med FlexiPlus.
b) Forbind strømstikket til udgang POWER. Tænd ikke for strømmen.
c) Indsæt et motor kabel i kontrolboksen på FlexiPlus og derefter i udgang CONTROL.
d) Forbind klemliste kablet til udgang SAFETY STRIP.
e) Forbind spiralkablet (RJ45 kabel) til IN 1.
VIGTIGT!
Når man forbinder sikkerhedsboksene, skal de altid gå fra IN 1 i den første boks til IN 2 i den
anden boks.
f) Tag den sekundære boks, og gentag skridt a), c), d), og e) for det andet system, bortset fra
spiralkablet skal i IN 2.

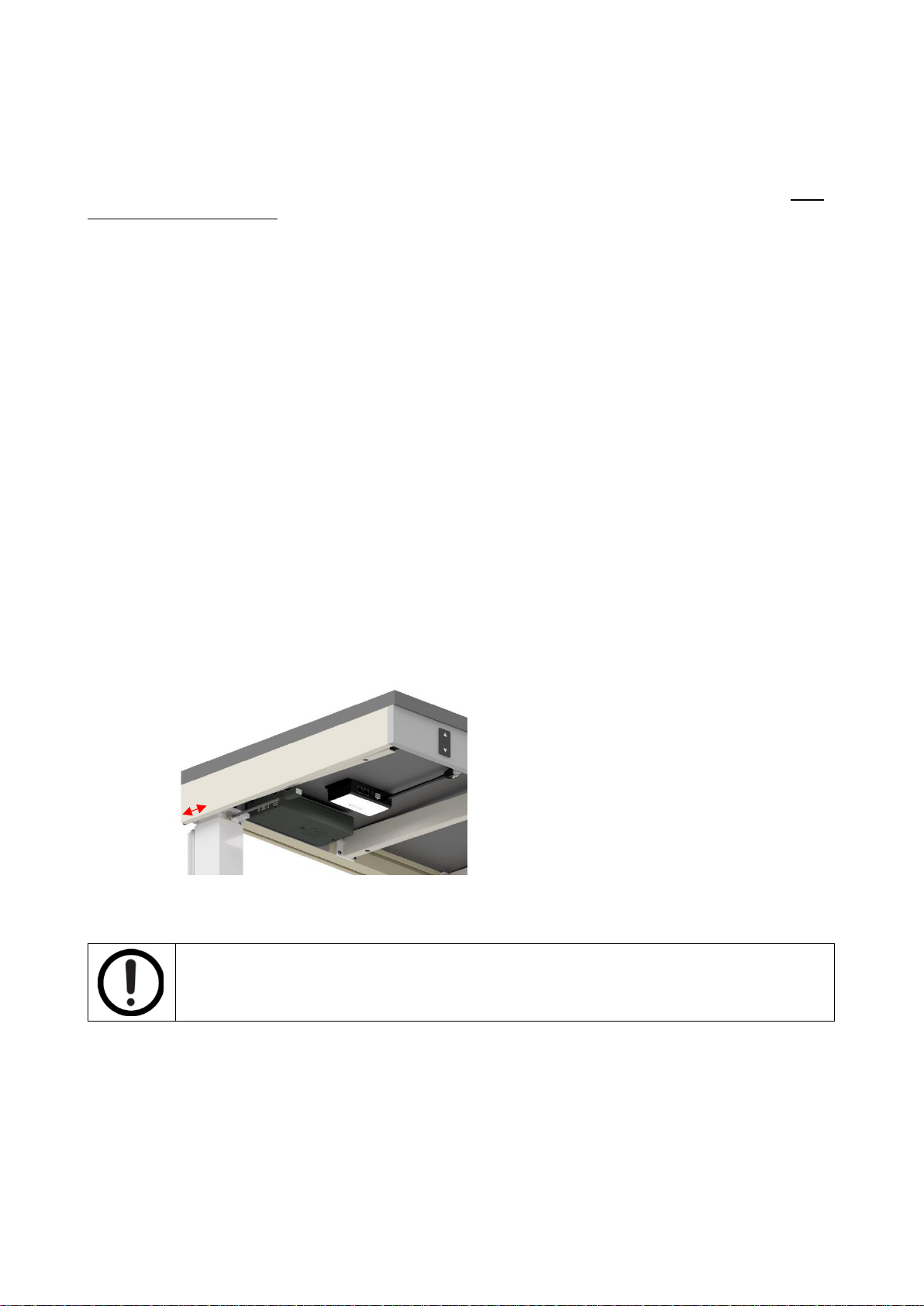

g) Klæb klemlisterne fast på sargene, anvend plasthjørner når klemlisterne skal rundt om
hjørner. Start længst fra kontrolboksen. Hvert stel skal have hver sin klemliste.
h) Afslut klemlisten 1cm fra bagkanten af sidesargen, skær det overskydende klemliste fra, og
monter endemodstanden i klemlisten.
i) Tag klemliste kablerne, som er monteret i boksene, og monter dem i hver sin klemliste.
Bemærk!
Klemliste kablet og endemodstanden kan være hård at presse i klemlisten. Forsøg bedst
muligt ikke at bukke metallet!
1cm

8
TF 200.0055 / Rev 2
j) Afgør hvor boksene skal monteres. Det anbefales at montere dem under bordpladen med de
vedlagte skruer, tæt på kontrolboksen og det ”yderste” motor ben.
k) Til styring af kablerne anbefales det at anvende de vedlagte klæbesokler og strips.
l) Monter resten af kablerne som anvist i FlexiPlus manualen, og tilslut strømmen.
Vigtigt!
Montage skal udføres af kvalificeret personale, og testes inden anvendelse!

9
TF 200.0055 / Rev 2
Funktionsafprøvning
Det er vigtigt at teste funktionen af FlexiPlus stellet, samt den dobbelte klemsikkerhed, efter afsluttet
montage. Herudover er det vigtigt at lave opfølgende tests én gang om året, for at sikre at skruer og kabler
er monteret korrekt. Proceduren starter med en kontrol:
1. Kontrollér at montagevejledningen for FlexiPlus og den dobbelte klemsikkerhed er overholdt.
2. Kontrollér at skruer er fastspændt.
3. Kontrollér at kabler er trykket i bund og klikket på plads.
4. Kontrollér at der ikke er nogle hindringer over eller under stellet, og at det frit kan bevæge sig
indenfor højdeindstillingen.
Proceduren fortsætter med test af funktionerne:
5. Test hvert stel med fuld vandring –én kørsel til top, én kørsel i bund.
6. Test hver klemliste for sig –kør det ene stel nedad, og tryk på dets klemliste. Stellet skal køre et par
cm retur. Gør det samme for det andet stel.
7. Test sammenkoblingen af klemlisterne –kør det ene stel nedad, og tryk på det andet stels klemliste.
Det kørte stel skal køre et par cm retur.
8. Gentag punkt 7, men i opadgående retning –kør det ene stel opad, og tryk på det andet stels
klemliste. Det kørte stel skal køre et par cm retur.
Fejlfinding
Systemet kan ikke højdejusteres
Check alle kabler og stik for løse forbindelser
Hvis en klemliste er monteret:
Check at klemlisten ikke er blevet aktiveret
Check at spiralkablet er korrekt forbundet mellem
sikkerhedsboksene fra IN1 til IN2
Systemet kan kun køre ned
Nulstilling af systemet:
Tryk på NED knappen, indtil systemet er kørt i
bundposition. Tryk igen, og hold knappen nede,
indtil motor benene har kørt under bundposition.
Dette nulstiller systemet.
Stellet står skævt
Afmonter den dobbelte klemsikkerhed mellem
motor benene og MOTOR udgangen i boksene.
Monter motorkabler mellem motor benene og
kontrolboksen. Forsøg at lave et reset. Hvis kun det
ene ben kører, STOP! Det andet ben skal udskiftes.
Hvis reset lykkes, monter igen den dobbelte
klemsikkerhed.

10
TF 200.0055 / Rev 2
Table of Content
Application ....................................................................................................................................................... 11
Function....................................................................................................................................................... 11
List of Components.......................................................................................................................................... 12
Description....................................................................................................................................................... 13
Wire diagram ................................................................................................................................................... 14
Mounting instructions....................................................................................................................................... 15
Performance test ......................................................................................................................................... 17
Fault finding ................................................................................................................................................. 17

11
TF 200.0055 / Rev 2

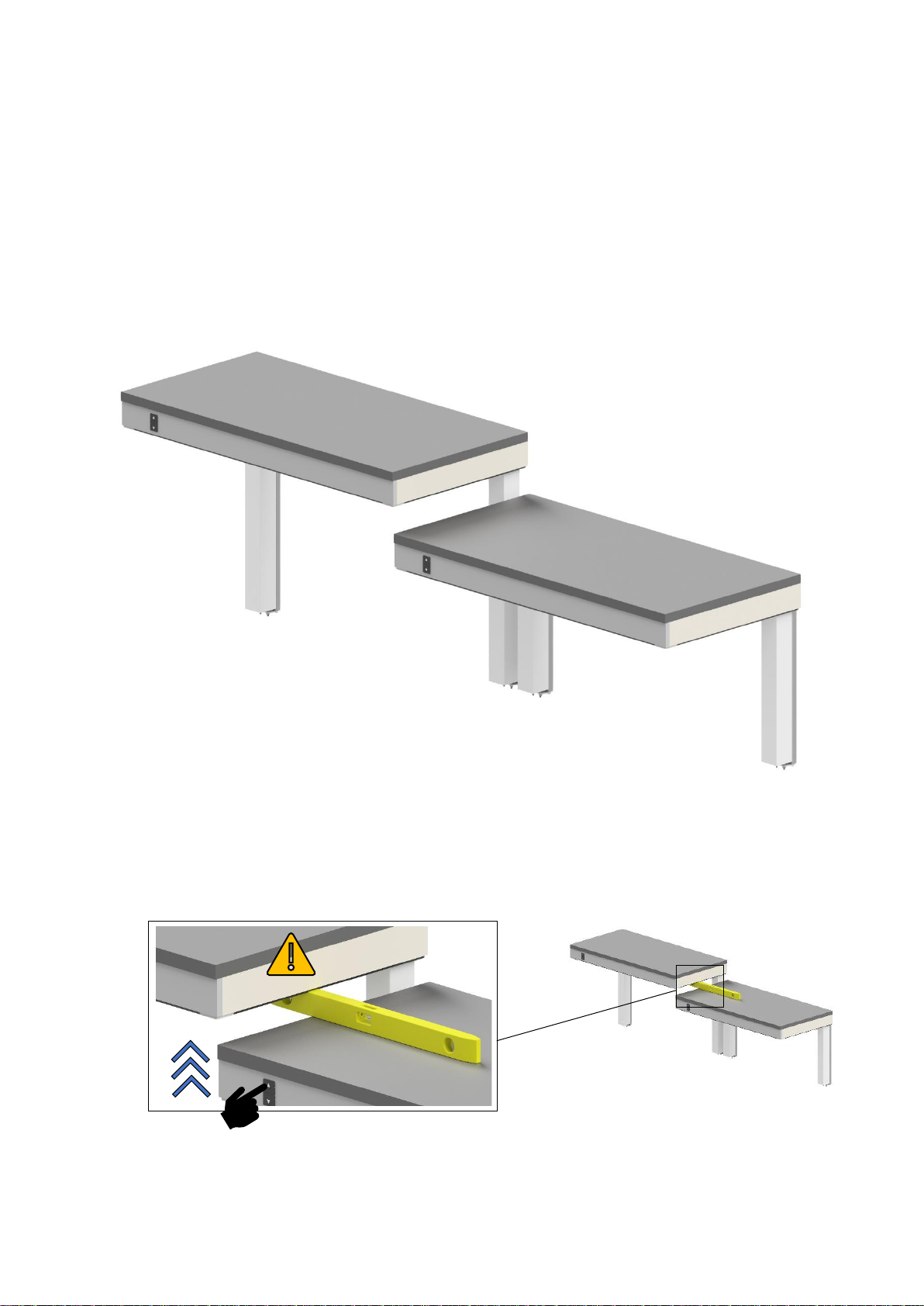

Application
For the product FlexiPlus, when having two frames placed next to each other, it’s possible to increase their
inherent safety by using the double safety, thereby reducing the risk of squeezing and entrapment. The
double safety is an intelligent system, as it detects both of the safety strips, and allows each frame to register
when the safety strip is activated on the other.
It’s ALWAYS recommended to use the double safety when placing two FlexiPlus next to each other.
Before mounting starts, please see List of Components, and make sure that all the parts are present and
accounted for.
Function
The double safety works by allowing the safety strips of each system to communicate with each other. Doing
this, you reduce the chance of squeezing and entrapment in both directions. For example, if you have a
frame with an object placed on top of the worktop, and it extends beyond the side, if the object hits the other
frame’s safety strip, the first frame will stop driving, and instead drive back a little.

12
TF 200.0055 / Rev 2

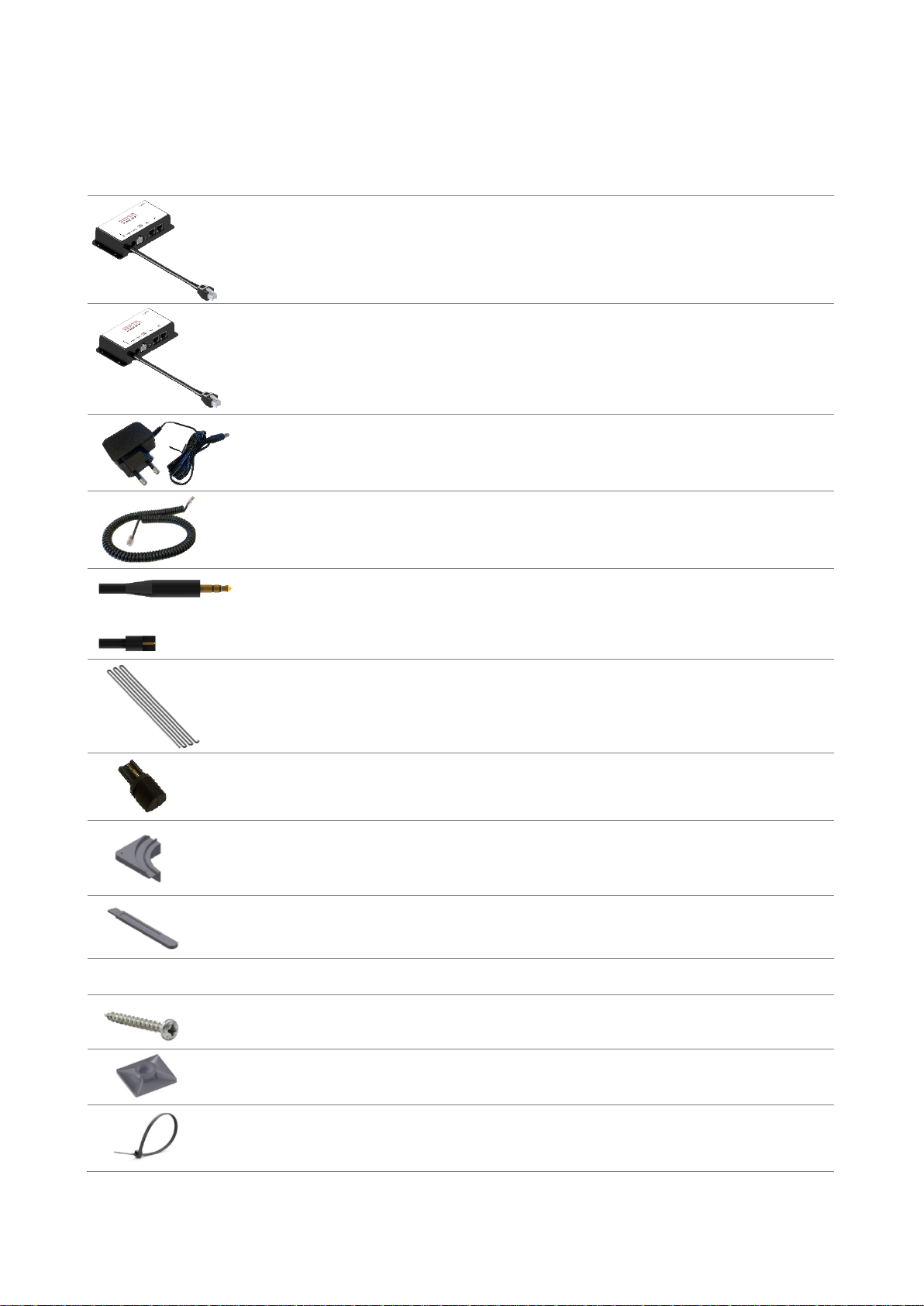

List of Components
1x Box Primary
93000217
1x Box Secondary
93000218
1x Power supply
93000216
1x RJ45 Spiral cable
93000215
2x Safety Strip cable
97000257
2x Safety Strip
30*69000-010
2x End resistance
30*69000-014
6x Corner tap
97701-624
1x Boxcutter
97004020
2x VHB Surface Cleaner Cloth
97002939
8x Chipboard Screw M3.5x12
95123512
7x Cable mount
96000155
7x Cable tie

13
TF 200.0055 / Rev 2

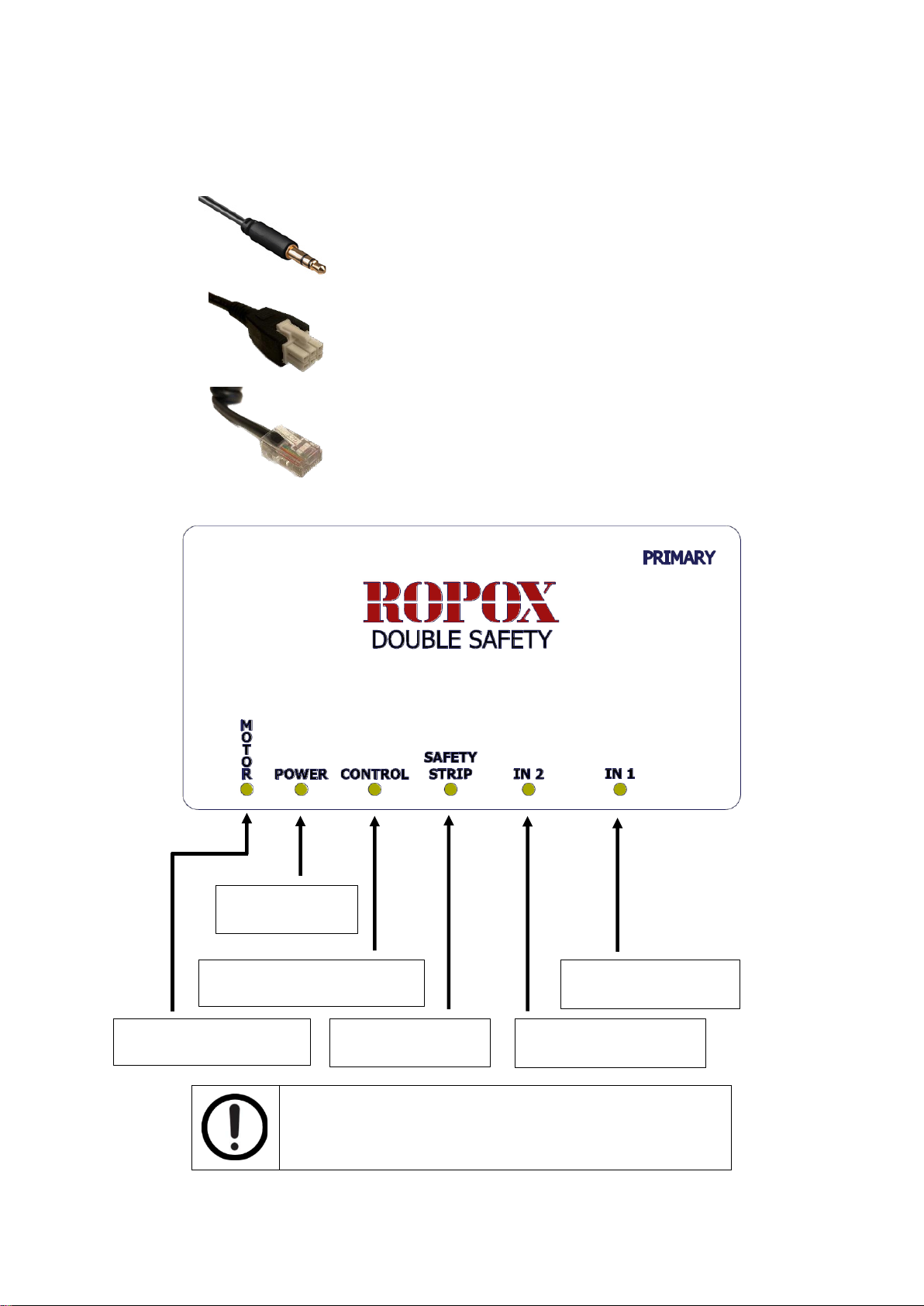

Description
Jack plug
Molex plug
RJ45 plug
Notice!
The spiral cable between the boxes must always go from input 1 to input 2!
The power must only be connected to the primary box!
Connect power
(only primary)
Connect control box in 6-pole
Molex slot with motor cable
Connect safety strip with
jack plug
Connect spiral cable in RJ45
slot in the primary box
Connect spiral cable in RJ45
slot in the secondary box
Connect motor cable in 6-pole
Molex slot in motor

14
TF 200.0055 / Rev 2
Wire diagram
Motor
Motor
Power
supply
System 1 (Primary)
System 2 (Secondary)
Control box 2
Control box 1
Spiral cable
Safety strip cable
Safety strip
End resistance
Safety strip cable
Safety strip
End resistance

15
TF 200.0055 / Rev 2
Mounting instructions
When the double safety for FlexiPlus is being mounted, it’s recommended to follow the wire diagram. Do
note, that it is not important which FlexiPlus frame is mounted with the primary or secondary box. Each frame
needs its own separate box.
a) Start with the primary box.
Insert the motor cable coming from the box in MOTOR, to the motor leg. It can be any leg.
It’s recommended to use the outermost leg.
If the cable doesn’t reach, use a motor cable that comes with FlexiPlus.
b) Insert the power supply in input POWER. Do not turn on the power yet.
c) Insert a motor cable in the control box, then in the input CONTROL.
d) Insert the safety strip cable in input SAFETY STRIP.
e) Insert the spiral cable (RJ45 cable) in IN 1.
IMPORTANT!
When connecting the safety boxes, the spiral cable must go from IN 1 in the first box to IN 2
in the second box.
f) Take the secondary box, and repeat steps a), c), d) and e), except the spiral cable must go
in IN 2.
g) Glue the safety strip to the fascias, use the corner taps when it goes around a corner. Start
the farthest from the control box. Each frame must have its own safety strip.
h) Finish the safety strip 1cm from the edge, cut any remaining safety strip away, and mount
the end resistance in the safety strip.
i) Take the safety strip cables already mounted in the boxes, and mount them in each safety
strip.
Notice!
The safety strip cable and end resistance can be tough to press into the safety strip. Try not
to bend the metal while connecting the cables!
1cm

16
TF 200.0055 / Rev 2

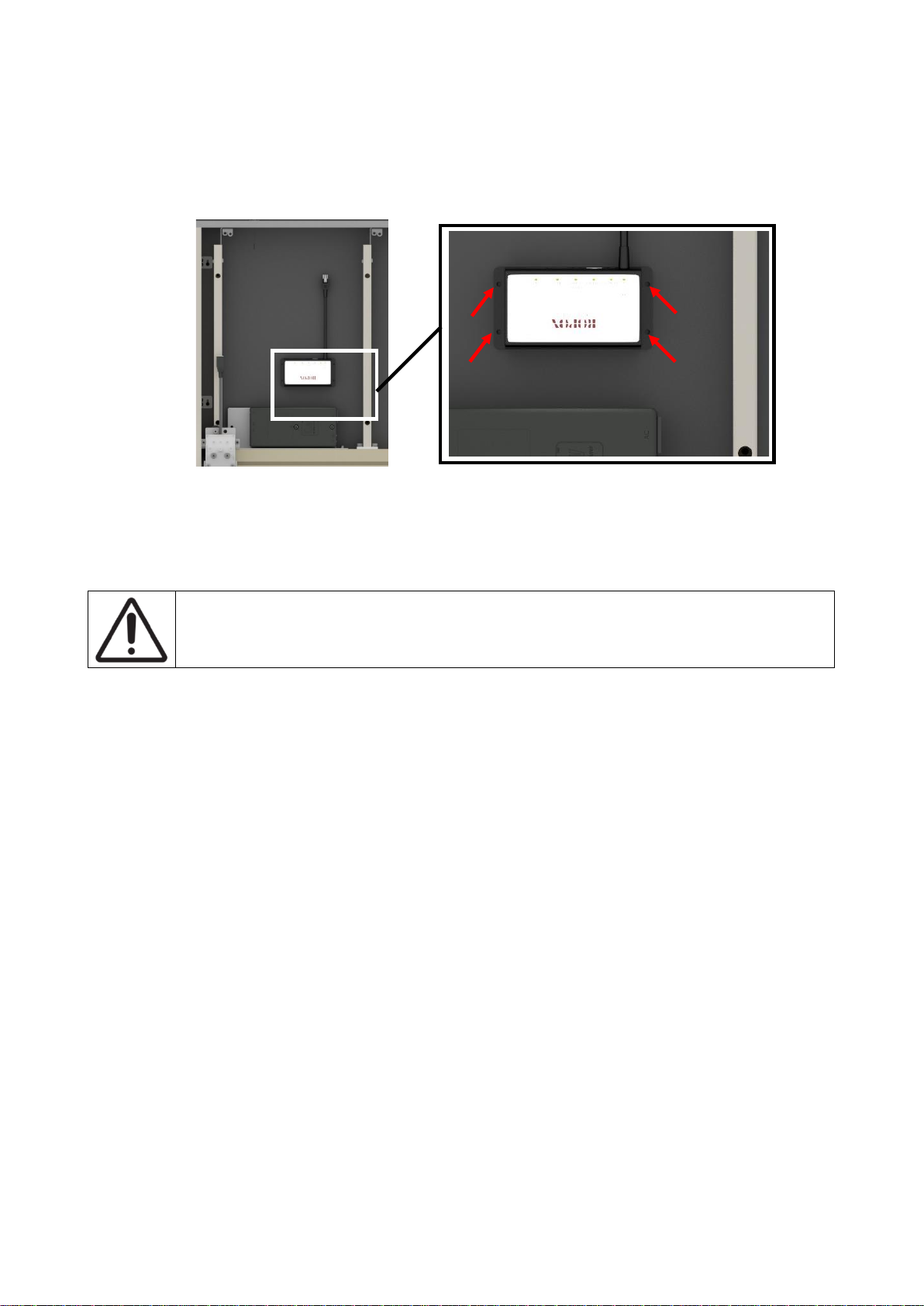

j) After the cables have been inserted, the boxes must be mounted. It’s recommended to
mount them near the control box and the outer legs.
Use the supplied screws to mount them on the underside of the tabletops. Alternatively, if a
hard tabletop has been mounted (e.g. glass or stone), double adhesive tape can be used.
k) To manage the cables, it’s recommended to use the cable mounts and ties that have been
supplied.
l) Mount the rest of the cables as instructed in the FlexiPlus manual. Turn on the power.
Caution!
Mounting must always be carried out by competent personnel, and the system must be tested
before use!

17
TF 200.0055 / Rev 2
Performance test
It’s important to test the functions of the frame, as well as the double safety before putting it into use. It’s
important to follow up on these tests once a year, to make sure screws and cables are mounted correctly.
The procedure starts with a control:
1. Control the mounting instructions for FlexiPlus and the double safety to make sure it’s done
correctly.
2. Control that screws are tightened.
3. Control that cables are pressed in fully.
4. Ensure that no obstacles are obstructing the frame from moving freely within its full range of motion.
The procedure continues with a test of the functions:
5. Test full stroke (height adjustment) on each frame –one drive to the top, one drive to the bottom.
6. Test each safety strip by itself –drive the first frame downwards, then press on the safety strip. The
frame should drive a few cm back. Do the same test for the other frame.
7. Test the connection between the safety strips –drive the first frame downwards, then press on the
other frame’s safety strip. The driven frame should drive a few cm back.
8. Repeat step 7, but driving upwards –drive the first frame upwards, then press on the other frame’s
safety strip. The driven frame should drive a few cm back.
Fault finding
The frame cannot be height adjusted
Check all cables and plugs for loose connections
If a safety strip has been fitted:
Check that the safety strip has not been activated
Check that the spiral cable is connected between
the safety boxes from IN1 to IN2
The frame only goes down
Resetting the frame:
Press the DOWN button and adjust the frame to
bottom position. Press the DOWN button once
more and keep it pressed for 5 sec to reset the
control unit
Frame is uneven
Dismount the double safety between the motor legs
and the MOTOR output in the boxes. Mount the
motor cables between the motor legs and control
box instead. Attempt to do a reset. If only one leg is
driving, STOP! The other leg needs replacing.
If reset is successful, remount the double safety.
