Adeunis RF TWIMO Series User manual

208474A_UG_Starter kit_TWIMO_V1.0
Adeunis RF
TWIMO RF Modules
Starter Kit
User Guide

208474A_UG_Starter kit_TWIMO_V1.0
Table of contents
Preliminary information 4
Precautions 4
1. Product overview 5
2. Kit content 5
3. Getting around the TWIMO Starter Kit 5
3.1. Extension board overview
3.2. Open4 platform overview 6
4. Before starting 7
4.1. Connect the extension board to the Open4 platform 7
4.2. Turn on the system 7
5. Running the evaluation 8
5.1. Start-up screen 8
5.2. Home screen 9
5.3. Select the type of module 9
 5.4. Modifytheconguration 9
5.4.1 RF Power 9
5.4.2 RF data rate 10
5.4.3 Channel (frequency) 10
6. Test mode 11
6.1. TX/RX mode 11
6.2. «Received level» mode 12
6.3. «Scanner» mode 13
6.4. USB mode 14
6.5. Running screen 14
6.6. General notes 14
7. Verify or Evaluate an installation 15
7.1. Method # 1 15
7.2. Method # 2 15
8. Products references 15
9. DECLARATION OF CONFORMITY (CE0081) 16

3
208474A_UG_Starter kit_TWIMO_V1.0
English

4
208474A_UG_Starter kit_TWIMO_V1.0
Preliminary information
Precautions
Likemostevaluationkits,thisproductisdesignedforuseinofceandlaboratoryenvironments.
The following practices will help ensure its proper operation.
This product uses low power CMOS circuits which can be damaged by electrostatic discharge. Partially da-
maged circuits can function erroneously, leading to misleading results.
Observe ESD precautions at all times when handling this product.
Documents
This document and any copy or extract of it, can’t be disclosed without Adeunis-rf’s formal agreement.
This document is subject to change without notice. All trademarks mentioned in this guide are the property of
their respective owners.
ADEUNIS RF
283 rue Louis Néel
38920 Crolles
France
Phone [phone]
Fax [phone]
Web www.adeunis-rf.com

5
208474A_UG_Starter kit_TWIMO_V1.0
1. Product overview
This Starter Kit is designed to help the user to achieve his objectives as quickly as possible. The new generation
of Adeunis RF starter kit consists on the addition of an Adeunis extension board (embedding the TWIMO module)
and a Raisonance Open4 platfom.
Evaluate the Adeunis-RF products
TheusercantransferdatafromoneStarterKittoanotherStarterKit.Thisenablestheusertoquicklyndout
howwelltheAdeunis-RFproductsttheintendedapplication.
Perform RF measurements
ThroughtheAdeunisRFapplicationsoftware,runningintotheOpen4platform,theusercanconguretheradio
module with custom parameters that suit the intended application and easily measure sensitivity, output power
and other RF parameters.
• The documentation can be downloaded on the Adeunis website : www.adeunis-rf.com
2. Kit content
In order to perform tests with the TWIMO extension board, you must use at least one Raisonance Open4 plate-
form («received level» and «scanner» modes) or two plateforms with extension boards if you wish to run «TX/RX
mode».
Each Extension board includes :
• 1 x Soldered TWIMO module (ARF7581AA or ARF7580AA).
• 1 x 869 MHz antenna (LINX)
• 1 x User’s guide
Each Open4 platform includes :
• 1xUSBcable
Adeunis RF
TWIMO extension board
Adeunis RF
TWIMO extension board
&
Raisonance Open4 platform
3. Getting around the TWIMO Starter Kit
The Adeunis RF extension board must be combined to the Raisonance Open4 platform to run the evaluation.
The Open 4 platform embeds the Adeunis RF application software, the user’s interface (LCD screen) and the
battery, all mandatory to implement the TWIMO module.

6
208474A_UG_Starter kit_TWIMO_V1.0

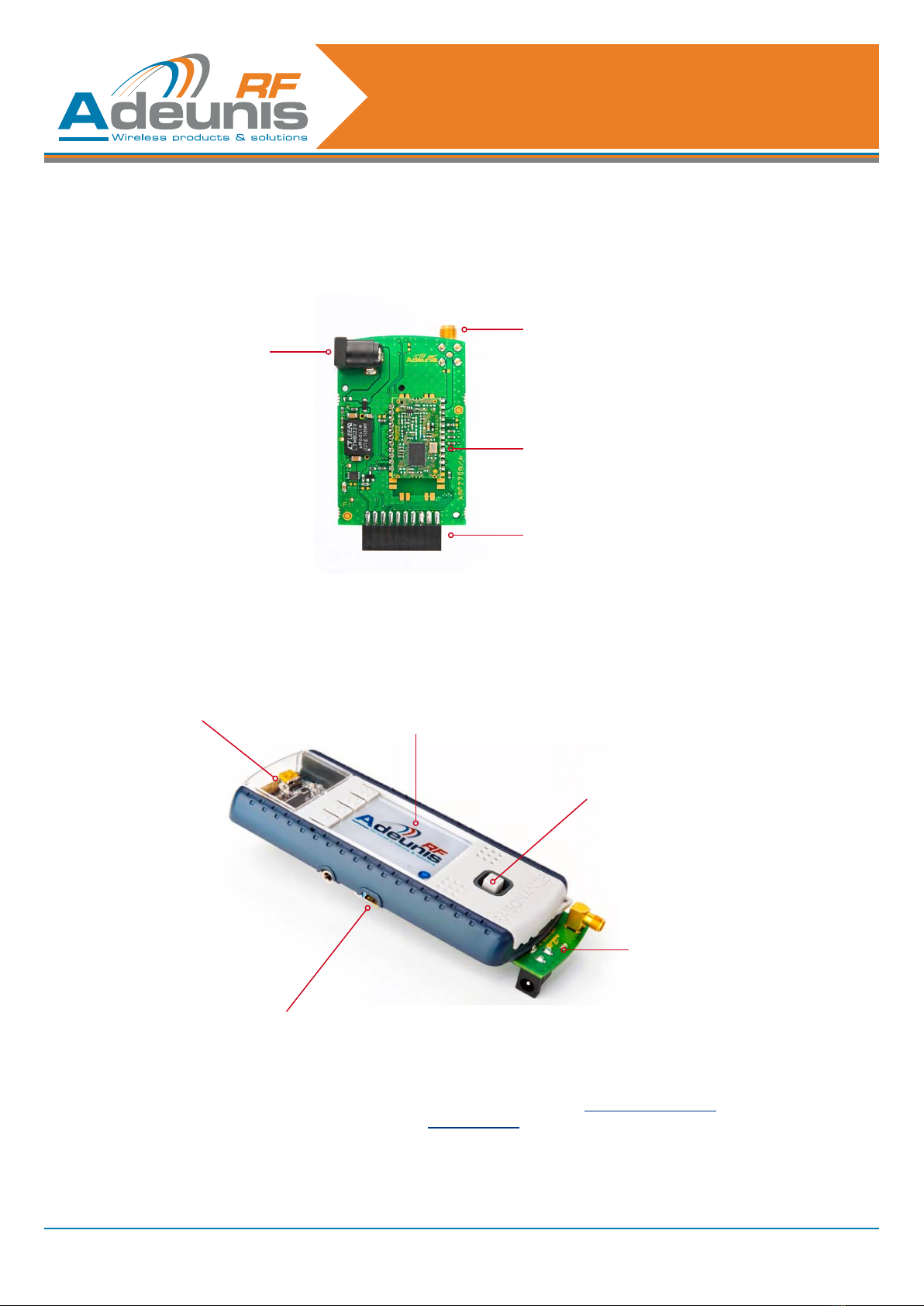

3.1. Extension board overview
Antenna socket
TWIMO module
Extension board to Open 4
platform connector
External power supply
3.2. Open4 platform overview
LCD touch screen : allows
to navigate into the menu
USB connector : power
supply & PC connection
Joystick : allows to navigate
into the menu
Adeunis RF extension board
Raisonance target board
All needed and usefull information can be found on the Raisonance website (www.raisonance.com). User
manual of the OPEN4 platform can be found here : Open4 manual

7
208474A_UG_Starter kit_TWIMO_V1.0
4. Before starting
4.1. Connect the extension board to the Open4 platform
The extension board must be connected to the Open4 platform. Procedure :
• Unscrew the bottom case of the Open 4 by removing the four screws.
• Remove the bottom cover.
• Install the extension board as showed below. The module must faces you. Gently push on the extension
(see red arrow) board to insure a proper connection. Be very careful when proceeding. The extension socket
must be held when inserting the extension board as showed with the orange arrow !!
• Re-install the bottom cover and screws.
• Install the antenna on the extension board antenna socket.
4.2. Turn on the system
To turn on the system, you must activate the On/Off switch located above the target board. See picture below.

8
208474A_UG_Starter kit_TWIMO_V1.0
The Open4 platform must be charged before use. It can be charged on a PC through the USB cable supplied
with the package.
Note concerning the power supply : in the case of evaluating an Adeunis RF module functionning at 500mW,
you may have to use an external power supply to run the maximum module power for more than an hour. The
extension board is equiped with an external power supply socket (Jack 3.5). Please contact us for details and
powersupplyspecications.
• WhenswitchingontheStarterkit,thesystemwillrstaskyoutocalibratethescreen,proceed.
• When the screen calibration has been done, press the «one dot» button to launch the Adeunis RF applica-
tion.
«one dot» button
5. Running the evaluation
The evaluation can be ran on three different modes :
• TX/RX mode
• Received level mode
• Scanner mode
Set-up the Starter Kit
When the Adeunis RF application has been launched, the following screens will assist you in the set-up pro-
cedure.
5.1. Start-up screen
The home screen shows the application software version and the battery level. Press «Go» to access the menu.
Version Battery level
«Go» icon

9
208474A_UG_Starter kit_TWIMO_V1.0
5.2. Home screen
The following screen allows to :
• select the type of module to be evaluated.
• modifytheconguration.
• run the evaluation.
• switch to USB mode.
5.3. Select the type of module
Press the «change» icon. A list of the available Adeunis RF extension
board appears.
Select the proper board and press the «validate» icon.
Module type & set-up
Set-up the module
Module type selection
Run the evaluation
USB mode
5.4. Modify the conguration
5.4.1 RF Power
Pressthe«Cong»icon.
Choose the RF Power :
• TWIMO MP (17dBm, 14dBm, 10dBm)
• TWIMO HP (27dBm, 23dBm, 20dBm)
Press the «validate» icon

10
208474A_UG_Starter kit_TWIMO_V1.0
5.4.2 RF data rate
Following the RF Power mode, the RF Data rate must be selected.
Choose the RF Data rate :
• TWIMO MP & HP : 10kbps, 38.4kbps, 57.6kbps
Press the «validate» icon
5.4.3 Channel (frequency)
Following the RF Data rate, the Channel must be selected.
Choose the channel
Press the «validate» icon
Importante note :
According to the RF Power and Data rate previously chosen, the list of avai-
lable channels is adapted to the European regulation and standards. Please
refer to the table below :
Power RF Data Rate Available Channels (frequencies)
27dBm
10kbps
38.4kbps
57.6kbps
869.525MHz
23dBm
10kbps
38.4kbps
57.6kbps
869.525MHz
20dBm
10kbps
38.4kbps
57.6kbps
869.525MHz
17dBm
10kbps
38.4kbps
57.6kbps
869.525MHz
14dBm
10kbps 869.525MHz
38.4kbps
869.525MHz
868.420MHz
868.320MHz
868.220MHz
868.120MHz
57.6kbps 869.525MHz
10dBm
10kbps 869.525MHz
38.4kbps
869.525MHz
868.420MHz
868.320MHz
868.220MHz
868.120MHz
57.6kbps 869.525MHz

11
208474A_UG_Starter kit_TWIMO_V1.0
6. Test mode
The test mode allows to select how the module will operate. Three different modes can be ran :
6.1. TX/RX mode

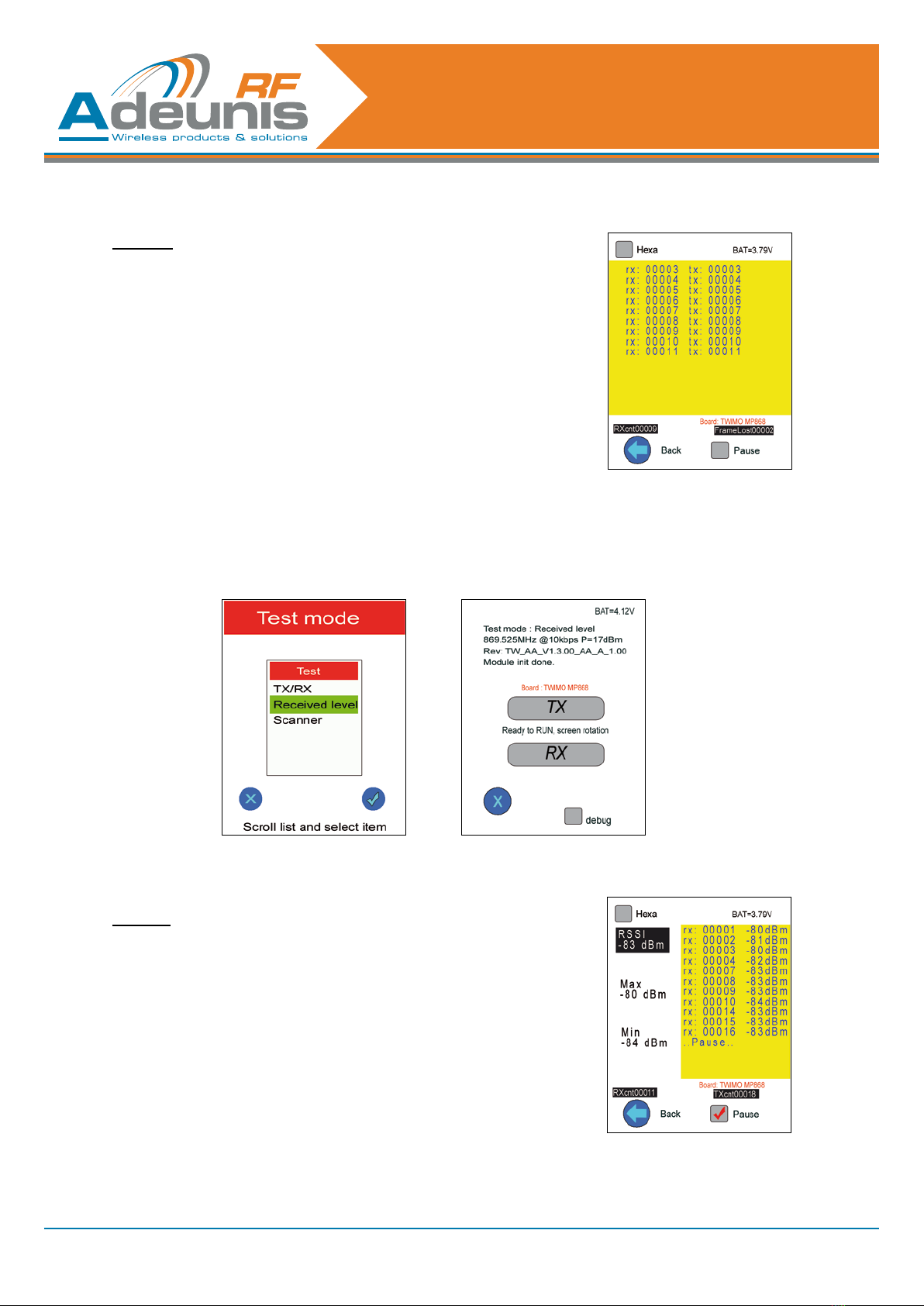

This mode allows a conventional «send/receive» function. The «TX» sends a frame and the «RX» receive it.
Each «RX» and «TX» LCD show the frame structure, allowing to check the proper transmission. This mode is
used to test the range covered by the Adeunis RF TWIMO modules.
• Choose the mode and press the «validate» icon
• Press the «TX» or «RX» icon to run the transmission.
Information on the type of module and
selectedconguration:
• Test mode type
• Moduleconguration
• Module version
Possible error messages:
• Module init failed : restart the
Open4 platform
• Unsupported or wrong module
: go back to the module list and
chose the one installed on the
extension board
Note 1 : this mode forces to select one Starter kit as «TX» and the other as «RX».
Note 2 : particular case of «TX/RX» and «Received level» modes. When selecting the role :
• Tx : the Starter kit behaves as a «master», transmits every seconds and waits for an answer
Rx : the Starter kit waits for an reception and it answers by an identical frame.
TX Mode : send a frame every seconds
First column : TX counter
Second column : reception status
• if there is a reception : the rx counter increases.
• if there is no reception the column displays «not
received».
RXcnt : number of frame received
TXcnt : number of frame emitted
The PER can deducted by : (TXcnt-RXcnt) / TXcnt

12
208474A_UG_Starter kit_TWIMO_V1.0
RX mode
First column : RX counter
Second column : sent frame counter (= received frames counter)
RXcnt : number of frame received
FrameLost : lost frame counter
The PER can deducted by : FrameLost / TXcnt
6.2. «Received level» mode
The «received level mode allows to run a permanent test between :
• Two Starter kits
• One Starter kit (in RX mode) and a TWIMO module installed in another device.
TX Mode : send a frame every seconds
First column : TX counter
Second column : RSSI level of the received frames
RXcnt : number of frame received
TXcnt : number of frame emitted
The lost frames can be calculated by: TXcnt - RXcnt
The PER can deducted by : (TXcnt-RXcnt) / TXcnt

13
208474A_UG_Starter kit_TWIMO_V1.0
6.3. «Scanner» mode
The Scanner mode allows to visualize the RSSI level on a selected channel (frequency).
RX mode
First column :
• Frame emitted by a Starter kit : number of frame received (when
receiving a frame from a Starter kit, the Starter kit -sets in Rx mode-
answers).
• Frame emitted by a TWIMO module : the screen displays «Rx level»
and the Starter kit does not answer.
Second column : RSSI level of the received frames
RXcnt : number of frame received
FrameLost : lost frame counter
The PER can deducted by : FrameLost / TXcnt
RSSI -98dBm : RSSI level of the last frame received
Max -93dBm : Higher RSSI level of the frames received
Min -98dBm : Lower RSSI level of the frames received
Note : by using the «pause» box, the Max and Min RSSI levels are reinitia-
lized.
Following the RF power, data rate and channel selection,
• Press «Scanner» on the Test mode window.
• Then press «Run» icon.

14
208474A_UG_Starter kit_TWIMO_V1.0

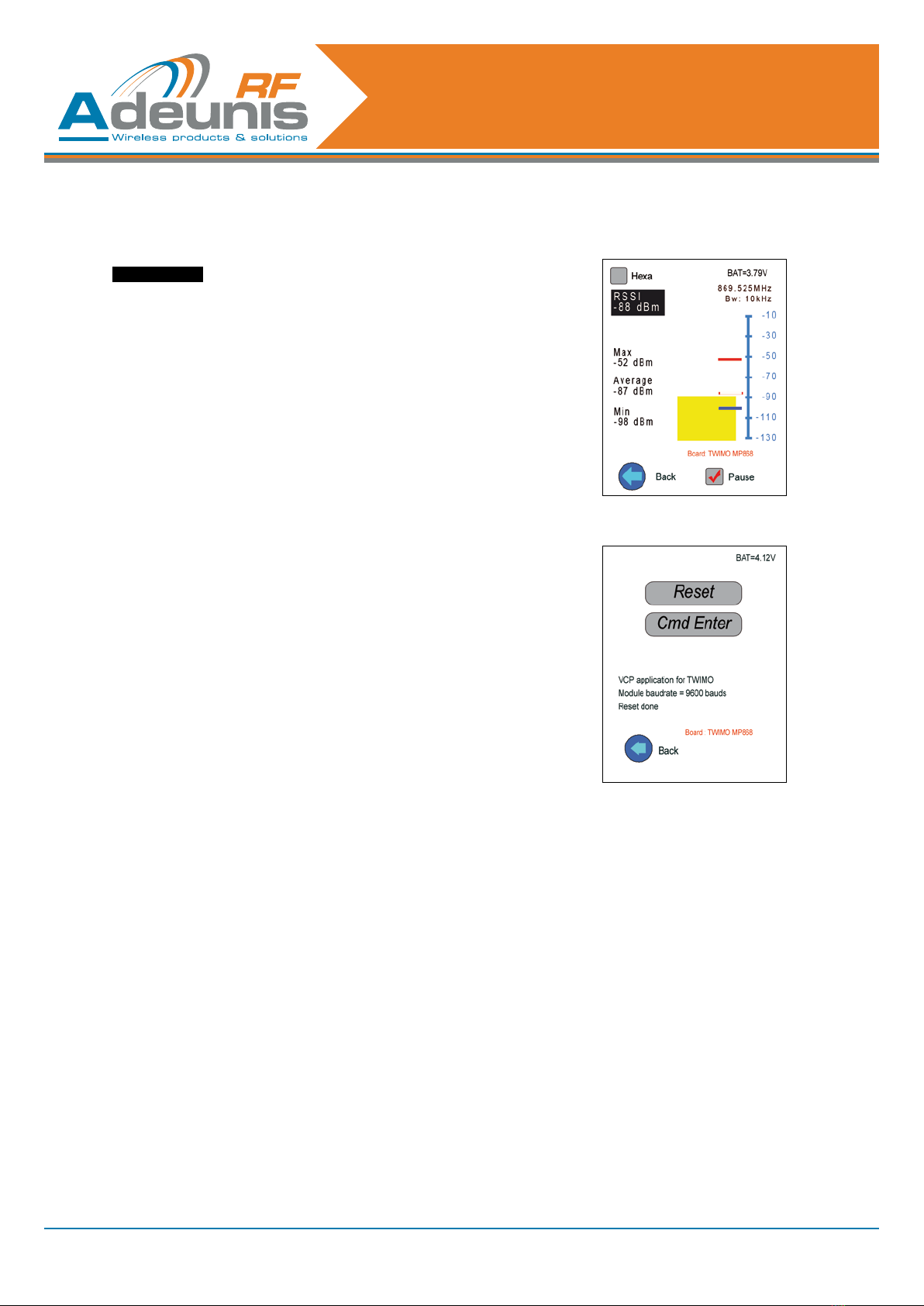

RSSI -88dBm : latest RSSI level measured
Max -52dBm : higher RSSI level seen by the Starter kit
Average -87dBm : average RSSI level in the selected channel
Min -98dBm : lower RSSI level seen by the Starter kit
On the right side a bargraph shows the three RSSi levels (max,
Average, Min) as well as a real time measured RSSI (yellow pod).
Note : by using the «pause» box, the Max and Min RSSI levels
are reinitialized.
6.4. USB mode
The USB mode allows to connect the Extension board to a PC. It’s
mainly used for Data Loggin.
• From the Home Screen, clic on the «USB» icon
• Connect the USB socket located on the target board (don’t
use the one from the Open4 platform) to a PC
• Check that the correct drivers are installed.
• Clic on «Reset» icon if you need to reset the module.
• Clic on «Cmd Enter» to enter command mode.
• The Open4 platform is now acting as a virtual port com (direct
access to the TWIMO module at 115.2kbps) and any type of
Terminal can be used.
• To exit the «USB» mode, clic on the «Back» icon.
6.5. Running screen
When the evaluation is launched the Starter kit is showing a screen which displays the received frames. The
frames can be display as Ascii or hexadecimal.
6.6. General notes
When the evaluation is launched, the LCD screen automaticaly turns 180°, meaning that the Starter kit must be
handled with the antenna facing the top to maximize the performances.
Each of the three Test modes (TX/RX, Received level and Scanner) are offering a «debug» function located on
the«Run»screen.SelectthisfunctiontocheckthecongurationexchangethroughtheUART.

15
208474A_UG_Starter kit_TWIMO_V1.0
7. Verify or Evaluate an installation
It’s possible and even recommended to use the TWIMO Starter kit to verify or evaluate an existing installation.
7.1. Method # 1
First step :
• Set the TWIMO Starter kit in «Scanner» mode.
• Shut down all existing transmitters.
• Note the RSSI average level (from the Scanner mode).
• You can eventually reinitialize the RSSI Max and Min level by using the «Pause» box.
Second step :
• Set the TWIMO Starter kit in «Received level» mode.
• Use another TWIMO Starter kit or a TWIMO module to transmit frames (in TX mode).
• Note the RSSI Min of the received frames.
• You can eventually reinitialize the RSSI Max and Min level by using the «Pause» box.
Idealy,youshouldnd:RSSI Min (received level) > (RSSI Max + 12dB)
7.2. Method # 2
First step :
• Set the TWIMO Starter kit in «Scanner» mode.
• Shut down all existing transmitters.
• Note the RSSI average level (from the Scanner mode).
• You can eventually reinitialize the RSSI Max and Min level by using the «Pause» box.
Second step :
• Use a TWIMO module embedded in your application.
• Set the TWIMO module in test ATT21 (permanent modulated transmission).
• Note the RSSI Min of the received frames (Starter kit in «Scanner» mode).
• You can eventually reinitialize the RSSI Max and Min level by using the «Pause» box.
Idealy,youshouldnd:RSSI Min (Scanner) > (RSSI Max + 12dB)
8. Products references
Plateform Part number
Open4 Plateform ARF7868AA
Extension board + antenna + user’s guide Part number
Wireless M-Bus Extension Pack ARF7863AA
BTC1-Bluetooth® Class 1 Extension Pack ARF7861AA
BTC2-Bluetooth® Class 2 Extension Pack ARF7862AA
TWIMO HP868 Extension Pack ARF7864AA
TWIMO MP868 Extension Pack ARF7865AA
NB169 Extension Pack ARF7889AA
NB458 Extension Pack ARF7890AA
NB868 Extension Pack ARF7891AA

16
208474A_UG_Starter kit_TWIMO_V1.0
9. DECLARATION OF CONFORMITY (CE0081)
We ADEUNIS RF
283 rue LOUIS NEEL
38920 CROLLES FRANCE
declare under our own responsibility that the products
Name TWIMO HP868 Extension Pack
Reference ARF7864AA (including modules ARF7581AA)
and
Name TWIMO MP868 Extension Pack
Reference ARF7865AA (including module ARF7580AA)
to which this declaration refers conforms with the relevant standards or other standardising documents:
• EN 300 220-2 (v2.1.2) (2007-06)
• EN 300 220-2 (V2.3.1) (2010-02)
• EN 60950-1 (2001) + A11 (2004)
• EN62311 (2008)
• EN301 489-1 (v1.8.1) (2008-04)
• EN 301 489-3 (v1.4.1) (2002-08)
According to the RTTE Directive 99/5/EC
Notes:
• Conformity has been evaluated according to the procedure described in Annex IV of the RTTE directive
• (Statement of opinion from a notify body N°102158-604317-1/2)
• Conformity has been evaluated with ARF7580AA module integrated on ADEUNIS RF TWIMO Extension
Pack (ref ARF7865AA ) and with ARF7581AA module integrated on ADEUNIS RF TWIMO Extension Pack
(ref ARF7864AA).
• According to the 1999/519/EC «RF signal» recommendations, a minimum distance of 10cm between the
• product and the body is required.
• Receiver class (if applicable): 2
Crolles, January 6th, 2012 VINCENT Hervé - CEO
