ADLINK Technology ETX Series User manual

ETX
ETX-CV
User’s Manual
Manual Revision: 2.03
Revision Date: May 7, 2015
Part Number: 50-1J041-1030

ETX-CV User’s ManualPage 2
Revision History
Revision Date Change(s)
2.00 2013/09/02 Initial release
2.01 2013/10/25 Update LVDS resolution spec
2.02 2014/11/14 Remove FDD support
2.03 2015/05/07 Correct Ethernet chip

ETX-CV User’s Manual Page 3
ETX-CV User’s Manual Page 3
Table of Contents
Preface ............................................................................................................................5
1 Introduction...............................................................................................................7
1.1 Description............................................................................................................................7
2 Specifications ...........................................................................................................8
2.1 General .................................................................................................................................8
2.2 Integrated Video....................................................................................................................8
2.3 Audio.....................................................................................................................................9
2.4 LAN.......................................................................................................................................9
2.5 Multi I/O ................................................................................................................................9
2.6 Super I/O ..............................................................................................................................9
2.7 TPM (Trusted Platform Module)............................................................................................9
2.8 Power Specifications...........................................................................................................10
2.9 Operating Systems Support................................................................................................ 11
2.10 Mechanical and Environmental ...........................................................................................11
2.11 Ordering Information...........................................................................................................11
3 Function Diagram ...................................................................................................12
4 Mechanical Dimensions.........................................................................................13
5 Embedded Functions .............................................................................................14
5.1 Watchdog Timer..................................................................................................................14
5.2 Hardware Monitoring...........................................................................................................15
6 Pin-out and Signal Descriptions ...........................................................................16
6.1 Connector Locations...........................................................................................................16
6.2 PinCompatibility .................................................................................................................16
6.3 PinDefinitions.....................................................................................................................17
6.4 SignalDescriptions .............................................................................................................22
7 System Resources..................................................................................................31
7.1 System Memory Map..........................................................................................................31
7.2 I/OAddress Map .................................................................................................................32
7.3 Interrupt Request (IRQ) Lines.............................................................................................34
7.4 PCI Configuration Space Map.............................................................................................35

ETX-CV User’s ManualPage 4
7.5 PCI Interrupt Routing Map ..................................................................................................36
7.6 System Management Bus (I2C-compatible)........................................................................36
8 BIOS Setup Utility...................................................................................................37
8.1 Starting the BIOS................................................................................................................37
8.2 Main Setup..........................................................................................................................42
8.3 Advanced BIOS Setup ........................................................................................................43
8.4 Chipset Configuration .........................................................................................................61
8.5 Boot Setup ..........................................................................................................................65
8.6 Security Setup.....................................................................................................................68
8.7 Save & Exit .........................................................................................................................69
9 BIOS Checkpoints, Beep Codes............................................................................71
9.1 Status Code Ranges...........................................................................................................72
9.2 Standard Status Codes.......................................................................................................72
9.3 OEM-Reserved Status Code Ranges .................................................................................78
Appendix A: Connectors and Mounting.....................................................................79
A.1 Carrier Board ETX Connecter Heights (Hirose FX8/FX8C Receptacles)...........................79
A.3 Mounting Procedures..........................................................................................................80
A.4 Standoff Types - Carrier Board ...........................................................................................81
Important Safety Instructions .....................................................................................82
Getting Service.............................................................................................................84

ETX-CV User’s Manual Page 5
ETX-CV User’s Manual Page 5
Preface
Copyright 2013-15ADLINK Technology, Inc.
This document contains proprietary information protected by copyright.All rights are reserved. No
part of this manual may be reproduced by any mechanical, electronic, or other means in any form
without prior written permission of the manufacturer.
Disclaimer
The information in this document is subject to change without prior notice in order to improve
reliability, design, and function and does not represent a commitment on the part of the
manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential
damages arising out of the use or inability to use the product or documentation, even if advised
of the possibility of such damages.
Environmental Responsibility
ADLINK is committed to fulfill its social responsibility to global environmental preservation
through compliance with the European Union's Restriction of Hazardous Substances (RoHS)
directive and Waste Electrical and Electronic Equipment (WEEE) directive. Environmental
protection is a top priority forADLINK. We have enforced measures to ensure that our products,
manufacturing processes, components, and raw materials have as little impact on the
environment as possible. When products are at their end of life, our customers are encouraged to
dispose of them in accordance with the product disposal and/or recovery programs prescribed by
their nation or company.
Trademarks
AMIAptio®is a registered trademark ofAmerican Megatrends, Inc. ETX® is a registered
trademark of Kontron Embedded Modules GmbH.
Product names mentioned herein are used for identification purposes only and may be
trademarks and/or registered trademarks of their respective companies.

ETX-CV User’s ManualPage 6
Conventions
Take note of the following conventions used throughout this manual to make sure that users
perform certain tasks and instructions properly.
Additional information, aids, and tips that help users perform tasks.
Information to prevent minor physical injury, component damage, data loss,
and/or program corruption when trying to complete a task.
Information to prevent serious physical injury, component damage, data
loss, and/or program corruption when trying to complete a specific task.

ETX-CV User’s Manual Page 7
ETX-CV User’s Manual Page 7
1Introduction
1.1 Description
The ETX-CV is an ETX v3.02 compliant module specially designed to facilitate speedy
development of semi custom designs. ETX is an open standard that targets the market for
embedded OEM projects.An ETX core combined with a custom made carrier board represents a
value solution that allows OEM customers to get to the market fast. The new ETX v3.02
specification adds SATAsupport to ETX in the form of two connectors on the module itself,
leaving the ETX board-to-board interface 100% compatible with baseboards designed under the
earlier ETX v2.xx specification.
The ETX-CV is positioned as an entry level ETX module for generic systems but also for systems
requiring a full set of graphics features. The module comes with integrated support for high VGA
up to 1920 x 1200 resolution (WUXGA), single/dual channel 18/24-bit LVDS and onboard
DisplayPort connector.
The ETX-CV conforms to the latest ETX® 3.02 specification and provides two additional onboard
SATAconnectors while maintaining full backward compatibility with earlier ETX® standards.
Operating system support includes Windows XP, Windows XP Embedded, Windows 7, WinCE,
and Linux. Primary focus is for applications in Medical Diagnostics and Imaging, Gaming,
IndustrialAutomation, Test and Measurement, POS, and Industrial Control.
The dual-core Intel®Atom™ Processor N2000 and D2000 Series on the ETX-CV replaces the
previous generation Intel®Atom™ processors N4xx/N5xx.Although much smaller in size, Intel®
Atom™ processors share the same architecture as Intel® Core™2 Duo processors and
additionally support Intel® Hyper-Threading Technology, allowing more than one code thread to
be executed at the same time on a single core. The ETX-CV's thermal design and powerful CPU
core allow it to provide the same or even better performance than earlier generation modules at a
more modest power consumption.
The ETX-CV supports up to 4 GB of DDR3 memory on a single SODIMM, incorporates an Intel
10/100BASE-T Ethernet controller, and provides dual channel IDE, two channels SATA, four USB
2.0 ports, two serial ports, one parallel port, one PS/2 keyboard/mouse interface and HD audio.
The ETX-CV fully supports PCI and legacy ISA based on high speed PCI/ISA bridge and is
equipped with anAMI Aptio BIOS supporting embedded features such as Remote Console,
CMOS backup for battery-less operation, CPU and System Monitoring and Watchdog Timer.
The ETX-CV is a RoHS compliant and leadfree product.

ETX-CV User’s ManualPage 8
2Specifications
2.1 General
fCPU: Intel®Atom™ N2600 1.66GHz with 1MB L2 cache, 3.5W
Intel®Atom™ N2800 1.83GHz with 1MB L2 cache, 6.5W
Intel®Atom™ D2550 1.86GHz with 1MB L2 cache, 10W
- On-die primary 32-kB instructions cache and 24-kB write back data cache
- Intel® Hyper-Threading Technology, 2-threads per core
- Supports C0 and C1 states only for D2550
- Supports C0-C4, C1E-C4E and Deep Power Down Technology (code named C6)
for N2600/N2800
fMemory: Single SODIMM socket supporting:
- up to 4 GB of non-ECC, un-buffered, 1066 MHz standard DDR3 SODIMM memory
fChipset: Intel® NM10 Express chipset
fBIOS: AMIAptio UEFI on 16Mbit SPI flash
fHardwareMonitor: Supply voltages and CPU temperature
fWatchdog Timer: Programmable timer ranges to generate RESET
fExpansion Busses: 32-bit PCI 2.3 Masters at 33 MHz
ISA 16-bit (via PCI/ISA bridge), no DMA support
SMBus/I2C
2.2 Integrated Video
fGPU: Integrated in CPU, supports dual independent displays
fVGA Interface: Analog RGB support by 350Hz RAMDAC, resolution up to 1920 x1200
(WUXGA) @ 60Hz
fLVDS Interface:
- single/dual channel 18/24-bit with resolution up to 1920 x1200

ETX-CV User’s Manual Page 9
ETX-CV User’s Manual Page 9
2.3 Audio
fAudio Codec: RealtekALC262 HDA
2.4 LAN
fChipset: Realtek RTL8111E
fInterface: 10/100 Mbps with Wake-on-LAN andAlert on LAN support
2.5 Multi I/O
fIDE (PATA): Two channels IDE with UDMA100 support
fSATA: Two channels SATA3Gb/s with connectors on module
fUSB: Supports up to four ports USB 2.0
2.6 Super I/O
fChipset: W83627DHG-PT
fSerial: Two high speed RS-232C ports (COM1/COM2)
fIrDA: SIR IrDA 1.1 compliant
fParallel: SPP, EPP, and ECP mode
fKeyboard & Mouse: One PS/2 keyboard and one PS/2 mouse
2.7 TPM (Trusted Platform Module)
fChipset: Infineon SLB9635TT1.2
fType: TPM 1.2

ETX-CV User’s ManualPage 10
2.8 Power Specifications
fInput Power:AT mode andATX mode
fPower Management:ACPI 3.0 compliant with battery support
fPower States: supports S0, S1, S3, S4, S5
Test Configuration
Function Configuration
Memory Transcend 4GB DDR3 1333 SODIMM (I) (SEC 107 HCH9K4B260846C)
Graphics Intel®Atom® N2000/D2000 Series Embedded Media and Graphics Driver
Hard Drive Seagate ST320LT020 MomentusThin 320G
Backplane ETX-Proto B3
Power Supply FSP FSP350-60PFG 350W
Intel
®
Atom™ Processor N2600 1.66Gz, (1MB L2 cache, 3.5W)
Power State Power Requirement Current Power
Windows 7 logon screen (idle) +5V (4.88V) 1.29A 6.30W
Max. Load (Intel Power Utility Tool) +5V (4.86V) 2.04A 9.91W
S5 Mode (soft off) 5V Standby 0.06A 0.30W
S3 Mode (suspend to RAM) 5V Standby 0.07A 0.35W
Intel
®
Atom™ Processor N2800 1.86Gz, (1MB L2 cache, 6.5W)
Power State Power Requirement Current Power
Windows 7 logon screen (idle) +5V (4.82V) 1.52A 7.33W
Max. Load (Intel Power Utility Tool) +5V (4.80V) 2.83A 13.58W
S5 Mode (soft off) 5V Standby 0.07A 0.35W
S3 Mode (suspend to RAM) 5V Standby 0.09A 0.45W
Intel
®
Atom™ Processor D2550 1.86GHz, (1MB L2 cache, 10 W)
Power State Power Requirement Current Power
Windows 7 logon screen (idle) +5V (4.88V) 1.78A 8.69W
Max. Load (Intel Power Utility Tool) +5V (4.84V) 2.89A 13.99W
S5 Mode (soft off) 5V Standby 0.057A 0.29W
S3 Mode (suspend to RAM) 5V Standby 0.09A 0.45W

ETX-CV User’s Manual Page 11
ETX-CV User’s Manual Page 11
2.9 Operating Systems Support
fStandard Support
- Windows 7 32-bit
- Windows Embedded Compact 7
- Linux 2.8
fExtended Support (BSP)
- Embedded XP BSP
- WinCE 6.0 BSP
- Linux 2.6.x BSP
fLibraries, API support
-AIDI I2C Library for Win32, WinCE and Linux
2.10 Mechanical and Environmental
fForm factor and Type: ETX rev 3.02
fDimensions: 95 x 114 mm
fStandard Operating Temperature: 0°C to 60°C
fRelative Humidity: 5% to 95%
fShock : 15G peak-to-peak, 11ms duration, non-operation
fVibration:
Non-operating : 1.88 Grms, 5-500 Hz, each axis
Operating : 0.5 Grms, 5-500 Hz, each axis
fCertification : CE, FCC
2.11 Ordering Information
fETX-CV-N2600
ETX Module with low power Dual Core Intel®Atom™ Processor N2600 (1.66GHz)
with NM10 Chipset
fETX-CV-N2800
ETX Module with low power Dual Core Intel®Atom™ Processor N2800 (1.83GHz)
with NM10 Chipset
fETX-CV-D2550
ETX Module with Dual Core Intel®Atom™ Processor D2550 (1.86GHz)
with NM10 Chipset

ETX-CV User’s ManualPage 12
3Function Diagram
CPU
Intel® Atom™
N2600
N2800
D2550
Analog VGA
DDR3
Memory
Controller
DP/HDMI Graphics Core
640 MHz
SODIMM
DDR3 1066 MHz
LAN PHY
Realtek
RTL8111E
SATA
Intel®NM10
Chipset
BIOS
Debug
Header
X2X1
X4X3
LPC
PCIe x1
USB 2.0
PCI
Controller
Audio
Keyboard
LPT1/FDD
COM2
I2C
PCIe x1
Super I/O
Winbond
W83627DHG
RTC Audio Codec
Realtek
ALC262
PATA
IDE0/IDE1
PCI Bus
PCI / ISA
IT8888G
SATA
SATA
PCIe x1
VGA
4 ports USB 2.0
SPI
2.5 GT/s DMI
SMBus
COM1
Mouse
PCIe-to-PATA
Marvell
88SE6101
DP to LVDS
Chrontel
CH7511
BC
PCIe-to-PATA
Marvell
88SE6101

ETX-CV User’s Manual Page 13
ETX-CV User’s Manual Page 13

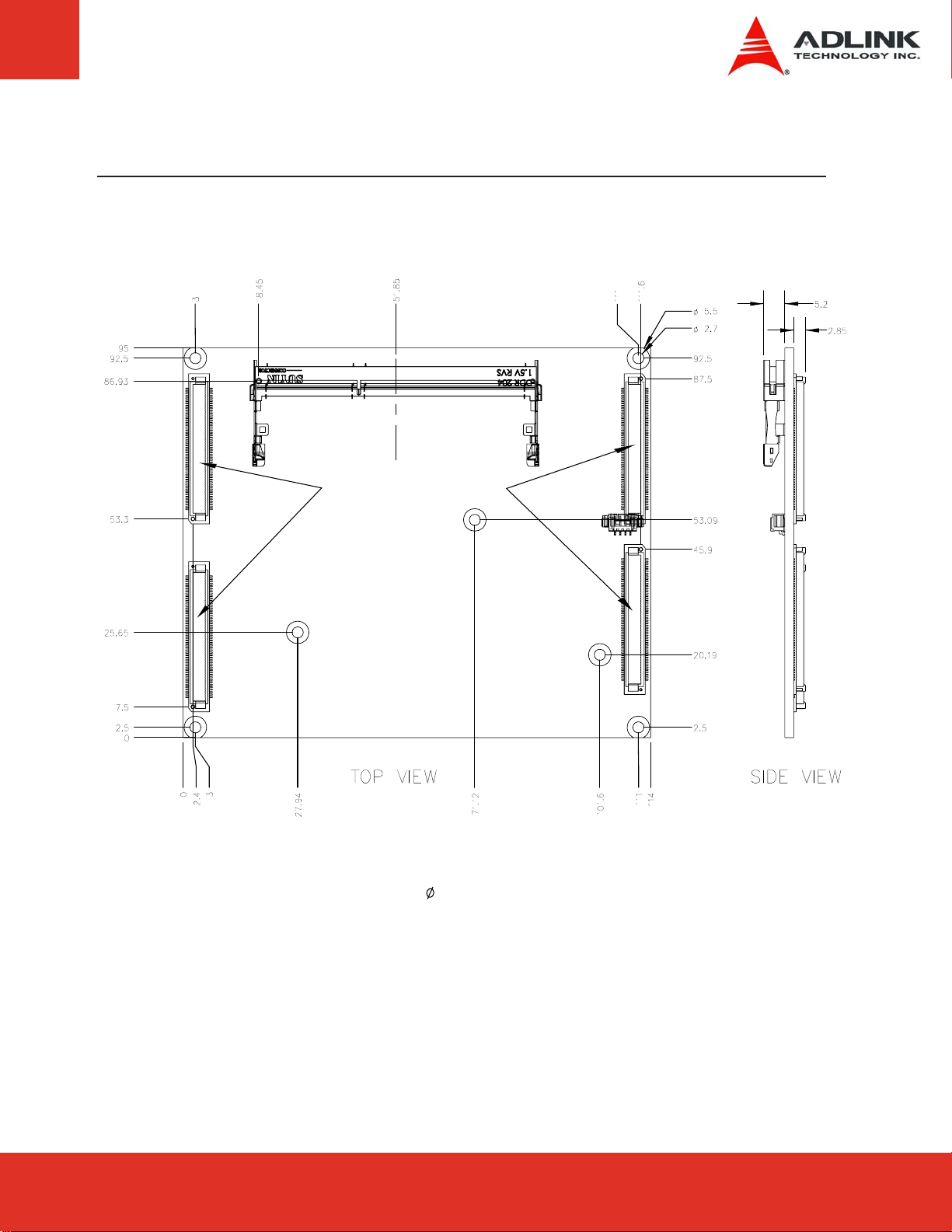

4Mechanical Dimensions
All tolerances ± 0.05 mm
Other tolerances ± 0.2 mm
Connector on bottom side

ETX-CV User’s ManualPage 14
5Embedded Functions
All embedded board functions onADLINK’s Computer on Modules are supported at the operating
system level using theADLINK Intelligent Device Interface (AIDI) library. TheAIDI API
programming interface is compatible and identical across all supportedADLINK Computer on
Modules and all supported operating systems. TheAIDI library includes a demo program to
demonstrate the library’s functionallity.
5.1 Watchdog Timer
The ETX-CV implements a Watchdog timer that can be used to
automatically detect software execution problems or system hangs and
reset the board if necessary. The Watchdog timer consists of a counter
that counts down from an initial value to zero. When the system is
operating normally, the software that sets the intial value periodically
resets the counter so that the it never reaches zero. If the counter
reaches zero before the software resets it, the system is presumed to be
malfunctioning and a reset signal is asserted.
TheAIDI Library Watchdog functions support Watchdog control of the board. If the Watchdog
begins countdown and reaches zero, it will access the CPU's RESET signal to reset the system.
This application must call another function namedAidiWDogTrigger that triggers the Watchdog to
restart to prevent system reset.

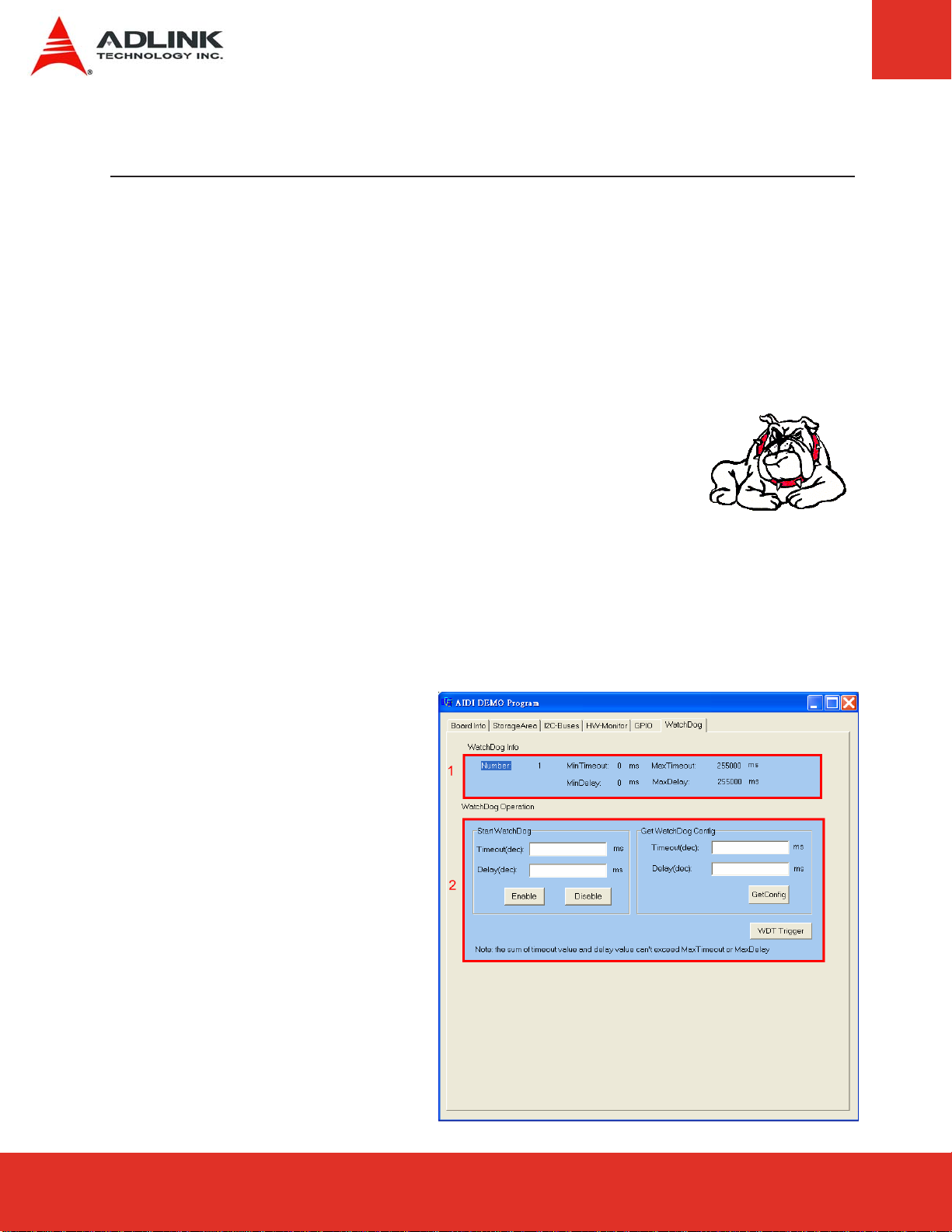

AIDI Demo Program
- Watchdog Tab
TheAIDI Demo Program allows
retrieval of the current Watchdog
status and updating of the
Watchdog settings
If the Watchdog is enabled, the
user can click the WDTTrigger
button to manually reset the
counter and prevent the system
from resetting

ETX-CV User’s Manual Page 15
ETX-CV User’s Manual Page 15
5.2 Hardware Monitoring
To ensure system health of your embedded systemADLINK’s Computer on Modules come with
built in support for monitoring of CPU temperatures and critical module voltage levels.
TheAIDI Library provides simpleAPIs at the application level to support these functions and adds
alarm functions when voltage or temperature levels exceeds the upper or lower limit set by the
user.
On the ETX-CV the following monitored values can be read from the module:
CPU temperature, Vcore, 1.05V, 3.3V, 5V and VBAT.

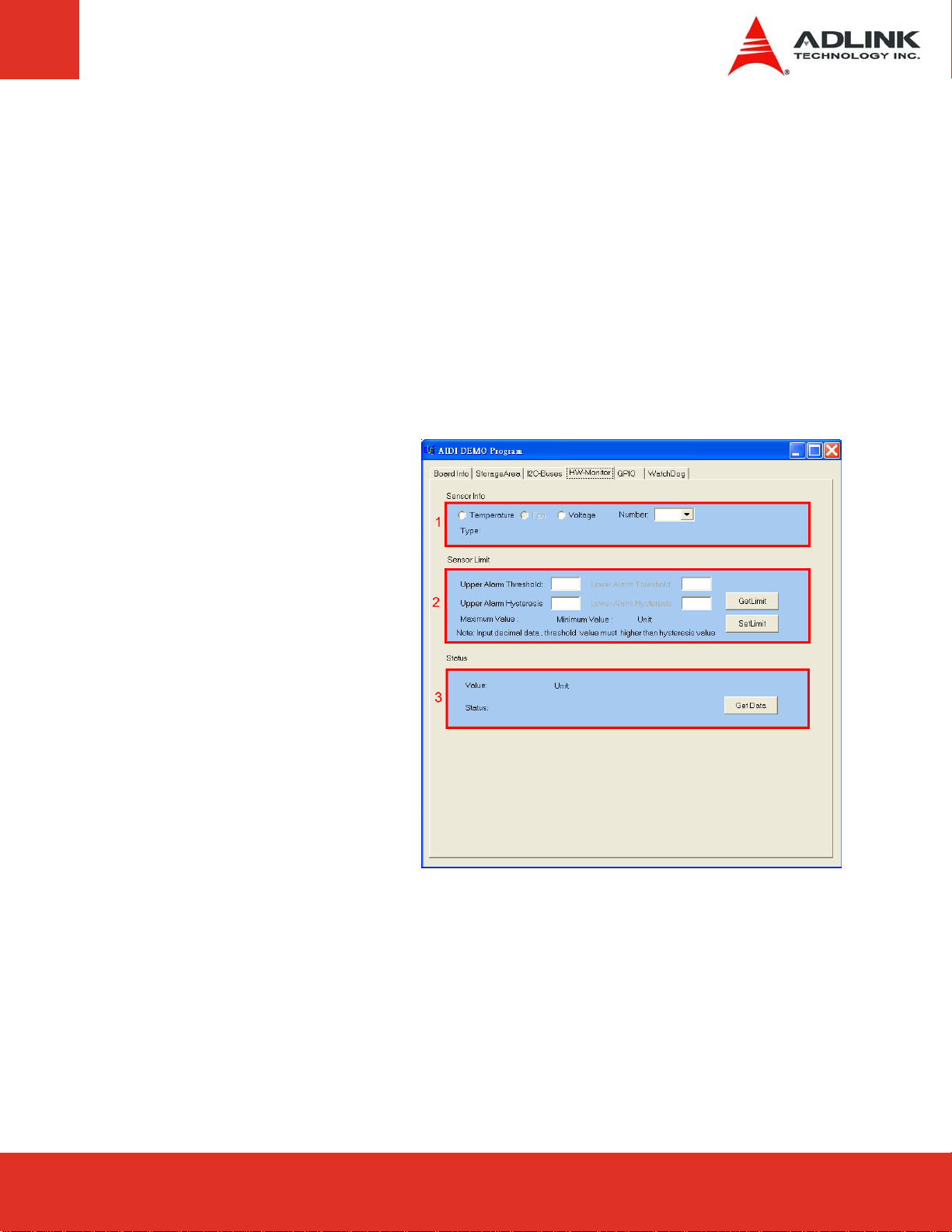

AIDI Demo Program
- HW Monitor Tab
Field 1 displays detected sensors
(number).
Field 2 allows setting of upper and
lower alarm limits.
Field 3 displays read out
information of sensors.

ETX-CV User’s ManualPage 16
6Pin-out and Signal Descriptions
6.1 Connector Locations
6.2 Pin Compatibility
All pins on X1, X2, X3, and X4 of the ETX-CV comply with pin and signal descriptions used in the
ETX Specification version 3.02. This document contains a description of pins, signal descriptions,
and mechanical characteristics of the ETX form factor.
Compared to earlier ETX revisons (ETX rev 2.x)
ETX 3.02 revision adds “SATA connectors on the module” to the ETX specification and is
further pin to pin compatible with earlier 2.x ETX revisions.
(X1, X2, X3, X4 pinout on rev 2.x equal those on revison 3.02)
- Ethernet
- IDE1/IDE2
- Power Signals
- Speaker, Battery
- I2C & SMB bus
X4
X3
- VGA/LCD/Video
- COM1/COM2
- LPT1
- IrDA
- Mouse
- Keyboard
- ISA bus
X2
X1
- 32-bit PCI bus
- USB
- Audio
ETX-CV
(top view)

ETX-CV User’s Manual Page 17
ETX-CV User’s Manual Page 17
6.3 Pin Definitions
X1: PCI-bus, USB, & Audio
Pin Signal Pin Signal
1 GND 2 GND
3 PCICLK3 4 PCICLK4
5 GND 6 GND
7 PCICLK1 8 PCICLK2
9 REQ3# 10 GNT3#
11 GNT2# 12 3V1
13 REQ2# 14 GNT1#
15 REQ1# 16 3V1
17 GNT0# 18 RSV
19 5VCC 20 5VCC
21 SERIRQ 22 REQ0#
23 AD0 24 3V1
25 AD1 26 AD2
27 AD4 28 AD3
29 AD6 30 AD5
31 CBE0# 32 AD7
33 AD8 34 AD9
35 GND 36 GND
37 AD10 38 AUXAL
39 AD11 40 MIC
41 AD12 42 AUXAR
43 AD13 44 ASVCC
45 AD14 46 SDNL
47 AD15 48 ASSGND
49 CBE1# 50 SNDR
Pin Signal Pin Signal
51 5VCC 52 5VCC
53 PAR 54 SERR#
55 GPERR 56 RSV
57 PME# 58 USB2-
59 LOCK# 60 DEVSEL#
61 TRDY# 62 USB3-
63 IRDY# 64 STOP#
65 FRAME# 66 USB2+
67 GND 68 GND
69 AD16 70 CBE2#
71 AD17 72 USB3+
73 AD19 74 AD18
75 AD20 76 USB0N
77 AD22 78 AD21
79 AD23 80 USB1-
81 AD24 82 CBE3#
83 5VCC 84 5VCC
85 AD25 86 AD26
87 AD28 88 USB0+
89 AD27 90 AD29
91 AD30 92 USB1+
93 PCIRST# 94 AD31
95 INTC# 96 INTD#
97 INTA# 98 INTB#
99 GND 100 GND
21
99 100
The 3V (3.3 V ±5%) is generated onboard. Pins may be used to power devices on the
carrier board up to a maximum load of 500 mA.
Do not connect the 3V pin to external 3.3V supply power.
X1

ETX-CV User’s ManualPage 18
X2: ISA Bus
Pin Signal Pin Signal
1 GND 2 GND
3 SD14 4 SD15
5 SD13 6 MASTER#
7 SD12 8 DREQ7
9 SD11 10 DACK7#
11 SD10 12 DREQ6
13 SD9 14 DACK6#
15 SD8 16 DREQ5
17 MEMW# 18 DACK5#
19 MEMR# 20 DREQ0
21 LA17 22 DACK0#
23 LA18 24 IRQ14
25 LA19 26 IRQ15
27 LA20 28 IRQ121
29 LA21 30 IRQ11
31 LA22 32 IRQ10
33 LA23 34 IO16#
35 GND 36 GND
37 SBHE# 38 M16#
39 SA0 40 OSC
41 SA1 42 BALE
43 SA2 44 TC
45 SA3 46 DACK2#
47 SA4 48 IRQ3
49 SA5 50 IRQ4
Pin Signal Pin Signal
51 5VCC 52 5VCC
53 SA6 54 IRQ5
55 SA7 56 IRQ6
57 SA8 58 IRQ7
59 SA9 60 SYSCLK
61 SA10 62 REFSH#
63 SA11 64 DREQ1
65 SA12 66 DACK1#
67 GND 68 GND
69 SA13 70 DREQ3
71 SA14 72 DACK3#
73 SA15 74 IOR#
75 SA16 76 IOW#
77 SA18 78 SA17
79 SA19 80 SMEMR#
81 IOCHRDY 82 AEN
83 5VCC 84 5VCC
85 SD0 86 SMEMW#
87 SD2 88 SD1
89 SD3 90 NOWS#
91 DREQ2 92 SD4
93 SD5 94 IRQ9
95 SD6 96 SD7
97 IOCHK# 98 RSTDRV
99 GND 100 GND
21
99 100
1IRQ12 is reserved for a PS/2 mouse.
X2

ETX-CV User’s Manual Page 19
ETX-CV User’s Manual Page 19
X3: CRT, LCD (LVDS), & Video
Pin Signal Pin Signal
1 GND 2 GND
3R 4B
5 HSY 6 G
7 VSY 8 DDCK
9 NC 10 DDDA
11 LCD16 12 LCD18
13 LCD17 14 LCD19
15 GND 16 GND
17 LCD13 18 LCD15
19 LCD12 20 LCD14
21 GND 22 GND
23 LCD8 24 LCD11
25 LCD9 26 LCD10
27 GND 28 GND
29 LCD4 30 LCD7
31 LCD5 32 LCD6
33 GND 34 GND
35 LCD1 36 LCD3
37 LCD0 38 LCD2
39 5VCC 40 5VCC
41 JILI_SDA 42 LTGO0
43 JILI_SCL 44 BLON#
45 NC 46 DIGON
47 COMP 48 Y
49 NC 50 C
21
99 100
X3
Signal LVDS Signal
LCD10 Txout 0-
LCD11 Txout 0+
LCD12 Txout 1-
LCD13 Txout 1+
LCD14 Txout 2-
LCD15 Txout 2+
LCD16 Txclk -
LCD17 Txclk +
LCD18 Txout 3-
LCD19 Txout 3+
Second LVDS Channel
Signal LVDS Signal
LCD0 Txout 0-
LCD1 Txout 0+
LCD2 Txout 1-
LCD3 Txout 1+
LCD4 Txout 2-
LCD5 Txout 2+
LCD6 Txclk -
LCD7 Txclk +
LCD8 Txout 3-
LCD9 Txout 3+
First LVDS Channel

ETX-CV User’s ManualPage 20
X3: COM1/2, LPT1, IrDA, Mouse, & Keyboard
21
99 100
X3
Pin Signal Pin
51 LPT/FLPY# 52 RESERVED
53 5VCC 54 GND
55 STB# 56 AFD#
57 RESERVED 58 PD7
59 IRRX 60 ERR#
61 IRTX 62 PD6
63 RXD2 64 INIT#
65 GND 66 GND
67 RTS2# 68 PD5
69 DTR2# 70 SLIN#
71 DCD2# 72 PD4
73 DSR2# 74 PD3
75 CTS2# 76 PD2
77 TXD2 78 PD1
79 RI2# 80 PD0
81 5VCC 82 5VCC
83 RXD1 84 ACK#
85 RTS1# 86 BUSY
87 DTR1# 88 PE
89 DCD1# 90 SLCT#
91 DSR1# 92 MSCLK
93 CTS1# 94 MSDAT
95 TXD1 96 KBCLK
97 RI1# 98 KBDAT
99 GND 100 GND
