Advantech EKI-1751PI-M-AE User manual

User Manual
EKI-1751PI Series
Long Reach PoE Extenders

ii EKI-1751PI Series User Manual
Copyright
The documentation and the software included with this product are copyrighted 2018
by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right
to make improvements in the products described in this manual at any time without
notice. No part of this manual may be reproduced, copied, translated or transmitted
in any form or by any means without the prior written permission of Advantech Co.,
Ltd. Information provided in this manual is intended to be accurate and reliable. How-
ever, Advantech Co., Ltd. assumes no responsibility for its use, nor for any infringe-
ments of the rights of third parties, which may result from its use.
Acknowledgements
Intel and Pentium are trademarks of Intel Corporation.
Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp.
All other product names or trademarks are properties of their respective owners.
Product Warranty (5 years)
Advantech warrants to you, the original purchaser, that each of its products will be
free from defects in materials and workmanship for five years from the date of pur-
chase.
This warranty does not apply to any products which have been repaired or altered by
persons other than repair personnel authorized by Advantech, or which have been
subject to misuse, abuse, accident or improper installation. Advantech assumes no
liability under the terms of this warranty as a consequence of such events.
Because of Advantech’s high quality-control standards and rigorous testing, most of
our customers never need to use our repair service. If an Advantech product is defec-
tive, it will be repaired or replaced at no charge during the warranty period. For out of-
warranty repairs, you will be billed according to the cost of replacement materials,
service time and freight. Please consult your dealer for more details.
If you think you have a defective product, follow these steps:
1. Collect all the information about the problem encountered. (For example, CPU
speed, Advantech products used, other hardware and software used, etc.) Note
anything abnormal and list any on screen messages you get when the problem
occurs.
2. Call your dealer and describe the problem. Please have your manual, product,
and any helpful information readily available.
3. If your product is diagnosed as defective, obtain an RMA (return merchandize
authorization) number from your dealer. This allows us to process your return
more quickly.
4. Carefully pack the defective product, a fully-completed Repair and Replacement
Order Card and a photocopy proof of purchase date (such as your sales receipt)
in a shippable container. A product returned without proof of the purchase date
is not eligible for warranty service.
5. Write the RMA number visibly on the outside of the package and ship it prepaid
to your dealer.
Part No. XXXXXXXXXX Edition 1
Printed in Taiwan February 2018

EKI-1751PI Series User Manual iii
Declaration of Conformity
CE
This product has passed the CE test for environmental specifications. Test conditions
for passing included the equipment being operated within an industrial enclosure. In
order to protect the product from being damaged by ESD (Electrostatic Discharge)
and EMI leakage, we strongly recommend the use of CE-compliant industrial enclo-
sure products.
FCC Class A
Note: This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Opera-
tion of this equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own expense.
Technical Support and Assistance
1. Visit the Advantech web site at www.advantech.com/support where you can find
the latest information about the product.
2. Contact your distributor, sales representative, or Advantech's customer service
center for technical support if you need additional assistance. Please have the
following information ready before you call:
–Product name and serial number
–Description of your peripheral attachments
–Description of your software (operating system, version, application software,
etc.)
–A complete description of the problem
–The exact wording of any error messages

iv EKI-1751PI Series User Manual
Warnings, Cautions and Notes
Document Feedback
To assist us in making improvements to this manual, we would welcome comments
and constructive criticism. Please send all such - in writing to: support@advan-
tech.com
Packing List
Before setting up the system, check that the items listed below are included and in
good condition. If any item does not accord with the table, please contact your dealer
immediately.
1 x Long Reach PoE Extenders
1 x DIN-Rail mounting Bracket and Screws
1 x Wall-mounting Bracket
Warning! Warnings indicate conditions, which if not observed, can cause personal
injury!
Caution! Cautions are included to help you avoid damaging hardware or losing
data. e.g.
There is a danger of a new battery exploding if it is incorrectly installed.
Do not attempt to recharge, force open, or heat the battery. Replace the
battery only with the same or equivalent type recommended by the man-
ufacturer. Discard used batteries according to the manufacturer's
instructions.
Note! Notes provide optional additional information.

EKI-1751PI Series User Manual v
Safety Instructions
Read these safety instructions carefully.
Keep this User Manual for later reference.
Disconnect this equipment from any DC outlet before cleaning. Use a damp
cloth. Do not use liquid or spray detergents for cleaning.
For plug-in equipment, the power outlet socket must be located near the equip-
ment and must be easily accessible.
Keep this equipment away from humidity.
Put this equipment on a reliable surface during installation. Dropping it or letting
it fall may cause damage.
The openings on the enclosure are for air convection. Protect the equipment
from overheating. DO NOT COVER THE OPENINGS.
Make sure the voltage of the power source is correct before connecting the
equipment to the power outlet.
Position the power cord so that people cannot step on it. Do not place anything
over the power cord.
All cautions and warnings on the equipment should be noted.
If the equipment is not used for a long time, disconnect it from the power source
to avoid damage by transient overvoltage.
Never pour any liquid into an opening. This may cause fire or electrical shock.
Never open the equipment. For safety reasons, the equipment should be
opened only by qualified service personnel.
If one of the following situations arises, get the equipment checked by service
personnel:
–The power cord or plug is damaged.
–Liquid has penetrated into the equipment.
–The equipment has been exposed to moisture.
–The equipment does not work well, or you cannot get it to work according to
the user's manual.
–The equipment has been dropped and damaged.
–The equipment has obvious signs of breakage.
DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT WHERE THE
STORAGE TEMPERATURE MAY GO -40°C (-40°F) ~ 85°C (185°F). THIS
COULD DAMAGE THE EQUIPMENT. THE EQUIPMENT SHOULD BE IN A
CONTROLLED ENVIRONMENT.
The sound pressure level at the operator's position according to IEC 704-1:1982
is no more than 70 dB (A).
DISCLAIMER: This set of instructions is given according to IEC 704-1. Advan-
tech disclaims all responsibility for the accuracy of any statements contained
herein.

vi EKI-1751PI Series User Manual
Wichtige Sicherheishinweise
Bitte lesen sie Sich diese Hinweise sorgfältig durch.
Heben Sie diese Anleitung für den späteren Gebrauch auf.
Vor jedem Reinigen ist das Gerät vom Stromnetz zu trennen. Verwenden Sie
Keine Flüssig-oder Aerosolreiniger. Am besten dient ein angefeuchtetes Tuch
zur Reinigung.
Die NetzanschluBsteckdose soll nahe dem Gerät angebracht und leicht zugän-
glich sein.
Das Gerät ist vor Feuchtigkeit zu schützen.
Bei der Aufstellung des Gerätes ist auf sicheren Stand zu achten. Ein Kippen
oder Fallen könnte Verletzungen hervorrufen.
Die Belüftungsöffnungen dienen zur Luftzirkulation die das Gerät vor überhit-
zung schützt. Sorgen Sie dafür, daB diese Öffnungen nicht abgedeckt werden.
Beachten Sie beim. AnschluB an das Stromnetz die AnschluBwerte.
Verlegen Sie die NetzanschluBleitung so, daB niemand darüber fallen kann. Es
sollte auch nichts auf der Leitung abgestellt werden.
Alle Hinweise und Warnungen die sich am Geräten befinden sind zu beachten.
Wird das Gerät über einen längeren Zeitraum nicht benutzt, sollten Sie es vom
Stromnetz trennen. Somit wird im Falle einer Überspannung eine Beschädigung
vermieden.
Durch die Lüftungsöffnungen dürfen niemals Gegenstände oder Flüssigkeiten in
das Gerät gelangen. Dies könnte einen Brand bzw. elektrischen Schlag aus-
lösen.
Öffnen Sie niemals das Gerät. Das Gerät darf aus Gründen der elektrischen
Sicherheit nur von authorisiertem Servicepersonal geöffnet werden.
Wenn folgende Situationen auftreten ist das Gerät vom Stromnetz zu trennen
und von einer qualifizierten Servicestelle zu überprüfen:
–Netzkabel oder Netzstecker sind beschädigt.
–Flüssigkeit ist in das Gerät eingedrungen.
–Das Gerät war Feuchtigkeit ausgesetzt.
–Wenn das Gerät nicht der Bedienungsanleitung entsprechend funktioniert
oder Sie mit Hilfe dieser Anleitung keine Verbesserung erzielen.
–Das Gerät ist gefallen und/oder das Gehäuse ist beschädigt.
–Wenn das Gerät deutliche Anzeichen eines Defektes aufweist.
Der arbeitsplatzbezogene Schalldruckpegel nach DIN 45 635 Teil 1000 beträgt
70dB(A) oder weiger.
Haftungsausschluss: Die Bedienungsanleitungen wurden entsprechend der
IEC-704-1 erstellt. Advantech lehnt jegliche Verantwortung für die Richtigkeit
der in diesem Zusammenhang getätigten Aussagen ab.

EKI-1751PI Series User Manual vii
Safety Precaution - Static Electricity
Static electricity can cause bodily harm or damage electronic devices. To avoid dam-
age, keep static-sensitive devices in the static-protective packaging until the installa-
tion period. The following guidelines are also recommended:
Wear a grounded wrist or ankle strap and use gloves to prevent direct contact to
the device before servicing the device. Avoid nylon gloves or work clothes,
which tend to build up a charge.
Always disconnect the power from the device before servicing it.
Before plugging a cable into any port, discharge the voltage stored on the cable
by touching the electrical contacts to the ground surface.

viii EKI-1751PI Series User Manual
Contents
Chapter 1 Product Introduction...........................1
1.1 Description................................................................................................2
1.2 Features....................................................................................................2
1.3 Specifications............................................................................................2

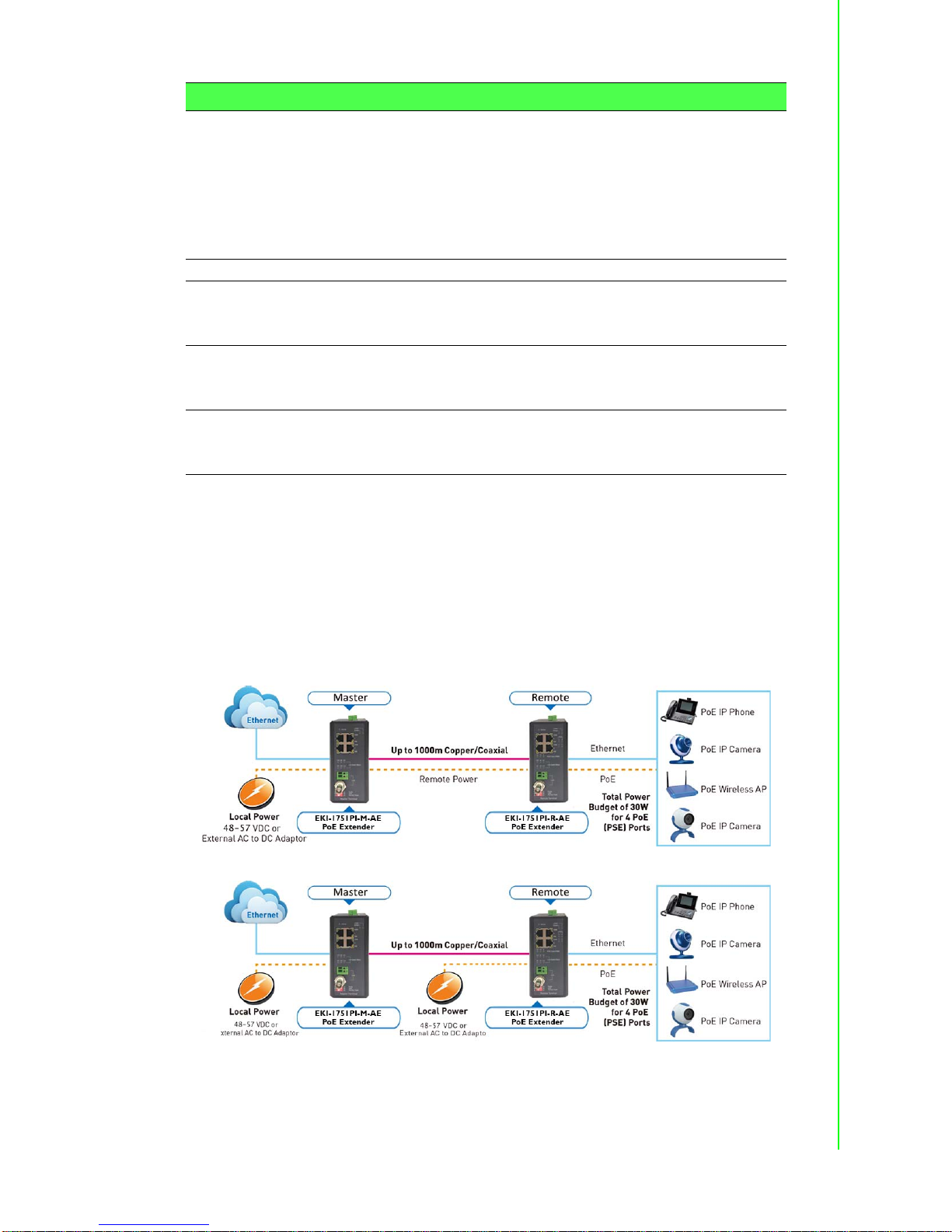

1.4 Applications...............................................................................................3
1.5 Reference Performance Data ...................................................................4
1.5.1 24AWG Copper Wire....................................................................4
1.5.2 Coaxial Cable................................................................................4
Chapter 2 Hardware Description .........................5
2.1 Applications...............................................................................................6
2.2 Product Outlook ........................................................................................6
2.3 Installation Accessory ...............................................................................7
Chapter 3 LED Definition......................................8
3.1 LED indicators...........................................................................................9
3.2 LED Display Status...................................................................................9
Chapter 4 Power..................................................11
4.1 Power......................................................................................................12
Chapter 5 3-Position DIP Switch........................13
5.1 3-Position DIP Switch..............................................................................14
5.1.1 Regulatory Compliance...............................................................14
5.1.2 Installation/Operation [Precautions]............................................14

EKI-1751PI Series User Manual ix
List of Figures
Figure 1.1 Remote Power Enable .................................................................................................. 3
Figure 1.2 Remote Power Disable..................................................................................................3
Figure 2.1 EKI-1751PI-M-AE Faceplate......................................................................................... 6
Figure 2.2 EKI-1751PI-R-AE Faceplate ......................................................................................... 6
Figure 2.3 Installation Accessory.................................................................................................... 7
Figure 3.1 Installation Accessory.................................................................................................. 10

Chapter 1
1Product Introduction

EKI-1751PI Series User Manual 2
1.1 Description
EKI-1751PI Series Long Reach PoE Extenders are designed to extend the reach of
Ethernet Data and IEEE 802.3at Power over Ethernet beyond its natural limitations of
100 meters for the network infrastructure. The solution works in pairs for point to
point connectivity. It features EKI-1751PI-M-AE Long Reach PoE Extender that the
master unit is at the central site and on the receiving end is EKI-1751PI-R-AE Long
Reach PoE Extender with 4 PoE (PSE) ports. Under Remote Power Mode, each EKI-
1751PI-R-AE is equipped with four 10/100Base-TX IEEE 802.3at PoE Ports for a
total power budget of 30W; Support any remote IEEE 802.3at/af powered device
(PD) like Wi-Fi Access Point, IP phone, and IP Camera. It enables centralized man-
agement of power supply from a single location for easy, efficient and cost-effective
installation. When enabling Local Power Mode by dip switch, EKI-1751PI-R-AE can
supply power budget of 30W to each of the four PoE ports. Proscend EKI-1751PI
Series Long Reach PoE Extenders is an ideal PoE extension solution for service pro-
viders to deploy networking applications in public areas that requires Wireless AP, IP
Phones and IP Cameras.
1.2 Features
Complies to IEEEE 802.3at PoE
Industrial-Grade Extenders for applications in harsh environment
Simultaneous transmission of Ethernet data and PoE Power over UTP wire or
coaxial cable
Centralized management of power supply
Eliminated the need for local power supply at remote sites
Easy cabling for quick installation
Long transmission distance up to 1,000 m
Quick deployment and easy maintenance.
Flexible and efficient power management
Dip Switch to enable local power supply and provide full 30W to each of the four
PoE ports.
1.3 Specifications
Specifications Description
Hardware Interfaces Terminal Block for Copper Port
BNC Female for Coaxial Port
4 x RJ-45 10/100Base-TX IEEE 802.3at PoE Port
3 Position Dip Switch Selectable target band plan (Asymmetric or Symmetric)
Selectable target SNR margin (6dB or 9dB)
Selectable Remote Power (ON) or Local Power (OFF)
LED Indicators Active: System Status
LPWR/RPWR: Local Power/Remote Power
PoE: PoE Port Status
Available PoE Output (Watts): 5/15/30
Line Speed (Mbps): Link/20/40/60/80/100

3 EKI-1751PI Series User Manual
1.4 Applications
The solution works in pairs for point to point connectivity. It features EKI-1751PI-M-
AE Long Reach PoE Extender that the master unit is at the central site and on the
receiving end is EKI-1751PI-R-AE Long Reach PoE Extender with 4 PoE (PSE)
ports. Without the need for local power supply, each EKI-1751PI-R-AE is equipped
with four 10/100Base-TX IEEE 802.3at PoE Ports for a total power budget of 30W
that can support any remote IEEE 802.3at/af powered device (PD) like Wi-Fi Access
Point, IP Phone, and IP Camera.
Figure 1.1 Remote Power Enable
Figure 1.2 Remote Power Disable
Power Supply Terminal blocks for redundant DC power inputs
Input Voltage: 48 to 57 VDC
Power Consumption:
–EKI-1751PI-M-AE: 65 Watts maximum
–EKI-1751PI-R-AE: 125 Watts maximum
Over current protection
Automatic short protection
Protocol Support Transparent bridging to higher layer protocols
Operating Environment Operating Temperature: -40°C ~ 75°C (-40°F ~ 167°F)
Storage Temperature: -40°C ~ 85°C (-40°F ~ 185°F)
Humidity: 10% - 95% (non-condensing)
Physical Hardened aluminum case, IP30
Dimensions: 62 x 135 x 106.5 mm (2.44” x 5.31” x 4.19”)
Installation: DIN-Rail, Panel Rack Mounting
Regulatory Compliance CE
FCC Part 15 Class A
EN60950
Specifications Description

EKI-1751PI Series User Manual 4
1.5 Reference Performance Data
1.5.1 24AWG Copper Wire
1.5.2 Coaxial Cable
SNR 6dB 6dB
Profile Asymmetrical Symmetrical
Distance Upstream
Line Rate
(Mbps)
Downstream
Line Rate
(Mbps)
Upstream
Line Rate
(Mbps)
Downstream
Line Rate
(Mbps)
PoE Output
Power
300 m 65 100 100 100 30 W
400 m 45 95 70 70 20 W
600 m 30 65 45 45 15 W
800 m 10 45 27 27 7 W
1,000 m 6 35 18 18 5 W
1,200 m 1 20 8 16 4 W
SNR 6dB 6dB
Profile Asymmetrical Symmetrical
Distance Upstream
Line Rate
(Mbps)
Downstream
Line Rate
(Mbps)
Upstream
Line Rate
(Mbps)
Downstream
Line Rate
(Mbps)
PoE Output
Power
400 m 100 100 100 100 30 W
600 m 50 100 50 80 20 W
800 m 50 100 50 80 15 W
1000 m 45 90 50 60 10 W
1,200 m 40 70 50 50 8 W
1,400 m 35 55 40 35 6 W
1,600 m 30 40 35 30 5 W
1,800 m 10 35 20 20 4 W
2,000 m 5 30 15 15

Chapter 2
2Hardware Description

EKI-1751PI Series User Manual 6
2.1 Applications
EKI-1751PI Series are Long Reach PoE Extenders with four 10/100Base-TX IEEE
802.3at PoE Ports. This chapter shows the product outlook and Hardware interfaces.
2.2 Product Outlook
Figure 2.1 EKI-1751PI-M-AE Faceplate
Figure 2.2 EKI-1751PI-R-AE Faceplate

7 EKI-1751PI Series User Manual
2.3 Installation Accessory
Figure 2.3 Installation Accessory

Chapter 3
3LED Definition

9 EKI-1751PI Series User Manual
3.1 LED indicators
The LED indicators could provide instant feedback to users; the behaviors of the LED
are given in below table:
LED Name Color Indicator Condition
Local Power Green Off No local power input
On Local power received
Remote Power Green Off No power is transmitted over Line
On Power is transmitted over Line
4 x PoE Green Off No power is transmitted over Ether-
net port
On Power is transmitted over Ethernet
port
Link LED Green Very slow flashing Link down
Slow flashing Handshaking
Fast flashing Data transmission or reviving
On Link up
Link Speed, 5 x LEDs Green On Displays speed in Mbps (100M/80M/
60M/40M/20M), if 80M LED is on
then downstream link speed is in the
range 80Mbps to 100Mbps.
PoE Output (Watt),
3 x LEDs Green On Displays PoE PSE available output power in Watt(30W/15W/5W) -
Remote Terminal Only
4 x RJ-45 Green On Ethernet link up and speed is 100M
Flashing Data transmission or receiving
Off Ethernet is no link up
Yellow On Ethernet link up and speed is 10M
Flashing Data transmission or receiving
Off Ethernet is no link up

EKI-1751PI Series User Manual 10
3.2 LED Display Status
According to your operation environment and power allocation, the display status of
PoE Output LED will have three situations for EKI-1751PI-R-AE device.
1. When the PoE power voltage is above or equal 50V (>=50V), the PoE output is
normally working and LED display is stable status.
2. If the voltage between 44V and 50V, the PoE output is warning status and LED
display is blinking. The device will cut off PoE Output in port-2, port-3 and port-4
automatically to protect the device.
3. When detected under 44V low voltage (<44V), the PoE output is not working
and LED is off status.
Figure 3.1 Installation Accessory
Voltage PoE Output Status LED Display PoE Output Mode
>= 50 Normal Stable Keeping working
44V-50V Warning Blinking Cut off Port-2, Port-3, Port-4
Keeping Port-1
< 44V No Output Off No working

Chapter 4
4Power
