Advantech B+B SmartWorx PoE Giga-McBasic User manual

PoE & PoE+ Giga-McBasic
USER MANUAL

PoE & PoE+ Giga-McBasic LFPT
ii
Advantech B+B SmartWorx - Americas
707 Dayton Road
Ottawa, IL 61350 USA
Phone [phone]
Fax [phone]
Advantech B+B SmartWorx - Europe
Westlink Commercial Park
Oranmore, Co. Galway, Ireland
Phone [phone]
Fax [phone]
www.advantech-bb.com
[e-mail]

PoE & PoE+ Giga-McBasic LFPT
ii
CONTENTS
Introduction - PoE Giga-McBasic LFPT...................................................... 4
About PoE Giga-McBasic LFPT..................................................................................... 4
Installation.....................................................................................................................5
DIP Switch Configuration.............................................................................................. 5
PoE Reset DSW.............................................................................................................5
LFPT DIP Switches ........................................................................................................ 6
LED Operation.............................................................................................................. 6
Troubleshooting ............................................................................................................8
RJ-45 Pinouts ................................................................................................................ 8
Specifications ................................................................................................................ 9
Introduction – PoE+ Giga-McBasic LFPT ................................................... 9
About PoE+ Giga-McBasic LFPT.................................................................................10
Installation...................................................................................................................11
DIP Switch Configuration............................................................................................12
PoE Reset DSW...........................................................................................................12
LFPT DIP Switches ...................................................................................................... 12
LED Operation........................................................................................................... 13
Troubleshooting ..........................................................................................................15
RJ-45 Pinouts .............................................................................................................. 15
Specifications .............................................................................................................. 16
B+B SmartWorx Technical Support.......................................................... 17
Statements, Precautions, Guidelines, Regulatory..................................... 18
FCC Radio Frequency Interference Statement....................................................... 18
PoE Precautions (Inside Building Installation Only) .................................................... 18
Electrostatic Discharge (ESD) Precautions ..................................................................19
Fiber Optic Cleaning Guidelines.........................................................................19
Regulatory, Standards, Compliances .......................................................................... 20

PoE & PoE+ Giga-McBasic LFPT
4
INTRODUCTION - POE GIGA-MCBASIC LFPT
ABOUT POE GIGA-MCBASIC LFPT
NOTE: Unless otherwise noted in this manual, any reference is applicable for both the 1x9 and SFP version
of the PoE Giga-McBasic LFPT.
The PoE Giga-McBasic is a solution for private network applications that
require Power-over-Ethernet (PoE) (IEEE802.3af) for installations inside
buildings where PoE is required to power an Ethernet device. The standalone
unit offers a model with one SFP or fixed fiber transceiver, 1x9, uplink for the
network connection, one PSE 10/100/1000Base-T copper port that provides
PoE and one 10/100/ 1000Mbps copper port, to connect a non-PoE unit to the
same fiber uplink. As a fiber-fed demarcation unit, it provides both power and
data to a remote device over a standard CAT5 copper line, eliminating the need
for a power connection to the remote device. The PoE Giga-McBasic LFPT
provides up to 15.4 Watts on one copper port and is powered by an internal
power supply, supporting 100-240 VAC. ( For more robust power requirements
on both copper ports, refer to the information about PoE+ Giga-McBasic LFPT.)
The SFP uplink can support fiber or copper SFPs. The fiber SFP, available in
SC or LC connectors, supports 100FDX or 1000FDX; a copper SFP supports
the SGMII interface (10/100/1000Mbps). The SFP, with or without DDMI, is
available for purchase from B+B SmartWorx. The SFP must be MSA-
compliant.
Copper ports auto-negotiate to the connected device’s speed and duplex mode:
10 Mbps, 100 Mbps or 1000 Mbps, and HDX or FDX (including Flow Control).
The PoE+ Giga-McBasic LFPT supports jumbo frames up to 10240.
NOTE: Some options require items that are sold separately, available from B+B SmartWorx.

PoE & PoE+ Giga-McBasic LFPT
5
INSTALLATION
PoE Giga-McBasic LFPT installs virtually anywhere: standalone, table-top
device, with rackmount ears, or using a wallmount bracket. The rackmount ears
and wallmount bracket are optional accessories available from B+B SmartWorx.
Several models of the PoE Giga-McBasic LFPT support single-strand fiber for operation.
Since single-strand fiber products use optics that transmit and receive on two different
wavelengths,
sin g l e -strand fiber products must be deployed in pairs. The two connected
products must also have
the same speed and distance .

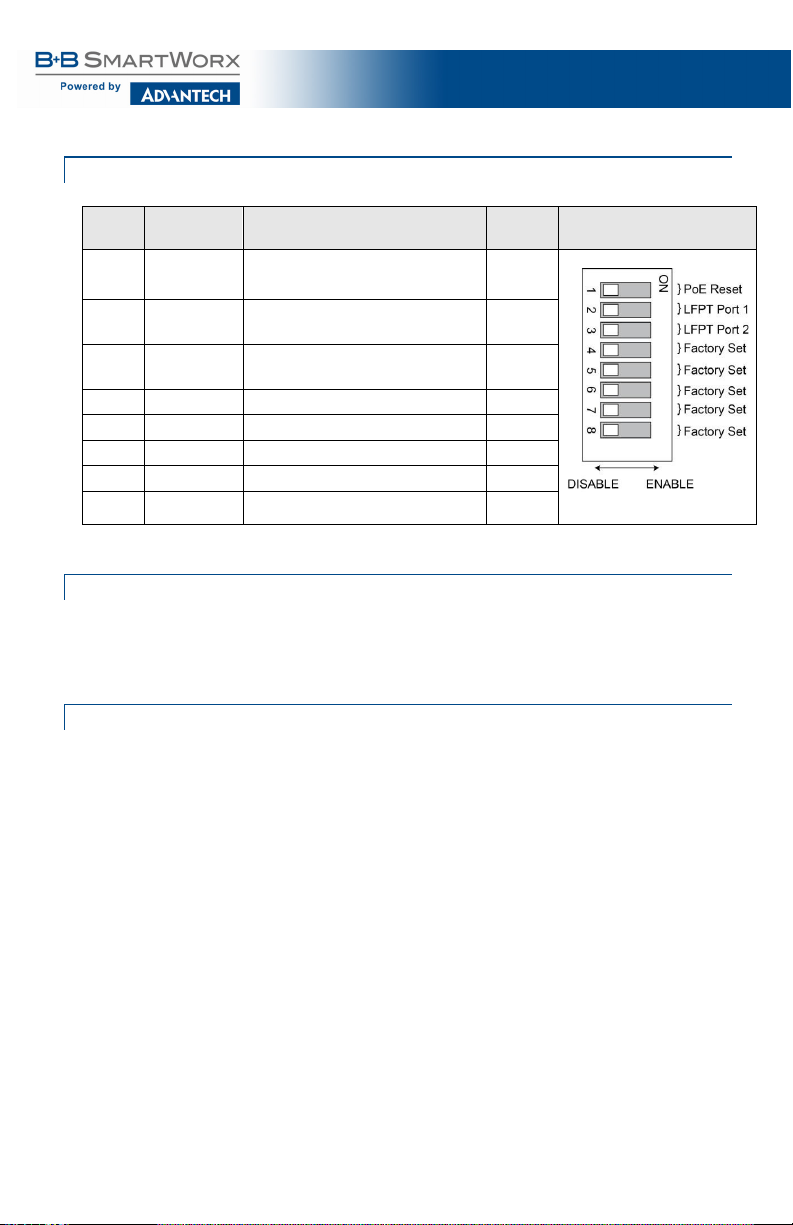

DIP SWITCH CONFIGURATION
DIP
Switch Name
Description
Default Setting DIP Switch
1 PoE Reset
ON forces Port 2, PSE/PoE, to OFF on
LOS of fiber input.
OFF
2 LFPT Port 1
ON enables LFPT for Port 1 and the FX
Port.
OFF
3 LFPT Port 2
ON enables LFPT for Port 2 and the FX
Port.
OFF
4
Factory Set
Do not change.
OFF
5
Factory Set
Do not change.
OFF
6
Factory Set
Do not change.
OFF
7
Factory Set
Do not change.
OFF
8 Factory Set Do not change. OFF
POE RESET DSW
When set to ON, it will force the PSE output power on the copper port OFF
when the LINK state is lost on the SFP line (copper or fiber SFP). By default,
the DSW is set to OFF.

PoE & PoE+ Giga-McBasic LFPT
6
LFPT DIP SWITCHES
The DIP Switches for LFPT allows a LOS fault to be passed through the unit.
When enabled, if link is lost on the FX port, the transmit on the TX port is
disabled. If link is lost on a TX port, the transmit on the FX Port is disabled.
NOTE: With the fault switches – PoE Reset, LFPT Port 1 and LFPT Port 2, only one fault condition is
recognized at a time. The first fault condition is in charge. So, if TX Port 1 has no link and then the FX Port loss
link, the loss of TX Port
1 link causes the FX Port to disable transmit.
LED OPERATION

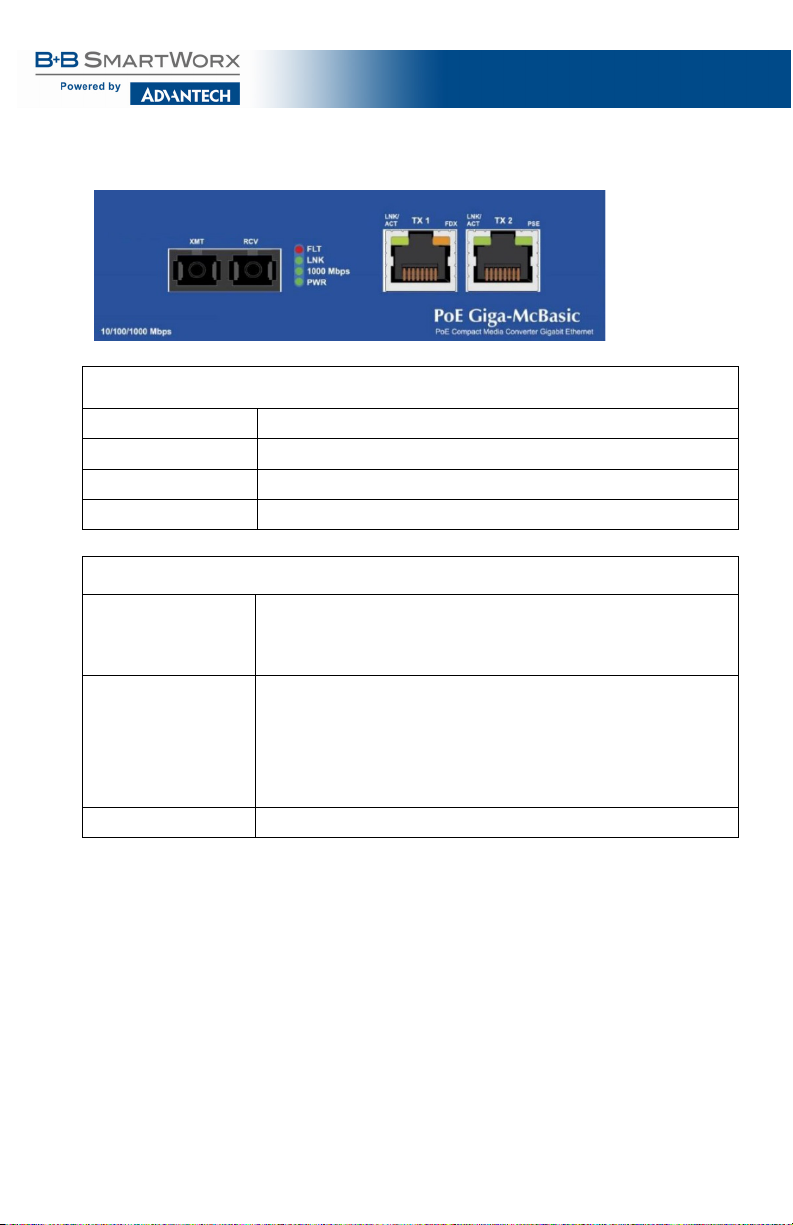

The PoE Giga-McBasic LFPT includes LEDs for three ports, as shown below:
PoE Giga-McBasic LFPT SFP
SFP LED Functions
FLT Glows red when a fault has been detected on the unit.
LNK Glows green with a valid link.
1000 Mbps
Glows green when SFP is running at 1000Mbps.
PWR Glows green when unit is powered.
RJ-45 LED Functions
LNK/ACT (TX1, TX2)
Glows green with a valid link.
Blinks green when activity is detected.
PSE (TX2)
Glows green when port is supplying PoE power.
Blinks green during fault conditions: 1 Hz flashes to indicate an overload or
short; 4 Hz flashes to indicate out-of-range voltage or over-temperature.
Off if the port is not supplying power.
FDX (TX1)
Glows amber when port is running full- duplex.

PoE & PoE+ Giga-McBasic LFPT
7
PoE Giga-McBasic LFPT 1x9
1x9 LED Functions
FLT Glows red when a fault has been detected on the unit.
LNK Glows green with a valid link.
1000 Mbps Glows green when is running at 1000Mbps.
PWR Glows green when unit is powered.
RJ-45 LED Functions
LNK/ACT (TX1, TX2)
Glows green with a valid link.
Blinks green when activity is detected.
PSE (TX2)
Glows green when port is supplying PoE power.
Blinks green during fault conditions: 1 Hz flashes to indicate an
overload or short;
4 Hz flashes to indicate out-of-range voltage or over-
temperature.
Off if the port is not supplying power.
FDX (TX1) Glows amber when port is running full duplex.
NOTE:
The fixed twisted-pair port labeled PSE is the only port capable of providing PoE.

PoE & PoE+ Giga-McBasic LFPT
8
TROUBLESHOOTING
•PWR LED glows green when the unit is powered. If this LED is not lit,
contact B+B SmartWorx Technical
Support.
•Blinks green during fault conditions: 1 Hz flashes to indicate an overload or
short; 4 Hz flashes to indicate out-of-range voltage or over-temperature. The
PSE LED should maintain solid green, to indicate consistent power. Check
the PD device and its requirements.

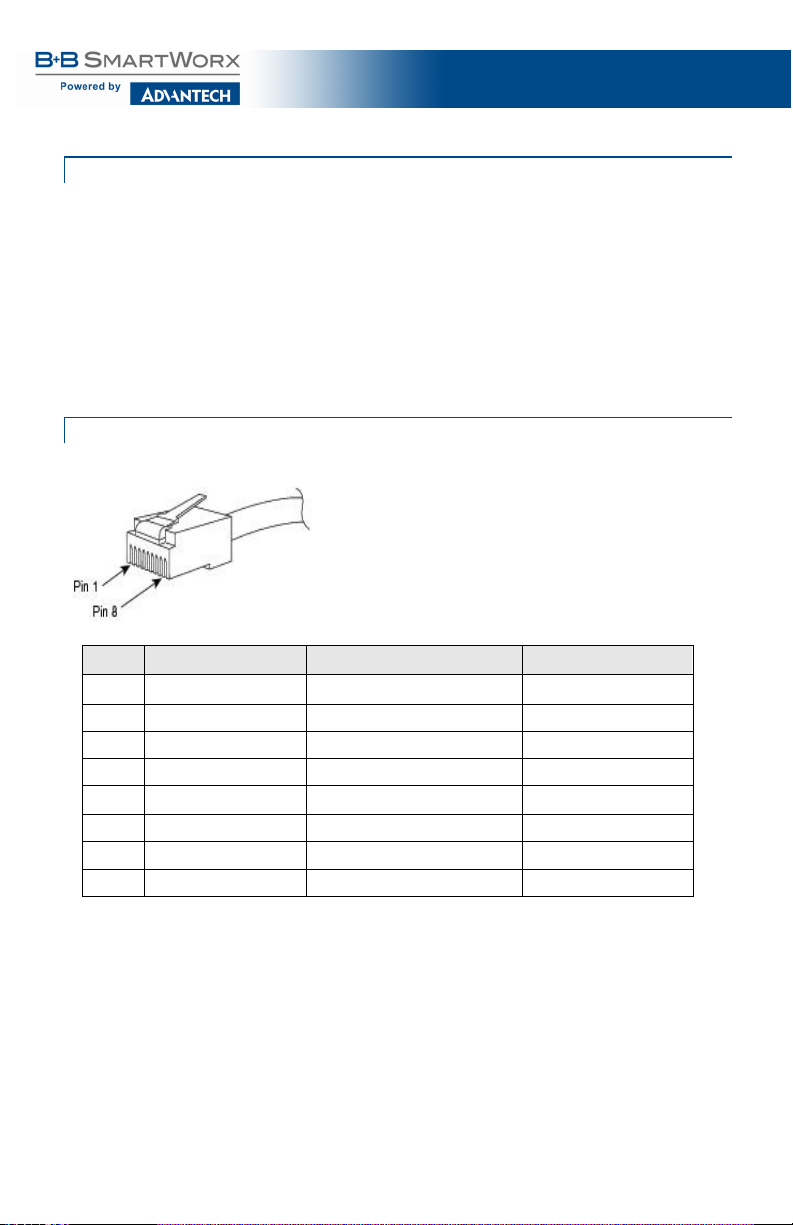

RJ-45 PINOUTS
The following table lists the pin configuration for the RJ-48 connector.
Pin# Signal Name 1000M Signal Direction 10/100M PoE & PoE+ (ALT-B)
1 TXD1+ Out*
2 TXD1- Out*
3 RXD2+ In*
4
D3+
+V
5 D3- +V
6 RXD2- In*
7
D4+
-V
8 D4- -V

PoE & PoE+ Giga-McBasic LFPT
9
SPECIFICATIONS
Ethernet Connections
•10/100/1000 BaseT
•Auto Negotiation
•Auto Cross
•Flow Control
•10240 MTU
•Full Line-Rate Forwarding
Input Specifications
100 to 240 ±10% VAC Input, 50/60 Hz, 0.5A to 0.2A
Operating Temperature
0 to +50 °C (+32 to +122 °F)
Storage Temperature
-40 to +85 °C (-40 to +185 °F)
Humidity
5 to 95% (non-condensing); 0 to 10000 ft. altitude
Dimensions
3.71H x 12.09W x 18.59D cm (1.46H x 4.76W x 7.32D in)
Power Characteristics
Consumes < 10 Watts (heating) plus PSE power
IEEE802.3af Power to Field <15.5 Watts
Standards Compliance
•IEEE 802.3af Power-over-Ethernet
•IEEE 802.3 Ethernet Standards
•IEEE 802.3u Auto Giga-McBasic LFPT

PoE & PoE+ Giga-McBasic LFPT
10
ABOUT POE+ GIGA-MCBASIC LFPT
NOTE: Unless otherwise noted in this manual, any reference is applicable for both the 1x9
and SFP version of the PoE+ Giga-McBasic LFPT.
PoE+ Giga-McBasic LFPT is a solution for private network applications that
require Power-over-Ethernet (PoE) (IEEE802.3af) for locations inside buildings
where PoE is required to power an Ethernet device. The standalone unit offers
a model with one SFP or fixed fiber transceiver, 1x9, uplink for the network
connection, two PSE 10/100/1000Base-T copper ports that provide PoE to
connect a non-PoE unit to the same fiber uplink. As a fiber-fed demarcation
unit, it provides both power and data to a remote device over a standard CAT5
copper line, eliminating theneed for a power connection to the remote device.
The PoE+ Giga-McBasic LFPT provides up to 25.5 Watts per copper port and
is powered by an internal power supply, supporting 100-240 VAC.
The SFP uplink can support fiber or copper SFPs. The fiber SFP, available in
SC or LC connectors, supports 100FDX or 1000FDX; a copper SFP supports
the SGMII interface (10/100/1000Mbps). The SFP, with or without DDMI, is
available for purchase from B+B SmartWorx. The SFP must be MSA-
compliant.
The copper ports auto negotiate to the connected device’s speed and duplex
mode: 10 Mbps, 100 Mbps or 1000 Mbps, and HDX or FDX (including Flow
Control). The PoE+ Giga-McBasic supports jumbo frames up to 10240.

PoE & PoE+ Giga-McBasic LFPT
11
TYPICAL APPLICATION
INSTALLATION
PoE+ Giga-McBasic LFPT installs virtually anywhere: standalone, table-top
device, with rackmount ears or using a wallmount bracket. The rackmount ears
and wallmount bracket are optional accessories available from B+B SmartWorx.
Several models of the PoE+ Giga-McBasic LFPT support single-strand fiber for
operation. Since single-strand fiber p r odu c ts use optics that transmit and receive on two
different wavelengths,
sin g l e -strand fiber products must be deployed in pairs. The two
connected products
must also have the same speed and distance .

PoE & PoE+ Giga-McBasic LFPT
12
DIP SWITCH CONFIGURATION
DIP
Switch
Name
Definition
Default
S etting
DIP Switch
1
PoE Reset
ON forces Ports 1 & 2 PSE/PoE to
OFF on LOS of Fiber input.
OFF
2
LFPT Port 1
ON enables LFPT for Port 1 and
FX
Port.
OFF
3
LFPT Port 2
ON enables LFPT for Port 2 and
FX
Port.
OFF
4
Factory Set
Do not change.
OFF
5
Factory Set
Do not change.
OFF
6
Factory Set Do not change. OFF
7
Factory Set
Do not change.
OFF
8
Factory Set Do not change. OFF
POE RESET DSW
When set to ON, it will force the PSE output power on the copper port OFF
when the LINK state is lost on
th e fiber segment. By default, the DSW is set to
OFF.
LFPT DIP SWITCHES
The DIP Switches for LFPT allow a LOS fault to be passed through the unit.
When enabled, if link is lost on the FX port, the transmit on the TX port is
disabled. If link is lost on a TX port, the transmit on the FX Port is disabled.
NOTE: With the fault switches – PoE Reset, LFPT Port 1 and LFPT Port 2, only one fault condition is recognized
at
a time. The first fault condition is in charge. So if TX Port 1 has no link and then the FX Port loss link, the loss of
TX Port
1 link causes the FX Port to disable transmit.

PoE & PoE+ Giga-McBasic LFPT
13
LED OPERATION
The PoE+ Giga-McBasic LFPT includes LEDs for three ports, as shown below:
PoE+ Giga-McBasic LFPT SFP
SFP LED Functions
FLT
Glows red when a fault has been detected on the unit.
LNK
Glows green with a valid link.
1000 MbpsGlows green when SFP is running at 1000Mbps.
PWR
Glows green when unit is powered.
RJ-45 LED Functions
LNK/ACT (TX1, TX2)
Glows green with a valid link.
Blinks green when activity is detected.
PSE (TX1, TX2)
Glows green when port is supplying PoE power.
Blinks green during fault conditions: 1 Hz flashes to indicate an
overload or short;
4 Hz flashes to indicate out-of-range voltage or
over-temperature.
Off if the port is not supplying power.

PoE & PoE+ Giga-McBasic LFPT
14

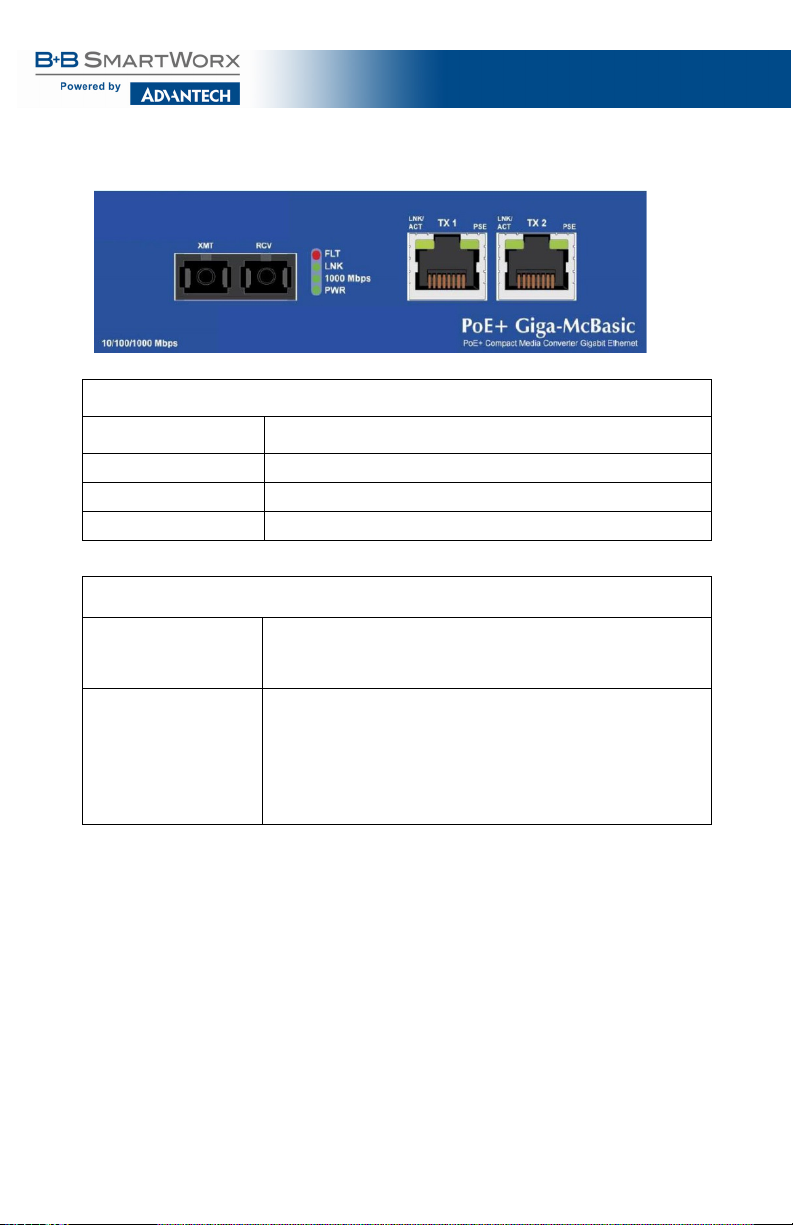

PoE+ Giga-McBasic LFPT 1x9
SFP LED Functions
FLT
Glows red when a fault has been detected on the unit.
LNK
Glows green with a valid link.
1000 MbpsGlows green when SFP is running at 1000Mbps.
PWR
Glows green when unit is powered.
RJ-45 LED Functions
LNK/ACT (TX1, TX2)
Glows green with a valid link.
Blinks green when activity is detected.
PSE (TX1, TX2)
Glows green when port is supplying PoE power.
Blinks green during fault conditions: 1 Hz flashes to indicate an
overload or short;
4 Hz flashes to indicats out-of-range voltage or
over-temperature.
Off if the port is not supplying power.

PoE & PoE+ Giga-McBasic LFPT
15
TROUBLESHOOTING
If the PoE+ Giga-McBasic LFPT is not responding to the power provided to it,
the following conditions may be responsible:
•Blinks green during fault conditions: 1 Hz flashes indicating an overload
or short; 4 Hz flashes indicating out-of-range voltage or over-temperature.
The PSE LED should maintain solid green to indicate consistent power.
Check the PD device and its requirements.
•If the PoE injector has power that can be verified, but the PSE LED is Off,
then contact B+B SmartWorx Technical Support.
RJ-45 PINOUTS
The following table lists the pin configuration for the RJ-48 connector.
Pin#
Signal Name 1000M
Signal Direction 10/100M
PoE & PoE+ (ALT-B)
1
TXD1+
Out*
2
TXD1-
Out*
3
RXD2+
IN*
4
D3+
+V
5
D3-
+V
6
RXD2-
IN*
7
D4+
-V
8
D4-
-V

PoE & PoE+ Giga-McBasic LFPT
16
SPECIFICATIONS
Ethernet Connections
•10/100/1000 BaseT
•Auto Negotiation
•Auto Cross
•Flow Control
•10240 MTU
•Full Line-Rate Forwarding
Input Specifications
100 to 240 ± 10% VAC Input, 50/60 Hz, 1.6A to 0.7A
Operating Temperature
0 to +40 °C (+32 to +104 °F)
Storage Temperature
-40 to +85 °C (-40 to +185 °F)
Humidity
5 to 95% (non-condensing); 0 to 10000 ft. altitude
Dimensions
3.71H x 12.09W X 18.59D cm (1.46H x 4.76W x 7.32D in)
Power Characteristics
•Consumes <10 Watts (heating) plus PSE power
•IEEE802.3af/at Power to Field < 50 Watts (2 x 25.5 Watts)
Standards Compliance
•IEEE 802.3af PoE
•IEEE 802.3at PoE+ Standards
•IEEE 802.3 Ethernet Standards
•IEEE 802.3u Auto Negotiation
•RFC-2474
•RFC-2475 DiffServ QoS

PoE & PoE+ Giga-McBasic LFPT
17
B+B SMARTWORX TECHNICAL SUPPORT
USA/Canada: 1 [phone] (Ottawa IL USA)
Europe: [phone] (Ireland / Europe)
Email: [e-mail]
Web: www.advantech-bb.com

PoE & PoE+ Giga-McBasic LFPT
18
STATEMENTS, PRECAUTIONS, GUIDELINES, REGULATORY
FCC RADIO FREQUENCY INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class
A computing device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which the user will be
required to correct the interference at his own expense.
Any changes or modifications not expressly approved by the manufacturer
could void the user’s authority to operate the equipment.
The use of non-shielded I/O cables may not guarantee compliance with FCC
RFI limits. This digital apparatus does not exceed the Class A limits for radio
noise emission from digital apparatus set out in the Radio Interference
Regulation of the Canadian Department of Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant
les limites applicables aux appareils numériques de classe A prescrites dans le
Règlement sur le brouillage radioélectrique publié par le ministère des
Communications du Canada.
POE PRECAUTIONS (INSIDE BUILDING INSTALLATION ONLY)
The PoE Giga-McBasic LFPT, PoE+ Giga-McBasic LFPT (and PoE
McBasic) are for inside-a-building installation only. These devices cannot
be installed in an outside-of-a-building environment, as they cannot meet PoE
requirements per the PoE standard. If installing the device outside, serious
damage can occur and void any B+B SmartWorx warranty.

PoE & PoE+ Giga-McBasic LFPT
19
ELECTROSTATIC DISCHARGE (ESD) PRECAUTIONS
Electrostatic discharge (ESD) can cause damage to any product, add-in modules or stand
alone units, containing electronic components. Always observe the following precautions
when installing or handling these kinds of products.
1. Do not remove unit from its protective packaging until ready to install.
2. Wear an ESD wrist grounding strap before handling any module or component. If the
wrist strap is not available, maintain grounded contact with the system unit throughout
any procedure requiring ESD protection.
3. Hold units by the edges; do not touch the electronic components or gold connectors.
4. After removal, always place boards on a grounded, static-free surface, ESD pad or in
a proper ESD bag. Do not slide the modules or stand-alone units over any surface.
WARNING! Integrated circuits and fiber optic components are
extremely susceptible to
electrostatic discharge damage. Do not
handle
these components directly unless you are a qualified
service technician and use tools and techniques that conform to
accepted industry practices.
FIBER OPTIC CLEANING GUIDELINES
Fiber Optic transmitters and receivers are extremely susceptible to
contamination by particles of dirt or dust, which can obstruct the optic path and
cause performance degradation. Good system performance requires clean
optics and connector ferrules.
1. Use fiber patch cords (or connectors, if you terminate your own fiber)
only from a reputable supplier; low-quality components can cause many
hard-to-diagnose problems in an installation.
2. Dust caps are installed at the factory to ensure factory-clean optical
devices. These protective caps should not be removed until the moment
of connecting the fiber cable to the device. Should it be necessary to
disconnect the fiber device, reinstall the protective dust caps.
3. Store spare caps in a dust-free environment such as a sealed plastic bag
or box so that, when reinstalled, they do not introduce any contamination
to the optics.
4. If you suspect that the optics have been contaminated, alternate between
blasting with clean, dry, compressed air and flushing with methanol to
remove particles of dirt.

PoE & PoE+ Giga-McBasic LFPT
20
REGULATORY, STANDARDS, COMPLIANCES
UL/cUL: Listed to Safety of Information Technology Equipment, including
Electrical Business Equipment.
CE: The products described herein comply with the Council Directive on
Electromagnetic Compatibility (2004/108/EC) and the Council Directive on
Electrical Equipment Designed for use within Certain Voltage Limits
(2006/95/EC). Certified to Safety of Information Technology Equipment, Including
Electrical Business Equipment. For further details, contact B+B SmartWorx.
European Directive 2002/96/EC (WEEE) requires that any equipment that bears this
symbol on product or packaging must
not be disposed of with unsorted municipal waste.
This symbol indicates that the equipment should be disposed of separately from regular
household waste.
It is the consumer’s respons ibility to dispose of this and all equipment
so marked through
d e si g nat e d collection facilities appointed by government or local
authorities. Following these steps through proper disposal and recy
cl ing will help
prevent potential negative consequences
to the environment and human health. For
more detailed information about proper disposal, please contact local authorities, waste
disposal services, or the point of purchase for this
equipment.
© 2018 B+B SmartWorx – powered by Advantech. All rights reserved. The information in this
document is subject to change without notice. B+B SmartWorx assumes no responsibility for any
errors that may appear in this document. PoE & PoE+Giga-McBasic is a trademark of B+B
SmartWorx. Other brands or product names may be trademarks and are the property of their
respective companies.
Documentation Number: PoE_&_PoE+Giga-McBasic-LFPT_4718m
Class 1 Laser product, Luokan 1 Laserlaite,
Laser Klasse 1, Appareil A’Laser de Classe
