Chapter 1
Introduction

INTRODUCTION
1
1.1. Overview
Advantech’s USB-4600 series of serial to USB converters are the easies, the most reliable
way to add serial ports to a PC. To attach the USB-4604B/4604BM to a PC, you don’t need
to open the chassis or power down your PC. After installing the driver, connect the USB con-
verters to your computer, will instantly get extra high-speed RS-232/422/485 ports. By sim-
ply plugging in a USB-hub, USB-4600 series eliminate the configuration issues associated
with high-priced, elder card solutions. You only have to install the driver, no need to set
cards slot, IRQ addresses, or device addresses. This reduces programming effort.
USB-4600 series products are compliant with USB 2.0 specifications, and up to 480M bps
high-speed requirement. USB-4600 series supports for transmission speeds up to 921.6k
bps, which meets the demand for high speed data exchange.
1.2. Features
USB-4600 series products have the following features:
Full compliance with USB V2.0 specifications.
RS-232/422/485 port supported
Serial Transmission speed up to 921.6 kbps
Automatic RS-485 data flow control
No external power supply necessary; the hub derives its power from USB port
Plug & Play installation
No additional IRQs or I/O ports required
Hot swap function supported
1.3. Specifications
1.3.1 General
Table 1-1. General
Specificaiton Description
Certifications CE, FCC (Class A)
Connectors 1 x USB Type B (Type A to Type B cable provided)
4 x DB9
Enclosure ABS + PC
USB Cable Max. 15ft (4.6 m)

INTRODUCTION
2
1.3.2 Power Requirement
1.3.3 Special Communications
1.3.4 Mechanism
Table 1-2. Power Requirement
Specificaiton Description
Power Input 12 to 48 VDC (external) or 5 VDC (Bus powered)
Power Consumption 130 mA @ 5 V (Typical)
200 mA @ 5 V (Max.)
Table 1-3. Special Communications
Specificaiton Description
Port Type RS-232/422/485, software selectable
No. of Ports 4
Port Connector DB9 male
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Odd, Even, Space, Mark
Transmission Speed Up to 921.6 kbps
Flow Control XON/XOFF, RTS/CTS
Baud Rate 50 bps ~ 921.6 kbps, any baud rate setting
Serial Signals RS-232: TxD, RxD, CTS, RTS, DTR, DSR, DC, RI, GND
RS-422: TxD+, TxD-, RxD+, RxD-, GND
RS-485: Data+, Data-, GND
Protection 15 KV ESD for all signals
Table 1-4. Mechanism
Specificaiton Description
Dimensions (W x D x H) 132 x 80 x 32 mm
5.2 x 3.15 x 1.26 inch
Enclosure ABS + PC
Mounting DIN-rail, panel

INTRODUCTION
3
1.3.5 Software
1.3.6 Environment
1.3.7 Regulatory Approvals
Table 1-5. Software
Specificaiton Description
Driver Support Windows XP/7/8/8.1, Windows Server 2008/2012/2012 R2
Table 1-6. Software
Specificaiton Description
Operating Temperature -40°C ~ 75°C (-40°F ~ 167°F)
Storage Temperature -40°C ~ 80°C (-40°F ~ 176°F)
Operating Humidity 10 ~ 95% (non-condensing)
Table 1-7. Regulatory Approvals
Specificaiton Description
Regulatory Approvals EMC CE, FCC Part 15 Subpart B (Class A)

INTRODUCTION
4
1.4. Dimensions

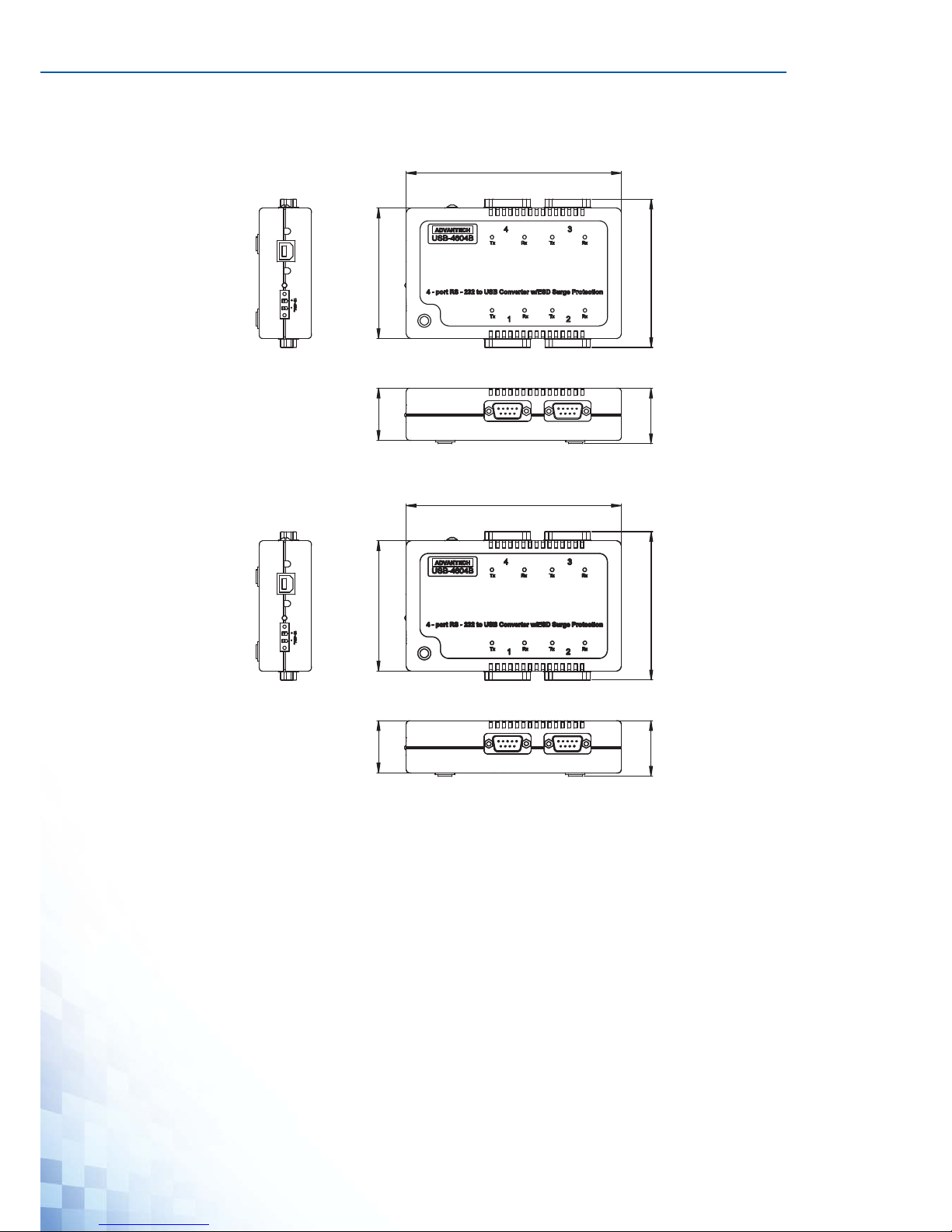

Figure 1-1. USB-4604B
Figure 1-2. USB-4604BM
132 [5.20]
80 [3.15]32 [1.26]
91 [3.58]
34 [1.34]
132 [5.20]
80 [3.15]32 [1.26]
91 [3.58]
34 [1.34]

Chapter 2
Installation

INSTALLATION
6
2.1. Driver Installation
We strongly recommend you install the driver before you insert the USB-4600 series into
USB port of your PC, since this will guarantee a smooth installation process.
2.1.1 Steps for Driver Setup
1. Insert the Advantech CD-ROM into your CD-RAM drive (whereas E:\ is the drive name
of your CD-ROM) on the host PC.
2. Use Windows explorer or the Windows Run command to execute the setup program,
the path for the setup program on the CD-ROM is as follows:
E:\Serial Converter\USB-
4604BE\Advantech_USB4064BE_Drive_v1.0.4_20150701.exe
3. If there is an existing COM port mapping utility on the host PC, remove it at this time. A
system reboot may be necessary before continuing the installation.
4. Once the Advantech USB-4604BE Drive Setup screen displays, click Install to proceed
with the installation.

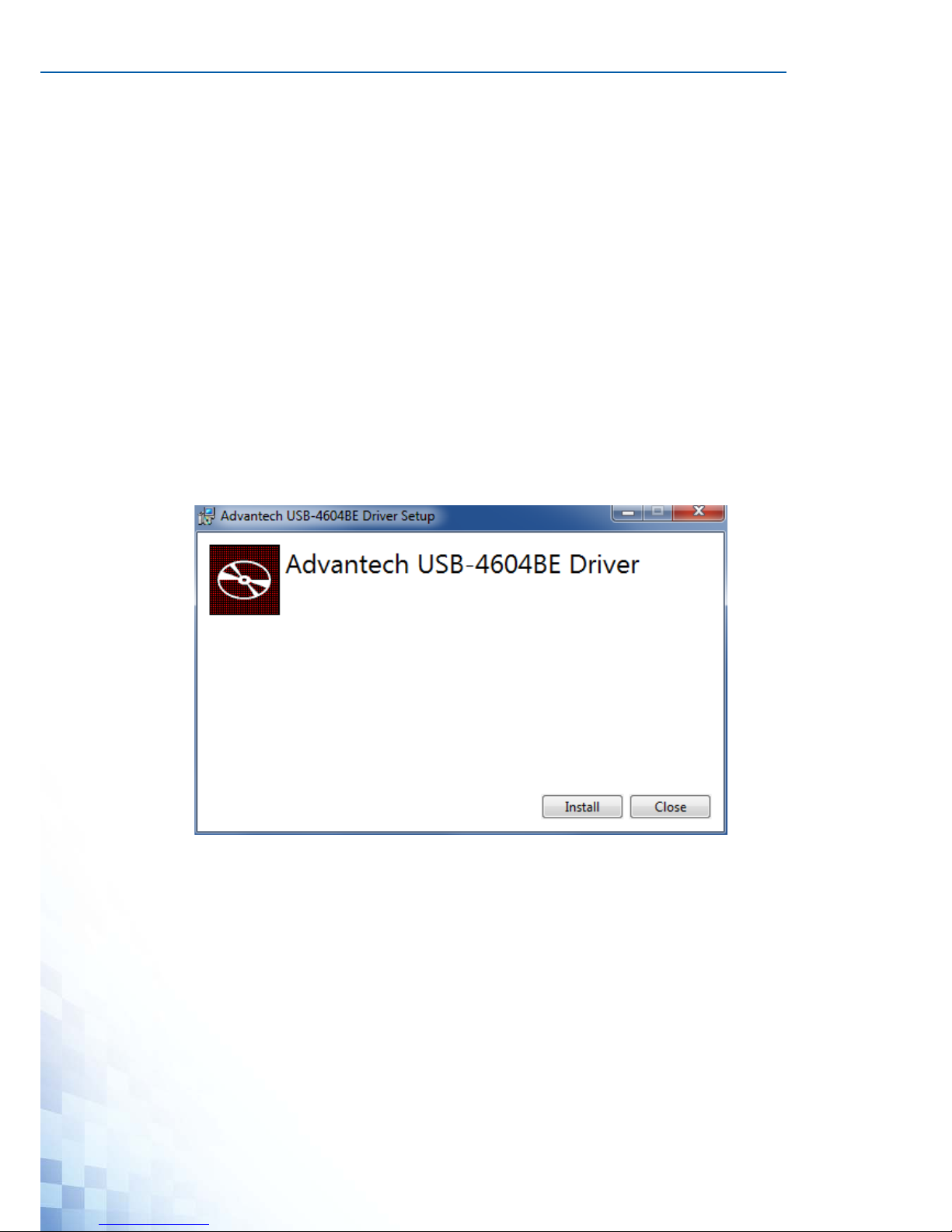

Figure 2-1. Setup 1 of 3

INSTALLATION
7

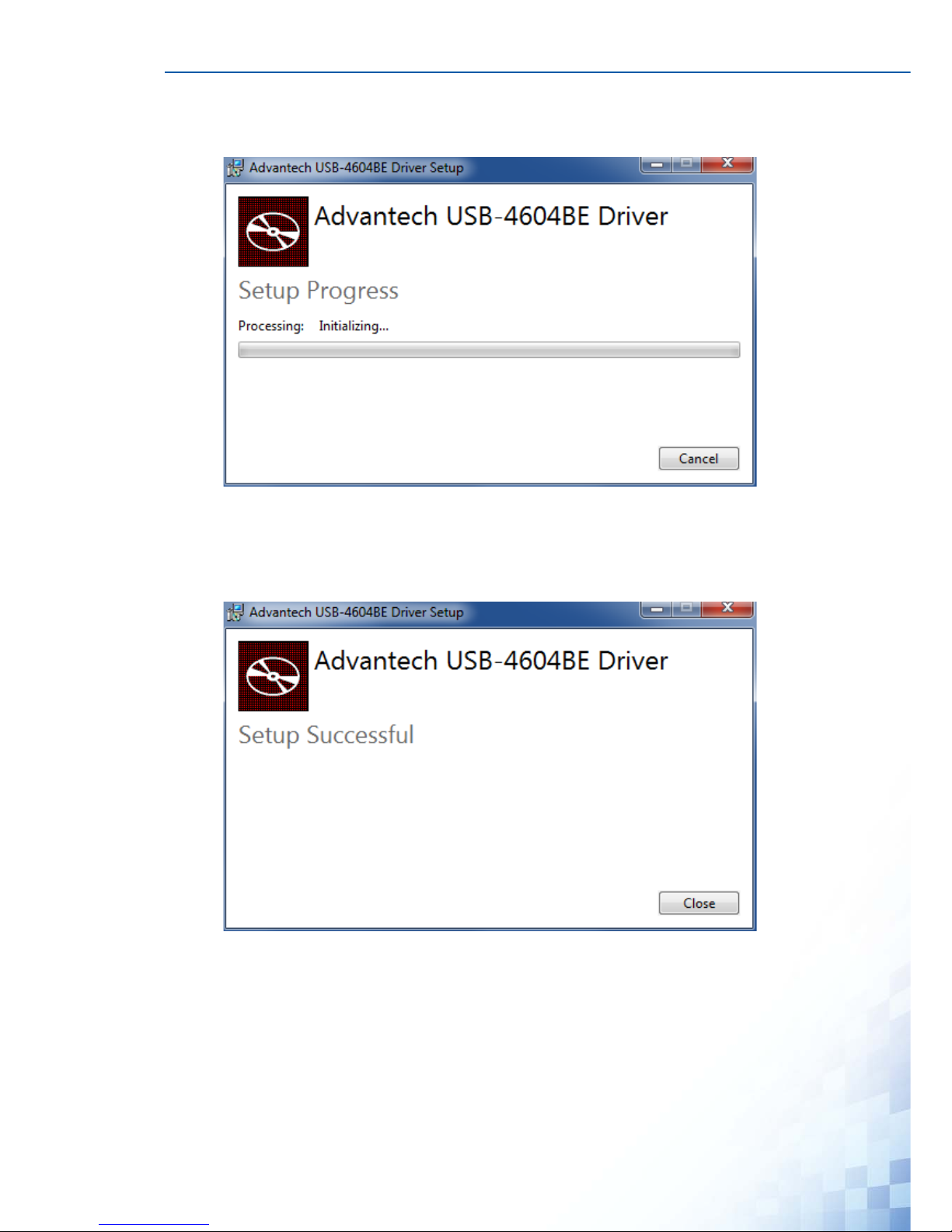

The Advantech USB-4604BE Drive Setup continues and a status screen displays. The
default installation path is C:\Program Files (x86)\Advantech\USB2Serial.
Figure 2-2. Setup 2 of 3
5. Once the installation of the package is finished a Advantech USB-4604BE Drive Setup
screen displays. Click Close to conclude the process and exit the Advantech USB-
4604BE Drive Setup.
Figure 2-3. Setup 3 of 3
2.2. Hardware Installation
When the USB-4600 series plug into the USB port, the Found New Hardware Wizard will
show up. Through the Wizard, the module could be installed automatically.
It will take four times to install the COM ports if you are using USB-4604B/4604BM due to 4
COM ports.

INSTALLATION
8
2.3. Verifying Driver Setup
After you have installed your card, go to Control Panel > Device Manager to look for the
Device Name that will appear after you have installed the driver.
Figure 2-4. Verifying Driver Setup
2.4. Limitations
USB-4600 series might need the external power input (10~48VDC) when the USB port can
not provide enough current. Typically, USB-4604B/4604BM requires at least 130mA@5VDC
and 200mA@5VDC from USB bus power.
If the current is not enough, you will observe the system keeps showing connection / discon-
nection to the USB devices. In this situation, it is necessary to input the external voltage to
the 2-pin green connector for power input.
Generally, if you attach several USB-4600 series Converters on your PC and the serial ports
are running at high speed such as 921.6 kbps, the CPU loading will become too high to run
smoothly. It is recommended to apply the proper amount of USB-4600 series modules to
your PC depending on the CPU performance of your system.
If your device has not been properly installed, there will be an exclamation mark (!)
on the device name to indicatea conflicting device. If this is the case, just remove
that device and start the driver installation process all over again.

INSTALLATION
9
2.5. Unplugging the Converters
Though the Advantech USB to Serial Converter are hot-swappable, we still recommend you
to follow the hardware un-installation procedure to avoid any unpredictable damages to your
device or your system.
1. Close the applications with any opened port of USB to Serial Converter.
2. Click the Safely Remove Hardware in windows task bar.
3. Click Stop Advantech USB-xxxx USB2Serial Converter.
4. Click OK on the Safe to Remove Hardware dialog box.
5. Unplug the USB to Serial Converter from the USB port.
2.6. Updating the Drivers
1. Close the applications with any opened port of the USB to Serial Converter.
2. Go to Control Panel > Programs and Features. Double click on the Advantech USB-
xxxx Driver.
3. Click Update Driver button.
Figure 2-5.

INSTALLATION
10
4. The Upgrade Device Driver Wizard will help you to upgrade device driver.
2.7. Uninstalling the Drivers
1. Close the applications with any opened port of the USB to Serial Converter.
2. Go to Control Panel > Programs and Features. Click on the Advantech USB-xxxx
Driver.
3. Click Uninstall or Change button.
Figure 2-6.
4. Advantech USB-4604BE Drive Setup show up.
If you have 2 or more Advantech USB to Serial Converter installed, the above
upgrade method won't take effect. You can do follow below steps:
1. Unplug all Advantech USB to Serial Converters.
2. Install new driver.
3. Plug in the Advantech USB to Serial Converter.

INSTALLATION
11
5. Choose Uninstall button.
Figure 2-7.
6. Once the uninstallation is finished a Advantech USB-4604BE Drive Setup screen dis-
plays. Click Close to conclude the process.
Figure 2-8.

INSTALLATION
12
