Advantech ADAM-4561 User manual

ADAM-4561
1-Port Isolated USB to
RS-232/422/485 Converter
User Manual

ADAM-4561 User Manual ii
Copyright
The documentation and the software included with this product are copy-
righted 2005 by Advantech Co., Ltd. All rights are reserved. Advantech
Co., Ltd. reserves the right to make improvements in the products
described in this manual at any time without notice. No part of this man-
ual may be reproduced, copied, translated or transmitted in any form or
by any means without the prior written permission of Advantech Co., Ltd.
Information provided in this manual is intended to be accurate and reli-
able. However, Advantech Co., Ltd. assumes no responsibility for its use,
nor for any infringements of the rights of third parties, which may result
from its use.
Acknowledgements
Intel and Pentium are trademarks of Intel Corporation.
Microsoft Windows and MS-DOS are registered trademarks of
Microsoft Corp.
All other product names or trademarks are properties of their respective
owners.
Part No. 2000456100 Edition 2.0
Printed in Taiwan October 2006

iii
Product Warranty (2 years)
Advantech warrants to you, the original purchaser, that each of its prod-
ucts will be free from defects in materials and workmanship for two years
from the date of purchase.
This warranty does not apply to any products which have been repaired or
altered by persons other than repair personnel authorized by Advantech,
or which have been subject to misuse, abuse, accident or improper instal-
lation. Advantech assumes no liability under the terms of this warranty as
a consequence of such events.
Because of Advantech’s high quality-control standards and rigorous test-
ing, most of our customers never need to use our repair service. If an
Advantech product is defective, it will be repaired or replaced at no
charge during the warranty period. For out-of-warranty repairs, you will
be billed according to the cost of replacement materials, service time and
freight. Please consult your dealer for more details.
If you think you have a defective product, follow these steps:
1. Collect all the information about the problem encountered. (For
example, CPU speed, Advantech products used, other hardware
and software used, etc.) Note anything abnormal and list any
onscreen messages you get when the problem occurs.
2. Call your dealer and describe the problem. Please have your man-
ual, product, and any helpful information readily available.
3. If your product is diagnosed as defective, obtain an RMA (return
merchandize authorization) number from your dealer. This allows
us to process your return more quickly.
4. Carefully pack the defective product, a fully-completed Repair and
Replacement Order Card and a photocopy proof of purchase date
(such as your sales receipt) in a shippable container. A product
returned without proof of the purchase date is not eligible for war-
ranty service.
5. Write the RMA number visibly on the outside of the package and
ship it prepaid to your dealer.

ADAM-4561 User Manual iv
Declaration of Conformity
CE
This product has passed the CE test for environmental specifications
when shielded cables are used for external wiring. We recommend the use
of shielded cables. This kind of cable is available from Advantech. Please
contact your local supplier for ordering information.
CE
This product has passed the CE test for environmental specifications. Test
conditions for passing included the equipment being operated within an
industrial enclosure. In order to protect the product from being damaged
by ESD (Electrostatic Discharge) and EMI leakage, we strongly recom-
mend the use of CE-compliant industrial enclosure products.
FCC Class A
Note: This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environ-
ment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Opera-
tion of this equipment in a residential area is likely to cause harmful inter-
ference in which case the user will be required to correct the interference
at his own expense.

v
FCC Class B
Note: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Technical Support and Assistance
Step 1. Visit the Advantech web site at www.advantech.com/support
where you can find the latest information about the product.
Step 2. Contact your distributor, sales representative, or Advantech's cus-
tomer service center for technical support if you need additional
assistance. Please have the following information ready before
you call:
- Product name and serial number
- Description of your peripheral attachments
- Description of your software (operating system, version, appli-
cation software, etc.)
- A complete description of the problem
- The exact wording of any error messages

ADAM-4561 User Manual vi
Safety Instructions
1. Read these safety instructions carefully.
2. Keep this User's Manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning.
Use a damp cloth. Do not use liquid or spray detergents for clean-
ing.
4. For plug-in equipment, the power outlet socket must be located
near the equipment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Drop-
ping it or letting it fall may cause damage.
7. The openings on the enclosure are for air convection. Protect the
equipment from overheating. DO NOT COVER THE OPENINGS.
8. Make sure the voltage of the power source is correct before con-
necting the equipment to the power outlet.
9. Position the power cord so that people cannot step on it. Do not
place anything over the power cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the
power source to avoid damage by transient overvoltage.
12. Never pour any liquid into an opening. This may cause fire or elec-
trical shock.
13. Never open the equipment. For safety reasons, the equipment
should be opened only by qualified service personnel.
14. If one of the following situations arises, get the equipment checked
by service personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well, or you cannot get it to work
according to the user's manual.
e. The equipment has been dropped and damaged.
f. The equipment has obvious signs of breakage.
15. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT
WHERE THE STORAGE TEMPERATURE MAY GO BELOW -

vii
20° C (-4° F) OR ABOVE 60° C (140° F). THIS COULD DAM-
AGE THE EQUIPMENT. THE EQUIPMENT SHOULD BE IN A
CONTROLLED ENVIRONMENT.
16. CAUTION: DANGER OF EXPLOSION IF BATTERY IS
INCORRECTLY REPLACED. REPLACE ONLY WITH THE
SAME OR EQUIVALENT TYPE RECOMMENDED BY THE
MANUFACTURER, DISCARD USED BATTERIES ACCORD-
ING TO THE MANUFACTURER'S INSTRUCTIONS.
The sound pressure level at the operator's position according to IEC 704-
1:1982 is no more than 70 dB (A).
DISCLAIMER: This set of instructions is given according to IEC 704-1.
Advantech disclaims all responsibility for the accuracy of any statements
contained herein.

ADAM-4561 User Manual viii

ix Table of Contents
Contents
Chapter 1 Overview .......................................................... 2
1.1 Introduction....................................................................... 2
1.2 Features:............................................................................ 3
1.3 Specifications.................................................................... 4
1.4 Package Checklist ............................................................. 4
Chapter 2 Installation & Setup........................................ 6
2.1 Hardware Installation........................................................ 6

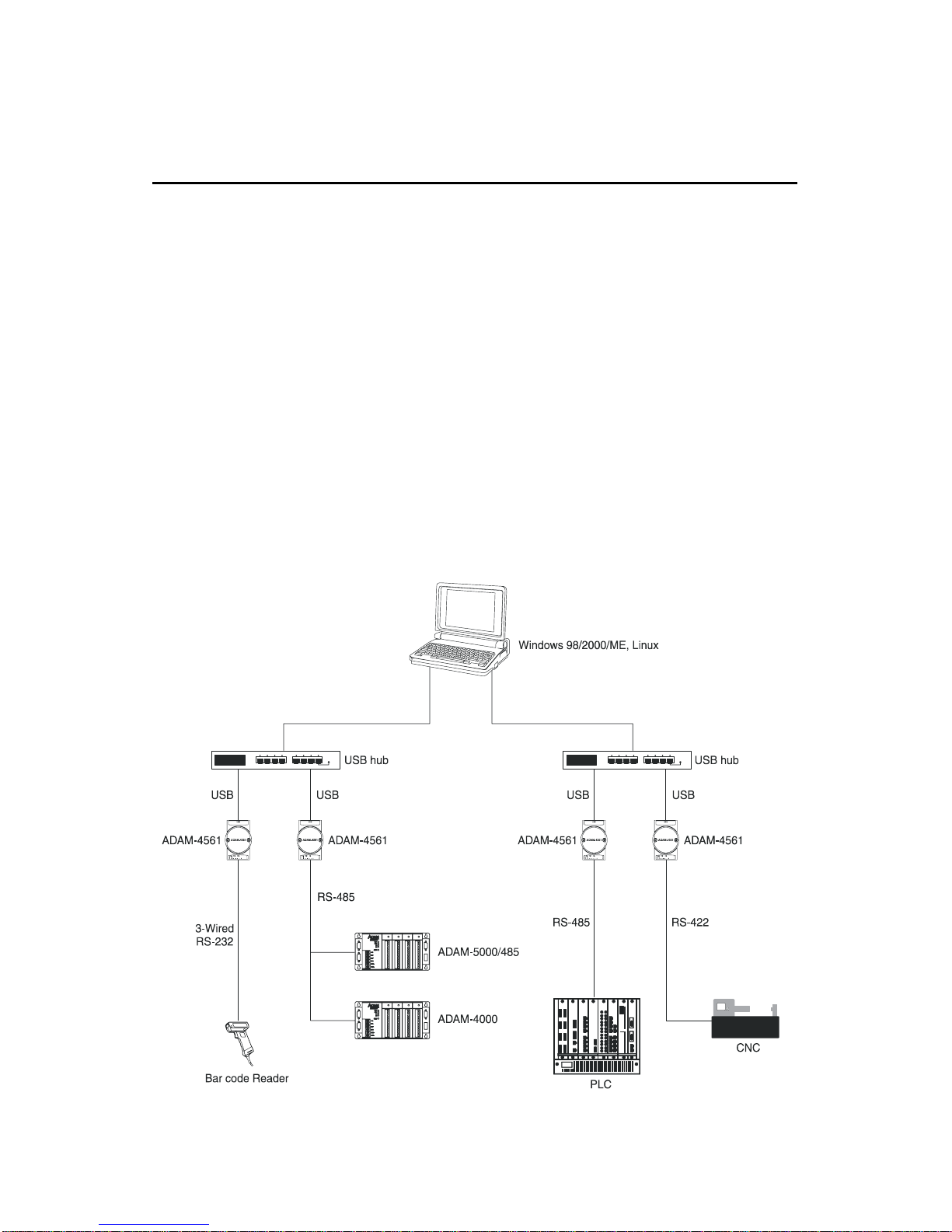

2.1.1 Network Architecture .................................................... 6
Figure 2.1:Network Architecture ................................... 6
2.1.2 Network Connection ......................................................7
2.1.3 Serial Connection ........................................................... 7
Figure 2.2:Wiring of RS-232 Connection ......................7
Figure 2.3:Wiring of RS-485 Connection ......................8
Figure 2.4:Wiring of RS-422 Connection ......................8
2.1.4 Jumper Settings .............................................................. 9
2.2 Software Installation ....................................................... 10

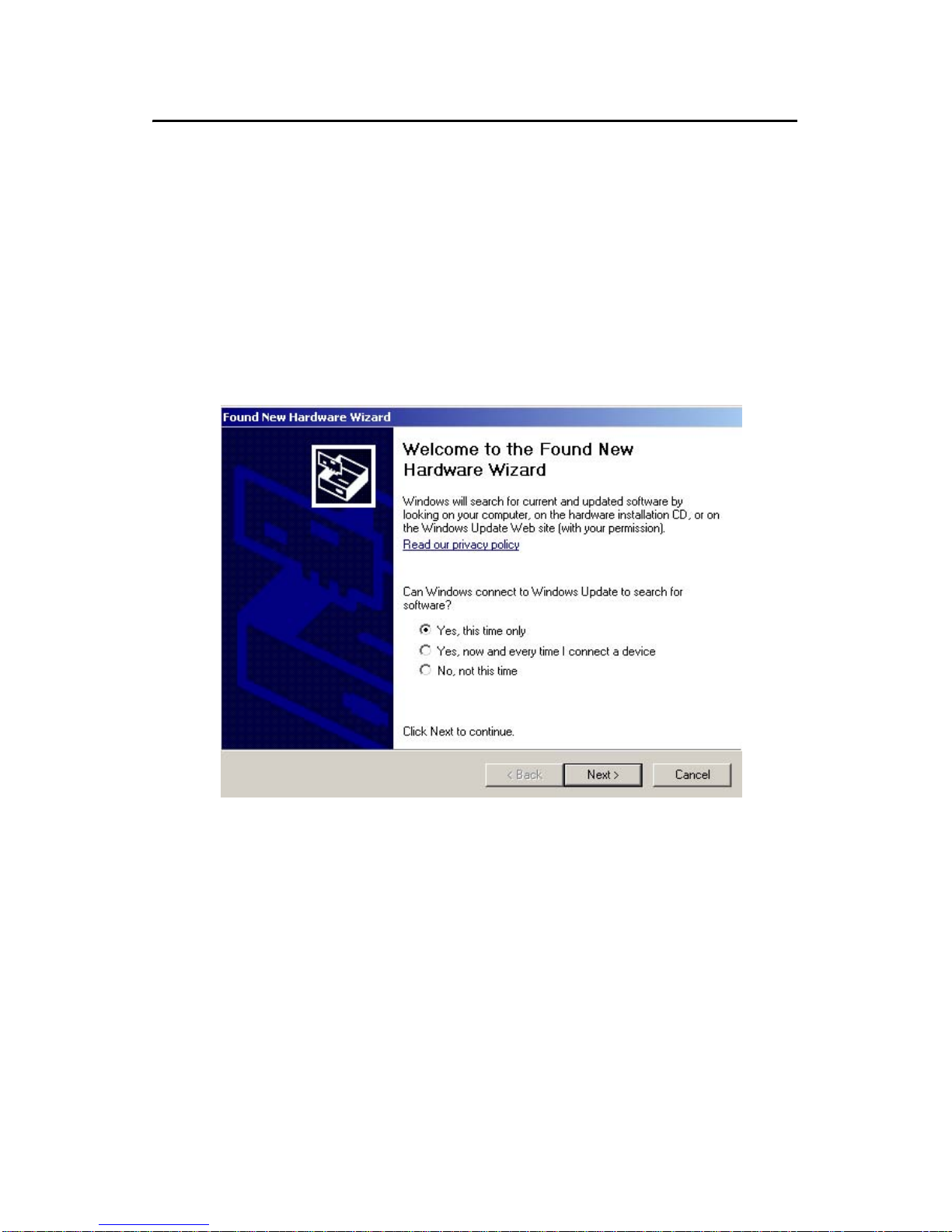

2.2.1 Driver and Utility Installation ..................................... 10

ADAM-4561 User Manual x

2
CHAPTER
1
Overview

ADAM-4561 User Manual 2
Chapter 1 Overview
1.1 Introduction
Advantech’s ADAM-4561 allows PC users to connect their serial devices
to systems that use USB interface. By attaching the ADAM-
4561 to a PC, it will no longer be necessary to open the chassis or turn off
the PC to install the hub. With the ADAM-4561, the user instantly gets one
extra high-speed RS-232/422/485 ports. In addition, since the power is
derived from the USB port, there are not any cumbersome power adapters.
This makes the ADAM-4561 especially suitable for printers, POS system
and industrial control devices.
CompliantwithUSB v1.1,the ADAM-4561featuresalotofpowerful func-
tions such as high-speed 115.2 Kbps, support for various operat- ingsys-
tems, independent RS-232/422/485 port and more. Bysimply plugging in a
USBhub,theADAM-4561eliminatesconfiguration issues associated with
expensive, antiquated card solutions. This eliminates the need to remove
the PC cover and or to reboot the operating system during installation.
The user only installs the driver, and follows the on-screen instructions.
This reduces a lot of program- mingtime.
The USB interface, now standard on virtually all new PCs, offers signifi-
cant advantages over earlier bus types. A signal USB interface can con-
nect up to 127 devices at data rates up to 12 Mbps. This kind of easy and
convenient connectivity means that your network can grow with your
needs.

3 Chapter1
1.2 Features:
• FullcompliancewithUSB v1.1specifications.
• RS-232/422/485portsupported
• Transmission speed up to 115.2 Kbps
• Isolation protection 3,000 V
DC
provided
• AutomaticRS-485dataflowcontrol
• No external power supply necessary; the ADAM-4561 derives its power
fromtheUSB port.
• Plug-and-playinstallation.
• No additional IRQs or I/O ports required.
• Hot swap function supported
• DriversforWidows98/ME/2000

ADAM-4561 User Manual 4
1.3 Specifications
• Compatibility:USBv1.1standard
• Interface: Network:USB
Serial:3-wireRS-232,RS-422,RS-485
• Port:1IndependentRS-232/422/485ports
• Connector: Network:USB-type A connector
Type A to B cable provided
Serial: twist-pair cable
• Transmissionspeed:75 bps to 115.2 Kbps
• Parity bit: odd, even, none
• Databit:5,6,7,8
• Stop bit: 1,1.5,2
• RS-232Signals:Tx,Rx,GND
• Isolationprotection:3,000V
• DriverSupported:Windows98/ME/2000
If you have Linux driver needs, please contact Advantech directly.
• PowerConsumption:1.5W@5V(Windows98/ME/200)
• Max.Distance:15ft(4.6m)
• Case:ABS+PC withcaptivemounting hardware
• Placement:DIN-rail,panel mounting,piggybackstack
• OperatingTemperature:0to70°C
• StorageTemperature:-25°to80°C
• OperatingHumidity:20%to95%(non-condensing)
• Storage Humidity: 0%to 95%(non-condensing)
1.4 Package Checklist
• ADAM-4561
• ADAM CD containing ADAM-4561 User Manual and Driver
• One Type A to Type B USB cable
• NYLON DIN-rail Mounting Adapter
• SECC Panel Mounting Bracket

2
CHAPTER
2
Installation & Setup

ADAM-4561 User Manual 6
Chapter 2 Installation & Setup
2.1 Hardware Installation
2.1.1 Network Architecture
Traditional serial port communication uses a COM port board that slides
into one of the slots at the back of your PC. With the ADAM- 4561, you
can access the COM port from USB ports. The ADAM-4561 can be inte-
grated into the network architecture of any protocol.
The following illustration shows the network architecture:
Figure 2.1: Network Architecture
Note: All the operating systems on your host
mustsupport USB v1.1 standard, such as Win-
dows 98/ME/2000. USB devices are used in
“Master-Slave” architecture. Before you use
ADAM-4561, you must determine the master
PC

7 Chapter2
2.1.2 Network Connection
When using the ADAM-4561, you will simply plug one end of USB cable
(included in package) into ADAM-4561, and the other end into the USB
hub or your host PC.
2.1.3 Serial Connection
The model of the ADAM-4561 that you purchased has 10 pin connec- tor
for connecting serial ports on the bottom of module. Only one set of
twisted-pair cables is required to transmit both Data and RTS signalsfor
RS-485interface.
Wiring for RS-232 Connection
Figure 2.2: Wiring of RS-232 Connection
Note: In USB v1.1 standard, If you have used the
COM3, COM4….. COMn of host PC. When
you plug ADAM-4561 in the host PC, the COM
port will be COMn+1.

ADAM-4561 User Manual 8
Wiring of RS-485 Connection
Figure 2.3: Wiring of RS-485 Connection
Wiring of RS-422 Connection
Figure 2.4: Wiring of RS-422 Connection

9 Chapter2
2.1.4 Jumper Settings
You can use JP1 on ADAM-4561 to configure serial mode. Please refer to
the picture below for Jumper JP1 location.
You can choose “On (RS-422 Master)” or “Auto (RS-422 Slave/RS-485
Automatic Direction Control)” for serial mode. Please refer to the picture
below.
For RS-485, if the JP1 is set to “Auto”, the driver automatically senses
the direction of the data flow and switches the direction of transmission.
Handshaking is unnecessary. For RS-422, if the JP1 is set to “Auto”, it
will become RS-422 slave. If the JP1 is set to “On”, the driver is always
enabled, and always in high or low status. The user must select the mode
before beginning RS-422 application.

ADAM-4561 User Manual 10
2.2 Software Installation
2.2.1 Driver and Utility Installation
In order to use a PC to control serial devices connected to the ADAM-
4561, you must first have a host running Windows 98/ME/2000. Follow-
ing are the installation instructions to set up the ADAM-4561.
Insert the ADAM Utility CD into the CD-ROM drive on the host PC.
Plug-in the ADAM-4561 to USB port on your PC. You will see the dialog
window (as shown by figure below) appearing. Choose “Yes, this time
only“ to continue the installation.
Choose “Install from a list or specific location (Advanced)” and then
click the “Next” button.
