Imagine SEL-2FS1 User manual

SEL-1FS1/SEL-2FS1
and
SEL-1XD1/SEL-2XD1
Single/Dual-Channel Frame Synchronizer Module with
Advanced Audio Processing
and
Single/Dual-Channel Video Conversion Modules with
Advanced Audio Processing
Version 2.8
November 2015
Installation and Operation Manual

SEL-1FS1/SEL-2FS1 and SEL-1XD1/SEL-2XD1 Installation and Operation Manual
© 2015 Imagine Communications Corp. Proprietary and Confidential. Version 2.8 | Page 2
Publication Information
© 2015 Imagine Communications Corp.
Proprietary and Confidential.
Imagine Communications considers this document and its contents to be proprietary and confidential.
Except for making a reasonable number of copies for your own internal use, you may not reproduce this
publication, or any part thereof, in any form, by any method, for any purpose, or in any language other
than English without the written consent of Imagine Communications. All others uses are illegal.
This publication is designed to assist in the use of the product as it exists on the date of publication of
this manual, and may not reflect the product at the current time or an unknown time in the future. This
publication does not in any way warrant description accuracy or guarantee the use for the product to
which it refers. Imagine Communications reserves the right, without notice to make such changes in
equipment, design, specifications, components, or documentation as progress may warrant to improve
the performance of the product.
Trademarks
Selenio™ is a trademark of Imagine Communications or its subsidiaries. Microsoft® and Windows® are
registered trademarks of Microsoft Corporation. HD-BNC is a trademark of Amphenol Corporation.
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are registered
trademarks of Dolby Laboratories. All other trademarks and trade names are the property of their
respective companies.
Contact Information
Imagine Communications has office locations around the world. For domestic and international location
and contact information, visit our Contact page
(http://www.imaginecommunications.com/company/contact-us.aspx).
Support Contact Information
For domestic and international support contact information, see:
•Support Contacts (http://www.imaginecommunications.com/how-buy/contact-us)
•Worldwide Support e-mail ([e-mail])
•Customer Community Portal (http://app.imaginecommunications.com/customercommunity)
•Warranty & Contract Information (http://www.imaginecommunications.com/services/customer-
care)
•Academy Training (http://www.imaginecommunicationsacademy.com)
•Product Manuals (http://www.imaginecommunications.com/services/product-manuals)

SEL-1FS1/SEL-2FS1 and SEL-1XD1/SEL-2XD1
Installation and Operation Manual
© 2015 Imagine Communications Corp. Proprietary and Confidential. Version 2.8 | Page 3
Contents
Manual Information............................................................................................... 8
Purpose..................................................................................................................................................... 8
Audience................................................................................................................................................... 8
Revision History........................................................................................................................................ 8
Writing Conventions................................................................................................................................. 8
Obtaining Documents............................................................................................................................... 9
Unpacking/Shipping Information ............................................................................................................. 9
Unpacking a Product ............................................................................................................................ 9
Product Servicing...................................................................................................................................... 9
Returning a Product ........................................................................................................................... 10
Safety......................................................................................................................................................10
Restriction on Hazardous Substances (RoHS) Compliance ................................................................ 10
Waste from Electrical and Electronic Equipment (WEEE) Compliance..............................................11
Safety Terms and Symbols in this Manual ......................................................................................... 11
Installation, Operation, and Specifications........................................................... 12
Overview.................................................................................................................................................12
Main Features.....................................................................................................................................12

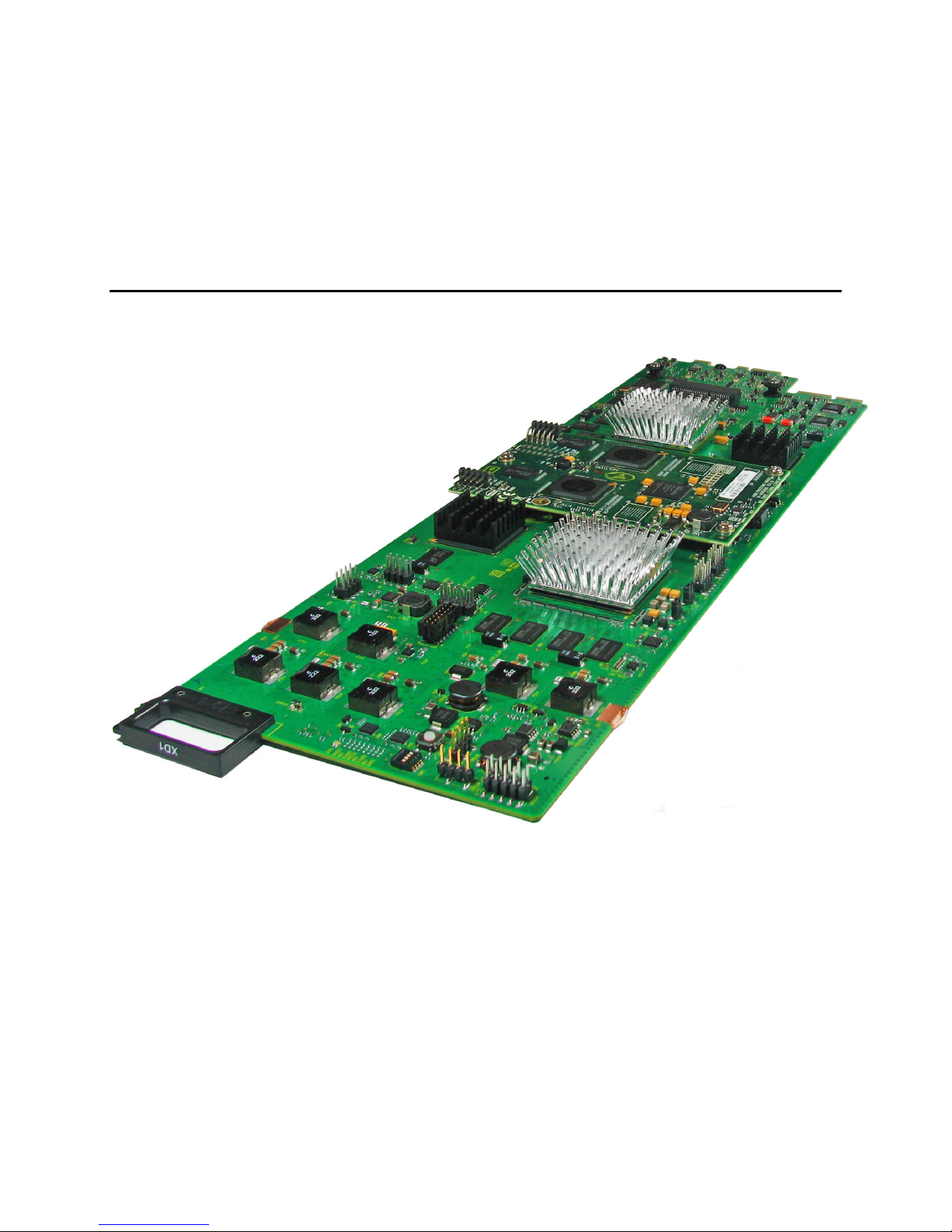

Front Modules ........................................................................................................................................ 15

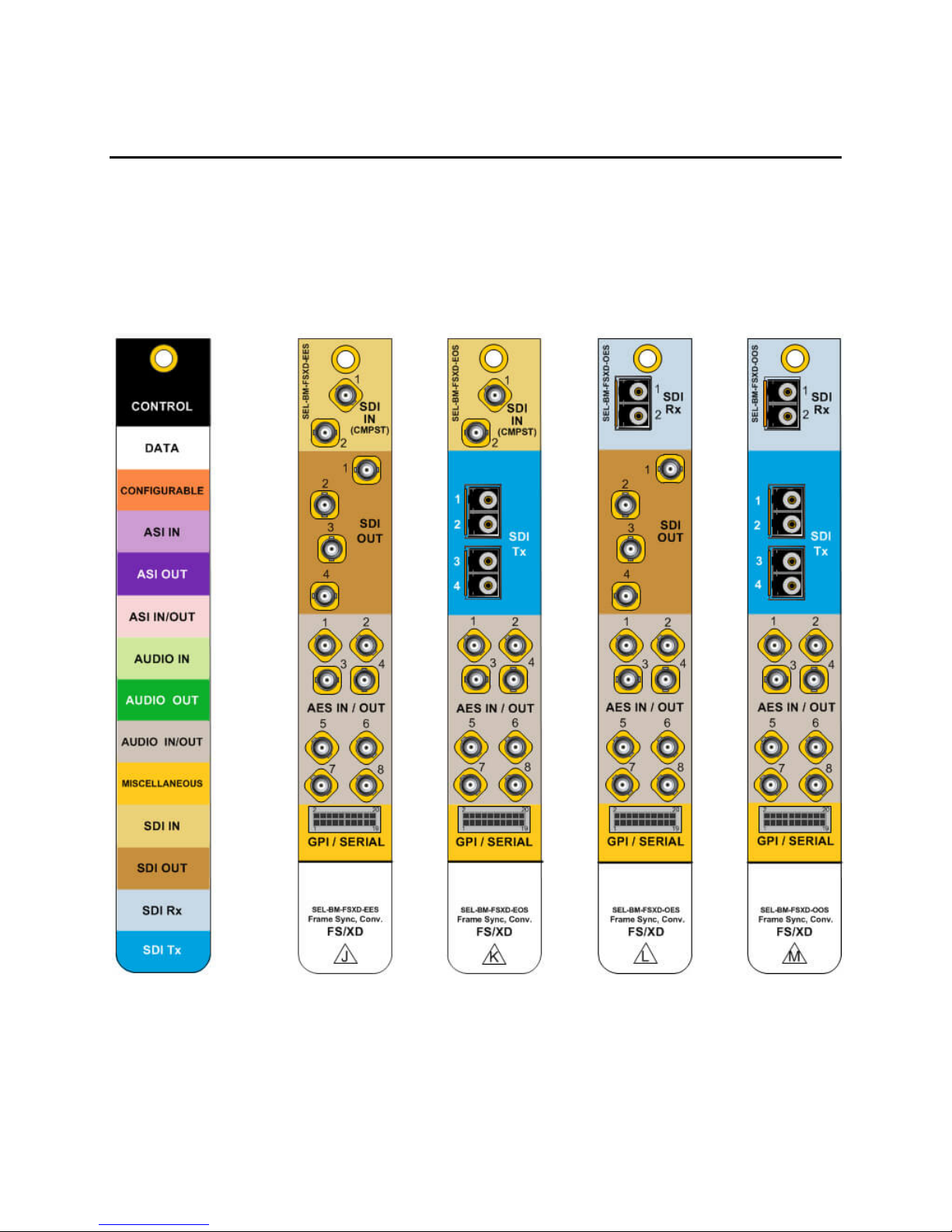

FS1/XD1 Back Modules...........................................................................................................................18
Audio Expansion Back Modules.............................................................................................................. 19
Video Expansion Back Modules.............................................................................................................. 20
Back Module Pinouts.............................................................................................................................. 20
GPI Serial ............................................................................................................................................ 21
Balanced AES ......................................................................................................................................22
Analog Audio Expansion..................................................................................................................... 23
SFP Options............................................................................................................................................. 24
FS1 Signal Flow ....................................................................................................................................... 25
XD1 Signal Flow ...................................................................................................................................... 27
EES (Electrical/Electrical) Video Expander Signal Flow...........................................................................29
Example of EES Video Expander Routing Assignment........................................................................ 30
VEX and DDA Internal Connectivity....................................................................................................30
Installing Selenio Modules...................................................................................................................... 31
Removing the Front Module ..................................................................................................................32
Removing the Back Module.................................................................................................................... 32
Audio Expansion Modules ......................................................................................................................33

SEL-1FS1/SEL-2FS1 and SEL-1XD1/SEL-2XD1
Installation and Operation Manual
© 2015 Imagine Communications Corp. Proprietary and Confidential. Version 2.8 | Page 4
Connections to the Analog Audio Expansion Back Module ...............................................................33
Analog Audio Expansion Module Jumpers......................................................................................... 34
Audio Expansion Configurations ........................................................................................................ 35
Powering Up a Module........................................................................................................................... 36
Upgrading Module Firmware .................................................................................................................36
Upgrade Failure Instructions.............................................................................................................. 36
License Keys............................................................................................................................................ 37
Accessing MIBs ................................................................................................................................... 37
Composite Decoder................................................................................................................................38
Video Input .............................................................................................................................................38
Input Routing...................................................................................................................................... 38
Auto Routing.......................................................................................................................................39
EDH-CRC-SQM 1 and 2 ....................................................................................................................... 39
Audio De-Embedding (DMB) ..................................................................................................................39
Data De-embedding (DMB) .................................................................................................................... 40
Video Sync and Delay ............................................................................................................................. 40
Video Proc Amp and Color Corrector x .................................................................................................. 40
Proc Amp ............................................................................................................................................ 40
Clip Control......................................................................................................................................... 40
Color Correction .................................................................................................................................41
Gamma Correction .............................................................................................................................43
Conversion and Advanced Video Processing (XD1)................................................................................43
Status.................................................................................................................................................. 43
ARC Control (XD1 Versions Only) .......................................................................................................44
AFD-VI-WSS Insertion.........................................................................................................................45
AFD, VI, WSS Custom Mapping ..........................................................................................................45
Custom ARC........................................................................................................................................46
Scalar Configuration ...........................................................................................................................46
General Information on ARC and AFD.................................................................................................... 46
AFD (Active Format Description)........................................................................................................ 47
AFD/ARC Alignment ........................................................................................................................... 47
AFD, VI, and WSS-Based Aspect Ratio Control...................................................................................48
AFD Descriptions .................................................................................................................................... 49
AFD 4:3 ...............................................................................................................................................50
AFD 16:9 .............................................................................................................................................51
4:3 to 16:9 ..........................................................................................................................................52
4:3 to 4:3 ............................................................................................................................................53
16:9 to 4:3 ..........................................................................................................................................54
16:9 to 16:9 ........................................................................................................................................55

SEL-1FS1/SEL-2FS1 and SEL-1XD1/SEL-2XD1
Installation and Operation Manual
© 2015 Imagine Communications Corp. Proprietary and Confidential. Version 2.8 | Page 5
Video Processing ................................................................................................................................56
Audio Processing ................................................................................................................................ 56
ANC Processing................................................................................................................................... 56
Other ..................................................................................................................................................57
AFD-VI-WSS Processing (FS1) ................................................................................................................. 57
Video Selector/TSG-OSD.........................................................................................................................57
Test Signal Generators ....................................................................................................................... 57
On-Screen Display (OSD) .................................................................................................................... 58
Logo 1 and 2 ........................................................................................................................................... 58
File Select............................................................................................................................................58
Raster x...............................................................................................................................................58
Graphics Storage and Playout Overview............................................................................................58
Basic Steps to Installing Logo Files .....................................................................................................59
Step 1: Install LogoCreator Software.................................................................................................. 59
Step 2: Convert Files to the .mg2 Format ..........................................................................................60
Step 3: Transfer the Logos to the SD/SDHC Card, and to the Module............................................... 62
Step 4: Set the Parameters and Load the Logo Files.......................................................................... 62
Data Embedding and De-Embedding ..................................................................................................... 62
General ............................................................................................................................................... 63
VBI Transfer ........................................................................................................................................ 63
Closed Captioning/Teletext................................................................................................................ 64
Timecode ............................................................................................................................................65
ARC Code Advanced ........................................................................................................................... 65
Brandnet............................................................................................................................................. 65
Generic Data Passing..........................................................................................................................66
Audio Embedding ...................................................................................................................................66
Handling of Non-PCM/Compressed Audio Signals............................................................................. 66
Synchronizing Embedded Non-PCM Audio ........................................................................................ 66
Audio Embedding Control ..................................................................................................................67
Audio Embedding Modes ................................................................................................................... 67
Embedding Errors...............................................................................................................................72
Preventing Embedding Errors ............................................................................................................72
Video Output and Routing...................................................................................................................... 72
Output Format.................................................................................................................................... 72
Output Routing...................................................................................................................................73
Operation Mode.................................................................................................................................73
Linear Frame Rate Conversion (XD1) ................................................................................................. 76
Audio IO (Input/Output) Assignment ..................................................................................................... 78
Audio Inputs and Outputs ..................................................................................................................78

SEL-1FS1/SEL-2FS1 and SEL-1XD1/SEL-2XD1
Installation and Operation Manual
© 2015 Imagine Communications Corp. Proprietary and Confidential. Version 2.8 | Page 6
Input Control and Status ........................................................................................................................ 80
Audio Processing Symbols in the Parameter Options........................................................................80
AAEX and DAEX Expander Audio Alignment ......................................................................................81
Advanced Audio Processing....................................................................................................................81
Installing the Advanced Audio Processing Submodule ......................................................................81
Software Key License Credits Overview ............................................................................................. 82
Enabling DTS Neural and Dolby Modes.............................................................................................. 84
Dolby Products ...................................................................................................................................85
Dolby-E Alignment..............................................................................................................................86
AAP Internal Metadata.......................................................................................................................86
DTS Neural Surround Audio UpMix.................................................................................................... 93
Audio Delay ........................................................................................................................................94
DTS Neural Surround Audio DownMix ............................................................................................... 95
DTS Neural Surround Audio MultiMerge ...........................................................................................97
DTS Neural Loudness Control........................................................................................................... 101
Audio Input Delay and Sync..................................................................................................................105
Synchronization Parameters ............................................................................................................106
Audio Proc Amp....................................................................................................................................106
Audio Output Routing and Delay.......................................................................................................... 107
Audio Bit Manipulation ........................................................................................................................ 108
Channel Status Bits........................................................................................................................... 108
Audio Metadata.................................................................................................................................... 110
Audio TSG ............................................................................................................................................. 110
GPI Inputs and Outputs ........................................................................................................................ 111
Writing Custom GPI Scripts .............................................................................................................. 111
GPI Input Script Example..................................................................................................................112
GPI Output Script Example............................................................................................................... 113
Genlock and DARS ................................................................................................................................114
Miscellaneous....................................................................................................................................... 114
Status................................................................................................................................................ 114
Other ................................................................................................................................................115
Preset................................................................................................................................................115
Version..............................................................................................................................................115
Parameter Control Script..................................................................................................................115
License Credit, MCPS Status and MCPS Planner ..............................................................................117
Green-Power Save............................................................................................................................119
Laser Safety...........................................................................................................................................120
Precautions for Enclosed Systems....................................................................................................120
Precautions for Unenclosed Systems ............................................................................................... 121

SEL-1FS1/SEL-2FS1 and SEL-1XD1/SEL-2XD1
Installation and Operation Manual
© 2015 Imagine Communications Corp. Proprietary and Confidential. Version 2.8 | Page 7
Label ..................................................................................................................................................... 121
Inspecting and Cleaning Fiber Optic Connections................................................................................121
Important Points .............................................................................................................................. 122
Inspection and Cleaning Procedure ................................................................................................. 123
Alarm List (Faults)................................................................................................................................. 124
Specifications........................................................................................................................................126
SDI Input Video Specifications.......................................................................................................... 127
SDI Output Video Specifications....................................................................................................... 128
SDI Fiber Input Specifications (OP+SFP+RR Dual Input)................................................................... 129
SDI Fiber Output Specifications (OP+SFP+TT+1313 Dual Output) ................................................... 129
Composite Video Input Specifications ............................................................................................. 130
Serial Data Port Specifications .........................................................................................................130
AES Audio Input Specifications......................................................................................................... 130
AES Audio Output Specifications...................................................................................................... 131
AES Expansion Module Balanced Input Specifications.....................................................................131
AES Expansion Module Balanced Output Specifications.................................................................. 131
AES Expansion Module Unbalanced Input Specifications ................................................................ 132
AES Expansion Module Unbalanced Output Specifications ............................................................. 132
Analog Audio Input Specifications (Audio Expansion Module)........................................................133
Analog Audio Output Specifications (Audio Expansion Module)..................................................... 133
Graphics Storage Specifications ....................................................................................................... 134
Propagation Delays Specifications ...................................................................................................134
Power Consumption Specification ................................................................................................... 134

SEL-1FS1/SEL-2FS1 and SEL-1XD1/SEL-2XD1
Installation and Operation Manual Manual Information
© 2015 Imagine Communications Corp. Proprietary and Confidential. Version 2.8 | Page 8
Manual Information
Purpose
This manual details the features, installation, operation, maintenance, and specifications for the Selenio
MCP FS1 and XD1 modules.
Audience
This manual is written for engineers, technicians, and operators responsible for installation, setup,
maintenance, and/or operation of the Selenio MCP FS1 and XD1 modules.
Revision History
Table 1: Manual Revision History
Edition Date Revision History
A March 2011 First release
B May 2011 Revised installation procedure
C August 2011 Additional information about AES expansion modules
D November 2011 Addition of frame rate conversion and Dolby Digital
E January 2012 Addition of Dolby features
F March 2012 New loudness control and Dolby E/Dolby Digital features
G September 2013 Corrections to audio specifications
Version 2.8 October 2015 Added audio processing submodule installation instructions
November 2015 Corrected scripting parameter number examples
Writing Conventions
This manual adheres to the following writing conventions.
Term or Convention Description
Bold Indicates dialog box, property sheet, field, button, check box, list box, combo
box, menu, submenu, window, list, and selection names
Italics Indicates email addresses, names of books and publications, and first

SEL-1FS1/SEL-2FS1 and SEL-1XD1/SEL-2XD1
Installation and Operation Manual Manual Information
© 2015 Imagine Communications Corp. Proprietary and Confidential. Version 2.8 | Page 9
Term or Convention Description
instances of new terms and specialized words that need emphasis
CAPS Indicates a specific key on the keyboard, such as ENTER, TAB, CTRL, ALT,
DELETE
Code Indicates variables or command-line entries, such as a DOS entry or
something you type into a field.
> Indicates the direction of navigation through a hierarchy of menus and
windows
hyperlink Indicates a jump to another location within the electronic document or
elsewhere
Internet address Indicates a jump to a Web site or URL
Obtaining Documents
Product support documents can be viewed or downloaded from our website. Alternatively, contact your
Customer Service representative to request a document.
Unpacking/Shipping Information
Unpacking a Product
This product was carefully inspected, tested, and calibrated before shipment to ensure years of stable
and trouble-free service.
1. Check equipment for any visible damage that may have occurred during transit.
2. Confirm that you have received all items listed on the packing list.
3. Contact your dealer if any item on the packing list is missing.
4. Contact the carrier if any item is damaged.
5. Remove all packaging material from the product and its associated components before you install
the unit.
Keep at least one set of original packaging, in the event that you need to return a product for servicing.
Product Servicing
Except for firmware upgrades, modules are not designed for field servicing. All hardware upgrades,
modifications, or repairs require you to return the modules to the Customer Service center.

SEL-1FS1/SEL-2FS1 and SEL-1XD1/SEL-2XD1
Installation and Operation Manual Manual Information
© 2015 Imagine Communications Corp. Proprietary and Confidential. Version 2.8 | Page 10
Returning a Product
In the unlikely event that your product fails to operate properly, please contact Customer Service to
obtain a Return Authorization (RA) number, and then send the unit back for servicing.
Keep at least one set of original packaging in the event that a product needs to be returned for service.
If the original package is not available, you can supply your own packaging as long as it meets the
following criteria:
•The packaging must be able to withstand the product’s weight.
•The product must be held rigid within the packaging.
•There must be at least 2 in. (5 cm) of space between the product and the container.
•The corners of the product must be protected.
Ship products back to us for servicing prepaid and, if possible, in the original packaging material. If the
product is still within the warranty period, we will return the product prepaid after servicing.
Safety
Carefully review all safety precautions to avoid injury and prevent damage to this product or any
products connected to it. If this product is rack-mountable, it should be mounted in an appropriate rack
using the rack-mounting positions and rear support guides provided. It is recommended that each frame
be connected to a separate electrical circuit for protection against circuit overloading. If this product
relies on forced air cooling, it is recommended that all obstructions to the air flow be removed prior to
mounting the frame in the rack.
If this product has a provision for external earth grounding, it is recommended that the frame be
grounded to earth via the protective earth ground on the rear panel.
IMPORTANT! Only qualified personnel should perform service procedures.
Restriction on Hazardous Substances (RoHS) Compliance
Directive 2002/95/EC—commonly known as the European Union (EU) Restriction on Hazardous
Substances (RoHS)—sets limits on the use of certain substances found in electrical and electronic
equipment. The intent of this legislation is to reduce the amount of hazardous chemicals that may leach
out of landfill sites or otherwise contaminate the environment during end-of-life recycling. The
Directive, which took effect on July 1, 2006, refers to the following hazardous substances:
•Lead (Pb)
•Mercury (Hg)
•Cadmium (Cd)
•Hexavalent Chromium (Cr-V1)
•Polybrominated Biphenyls (PBB)
•Polybrominated Diphenyl Ethers (PBDE)
According to this EU Directive, all products sold in the European Union will be fully RoHS-compliant and
“lead-free.” (See our website for more information.) Spare parts supplied for the repair and upgrade of

SEL-1FS1/SEL-2FS1 and SEL-1XD1/SEL-2XD1
Installation and Operation Manual Manual Information
© 2015 Imagine Communications Corp. Proprietary and Confidential. Version 2.8 | Page 11
equipment sold before July 1, 2006 are exempt from the legislation. Equipment that complies with the
EU directive will be marked with a RoHS-compliant emblem.
Waste from Electrical and Electronic Equipment (WEEE)
Compliance
The European Union (EU) Directive 2002/96/EC on Waste from Electrical and Electronic Equipment
(WEEE) deals with the collection, treatment, recovery, and recycling of electrical and electronic waste
products. The objective of the WEEE Directive is to assign the responsibility for the disposal of
associated hazardous waste to either the producers or users of these products. As of August 13, 2005,
the producers or users of these products were required to recycle electrical and electronic equipment at
end of its useful life, and may not dispose of the equipment in landfills or by using other unapproved
methods. (Some EU member states may have different deadlines.)
In accordance with this EU Directive, companies selling electric or electronic devices in the EU will affix
labels indicating that such products must be properly recycled. (See our website for more information.)
Contact your local sales representative for information on returning these products for recycling.
Equipment that complies with the EU directive will be marked with a WEEE-compliant emblem.
Safety Terms and Symbols in this Manual
WARNING
Statements identifying conditions or practices that may result in personal injury or loss of
life. High voltage is present.
CAUTION
Statements identifying conditions or practices that can result in damage to the equipment
or other property.

SEL-1FS1/SEL-2FS1 and SEL-1XD1/SEL-2XD1
Installation and Operation Manual Installation, Operation, and Specifications
© 2015 Imagine Communications Corp. Proprietary and Confidential. Version 2.8 | Page 12
Installation, Operation, and
Specifications
Overview
The SEL-1XD1 and SEL-2XD1 video conversion modules are broadcast-quality up/down/cross converters
designed to convert and process signals in both video and audio domains. The SEL-1XD1 and SEL-2XD1
can accept both analog video inputs, and component digital video inputs (SD-SDI, 1.5G HD-SDI, and level
A and level B-DL 3G-SDI) with embedded audio and ANC data.
SEL-1FS1 and SEL-2FS1 are auto-timing serial digital frame synchronizers and audio synchronizers.
Functionally, the SEL-1FS1 and SEL-2FS1 are the same as the SEL-1XD1 and SEL-2XD1, but lack the video
conversion and advanced video processing capability. Additional audio and video capability is available
with expansion modules, which are installed adjacent to FS1 and XD1 modules in a Selenio MCP3 frame.
For information about setting and configuring IP addresses that affect these modules, see the Selenio
MCP1 and MCP3 Frame Manuals.
Main Features
The following topics are covered:
•Input (on page 12)
•Output (on page 13)
•Video Processing (on page 13)
•Audio Processing (on page 14)
•ANC Processing (on page 14)
•Other (on page 14)
•Software Key Options (on page 14)
Input
•Auto-sensing NTSC/PAL-B/PAL-M/SECAM video inputs, and component digital video inputs (SD-SDI,
1.5G HD-SDI, and 1080p level A and 1080p level B-DL 3G-SDI)
•Dual-channel independent video input processing, including audio and VANC data such as
WSS/VI/AFD, closed captioning, teletext, timecode, Brandnet, and audio metadata
•SDI input error monitoring
•Main board capacity of two SDI or analog video composite input, with eight configurable AES input
and output
•Video input from internal frame controller CXN network
•Video expansion board capacity for additional electrical and fiber SDI inputs
•AES audio expansion board capacity of 8 unbalanced AES inputs or 8 balanced AES inputs

SEL-1FS1/SEL-2FS1 and SEL-1XD1/SEL-2XD1
Installation and Operation Manual Installation, Operation, and Specifications
© 2015 Imagine Communications Corp. Proprietary and Confidential. Version 2.8 | Page 13
•Analog audio expansion board capacity of eight balanced inputs
•Analog composite genlock input with support for tri-level sync, from external reference
•RS-232/422 serial port for external metadata
•Four GPI inputs, TTL
•Rules engine: custom GPI inputs, GPI outputs, and parameter control scripts
Output
•Dual-channel independent video output processing, including audio, VANC data such as
WSS/VI/AFD, closed captioning, teletext, timecode, Brandnet, and audio metadata
•User-selectable input and output standards/formats
•Main board capacity of four SDI outputs, and eight configurable AES input and outputs
•Video input from internal frame controller CXN network
•Video expansion board capacity for additional electrical and fiber SDI outputs
•AES audio expansion board capacity of 16 unbalanced AES outputs or 16 balanced AES outputs
•Analog audio expansion board capacity of eight balanced outputs
•RS-232/422 serial port for external metadata
•Four GPI outputs, TTL
Video Processing
•Analog composite color decoder
•Legalizer (hard clipping), proc amp and color correction
•Frame sync and video delay up to 24 frames for SD/HD-SDI and 9 frames for 3G-SDI
•Dual-channel up/down/cross/aspect ratio conversion using advanced 10-bit image processor (SEL-
1XD1 and SEL-2XD1 only)
•Basic (frame repeat/drop) frame rate conversion with optional linear frame rate converter (single
channel operation)
•Test signal generator
•Logo generator/inserter
•Motion adaptive de-interlacing for exceptional vertical resolution
•Video noise reduction and detail enhancement
•Color space conversion between analog composite, SD-SDI (601), and HD-SDI (709)
•User-configurable picture-resizing aspect ratio conversion (H/V size, H/V position)
•Fixed preset aspect ratios that include 16:9 anamorphic, 16:9 middle cut, 14:9, 4:3, etc.
•Variable ARC with five user presets
•Aspect ratio adjustment according to embedded WSS/VI/AFD information
•Advanced cropping with separate controls for top, bottom, left and right
•Clean cut transitions during aspect ratio change
•SDI video clipping
•Eight user-selectable colors for the internally-generated backgrounds
•Single- and dual-channel configuration
•On-screen display for ten selected status parameter settings

SEL-1FS1/SEL-2FS1 and SEL-1XD1/SEL-2XD1
Installation and Operation Manual Installation, Operation, and Specifications
© 2015 Imagine Communications Corp. Proprietary and Confidential. Version 2.8 | Page 14
Audio Processing
•Synchronizer, delay, gain, invert, summing of channel pairs, and muting
•Test tones
•Mono level swapping of audio channels
•24-bit processing
•Support for compressed and linear PCM in the same audio group
•Dual 16-channel audio embedding and de-embedding
•Sample rate conversion
•Eight configurable AES ports
•Plug-in advanced audio submodule option with software license keys for Dolby Digital, Dolby E, DTS®
Neural and DTS® Neural SurroundTM advanced audio processing
ANC Processing
•Full VANC and HANC pass-through for SD-to-SD ARC (when same standard at input and output)
•Transcoding of CC for up/down/cross/aspect ratio conversion
•Transcoding of Teletext (TT) for up/down/cross/aspect ratio conversion
•WSS, VI and AFD detection, insertion, and re-insertion
•Audio metadata embedding and de-embedding with serial port input and output
•Timecode processing of SMPTE-266M D-VITC, SMPTE-12M-2 (formerly RP-188) ATC, RP-196 VITC,
and RP-196 LTC
•Brandnet processing
•VBI transfer control
Other
•Internal 100BaseT Ethernet connectivity for controller module to conversion
•Store and recall AFD presets through CCS-P and SNMP
•User-selectable loss of video modes: pass, freeze, black, and test pattern
•Clean handling of hot switch on input
•Controls and monitoring via Magellan CCS Navigator, Magellan control panels, and web browsers
•Store and recall of all control parameters via CCS applications
Software Key Options
•SELOPT-SK-DDD Dolby Digital Pro Decoder (5.1 or 2.0) license for one FS1 or XD1 module
•SELOPT-SK-DDE Dolby Digital Pro Encoder (5.1 or 2.0) license for one FS1 or XD1 module
•SELOPT-SK-DED Dolby E Decoder license for one FS1 or XD1 module
•SELOPT-SK-DEE Dolby E Encoder license for one FS1 or XD1 module
•SELOPT-SK-DTS DTS® Neural Technologies Advanced Audio Processing* license for one FS1 or XD1
module
•SELOPT-SK-FS dual channel upgrade for one FS1 module

SEL-1FS1/SEL-2FS1 and SEL-1XD1/SEL-2XD1
Installation and Operation Manual Installation, Operation, and Specifications
© 2015 Imagine Communications Corp. Proprietary and Confidential. Version 2.8 | Page 15
•SELOPT-SK-SC single-channel linear frame rate converter (for a single or dual-channel XD1 module);
supports linear frame rate conversion between 25/50 and 29.97/59.94 field/frame rates:
•SELOPT-SK-XD dual-channel upgrade for one XD1 module
*Three licenses are required for DTS® Neural SurroundTM Upmix and Downmix, or DTS® Neural 5.1 Loudness Control; four
licenses are required for DTS® Neural SurroundTM MultiMerge; one license is required for DTS® Neural 2.0 Loudness Control.
Front Modules
Figure 1: Selenio FS1 and XD1 Front Module (XD1 Shown with AAP Submodule)

SEL-1FS1/SEL-2FS1 and SEL-1XD1/SEL-2XD1
Installation and Operation Manual Installation, Operation, and Specifications
© 2015 Imagine Communications Corp. Proprietary and Confidential. Version 2.8 | Page 16
Figure 2: Audio Expansion Module (Shown with Optional AES Balanced Submodule)

SEL-1FS1/SEL-2FS1 and SEL-1XD1/SEL-2XD1
Installation and Operation Manual Installation, Operation, and Specifications
© 2015 Imagine Communications Corp. Proprietary and Confidential. Version 2.8 | Page 17
Figure 3: Video Expansion Module

SEL-1FS1/SEL-2FS1 and SEL-1XD1/SEL-2XD1
Installation and Operation Manual Installation, Operation, and Specifications
© 2015 Imagine Communications Corp. Proprietary and Confidential. Version 2.8 | Page 18
FS1/XD1 Back Modules
Selenio MCP back modules are color-coded to help you identify different connectors more quickly.
Single-channel versions use the signal from input channel 1 and deliver it to the four outputs. In dual-
channel versions, channel 1 input is delivered to outputs 1 and 2; channel 2 input is delivered to outputs
3 and 4.
Figure 4: Selenio MCP FS1 and XD1 Color Scheme and Back Module Swatches

SEL-1FS1/SEL-2FS1 and SEL-1XD1/SEL-2XD1
Installation and Operation Manual Installation, Operation, and Specifications
© 2015 Imagine Communications Corp. Proprietary and Confidential. Version 2.8 | Page 19
Audio Expansion Back Modules
Figure 5: Audio Expansion Back Module Swatches

SEL-1FS1/SEL-2FS1 and SEL-1XD1/SEL-2XD1
Installation and Operation Manual Installation, Operation, and Specifications
© 2015 Imagine Communications Corp. Proprietary and Confidential. Version 2.8 | Page 20
Video Expansion Back Modules
Figure 6: Video Expansion Back Module Swatches
Back Module Pinouts
The following pinouts are shown:
•GPI Serial (on page 21)
•Balanced AES (on page 22)
•Analog Audio Expansion (on page 23)
