Advantech i915GV-INA Series User manual

ATX
i915GV-INA
Series
Intel
®
Pentium
®
4 / Celeron
®
ATX Main Board
User’s Manual
Ver. 1.01

Contents
Safety information ..........................................................................................v
i915GV-INA specifications summary............................................................. vi
Product introduction
1.1 Before you proceed ....................................................................... 1-2
1.2 Motherboard overview ................................................................... 1-3
1.2.1 Placement direction ........................................................ 1-3
1.2.2 Screw holes .................................................................... 1-3
1.2.3 Motherboard layout......................................................... 1-4
1.2.4 Layout contents .............................................................. 1-5
1.3 Central Processing Unit (CPU) ...................................................... 1-6
1.3.1 Installing the CPU ........................................................... 1-6

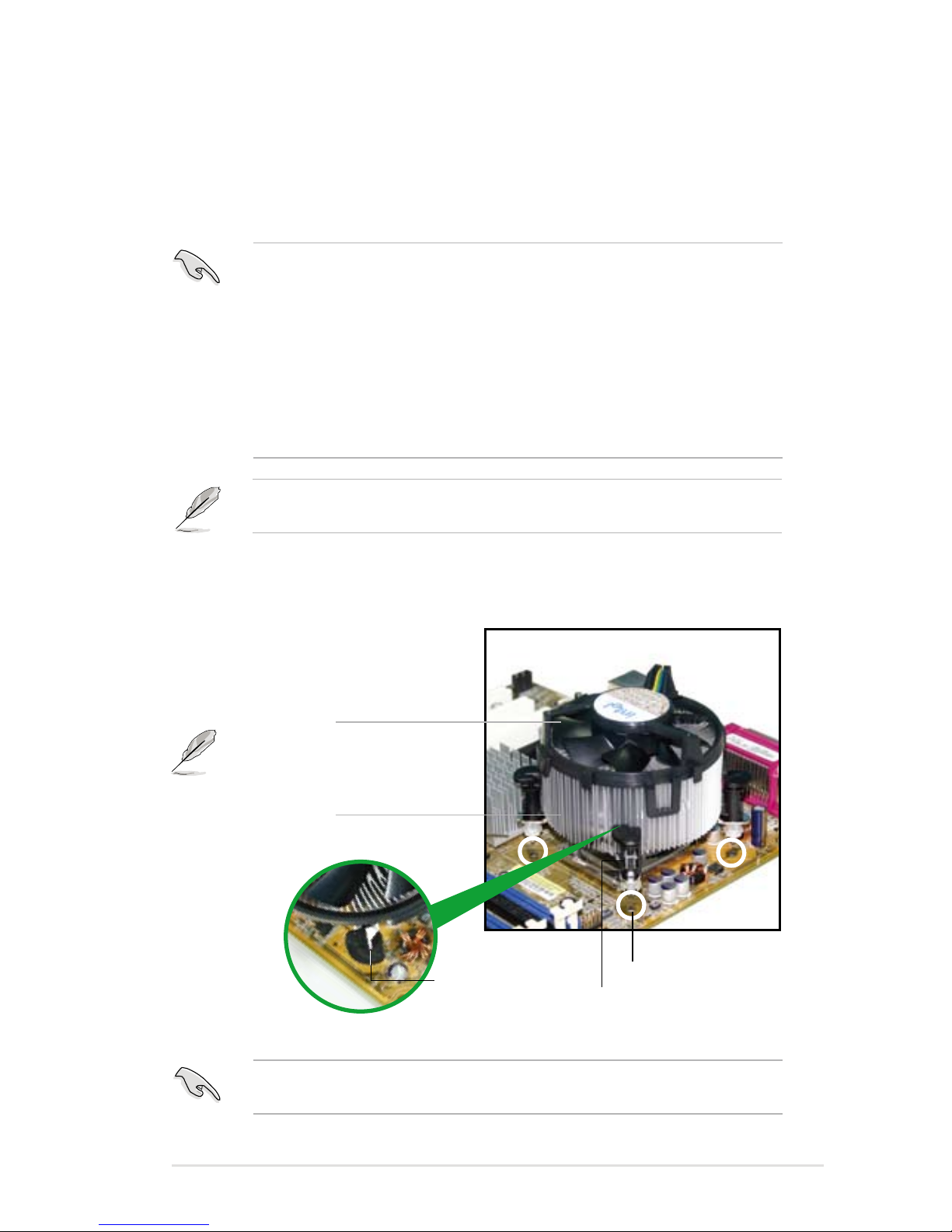

1.3.2 Installing the CPU heatsink and fan ............................... 1-9

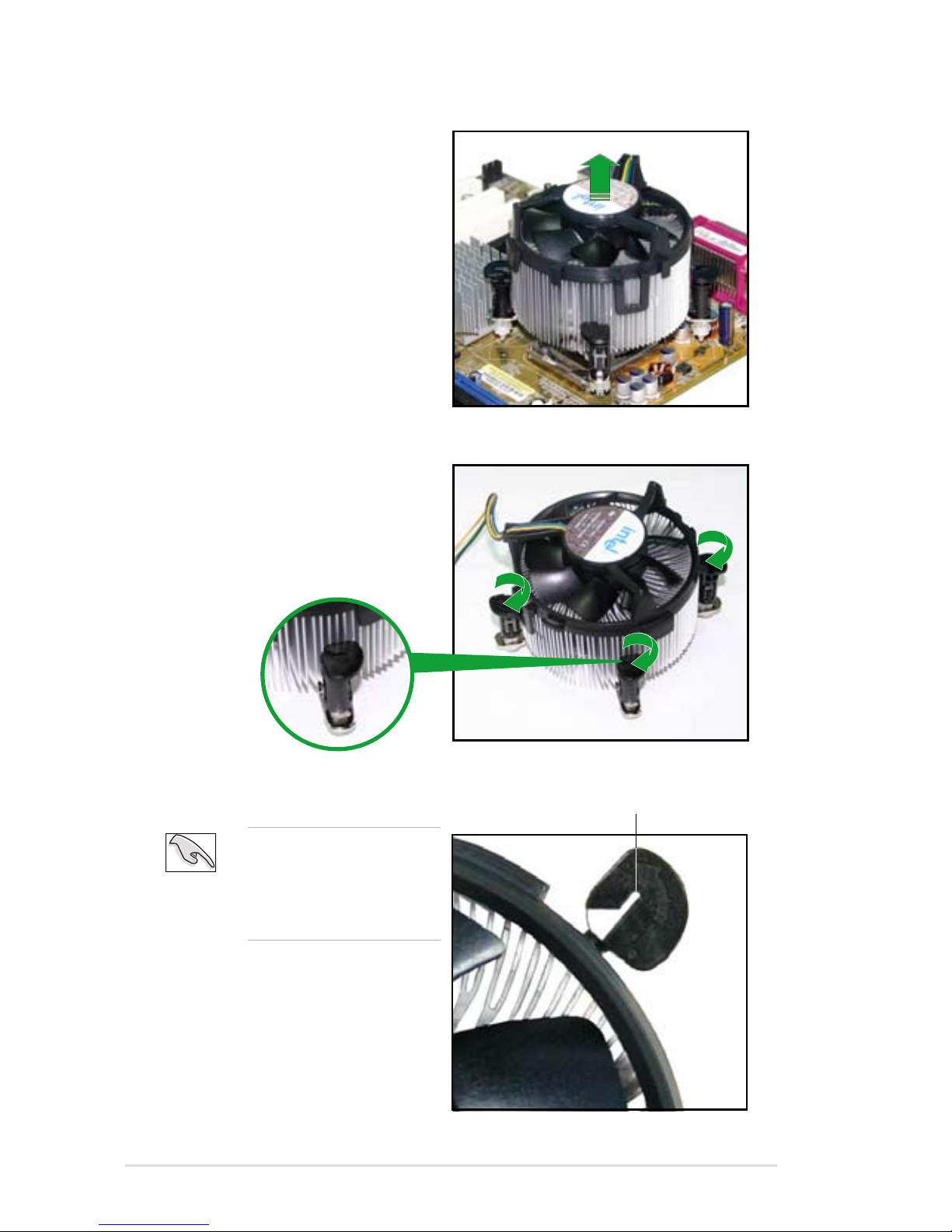

1.3.3 Uninstalling the CPU heatsink and fan ..........................1-11
1.4 System memory ............................................................................1-13

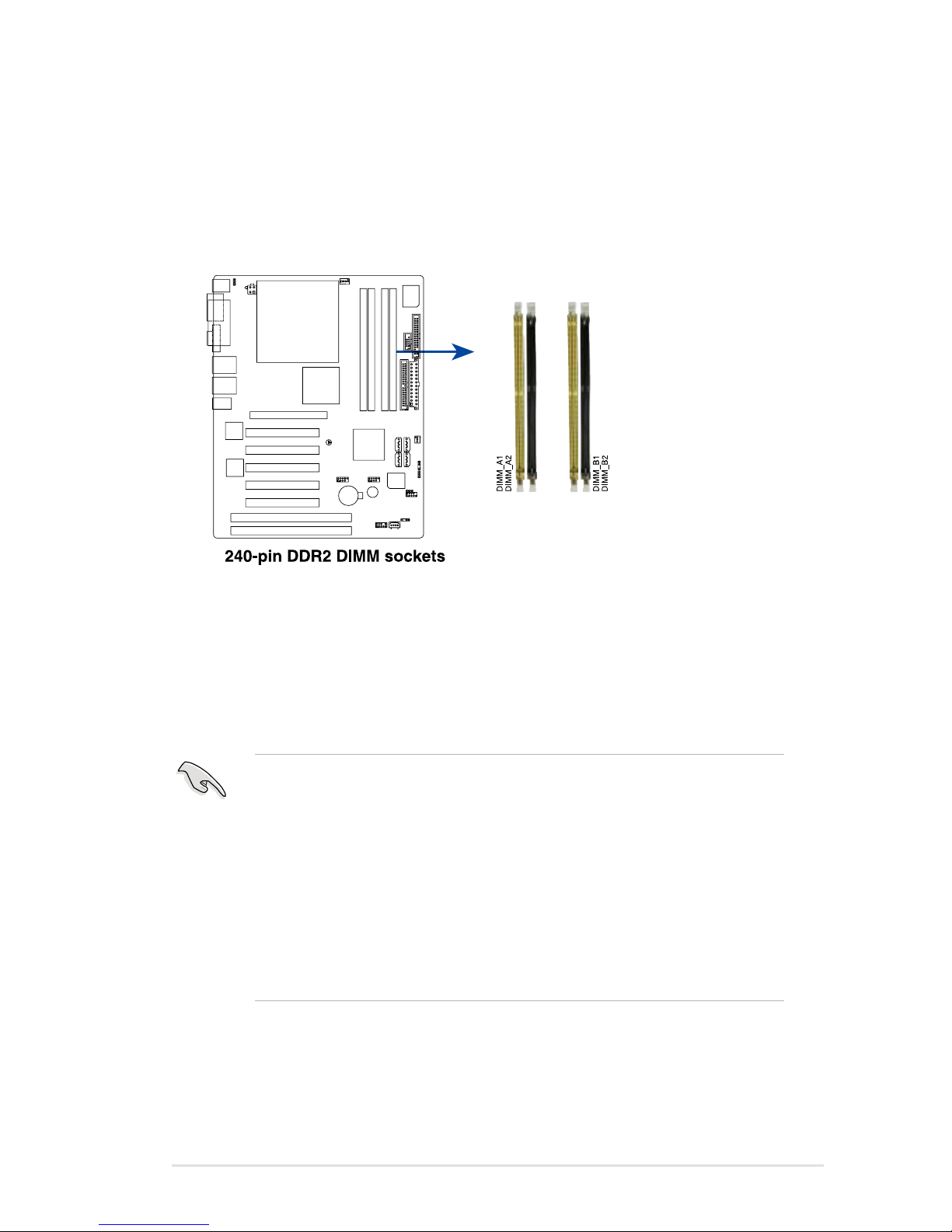

1.4.1 DIMM sockets location ..................................................1-13
1.4.2 Memory Configurations .................................................1-13
1.4.3 Installing a DIMM ...........................................................1-15
1.4.4 Removing a DIMM .........................................................1-15
1.5 Expansion slots.............................................................................1-16
1.5.1 Installing an expansion card ..........................................1-16
1.5.2 Configuring an expansion card......................................1-16
1.5.3 Interrupt assignments ....................................................1-17
1.5.4 PCI slots.........................................................................1-18
1.5.5 SDVO ADD2 slot ……....................................................1-18
1.6 Jumpers ........................................................................................1-19
1.7 Connectors .................................................................................. 1-21
1.7.1 Rear panel connectors ................................................. 1-21
1.7.2 Internal connectors ....................................................... 1-23
ii

Contents
BIOS setup
2.1 BIOS setup program ...................................................................... 2-2
2.2 BIOS menu screen ........................................................................ 2-3
2.3 Standard CMOS Features ............................................................. 2-5
2.4 Advanced BIOS Features .............................................................. 2-8
2.5 Integrated Peripherals ..................................................................2-10
2.6 Power Management Setup ...........................................................2-14
2.7 PC Health Status ..........................................................................2-16
2.8 Other items ...................................................................................2-17
2.8.1 Load Fail-Safe Defaults .................................................2-17
2.8.2 Load Optimized Defaults ...............................................2-17
2.8.3 Supervisor Password.....................................................2-17
2.8.4 User Password...............................................................2-17
2.8.5 Save & Exit Setup ..........................................................2-17
2.8.6 Exit Without Saving .......................................................2-17
Reversion History:
2008/07/11 Rev1.00 -> Rev1.01
Remove PCI Express Spec. change to SDVO Add2 Spec.
Page 1,2,3,12,25,35 were changed.
iii

iv
Notices
Federal Communications Commission Statement
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance
with manufacturer’s instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Canadian Department of Communications
Statement
This digital apparatus does not exceed the Class B limits for radio
noise emissions from digital apparatus set out in the Radio Interference
Regulations of the Canadian Department of Communications.
This class B digital apparatus complies with Canadian ICES-003.
The use of shielded cables for connection of the monitor to the graphics
card is required to assure compliance with FCC regulations. Changes
or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate
this equipment.

v
Safety information
Electrical safety
• To prevent electrical shock hazard, disconnect the power cable from
the electrical outlet before relocating the system.
• When adding or removing devices to or from the system, ensure that
the power cables for the devices are unplugged before the signal
cables are connected. If possible, disconnect all power cables from
the existing system before you add a device.
• Before connecting or removing signal cables from the motherboard,
ensure that all power cables are unplugged.
• Seek professional assistance before using an adapter or extension
cord.These devices could interrupt the grounding circuit.
• Make sure that your power supply is set to the correct voltage in your
area. If you are not sure about the voltage of the electrical outlet you
are using, contact your local power company.
• If the power supply is broken, do not try to fix it by yourself. Contact a
qualified service technician or your retailer.
Operation safety
• Before installing the motherboard and adding devices on it, carefully
read all the manuals that came with the package.
• Before using the product, make sure all cables are correctly
connected and the power cables are not damaged. If you detect any
damage, contact your dealer immediately.
• To avoid short circuits, keep paper clips, screws, and staples away
from connectors, slots, sockets and circuitry.
• Avoid dust, humidity, and temperature extremes. Do not place the
product in any area where it may become wet.
• Place the product on a stable surface.
• If you encounter technical problems with the product, contact a
qualified service technician or your retailer.

vi
i915GV-INA specications summary
(continued on the next page)
CPU LGA775 socket for Intel® Pentium® 4 / Celeron Processor
Compatible with Intel® Mainstream/Value FMB process
Supports Intel® Hyper-Threading Technology
Chipset Northbridge: Intel® 915GV Graphics and Controller Hub
(GMCH)
Southbridge: Intel® ICH6
Front Side Bus (FSB) 800/533 MHz
Memory 4 x 240-pin DIMM sockets support up to 4GB dual channel
DDR2 400/533/667 MHz SDRAMs
Expansion slots 1 x PCI-ExpressTM x16 slot for discrete graphics card
5 x PCI Slots
2 x ISA Slots
Storage Intel® ICH6 Southbridge supports:
- 2 x Ultra ATA 100/66/33 hard disk drives
- 4 x Serial ATA hard disk drives
Audio Realtek® ALC888GR 8CH high-definition Audio CODEC
LAN Realtek® RTL 8110SC PCI Gigabit LAN controller
VGA Intergrated Intel Graphics Media Accelerator 900
USB Supports up to 8 USB 2.0 ports
BIOS Features 4MB FWH, Phoenix Award , Green, PnP, DMI2.3.4, ACPI 1.0,
SM BIOS 2.3
Rear panel 1 x PS/2 mouse port
1 x Parallel port
2 x RJ-45 port
1 x Audio I/O
4 x USB 2.0 ports
1 x VGA port
1 x Serial port
1 x PS/2 keyboard port

vii
*Specifications are subject to change without notice.
Internal connectors 1 x Floppy disk drive connector
1 x Primary IDE connector
4 x Serial ATA connectors
1 x CPU fan connector
2 x USB 2.0 connectors
1 x 24-pin ATX power connector
1 x 4-pin ATX 12V power connector
1 x Front panel audio connector
1 x Serial port connector
1 x Internal audio connectors
1 x S/PDIF Out connector
1 x Power LED connector
1 x System panel connector
1 x Chassis fan connector
1 x CD Audio in
Power requirement ATX power supply (with 24-pin and 4-pin 12V plugs)
Form Factor ATX form factor: 12 in x 9.6 in (30.5 cm x 24.5 cm)

1
Product
introduction
This chapter describes the motherboard
features and the new technologies
it supports.

1-2 Chapter 1: Product introduction

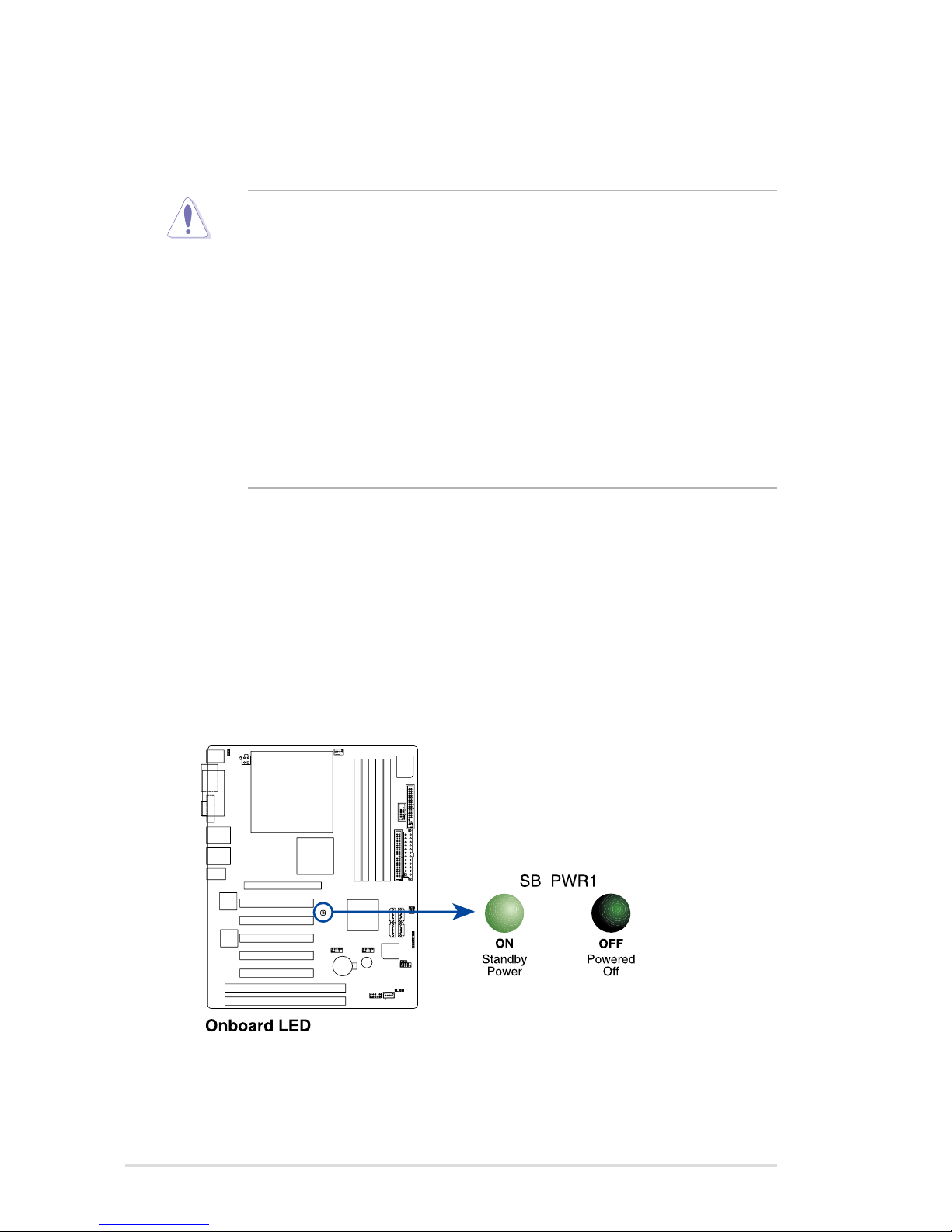

Onboard LED
The motherboard comes with a standby power LED that lights up to indicate
that the system is ON, in sleep mode, or in soft-off mode. This is a reminder
that you should shut down the system and unplug the power cable before
removing or plugging in any motherboard component. The illustration below
shows the location of the onboard LED.
1.1 Before you proceed
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
• Unplug the power cord from the wall socket before touching any
component.
• Use a grounded wrist strap or touch a safely grounded object or a metal
object, such as the power supply case, before handling components to
avoid damaging them due to static electricity
• Hold components by the edges to avoid touching the ICs on them.
• Whenever you uninstall any component, place it on a grounded antistatic
pad or in the bag that came with the component.
• Before you install or remove any component, ensure that the ATX
power supply is switched off or the power cord is detached from
the power supply. Failure to do so may cause severe damage to the
motherboard, peripherals, and/or components.

i915GV-INA 1-3
Do not overtighten the screws! Doing so can damage the motherboard.
Place this side towards
the rear of the chassis
Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so can cause you physical injury and damage
motherboard components.
1.2.1 Placement direction
When installaing the motherboard, make sure that you place it into the chassis in
the correct orientation. The edge with external ports goes to the rear part of the
chassis as indicated in the image below.
1.2.2 Screw holes
Place eleven (11) screws into the holes indicated by circles to secure the
motherboard to the chassis.
1.2 Motherboard overview
Before you install the motherboard, study the configuration of your chassis to
ensure that the motherboard ts into it. Refer to the chassis documentation before
installing the mothebroard.

1-4 Chapter 1: Product introduction

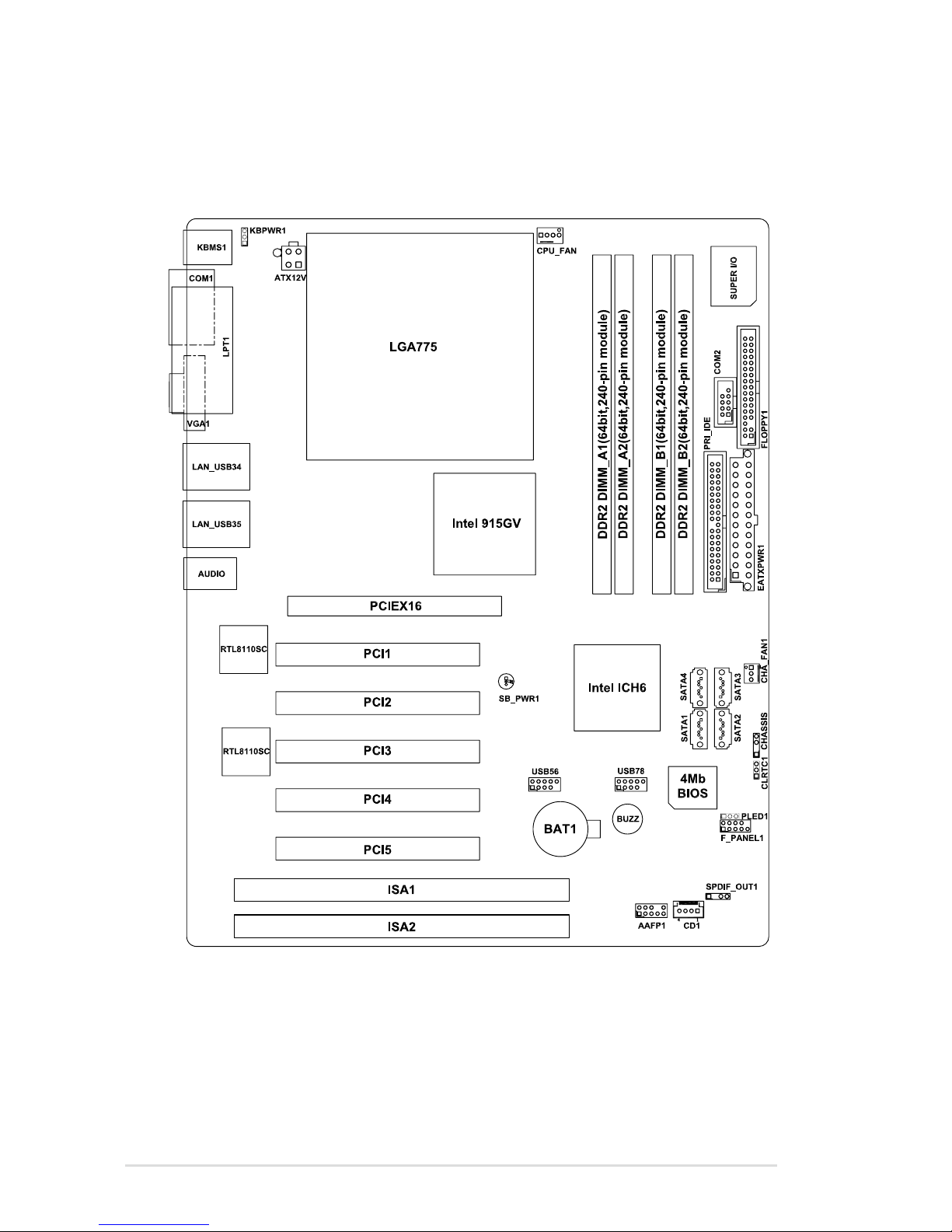

1.2.3 Motherboard layout
i915GV-INA

1.2.4 Layout contents
Slots Pa
g
e
1. DDR2 DIMM slots 1-13
2. PCI slots 1-18
3. SDVO ADDE slot 1-18
Jumpers Page
1. Clear RTC RAM (CLRTC1) 1-19
2. Keyboard power (3-pin KBPWR1) 1-20
Rea
r
p
anel connectors Pa
g
e
1. PS/2 mouse port 1-21
2. Parallel port 1-21
3. LAN (RJ-45) port 1-21
4. Line In port 1-21
5. Line Out port 1-21
6. Microphone port 1-22
7. USB 2.0 ports 1-22
8. Video Graphics Adapter port 1-22
9. Serial port (COM1) 1-22
10. PS/2 keyboard port 1-22
Internal connectors Pa
g
e
1. Floppy disk drive connector (34-1 pin FLOPPY1) 1-23
2. Power LED connector (3-pin PLED1) 1-23
3. Primary IDE connector (40-1 pin PRI_IDE1) 1-24
4. Serial ATA connectors (7-pin SATA1 [red], SATA2 [red], SATA3 [black],
SATA4 [black])
1-25
5. CPU and Chassis Fan connectors (3-pin CHA_FAN1, 4-pin CPU_FAN1) 1-26
6. USB connectors (10-1 pin USB56, USB78) 1-27
7. ATX power connectors (24-pin EATXPWR1, 4-pin ATX12V1) 1-28
8. Front panel audio connector (10-1 pin AAFP1) 1-29
9. Serial port connector (10-1 pin COM2) 1-29
10. Internal audio connectors (4-pin CD1) 1-30
11. Digital audio connector ((4-1 pin SPDIF_OUT1) 1-30
12. System panel connector (10-1 pin F_PANEL1) 1-31
i915GV-INA 1-5

1-6 Chapter 1: Product introduction
1.3.1 Installing the CPU
To install a CPU:
1. Locate the CPU socket on the motherboard.
1.3 Central Processing Unit (CPU)
The motherboard comes with a surface mount LGA775 socket designed for the
Intel® Pentium® 4 processor in the 775-land package.
Before installing the CPU, make sure that the socket box is facing towards you
and the load lever is on your left.
• Your boxed Intel® Pentium® 4 LGA775 processor package should come
with installation instructions for the CPU, heatsink, and the retention
mechanism. If the instructions in this section do not match the CPU
documentation, follow the latter.
• Upon purchase of the motherboard, make sure that the PnP cap is on
the socket and the socket contacts are not bent. Contact your retailer
immediately if the PnP cap is missing, or if you see any damage to the PnP
cap/socket contacts/motherboard components. Advansus will shoulder the
cost of repair only if the damage is shipment/transit-related.
• Keep the cap after installing the motherboard. Advansus will process
Return Merchandise Authorization (RMA) requests only if the motherboard
comes with the cap on the LGA775 socket.
• The product warranty does not cover damage to the socket contacts
resulting from incorrect CPU installation/removal, or misplacement/loss/
incorrect removal of the PnP cap.

i915GV-INA 1-7
3. Lift the load lever in the direction of
the arrow to a 135º angle.
4. Lif t the load plate wit h your
thumb and forefinger to a 100º
angle (A), then push the PnP
cap from the load plate window
to remove (B).
To prevent damage to the socket pins, do not remove the PnP cap unless you
are installing a CPU.
5. Position the CPU over
the socket, making sure
that the gold triangle
is on the bottom-left
corner of the socket.
The socket alignment
key should fit into the
CPU notch. Alignment key
Gold triangle mark
Load plate
A
B
2. Press the load lever with your thumb (A), then move it to the left (B) until it is
released from the retention tab.
Retention tab
Load lever
This side of the socket box
should face you.
PnP cap
A
B

1-8 Chapter 1: Product introduction
Notes on Intel®Hyper-Threading Technology
• This motherboard supports Intel® Pentium® 4 CPUs in the 775-land
package with Hyper-Threading Technology.
• Hyper-Threading Technology is supported under Windows® XP/2003
Server and Linux 2.4.x (kernel) and later versions only. Under Linux, use
the Hyper-Threading compiler to compile the code. If you are using any
other operating systems, disable the Hyper-Threading Technology item in
the BIOS to ensure system stability and performance.
• Installing Windows® XP Service Pack 1 or later version is recommended.
• Make sure to enable the Hyper-Threading Technology item in BIOS before
installing a supported operating system.
• For more information on Hyper-Threading Technology, visit www.intel.
com/info/hyperthreading.
To use the Hyper-Threading Technology on this motherboard:
1. Install an Intel® Pentium® 4 CPU that supports Hyper-Threading Technology.
2. Power up the system and enter the BIOS Setup (see Chapter 2: BIOS
setup). Under the Advanced Menu, make sure that the item Hyper-Threading
Technology is set to Enabled. The item appears only if you installed a CPU
that supports Hyper-Threading Technology.
3. Reboot the computer.
The CPU ts in only one correct orientation. DO NOT force the CPU into the
socket to prevent bending the connectors on the socket and damaging the
CPU!
6. Close the load plate (A), then
push the load lever (B) until it
snaps into the retention tab.
A
B

i915GV-INA 1-9
Fastener
Motherboard hole
1.3.2 Installing the CPU heatsink and fan
The Intel® Pentium® 4 LGA775 processor requires a specially designed heatsink
and fan assembly to ensure optimum thermal condition and performance.
• When you buy a boxed Intel ® Pentium®4 processor, the package
includes the CPU fan and heatsink assembly. If you buy a CPU separately,
make sure that you use only Intel®-certied multi-directional heatsink and
fan.
• Your Intel® Pentium® 4 LGA775 heatsink and fan assembly comes in a
push-pin design and requires no tool to install.
• If you purchased a separate CPU heatsink and fan assembly, make sure
that you have properly applied Thermal Interface Material to the CPU
heatsink or CPU before you install the heatsink and fan assembly.
Make sure to orient each fastener with the narrow end of the groove pointing
outward. (The photo shows the groove shaded for emphasis.)
To install the CPU heatsink and fan:
1. Place the heatsink on top of the
installed CPU, making sure that
the four fasteners match the holes
on the motherboard.
Narrow end
of the groove
Make sure that you have installed the motherboard to the chassis before you
install the CPU fan and heatsink assembly.
Or ie nt the he atsink and f an
assembly such that the CPU fan
cable is closest to the CPU fan
connector.

1-10 Chapter 1: Product introduction
3. Connect the CPU fan cable to the connector on the motherboard labeled
CPU_FAN1.
Do not forget to connect the CPU fan connector! Hardware monitoring errors
can occur if you fail to plug this connector.
2. Push down two fasteners at a
time in a diagonal sequence
to secure the heatsink and fan
assembly in place.
B
B
AA
A
AB
B

i915GV-INA 1-11
1.3.3 Uninstalling the CPU heatsink and fan
To uninstall the CPU heatsink and fan:
1. Disconnect the CPU fan cable
from the connector on the
motherboard.
2. Rotate each fastener
counterclockwise.
3. Pull up two fasteners at a time
in a diagonal sequence to
disengage the heatsink and fan
assembly from the motherboard.
B
B
AA
A
AB
B

1-12 Chapter 1: Product introduction
4. Carefully remove the heatsink
and fan assembly from the
motherboard.
5. Rotate each fastener
clockwise to ensure correct
orientation when reinstalling.
T h e n a r r o w e n d o f t h e
groove should point outward
after resetting. (The photo
shows the groove shaded
for emphasis.)
Narrow end of the groove

i915GV-INA 1-13
1.4.2 MemoryCongurations
You may install 256 MB, 512 MB and 1 GB unbuffered non-ECC DDR2 DIMMs
into the DIMM sockets using the memory congurations in this section.
• For dual-channel configuration, the total size of memory module(s)
installed per channel must be the same (DIMM_A2 = DIMM_B2).
• A l ways in st all DI M Ms w it h t he same C AS latenc y. For o pti mum
compatibility, it is recommended that you obtain memory modules from the
same vendor. Refer to the DDR2 Qualied Vendors List on the next page
for details.
• Due to chipset resource allocation, the system may detect less than 4 GB
system memory when you installed four 1 GB DDR2 memory modules.
• This motherboard does not support memory modules made up of 128 Mb
chips or double sided x16 memory modules.
1.4 System memory
1.4.1 DIMM sockets location
The motherboard comes with four 240-pin Double Data Rate 2 (DDR2) Dual Inline
Memory Modules (DIMM) sockets.
The following gure illustrates the location of the sockets:
