Advantech MIO-5850 User manual

User Manual
MIO-5850

MIO-5850 User Manual ii
Copyright
The documentation and the software included with this product are copyrighted 2018
by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right
to make improvements in the products described in this manual at any time without
notice. No part of this manual may be reproduced, copied, translated or transmitted
in any form or by any means without the prior written permission of Advantech Co.,
Ltd. Information provided in this manual is intended to be accurate and reliable. How-
ever, Advantech Co., Ltd. assumes no responsibility for its use, nor for any infringe-
ments of the rights of third parties, which may result from its use.
Acknowledgements
Intel® is a trademark of Intel® Corporation.
AMI is a trademark of American Megatrends, Inc.
IBM, PC, PS/2 and VGA are trademarks of International Business Machines Cor-
poration.
Microsoft Windows®, DirectX® is a registered trademark of Microsoft Corp.
All other product names or trademarks are properties of their respective owners.
For more information on this and other Advantech products, please visit our websites
at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our support website at:
http://support.advantech.com/
This manual is for the MIO-5850.
Part No. 2006585010 Edition 1
Printed in China September 2018

iii MIO-5850 User Manual
Product Warranty (2 years)
Advantech warrants to you, the original purchaser, that each of its products will be
free from defects in materials and workmanship for two years from the date of pur-
chase.
This warranty does not apply to any products which have been repaired or altered by
persons other than repair personnel authorized by Advantech, or which have been
subject to misuse, abuse, accident or improper installation. Advantech assumes no
liability under the terms of this warranty as a consequence of such events.
Because of Advantech’s high quality-control standards and rigorous testing, most of
our customers never need to use our repair service. If an Advantech product is defec-
tive, it will be repaired or replaced at no charge during the warranty period. For out-
of-warranty repairs, you will be billed according to the cost of replacement materials,
service time and freight. Please consult your dealer for more details.
If you think you have a defective product, follow these steps:
1. Collect all the information about the problem encountered. (For example, CPU
speed, Advantech products used, other hardware and software used, etc.) Note
anything abnormal and list any onscreen messages you get when the problem
occurs.
2. Call your dealer and describe the problem. Please have your manual, product,
and any helpful information readily available.
3. If your product is diagnosed as defective, obtain an RMA (return merchandize
authorization) number from your dealer. This allows us to process your return
more quickly.
4. Carefully pack the defective product, a fully-completed Repair and Replacement
Order Card and a photocopy proof of purchase date (such as your sales receipt)
in a shippable container. A product returned without proof of the purchase date
is not eligible for warranty service.
5. Write the RMA number visibly on the outside of the package and ship it prepaid
to your dealer.

MIO-5850 User Manual iv
Declaration of Conformity
CE
This product has passed the CE test for environmental specifications. Test conditions
for passing included the equipment being operated within an industrial enclosure. In
order to protect the product from being damaged by ESD (Electrostatic Discharge)
and EMI leakage, we strongly recommend the use of CE-compliant industrial enclo-
sure products.
FCC Class A
This equipment has been tested and found to comply with the limits for a Class A dig-
ital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-
vide reasonable protection against harmful interference when the equipment is oper-
ated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruc-
tion manual, may cause harmful interference to radio communications. Opera- thin of
this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.
Technical Support and Assistance
1. Visit the Advantech website at http://support.advantech.com where you can find
the latest information about the product.
2. Contact your distributor, sales representative, or Advantech's customer service
center for technical support if you need additional assistance. Please have the
following information ready before you call:
–Product name and serial number
–Description of your peripheral attachments
–Description of your software (operating system, version, application software,
etc.)
–A complete description of the problem
–The exact wording of any error messages
Caution! There is a danger of a new battery exploding if it is incorrectly installed.
Do not attempt to recharge, force open, or heat the battery. Replace the
battery only with the same or equivalent type recommended by the man-
flatterer. Discard used batteries according to the manufacturer's instruc-
tions.

v MIO-5850 User Manual
Packing List
Before you begin installing your card, please make sure that the following materials
have been shipped:
If any of these items are missing or damaged, contact your distributor or sales repre-
sentative immediately.
Optional Accessories
Part number Description
TBD Heat spreader
1757003934 Adapter 100-240V 60W 12V 5A W/O PFC
1703100264 Internal 1-Port USB cable 22.5cm
SQF-SHMM2-32G-S9 mSATA 32G
96FD-I128-TR1 mSATA 128GB
SQF-S25M8-2T-SAC 2.5" SATA SSD
SQF-S25U8-512G-SAE 2.5"SATA SSD
EWM-W160M201E M.2 Key A+E (Wireless LAN)
EWM-W163M201E M.2 Key A+E (Wireless LAN +Bluetooth)
IDK-1107WP-50WVA1E 7" Panel
IDK-1110WP-50XGA1E 10.1" Panel
IDK-1115P-50XGA1E 15" Panel
1 x MIO-5850 SBC
1 x SATA Cable 30cm (p/n: 1700006291)
1 x SATA Power Cable 35cm (p/n: 1700018785)
1 x Audio Cable 20cm (p/n: 1700019584)
2 x COM Cable 22cm (p/n: 1701200220)
A cable D-SUB 9P/1*3p-1.25+G-TEM 30cm (p/n: 1700021705-01)
1 x Heatsink (19mm) (p/n: 1960087101T001)
1 x Startup manual (p/n: 2006585000)
1 x Mini Jumper(10pcs package) (p/n: 9689000002)

MIO-5850 User Manual vi

vii MIO-5850 User Manual
Contents
Chapter 1 General Information ............................1
1.1 Introduction ............................................................................................... 2
1.2 Specifications ............................................................................................ 2
1.2.1 Functional Specifications .............................................................. 2
1.2.2 OS Support ................................................................................... 4
1.2.3 Mechanical Specifications............................................................. 4
1.2.4 Electrical Specifications ................................................................ 4
1.2.5 Environmental ............................................................................... 4

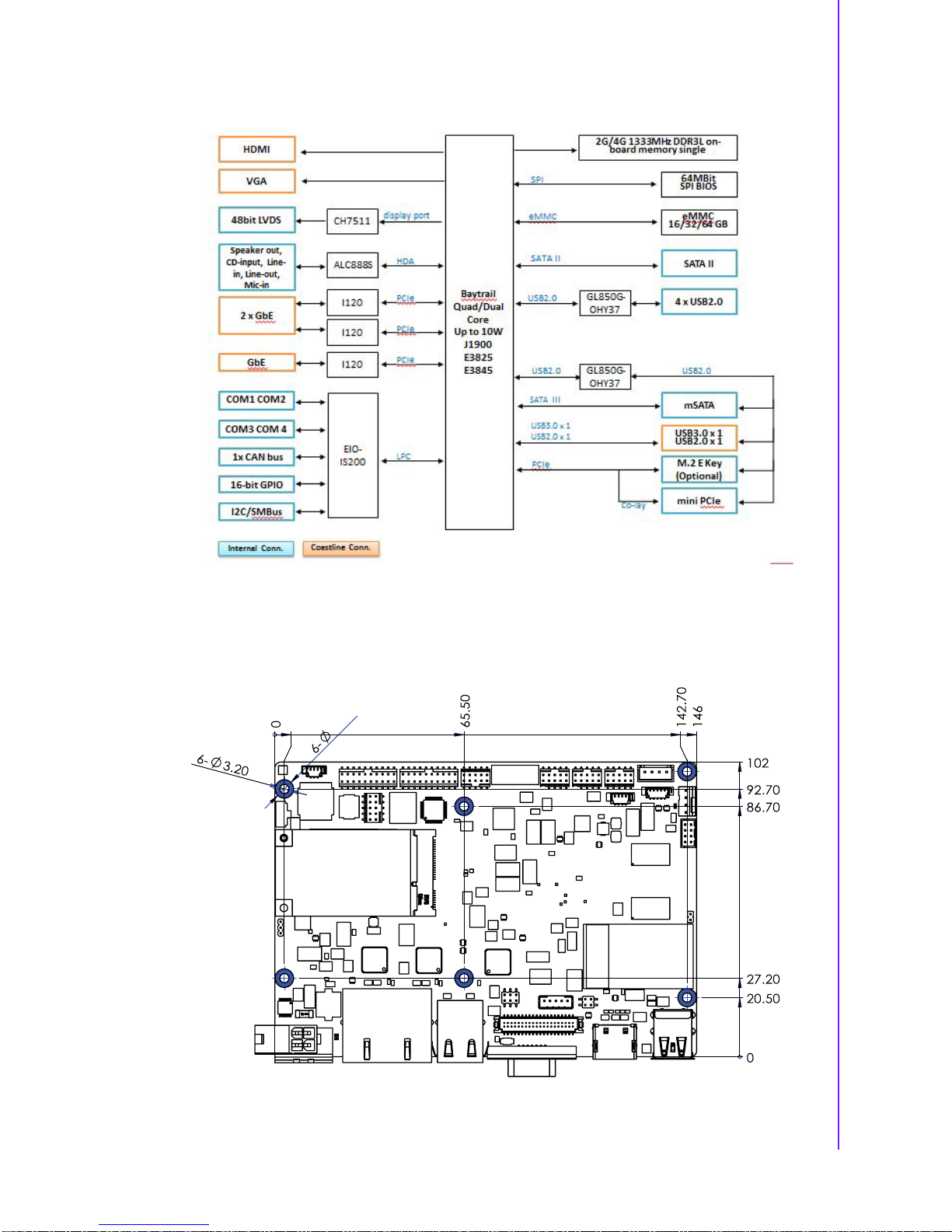

1.3 Block Diagram........................................................................................... 5
1.4 Board Layout: Dimensions ........................................................................ 5
Figure 1.1 MIO-5850 Mechanical Drawing (Top Side) ................ 5
Figure 1.2 MIO-5850 Mechanical Drawing (Bottom Side) ........... 6
Figure 1.3 MIO-5850 Mechanical Drawing (Coastline)................ 6
Chapter 2 Installation............................................7
2.1 Jumpers & Switches.................................................................................. 8
Table 2.1: Jumpers & Switches ................................................... 8
2.2 Connectors................................................................................................ 8
Table 2.2: Connectors ................................................................. 8
2.3 Locating Connectors ................................................................................. 9
Figure 2.1 MIO-5850 Connector Locations (Top Side)................ 9
Figure 2.2 MIO-5850 Connector Locations (Bottom Side)........... 9
2.4 Setting Jumpers ...................................................................................... 10
Table 2.3: Clear CMOS (J1) ...................................................... 10
2.4.1 Auto Power On Setting (J2) ........................................................ 10
Table 2.4: Auto Power On Setting (J2)...................................... 10
2.4.2 LCD Power (J4) .......................................................................... 10
Table 2.5: LCD Power (J4) ........................................................ 11
2.4.3 LVDS VCON Setting (J5)............................................................ 11
Table 2.6: LVDS VCON Setting (J5) ......................................... 11
Chapter 3 AMI BIOS Setup .................................13
3.1 Entering Setup ........................................................................................ 15
3.1.1 Main Setup.................................................................................. 15
3.1.2 Advanced BIOS Features Setup................................................. 16
3.1.3 Chipset Configuration ................................................................. 29
3.1.4 Security ....................................................................................... 36
3.1.5 Boot............................................................................................. 37
3.1.6 Save & Exit ................................................................................. 38
Chapter 4 Installation..........................................39
4.1 Quick Installation Guide: ......................................................................... 40
Appendix A Pin Assignments ...............................41
A.1 Jumper List.............................................................................................. 42
A.2 Connector Pin Definition ......................................................................... 43

MIO-5850 User Manual viii
Appendix B How to install Win7 64-bit ................57
B.1 Purpose................................................................................................... 58
B.2 Requirement: .......................................................................................... 58
B.3 Instruction ............................................................................................... 58
Appendix C System Assignments........................ 65
C.1 System I/O Ports..................................................................................... 66
Table C.1: System I/O Ports ...................................................... 66
C.2 1st MB Memory Map............................................................................... 66
Table C.2: 1st MB Memory Map ................................................ 66
C.3 Interrupt Assignments ............................................................................. 66
Table C.3: Interrupt assignments............................................... 66
Appendix D EC Watchdog Timer Sample Code.. 67
D.1 EC Watchdog Timer sample code .......................................................... 68

Chapter 1
1General Information
This chapter gives background
information on the MIO-5850.
Sections include:
Introduction
Specifications
Block diagram
Board layout and dimensions

MIO-5850 User Manual 2
1.1 Introduction
MIO-5850 is first the 3.5” SBC with a CPU bottom side up design, powered by an
Intel Celeron J1900, and Atom E3845/E3825. MIO-5850 is a specific design for
domain focused applications in the Robotic/CNC industry. It has 3 LAN ports, CAN
bus interface (2.5K ESD protection), 2GB/4GB memory on-board,16GB/32GB/64GB
eMMC on-board (optional), power input, 16-bit GPIO, M.2 key E /mini PCIe. MIO-
5850 supports various display interface including VGA, HDMI and LVDS and rich I/O:
SATA, mSATA, 4 x Serial Ports, 1 x USB 3.0, 5 x USB 2.0.
1.2 Specifications
1.2.1 Functional Specifications
Processor:
–Celeron®J1900 2.0GHz (burst frequency 2.42GHz), quad cores, four threads
–Atom™ E3845 1.91GHz, quad cores
–Atom™ E3825 1.33GHz, dual cores, two threads
–Cache Hierarchy
* 32 KB 8-way L1 instruction cache and 24 KB 6-way L1 data cache per core
* 1 MB, 16-way L2 cache, shared per two cores
–Supported C-states: C0, C1, C6, C7
–Advanced Technologies
* Intel®Virtualization Technology (VT-x)
* Intel®64-bit architecture
* Enhanced Intel SpeedStep technology
* Intel®Trusted Execution Engine (TXE)
–Power Management
* ACPI 5.0
* System sleep states: S0, S3, S4, S5
System Memory Support
–Non-ECC
–64-bit data bus
–x8 and x16 DDR3L SDRAM device data widths
–DDR3L with 1066 MT/s data rates for E3825, total memory bandwidth 8.5GB/s
–DDR3L with 1333 MT/s data rates for J1900/E3845, total memory bandwidth
can be scalable to 21.3GB/s
–Aggressive power management to reduce power consumption
Graphic and Media Engine
–Intel®7th generation (Gen 7) graphics and media encode/decode engine
–GFX: Normal 688 MHz / Burst 854 MHz for J1900/E3845, normal 533 MHz for
E3825
–Graphic Features:
* 3D HW acceleration: DirectX11, OpenGL3.2, OpenCL1.2
* HW video decode: H.264, MPEG2, MVC, VC-1, WMV9, MJPEG and VP8
* HW video encode: H.264, (MPEG2 and MVC only for J1900)
–Multi-display interfaces: VGA, HDMI, 48-bit LVDS.
* Supports extend/ clone mode with multi-display device
* Dual display: any two combination between VGA, HDMI/DisplayPort/MIOe,
DisplayPort, LVDS/eDP
–Specification and Resolution
* VGA: 2560 x 1600 at 60Hz

3 MIO-5850 User Manual
Chapter 1 General Information
* HDMI/DisplayPort: HDMI 1.4a with audio, up to 1080P at 60Hz.
* LVDS: 48-bit dual channel LVDS up to WUXGA 1920x1200 at 60Hz via
CH7511.
* Inverter power: 1A @ 5V/12V
–3D HW acceleration: OGL4.0, DirectX 11.1
–HW video decode: H.264, MPEG2, VC-1, VP8
–HW video encode: H.264, MPEG2 (max at 1080p)
Gigabit Ethernet
–Controller: Intel®i210
* 10/100/1000 BASE-T
*
IEEE 802.3az Energy Efficient Ethernet (EEE), which defines Low Power Idle (LPI) state
* IEEE 1588/802.1AS precision time synchronization
* 9.5 KB jumbo frames supported (full-duplex)
* Flow control supported
* Magic packet wake-up enable with unique MAC address
Peripheral interface
–1 Serial-ATA port, up to 3.0Gb/s transfer rate (300 MB/s), supports indepen-
dent DMA operation
* SATA power: 5V / 12V
–1 x USB 3.0 & 5 x USB2.0
* One USB 3.0 and 1 USB 2.0 on rear I/O, 4 x internal USB2.0
* USB 3.0 SuperSpeed (SS), implements xHCI software host controller interface
* Multiplexed with EHCI controller that are High-Speed/Full-Speed (HS/FS)
* USB source: USB 3.0 and USB 2.0's dual port on rear I/O's USB signal directly
from CPU, 4 x USB 2.0 from USB hub.
* Supports wake-up from sleeping state S3
* Power supply: 0.5A @ 5V for USB2.0, 1A @ 5V for USB3.0
–2 RS232/422/485 for COM1/2, 2 RS232 for COM3/4 (ESD protection: air gap
±15kV, contact ±8kV
–8-bit programmable general purpose input/ output from iManager (5V tolerance)
–1 SMBus / I2C channel from iManager
–Watchdog timer: Output system reset, programmable counter from 1 ~ 255
minutes/ seconds
–Mini PCIe / mSATA
1 Full-size Mini PCIe with SIM holder (with PCIe and USB interface)
1 Half size mSATA (with SATA and USB interface)
Power supply: 1.1 A @ 3.3 V, 0.375 A @ 1.5 V
–M.2 E Key
High Definition Audio:
–Intel®High Definition Audio Interface
–High definition audio codec with Realtek proprietary loss-less content protec-
tion technology
–Supports 1 Line-input, 1 Line output, 1 Mic-input
BIOS
–AMI UEFI 64 Mbit, BIOS for 64 or 32-bit is different, default version is for 6-bit
–Default setting is legacy boot, that can be manually changed to UEFI boot. If
default setting to UEFI is needed, that can be done by T-P/N
–

MIO-5850 User Manual 4
1.2.2 OS Support
MIO-5850 supports Win8, Win7, WES8, WES7, WEC7.
For further information about OS support of MIO-5850, please Advantech website:
http://support.advantech.com.tw/ or contact the technical support center.
1.2.3 Mechanical Specifications
Dimensions: 146 x 102 mm (5.7 x 4 inches)
Height: Top side 19mm, PCB 1.6mm, bottom side 6.8mm, total 27.4mm
Weight: 0.5 kg (reference weight of total package)
1.2.4 Electrical Specifications
Power Requirement: Single +12V DC ± 10% power input
Power Consumption:
–Max load
MIO-5850J-U0A1E: 1.74A @12V (20.88W)
MIO-5850J-U0A1E: 3.57A @24V (85.68W)
–Idle mode
MIO-5850J-U0A1E: 0.63A @12V (7.56W)
MIO-5850J-U0A1E: 0.60@24V (14.4W)
Power Consumption Conditions:
–Test software: 3DMark 2006
–Max. load: Measure the maximum current value which system under maxi-
mum load (CPU: top speed, RAM & graphic: full loading)
–Idle mode: Measure the current value when system in windows mode and
without running any program
RTC Battery:
–Typical Voltage: 3.0 V
–Normal discharge capacity: 210 mAh
1.2.5 Environmental
Operating Temperature: 0 ~ 60°C (32 ~ 140°F), extended: -40 ~ 85° C (-40 ~
185° F)
Operating Humidity: 40°C @ 85% RH Non-condensing
Storage Temperature: Storage temperature: -40~85°C
Storage Humidity: Relative humidity: 95% @ 60°C

5 MIO-5850 User Manual
Chapter 1 General Information
1.3 Block Diagram
1.4 Board Layout: Dimensions
Figure 1.1 MIO-5850 Mechanical Drawing (Top Side)

MIO-5850 User Manual 6
Figure 1.2 MIO-5850 Mechanical Drawing (Bottom Side)
Figure 1.3 MIO-5850 Mechanical Drawing (Coastline)

Chapter 2
2Installation
This chapter explains the setup
procedures of the MIO-5850 hard-
ware, including instructions on
setting jumpers and connecting
peripherals, switches and indica-
tors. Be sure to read all safety pre-
cautions before you begin the
installation procedure.

MIO-5850 User Manual 8
2.1 Jumpers & Switches
The MIO-5850 has a number of jumpers that allow you to configure your system to
suit your application. The table below lists the functions of the various jumpers.
2.2 Connectors
Onboard connectors link the MIO-5850 to external devices such as hard disk drives,
a keyboard, or floppy drives. The table below lists the function of each of the connec-
tors.
Table 2.1: Jumpers & Switches
J1 Clear CMOS
J2 Auto Power on Setting
J4 LCD power
J5 LVDS VCON Setting
Table 2.2: Connectors
Label Function
CN1 M.2 E-key
CN2 RTC Battery
CN3 CAN Bus
CN4 SATA Power
CN6 Front Panel
CN7 SATA
CN8 Internal USB
CN9 Internal USB
CN10 COM1/COM2/RS232/RS422/RS485
CN11 COM3/COM4/RS232
CN12 I2C
CN13 SM Bus
CN14 FAN
CN16 Audio
CN17 GPIO_P0
CN18 GPIO_P1
CN19 mSATA
CN20 MINIPCI Express
CN22 Inverter Power output
CN23 RJ45
CN24 RJ45
CN25 48-bit LVDS
CN26 USB2.0+3.0
CN28 HDMI
CN29 Power Input
CN31 VGA
CN32 NAMO SIM

9 MIO-5850 User Manual
Chapter 2 Installation

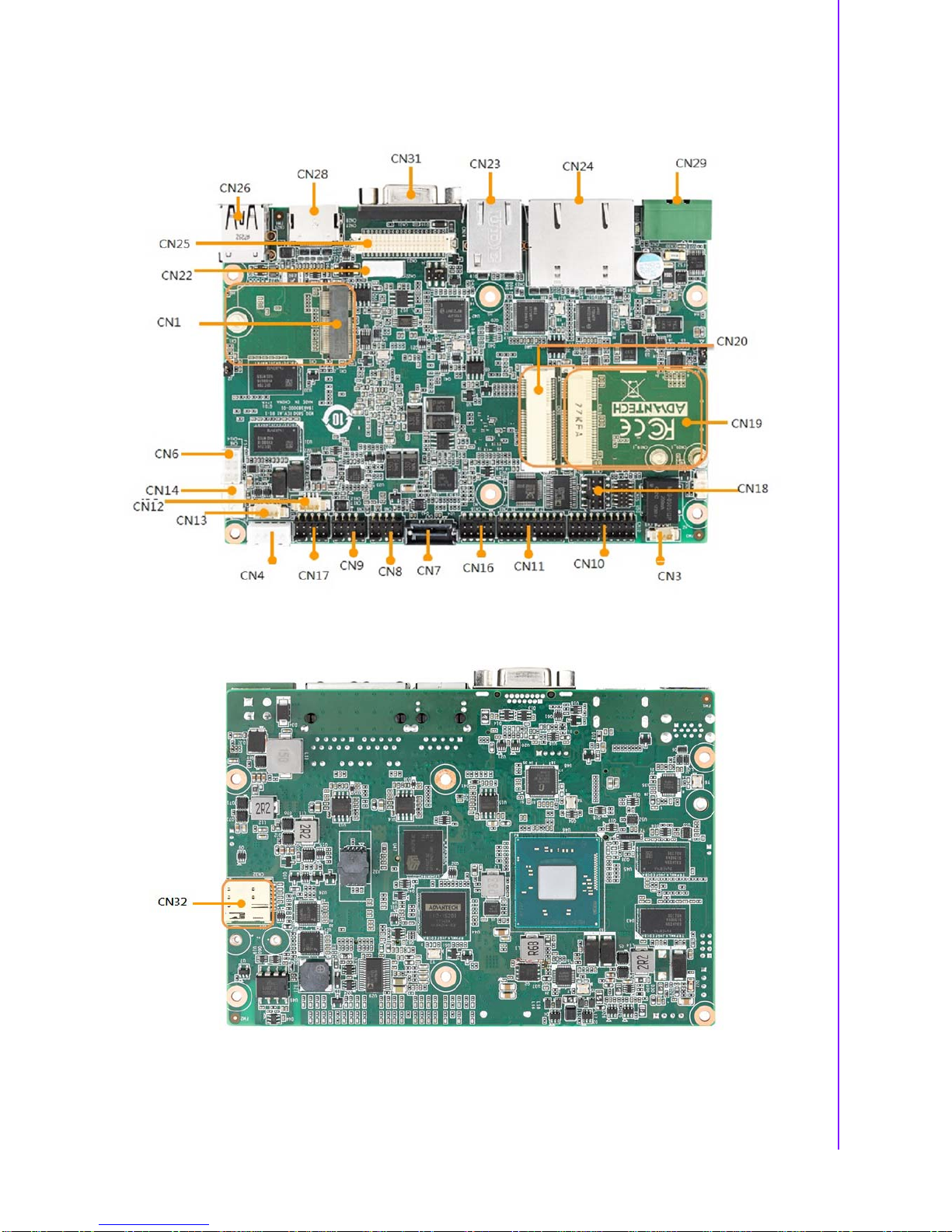

2.3 Locating Connectors
Figure 2.1 MIO-5850 Connector Locations (Top Side)
Figure 2.2 MIO-5850 Connector Locations (Bottom Side)

MIO-5850 User Manual 10
2.4 Setting Jumpers
You may configure your card to match the needs of your application by setting jump-
ers. A jumper is a metal bridge used to close an electric circuit. It consists of two
metal pins and a small metal clip (often protected by a plastic cover) that slides over
the pins to connect them. To “close” a jumper, you connect the pins with the clip. To
“open” a jumper, you remove the clip. Sometimes a jumper will have three pins,
labeled 1, 2 and 3. In this case you would connect either pins 1 and 2, or 2 and 3.
The jumper settings are schematically depicted in this manual as follows:
A pair of needle-nose pliers may be helpful when working with jumpers. If you have
any doubts about the best hardware configuration for your application, contact your
local distributor or sales representative before you make any changes. Generally, you
simply need a standard cable to make most connections.
2.4.1 Auto Power On Setting (J2)
* Default
2.4.2 LCD Power (J4)
Table 2.3: Clear CMOS (J1)
Setting Function
(1-2)* Normal
(2-3) Clear COMS
closed 2-3closedopen
Table 2.4: Auto Power On Setting (J2)
Setting Function
NC Power Button for Power On
(1-2)* Auto Power On

11 MIO-5850 User Manual
Chapter 2 Installation

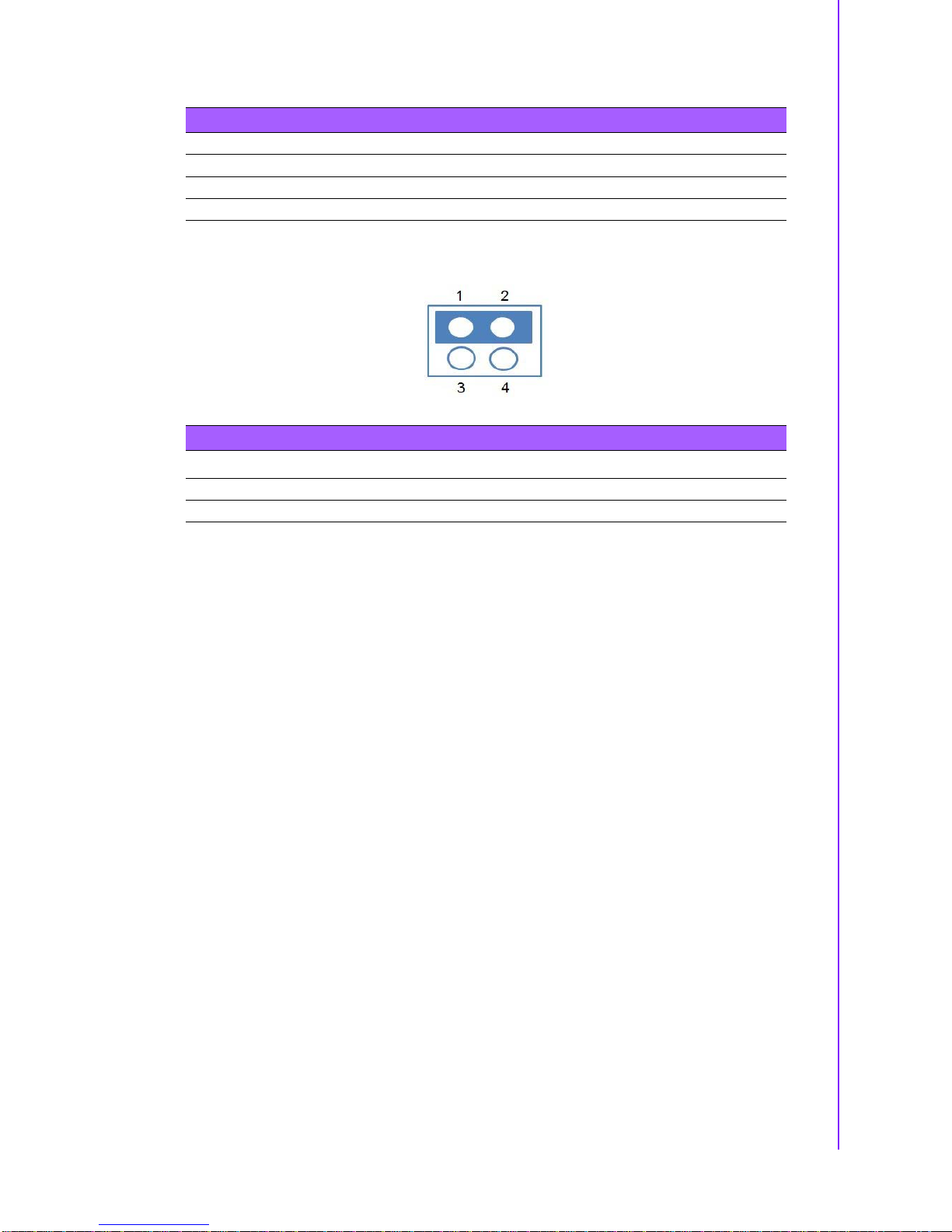

2.4.3 LVDS VCON Setting (J5)
Table 2.5: LCD Power (J4)
Setting Function
(1-3)* +3.3V
(3-5) +5V
(3-4) +12V
Table 2.6: LVDS VCON Setting (J5)
Setting Function
(1-2)* 3.3V High for VCON on LVDS
(1-3) Low for VCON on LVDS

MIO-5850 User Manual 12
