Advocate FT-B05W User manual

AUTOMATIC BLOOD PRESSURE MONITOR
(Wrist Cuff Type)
INSTRUCTION MANUAL
Models: FT-B05W
English Instruction Guide

Thank you for choosing Advocate®as your monitor of choice. The first,
most important part of using your new Advocate®monitor is to register
your monitor with us online. When you register your monitor you are
assured that:
1. We can notify you about any important updates or changes to your monitor.
2. Registering confirms the full warranty period of your Advocate®monitor.
3. Registering provides you peace of mind that you are protected.
To register your new Advocate®Monitor:
Go to: www.advocatemeters.com
Click on WARRANTY REGISTRATION in the QUICK LINKS section.
Enter your information and monitor serial number. That's it!
Thank you!

Table of Contents
IMPORTANT INFORMATION ………………………4
PRECAUTION FOR USE.…………………………...5
BEFORE YOU START………………………….…....5
MONITOR COMPONENTS……………....……....…6
LCD DISPLAY…………...…………………………....7
TIPS FOR BLOOD PRESSURE MONITORING.....8
TAKING A MEASUREMENT……………………......8
PROGRAM DATE, CLOCK & LANGUAGES.......10
IRREGULAR HEARTBEAT INDICATOR………….11
DISPLAYING AVERAGE MEASUREMENTS (AUg)
AND MEMORY RESULTS..........................................12
DELETING A MEASUREMENT FROM THE
MEMORY.....................................................................12
ASSESSING BLOOD PRESSURE FOR ADULTS......13
CLASSIFICAION OF BLOOD PRESSURE.................13
SPECIFICATIONS…………………….……….…….......14
TROUBLESHOOTING.................................................15
LIMITED WARRANTY POLICY………………….....…..16
CONTACT US..............................................................17
BLOOD PRESSURE RECORD.……….…..……..…....18
3

IMPORTANT INFORMATION
Please read this instruction manual thoroughly so that you completely understand the
operations, cautions, performance and limitations with this monitor. After reading this manual,
please keep it for future reference.
You should not use this blood pressure monitor for self-diagnosis, self-treatment or to change
medication without consulting your physician or other health care professional. Should you have
any doubt or question about your blood pressure measurements, you should consult your
physician or other health care professional.
This device contains high-precision parts; therefore, avoid exposing it to extreme temperature
or humidity or to direct sunlight, shock and dust. Pharma Supply guarantees the accuracy of this
monitor only when it is stored and used properly.
Do not attempt to calibrate or repair this monitor. If you have any questions regarding the
function or operation of this monitor, please contact our technical support line so we can provide
you with accurate information.
Should the monitor or cuff need cleaning, use a dry, soft cloth or a cloth dampened with water
and a mild detergent. Never use alcohol, benzene, thinner or other harsh chemicals to clean the
monitor or cuff.
Remove and replace the batteries if the monitor is not used for more than 6 months. Alkaline
batteries recommended.
4

PRECAUTION FOR USE
The Wrist Automatic Blood Pressure Monitor is designed to be operated by anyone who
is eighteen years and older or by medical professionals to monitor blood pressure
(systolic and diastolic) and pulse rate.
BEFORE YOU START
Please make sure you have installed 2 - AAA (3 volt) batteries (alkaline batteries
are recommended) . To install batteries or replace batteries if the “Low Battery”
symbol appears on the display, proceed as follows:
■Battery Loading
★Remove the battery compartment cover by gently pushing down on
arrow and sliding cover forward.
★Place batteries with positive “+” and negative “-” terminals into
compartment and make sure they match the indicated terminals in the
compartment.
★Close the battery cover by gently sliding it into the
compartment and pressing it into place.
5

Note：
★When the LCD display shows “Low Battery” signal , the
batteries must be replaced for accurate readings.
★Do not use rechargeable batteries (voltage 1.2V). They are not suitable
for this product, can damage the monitor and will cause inaccurate
readings.
★Remove the batteries if the monitor will not be used for six month or
longer to avoid damage from the possibility of leaking batteries.
★All the measurements will remain in the memory should the batteries
become drained, removed, or replaced.
MONITOR COMPONENTS
“SET” Button:
Calendar, Clock Setting
“MEMORY” Button：
Calendar, Clock Adjustments
LCD Display
ON/OFF Button
Systolic Indicator
Diastolic Indicator
Pulse Indicator
6

LCD DISPLAY

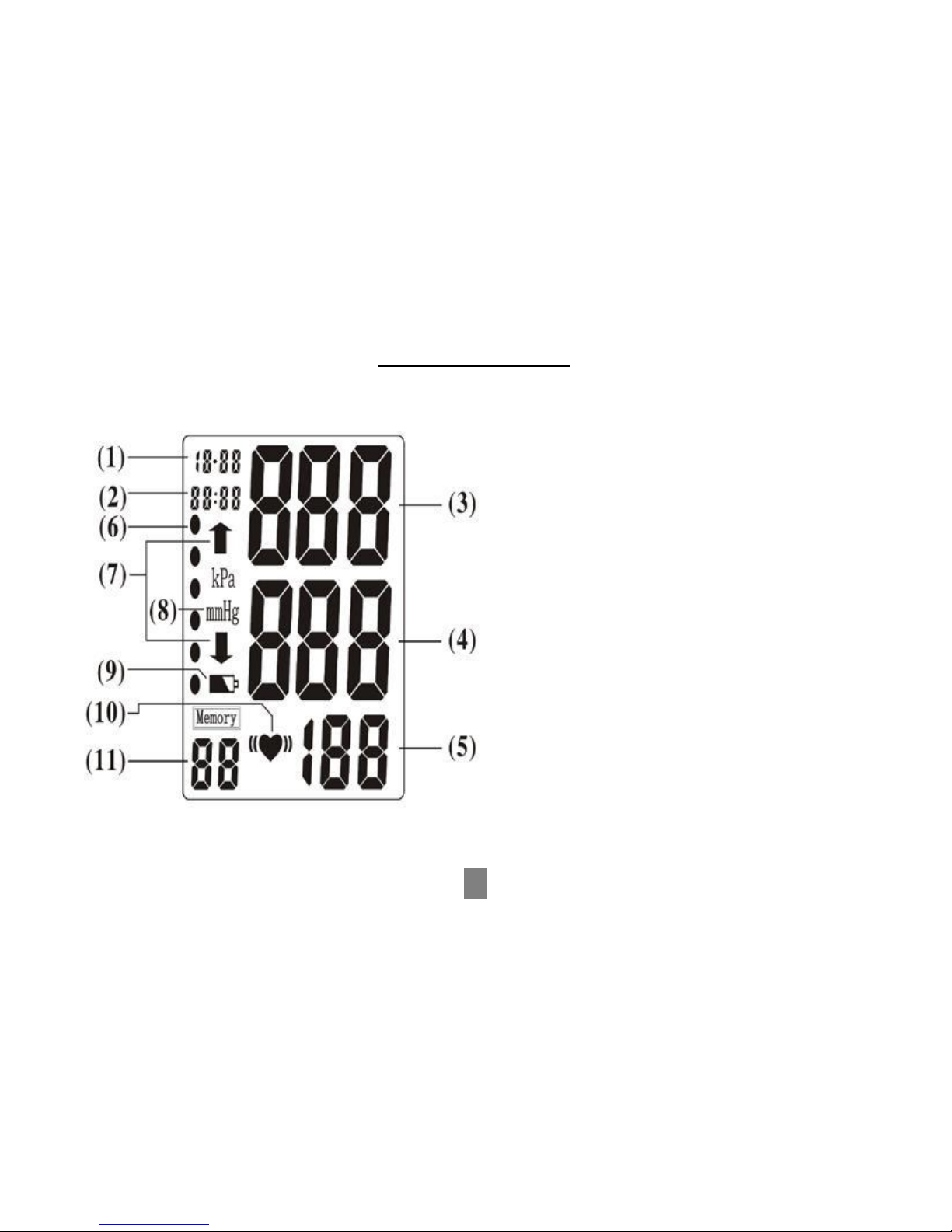

Mode for LCD display:
(1) Date: Year /Month / Day
(2) Time: Hour / Minute
(3) Systolic Blood Pressure
(unit: mmHg)
(4) Diastolic Blood Pressure
(unit: mmHg)
(5) Pulse (unit: beat/minute)
(6) WHO BP Classification Indicator
(7) Inflation / Deflation Indicator
(8) Blood Pressure Measurement Unit
(9) Low Battery Indicator
(10) Irregular heartbeat Indicator
(11) Memory Record Number
7

TIPS FOR BLOOD PRESSURE MONITORING
★Relax for about 5 minutes before measurement.
★Do not smoke or ingest caffeine at least 30 minutes prior to measurement.
★Remove any constricting clothing and place the cuff on a bare wrist.
★Keep still and do not talk until the measurement is complete.
★The cuff must be neither too tight nor too loose. Using a little force, you should be
able to place two fingers between the cuff and your wrist.
TAKING A MEASUREMENT

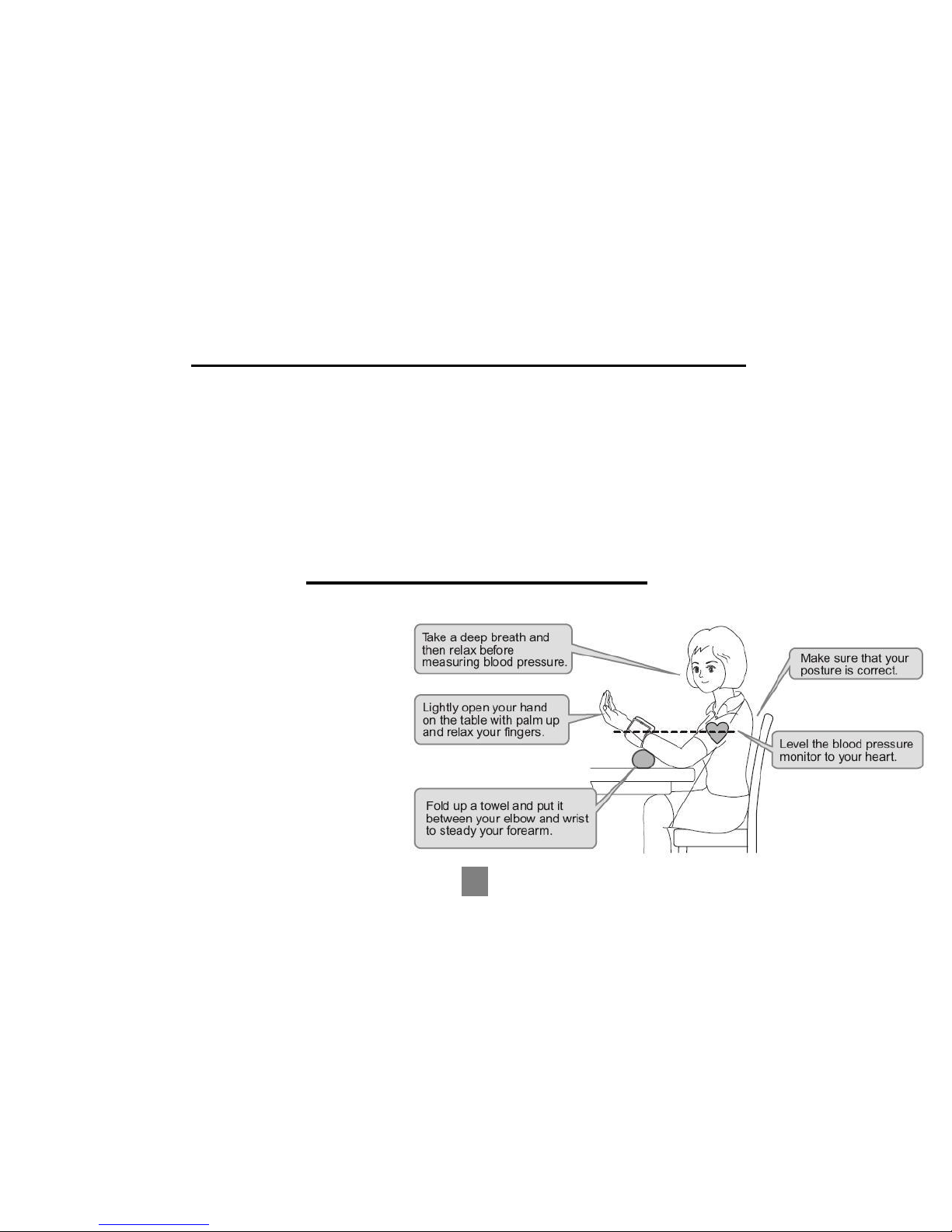

CORRECT POSTURE FOR TAKING
BLOOD PRESSURE MEASUREMENT
★Make yourself comfortable and
sit-up straight.
★Rest the wrist with the cuff in front
of you on the table with your
palm facing up. Do not bend your wrist
or curl your fingers.
★
8
Cuff should be at approximately
the same height as your heart.

HOW TO PLACE/WRAP THE
CUFF ON YOUR WRIST? ★Place the cuff around your bare wrist ½” - ¾” above the
wrist joint on the opened-hand (inside) side of the wrist.
★Keep the cuff at approximately the same
level as your heart.
★Unless your physician recommends otherwise, use the
left wrist to measure pressure.
★The cuff should be snug but not too tight. You should be
able to insert two fingers between the cuff and your wrist.

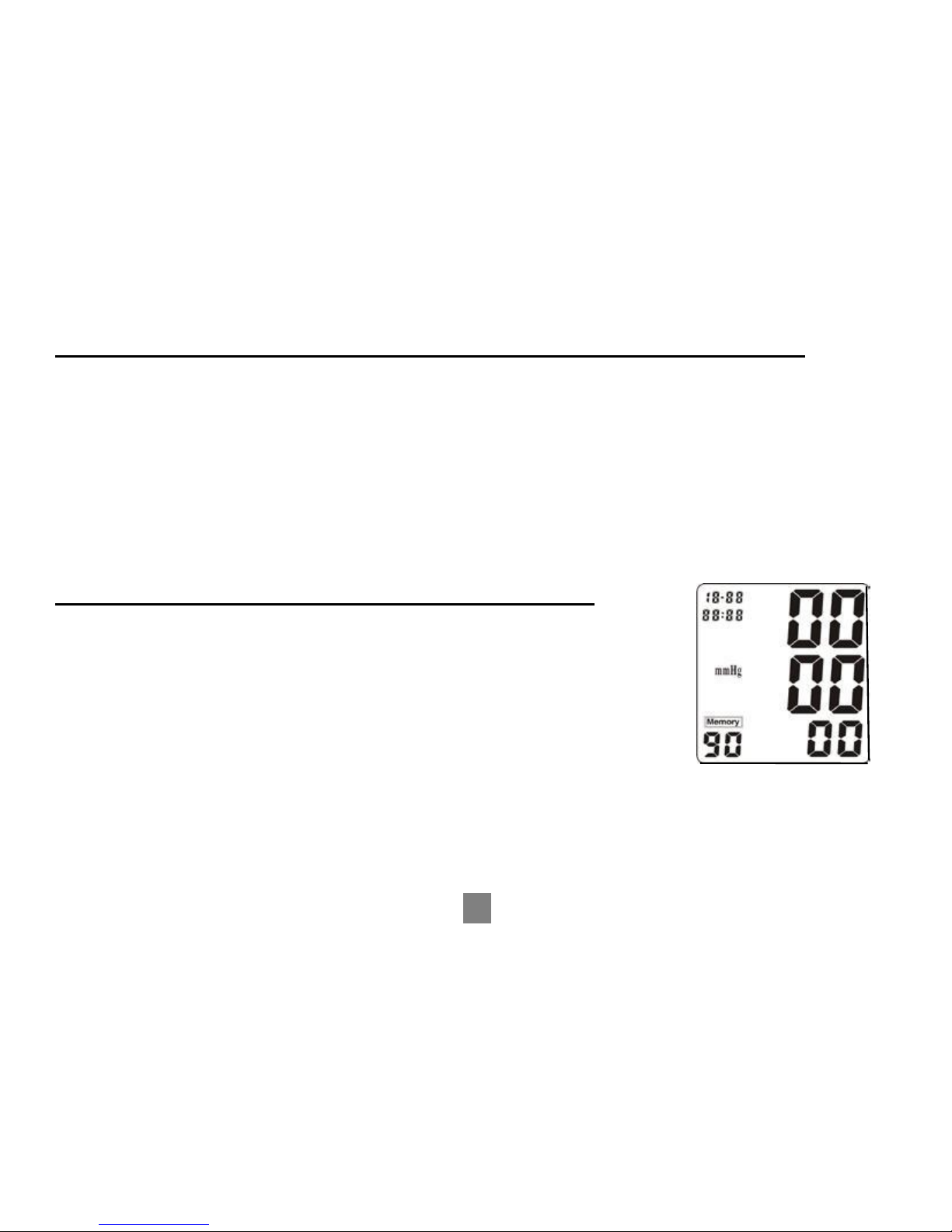

TAKING YOUR BLOOD PRESSURE

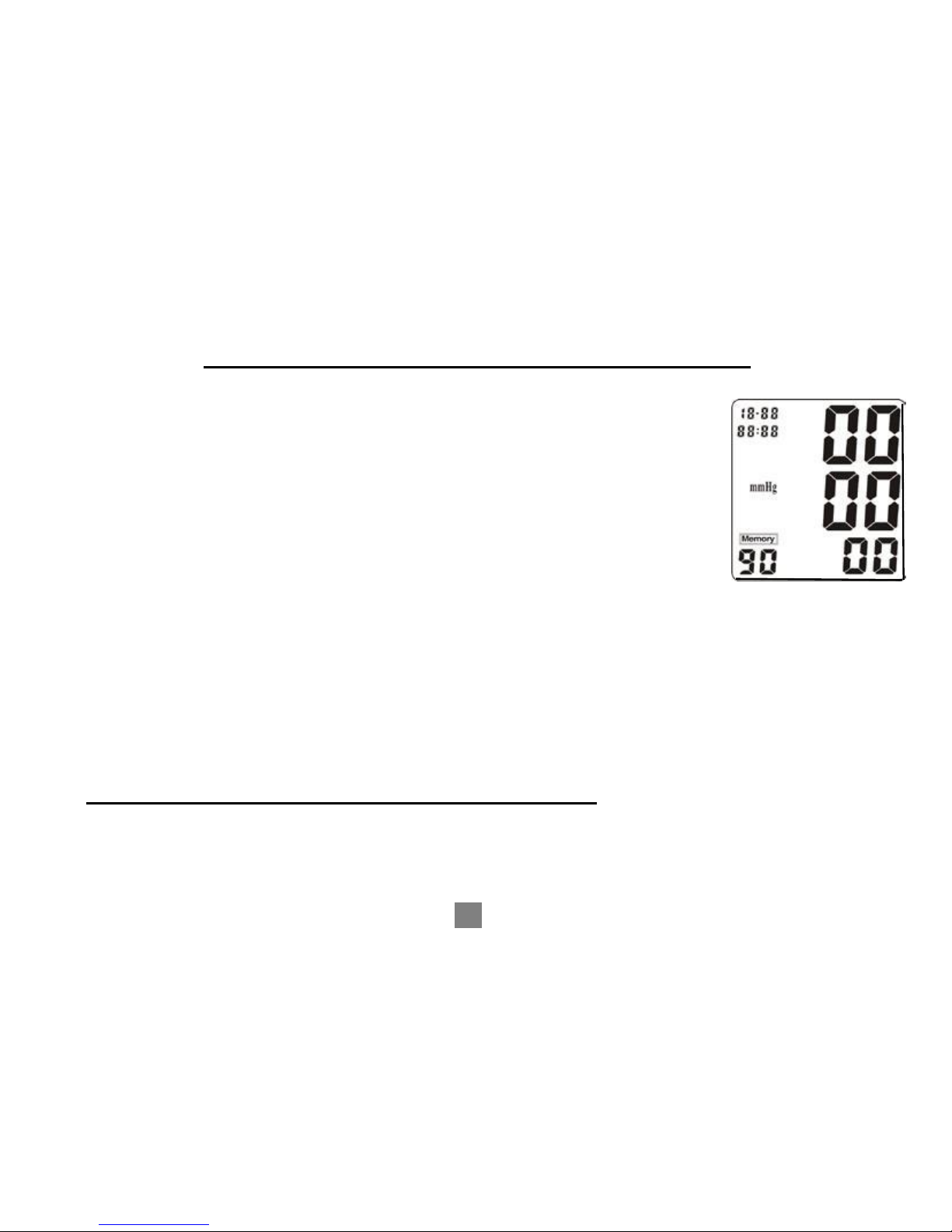

After you are in a comfortable position, press the
“ON/OFF” button. The device will perform a self
verification check. During this verification/check the
LCD will display all “8’s”. At the conclusion of the
verification/check the LCD will display “00”.
9

PROGRAM DATE, CLOCK AND LANGUAGE
★While the monitor is turned off, press the “SET” button for about
5 seconds, the number of the YEAR will begin to blink on the
LCD display. Press the “M” (for memory) button to change the
YEAR. Each time you press the “M” button, it will change one
YEAR forward.
★Once the YEAR is set up, press and release the “SET” button
once, the MONTH signal will begin to blink. Press the “M”
button once to change the MONTH. Each time you press the
“M” button, it will change one MONTH forward.
★Once the MONTH is set up, press and release the“SET”
button once. The DAY signal will begin to blink. Press the
“M” button to change the DAY. Each time you press
the “M” button, it will change one DAY forward.
★REPEAT THIS PROCESS FOR SETTING THE TIME.
Use the “SET” button to change (Hours/Minutes) and the “M” button will change
the numbers forward.
10

★WHEN EVERYTHING IS COMPLETELY SET-UP, THE MONITOR WILL
AUTOMATICALLY SWITCH OFF. WHEN YOU PRESS “ON/OFF”
BUTTON AGAIN, THE MONITOR WILL ACTIVATE.
NOTE: When batteries are replaced, the time and date must be reset.
NOTE: Time is maintained using a 24 HOUR clock. AM/PM is not displayed.

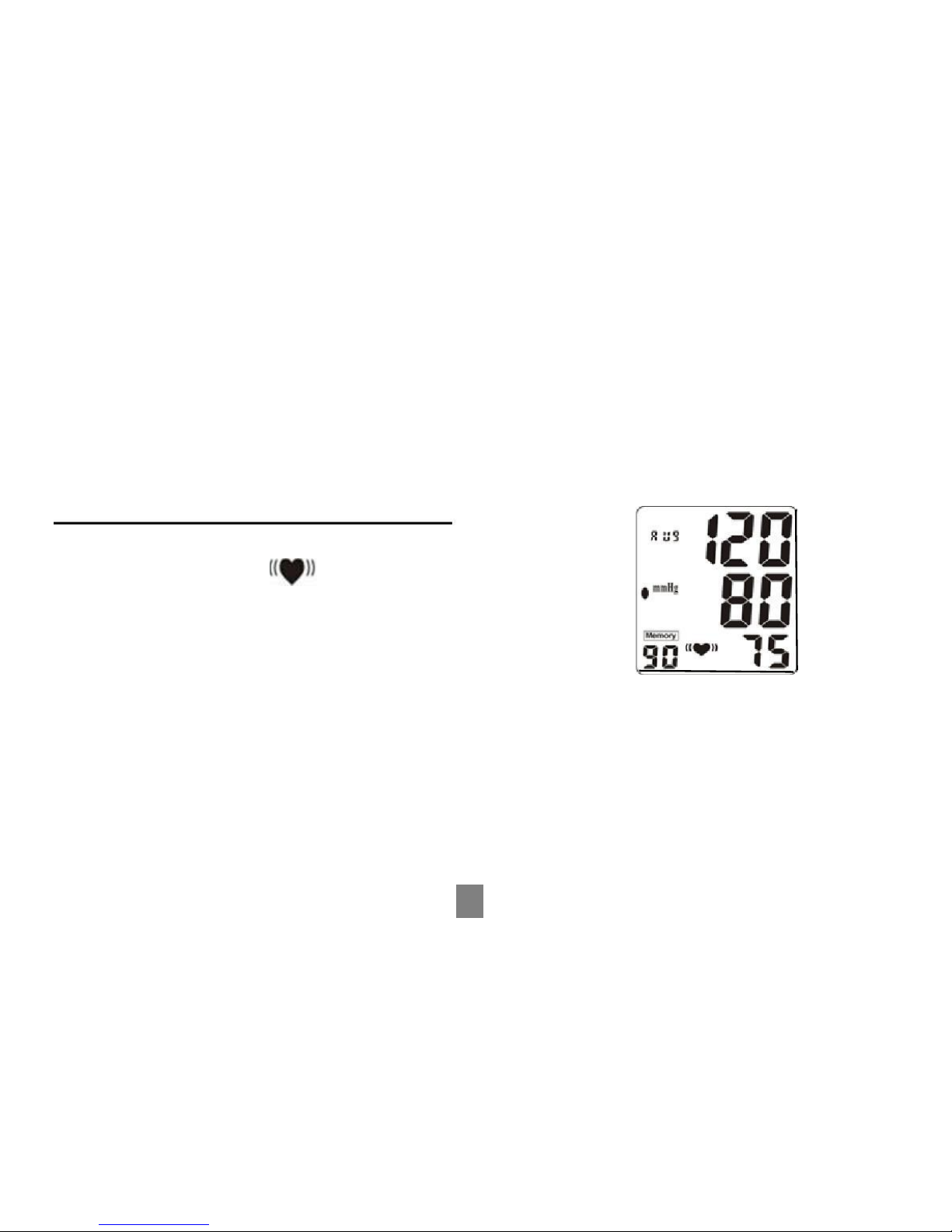

IRREGULAR HEARTBEAT INDICATOR:
If an irregular heartbeat is detected, the IRREGULAR
HEARTBEAT symbol will appear and blink
in the display screen.
11

DISPLAYING AVERAGE MEASUREMENT (Aug) AND MEMORY RESULTS:
★Each time you press and release the “M” button while the monitor is
turned off, the LCD will display the symbol “AUg” on the left upper corner
of the LCD screen to show the average of the last three measurements
recorded.
★To review other results stored in the memory – Press the “M” button to
scroll through previous measurements. Each time you press and release
the “M” button the most current result will be displayed.
DELETING A MEASUREMENT FROM THE MEMORY:
★Press and hold the “MEMORY” button until all the numbers
change to ‘ZERO’. All results stored in memory are now
deleted.
NOTE: Date and time settings are not changed by using the
memory delete function.
12

ASSESSING BLOOD PRESSURE FOR ADULTS
The following standards for assessing high blood pressure (without regard to age or
gender) have been established as a guide according to WHO (World Health
Organization). Please note that other risk factors (e.g. diabetes, obesity, smoking, etc.)
need to be taken into consideration and may affect these figures. Always consult with
your physician or other healthcare professional for accurate assessment.

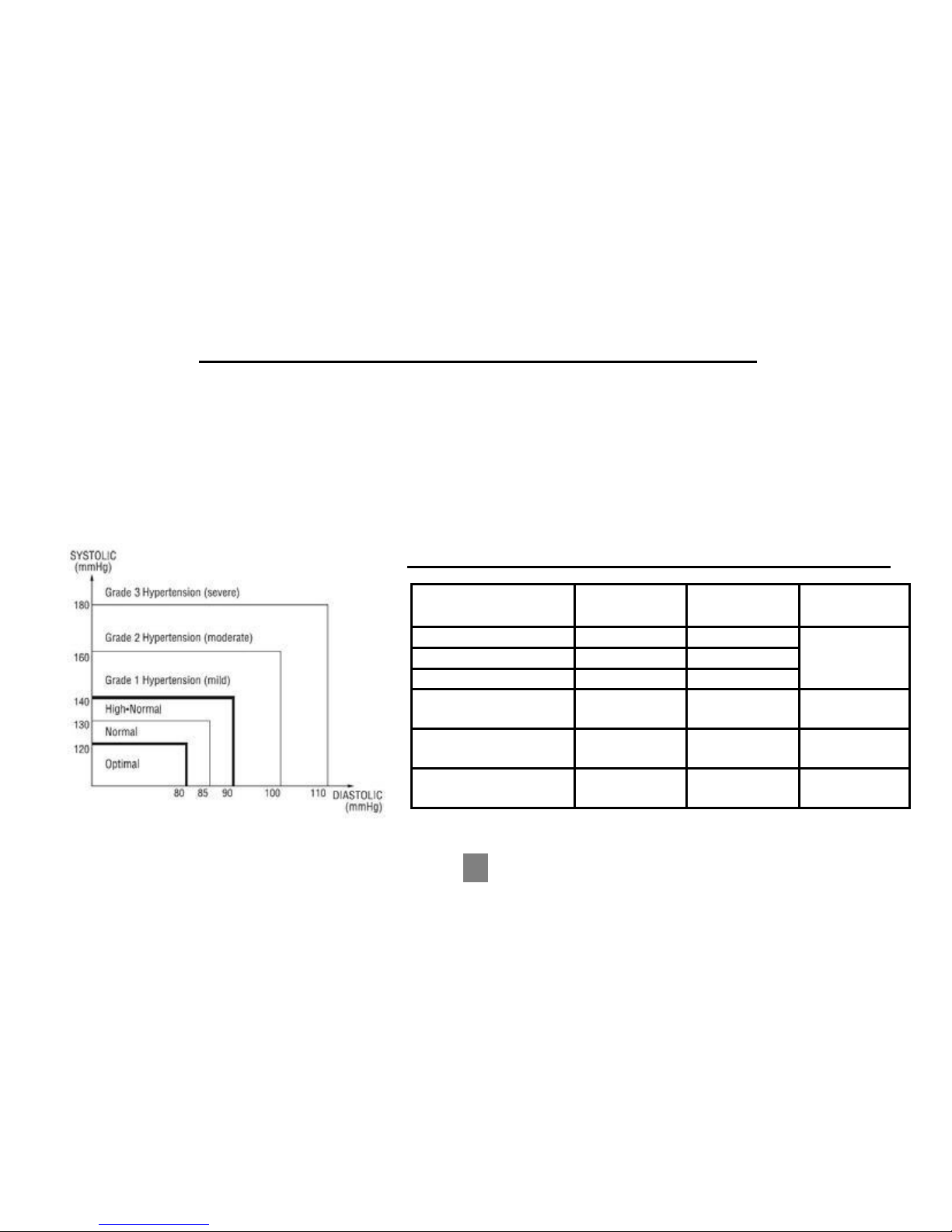

WHO CLASSIFICATION OF BLOOD PRESSURE
Blood Pressure
SBP
DBP
COLOR
Classification
(mmHg)
(mmHg)
INDICATOR
Optimal
<120
<80
GREEN
Normal
120-129
80-84
High-Normal
130-139
85-89
Stage 1
140-159
90-99
YELLOW
Hypertension
Stage 2
160-179
100-109
ORANGE
Hypertension
Stage 3
≥180
≥110
RED
Hypertension
13

SPECIFICATIONS
Model No.:
FT-B05W (No Voice)
Operation Environment:
-------------------------------------
Type:
Oscillometric; Automatic air
Storage Environment:
inflation by air pump and
automatic deflation
Classification:
-------------------------------------
Measurement
Pressure: 40~280mmHg
Cuff Size:
Range:
Pulse: 30~160 Pulses
-------------------------------------
Accuracy:
Pressure: within ±3mmHg
Memory:
Pulse: within ±5%
Power Supply:
3V DC (2 “AAA” batteries)
-------------------------------------
Dimensions:
Approx. 250 times (180mmHg,
Battery Life:
once /day, 22°C)
Weight:
Temperature: 5~40°C
Humidity: < 85%RH
----------------------------------------
Temperature: -20~60°C
Humidity: < 95%RH
Class II, type B
----------------------------------------
290mm (L) x 72mm (W)
(+/-5mm)
----------------------------------------
90 measurements including
date and time
----------------------------------
72mm (2.83inch)---------(L)
63mm (2.48nch) ---------(W)
28.9mm (1.14inch) -------(H)
----------------------------------------
238g (0.52 LB)
14

TROUBLE SHOOTING (1)
Abnormality
Probable Reason
Corrective action
LCD shows Low Batter
symbol
Batteries are low.
Install new batteries.
The unit does not
measure. Readings
are too high or too low.
Pneumatic system blocked or cuff
is too tightly wrapped.
Make certain the cuff is wrapped around
your wrist correctly and re-measure.
Pressure system was unstable
before measurement.
Measure again. Stay calm. Do not move
or speak during measurement.
The cuff position is not correct.
Sit comfortably and still. Make sure the
cuff is at the same level at your heart.
An irregular heartbeat
symbol occurs.
Irregular heartbeat
Relax for about 5 minutes and measure
again. If the symbol appears again,
consult your physician or other health care
professional..
Voice processor
Unclear announcement by voice
processor
Batteries may be low. Please install new
batteries and then take a measurement
again,
Incorrect operation
Some interference in inflation or
wrong operation during measuring
Refer to the inflation step in “Taking blood
pressure”and process again.
15

TROUBLE SHOOTING (2)
Abnormality
Reason
Checkout
LCD shows “Er U”
Insufficient inflation
Wait for 5 minutes and re-measure.
LCD shows “Er H”
Inflation over 305 mmHg
If operation is still abnormal, contact
manufacture or agent (see the last page)
LCD shows “Er 1”
Undetectable pulse
LCD shows “Er 2”
Radiation interference
Move away from radiation source
LCD shows “Er 3”
Measured result appears wrong
Measure again
16

LIMITED WARRANTY POLICY
Diabetic Supply of Suncoast, Inc. warrants to the original purchaser that this instrument will be free from
defects in materials and workmanship for a period on one (1) year from the date of purchase (except as
noted below). The warranty is not transferable.
This warranty is subject to the following exceptions and limitations.
1. This warranty is valid only if the Warranty Registration is completed online within 14 days from the
date of purchase of your monitor. You will need to have the date of purchase, model number and
serial number of your monitor to complete registration. The model and serial numbers are found on
the silver information sticker located on the bottom of your monitor. Refer to the inside front cover of
this manual for instructions on how to register your new Advocate® blood pressure monitor online.
2. This warranty is limited to replacement due to defects in parts and workmanship.
3. This warranty does not apply to the performance of this product that has been damaged due to
abuse, accident, alteration, misuse, neglect, maintenance by someone other than Diabetic Supply
of Suncoast or failure to operate the instrument in accordance with instructions. Further, Diabetic
Supply of Suncoast assumes no liability for malfunction or damage caused by the use of reagents
other than reagents manufactured or recommended by Diabetic Supply of Suncoast.
4. Diabetic Supply of Suncoast reserves the right to make changes in design of this instrument
without obligation to incorporate such changes into previously manufactured instruments.
Manufactured for: Diabetic Supply of Suncoast, Inc.,PO Box 2102.Vega Alta, PR 00692
Toll Free: [phone]; www.advocatemeters.com
Tech Support: 1-866-373-2824; [e-mail] ;www.advocatemeters.com
Manual Version V1.0
17

BLOOD PRESSURE RECORD
Name:
Age:
Weight:
Date:
AM
SYS/DIA
PULSE
PM
SYS/DIA
PULSE
Note: By monitoring and controlling high blood pressure, you can lower your risk of stroke, heart
attack, heart failure and kidney disease
18 18

STATEMENTS AND DECLARATIONS:
1. Wrist Blood Pressure Monitor needs special precautions regarding EMC and needs to be installed and put into
service according to the EMC information provided in the ACCOMPANYING DOCUMENTS
2. Wireless communications equipment such as wireless home network devices, mobile phones, cordless
telephones and their base stations, walkie-talkies can affect this equipment and should be kept at least a
distance d = 3,3 m away from the equipment.
(Note. As indicated in Table 6 of IEC 60601-1-2:2007 for ME EQUIPMENT, a typical cell phone with a maximum
output power of 2 W yields d = 3,3 m at an IMMUNITY LEVEL of 3 V/m)
3. The manufacturer are available for request of circuit diagrams, component part lists, descriptions ,calibration
instructions ,or other information that will assist service personnel to repair those parts of the device
4. Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Consult the dealer or an experienced radio/TV technician for help.
19

Guidance and manufacturer’s declaration
Guidance and manufacture’s declaration – electromagnetic emission
The Wrist Blood Pressure Monitor is intended for use in the electromagnetic environment specified below. The
customer of the user of the Wrist Blood Pressure Monitor should assure that it is used in such an environment.
Emission test
Compliance
Electromagnetic environment – guidance
RF emissions
CISPR 11
Group 1
The Wrist Blood Pressure Monitor use RF energy
only for its internal function. Therefore, its RF
emissions are very low and are not likely to cause
any interference in nearby electronic equipment.
RF emission CISPR 11
Class B
Harmonic emissions
IEC 61000-3-2
Not applicable
Voltage fluctuations/flicker
emissions IEC 61000-3-3
Not applicable
20
