AEG Electrolux D41116 User manual

D41116
User manual Built in double oven

Thank you for choosing one of our high-quality products.
To ensure optimal and regular performance of your appliance please read this
instruction manual carefully. It will enable you to navigate all processes perfectly
and most efficiently. To refer to this manual any time you need to, we recommend
you to keep it in a safe place. And please pass it to any future owner of the appliance.
We wish you much joy with your new appliance.
Contents
Operating Instructions 3
Safety information 3
Product description 5
General overview 5
Control Panel Overview 5
Oven accessories 6
Before first use 6
Preparing to use your appliance 6
Cookware 7
Setting the Time 7
Initial Cleaning 8
Operation 8
The top oven 8
Oven Functions 9
Clock Functions 10
Countdown 10
Cook time 10
End time 11
Cook time and End time combined 11
Use, tables and tips 11
Roasting 13
Top Oven - Conventional Cooking 14
Top Oven - Grilling 16
Main Oven - Conventional Cooking 17
Main Oven - True Fan - Baking 17
Main Oven - True Fan - Roasting 18
Main Oven - Grilling 18
Main Oven - Rotitherm Roasting 19
Main Oven - Fan Baking 21
Care and cleaning 21
Shelf supports 22
Replacing the side oven lamp/Cleaning the
glass cover (for selected models only)
24
Oven back lamp (for selected models only)
24
Oven door 25
Oven door glass 27
Cleaning the outside of the appliance
30
Cleaning inside the grill and oven
compartments 31
What to do if… 31
Installation Instructions 32
Installation 32
Electrical Installation 35
Disposal 36
GREAT BRITAIN & IRELAND - Guarantee/
Customer Service 36
Warranty 38
Guarantee/Customer Service 40
www.electrolux.com 42
Subject to change without notice
2Contents

Operating Instructions
Safety information
These warnings are provided in the interests of your safety. Ensure that you understand
them all before installing or using the appliance.
Your safety is of paramount importance. If you are unsure about any of the meanings of
these warnings please contact customer care.
Installation
• The appliance must be installed according to the instructions supplied.
• The installation work must be undertaken by a qualified electrician or competent person.
• The appliance should be serviced by an authorised Service Engineer and only genuine
approved spare parts should be used.
• The appliance must be installed in an adequately ventilated room.
• It is imperative that the appliance is left in the base to protect both the appliance and
the floor.
• This appliance is heavy and care must be taken when moving it. Always wear safety
gloves.
• Do not attempt to lift or move this appliance by the handles.
• All packaging, both inside and outside the appliance must be removed before the ap-
pliance is used.
• It is dangerous to alter the specifications or modify the appliance in any way.
Child safety
• Do not allow children to play with any part of the packaging.
• Do not allow children to sit or climb on the drop down doors.
• This appliance is not intended for use by children and other persons whose physical,
sensory or mental capabilities or lack of experience and knowledge prevents them from
using the appliance safely without supervision or instruction by a responsible person to
ensure that they can use the appliance safely.
• Children should be supervised to ensure that they do not play with the appliance.
CAUTION!
Accessible parts may become hot during use, to avoid burns young children should be kept
away.
During use
WARNING!
Never leave the appliance unattended when the oven door is open.
• This appliance is not intended to be operated by means of an external timer or separate
remote control system.
• This appliance has been designed for domestic use to cook edible foodstuffs only and
must not be used for any other purposes.
• Take great care when heating fats and oils as they will ignite if they become too hot.
• Never place plastic or any other material that may melt in or on the oven.
Safety information 3

• Always support the grill pan when it is in the withdrawn or partially withdrawn position.
• Always use oven gloves to remove and place food in the oven.
• During use the appliance becomes hot. Care should be taken to avoid touching the
heating elements inside the oven.
• Ensure that all vents are not obstructed to ensure ventilation of the oven cavity.
• Never line any part of the appliance with foil.
• Always stand back from the appliance when opening the oven door to allow any build
up of steam or heat to release.
• Stand clear when opening the drop down doors. Support the doors using the handles
until fully open.
• Do not place sealed cans or aerosols inside the oven. They may explode if they are heated.
• Ensure that all control knobs are in the OFF position when not in use.
• Do not stand on the appliance or on the open oven doors.
• Do not hang towels, dishcloths or clothes from the appliance or its handles.
• Do not use this appliance if it is in contact with water. Never operate it with wet hands.
Cleaning and maintenance
WARNING!
For hygiene and safety reasons this appliance should be kept clean at all times. A build-up
of fat or other foodstuff could result in a fire especially in the grill pan.
• Do not leave cookware containing foodstuffs, e.g. fat or oil in the appliance in case it is
inadvertently switched on.
• Always allow the appliance to cool before switching off at the wall prior to carrying out
any cleaning/maintenance work.
• Only clean this appliance in accordance with the instructions given in this book.
• Never use steam or high pressure steam cleaners to clean the appliance.
4Safety information

Product description
General overview
1
2
3
4
5
1Control panel
2Top oven handle
3Top oven
4Main oven handle
5Main oven
Control Panel Overview
1 2 8 6 7
345
1Top oven function knoob
2Top oven temperature knob
3Decrease button
4Mode button
5Increase button
6Main oven function knob
Product description 5

7Main oven temperature knob
8Display
Oven accessories
3 oven shelfs
Oven grill shelf
Anti stick meat/Drip pan
Before first use
Rating plate
This is situated on the front frame of the appliance and can be seen upon opening the door.
Alternatively the rating plate may also be found on the back or top of some models (where
applicable).
The appliance must be protected by a suitably rated fuse or circuit breaker.
The rating of the appliance is given on the rating plate.
WARNING!
Do not remove the rating plate from the appliance as this may invalidate the guarantee.
Preparing to use your appliance
Wipe over the base of the oven(s) with a soft cloth using hot soapy water. Washthe furniture
before use.
6Before first use

We suggest that you run the oven(s) and grill for 10 – 15 minutes at maximum temperature,
to burn off any residue from their surfaces. Accessible parts may become hotter than in
normal use. Children should be kept away. During this period an odor may be emitted, it is
therefore advisable to open a window for ventilation.
There is a hot surface label on the oven door. Please remove the label from the door before
first use of the appliance.
The cooling fan
The cooling fan comes on immediately the top oven or grill is switched on. It may run on
after the ovens are switched off until the appliance has cooled. During the cooling down
period the cooling fan may switch on and off.
WARNING!
Always allow the cooling fan to cool the appliance down before switching off the electrical
supply to carry out cleaning or maintenance.
Control panel indicator neon(s)
The indicator neon will operate when the oven(s) is switched on. The indicator neon will
glow. It may turn on and off during use to show that the setting is being maintained. If the
neon does not operate as the instructions indicate the controls have been incorrectly set.
Return all controls to zero and reset following the instructions for the required setting.
Condensation and steam
When food is heated it produces steam similar to a boiling kettle. The vents allow some of
this steam to escape. However, always stand back from the appliance when opening the
door(s) to allow any build up of steam or heat to release.
If the steam comes into contact with a cool surface on the outside of the appliance, e.g. a
trim, it will condense and produce water droplets. This is quite normal and is not caused
by a fault on the appliance.
To prevent discoloration, regularly wipe away condensation and foodstuff from surfaces.
For your safety wall coverings at the rear of the appliance should be securely fixed to the
wall.
Cookware
Baking trays, dishes etc., should not be placed directly against the grid covering the fan at
the back of the oven.
Do not use baking trays larger than 30cm x 35cm (12” x 14”) as they will restrict the
circulation of heat and may affect performance.

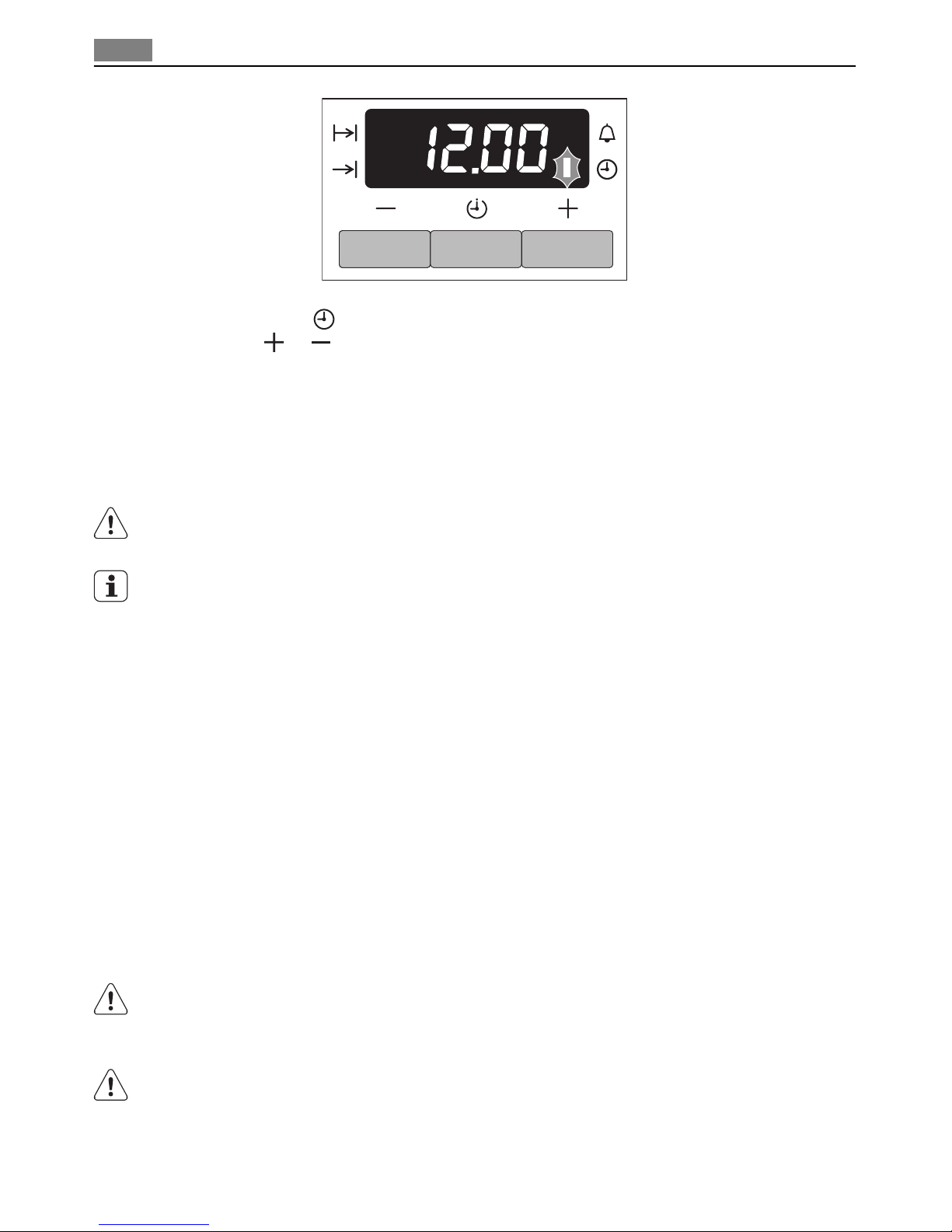

Setting the Time
The oven only operates when the time has been set.
Before first use 7

1. When the appliance is connected to the electrical supply or when there has been a
power cut, Time flashes automatically.
2. Using the or button, set the current time.
3. After approx. 5 seconds, the clock stops flashing and the clock displays the time of day
set.
The appliance is now ready to use.
Initial Cleaning
Before using the oven for the first time you should clean it thoroughly.
WARNING!
Do not use any caustic, abrasive cleaners! The surface could be damaged.
To clean metal fronts use commercially available cleaning agents.
1. Turn the oven function switch to oven lighting .
2. Remove all accessories and the shelf support rails and wash them with warm water
and washing up liquid.
3. Then wash out the oven with warm water and washing-up liquid, and dry.
4. Wipe the front of the appliance with a damp cloth.
Operation
The top oven
The top oven is the smaller of the two ovens. It is heated by elements in the top and bottom
of the oven. It is designed for cooking smaller quantities of food. It gives especially good
results if used to cook fruitcakes, sweet and savoury flans or quiche.
The top oven is ideal for use as a warming compartment. It can be used to warm dishes
and keep food hot. Use the lowest setting on the top oven temperature control.
WARNING!
Do not place cookware and cooking pots with rough bases e.g. cast iron on the oven door
as damage to the glass may occur.
Always grill with the door closed.
Switching the Oven On and Off
1. Turn the oven functions dial to the desired function.
8Operation

2. Turn the temperature selector to the desired temperature.
3. To turn the oven off, turn the oven functions dial and the temperature selector to the
Off position.
The power indicator is lit as long as the oven is in operation.
The temperature pilot light is lit as long as the oven is heating up.
The fan switches on automatically in order to keep the appliance’s surfaces cool. When the
oven is switched off, the fan continues to run to cool the appliance down, then switches
itself off automatically.
Oven Functions
Top Oven
Oven function Application
Light Using this function you can light up the oven interior, e.g. for
cleaning.
Conventional Cooking This form of cooking gives you the opportunity to cook with-
out the fan in operation. It is particularly suitable for dishes,
which require extra base browning such as pies, quiches and
flans. Gratin's, lasagne and hot pots which require extra top
browning also cook well in the conventional oven.
Top Heat Browning This function uses the top element to give single level cook-
ing. This is particularly suitable for dishes which require extra
top browning
Base Hit Finishing For baking cakes with crispy or crusty bases.
Economy Grill For grilling flat foodstuffs placed in the middle of the grill
and for toasting.
Full Grill For grilling flat foodstuffs in large quantities and for toasting.
Bottom Oven
Oven function Application
Light Using this function you can light up the oven interior, e.g. for
cleaning.
True Fan The fan function is particularly suitable for cooking larger
quantities of food. Set the oven temperatures 20-40 °C lower
than when using Conventional.
Fan Baking For baking on one oven level dishes that require more inten-
sive browning and a crispy base. Set the oven temperatures
20-40 °C lower than when using Conventional
Operation 9

Oven function Application
Conventional Cooking This form of cooking gives you the opportunity to cook with-
out the fan in operation. It is particularly suitable for dishes,
which require extra base browning such as pies, quiches and
flans. Gratin's, lasagne and hot pots which require extra top
browning also cook well in the conventional oven. For best
results cook on one level.
Base Heat Finishing For baking cakes with crispy or crusty bases.
Fan Controlled Defrosting For defrosting e. g. flans and gateaux, butter, bread, fruit or
other frozen foods.
Economy Grill For grilling flat foodstuffs placed in the middle of the grill
and for toasting
Full Grill For grilling flat foodstuffs in large quantities and for toasting.
Rotitherm Roasting For roasting larger joints of meat or poultry on one level. The
function is also suitable for gratinating and browning.
Clock Functions
•Countdown - See appropriate chapter on setup. A signal sounds after the time has
elapsed. This function does not affect the functioning of the oven.
• Cook time - is used to set the desired period of cooking time.
•Endtime - when set the appliance is turned off at desired time.
•Time - shows the current time.
How to use the clock functions
• After a function has been selected, the corresponding function indicator flashes for about
5 seconds. During this period, the desired times can be set using the increase or
decrease button.
• When the desired time has been set, the function indicator continues to flash for approx.
5 seconds. After that the function indicator is then lit. The set time begins to run.
• Press any of the buttons to stop the audible signal.
• The desired oven function and temperature can be selected before or after the clock
functions Cook time and End time are set.
• When the cooking process is completed, turn the oven function dial and the temperature
selector back to the OFF position.
Countdown
1. Press the Mode button repeatedly until the function indicator Countdown flashes.
2. Using the increase or decrease button set the desired Countdown (max. 2 hours
30 minutes).
3. After approx. 5 seconds the display shows the time remaining. The function indicator
Countdown lights up.
4. When the time has elapsed, the function indicator flashes and an audible signal sounds
for 2 minutes. The signal can be stopped by pressing any button.
Cook time
1. Press the Mode button repeatedly until the function indicator Cook time flashes.
10 Operation
