AEG AHT46 User manual

AHT46
Original instructions

2
2
Important!
It is essential that you read the instructions in this manual before
assembling, operating, and maintaining the product.
Subject to technical modifications.

33
x 1
x 1
x 1
x 1

4
4
BLADES
BLADE
COVER
ROTATING HANDLE
ANGLE ADJUSTMENT COLLAR
ATTACHMENT POLE
FOAM HANDLE
END CAP
SNAP BUTTON
ANGLE ADJUSTMENT DETENT

55
BLADES
BLADE
COVER
ROTATING HANDLE
ANGLE ADJUSTMENT COLLAR
ATTACHMENT POLE
FOAM HANDLE
END CAP
SNAP BUTTON
ANGLE ADJUSTMENT DETENT

6
6
8
13
10
14
OPERATING THE PRODUCT
CLEANING THE PRODUCT

77
8
13
10
14

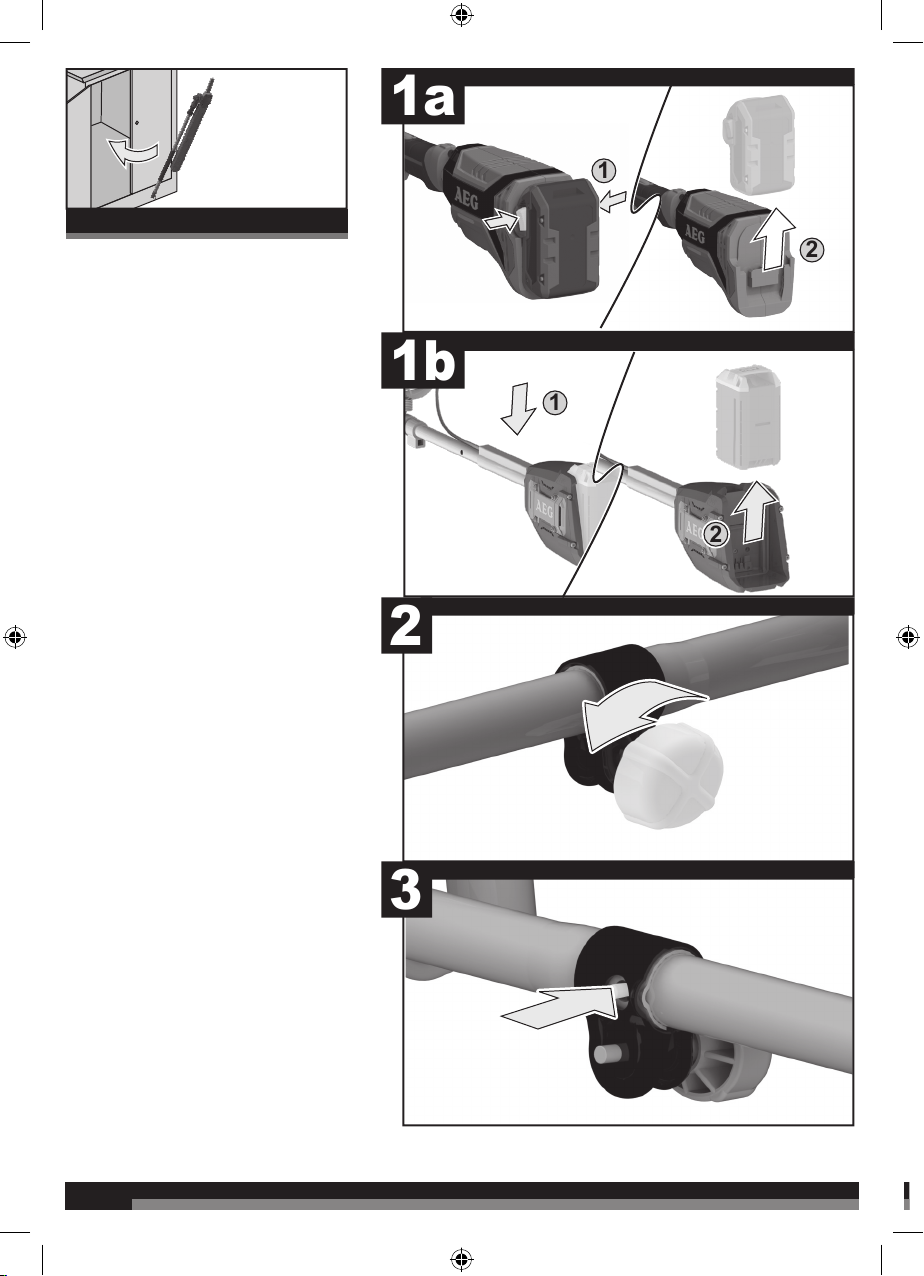

Installing and removing the attachment
INSTALLINGREMOVING THE ATTACHMENT
STORING THE PRODUCT

8
8
1
2
1
2
click
1a
1b
2
3
Installing and removing the attachment
INSTALLINGREMOVING THE ATTACHMENT

99
1
2
1
2
click
1a
1b
2
3
7
5
6
8
4
5
6
7

10
10
1
2
3
1
2a
2b
1
2
NOTE: The blades are sharp. To prevent
serious injury, do not touch the cutting
blades.
OPERATING THE PRODUCT

11 11
1
2
3
1
2a
2b
1
2
7
6
5
4
5
6

12
12
1
2
1
2
2
3
1a
1b
click
click
7
8a
9
8b

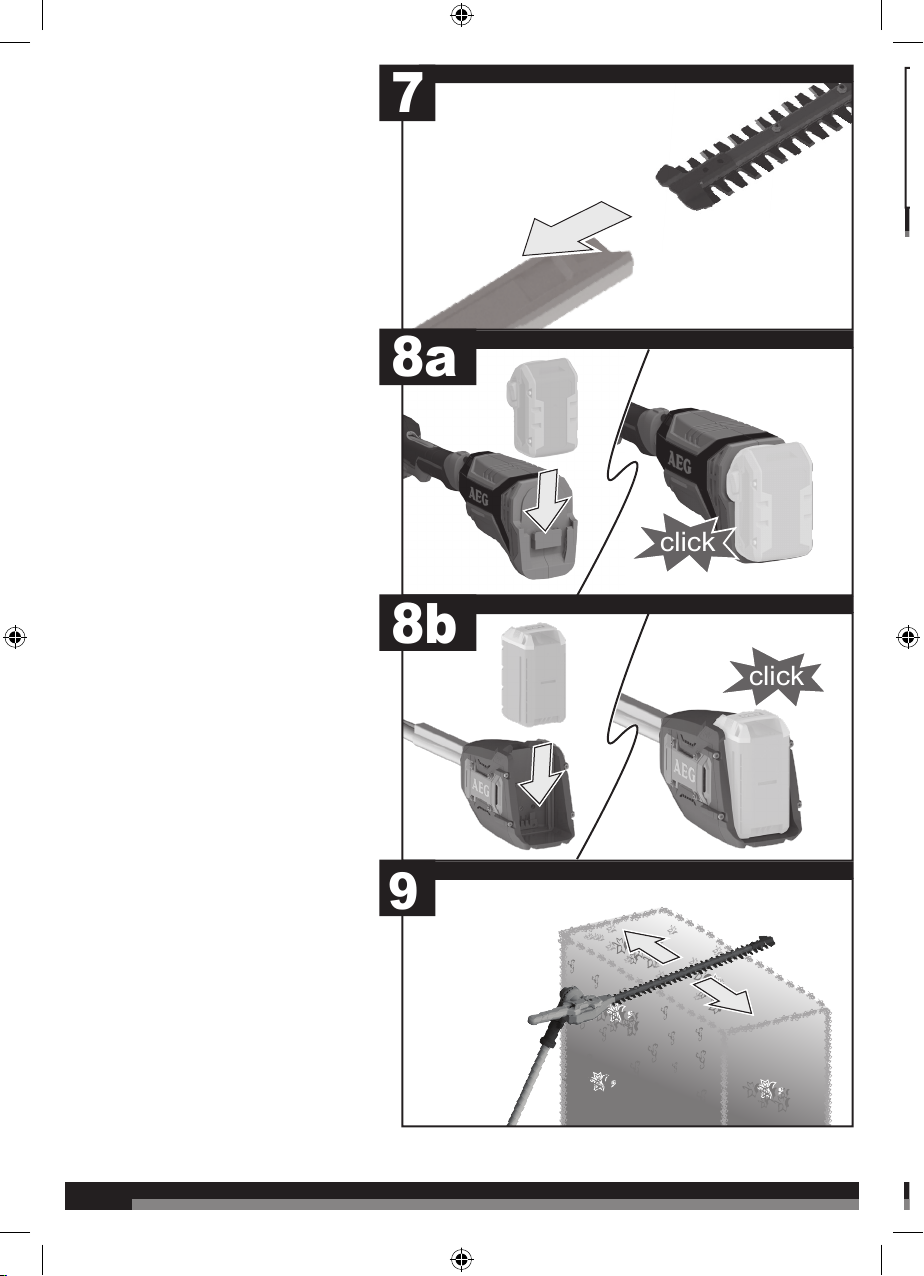

CLEANING THE PRODUCT

13 13
1
2
1
2
2
3
1a
1b
NOTE: Lubricate the blades lightly
before and after use with a plant-
friendly lubricant.
click
click
7
8a
9
8b
CLEANING THE PRODUCT

14
14
1
2
1
2
1a
1b
3
2
Storing the hedge trimmer
STORING THE PRODUCT

15 15
1
2
1
2
1a
1b
3
2
6
7
5
4
5
6

16
16
TECHNICAL DATA CORDLESS HEDGE TRIMMER AHT46
No load speed (SPM)
High 0-1800/min Low 0-1500/min for 18 V power head
High 0-2100/min Low 0-1800/min for 58 V power head
Blade length
500
mm
Cutting capacity 25 mm
Articulation angle 180°
Weight 2.65 kg
Below values measured with power head PHALT58A that is the power head of model ALT58B and ALT58BT.
Noise emission values determined according to EN 60745-1 and EN ISO 10517
A-weighted sound pressure level LpA= 90.7 dB(A)
Uncertainty K= 3.0 dB
A-weighted sound power level LWA= 100.3 dB(A)
Uncertainty K= 3.0 dB
Vibration total values determined according to EN 60745-1 and EN ISO 10517
Vibration emission value
Front handle ah = 8.9 m/s2
Rear handle ah = 3.2 m/s2
Uncertainty K= 1.5 m/s2
Below values measured with power head PHALT58B that is the power head of model ALT58BC.
Noise emission values determined according to EN 60745-1 and EN ISO 10517
A-weighted sound pressure level LpA= 85.8 dB(A)
Uncertainty K= 3.0 dB
A-weighted sound power level LWA= 94.9 dB(A)
Uncertainty K= 3.0 dB
Vibration total values determined according to EN 60745-1 and EN ISO 10517
Vibration emission value
Front handle ah = 3.8 m/s2
Rear handle ah = 3.4 m/s2
Uncertainty K= 1.5 m/s2
Below values measured with power head PHALT18A that is the power head of model ALT18B.
Noise emission values determined according to EN 60745-1 and EN ISO 10517
A-weighted sound pressure level LpA= 85.6 dB(A)
Uncertainty K= 3.0 dB
A-weighted sound power level LWA= 96.7 dB(A)
Uncertainty K= 3.0 dB
Vibration total values determined according to EN 60745-1 and EN ISO 10517
Vibration emission value
Front handle ah = 7.4 m/s2
Rear handle ah = 6.0 m/s2
Uncertainty K= 1.5 m/s2
*SPM (strokes per minute) is the number of strokes the connecting rod completes in one minute.
WARNING!
The declared vibration value has been measured with a standard test method and may be used to compare one tool with another.
The declared vibration value may be used in a preliminary assessment of exposure.
The vibration emission during actual use of power tool can dier from the declared total value depending on the ways in which the tool is used.
Identify safety measures to protect yourself based on an estimation of exposure in the actual conditions of use, taking account of all parts of the operating cycle
such as the times when the tool is switched o and when it is running idle in addition to the trigger time.
REPLACEMENT PARTS
Blade replacement 313693002
Hedge trimmer gasket 564785001
Felt seal 903635001
When replacing the blades, check the gasket and felt seal for damage. Replace
the gasket and felt seal if necessary.
INTENDED USE
The hedge trimmer attachment is approved for use with ALT58B,
ALT58LI-401, ALT58TLI401, ALT58BT, ALT18B, and ALT18BS6 battery
driven power heads.
The product is intended for outdoor use only. For safety reasons, the product
must be adequately controlled by a two-handed operation.
The product is designed for home or domestic use. It is intended to cut and
trim hedges, shrubs, and similar vegetation. It should be used in dry, well-
illuminated conditions.
The product is not intended to cut grass, trees, or branches. Do not use the
product for any other purpose.
GENERAL POWER TOOL SAFETY WARNINGS
WARNING! Read all safety warnings, instructions, illustrations and
specifications provided with this power tool. Failure to follow the warnings
and instructions may result in electric shock, fire, and/or serious injury.
Save all warnings and instruction for future reference.
The term “power tool” in the warnings refers to your mains-operated (corded)
power tool or battery-operated (cordless) power tool.
WORK AREA SAFETY
Keep work area clean and well lit. Cluttered or dark areas invite accidents.
Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust. Power tools create sparks,
which may ignite the dust or fumes.
Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
ELECTRICAL SAFETY
Power tool plugs must match the outlet. Never modify the plug in any
way. Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
Avoid body contact with earthed or grounded surfaces, such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
Do not expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase the risk of electric shock.
When operating a power tool outdoors, use an extension cord suitable
for outdoor use. Use of a cord suitable for outdoor use reduces the risk of
electric shock.
If operating a power tool in a damp location is unavoidable, use a residual
current device (RCD) protected supply. Use of an RCD reduces the risk of
electric shock.
PERSONAL SAFETY
Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are tired
or under the influence of drugs, alcohol or medication. A moment of
inattention while operating power tools may result in serious personal injury.

17 17
TECHNICAL DATA CORDLESS HEDGE TRIMMER AHT46
No load speed (SPM)
High 0-1800/min Low 0-1500/min for 18 V power head
High 0-2100/min Low 0-1800/min for 58 V power head
Blade length 500 mm
Cutting capacity 25 mm
Articulation angle 180°
Weight 2.65 kg
Below values measured with power head PHALT58A that is the power head of model ALT58B and ALT58BT.
Noise emission values determined according to EN 60745-1 and EN ISO 10517
A-weighted sound pressure level LpA= 90.7 dB(A)
Uncertainty K= 3.0 dB
A-weighted sound power level LWA= 100.3 dB(A)
Uncertainty K= 3.0 dB
Vibration total values determined according to EN 60745-1 and EN ISO 10517
Vibration emission value
Front handle ah = 8.9 m/s
2
Rear handle ah = 3.2 m/s
2
Uncertainty K= 1.5 m/s
2
Below values measured with power head PHALT58B that is the power head of model ALT58BC.
Noise emission values determined according to EN 60745-1 and EN ISO 10517
A-weighted sound pressure level LpA= 85.8 dB(A)
Uncertainty K= 3.0 dB
A-weighted sound power level LWA= 94.9 dB(A)
Uncertainty K= 3.0 dB
Vibration total values determined according to EN 60745-1 and EN ISO 10517
Vibration emission value
Front handle ah = 3.8 m/s
2
Rear handle ah = 3.4 m/s
2
Uncertainty K= 1.5 m/s
2
Below values measured with power head PHALT18A that is the power head of model ALT18B.
Noise emission values determined according to EN 60745-1 and EN ISO 10517
A-weighted sound pressure level LpA= 85.6 dB(A)
Uncertainty K= 3.0 dB
A-weighted sound power level LWA= 96.7 dB(A)
Uncertainty K= 3.0 dB
Vibration total values determined according to EN 60745-1 and EN ISO 10517
Vibration emission value
Front handle ah = 7.4 m/s
2
Rear handle ah = 6.0 m/s
2
Uncertainty K= 1.5 m/s
2
*SPM (strokes per minute) is the number of strokes the connecting rod completes in one minute.
WARNING!
The declared vibration value has been measured with a standard test method and may be used to compare one tool with another.
The declared vibration value may be used in a preliminary assessment of exposure.
The vibration emission during actual use of power tool can dier from the declared total value depending on the ways in which the tool is used.
Identify safety measures to protect yourself based on an estimation of exposure in the actual conditions of use, taking account of all parts of the operating cycle
such as the times when the tool is switched o and when it is running idle in addition to the trigger time.
REPLACEMENT PARTS
Blade replacement 313693002
Hedge trimmer gasket 564785001
Felt seal 903635001
When replacing the blades, check the gasket and felt seal for damage. Replace
the gasket and felt seal if necessary.
INTENDED USE
The hedge trimmer attachment is approved for use with ALT58B,
ALT58LI-401, ALT58TLI401, ALT58BT, ALT18B, and ALT18BS6 battery
driven power heads.
The product is intended for outdoor use only. For safety reasons, the product
must be adequately controlled by a two-handed operation.
The product is designed for home or domestic use. It is intended to cut and
trim hedges, shrubs, and similar vegetation. It should be used in dry, well-
illuminated conditions.
The product is not intended to cut grass, trees, or branches. Do not use the
product for any other purpose.
GENERAL POWER TOOL SAFETY WARNINGS
WARNING! Read all safety warnings, instructions, illustrations and
specifications provided with this power tool. Failure to follow the warnings
and instructions may result in electric shock, fire, and/or serious injury.
Save all warnings and instruction for future reference.
The term “power tool” in the warnings refers to your mains-operated (corded)
power tool or battery-operated (cordless) power tool.
WORK AREA SAFETY
Keep work area clean and well lit. Cluttered or dark areas invite accidents.
Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust. Power tools create sparks,
which may ignite the dust or fumes.
Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
ELECTRICAL SAFETY
Power tool plugs must match the outlet. Never modify the plug in any
way. Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
Avoid body contact with earthed or grounded surfaces, such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
Do not expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase the risk of electric shock.
When operating a power tool outdoors, use an extension cord suitable
for outdoor use. Use of a cord suitable for outdoor use reduces the risk of
electric shock.
If operating a power tool in a damp location is unavoidable, use a residual
current device (RCD) protected supply. Use of an RCD reduces the risk of
electric shock.
PERSONAL SAFETY
Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are tired
or under the influence of drugs, alcohol or medication. A moment of
inattention while operating power tools may result in serious personal injury.
Use personal protective equipment. Always wear eye protection.
Protective equipment such as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions will reduce personal injury.
Prevent unintentional starting. Ensure the switch is in the o-position
before connecting to power source and/or battery pack, picking up or
carrying the tool. Carrying power tools with your finger on the switch or
energising power tools that have the switch on invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A
wrench or a key left attached to a rotating part of the power tool may result
in personal injury.
Do not overreach. Keep proper footing and balance at all times. This
enables better control of the power in unexpected situations.
Dress properly. Do not wear loose clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of dust
collection can reduce dust-related hazards.
Do not let familiarity gained from frequent use of tools allow you to
become complacent and ignore tool safety principles. A careless action can
cause severe injury within a fraction of a second.
POWER TOOL USE AND CARE
Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at the rate
for which it was designed.
Do not use the power tool if the switch does not turn it on and o. Any
power tool that cannot be controlled with switch is dangerous and must be
repaired.
Disconnect the plug from the power source and/or the battery pack from
the power tool before making any adjustments, changing accessories,
or storing power tools. Such preventive safety measures reduce the risk of
starting the power tool accidentally.
Store idle power tools out of the reach of children and do not allow
persons unfamiliar with the power tool or these instructions to operate
the power tool. Power tools are dangerous in the hands of untrained users.
Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may aect the power
tool’s operation. If damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained power tools.
Keep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
Use the power tool, accessories and tool bits etc. in accordance with these
instructions, taking into account the working conditions and the work
to be performed. Use of the power tool for operations dierent from those
intended could result in a hazardous situation.
Keep handles and grasping surfaces dry, clean and free from oil and
grease. Slippery handles and grasping surfaces do not allow for safe handling
and control of the tool in unexpected situations.
BATTERY TOOL USE AND CARE
Recharge only with the charger specified by the manufacturer. A charger
that is suitable for one type of battery pack may create a risk of fire when used
with another battery pack.
Use power tools only with specifically designated battery packs. Use of
any other battery packs may create a risk of injury and fire.
When battery pack is not in use, keep it away from other metal objects,
like paper clips, coins, keys, nails, screws or other small metal objects that
can make a connection from one terminal to another. Shorting the battery
terminals together may cause burns or a fire.
Under abusive conditions, liquid may be ejected from the battery; avoid
contact. If contact accidentally occurs, flush with water. If liquid contacts
eyes, additionally seek medical help. Liquid ejected from the battery may
cause irritation or burns.
Do not use a battery pack or tool that is damaged or modified. Damaged

18
18
or modified batteries may exhibit unpredictable behaviour resulting in fire,
explosion or risk of injury.
Do not expose a battery pack or tool to fire or excessive temperature.
Exposure to fire or temperature above 130°C may cause explosion.
Follow all charging instructions and do not charge the battery pack or
tool outside the temperature range specified in the instructions. Charging
improperly or at temperatures outside the specified range may damage the
battery and increase the risk of fire.
SERVICE
Have your power tool serviced by a qualified repair person using only
identical replacement parts. This will ensure that safety of the power tool
is maintained.
Never service damaged battery packs. Service of battery packs should only
be performed by the manufacturer or authorized service providers.
CORDLESS HEDGE TRIMMER WARNINGS
Keep all parts of the body away from the cutter blade. Do not remove
the cut material or hold the material to be cut when blades are moving.
Make sure the switch is o when clearing jammed materials. A moment of
inattention while operating the hedge trimmer may result in serious personal
injury.
Carry the hedge trimmer by the handle with cutter blade stopped. When
transporting or storing the hedge trimmer, always fit the cutting device
cover. Proper handling of the hedge trimmer reduces possible personal injury
from the cutter blades.
When transporting or storing the hedge trimmer, always fit the blade
cover. Proper handling of the hedge trimmer will decrease the risk of personal
injury from the blades.
When clearing jammed material or servicing the unit, make sure all power
switches are o and the lock-o is in the locked position. Unexpected
actuation of the hedge trimmer while clearing jammed material or servicing
may result in serious personal injury.
Hold the power tool by insulated gripping surfaces only because the
cutter blade may contact hidden wiring or its own cord. Cutter blades
contacting a “live” wire may make exposed metal parts of the power tool “live”
and could give the operator an electric shock.
Keep all power cords and cables away from cutting area. Power cords or
cables may be hidden in hedges or bushes and can be accidentally cut by
the blade.
Do not use the hedge trimmer in bad weather conditions, especially
when there is a risk of lightning. This decreases the risk of being struck by
lightning.
ADDITIONAL SAFETY WARNINGS
Some regions have regulations that restrict the use of the product. Check with
your local authority for advice. Read all instructions.
Clear the work area before each use. Remove all objects, such as cords, lights,
wires, or strings, which can be thrown or become entangled in the cutting
means.
Check the hedge for foreign objects, such as wire fences.
Exercise additional caution when using the product near posts, buildings, or
other immovable objects.
Beware of thrown objects. Keep all bystanders, children, and pets at least 15 m
away from work area. Stop the product if anyone enters the area.
Do not allow children or untrained individuals to use the product.
Do not operate the product in poor lighting. The operator requires a clear view
of the work area to identify potential hazards.
Ensure that all handles and guards are fitted when using the hedge trimmer.
Never attempt to use an incomplete hedge trimmer or one fitted with an
unauthorised modification.
Ensure before each use that all controls and safety devices function correctly.
Do not use the product if the OFF switch does not stop the motor.
Inspect the product before each use. Check for loose fasteners, etc. Make sure
that all guards and handles are properly and securely attached. Replace any
damaged parts before use. Check for battery pack leaks.
Do not modify the product in any way.
Wear full eye and hearing protection while operating the product. If working
in an area where there is a risk of falling objects, wear appropriate head
protection.
Wear heavy, long trousers, boots, and gloves. Do not wear loose-fitting
clothing, short trousers, or jewellery of any kind, and do not use the product
with bare feet.
Secure long hair so that it is above shoulder level to prevent entanglement
in moving parts.
Use of hearing protection reduces the ability to hear warnings (shouts or
alarms). The operator must pay extra attention to what is going on in the
working area.
Operating similar tools nearby increases both the risk of hearing injury and the
potential for other persons to enter your working area.
Do not use the product while tired, ill, or under the influence of alcohol, drugs,
or medication.
Keep firm footing and balance. Do not overreach. Overreaching can result in
loss of balance and can result in serious injury.
Keep all parts of your body away from any moving part.
Before starting the product, make sure that the cutting blades will not come
in contact with anything.
While operating the hedge trimmer, always hold it firmly with both hands
by the two handles. Ensure that the operating position is safe and secure.
The manufacturer does not recommend the use of steps or ladders. If higher
trimming is required, use an extended-reach tool.
Blades are sharp. When handling the blade assembly, wear non-slip, heavy-
duty protective gloves. Do not place your hand or fingers between blades or
in any position where they could get pinched or cut. Never touch the blade or
service the product unless the battery pack is removed.
Turn o the product, remove the battery pack, and allow the product to cool
down. Make sure that all moving parts have come to a complete stop::
● before adjusting the working position of the cutting means
● before servicing
● before clearing a blockage
● before checking, cleaning, or working on the product.
● before changing accessories
● before leaving the product unattended
● before checking for damage after striking a foreign object
● before performing maintenance
● whenever the product starts to vibrate abnormally
Do not force the product through heavy shrubbery. This can cause the blades
to bind and slow down. If the blades slow down, reduce the pace.
Do not attempt to cut stems or twigs that are larger than 25 mm thick, or
obviously too large to feed into the cutting blade. Use a non-powered hand
saw or pruning saw to trim large stems.
Do not operate the product with damaged or excessively worn-out blades.
WARNING! If the product is dropped, suers heavy impact, or begins
to vibrate abnormally, immediately stop the product and inspect for
damage or identify the cause of the vibration. Any damage should be
properly repaired or replaced by an authorised service centre.
ADDITIONAL BATTERY SAFETY WARNINGS
WARNING! To reduce the risk of fire, personal injury, and product
damage due to a short circuit, never immerse your tool, battery pack
or charger in fluid or allow a fluid to flow inside them. Corrosive or
conductive fluids, such as seawater, certain industrial chemicals, and
bleach or bleach-containing products, etc., can cause a short circuit.
TRANSPORTATION AND STORAGE
Stop the product, remove the battery pack, and allow both to cool down before
storing or transporting.
Clean all foreign material from the product. Store it in a cool, dry, and well-
ventilated place that is inaccessible to children. For extra safety, store the
battery pack separately from the hedge trimmer. Keep the product away from
corrosive agents such as garden chemicals and de-icing salts. Do not store the
product outdoors.
Cover the blade with the blade protector before storing the product, or during
transportation.
For transportation, secure the product against movement or falling to prevent
injury to persons or damage to the product.
TRANSPORTING LITHIUM BATTERIES
Transport the battery in accordance with local and national provisions and
regulations.
Follow all special requirements on packaging and labelling when transporting
batteries by a third party. Ensure that no batteries can come in contact with
other batteries or conductive materials while in transport by protecting
exposed connectors with insulating, non-conductive caps or tape. Do not
transport batteries that are cracked or leaking. Check with the forwarding
company for further advice.
MAINTENANCE
WARNING! Use only original manufacturer’s replacement parts,
accessories, and attachments. Failure to do so can cause possible injury, can
contribute to poor performance, and may void your warranty.
WARNING! Servicing requires extreme care and knowledge and
should be performed only by a qualified service technician. Have the
product serviced by an authorised service centre only. When servicing, use
only original replacement parts.
WARNING! The blades are extremely sharp. To prevent personal injury,
exercise extreme caution when cleaning, lubricating, fitting or removing the
blade protector.
WARNING! To reduce the risk of injury, remove the battery pack
from tool before performing any maintenance. Never disassemble the tool,
battery pack or charger. Contact an authorised service centre.
Keep your tool, battery pack and charger in good repair by adopting a regular
maintenance program.
Inspect your tool for issues such as undue noise, misalignment or binding of
moving parts, breakage of parts, or any other condition that may aect the
tool operation.
Return the tool, battery pack, and charger to a service centre for repair.
After six months to one year, depending on use, return the tool, battery pack
and charger to a service centre for inspection.
If the tool does not start or operate at full power with a fully charged battery
pack, clean the contacts on the battery pack. If the tool still does not work
properly, return the tool, charger and battery pack, to a service centre for
repairs.
Remove the battery pack before adjusting, maintaining, or cleaning the
product.
You may make adjustments and repairs described in this manual only. For
other repairs, contact the authorised service agent.
After each use, clean the product with a soft, dry cloth.
After each use, clean the debris from the blades with a sti brush, and
then carefully apply a rust preventative lubricant before refitting the blade
protector. The manufacturer recommends you to use a rust preventative
lubricant spray to apply an even distribution and reduce the risk of personal
injury from contact with the blades. For information about suitable spray
product, check with an authorised service centre.
Lubricate the blades lightly before use if necessary using the above method.
Check all nuts, bolts, and screws at frequent intervals for proper tightness
to ensure the product is in safe working condition. Any part that is damaged

19 19
Inspect the product before each use. Check for loose fasteners, etc. Make sure
that all guards and handles are properly and securely attached. Replace any
damaged parts before use. Check for battery pack leaks.
Do not modify the product in any way.
Wear full eye and hearing protection while operating the product. If working
in an area where there is a risk of falling objects, wear appropriate head
protection.
Wear heavy, long trousers, boots, and gloves. Do not wear loose-fitting
clothing, short trousers, or jewellery of any kind, and do not use the product
with bare feet.
Secure long hair so that it is above shoulder level to prevent entanglement
in moving parts.
Use of hearing protection reduces the ability to hear warnings (shouts or
alarms). The operator must pay extra attention to what is going on in the
working area.
Operating similar tools nearby increases both the risk of hearing injury and the
potential for other persons to enter your working area.
Do not use the product while tired, ill, or under the influence of alcohol, drugs,
or medication.
Keep firm footing and balance. Do not overreach. Overreaching can result in
loss of balance and can result in serious injury.
Keep all parts of your body away from any moving part.
Before starting the product, make sure that the cutting blades will not come
in contact with anything.
While operating the hedge trimmer, always hold it firmly with both hands
by the two handles. Ensure that the operating position is safe and secure.
The manufacturer does not recommend the use of steps or ladders. If higher
trimming is required, use an extended-reach tool.
Blades are sharp. When handling the blade assembly, wear non-slip, heavy-
duty protective gloves. Do not place your hand or fingers between blades or
in any position where they could get pinched or cut. Never touch the blade or
service the product unless the battery pack is removed.
Turn o the product, remove the battery pack, and allow the product to cool
down. Make sure that all moving parts have come to a complete stop::
● before adjusting the working position of the cutting means
● before servicing
● before clearing a blockage
● before checking, cleaning, or working on the product.
● before changing accessories
● before leaving the product unattended
● before checking for damage after striking a foreign object
● before performing maintenance
● whenever the product starts to vibrate abnormally
Do not force the product through heavy shrubbery. This can cause the blades
to bind and slow down. If the blades slow down, reduce the pace.
Do not attempt to cut stems or twigs that are larger than 25 mm thick, or
obviously too large to feed into the cutting blade. Use a non-powered hand
saw or pruning saw to trim large stems.
Do not operate the product with damaged or excessively worn-out blades.
WARNING! If the product is dropped, suers heavy impact, or begins
to vibrate abnormally, immediately stop the product and inspect for
damage or identify the cause of the vibration. Any damage should be
properly repaired or replaced by an authorised service centre.
ADDITIONAL BATTERY SAFETY WARNINGS
WARNING! To reduce the risk of fire, personal injury, and product
damage due to a short circuit, never immerse your tool, battery pack
or charger in fluid or allow a fluid to flow inside them. Corrosive or
conductive fluids, such as seawater, certain industrial chemicals, and
bleach or bleach-containing products, etc., can cause a short circuit.
TRANSPORTATION AND STORAGE
Stop the product, remove the battery pack, and allow both to cool down before
storing or transporting.
Clean all foreign material from the product. Store it in a cool, dry, and well-
ventilated place that is inaccessible to children. For extra safety, store the
battery pack separately from the hedge trimmer. Keep the product away from
corrosive agents such as garden chemicals and de-icing salts. Do not store the
product outdoors.
Cover the blade with the blade protector before storing the product, or during
transportation.
For transportation, secure the product against movement or falling to prevent
injury to persons or damage to the product.
TRANSPORTING LITHIUM BATTERIES
Transport the battery in accordance with local and national provisions and
regulations.
Follow all special requirements on packaging and labelling when transporting
batteries by a third party. Ensure that no batteries can come in contact with
other batteries or conductive materials while in transport by protecting
exposed connectors with insulating, non-conductive caps or tape. Do not
transport batteries that are cracked or leaking. Check with the forwarding
company for further advice.
MAINTENANCE
WARNING! Use only original manufacturer’s replacement parts,
accessories, and attachments. Failure to do so can cause possible injury, can
contribute to poor performance, and may void your warranty.
WARNING! Servicing requires extreme care and knowledge and
should be performed only by a qualified service technician. Have the
product serviced by an authorised service centre only. When servicing, use
only original replacement parts.
WARNING! The blades are extremely sharp. To prevent personal injury,
exercise extreme caution when cleaning, lubricating, fitting or removing the
blade protector.
WARNING! To reduce the risk of injury, remove the battery pack
from tool before performing any maintenance. Never disassemble the tool,
battery pack or charger. Contact an authorised service centre.
Keep your tool, battery pack and charger in good repair by adopting a regular
maintenance program.
Inspect your tool for issues such as undue noise, misalignment or binding of
moving parts, breakage of parts, or any other condition that may aect the
tool operation.
Return the tool, battery pack, and charger to a service centre for repair.
After six months to one year, depending on use, return the tool, battery pack
and charger to a service centre for inspection.
If the tool does not start or operate at full power with a fully charged battery
pack, clean the contacts on the battery pack. If the tool still does not work
properly, return the tool, charger and battery pack, to a service centre for
repairs.
Remove the battery pack before adjusting, maintaining, or cleaning the
product.
You may make adjustments and repairs described in this manual only. For
other repairs, contact the authorised service agent.
After each use, clean the product with a soft, dry cloth.
After each use, clean the debris from the blades with a sti brush, and
then carefully apply a rust preventative lubricant before refitting the blade
protector. The manufacturer recommends you to use a rust preventative
lubricant spray to apply an even distribution and reduce the risk of personal
injury from contact with the blades. For information about suitable spray
product, check with an authorised service centre.
Lubricate the blades lightly before use if necessary using the above method.
Check all nuts, bolts, and screws at frequent intervals for proper tightness
to ensure the product is in safe working condition. Any part that is damaged
should be properly repaired or replaced by an authorised service centre.
SHARPENING BLADE
1. Stop the tool so the teeth appear in an oset position.
2. Remove the battery pack from the tool.
3. Secure the blade in a vise and file the exposed cutting surface of each
cutting blade tooth with afile. Do not change the cutting angle of the cutting
teeth.
4. To sharpen the other side of the teeth, restart the tool to oset the teeth in
the opposite position. Remove the battery pack before re-securing in the vise.
RESIDUAL RISKS
Even when the product is used as prescribed, it is still impossible to completely
eliminate certain residual risk factors. The following hazards may arise during
use and the operator should pay special attention to avoid the following:
● injury caused by contact with the cutting means
– The blade cannot be guarded while cutting. Keep the blade away
from yourself and others. Cover it with the blade protector when the
product is not in use.
● injury caused by vibration
– Always use the right tool for the job. Use designated handles and
restrict working time and exposure.
● hearing damage caused by exposure to noise
– Wear hearing protection and limit exposure.
RISK REDUCTION
It has been reported that vibrations from handheld tools may contribute
to a condition called Raynaud’s Syndrome. Symptoms may include tingling,
numbness, and blanching of the fingers, usually apparent upon exposure to
cold. Hereditary factors, exposure to cold and dampness, diet, smoking, and
work practices are all thought to contribute to the development of these
symptoms. There are measures that can be taken by the operator to possibly
reduce the eects of vibration:
● Keep your body warm in cold weather. When operating the product, wear
gloves to keep the hands and wrists warm. It is reported that cold weather
is a major factor contributing to Raynaud’s Syndrome.
● After each period of operation, exercise to increase blood circulation.
● Take frequent work breaks. Limit the amount of exposure per day.
If you experience any of the symptoms of this condition, immediately
discontinue use and see your physician.
WARNING! Injuries may be caused, or aggravated, by prolonged use
of a tool. When using any tool for prolonged periods, ensure that you take
regular breaks.
SYMBOLS
Safety alert
Read the instructions carefully before starting the product.
Wear a hard hat, hearing protection, and eye protection.
Wear non-slip safety footwear when using the product.
Wear non-slip, heavy duty gloves.

20
20
Do not expose to rain or damp condition.
104
Guaranteed sound power level
15m Electrical hazard, at least 15 m away from the overhead
electric-power lines
Beware of thrown or flying objects. Keep all bystanders,
especially children and pets, at least 15m away from the
operating area.
To prevent serious injury, do not touch cutting blades.
Regulatory Compliance Mark (RCM). Product meets
applicable regulatory requirements.
Do not dispose of electric tools together with household
waste material. Electric tools and electronic equipment
that have reached the end of their life must be collected
separately and returned to an environmentally compatible
recycling facility. Check with your local authority or retailer
for recycling advice and collection point.
The following signal words and meanings are intended to explain the levels of
risk associated with this product.
DANGER
Indicates an imminently hazardous situation, which, if not avoided, will
result in death or serious injury.
WARNING
Indicates a potentially hazardous situation, which, if not avoided, could
result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation, which, if not avoided, may
result in minor or moderate injury.
CAUTION
Without safety alert symbol
Indicates a situation that may result in property damage.
