AEG L 87695 WDP User manual

EN User Manual
Washer Dryer L 87695 WDP

CONTENTS
1. SAFETY INFORMATION.................................................................................................3
2. SAFETY INSTRUCTIONS................................................................................................ 5
3. PRODUCT DESCRIPTION.............................................................................................. 7
4. CONTROL PANEL...........................................................................................................8
5. PROGRAMMES ............................................................................................................ 11
6. CONSUMPTION VALUES.............................................................................................16
7. OPTIONS....................................................................................................................... 16
8. SETTINGS...................................................................................................................... 18
9. DAILY USE - WASHING ONLY.....................................................................................18
10. DAILY USE - DRYING ONLY...................................................................................... 22
11. DAILY USE - WASHING & DRYING...........................................................................23
12. HINTS AND TIPS.........................................................................................................26
13. CARE AND CLEANING.............................................................................................. 27
14. TROUBLESHOOTING.................................................................................................31
15. TECHNICAL DATA..................................................................................................... 35
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you impeccable
performance for many years, with innovative technologies that help make life simpler
features you might not find on ordinary appliances. Please spend a few minutes
reading to get the very best from it.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.aeg.com
Register your product for better service:
www.registeraeg.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.aeg.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following
data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.aeg.com
2

1. SAFETY INFORMATION
Before the installation and use of the appliance,
carefully read the supplied instructions. The
manufacturer is not responsible if an incorrect
installation and use causes injuries and damages. Always
keep the instructions with the appliance for future
reference.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent
disability.
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
•Do not let children play with the appliance.
•Children of less than 3 years should be kept away
unless continuously supervised.
•Keep all packaging away from children.
•Keep all detergents away from children.
•Keep children and pets away from the appliance door
when it is open.
•If the appliance has a child safety device, we
recommend you activate it.
•Cleaning and user maintenance shall not be made by
children without supervision.
1.2 General Safety
•Do not change the specification of this appliance.
•The appliance can be installed as freestanding or
below the kitchen counter with correct space.
•Do not install the appliance behind a lockable door, a
sliding door or a door with a hinge on the opposite
ENGLISH 3

side, where the appliance door can not be fully
opened.
•Connect the mains plug to the mains socket only at
the end of the installation. Make sure that there is
access to the mains plug after the installation.
•The ventilation openings in the base (if applicable)
must not be obstructed by a carpet.
•Ensure you have good ventilation in the installation
room to avoid the back flow of gases into the room
from appliances burning other fuels, including open
fires.
•Exhaust air must not be discharged into a flue which is
used for exhausting fumes from appliances burning
gas or other fuels (if applicable).
•The operating water pressure (minimum and
maximum) must be between 0,5 bar (0,05 MPa) and 8
bar (0,8 MPa).
•Obey the maximum load volume of 9 kg (refer to the
“Programme chart” chapter).
•The appliance is to be connected to the water mains
using the new supplied hose-sets. Old hose sets must
not be reused.
•If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
•Wipe away lint that has accumulated around the
appliance.
•Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers should
be washed in hot water with an extra amount of
detergent before being dried in the wash dryer.
•Do not use the appliance if industrial chemicals have
been used for cleaning.
•Do not dry unwashed items in the wash dryer.
•Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes
www.aeg.com
4

or pillows fitted with foam rubber pads should not be
dried in the wash dryer.
•Fabric softeners, or similar products, should be used
as specified by the fabric softener instructions.
•Remove all objects from pockets such as lighters and
matches.
•Never stop the wash dryer before the end of the
drying cycle unless all items are quickly removed and
spread out so that the heat is dissipated.
•The final part of a wash dryer cycle occurs without
heat (cool down cycle) to ensure that the items are left
at a temperature that ensures that the items will not
be damaged.
•Do not use water spray and steam to clean the
appliance.
•Clean the appliance with a moist soft cloth. Only use
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
•Before maintenance, deactivate the appliance and
disconnect the mains plug from the mains socket.
2. SAFETY INSTRUCTIONS
2.1 Installation
• Remove all the packaging and the
transit bolts.
• Keep the transit bolts. When you
move the appliance again you must
block the drum.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Do not install or use a damaged
appliance.
• Obey the installation instruction
supplied with the appliance.
• Do not install or use the appliance
where the temperature is less than 0
°C or where it is exposed to the
weather.
• Make sure that the floor where you
install the appliance is flat, stable,
heat resistant and clean.
• Do not install the appliance where the
appliance door can not be fully
opened.
• Always move the appliance vertically.
• The rear surface of the appliance
must be put against the wall.
• Make sure that there is air circulation
between the appliance and the floor.
• Adjust the feet to have the necessary
space between the appliance and the
carpet.
• When the appliance is put in its
permanent position, check if it is fully
level with the aid of a spirit level. If it
is not, adjust the feet until it is.
2.2 Electrical Connection
WARNING!
Risk of fire and electrical
shock.
• The appliance must be earthed.
ENGLISH 5

• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Do not touch the mains cable or the
mains plug with wet hands.
• Only for UK and Ireland: The
appliance has a 13 amp mains plug. If
it is necessary to change the fuse in
the mains plug, use a 13 amp ASTA
(BS 1362) fuse.
• This appliance complies with the
E.E.C. Directives.
2.3 Water Connection
• Make sure not to cause damage to
the water hoses.
• Before you connect the appliance to
new pipes or pipes not used for a
long time, let the water flow until it is
clean.
• The first time you use the appliance,
make sure that there is no leakage.
2.4 Use
WARNING!
Risk of injury, electrical
shock, fire, burns or damage
to the appliance.
• Use this appliance in a household
only.
• Do not change the specification of
this appliance.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not touch the glass of the door
while a programme operates. The
glass can be hot.
• Do not dry the damaged items which
contain padding or fillings.
• If you have washed your laundry with
a stain remover start an extra rinse
cycle before you start a drying cycle.
• Make sure that you remove all metal
objects from the laundry.
• Only dry fabrics which are applicable
to dry in the washer-dryer. Follow the
instructions on the fabric label.
• Plastic items are not heat resistant.
– If you use a detergent ball,
remove it before you set the
drying programme.
– Do not use a detergent ball when
you set a non-stop programme.
WARNING!
Risk of injury or damage to
the appliance.
• Do not sit or stand on the open door.
• Do not dry dripping wet clothes in the
appliance.
2.5 Disposal
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.
www.aeg.com
6

3. PRODUCT DESCRIPTION
3.1 Appliance overview

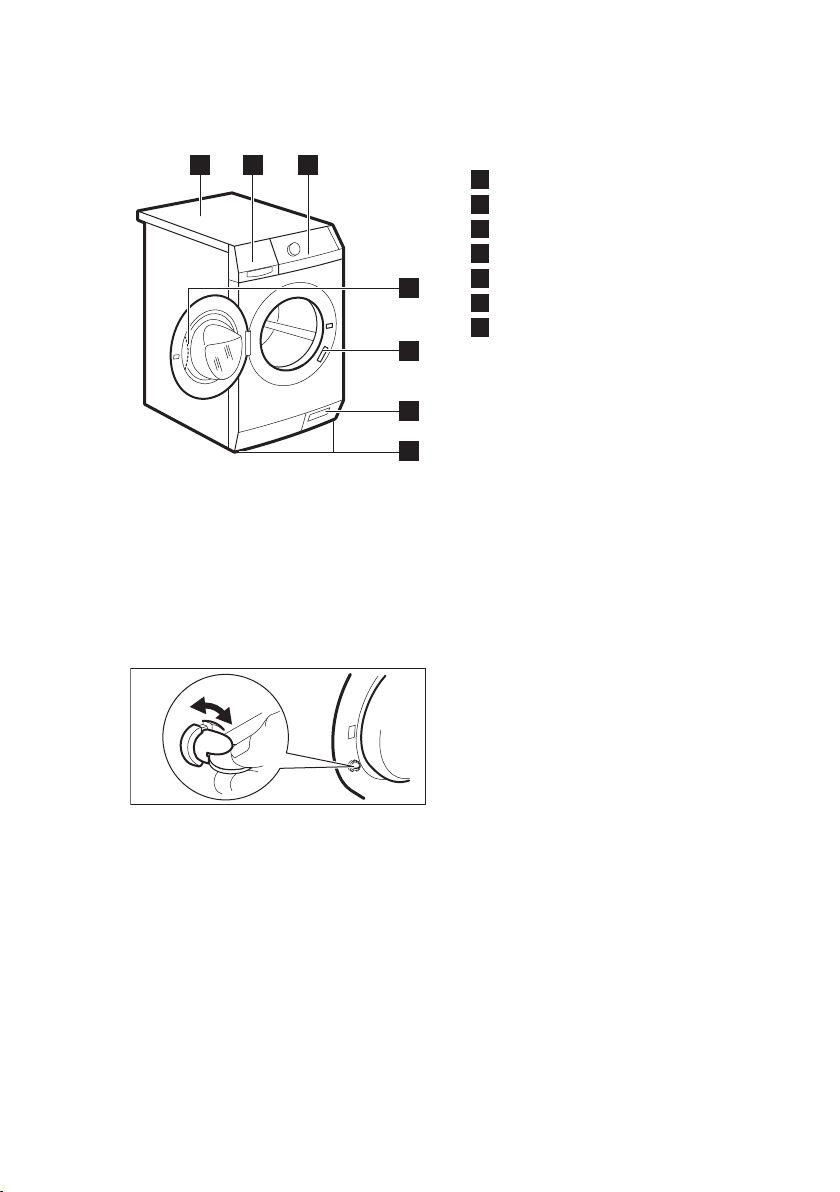

1
2
3
5
6
7
4
1Worktop
2Detergent dispenser
3Control panel
4Door handle
5Rating plate
6Drain pump filter
7Feet for the appliance level
3.2 How to activate the child
safety device
This device prevents children or pets to
be closed in the drum.
Turn the device clockwise, until the
groove is horizontal.
You cannot close the door.
To close the door, turn the device
anticlockwise until the groove is vertical.
3.3 Fixing plate kit
(4055171146)
Available from your authorized dealer.
If you install the appliance on a plinth,
secure the appliance in the fixing plates.
Read carefully the instructions supplied
with the accessory.
ENGLISH 7

4. CONTROL PANEL
4.1 Control panel description
Stopień
Wysuszenia
Czas
Suszenia
Plamy/
Wst pne Płukanie +
Temp.
Wirowanie
Start/Pauza
Opóźniony
Start
Skrócenie
On/Off
Syntetyczne
Syntetyczne
Delikatne
20 Min. - 3 kg
Wirowanie/
Odpompowanie
Non Stop
60 Min.
Wełniane
Bawełniane
Łatwe Prasowanie
Plukanie
Bawełniane
Super Eko
Ekonomiczne
Ochrona
Wełniane/
Jedwabne
Odświeżanie
1 2 3
4
5
6789101112
1On/Off button
2Programme knob
3Display
4Stopień Wysuszenia button
5Szas Suszenia button
6Start/Pauza button
7Opóźniony start button
8Skrócenie button
9Płukanie+ button
10 Plamy/Pranie Wstępne button
11 Wirowanie button
12 Temp. button
4.2 Display
A HC
NOP
D E F G I
LM
KB J
The display shows:
A
Temperature of the set programme
Cold water
www.aeg.com8

B
Spin speed of the set programme
No Spin symbol1)
Rinse hold symbol
1) Only available for SPIN/DRAIN programme.
C
The phase symbols
When a programme is set, all the symbols of the phases related to the programme
come on.
When the programme starts, only the symbol of the phase in operation flashes.
When the programme is completed, the symbol of the last phase is on.
Prewash phase
Washing phase
Rinse phase
Spin phase
DThe drying symbol comes on when you set a drying programme.
EThe steam symbol comes on when you set a Steam programme.
FThe anti-crease symbol comes on when you set a drying programme.
G
You cannot open the appliance door when the symbol is on. You can
open the door only when the symbol goes off.
If the programme is completed but the symbol stays on:
• The «Rinse hold» function is on.
• There is water in the drum.
HThe child safety lock symbol comes on when this device is activated.
IThe delay start symbol comes on when you set the delay start func-
tion.
ENGLISH 9

J
Programme time (washing and/or drying phase)
When the programme starts, the programme time decreases with
steps of 1 minute.
Delay start
When you press the delay start button, the display shows the delay
start time
Alarm codes
If the appliance has a malfunction, the display shows alarm codes.
Refer to «Troubleshooting».
The display shows this message for some seconds when:
• You cannot set a function with the washing programme.
• You try to change the washing programme while it operates.
When the programme is completed.
K
Dryness level symbols: they come on when you set an automatic drying.
Extra dry level symbol
Store dry level symbol
Iron dry level symbol
LThe drying time symbol comes on when you set the a drying pro-
gramme.
MThe detergent overdosing symbol comes on at the end of the cycle
when the appliance detects too much detergent.
Graphic bars
The empty indicator bar appears only if the related function is avail-
able for the set programme.
The indicator bar fills accordingly to the set functions.
If you make a wrong selection the message Err indicates that the selec-
tion is not possible.
www.aeg.com10
