AEG L7WEE861R User manual

USER
MANUAL
EN User Manual
Washer Dryer
L7WEE861R

CONTENTS
1. SAFETY INFORMATION.............................................................................................3
2. SAFETY INSTRUCTIONS.............................................................................................5
3. INSTALLATION............................................................................................................7
4. PRODUCT DESCRIPTION.........................................................................................11
5. CONTROL PANEL..................................................................................................... 12
6. DIAL AND BUTTONS................................................................................................14
7. PROGRAMMES .........................................................................................................15
8. BEFORE FIRST USE................................................................................................... 21
9. SETTINGS...................................................................................................................21
10. DAILY USE - WASHING ONLY...............................................................................22
11. DAILY USE - WASHING & DRYING....................................................................... 27
12. DAILY USE - DRYING ONLY...................................................................................28
13. FLUFF IN THE FABRICS..........................................................................................29
14. HINTS AND TIPS..................................................................................................... 30
15. CARE AND CLEANING.......................................................................................... 32
16. TROUBLESHOOTING.............................................................................................36
17. CONSUMPTION VALUES.......................................................................................40
18. TECHNICAL DATA..................................................................................................40
19. ACCESSORIES.........................................................................................................41
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you
impeccable performance for many years, with innovative technologies that help
make life simpler features you might not find on ordinary appliances. Please
spend a few minutes reading to get the very best from it.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.aeg.com/webselfservice
Register your product for better service:
www.registeraeg.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.aeg.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.aeg.com2

1. SAFETY INFORMATION
Before the installation and use of the appliance,
carefully read the supplied instructions. The
manufacturer is not responsible for any injuries or
damages that are the result of incorrect installation or
usage. Always keep the instructions in a safe and
accessible location for future reference.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent
disability.
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Do not let children play with the appliance.
•Children aged 3 years and under must be kept away
from this appliance when it is in operation at all times.
•Keep all packaging away from children and dispose of
it appropriately.
•Keep detergents away from children.
•Keep children and pets away from the appliance when
the door is open.
•If the appliance has a child safety device, this should
be activated.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•Do not change the specification of this appliance.
•The appliance shall be installed as a freestanding
product or below the kitchen worktop if space
margins permit.
ENGLISH 3

•Do not install the appliance behind a lockable door, a
sliding door or a door with a hinge on the opposite
side, that would prevent the appliance door from
being fully opened.
•Connect the mains plug to the mains socket only at
the end of the installation process. Make sure that the
mains plug is accessible after installation.
•The ventilation opening in the base (if applicable)
must not be covered by a carpet, mat, or any floor
covering.
•WARNING: The appliance must not be supplied
through an external switching device, such as timer, or
connected to a circuit that is regularly switched on and
off by a utility.
•Ensure good air ventilation in the located room to
avoid the backflow of unwanted gases into the room
from appliances burning gas or other fuels, including
open fires.
•Exhaust air must not be discharged into a flue which is
used for exhausting fumes from any appliances
burning gas or other fuels.
•The operating water pressure at the water entry point
from the outlet connection must be between 0.5 bar
(0.05 MPa) and 8 bar (0.8 MPa).
•Do not exceed the maximum load of 8 kg (refer to the
"Programme chart" chapter).
•The appliance must be connected to the water mains
using the new supplied hose sets, or other new hose
sets supplied by the Authorised Service Centre.
•Old hose sets must not be reused.
•If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
•Wipe away lint or packaging debris that has
accumulated around the appliance.
•Items that have been soiled with substances such as
vegetable or mineral oil, acetone, alcohol, petrol,
www.aeg.com4

kerosene, spot removers, turpentine, waxes and wax
removers should be washed separately with an extra
amount of detergent before being dried in the washer
dryer.
•Do not use the appliance if items have been soiled
with industrial chemicals.
•Do not dry unwashed items in the wash dryer.
•Items such as foam rubber (latex foam), shower caps,
waterproof textiles, and rubber backed articles and
clothes, or pillows fitted with foam rubber pads should
not be dried in the washer dryer.
•Fabric softeners, or similar products, should only be
used as specified by the product manufacturer’s
instructions.
•Remove all objects from items that could be a source
of fire ignition such as lighters or matches.
•Never stop the washer dryer before the end of the
drying cycle unless all items are quickly removed and
separated so that residual heat can dissipate.
•The final part of the washer dryer cycle takes place
without heat (cool down cycle) to ensure that items
reach a temperature that will not cause damage to
them.
•Do not use high pressure water sprays and/or steam
to clean the appliance.
•Clean the appliance with a moist cloth. Use only
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
•Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
2. SAFETY INSTRUCTIONS
2.1 Installation
•Follow the installation instruction
supplied with the appliance.
• Do not install or use the appliance
where the temperature can be less
than 0°C or where it is exposed to the
weather.
• Always keep the appliance vertical
when being moved.
• Make sure that there is air circulation
between the appliance and the floor.
ENGLISH 5

• Remove all the packaging and the
transit bolts.
•The floor area where the appliance is
to be installed must be flat, stable,
heat resistant and clean.
• Keep the transit bolts in a safe place.
If the appliance is to be moved in
future they must be reattached to lock
the drum to prevent internal damage.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not install or use a damaged
appliance.
• Do not install the appliance where the
appliance door cannot be fully
opened.
• Adjust the feet to have the necessary
space between the appliance and the
flooring.

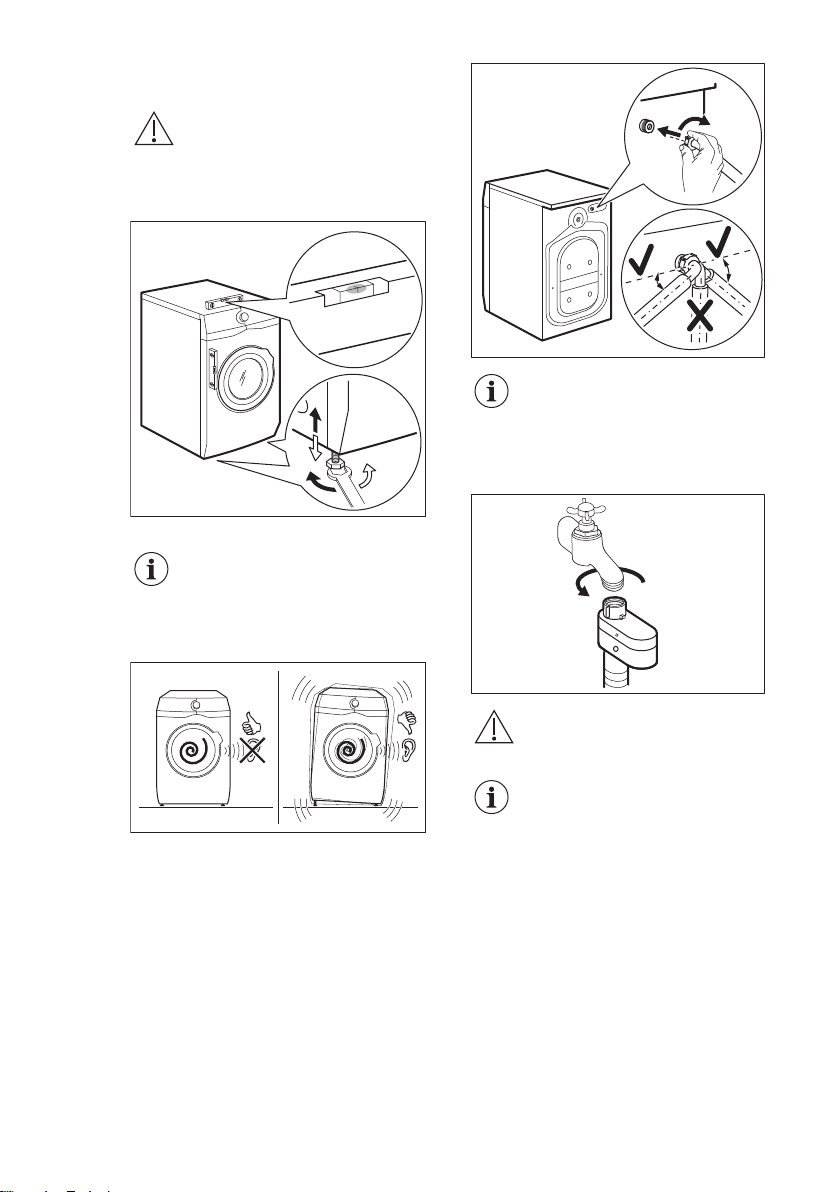

• When the appliance is in its
permanent position, check that it is
fully level with the aid of a spirit level.
If it is not, adjust the feet accordingly.
2.2 Electrical Connection
WARNING!
Risk of fire and electrical
shock.
• The appliance must be earthed.
•Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Do not touch the mains cable or the
mains plug with wet hands.
• UK and Ireland only. This appliance is
fitted with a 13 A mains plug. If it is
necessary to change the mains plug
fuse, use only a 13 A ASTA (BS 1362)
fuse.
• This appliance complies with the
E.E.C. Directives.
2.3 Water Connection
• Do not cause damage to the water
hoses.
•Before connection to new pipes,
pipes not used for a long time, where
repair work has been carried out or
new devices fitted (water meters,
etc.), let the water flow until it is clean
and clear.
•Ensure that there are no visible water
leaks during and after the first use of
the appliance.
2.4 Use
WARNING!
Risk of injury, electrical
shock, fire, burns or damage
to the appliance.
• This appliance is for household use
only.
•Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not touch the glass door while a
programme is in operation. The glass
can get hot.
• Do not dry damaged (torn, frayed)
items that contain padding or fillings.
• If laundry has been washed with a
stain remover, carry out an additional
rinse cycle before starting a drying
cycle.
• Make sure that all metal objects are
removed from the laundry.
• Only dry fabrics that are suitable to
dry in the washer dryer. Follow the
cleaning instruction on the item label.
• Plastic items are not heat resistant.
– If a detergent ball is used, remove
it before starting a drying
programme.
– Do not use a detergent ball if
setting a non-stop programme.
WARNING!
Risk of injury or damage to
the appliance.
• Do not sit or stand on the open door.
•Do not dry dripping wet clothes in the
appliance.
2.5 Disposal
• Disconnect the appliance from the
mains electrical and water supplies.
•Cut off the mains electrical cable
close to the appliance and dispose of
it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the drum.
www.aeg.com6

• Dispose of the appliance in
accordance with local requirements for the disposal of Waste Electrical and Electronic Equipment (WEEE).
3. INSTALLATION
WARNING!
Refer to Safety chapters.
3.1 Unpacking
WARNING!
Remove all the packaging
and the transit bolts before
installing the appliance.
WARNING!
Use the gloves.

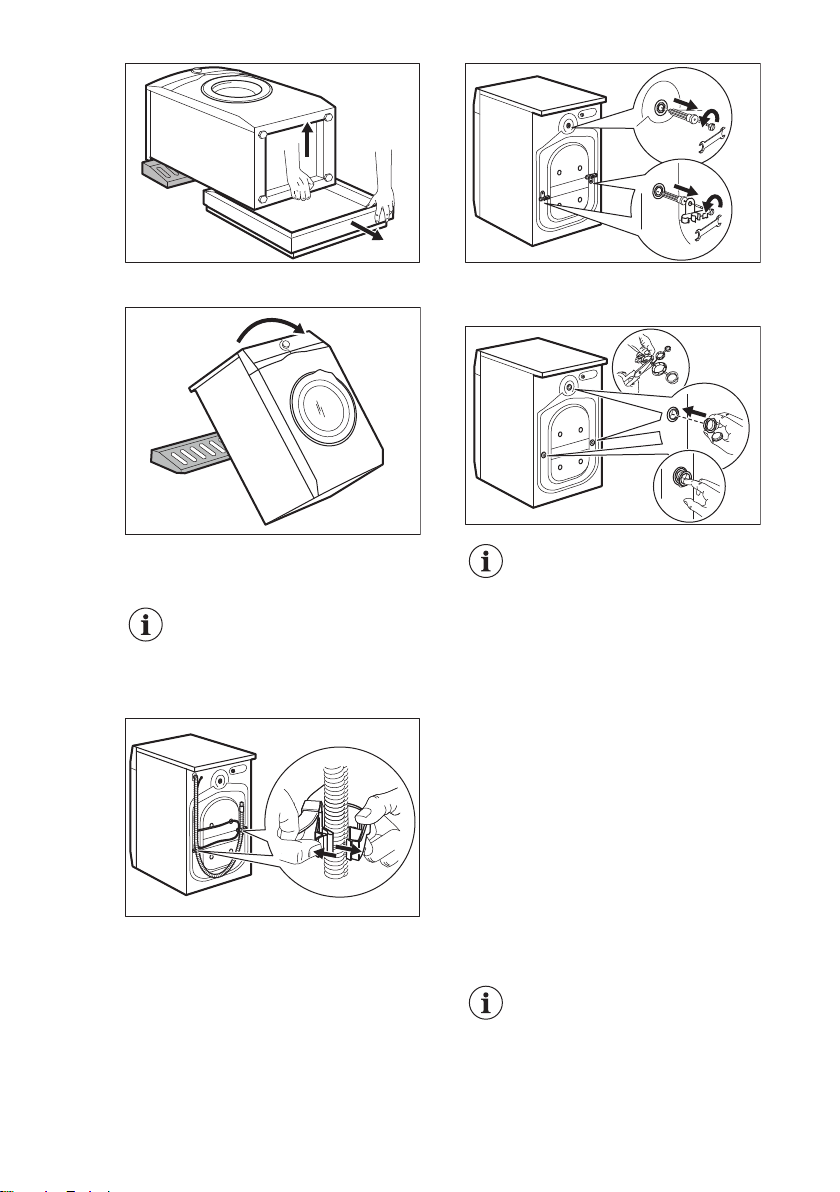

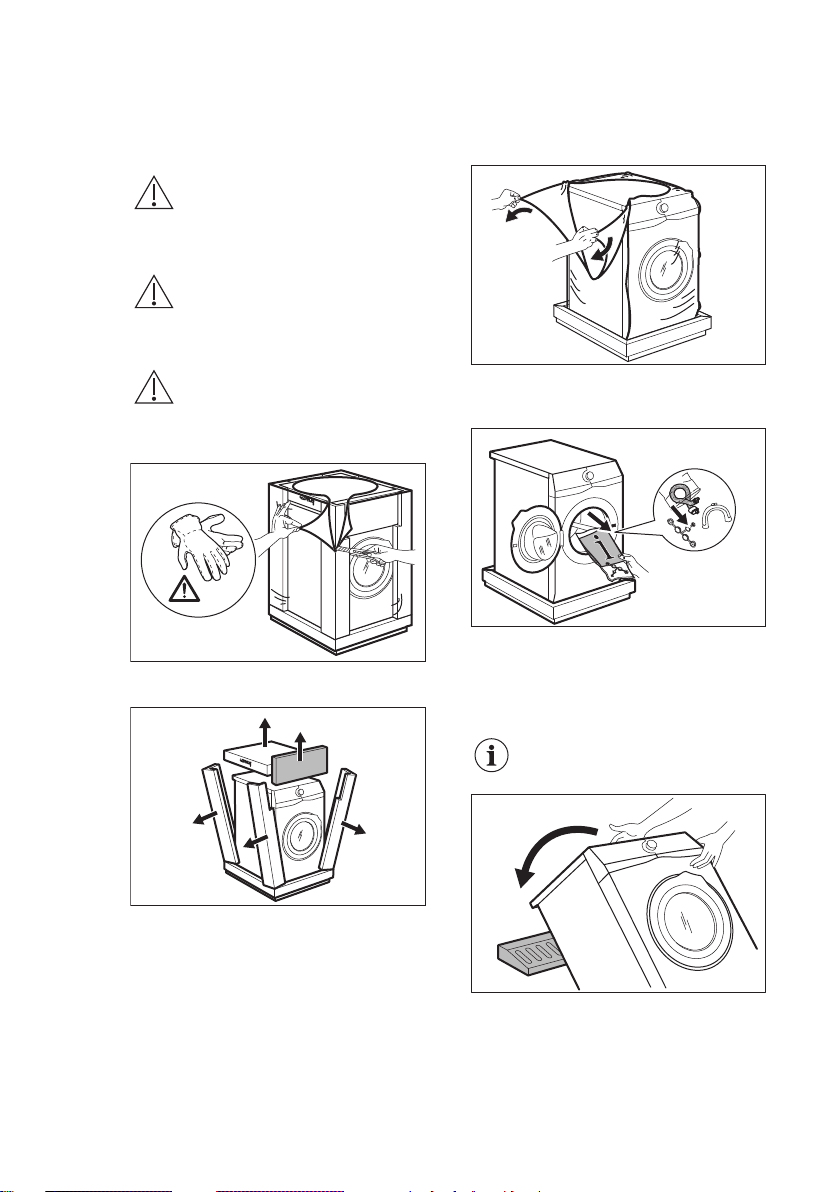

1. Remove the external film. If
necessary, use a cutter.
2. Remove the cardboard top and the
polystyrene packaging materials.
3. Remove the internal film.
4. Open the door and remove the
polystyrene piece from the door seal
and all the items from the drum.
5. Carefully put down the appliance
with the rear side on it.
6. Put the front polystyrene packaging
element on the floor under the
appliance.
Make sure not to
damage the hoses.
7. Remove the polystyrene protection
from the bottom.
ENGLISH 7

1
2
8. Pull up the appliance in vertical
position.
9. Remove the power supply cable and
the drain hose from the hose holders.
It is possible to see
water flowing from the
drain hose. This is due to
the testing with water of
the appliance in factory.
10. Remove the three bolts by using the
key supplied with the appliance.
11. Pull out the plastic spacers.
12. Put the plastic caps, that you find in
the user manual bag, in the holes.
We recommend that you
keep the packaging and the
transit bolts for any
movement of the appliance.
3.2 Installation on suspended
flooring
Suspended wooden floors are
particularly susceptible to vibration.
To limit vibration we recommend placing
a waterproof wooden panel, at least 15
mm thick, under the appliance. It should
be screwed to at least 2 floor beams and
should extend beyond the front feet.
If possible, install the appliance where
the floor is more stable.
3.3 Positioning and levelling
1. Install the appliance on a flat hard
floor.
Make sure that carpets do
not stop the air circulation
below the appliance.
Make sure that the
appliance does not touch
the wall or other units.
www.aeg.com8

2. Loosen or tighten the feet to adjust
the level.
WARNING!
Do not put cardboard, wood
or equivalent materials
below the appliance feet to
adjust the level.
x4
The appliance must be level and stable.
A correct adjustment of the
appliance level prevents the
vibration, noise and the
movement of the appliance
when in operation.
3.4 The inlet hose
1. Connect the water inlet hose to the
back of the appliance.
2. Position it toward left or right
depending on the position of the
water tap.
20O 20O
45O 45O
Make sure that the inlet hose
is not in vertical position.
3. If necessary, loose the ring nut to set
it in the correct position.
4. Connect the water inlet hose to the
cold water tap with 3/4" thread.
CAUTION!
Make sure that there are no
leaks from the couplings.
Do not use an extension
hose if the inlet hose is too
short. Contact the service
centre for the replacement
of the inlet hose.
3.5 Water-stop device
The inlet hose has a water stop device.
This device prevents water leaks in the
hose because of its natural ageing.
The red sector in the window «A» shows
this fault.
ENGLISH 9

A
If this occurs, close the water tap and
contact the authorized service centre to
replace the hose.
3.6 Water drainage
The drain hose should stay at a height of
not less than 60 cm and not more than
100 cm.
You can extend the drain
hose to maximum 400 cm.
Contact the authorized
service centre for the other
drain hose and the
extension.

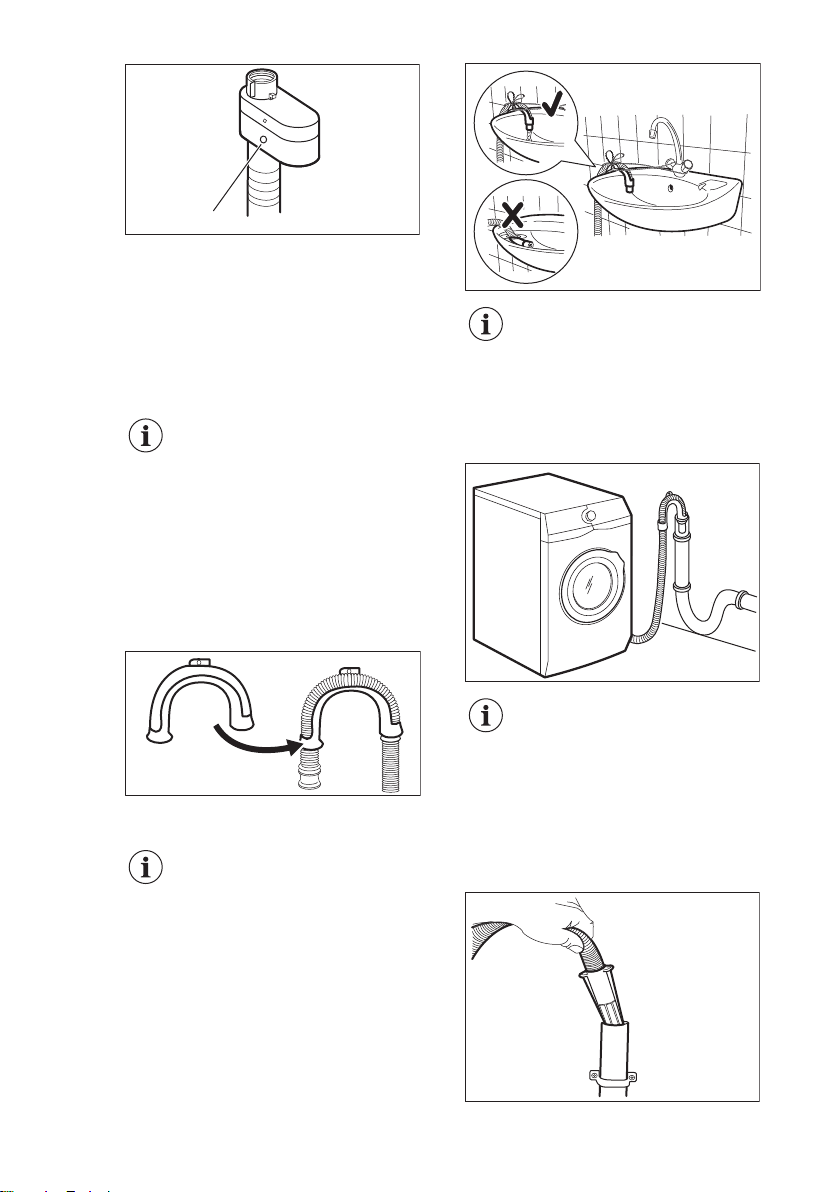

It is possible to connect the drain hose in
different ways:
1. Make a U shape with the drain hose
and put it around the plastic hose
guide.
2. On the edge of a sink - Fasten the
guide to the water tap or to the wall.
Make sure that the plastic
guide cannot move when
the appliance drains.
Make sure that the drain
hose end is not immersed in
the water. There may be a
return of dirty water into the
appliance.
3. To a stand pipe with vent-hole -
Insert the drain hose directly into a
drain pipe. Refer to the illustration.
The end of the drain hose
must always be ventilated ,
i.e. the inner diameter of the
drain pipe (min. 38 mm -
min. 1.5") must be larger
than the external diameter
of the drain hose.
4. If the end of the drain hose looks like
this (see the picture), you can push it
directly into the stand pipe.
www.aeg.com10

5. Without the plastic hose guide, to
a sink spigot - Put the drain hose in
the spigot and tighten it with a
clamp. Refer to the illustration.
Make sure that the drain
hose makes a loop to
prevent particles going into
the appliance from the sink.
6. Position the hose directly to a built-
in drain pipe in the room wall and
tighten it with a clamp.
4. PRODUCT DESCRIPTION
4.1 Appliance overview
1 2 3 9
5
6
7
4
10
8
11 12
1Worktop
2Detergent dispenser
3Control panel
4Door handle
5Rating plate
6Drain pump filter
7Feet for levelling the appliance
8Drain hose
9Inlet hose connection
10 Mains cable
11 Transit bolts
12 Hose support
ENGLISH 11

5. CONTROL PANEL
5.1 Control panel description
Quick Wash
Delay Start
Start/Pause
Programme
Cottons
Cottons Eco
Synthetics
Delicates
Wool/Handwash
Prewash
Stains
Spin
Drain
Dry
Wash
Rinse
Anti-Allergy
NonStop 60min
Steam
Outdoor
Temp.
Spin Stains/
Prewash
Auto Drying
Time Drying
Mode
23
6
12 11 10 8
1
4
5
7
9
1Programme dial
2Display
3Drying time touch button (Time
Drying)
4Drying level touch button (Auto
Drying)
5Washing and drying mode touch
button (Mode)
•Wash
• Dry
6Start and pause touch button (Start/
Pause)
7Anti-stain and prewash touch button
(Stains/Prewash)
• Stains
•Prewash
8Delay Start touch button (Delay Start)
9Time Saving touch button (Quick
Wash)
10 Spin reduction touch button (Spin)
•Drain
• Spin
11 Temperature touch button (Temp.)
12 On/Off push button (On/Off)
5.2 Display
www.aeg.com12

Maximum load indicator. The icon flashes during laundry load esti-
mation (refer to "PROSENSE load detection" paragraph).
Maximum laundry indicator. It flashes when the laundry load exceeds
the maximum declared load of the selected programme. If you run a
programme when the drum is overloaded, also flashes at the
end of the programme.
Drying time indicator.
Door locked indicator.
The digital indicator can show:
•Programme duration (e. g. , washing and/or drying phase).
•Delay time (e. g. or ).
•Cycle end ( ).
•Warning code (e.g. ).
Washing phase indicator: it flashes during prewash and wash phase.
Rinsing phase indicator. It flashes during rinse phase.
The permanent Extra Rinse option:
• - one additional rinse.
• - two additional rinses.
Spin and drain phase indicator. It flashes during spin and drain phase.
Steam phase indicator.
Drying phase indicator.
Child safety lock indicator.
Temperature indicator. The indicator appears when a cold wash is
set.
Spin speed indicator.
Iron drying indicator.
Cupboard drying indicator.
Extra drying indicator.
ENGLISH 13

6. DIAL AND BUTTONS
6.1 On/Off
Pressing this button for a few seconds
allows to activate or deactivate the
appliance. Two different tunes sound
while switching the appliance on or off.
As the Stand-by function automatically
deactivates the appliance to decrease
the energy consumption in a few cases,
you may need to activate the appliance
again.
For more details, refer to Stand-by
paragraph in Daily Use chapter.
6.2 Introduction
The options/functions are
not selectable with all
washing programmes. Check
the compatibility between
options/functions and
washing programmes in the
"Programme Chart". An
option/function can exclude
another one, in this case the
appliance doesn't allow you
to set the incompatible
options/functions together.
6.3 Temp.
When you select a washing programme,
the appliance automatically proposes a
default temperature.
Touch this button repeatedly until the
desired temperature value appears on
the display.
When the display shows the indicators
and , the appliance does not
heat the water.
6.4 Spin
When you set a programme, the
appliance automatically sets the
maximum spin speed allowed.
Touch repeatedly this button to:
•Decrease the spin speed.
The display shows only
the spin speeds available
for the set programme.
• Set the Drain option (Skipping the
wash, rinse and spin phases) .
The appliance performs the only
draining phase of the selected
washing programme.
The display shows the indicator
(cold), and the indicator (no
spin) and the indicator .
•Set the Spin option (Skipping the
wash and rinse phases) .
The appliance performs only the
spinning phase of the selected
washing programme.
The display shows the indicator
(cold), the phase indicator and the
spin speed.
If it is necessary to reduce
the spin speed, select a
programme with a lower
spin speed as default.
6.5 Stains/Prewash
Press this button repeatedly to activate
one of the two options.
The relevant indicator goes on in the
display.
•Stains
Select this option to add an anti-stain
phase to a programme in order to
treat heavily soiled or stained laundry
with stain remover.
Pour the stain remover into
compartment . The stain remover
will be added in the appropriate
phase of the washing programme.
This option is not
available with a
temperature lower than
40 °C.
•Prewash
Use this option to add a pre-wash
phase at 30 °C before the washing
phase.
This option is recommended for
heavily soiled laundry, especially if
www.aeg.com14

containing sand, dust , mud and other
solid particles.
The options can increase the
programme duration.
6.6 Delay Start
With this option you can delay the start
of a programme in a more convenient
time.
Tap on the button repeatedly to set the
required delay. The time increases by
steps of 30 minutes up to 90' and from 2
hours up to 20 h.
After starting the cycle by the means of
the Start/Pause button, the display shows
the selected delay time and the
appliance begins the countdown.
6.7 Quick Wash
With this option you can decrease the
programme duration.
•If your laundry is normally or lightly
soiled, it may be advisable to shorten
the washing programme. Touch this
button once to decrease the duration.
• In case of smaller load, touch this
button twice to set an extra quick
programme.
On the display the programme duration
is adjusted accordingly.
When this button is set, the led above
the button is on.
This option can also be used
to shorten the Steam
programme duration.
6.8 Time Drying
Touch this button to set the time that
suits the fabrics you have to dry (refer to
"Timed drying" table). The display shows
the set value.
Each time you touch this button the time
value increases by 5 minutes.
You cannot set all time
values for different types of
fabrics.
6.9 Auto Drying
Touch this button to set one of 3
automatic dryness levels proposed by
the appliance.
On the display the relevant dryness
indicator goes on:
• Iron dry: laundry to be
ironed.
• Cupboard dry: laundry to be
put in store.
• Extra dry: laundry to be
fully dried.
You can not set all
automatic levels for each
type of fabrics.
6.10 Mode
Thanks to this button, a cycle can
perform:
•Only washing : Wash indicator is on.
•Washing and drying : Wash and Dry
indicators are on.
•Only drying : Dry indicator is on.
6.11 Start/Pause
Touch the Start/Pause button to start,
pause the appliance or interrupt a
running programme.
7. PROGRAMMES
7.1 Programme Chart
Programme Programme description
Washing programmes
ENGLISH 15

Programme Programme description
Cottons
White cotton and coloured cotton. Normal soil and light soil.
Cottons Eco
White cotton and coloured cotton. Normal soil and light soil.
Cottons energy saving programme. This programme at a 60ºC
with a load of 8 kg is the reference programme for data en-
tered in the energy label, in compliance with EEC 92/75 stand-
ards. Set this programme to have a good washing results and
decrease the energy consumption. The time of the washing
programme is extended.
Synthetics
Synthetic items or mixed fabric items. Normal soil.
Delicates
Delicate fabrics such as acrylics, viscose and mixed fabrics
requiring a mild washing. Normal soil.
Wool/Handwash
Machine washable wool, hand washable wool and other
fabrics with «hand washing» care symbol1).
Outdoor Do not use fabric softener and make sure that
there is no softener residue in the detergent
dispenser.
Outdoor clothing, technical, sport fabrics, waterproof and
breathable jackets, shell jackets with a removable fleece or
inner insulation.
By performing a non-stop wash and dry pro-
gramme, the drying phase also acts as water-
repellent restorer. Make sure that the garment
care label permits tumble drying.
Anti-Allergy
White cotton items. This programme removes micro-organ-
isms thanks to a washing phase with the temperature main-
tained above 60°C for some minutes. This helps in removing
germs, bacteria, micro-organism and particles. An additional
rinsing phase ensures a proper removal of detergent residues
and pollens/allergenic items. In this way the wash is more ef-
fective.
Wash&Dry programme
NonStop 60min
Complete programme composed of a washing phase and of a
drying phase for a small load of mixed fabrics (cotton and syn-
thetic items).
Also, the indicator appears on the display.
Steam programme
www.aeg.com16

Programme Programme description
Steam
Steam programmes2)
Steam can be used for dried, washed or worn once laun-
dry. These programmes can reduce creases and odours
and make your laundry softer.
Do not use any detergent. If necessary, remove stains by
washing or using localized stain removal.
Steam programmes do not perform any hygienic cycle.
Do not set a Steam programme with these types of items:
• Items to be washed at a temperature lower than 40°C.
• Items where it is not specified on the care label as being
suitable for tumble drying.
• All items with plastic, metal, wooden parts or alike.
Additional programmes
Rinse
To rinse and spin the laundry. All fabrics, except woollens and
very delicate fabrics. Reduce the spin speed accordingly to the
type of laundry.
1) During this cycle the drum rotates slowly to ensure a gentle wash. It can seem that the drum doesn't
rotate or doesn't rotate properly, but this is normal for this programme.
2) If you set a Steam programme with dried laundry, at the end of the cycle the laundry could be humid.
It is better to expose the items to the fresh air for about 10 minutes to let the humidity dry. When the
programme is completed, quickly remove the laundry from the drum. After a steam cycle, items may be
ironed however with less effort.
Programme temperature, maximum spin speed and maximum load
Programme Default tempera-
ture
Temperature
range
Maximum spin speed
Spin speed range
Maximum load
Washing programmes
Cottons
40 °C
95 °C - Cold
1600 rpm
1600 rpm - 400 rpm 8 kg
Cottons Eco
40 °C
60°C - 40 °C
1600 rpm
1600 rpm - 400 rpm 8 kg
Synthetics
40 °C
60 °C - Cold
1200 rpm
1200 rpm - 400 rpm 4 kg
Delicates
40 °C
40 °C - Cold
1200 rpm
1200 rpm - 400 rpm 4 kg
ENGLISH 17

Programme Default tempera-
ture
Temperature
range
Maximum spin speed
Spin speed range
Maximum load
Wool/Handwash
40 °C
40 °C - Cold
1200 rpm
1200 rpm - 400 rpm 1.5 kg
Outdoor
30 °C
40 °C - Cold
1200 rpm
1200 rpm - 400 rpm 2.5 kg
Anti-Allergy 60 °C 1600 rpm
1600 rpm - 400 rpm 8 kg
NonStop 60min
30 °C
40 °C - 30 °C
1200 rpm
1200 rpm - 1000 rpm 1 kg
Steam 1.5 kg
Rinse 1600 rpm
1600 rpm - 400 rpm 8 kg
Programme options compatibility
Programme
Cottons
Cottons Eco
Synthetics
Delicates
Wool/Handwash
Outdoor
Anti-Allergy
NonStop 60min
Steam
Rinse
Options
Spin ■■■■■■■ ■
Drain ■■■■■■■
Spin ■■■■■■■
Extra Rinse ■■■■ ■ ■ ■
Prewash ■■■■ ■
www.aeg.com18

Programme
Cottons
Cottons Eco
Synthetics
Delicates
Wool/Handwash
Outdoor
Anti-Allergy
NonStop 60min
Steam
Rinse
Options
Stains1) ■■■■ ■
Delay Start ■■■■■■■■■■
Quick Wash2) ■■■■ ■
Time Drying ■■■■■■■
Auto Drying ■■3) ■
1) This option is not available with temperature lower than 40 °C.
2) If you set the shortest duration, we recommend that you decrease the load size. It is possible to fully
load the appliance, however the washing results can be less satisfactory.
3) Iron Dry is not available with this programme.
7.2 Woolmark Apparel Care -
Blue
• The wool wash cycle of this machine
has been approved by The Woolmark
Company for the washing of wool
garments labelled as "hand wash"
provided that the products are
washed according to the instructions
on the garment label and those
issued by the manufacturer of this
washing machine. M1230
•The wool drying cycle of this machine
has been tested and approved by The
Woolmark Company. The cycle is
suitable to dry wool garments which
are labelled "hand wash" provided
that the garments are washed in a
Woolmark endorsed hand washing
cycle and dried according to the
instructions issued by the
manufacturer. M1224
In UK, Eire, Hong Kong and India the
Woolmark symbol is a certification
trademark.
ENGLISH 19

7.3 Automatic drying
1) Hints for test institute The test performance, in accordance with EN 50229, must be carried out with
a FIRST drying load of the maximum declared drying capacity (load composition according to EN61121)
by setting the AUTOMATIC CUPBOARD DRY programme for Cotton eco. The SECOND drying load with
the residual load must be tested by setting the AUTOMATIC CUPBOARD DRY programme for Cotton eco.
Dryness Level Type of fabric Load
Extra Dry
For towelling materials
Cottons and Linen
(bathrobes, bath towels, etc)
up to 6 kg
Cupboard Dry1)
For items to be stored
Cottons and Linen
(bathrobes, bath towels, etc)
up to 6 kg
Synthetics and mixed fab-
rics
(jumpers, blouses, under-
wear, household linen)
up to 4 kg
Delicate fabrics
(acrylics, viscose and delicate
mixed fabrics)
up to 2 kg
Wool items
(woollen jumpers)
up to 1 kg
Outdoor sporting garments
(Outdoor clothing, technical,
sport fabrics, waterproof and
breathable jackets, shell jack-
ets)
up to 2 kg
Iron Dry
Suitable for ironing
Cottons and Linen
(sheets, tablecloths, shirts,
etc)
up to 6 kg
7.4 Timed drying
Dryness Level Type of fabric Load
(kg)
Spin
speed
(rpm)
Sugges-
ted du-
ration
(mins)
Extra Dry
For towelling ma-
terials
Cottons and Linen
(bathrobes, bath towels, etc)
6 1600 245 - 265
4 1600 165 - 185
2 1600 125 - 135
www.aeg.com20
