AEI DK-9523 User manual

APPENDIX
DRY CONTACT
N.C.
N.O.
TRANSISTOR OPEN COLLECTOR OUTPUT
A dry contact means that no electricity was connected to it. It is prepared for free connections. The Relay
Output contacts provided in this keypad system are dry contacts.
Normally Closed, the contact is closed circuit at normal status. It is open circuit when active.
Normally Open, the contact is open circuit at normal status. It is closed circuit when active.
An open collector output is equivalent to a Normally Open (N.O.) contact referring to ground similar to a relay
contact referring to ground. The transistor is normally OFF, and its output switches to ground (-) when active.
The open collector can only provide switching function for small power but it is usually good enough for
controlling of an alarm system. The Duress, Inter-lock, Key Active Outputs of the keypad are open collector
output.
( )
OPEN COLLECTOR
OUTPUT ----
Output switches to
ground when activates
( )
N.O. CONTACT
OUTPUT ----
Output switches to
ground when activates
EQUIVALENT
20
40IN9523
M-100705
R
SINCE 1979
ADVANCED ELECTRONICS
INDUSTRY
MANUFACTURED BY:
An Innovative Product
Developed By:

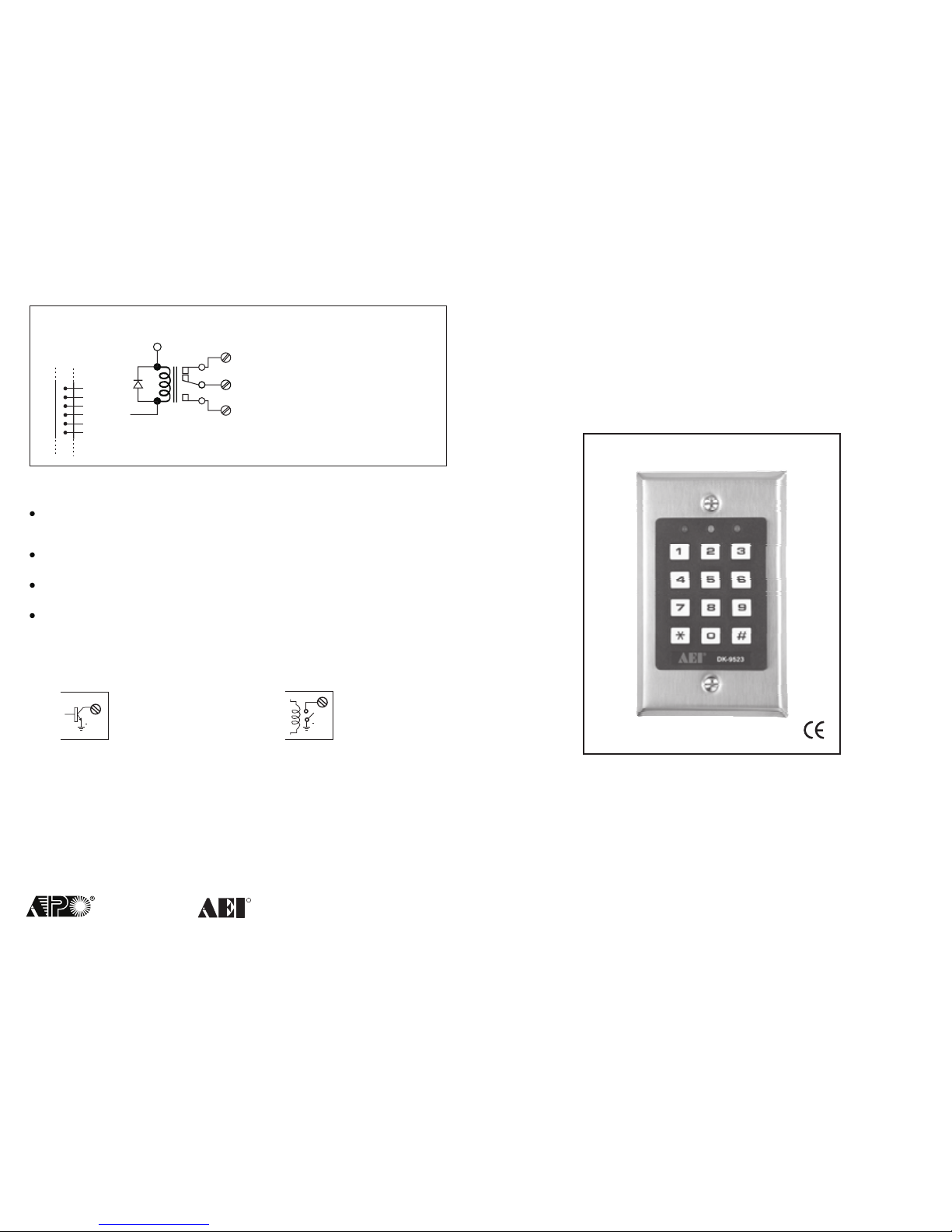

(F) OUTPUT 3 (WHITE/RED WIRE)
Output 3 is an open collector output prepared for
auxiliary controls. It may be used for arm-disarm
of a security system, enable and disable of a
keypad or a protection zone etc.; it can also
drive a relay to give full function of N.C. and N.O.
outputs as like the output 2 making the keypad a
ture 3 output system.
EXTERNAL
RELAY
+12V
N.C.
COM
N.O.
(9)
(10)
(11)
(12) WHITE/RED
(13)
(14)
WIRE HARNESS MULTI-PURPOSE SELF-CONTAINED
DIGITAL ACCESS CONTROL KEYPAD
DK-9523
Programming & Installation Manual
FOR ELECTRIC LOCK, INTER-LOCK
AND SECURITY SYSTEM INSTALLATIONS
AEI PROTECT - ON
SYSTEMS LIMITED

INTRODUCTION
DK-9523 is an universal, self-contained digital access keypad offers field proven reliability and cost effective
solutions for residential and commercial installations. It is designed for stand alone electric lock and inter-lock
systems and operates from a 12 to 24V AC/DC power supply. It is virtually compatible with any electric locking
device. Apart from that it is also the perfect choice for controlling security systems, automatic operators and
machinery.
DK-9523 consists two application softwares of Single User Mode for the general Users, and Multi-User Mode for
the advanced Users. The system offers a 4 digit length user code with 10,000 combinations for each output in
single user mode; and 100 user codes for output 1 and 10 user codes each for output 2 and output 3 in length of
4-8 digits with combinations of more than 100 million in multi-user mode. Operation options of Auto Code entry
and Manual Code entry are available in both two user modes. Programmed information that stored in the system
are non-volatile in power failure.
The DK-9523 offers three outputs with the following facilities:
The connection facilities consist one set of terminal block mainly for Output 1 for door striking purpose; and one
set of wire harness for Output 2 and 3, and the facilities for those auxiliary functions.
5 Amp relay dry contacts, recommended for door strike controls. Normally Open (N.O.) and Normally Closed
(N.C.) outputs are available. Use N.O. output for Fail-secure locking device and N.C. output for Fail-safe locking
device. The relay can be programmed in Start/Stop (toggle) mode or timer mode from 1 to 999 seconds.

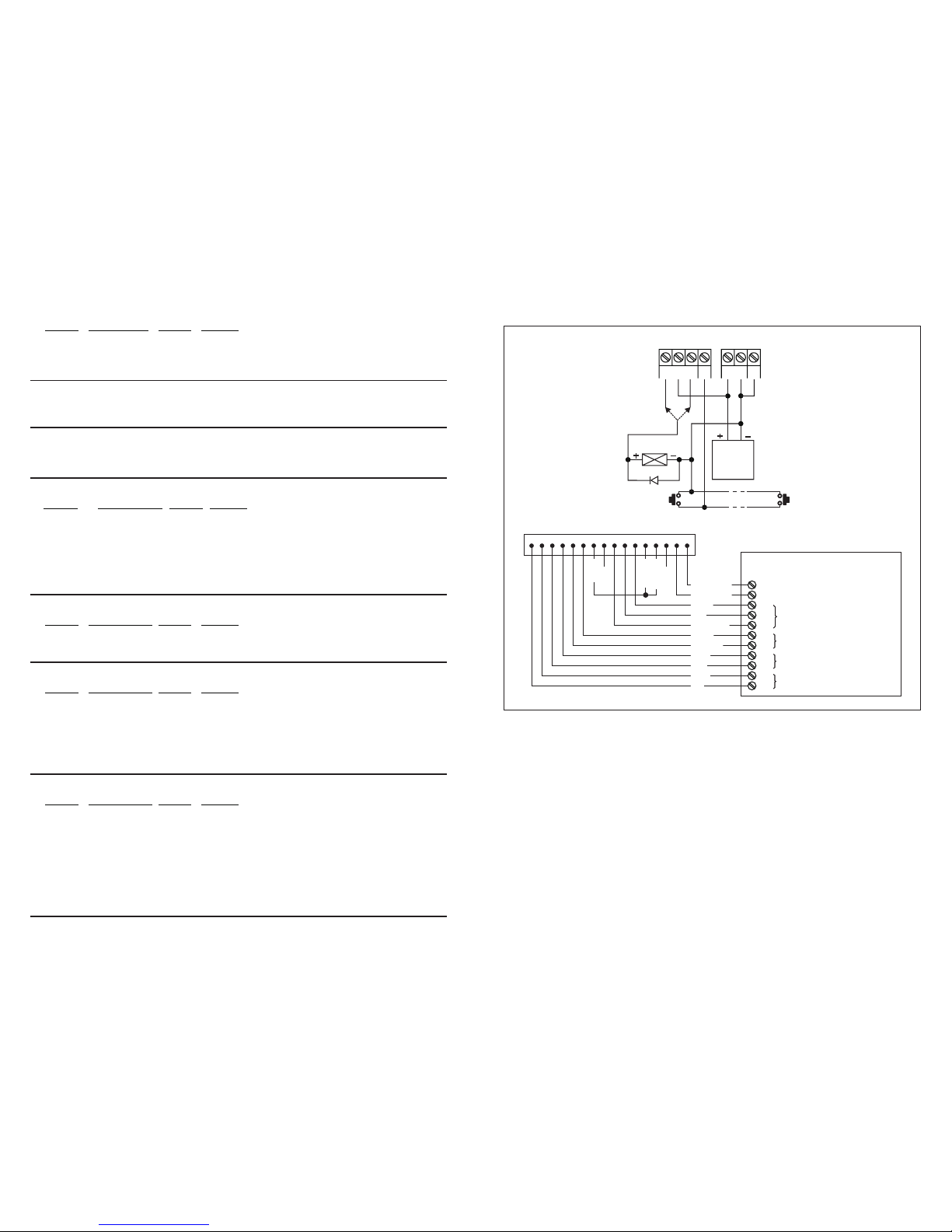

THE TERMINAL BLOCK
!OUTPUT 1
CONNECTION FACILITIES
2
OUTPUT 1
5 Amp relay
OUTPUT 3
NPN Open Collector
OUTPUT 2
1 Amp relay
WHITE/ORANGE DURESS OUTPUT
YELLOW GREEN ( ) GND-
BROWN INTERLOCK CONTROL
ORANGE OUTPUT 1 INHIBIT
WHITE/RED OUTPUT 3
OUTPUT 2
RELAY
PURPLE (N.C.)
YELLOW (+)
LIGHT BLUE ()-
GREEN (+)
GREY ()-
BLACK
RED
RED LED
GREEN LED
TAMPER
AUXILIARY RED LED ( )-WHITE
KEYPAD ACTIVE OR ALARM OUTPUT PINK
BLUE (N.O.)
WHITE/BROWN (COM)
116
215
314
413
512
611
710
89
DK-9523
ON OFF
DAP
KEY AL
KORA
(+)( )-
12-24V AC/DC
EG
IN
OUTPUT 1
N.C. C. N.O.
DOOR
SENS
TAMP
RELAY
1
RELAY
2
123 4 567891011 12 13 14 15 16
19
The Duress Output will switch to ( ) ground when duress code is entered. You may use it to turn ON an LED
lamp and /or a small buzzer to notify a guard; or connect it to a 24 hour Normally Open protection zone of an
alarm system.
-
FOnly one connection option is recommended. Make sure that the sink current does not exceed the maximum
rating of 100mA.
(D) DURESS OUTPUT (WHITE/ORANGE WIRE)
(E) OUTPUT 2
OR
1.5K
LED
+12V
LOW POWER
PIEZO BUZZER
(10)
(11)
(12)
(13)
(14)
(15)
(16) WHITE/ORANGE
WIRE HARNESS
ALARM CONTROL PANEL
24 HOUR N.O.
PROTECTION
ZONE
(10)
(11)
(12)
(13)
(14)
(15) YELLOW GREEN
(16) WHITE/ORANGE
WIRE HARNESS
( i ) Shunting an N.C. Zone (WHITE/BROWN & BLUE WIRES)
F
F
Use the Normally Open (N.O.) output contact to shunt a Normally Closed (N.C.) protection zone of an
alarm system.
Set output contact to Start / Stop Mode (Programming Option 51).
( ii ) Alarm System Arm-Disarm Control (WHITE/BROWN & BLUE or PURPLE WIRES)
F
F
F
Use the (N.O.) or (N.C.) output contact to make arm-disarm control of an alarm system.
Consult your alarm control panel manual for the appropriate output contact to be used in arm-disarm control.
Usually set output 2 to Momentary mode (Programming Option 501) for multi station systems and Start
/ Stop mode (Programming Option 51) for single station systems.
WIRE HARNESS
(8)
(9) WHITE/BROWN
(10) BLUE
(11) PURPLE
(12)
OR
ALARM CONTROL PANEL
REMOTE
ARM-DISARM
CONTROL
NO. OR N.C.
WIRE HARNESS
(8)
(9) WHITE/BROWN
(10) BLUE
(11)
(12)
N.C.
N.C. MAGNETIC CONTACT
TO PROTECTION ZONE
OF AN ALARM CONTROL PANEL

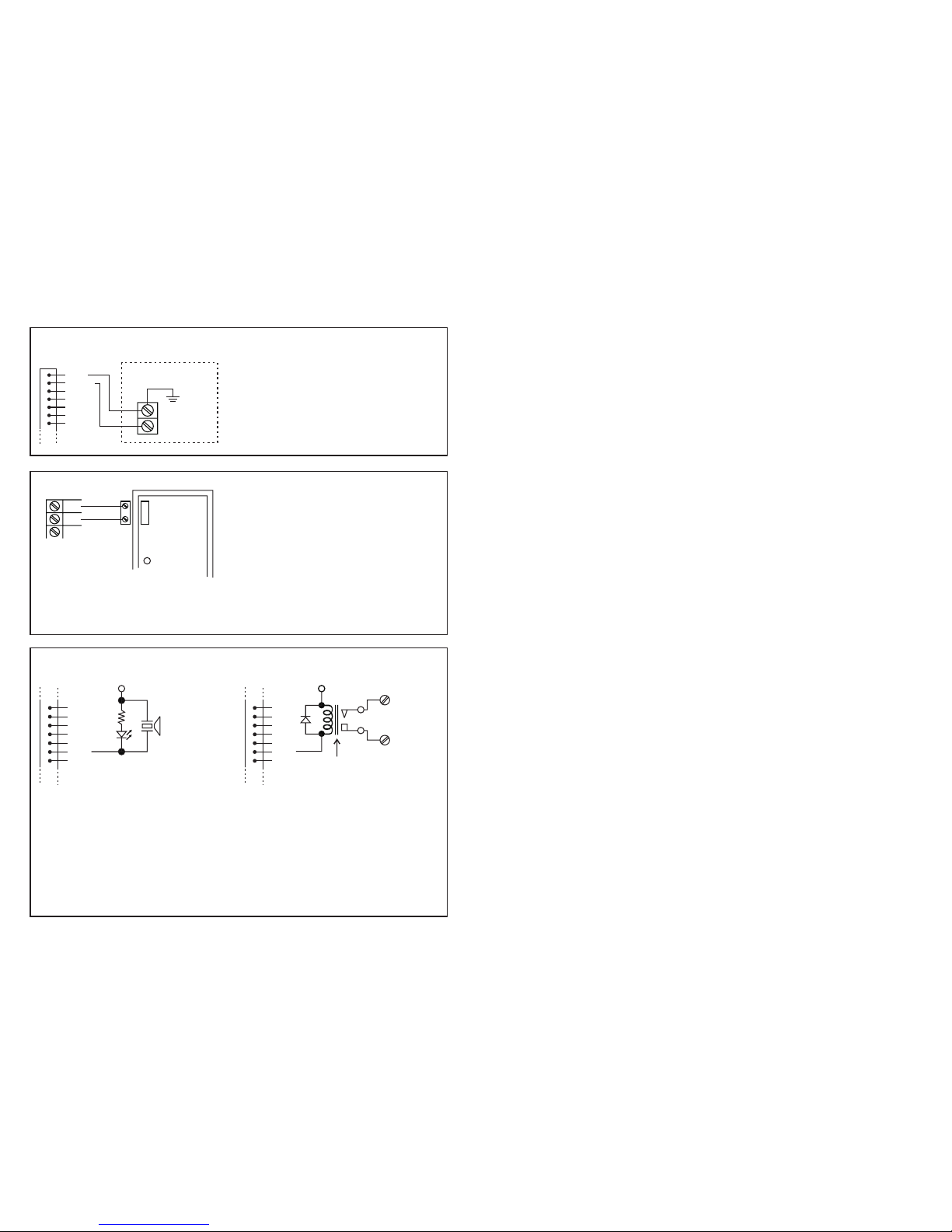

APPLICATION HINTS FOR THE AUXILIARY FACILITIES
18
The tamper switch is Normally Closed while the keypad
is secured on gang box. It is open when the keypad is
removed from the gang box. To prevent sabotage,
connect these terminals in series with a 24 hour N.C.
protection zone of an alarm system if required.
(A) TAMPER N.C. (RED, BLACK WIRES)
ALARM CONTROL PANEL
24 HOUR N.C.
PROTECTION
ZONE
(C) KEY ACTIVE (PINK WIRE)
OR
The Key Active Output will switch to ( ) ground
for 10 seconds whenever a key is touched. You
may use it to turn ON an LED lamp and /or a
small buzzer to notify a guard; or to energize a
relay to switch ON lights or trigger an CCTV
Camera to start recording.
Make sure that the relay for switching ON lights
has high enough isolation between high voltage
and low voltage to prevent damage of the
keypad.
Only one connection option is recommended.
Make sure the sink current does not exceed the
maximum rating of 100mA.
External power supply and isolation relay are
necessary in driving high power device, such as
lights.
-
F
F
F
With the help of a Normally Closed door
position sensor (usually a magnetic door
switch) on the door to set up the following
functions:
a) -- The system will immediately re-
lock the door after a valid access has been gained to
prevent "tailgate" entries.
b) -- The keypad will generate
alarm instantly if the door is forced to open. Enable the
function with Programming Option 801.
c) -- The keypad will generate
alarm if the door is left open longer than the pre-set
delay time. Enable the function with Programming
Option 9 with time of 1 to 999 seconds possible.
d) -- When the door is open, the inter-
lock output of the keypad will give a ( ) command to
stop the other keypad in an inter-lock system.
Door Auto Relock
Door Forced-open Alarm
Door Propped-up Alarm
Inter-lock Control
-
(B) DOOR SENS
DOOR
SENS
()
GND
-
MAGNETIC
DOOR
SWITCH
1.5K
LED
+12V
LOW POWER
PIEZO BUZZER
ISOLATION
RELAY
+12V
N.O.
RELAY CONTACT
(1) RED
(2) BLACK
(3)
(4)
(5)
(6)
(7)
WIRE HARNESS
(3)
(4)
(5)
(6)
(7)
(8) PINK
(9)
WIRE HARNESS
(3)
(4)
(5)
(6)
(7)
(8) PINK
(9)
WIRE HARNESS
!
!
!
!
!
!
EG IN
12 24V AC/DC
DOOR SENS
N.C. TAMPER (1-2)
GREEN, RED & AUXILIARY RED LED LAMPS (3-4), (5-6) & (7)
KEYPAD ACTIVE OUTPUT OR ALARM OUTPUT (8)
EGRESS INPUT
POWER INPUT
DOOR POSITION SENSOR INPUT
NOTE:
Door Auto Re-lock
Door Forced Open Alarm
Door Propped-up Alarm
Inter-lock Control
NOTE:
i) KEYPAD ACTIVE OUTPUT (KEY)
ii) ALARM OUTPUT (AL)
A Normally Open (N.O.) input terminal refers to ( ) ground, with the help of a normally open button to activate the
Output 1 for the same time period as the user code. Egress button is usually put inside the house near the door.
More than one egress buttons can be connected in parallel to the terminal. Leave this terminal open if it is not used.
Connect to 12-24V AC or DC power supply. The ( ) supply and ( ) GND (wire 15) are the common grounding
points of the keypad system. No selection jumper is required for the full input voltage range.
Connect DC power with the (+) and ( ) polarity indicated; and there is no polarity discrimination for AC power input.
A Normally Closed (N.C.) input terminal referring to ( ) ground. With the help of a normally closed magnetic
door switch, the system will monitor the position of the door and will give the following functions:
Always connect this terminal to ( ) ground if not used.
1)
The system will immediately relock the door after valid access has been gained before the end of the
programmed time for output 1, that prevents unwanted "tailgate" entries.
2)
The keypad will generate door forced-open alarm instantly if the door is forced to open without a valid user
entry or egress input. The alarm will last for 60 seconds and can be stopped with user code 1 or one of the
user codes in Group 1 at anytime. This function is selectable via the programming options at Location 80.
3)
When the door is left open longer than the allowable time. The keypad will generate door propped-up alarm
after the expiry of the pre-set door-open-time until the door is closed again. The door-open-time is
programmable from 1 to 999 seconds at Location 9.
4)
The inter-lock control output goes to ( ) while the door is open in order to give signal to disable the other
keypad in the inter-lock system.
Always hold the circuit board tightly and pull the socket out gently to prevent damage of the electronic
assembly of the keypad if the wire harness is required to pull out from the circuit board.
Normally Closed contact while the keypad is secured on the box. It is open while keypad is separated from the
box. Connect this N.C. terminal to the 24 hour zone of an alarm system if necessary.
Three on-board LED lamps are available. They are prepared for free connections. Suggest to connect these LED
lamps to the remote indicator driving terminals of your specific equipment, such as an alarm control panel. Be
sure to observe the polarity (+ & ).
The Green and Red LED lamps that are independent are equipped with 1.5K Ohm current limiting resistor.
The anode of the auxiliary Red LED was connected to +5V internally. It turns ON with the cathode (wire 7)
connecting to ( ) ground.
This is an NPN transistor open collector output with maximum ratings of 100mA sink and 24V DC. It is
selectable to give Keypad Active or Alarm Output via the "K" or "A" Jumper.
--- It switches to ( ) ground for 10 seconds on each key touching. This
can be used to turn on lights, CCTV camera, or buzzer to notify a guard. See Application Hints for more
information.
--- It switches to ( ) ground while Door Forced Open Alarm or Door Propped-up
Alarm occurs in order to trigger external alarm to give notification at remote location.
-
--
-
-
-
-
-
-
-
-
-
THE WIRE HARNESS
3

TONES F
FF
---
---
1 Beep
2 Beeps
5 Beeps
Continuous Beeps
1 second Long Beep
LED SIGNALS
ON
1 Flash
2 Flashes
5 Flashes
Continuous Flashes
1 Flash in 2 seconds interval
---
STATUS
1. In programming mode
2. Successful key entry
3. Successful code entry
4. Unsuccessful code entry
5. DAP jumper not replaced
6. In standby mode
7. Output relay activated
!
!
!
!
!
!
!
OUTPUT 2 (9-10-11)
OUTPUT 3 (12)
OUTPUT 1 INHIBIT (13)
INTER-LOCK CONTROL OUTPUT (14)
DURESS OUTPUT (16)
RED & GREEN
AUX RED / GREEN
This is an auxiliary relay output with 1 Amp rating Normally Open (N.O.) and Normally Close (N.C.) dry contacts
controlled by the User Code 2, which is ideal for controlling security systems & automatic operators. It is
programmable for Start / Stop (toggle) operation or timing operation from 1 to 999 seconds.
This is an NPN transistor open collector output ideal for auxiliary control functions, such as controlling security
systems, code Authorization control of output 1 in the keypad etc.
Output 3 is programming for Start / Stop (toggle) operation or timing operation from 1 to 999 seconds. It
switches to ( ) ground in activation and the maximum rating is 100mA sink / 24VDC.
A Normally Open (N.O.) input terminal refers to ( ) ground. Both user code 1 and Egress button can not activate
output 1 while this terminal is tied to ( ) ground. It is prepared for cross wire connection in Inter-lock application.
An NPN transistor open collector output. It is OFF at normal condition and switches to ( ) ground immediately
for the first 5 seconds after keying in a valid user code to operate output 1, then, it will keep tying to ( )
ground during the time that the door position sensor is open due to door opening. Use this output to control the
other keypad (or, the inter-lock controller in power supply, e.g. AD-2312) in an inter-lock system to prevent both
door opening at the same time.
An inter-lock system is a two-door system that always allows only one door to open during the operation time.
While one of the doors in the system is opened, the other door keeps close until the opened door is re-closed
in order to prevent the unauthorized people dashing into a protected area.
An NPN transistor open collector output. It switches to ( ) ground after the Duress Code is entered. Use it to
trigger an alarm zone, or turn on a buzzer to notify a guard. Ic max: 100mA sink. Vc max: 24VDC
The Red & Green LEDs are prepared for free connection. They give indication
according to installer's connections.
The Green LED at the centre is a status indicator at normal condition. The
lamp changes to steady Red while the auxiliary Red LED is energized.
The built-in buzzer and the green LED indicator at the centre give the following tones and signals for operation status:
All Pacifier Tones can be enabled or disabled through programming options at Location 83.
The Output Activation Beep can be enabled or disabled through programming options at Location 81.
-
-
(AT THE CENTRE)
-
-
-
-
THE LED INDICATORS
THE PACIFIER TONES & THE LED INDICATING
SIGNALS
NOTE: *
**
4
1 2 3
456
78 9
0#
RED
GREEN
GREEN
& RED
DK-9523
R
4) BASIC WIRINGS OF AN INTER-LOCK SYSTEM USING KEYPAD AND INTER-
LOCK CONTROLLER POWER SUPPLY
This inter-lock application example utilizes one DK-9523 and a power supply with inter-lock controller, AD-2312. The
power supply provides the power source for the whole system including both electric locks and the keypad. It is
necessary to make sure that the total power consumption of the system does not exceed the maximum power
ratings of the power supply, expecially if fail-safe locks are used. The inter-lock function is accomplished with the
cross wire connection of the "Inter-lock Control Output" and the "Output 1 Inhibit" (or the "EG Stop 1" on AD-2312)
terminals between the keypad and the controller. It is necessary to link up a Common Ground between the keypad
and power supply to set up a power path and to achieve the inter-lock logical functions.
Use keypad to open door 1 from outside.
Open door 2 with egress button A from outside while door 1 is closed.
Open door 1 from inside with egress button; and door 2 with egress button B.
Connect the door magnetic sensors on door 1 and door 2 to monitor their positions.
During the time that door 1 is open, then, door 2 is forced to keep close, or vice versa.
Use N.O. Relay output for fail-secure locking device; and N.C. output for fail-safe locking device.
Relay output 2 of the keypad is independent and has nothing concern with the inter-lock system. It may be used
for other applications, such as controlling security systems.
Please also see the "NOTE" stated in the Application (1) and (2) for the common information.
F
F
F
F
F
F
F
F
17
EG
A
EG
B
EG
C
ALM
STOP
INT.
LOCK
AUTO
LOCK
EG STOP
12
ALARM O/P
N.C. C. N.O.
ELEC. LOCK
() () (+)
SEC SAF 12V
--
(+)
13.7V
()-
GND
()-
GND
DOOR
SENS
LOCK 2 DOOR 2
SENSING
OR
EGRESS BUTTON B
(INSIDE DOOR 2)
EGRESS BUTTON A
(OUTSIDE DOOR 2)
N.O. N.O.
N.C.
AD-2312
EG
IN
OUTPUT 1
N.C. C. N.O.
(+)()-
12-24V AC/DC
DOOR
SENS
(+)
(+)
(+)
(+)
(+)
()-
()-
()-
N.O.
EGRESS BUTTON
(OPEN DOOR 1 FROM INSIDE)
TERMINALS CONNECTION HARNESS
123456 7 8910 11 12 13 14 15 16
ELECTRIC
LOCK
N.C. N.O.
OR
1N4004
LED (+)
LED ( )-
DOOR 1
SENSING
N.C.
DOOR 1
DOOR 2
OUTPUT 1 INHIBIT
INTER-LOCK CONTROL
COMMON GND
POWER FOR KEYPAD
POWER FOR LOCK
12 4 6 7 10 11 12 13 15 16 17 18
14
9853

16
3) BASIC WIRINGS OF AN INTER-LOCK SYSTEM USING TWO KEYPADS
An inter-lock system needs two door controllers. This application example uses two DK-9523 with simple cross wire
connection on their "Output 1 Inhibit" and "Inter-lock Control Output" terminals. It is necessary to link up the "( )
GND" terminals of the two keypads as common ground to achieve the inter-lock logical functions. The connection of
the Green LED is optional. It will light up for lock active if connected.
Use keypad to open the door from outside.
Press egress button to open the door from inside.
Connect the door magnetic sensors on the door 1 and door 2 to monitor their positions.
During the time that door 1 is open, then, door 2 is forced to keep closed, or vice versa.
Use N.O. Relay output for fail-secure locking device; and N.C. output for fail-safe locking device.
Relay output 2 is independent and has nothing concern with the inter-lock system. It may be used for other
applications, such as controlling security systems, automatic operators etc.
Please also see the "NOTE" stated in the Application (1) and (2) for the common information.
-
F
F
F
F
F
F
F
EG
IN
EG
IN
OUTPUT 1
N.C. C. N.O.
OUTPUT 1
N.C. C. N.O.
(+)()-
12-24V AC/DC
(+)()-
12-24V AC/DC
DOOR
SENS
DOOR
SENS
(+)
(+)
(+)
(+)
N.O.
N.O.
EGRESS BUTTON
(OPEN DOOR 2 FROM INSIDE)
EGRESS BUTTON
(OPEN DOOR 1 FROM INSIDE)
TERMINALS
TERMINALS
ELECTRIC
LOCK
ELECTRIC
LOCK
N.C.
N.C.
N.O.
N.O.
OR
OR
12V DC
POWER
SUPPLY
12V DC
POWER
SUPPLY
1N4004
1N4004
DOOR 2
SENSING
DOOR 1
SENSING
N.C.
N.C.
CONNECTION HARNESS
123456 7 8910 11 12 13 14 15 16
GREEN LED ( )-
TO ( ) GND-
GREEN LED (+)
TO OUTPUT 1 N.O.
OUTPUT 1 INHIBIT
INTER-LOCK CONTROL
COMMON GND
DOOR 1
DOOR 2
CONNECTION HARNESS
GREEN LED ( )-
TO ( ) GND-
GREEN LED (+)
TO OUTPUT 1 N.O.
123456789
10 11 12 13 14 15 16
COMMON GND
INTER-LOCK CONTROL
OUTPUT 1 INHIBIT
5
THE DAP JUMPER D A P( IRECT CCESS TO ROGRAMMING)
If the Personal Master Code is forgotten, use the DAP jumper to override the forgotten code permitting the keypad
direct entry into programming mode. You are required to apply the following procedures precisely.
Disconnect power supply.
Displace the DAP jumper from OFF to ON position.
Reconnect power supply (buzzer is activated).
Put the DAP jumper back to OFF position (this done, the buzzer is de-activated).
The keypad is in programming mode and ready to receive new programming data.
As the old master code was forgotten, suggest you to put a 4 digit new master code into Location 0 first.
Enter the new programming data starting from Section (B) in the summary chart shown below.
(Digits may be repeated)
1.
2.
3.
4.
5.
6.
7.
ii) Recording of the master code and user codes for Multi-User
THE FACTORY-SET MASTER CODE
PROGRAMMING OPTIONS
--
--
IMPORTANT NOTE
SUMMARY CHART
For the owner's convenience in programming at the first time, the factory has put a Master Code 0000 into the
keypad. To compromise security, in all cases, the owner should program a Personal Master Code to invalidate the
factory-set Master Code before use.
When starts for the first time
Programming Mode with the Factory-set Master Code
Installer Programming
(Digits may be repeated)
A) Use The Factory-set Master Code to Entry in Programming
B) Set System to Single User or Multi User Mode & Refresh The System
--
--
0000 *
0#
1#
Set system into
4 digits, fixed Personal Master Code & Super User Code
User Code 1 for output 1 with Duress
8900 #
8901 #
2#
3#
0#
1#
2#
3#
Set system to Single User Mode, clear all the data previously stored and refresh system
Set system to Multi User Mode, clear all the data previously stored and refresh system
4 digits, fixed
4 digits, fixed User Code 2 for output 2
4 digits, fixed User Code 3 for output 3
4 to 8 digits Personal Master Code & Super User Code
00 to 99 4 to 8 digits 100 User Codes in Group 1 for output 1 with Duress
0 to 9 4 to 8 digits 10 User Codes in Group 2 for output 2
0 to 9 4 to 8 digits 10 User Codes in Group 3 for output 3
C) Recording of Personal Master Code User Codes&-- User Programming
i) Recording of the master code and user codes for Single User
Entry of Code Validation Comments
Locations Entry of Codes Validation Comments
User Mode Options Validation Comments
Locations User Number Entry of Codes Validation Comments
Code function
Code function

D) Configuration of Output Modes
E) Personal Safety
G)
--
--
Installer Programming
Installer Programming
40
41
42
70 #
71 #
72 #
76 #
1to999
After 10 successive false codes, the keypad locks during 30 seconds
After 10 successive false codes, the Duress output switches to ground
Selectable of a
00 Disappearance of all the above securities
#
#
#
50 #
51 #
52 #
60 #
61 #
62 #
80 1 #
80 0 #
81 1 #
81 0 #
82 1 # #
82 0 # #
Output 1 in Momentary Mode from 1 to 999 seconds
Output 1 in Start / Stop Mode (toggle)
Output 1 in Start / Stop Mode (toggle) with accelerated code
1 to 999 Output 2 in Momentary Mode from 1 to 999 seconds
Output 2 in Start / Stop Mode (toggle)
Output 2 in Start / Stop Mode (toggle) with accelerated code
1 to 999 Output 3 in Momentary Mode from 1 to 999 seconds
Output 3 in Start / Stop Mode (toggle)
Output 3 in Start / Stop Mode (toggle) with accelerated code
5 to 10 fter 5 to 10 successive false codes, the keypad locks
during 15 minutes. The keypad can be reset to release locking with the
Master Code at any time during the locking period
Door Forced-Open Alarm is Enabled
Door Forced-Open Alarm is Disabled
1 second notifying beep is given to notify the person outside to open
the door when output relay is activated with an user code or egress
button. Good for the locking device that gives no sound when it
activates, such as a magnetic lock.
Notifying beep disabled and replaced by 2 short successful code entry
beeps for valid user codes
Auto Entry Mode is selected. key that follows the user code is NOT
required in code entry. The User Codes MUST be set in the same digit
length as the Master Code in Auto Entry Mode and the code length can
be 4-8 digits
Manual Entry Mode is selected. key that follows the user code is
required in code entry. The user codes can be 4-8 digits and they are
not required to be in the same length as the Master Code
In Single User Mode, no matter the selection is Auto or Manual mode, the Master Code and the User Code
MUST be set in the length of 4 digits.
F) Door Forced-Open Alarm
Output Activation Announcer
H) User Code Entry Mode (Auto or Manual)
--
--
--
Installer Programming
Installer Programming
Installer Programming
NOTE:
Locations Code of Duration
Locations No. of False Entry Validation Comments
Validation Comments
Locations Code of Functions Validation Comments
Locations Code of Functions Validation Comments
Locations Code of Functions Validation Comments
6
CONNECTION HARNESS
ALARM CONTROL PANEL
123456789
10 11 12 13 14 15 16
AUX LED
O/P 1 INHIB
OUTPUT 3
N.O.
()-
N.C.
N.O.
COM.
(+)
()-
(+)
()-
N.C.
DURESS -- TO A 24 HOUR N.O. ZONE
COMMON GROUND OF KEYPAD AND ALARM SYSTEMS
OUTPUT 2
ALARM ARM-DISARM CONTROL
* CONSULT YOUR ALARM INSTALLATION
MANUAL FOR N.C. OR N.O. FOR THE CONTROL
RED LED
FOR ALARM STATUS INDICATION
GREEN LED
FOR ALARM STATUS INDICATION
TAMPERPROOF
TO A 24 HOUR N.C. ZONE
WHITE/ORANGE
YELLOW GREEN
PURPLE
BLUE
WHITE/BROWN
YELLOW
LIGHT BLUE
GREEN
GREY
BLACK
RED
2) BASIC WIRINGS FOR ALARM ARM-DISARM AND STAND ALONE DOOR LOCK
F
F
F
F
F
F
F
The door lock function is exactly the same as like the Application Example (1) except the Green and Red LED
indications.
The Green and Red LEDs are used for Alarm Status indications, such as EXIT, Armed, Alarm Memory etc.
Relay Output 2 is used for Alarm Arm-Disarm Control. Please consult your alarm control panel manual for the
appropriate output contact and the operation mode for the control; such as N.O. or N.C. contact, and Momentary
or Start / Stop mode are required.
Connect the Tamper Switch to a 24 hour N.C. zone and the Duress output to a 24 hour N.O. zone for
tamperproof and emergency reporting.
Connection of "Output 3" to "Output 1 Inhibit" is optional. With this connection, the owner may use the User
Code 3 as authorization Code to stop the operation of the electric lock in the night time or after office hour to
prevent unauthorized access. Set output 3 in Start / Stop mode (Programming Option 61) for ON-OFF control.
The centre LED will change from flashing Green to Red while the operation of the electric lock is stopped.
The Yellow green wire is the common ground to link up the keypad and the alarm control panel to achieve the
logical functions.
Please also see the NOTE stated in Application Example (1) for the common information.
15
EG
IN
OUTPUT 1
N.C. C. N.O.
(+)()-
12-24V AC/DC
DOOR
SENS
(+)
N.O. N.O.
EGRESS BUTTON
(INSIDE THE HOUSE)
MORE EGRESS BUTTONS
CAN BE CONNECTED IN PARALLEL
TERMINALS
ELECTRIC
LOCK
N.C. N.O.
OR
12V DC
POWER
SUPPLY
1N4004

821 User code Auto Entry Mode (Single-User)
14
APPLICATION EXAMPLES
1) BASIC WIRINGS OF A STAND ALONE DOOR LOCK WITH INHIBIT
AUTHORIZATION CODE AND INDICATION
NOTE:
Connect the 1N4004 as close as possible to the lock in parallel with the lock power terminals to absorb the back
EMF to prevent it from damaging the keypad. The 1N4004 is not required if the electric lock is AC operated.
To avoid Electro-Static-Discharge from interfering with the operation of the keypad, always ground the ( ) GND
terminal of the keypad to earth.
The Green LED lights up during the keypad is striking the electric lock.
Connection of "Output 3" to "Output 1 Inhibit" is optional. With this connection, output 3 is used as authorization
control. The owner may key in the User Code 3 to stop the operation of the electric lock in the night time or
after office hour to prevent unauthorized access. Set output 3 in Start / Stop mode (Programming Option 61) for
ON-OFF control. The Red LED lights up while the operation of the electric lock is stopped.
Tape all the un-used wires to prevent short circuit.
-
WARNING
FOR SAFETY, MAKE SURE NOBODY INSIDE THE HOUSE BEFORE YOU START THE DOOR LOCK INHIBIT
FUNCTION. THE LOCK LOCKS ALL THE TIME DURING "INHIBIT" IS ON DUTY.
THE INHIBIT AUTHORIZATION CODE SHOULD ALWAYS BE KEPT BY THE OWNER BUT NOT OTHER USER(S).
EG
IN
OUTPUT 1
N.C. C. N.O.
(+) ( )-
12-24V AC/DC
DOOR
SENS
(+)
(+)
(+)
( )
( )
N.O. N.O.
EGRESS BUTTON
(INSIDE THE HOUSE)
MORE EGRESS BUTTONS
CAN BE CONNECTED IN PARALLEL
REMARKS:
OUTPUT RELAY 1
N.O. Output for Fail-secure Lock
N.C. Output for Fail-safe Lock
LEDS
Each LED Requires a 1.5K Ohm Series
Resistor on 24V Operation
TERMINALS CONNECTION HARNESS
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
ELECTRIC
LOCK
N.C. N.O.
OR
12V DC
POWER
SUPPLY
CATHODE
1N4004
GREEN LED
GREEN LED
RED LED
RED LED
O/P 1 INHIBIT
OUTPUT 3
I) Pacifier Tones (Keypress Acknowledgement Tones)
K) Allowable Time to Start Door Propped-up Alarm
Single User Mode (Command Code: 8900)
--
--
Installer Programming
Installer Programming
Single User Mode is prepared for the simple users, which allows only one user code to operate each output. The
user codes are fixed to 4 digits and 10,000 code combinations are possible. User codes can be programmed directly
into the User Code Locations 1, 2 and 3 respectively for the three outputs. Please see Programming Summary Chart
Section (C), item i) for details. This mode is always set with Auto Code Entry in default. The user does not require
to press the key in user code entry. The user only needs to enter the 4 digit user code. The relay will activate for
the programmed time.
The system can be set for Manual Entry with programming option 0 at Location 82 if required.
Multi-User Mode allows up to 100 individual user codes to operate the output 1 and 10 each individual user codes
to operate the output 2 and 3. The user codes can be 4 to 8 digits with over 100 million code combinations. The
user codes can be set for Auto Entry or Manual Entry with programming options at Location 82. Manual Entry
Mode is in default. The user code followed by key is required.
Once the keypad is programmed in Auto Entry, the Master Code and the User Codes MUST be set in the same digit
length, and the need for the user code not to be followed by key is required.
Pacifier tones available on keypress
All pacifier tones are off. Good for place requires silent environment
0 No propped-up alarm
1 to 999 Allowable time from 1 to 999 seconds for door left open before the door
propped-up alarm starts
L) Exit Programming Mode
Keypad exits programming mode and returns to normal operation
SINGLE USER MODE OR MULTI-USER MODE SELECTION
The keypad consists two sets of software for owner's selection in user code programming. They are "Single User
Mode" and "Multi-User Mode".
The keypad has been set with a Master Code of "0000" and in Single User Mode at the factory. If your required
mode is Multi-User, you have to refresh the system with the appropriate comment code, 8901, to set it into Multi-
User Mode.
NOTE:
Locations Code of Functions Validation Comments
Locations Code of Functions Validation Comments
All the default values in Multi-User Mode and Single User Mode are exactly the same except the User
Code Entry Mode.
Validation Comments
Multi-User Mode (Command Code: 8901)
The Default Values
NOTE: **
7
Default Comments Default Comments
**
**
401 Output 1 in 1 second Momentary Mode
501 Output 2 in 1 second Momentary Mode
601 Output 3 in 1 second Momentary Mode
70
800 Door forced-open alarm disabled
811 Output relay activation beep ON
820 User code Manual Entry Mode (Multi-User)
831 Pacifier Tones ON
841 Main LED flashing in normal mode during
system standby
90 No propped-up alarm
After 10 successive false code, the keypad
locks during 30 seconds
J) Main LED Flashing ON-OFF -- Installer Programming
Locations

Validation

Code of Functions

 
Comments
Main LED flashing in normal mode during system standby
Main LED OFF during system standby

Code Entry Limitation in Multi-User Mode due to Duress Code
The system comes with DURESS function for the user code 1 in Single User Mode and all the user codes of Group
1 in Multi-User Mode; The DURESS CODE is set up by the system automatically with the first digit of the User
Code "+2". To prevent the other User Codes fall into the Duress Code, or the Duress Codes fall into other User
Codes, the first digit of a "Stored" User code "+2" or "-2" is not allowed for the later User Code entry in
programming. The system will refuse those code entries.
An User Code 56789 was stored in the system, then 36789 and 76789 are not allowed for other
User Codes.
The system can be set to Single User Mode with the command code " and will stay in that mode until the
system is refreshed for other mode. Make sure that the Master Code was already in 4 digits before setting the
system to Single User Mode.
The system can be set to Multi Users Mode with the command code " and will stay in that mode until the
system is refreshed for other mode.
The system can be changed from Single User Mode to Multi-User Mode; or vice versa with the above operation
command codes.
When this is done, the keypad will reset itself as a fresh unit with the default values; and all the previously
programmed data will be cleared except the Master Code.
Make sure all the User Codes and Master Code are in the length of 4 Digits if the system is in Single User
Mode operation. Otherwise, code entry will not be accepted.
It is necessary to change the Master Code in the length of 4 digits first (no matter it was in 4 digits or more
than 4 digits in Multi- User Mode) before refreshing it from Multi-User Mode to Single User Mode.
The system takes approximate 2 to 3 seconds to refresh itself for the new operation mode after the command code
is entered. DO NOT enter any code during the system is being refreshed until the 2 confirmation beeps are heard.
For example:
IMPORTANT NOTES:
1)
2)
3)
Single User Mode on Duty (please wait 2-3 seconds until the confirmation
beeps are heard after the key is pressed)
Multi-User Mode on Duty (please wait 2-3 seconds until the confirmation beeps
are heard after the key is pressed)
SET THE SYSTEM TO SINGLE USER MODE
SET THE SYSTEM TO MULTI-USER MODE
REFRESH THE SYSTEM
8900"
8901"
-----
MASTER CODE
MASTER CODE
* 8900 #
#
* 8901 #
#
-----
-- WHEN IN CHANGE OF OPERATION MODE
PROGRAMMING AND USE OF THE KEYPAD -- OPERATION EXAMPLES
a)
b)
NOTE:
All programming is accomplished entirely from the front of the keypad. The keypad may be programmed in
your shop or at the installation site. Programmed information is stored in non-volatile memory so it will not
be lost if power is removed.
When programming is required. It is necessary to set the keypad into programming mode first with the
master code and validating it with key.
If the master code is forgotten, please use DAP jumper to set the keypad into programming mode.
See DAP JUMPER description in previous section for the details.
*
*
MASTER CODE
A) PROCEDURES OF PROGRAMMING
8
SPECIFICATIONS
!
!
!
!
!
!
!
!
!
!
Operation Voltage:
Operation Modes:
Input Sensing Terminals:
Relay Output Contacts:
Tamper Switch Contact:
Duress, Inter-lock & Key Active Output Rating:
Auto Refreshing Time During Code Entry:
Dimensions:
12V 24V AC/DC, No Jumper is Required for voltage selection
a) Single User Mode, Auto, or Manual Code Entry
b) Multi-User Mode -- 100 user codes for output 1 (user number 00-99), Auto or Manual Code Entry
-- 10 user codes for output 2 (user number 0-9), Auto or Manual Code Entry
-- 10 user codes for output 3 (user number 0-9), Auto or Manual Code Entry
b) Multi User Mode ----111,110,000
a) Egress Input -- Normally open referring to ( ) ground
b) Door Position Sensor Input -- Normally closed referring to ( ) ground
c) Relay 1 Stop Control -- Normally open referring to ( ) ground
OUTPUT 1: Normally Closed and Normally Open Dry Contacts, 5A / 30VDC Max. Rating
OUTPUT 2: Normally Closed and Normally Open Dry Contacts, 1A / 30VDC Max. Rating
OUTPUT 3: NPN Open Collector, 100mA Sink / 24VDC Max.
Normally Closed Dry Contact, 50mA Max.
NPN Open Collector switches to ground when active, 24VDC / 100mA Sink
a) Each Digit Maximum Entry Time Limit -- 10 seconds
b) Each Code Maximum Entry Time Limit -- 30 seconds
117(H) x 74(W)mm X 48(D)mm
: 180
-
-
-
-
User Code Combinations:
Weight
a) Single User Mode---10,000
g net
Specifications are subject to change for modification without notice
13

12
For example:
NOTE:
f)
Example:
g)
8321 0321
11223 31223
33221 53221
To command the Duress Function, enter the Duress Code(s).
The Duress Code(s) has double actions. It activates the Duress Output and at the same time activates
the Output 1 as like the normal User Codes in Group 1. The Duress Code(s) can always activate or
deactivate (in Start / Stop mode) Output 1, but cannot deactivate (reset) the Duress Output. ONLY the
User Codes in Group 1 can deactivate (reset) the Duress Output.
The Accelerated Code is the First Two Digits of the User code(s). If the Output has been programmed in
Start / Stop mode with Accelerated Code (Programming Option 42 for user codes in Group 1 and
Programming Option 52 for user codes in Group 2), it is possible to activate the Output with only the
First Two Digits of the User Code(s). Deactivating of the Output always requires the composition of the
Complete User Code(s) in their code Group.
Output 1 has been re-programmed to Start / Stop Mode with Accelerated Code (Programming Option 42)
with the Complete Code of 1st User Code in Group 1: The Accelerated Code is:
2nd User Code in Group 1: The Accelerated Code is:
Try to put some random false codes to the keypad to test its Safety. The keypad generates 5 beeps for
each unsuccessful code entry. The keypad locks itself during 15 minutes after 10 successive false codes
are entered. Normal operation will resume after 15 minutes expired, or, it can be reset with the Master
Code during the locking period.
The User Codes in Group 1 The Corresponding Duress Codes
----- Duress output activates (output switches to ground) & Output 1 activates for 1 second
-- Duress output activates (output switches to ground) & Output 1 activates for 1 second
-- Duress output activates (output switches to ground) & Output 1 activates for 1 second
------------- Output 1 starts
------ Output 1 stops
------------- Output 1 starts
--- Output 1 stops
------ Locking is reset and keypad resumes normal operation
If you want to delete User Number 3 in Group 2, press
If you want to delete User Number 2 in Group 3, press
0321 #
31223 #
53221 #
83 #
8321 #
11 #
11223 #
3289 #
23#
32#
8321 83
11223 11
D) DELETE USER (MULTI-USER MODE)
If you need to delete a user who has left the company or who no longer has authority to enter the protected area:
Set system in programming mode with the Personal Master Code and the key
Enter the User Number (00-99 for output 1; 0-9 for output 2 & 3) and the key to delete a user code
You may delete other user code(s) in this fashion
Exit the programming mode by pressing the key after the work is done
1)
2)
3)
4)
*
3289 *
#
105#
*
------------- The keypad is now in the programming mode
If you want to delete User Number 05 in Group 1, press
9
c)
d)
After the keypad is in programming mode, you may go to any Location for your programming options one by
one, please see Programming Options Summary Chart for the feature details.
You may make continuous programming until all desired options are programmed. Repeated programming at
the same Location is allowed if the previous entry was mistaken.
LOCATION 1 OPTION
LOCATION n OPTION n
#
I
I
#
*
*
2 6854 #
3 9270 #
51 #
61 #
6854
9270
e)
1) Re uirement
3) Operate The Keypad
Exit programming mode with the key after all your required options are programmed. The new information
that you have just programmed is saved.
a ) Single User Mode Operation
b) Change the factory-set Master Code 0000 to a Personal Master Code 3289
c) Set User Code 1 of 8321
d) Set User Code 2 of 6854
e ) Set User Code 3 of 9270
f ) Set Output 1 to Momentary Mode, 1 second
g) Set Output 2 to Start / Stop Mode
h) Set Output 3 to Start / Stop Mode
i ) Set the keypad to lock itself during 15 minutes after 10 successive false codes
-- Taking the data programmed above and other features in default value as reference
-- 6854 has been stored as User Code 2, for output 2
-- 9270 has been stored as User Code 3, for output 3
-------------- Output 2 has been set to Start / Stop Mode
-------------- Output 3 has been set to Start / Stop Mode
data
----------- Output 2 starts or stops
----------- Output 3 starts or stops
2) Programming
NOTE:
a)
-- Set the above requirement into the keypad:
a) **Enter the Single User Mode Command Code "8900" may not be necessary if the keypad was
already in Single User Mode.
b) In case of wrong entry during programming, cancel it with key, or, wait 10 seconds, then re-try.
To command an output, only enter its user code. Press is NOT required.
0000 *
8900 #
0 3289 #
1 8321 #
401#
72 10 #
*
#
#
8321
------- System has been set in programming mode with the factory-set Master Code
------- System has been set for Single User Mode** (please see NOTE (a) below)
-- 3289 has been stored as the new Personal Master Code Super User Code
-- 8321 has been stored as User Code 1, with Duress Code function, for output 1
--------- Output 1 has been set to Momentary Mode, 1 second
----- The keypad has been set to lock during 15 minutes after 10 successive false codes
----------------------- Keypad exits programming mode. All the above are stored and ready for use
----------- Output 1 activates for 1 second
&
B) SINGLE USER MODE OPERATION -- An Example
q

b)
d)
e)
1) Re uirement
The Personal Master Code is a Super User Code to command the outputs. This feature allows the owner
to use only one code to operate several keypads if they are having the same Master Code but different
user codes. Enter the Personal Master Code and validate via and the corresponding output number.
The Accelerated Code is the First Two Digits of the User Code. If the Output 1 has been programmed in
Start / Stop mode with Accelerated Code at Location 42, it is possible to activate the Output 1 with only
the First Two Digits of the User Code. Deactivating of the Output 1 always requires the composition of
the Complete User Code 1.
Try to put some random false codes to the keypad to test its Safety. The keypad considers 4 digits as
one code and it generates 5 beeps for each unsuccessful code entry. The keypad locks itself during 15
minutes after 10 successive false codes. Normal operation will be resumed after 15 minutes expired, or,
it can be reset with the Master Code during the locking period.
a) Multi-User Mode Operation
b) Change the factory-set Master Code 0000 to a Personal Master Code 3289
c) Set 1st User Code in Group 1 of 8321
d) Set 2nd User Code in Group 1 of 11223
e) Set 3rd User Code in Group 1 of 33221
f ) Set 1st User Code in Group 2 of 6854
g) Set 2nd User Code in Group 2 of 54321
h) Set 1st User Code in Group 3 of 9270
i ) Set Output 1 to Momentary Mode, 1 second
j ) Set Output 2 to Start / Stop Mode
k) Set Output 3 to Start / Stop Mode
l ) Set the keypad to lock itself during 15 minutes after 10 successive false codes
#
3289 #1
3289 #2
3289 #3
3289 #
--- Output 1 activates for 1 second
--- Output 2 starts or stops
--- Output 3 starts or stops
------ Locking is reset and keypad resumes normal operation
c)
For example:
NOTE:
Example:
The Duress Code does not need to be programmed. The keypad determines it automatically by
increasing the first digit of the User Code 1 of Two units.
The User Code 1 is "1234", then the Duress Code is "3234"; or the User Code 1 is
"8321", then the Duress Code is "0321".
To command the Duress Function, enter the Duress Code.
The Duress Code has double actions. It activates the Duress Output and at the same time activates the
Output 1 as like the User Code 1. The Duress Code can always activate or deactivate (in Start / Stop
mode) Output 1, but cannot deactivate (reset) the Duress Output. ONLY the User Code 1 can deactivate
(reset) the Duress Output.
Output 1 has been re-programmed to Start / Stop Mode with Accelerated Code (Location: 42)
with the Complete Code of: The Accelerated Code will be:
----------- Duress output activates (output switches to ( ) ground) & Output 1 activates for 1
second
Output 1 starts
Output 1 stops
.
0321
83 #
8321
-
8321 83
-------------
-----------
C) MULTI-USER MODE OPERATION -- An Example
q
10 11
2) Programming
NOTE:
3) Operate The Keypad
a)
b)
c)
d)
e)
-- Set the above requirement into the keypad
a) **Enter the Multi User Mode Command Code " may not be necessary if the keypad was
already in Multi User Mode.
b) In case of wrong entry during programming, cancel it with key, or, wait 10 seconds, then re-try.
-- Taking the data programmed above and other features in default values as reference
To command output 1, enter any one of the User Codes in Group 1 and validate via the key
To command output 2, enter any one of the user codes in Group 2 and validate via the key.
To command output 3, enter any one of the user codes in Group 3 and validate via the key.
The Personal Master Code is a Super User Code to command the outputs. This feature allows the owner
to use only one code to operate several keypads if they are having the same Master Code but different
user codes. Enter the Personal Master Code and validate via and the corresponding output number.
The Duress Codes do not need to be programmed. The keypad determines them automatically by
increasing the first digit of the User Codes in Group 1 of Two units. All the User Codes have Duress
Code Function.
0000 *
8901 #
0 3289 #
1 01 8321 #
1 02 11223 #
1 03 33221 #
2 1 6854 #
2 2 54321 #
3 1 9270 #
401#
51 #
61 #
72 10 #
*
#
#
8321 #
11223 #
33221 #
#
6854 #
54321 #
#
9270 #
#
3289 #1
3289 #2
3289 #3
-------------------- System has been set in programming mode with the factory-set Master Code
-------------------- System has been set for Multi User Mode** (please see NOTE (a) below)
--------------- 3289 has been stored as the new Personal Master Code Super User Code
------- 8321 has been stored as the 1st User Code in Group 1 with Duress Code function
---- 11223 has been stored as the 2nd User Code in Group 1 with Duress Code function
---- 33221 has been stored as the 3rd User Code in Group 1 with Duress Code function
---------- 6854 has been stored as the 1st User Code in Group 2
------ 54321 has been stored as the 2nd User Code in Group 2
---------- 9270 has been stored as the 1st User Code in Group 3
------------------------Output 1 has been set to Momentary Mode, 1 second
---------------------------- Output 2 has been set to Start / Stop Mode
---------------------------- Output 3 has been set to Start / Stop Mode
------------------ The keypad has been set to lock during 15 minutes after 10 successive false
codes
------------------------------------ Keypad exits programming mode. All the above data are stored and ready for
use
------ Output 1 activates for 1 second
--- Output 1 activates for 1 second
--- Output 1 activates for 1 second
------ Output 2 starts or stops
--- Output 2 starts or stops
------ Output 3 starts or stops
--- Output 1 activates for 1 second
--- Output 2 starts or stops
--- Output 3 starts or stops
&
8901"
