AEMC 5600 Use and care manual

VERSION IV: 4/98





Micro-Ohmmeter
Model 5600
•Digital low resistance ohmmeter
•Four-terminal Kelvin resistance
measurement
•10 A regulated test current
•0.25% basic accuracy
•1 µΩresolution
•Six selectable resistance ranges
•Reverse polarity switch
•Rechargeable NiCad battery
with built-in charger
•Overload and input fuse protection
•Automatic decimal point and zero
•Very rugged field case for
industrial applications
MICRO-OHMMETER MODEL 5600 REVISED MANUAL
•Main Printed Board modified to include all protections
•Add Resistor R106, R107, R108, C041 and RV1
•Removed CR03 and CR04
•Display No. change from 524135A00 to 125135A00A
•R078 changed from 521938C15 to 521549T00
•CR16 diode 1N4148 replaced by 1.5KE15V
•Add CR032

MODEL 5600 REPAIR & CALIBRATION MANUAL CAT# 1431.01
3
REVISION 7: June 11, 1999
FILE LOCATION: E.F. Disk - Manuals - Cal. Man. - Model 5600.DOC
10/27/99
Table of Contents
Calibration and Technical Service..................................................................................4
Description.....................................................................................................................5
Specifications.................................................................................................................6
Calibration Procedure ....................................................................................................7
Board Maintenance and Repair.....................................................................................9
Supply Board ...............................................................................................................16
Radiator Plate..............................................................................................................16
Parts List......................................................................................................................18
Battery Charger Board.................................................................................................27
Heat Sink and Protection Board...................................................................................28
Schematic....................................................................................................................29
Main Board...................................................................................................................30
Revision Description Date Approved
4 Updated April 9, 1998 JPM
5 Updated December 7, 1998 JPM
6 Updated May 13, 1999 JPM
7 Updated June 11, 1999

MODEL 5600 REPAIR & CALIBRATION MANUAL CAT# 1431.01
4
REVISION 7: June 11, 1999
FILE LOCATION: E.F. Disk - Manuals - Cal. Man. - Model 5600.DOC
10/27/99
REPAIR AND CALIBRATION
NOTE: Any attempts to repair and/or maintain this instrument, other than
replacement of fuses and batteries, voids the warranty of the
instrument. The presence of high voltages at certain locations
requires servicing of this instrument by qualified personnel. It is
recommended that it be sent to an authorized service center.
To guarantee that your instrument complies with the factory specifications,
we recommend that the unit be submitted to our factory service center at one
year intervals for recalibration, or as required by other standards.
For instrument repair and calibration, please call our factory at (800) 945-AEMC
(2362).CHAUVIN ARNOUX, Inc.
d.b.a. AEMC®Instruments
15 Faraday Drive • Dover, NH 03820 USA
[phone] • [phone] • Fax: [phone]
(Or contact your authorized distributor). Estimates for repairs, normal
recalibration, and calibration traceable to N.I.S.T. are available.
All customers must call for a repair authorization number before
returning any instrument.
TECHNICAL AND SALES ASSISTANCE
If you are experiencing any technical problems, or require any assistance with
the proper use or application of this instrument, please call our technical
hotline:
CHAUVIN ARNOUX, Inc.
d.b.a. AEMC®Instruments
99 Chauncy Street • Boston, MA 02111 USA
[phone] • [phone] • Fax [phone] • www.aemc.com

MODEL 5600 REPAIR & CALIBRATION MANUAL CAT# 1431.01
5
REVISION 7: June 11, 1999
FILE LOCATION: E.F. Disk - Manuals - Cal. Man. - Model 5600.DOC
10/27/99
DESCRIPTION
The Micro-Ohmmeter Model 5600 performs reliable low resistance measurements with
test currents to 10 A and resolution to one micro-ohm.
The Model 5600 uses a four-wire Kelvin bridge method, which eliminates test lead
resistance for a measurement accuracy of 0.25%. A reverse polarity switch
compensates for the effect of DC voltage interference on the accuracy and permits
reading averaging. A built-in circuit filters against AC signals.
This instrument is housed in a sealed field case. Power is supplied by a long-life NiCad
battery with a built-in charger (110/220 V). The large, easy-to-read LCD is 18 mm high.
It displays the value of resistance, and indicates overrange and reversed connection of
measurement leads.
Four LEDs on the front panel indicate measurement faults (open circuit, blown fuse,
etc.); thermal protection; low battery and battery charging.
For operator safety and instrument protection, the micro-ohmmeter is fuse protected at
the inputs. Two fuses, accessible on the front panel, protect against stored energy in
inductive loads.
Enhanced internal circuitry protects against kickback when the current is shut off. A
built-in thermal switch protects the micro-ohmmeter against overheating on the 10 A
range when in continuous use.
1 8 8 8
C 2
P 2
C 1
P 1
50/60/400 Hz_110V
Rx
ON/OFF
MICRO-OHMMETER MODEL 5600
!
!
F1 F2
+ I
– I
1
0
A
1
A
0
.
1
A
0
.
0
1
A
µ
Ω
m
Ω
Ω
2
0
0
0
2
0
2
0
0
2
0
0
0
2
0
2
0
0
FAULT
THERMAL
PROTECTION
10A
LOW CHARGING
Input
Terminals
Fault
Indicator Battery Status
Indicators Recharging
Power Supply
On/Off Power Button
Range selector switch
Input Fuses
Reverse
Polarity Indicator
LCD
Thermal
Protection Indicator
®
INSTRUMENTS

MODEL 5600 REPAIR & CALIBRATION MANUAL CAT# 1431.01
6
REVISION 7: June 11, 1999
FILE LOCATION: E.F. Disk - Manuals - Cal. Man. - Model 5600.DOC
10/27/99

Electrical Specifications
Specifications are given for an ambient
temperature of 23°C ± 3°, relative humidity of
40 to 60% and a supply voltage of 6 V ± 0.1 V.
Ranges: 2000 µΩ20 mΩ200 mΩ
Display: 1999 19.99 199.9
Resolution: 1 µΩ10 µΩ100 µΩ
Test Current: 10 A 1 A 1 A
Ranges: 2000 mΩ20 Ω200 Ω
Display: 1999 19.99 199.9
Resolution: 1 mΩ10 mΩ100 mΩ
Test Current: 100 mA 10 mA 10 mA
Accuracy:
2000µ Ω range:
0.25% of reading typical, 0.5% max ± 2 digits.
20–200–2000 m Ω , 20–200 Ω ranges:
0.25% of reading typical, 0.5% max ± 1 digit.
Power Supply Specifications
Power Supply: Rechargeable 6 V, 7 Ah NiCad
battery; built-in 110/220 V (47-450 Hz) charger;
automatic shutoff after 4 minutes non-use.
Battery Life (Typical):
2000µ Ω range:
200 to 300 8-second measurements
20-200 m Ω ranges:
900 30-second measurements (approx.)
2000 m Ω , 20-200 Ω ranges:
5000 30-second measurements (approx.)
Operating Voltage: 4.5–7 V DC
Recharge Time:
14 hours from full discharge (approx.)
Mechanical Specifications
Connections: Terminals accept 4 mm banana
plugs or 6 mm (min) spade lugs
Display: 2000 count, 7 segment LCD
Case: Fiberglass-charged polycarbonate, with
handle and removable lid, watertight to IP534
(lid closed), IP520 (lid open).
Color: Safety yellow case with gray faceplate
Operating Temperature:
14° to 131°F (-10° to 55°C)
Storage Temperature:
- 4° to 131°F (-20°C to 55°C)
Dimensions:
15.35 x 10.24 x 9.84" (390 x 260 x 250 mm)
Weight: 17 lbs 10 oz (8 kg approx.) without
leads
Safety Specifications
Safety Standards:
Electrical:
IEC 348, Class II
IEC 38, Supply voltage
Electromagnetic:
IEC 801-2, Electrostatic discharge
IEC 801-3, Electromagnetic Fields
IEC 801-5, Electrical shocks
Mechanical/Environmental:
IEC 529, Protection Index (IP)
IEC 68.2.6, Vibrations
IEC 68.2.27, Shocks
IEC 68.2.29, Shake
IEC 68.2.31, Knock over
IEC 68.2.32, Drop test
Case Material:
UL 94
Dielectric Test:
IEC 348, 1500 V 60 Hz (input terminals)
3000 V 60 Hz (power supply)
Overload Input Protection:
380 V rms
Fuses:
Two high interrupting capacity, 8 A, 380 V,
1-1/4" x 1/4"

MODEL 5600 REPAIR & CALIBRATION MANUAL CAT# 1431.01
7
REVISION 7: June 11, 1999
FILE LOCATION: E.F. Disk - Manuals - Cal. Man. - Model 5600.DOC
10/27/99
CALIBRATION PROCEDURE
Required Instrument:
Set of current shunt:
0.001 Ω, 0.1%
0.01 Ω, 0.1%
0.1 Ω, 0.1% or better
1 Ω, 0.1%
10 Ω, 0.1%
a) Symmetry Adjustment:
•Select the 2000
µ
Ωrange and measure a shunt of 1000
µ
Ω. Write down the
measure A1, then measure the same shunt when pressing the switch down to
(-). Write down the measure A2.
•Adjust R64 to display A dis. = A1 + A2
2
•Adjust R64 to display the same value in positive and negative.
b) Zero Adjustment:
•Select the 2000
µ
Ωrange and short the input with a gage 12 copper wire as
shown.
•Adjust R76 to read 000 CTS on the display.
•Check the zero on all the others ranges. (0 ± 1 CT)
c) End of Scale Adjustment:
•Select the 200 mΩrange and measure a 100 mΩshunt.
•Adjust R98 to read 1000 on the display.
•Select the negative current and make sure that the reading is between 996 and
1004 mΩ.
•Check all the others ranges; accuracy = 0.5% max.

MODEL 5600 REPAIR & CALIBRATION MANUAL CAT# 1431.01
8
REVISION 7: June 11, 1999
FILE LOCATION: E.F. Disk - Manuals - Cal. Man. - Model 5600.DOC
10/27/99
d) Fault Display Check:
•Disconnect C1 or C2 the "FAULT" indicator must be lit.
e) Battery Charge Check:
•Be sure the good voltage is selected (110 V or 220 V).
•Connect the power cord to the supply and check that the green LED
"CHARGING" is on.
MEASURED
FUNCTION RANGE STANDARD VALUE TOLERANCE
VALUE POS NEG MIN MAX
µΩ2000 µΩ1000 µΩ993 µΩ1007 µΩ
mΩ20 mΩ1.000 mΩ.98 mΩ1.02 mΩ
10 mΩ9.94 mΩ10.06 mΩ
200 mΩ10 mΩ9.8 mΩ10.2 mΩ
100 mΩ99.4 mΩ100.06 mΩ
2000 mΩ100 mΩ98 mΩ102 mΩ
1000 mΩ994 mΩ1006 mΩ
Ω20Ω1Ω0.98Ω1.02Ω
10Ω9.94Ω10.06Ω
200Ω10Ω9.8Ω10.2Ω
100Ω99.4Ω100.6Ω

MODEL 5600 REPAIR & CALIBRATION MANUAL CAT# 1431.01
9
REVISION 7: June 11, 1999
FILE LOCATION: E.F. Disk - Manuals - Cal. Man. - Model 5600.DOC
10/27/99
BOARD MAINTENANCE AND REPAIR
1) Main Board – Operating Description:
a) ON-OFF
S1 switches ON or OFF.
At point (3) behind anti-bouncing Circuit) there is level 0 when switch is not
pressed, and levels 1 when switch is pressed.
Circuit Z5 is a dual D Flip Flop, its output (Q) takes in account the state of
input D (5) for each positive going clock pulse (3).
D input is connected with output Q, this means that Q changes (as well as Q)
at each positive going clock pulse; i.e. each time S1 is pressed.
Outputs Q and Q trigger opening and closing coils of the residual bi-stable
relay K1.
7
6
5
4
3
2
1
START
STOP
+ Batt

MODEL 5600 REPAIR & CALIBRATION MANUAL CAT# 1431.01
10
REVISION 7: June 11, 1999
FILE LOCATION: E.F. Disk - Manuals - Cal. Man. - Model 5600.DOC
10/27/99
b) OSCILLATOR – SUPPLY
Oscillator is composed of Z8; R43; R44; C11
At point (8) there is a square wave frequency = 35 kHz which is supplied to Q6
and Q7, Q8 Darlington Amp Circuit causing transformer T1 to ring at its input.
Regulation is made by circuit Z9A, its inputs are connected on one side to
reference 2.5V (CR22 : LM336Z) and on the other side to bridge R49, R50 image
of voltage V2.
Supply Voltages:
c) LOW AND EXTINCTION DETECTIONS
Link R54; R55; R57 is calculated so as to get:
a) 2.5V on (11) when battery is on 5V
b) 2.5V on (10) when battery is on 4.5V
Case a): Voltage goes under 5V then Z9b changes to Vsat+. Oscillator Z6; C19;
R61 starts and triggers Q9 that makes LED CR23 flash.
Case b): Voltage goes under 4.5V then Z9C changes to Vsat+ and triggers
instrument extinction through CR11 acting directly on Q3. This stops the
instrument without Z5. To start the instrument press S1 twice (first pressing will
set back Z5 properly).
8
9
-V Batt
f=35.5 KHz
+V1 = 6V ± 0.5V
-V1 = 6V ± 0.5V
+V2 = 18.5V ± 0.8
13
14
12
VBATT
5V
4.5 V
1st Level
"LOW" 2nd Level
"EXTINCTION"
CR23
FLASHES
STOP

MODEL 5600 REPAIR & CALIBRATION MANUAL CAT# 1431.01
11
REVISION 7: June 11, 1999
FILE LOCATION: E.F. Disk - Manuals - Cal. Man. - Model 5600.DOC
10/27/99
d) FAULT AND AUTOMATIC STOP
Detection is made at terminals C1 and C2.
When current circuit is not closed by a resistance to measure, then C1 is on
potential +Batt and C2 on potential –Batt.
As for measurement, there can be up to 2V between C1 and C2 on range 200 Ω
x 10 mA.
Whether level is >2V (R23; R24) there is no measurement, or at least a
resistance >> to range.
At point (15) there is VC1 C2 (rectification is necessary since measurement is
also possible in (-) and VC1 C2 can be positive or negative).
When opening circuit C1, C2, voltage at point (15) now becomes superior to R23
level; R24 and (16) change to +Vsat.
Diode CR17 lights on.
Signal (16) will trigger extinction timing control. Z4 is a 555 timer set in
monostable way its timing control is given by formula: t = -(R32 C5 x Ln 1/3) =
241s. (4mn) and triggers on falling edge of Trigger (2) input.
If a measurement is made before end of timing control (17) falls down to 0 and
modifies extinction forcing a level 1 on (23). On the contrary, timing control goes
normally and once finished it triggers extinction of the instrument.
Stays On
Automatic
Stop
End
Timing
Measurement Measurement
No
Measurement
E < Timing
No
Measurement
E > Timing
Extinction impossible since stays on 1.
16
17
18
19
20
21
22
23
24
23

MODEL 5600 REPAIR & CALIBRATION MANUAL CAT# 1431.01
12
REVISION 7: June 11, 1999
FILE LOCATION: E.F. Disk - Manuals - Cal. Man. - Model 5600.DOC
10/27/99
Reference
Vref=R. I .
Vm = Rx. I .
Rx
Shunt
Reference
Measure
I
V;90 : x 1000 pts
Vm
Vref
27
R8 VR8 R13
Z1 R14
R6
Rx
R12
R9
R10 Q1
S
DG+

R11 Vref
VR8
26
i
+P

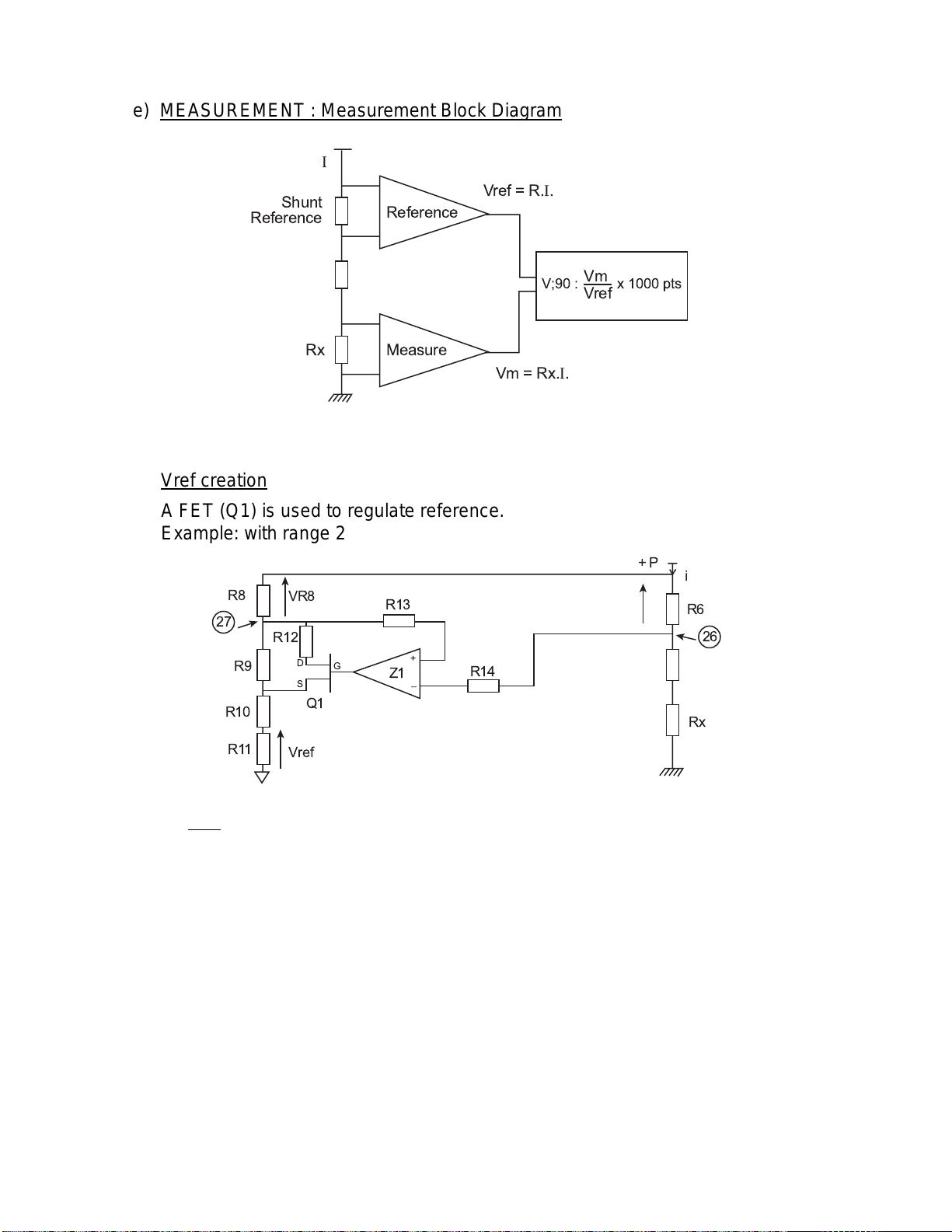

e) MEASUREMENT : Measurement Block Diagram
Vref creation
A FET (Q1) is used to regulate reference.
Example: with range 200Ωand measurement = 200 Ω.
I = 6V = 10 mA; i.e. VR6 = 100 mV
600 Ω
Input – of Z1 is on point (26) potential.
Z1 regulates in order to get e+ = e- (if Vs changes then VGS of Q1 changes, RdS
also changes as well as for current in section R8-R11).
So, if e+ = e-, this means that potential on point (27) is the same as potential on
point (26), that is to say that:
VR6 = VR8 = 100mV.
In fact R11 = R8 and iR11 = iR8 so VR11 = VR8 + 100mV = Ref.
(for VBAT + 6V)
VR6

MODEL 5600 REPAIR & CALIBRATION MANUAL CAT# 1431.01
13
REVISION 7: June 11, 1999
FILE LOCATION: E.F. Disk - Manuals - Cal. Man. - Model 5600.DOC
10/27/99
Advantages of this system:
Vref voltage is the image of VR6 voltage and IR6 is the same as current in
measurement, so there will always be a reference proportional to current
whatever the state of battery. It prevents regulation of measurement current and
improves transitional responses (measure of self-induction resistance).
Measuring Chain:
Composed of 3 AOP ICL 7650 (Z10; Z11; Z13).
Vm = 200mV approx. End of scale (depending on the state of battery).
Display 0-200 Ω0-20 Ω 0-2000 mΩ0-200 mΩ0-20 mΩ0-2000 µΩ
000 pts 0Ω 0Ω 0Ω 0Ω 0Ω 0Ω
1.999 pts 199.9 Ω 19.99 Ω 1.999 mΩ199.9 mΩ19.99 mΩ1.999 µΩ
f) DISPLAY
Standard wiring of a display and a converter circuit A/N 7106 (Z14).
Sections that light up have a contrary phase signal to ‘Back plane’ signal (pin 21
Z14) Z7 guides comas.
VRx Vm
G:+
Z10 Z11 Z13
Range 2000 m Ω :G=-1
Range 200 Ω = -1/10
Range 20 Ω ; 200 m Ω ;G=-1
Range 20 m Ω ;2m Ω ;G=-10
3
2G:-2
3

MODEL 5600 REPAIR & CALIBRATION MANUAL CAT# 1431.01
14
REVISION 7: June 11, 1999
FILE LOCATION: E.F. Disk - Manuals - Cal. Man. - Model 5600.DOC
10/27/99
2) TROUBLESHOOTING:
Trouble when starting up the instrument:
•Check operation. Refer to section (a), page 9.
•Check that J2 is properly connected.
•Make sure there is no extinction signal interference through R34/C7. If necessary,
lift up R34. If there is interference, check the extinction signal on CRIO side or
CRII side in order to locate it.
Instrument may start up, but nothing operates from outside due to a supply
trouble ± V1; V2:
•First check reference voltage at CR22 terminals: VCR22 = 2.5V.
•Check oscillator gives out (8) signal.
•Check diodes CR17; 18; 21.
•Transistor Q8 can wear out quickly since it is frequently controlled.
•If the first three checking points are OK, then change Q8.
•Z9 may be out of order or not supplied.
Impossible Measurement (false):
•Check that the measuring chain is operating. First link with a strap and mass
in order to set measurement potential, then inject a signal on P1, P2.
Follow this signal all along the measuring chain and check the value of mid signals
with gain indicated at (section e, page 12).
•If the measuring chain operates properly, check the reference. Create a short
circuit between C1 and C2 to close back measurement circuit and check that VR1;
VR2; VR4 or VR6 (according to range) = VR8 = VR11.
Then look into Z1 or Q1
•If measuring chain and reference operates properly, look into Z14.
•Other possible cause: part of the measurement current is diverted into protection
board.
Trouble with ‘Fault’ signal:
•Check operation. Refer to section (d), page 11.
•If potential C1, C2 does not go up when opening C1, C2 circuit, this means that
Q202 on protection board is short-circuited and preventing potential from going up.
Therefore detection is impossible in these conditions.
Trouble with extinction timing control:
•Check operation. Refer to section (d), page 11.
•Extinction timing control is impossible if ‘Fault’ is out of order.
•To repair: timing control can be shortened connecting in parallel 470kΩand R32
for instance. You will get a timing control of approx. 10s.

MODEL 5600 REPAIR & CALIBRATION MANUAL CAT# 1431.01
15
REVISION 7: June 11, 1999
FILE LOCATION: E.F. Disk - Manuals - Cal. Man. - Model 5600.DOC
10/27/99
Trouble with ‘low’ or extinction of ‘battery threshold’:
•Check operation. Refer to section (c), page 9.
•Check reference at CR22 terminals: VCR22 = 2.5V ± 0.1V.
•Disconnect J2 and inject a variable voltage (6 to 4V) on R54 (+) and R57 (-) in
order to check balancing of detection amplifiers.
•If levels are wrong, check values of bridge R54, R55, R57.
Comas:
•Check continuity through connector J1 which ensures connection between
principal board and commutation board.
Display:
No display on all ranges:
•Before looking into Z14 or D1, check that it is not a trouble with supply ± V1.
To check Z14: Display = V Measurement x 1000
V Reference
•Battery voltage good (> 6 V DC): Check + V1 and - V1 (6 V DC).
•Check relay K1 switch each time the ON/OFF switch is pressed.
1) Relay does not work: Z8, Z5 or Z15 defective.
2) Relay works: Q8, and maybe Q6, Q7.
Check resistor R25, 100 Ωand diode CR16 = 1.5 KE15V
± 6 V good: Z14 defective.
Display is lit but reading stays at one value:
•Be sure to check that the input of Z10 conforms to the schematic.
If not, add C041 and RV01 and remove diode CR03 and CR04.
•Check diode CR28 and CR30.
(Z10 is sometimes defective after CR28 has failed)
Adjustments impossible:
•Symmetry: Refer to R64 or Z12.
•Zero: Refer to VCR24 and VCR25 = 2.5V ± 0.1V.
Check if R76 is out of order.
•End of scale: Check if R98 is out or order.

MODEL 5600 REPAIR & CALIBRATION MANUAL CAT# 1431.01
16
REVISION 7: June 11, 1999
FILE LOCATION: E.F. Disk - Manuals - Cal. Man. - Model 5600.DOC
10/27/99
SUPPLY BOARD
1) Operating:
a) Protections against overloads 110/220V
In case of error 100-200V, voltage at transformer secondary is exceeding zeners
conduction level, it triggers Q301 that closes itself. Secondary being short-
circuited, current in primary increases quickly, CTP RT301 overheats until it
opens itself, disconnecting main supply primary at the same time.
Processing delay: approx. 2 sec.
Wait until CTP is cold before using charger again.
b) Load
Once rectified and filtered, load current goes in battery through regulator Z301.
Current limit is defined by both Q302 and R303 to R306. (I = Vbe = 0.8A)
R
CR306 limits voltage +Batt in case of loading attempt with no battery. V limit = 9V.
CR304 keeps regulation steady even in case of disconnection to CR26 (signal
changes).
2) TROUBLESHOOTING:
•First check programming of main supply voltage (S301). In case of bad
programming, wait until CTP RT301 gets colder.
•Even if programming of voltage is right and CTP opens each time the instrument is
plugged in, check Q301 that may be short-circuited, or CR301 diodes or level is
not right (BZX 55 C 20V).
•If there is no more load current, make sure that the battery is working. If
necessary, replace the battery by a resistor (7.5Ω/5W) and check if charger is
operating.
•Make sure that CR304 is not disconnected.
•Check VR308 = 1.25V ± 0.05V. If not, change Z301.
•Load current value is: Ich = Vbe (Q302) That is to say = 0.8A
Req 303 to 306
HEAT SINK PLATE
1) Operating:
a) Principle
When overload occurs, once zeners conduction level is exceeded, triac transistor
is triggered and then puts itself into short-circuit, this way helping F1 or F2 fuse to
melt.

MODEL 5600 REPAIR & CALIBRATION MANUAL CAT# 1431.01
17
REVISION 7: June 11, 1999
FILE LOCATION: E.F. Disk - Manuals - Cal. Man. - Model 5600.DOC
10/27/99
NOTE: A protection board out of order can produce troubles on measurement
board. If triac transistors are short-circuited, measurement current is diverted into
triac transistors and measurement result is false.
On the other hand, if triac transistors are short-circuited, detection ‘fault’ is
impossible (C1 and C2 on C-C), as well as extinction timing control.
Triac transistors can also be worn out and produce some current leakage.
Maximum leakage: 10µA under 2V, that is to say 0.1% of measurement current
on range 200Ω.
To check that protection board is not causing false measurement, unplug J4: S4,
S5, S6.
b) 10A Flow:
When commutator is on 10A, MOS-FET Q201 is supplied through R15/R28
letting in current flow in measurement section. The complete resistance of this
measurement section and the state of battery define value of measurement
current. RT = R1 + R401/402/403 + Rds Q201 + Cabling + Inter ~ 600mΩ.
Ι = Vbat ~ 10A nominal.
c) Thermal Protection:
When MOS FET temperature is too high (limited to 80°C) thermostat K401 closes
itself and stops Q201. Current cannot flow anymore, wait until thermostat starts
again, temperature of MOS FET must be 60°C so that current can resume.
NOTE: Thermal protection only occurs on ranges 10A 2000µΩand does not
prevent the other ranges from operating.
2) TROUBLESHOOTING:
Protection:
•Check connections to principal board.
•Check trigger diodes value and that they are not short-circuited.
•Change triac transistors.
10A Flow:
•Check to see that the thermostat is not close to ambient temperature, preventing
the current from flowing.
•Check connections to principal board.

MODEL 5600 REPAIR & CALIBRATION MANUAL CAT# 1431.01
18
REVISION 7: June 11, 1999
FILE LOCATION: E.F. Disk - Manuals - Cal. Man. - Model 5600.DOC
10/27/99

MAIN BOARD ASSEMBLY 683522
Descrip. Type Val Specification Type ID Code Ref #
C 01 CAP 10 nF - 20 % + 80 % 63 V CERAMIC 523867D20
C 02 CAP 10 uF 20 % 35 V ALU.POL 524401B20
C 04 CAP 0.1 uF 20 % 63 V POLYEST 524296F27
C 05 CAP 22 uF - 20 % + 50 % 16 V TANTALE 522925E20
C 06 CAP 0.1 uF 20 % 63 V POLYEST 524296F27
C 07 CAP 22 nF 10 % 63 V POLYEST 524296L27
C 08 CAP 470 uF - 20 % + 50 % 10 V ALU.POL 523124V00
C 09 CAP 0.22 uF 20 % 63 V POLYEST 524296A27
C 10 CAP 0.22 uF 20 % 63 V POLYEST 524296A27
C 11 CAP 1 nF 20 % 63 V POLYEST 524296Q20
C 12 CAP 220 pF 10 % 500 V CERAMIC 520739Q20
C 13 CAP 100 uF 20 % 25 V ALU.POL 524645P00
C 14 CAP 10 uF 20 % 35 V ALU.POL 524401B20
C 15 CAP 10 uF 20 % 35 V ALU.POL 524401B20
C 16 CAP 10 uF -20 % + 50 % 25 V TANTALE 522925W20
C 17 CAP 1 uF 20 % 50 V ALU.POL 524401F20
C 18 CAP 0.1 uF 20 % 63 V POLYEST 524296F27
C 19 CAP 1 uF 10 % 100 V POLYEST 524296P27
C 21 CAP 10 uF 20 % 35 V ALU.POL 524401B20
C 22 CAP 10 uF 20 % 35 V ALU.POL 524401B20
C 23 CAP 0.1 uF 20 % 63 V POLYEST 524296F27
C 24 CAP 0.1 uF 20 % 63 V POLYEST 524296F27
C 25 CAP 0.1 uF 20 % 63 V POLYEST 524296F27
C 27 CAP 0.1 uF 20 % 63 V POLYEST 524296F27
C 28 CAP 0.1 uF 20 % 63 V POLYEST 524296F27
C 29 CAP 0.1 uF 20 % 63 V POLYEST 524296F27

MODEL 5600 REPAIR & CALIBRATION MANUAL CAT# 1431.01
19
REVISION 7: June 11, 1999
FILE LOCATION: E.F. Disk - Manuals - Cal. Man. - Model 5600.DOC
10/27/99
C 30 CAP 0.1 uF 20 % 63 V POLYEST 524296F27
C 31 CAP 0.1 uF 20 % 63 V POLYEST 524296F27
C 32 CAP 0.22 uF 20 % 63 V POLYEST 524296A27
C 33 CAP 0.47 uF 20 % 63 V POLYEST 524296G27
C 34 CAP 0.1 uF 20 % 63 V POLYEST 524296F27
C 35 CAP 0.1 uF 20 % 63 V POLYEST 524296F27
C 36 CAP 0.1 uF 20 % 63 V POLYEST 524296F27
C 37 CAP 100 pF 20 % 500 V CERAMIC 520739N27
C 38 CAP 22 uF - 20 % + 50 % 16 V TANTALE 522925E20
C 39 CAP 1 uF - 20 % + 50 % 35 V TANTALE 522925A20
C 40 CAP 1 uF - 20 % + 50 % 35 V TANTALE 522925A20
C 41 CAP 100 nF 10 % 100 V POLYEST
CR 01 DIODE BZX55C3, 6V ZENER 3.6 V 0.5 W 523300Z00
CR 02 DIODE LED Diam. 5 mm 523175H00
CR 05 DIODE 1N 4148 SIGNAL 522703U00
CR 06 DIODE 1N 4148 SIGNAL 522703U00
CR 07 DIODE LED Diam. 5 mm 523175H00
CR 08 DIODE 1N4148 SIGNAL 522703U00
CR 09 DIODE 1N4148 SIGNAL 522703U00
CR 10 DIODE 1N4148 SIGNAL 522703U00
CR 11 DIODE 1N4148 SIGNAL 522703U00
CR 12 DIODE 1N4148 SIGNAL 522703U00
CR 13 DIODE 1N4148 SIGNAL 522703U00
CR 14 DIODE 1N4148 SIGNAL 522703U00
CR 15 DIODE 1N4148 SIGNAL 522703U00
CR 16 DIODE 1.5KE15 ZENER 524332M00
CR 17 DIODE BA 159 REDRES. 1 A 1 kV 300 ns 524541C00
CR 18 DIODE BA 159 REDRES. 1 A 1 kV 300 ns 524541C00

MODEL 5600 REPAIR & CALIBRATION MANUAL CAT# 1431.01
20
REVISION 7: June 11, 1999
FILE LOCATION: E.F. Disk - Manuals - Cal. Man. - Model 5600.DOC
10/27/99
CR 19 DIODE BZX55C7, 5V ZENER 7.5 V 0.5 W 521954L20
CR 20 DIODE BZX55C7, 5V ZENER 7.5 V 0.5 W 521954L20
CR 21 DIODE BA 159 REDRES. 1 A 1 kV 300 ns 524541C00
CR 22 DIODE LM33622,5V REFERENCE 522754Z00
CR 23 DIODE LED Diam. 5 mm 523175H00
CR 24 DIODE LM336Z2, 5V REFERENCE 522754Z00
CR 25 DIODE LM336Z2, 5V REFERENCE 522754Z00
CR 26 DIODE LED Diam. 5 mm 524666G00
CR 27 DIODE 1N 4148 SIGNAL 522703U00
CR 28 DIODE BAS45 SIGNAL 522754Q00
CR 29 DIODE 1N 4148 SIGNAL 522703U00
CR 30 DIODE BAS45 SIGNAL 522754Q00
CR 31 DIODE 1N 4148 SIGNAL 522703U00
CR 32 DIODE 1.5KE12 ZENER 525182B00
D 01 DISP LCD 524135A00A
K 01 RELAY BISTABLE 525164-00
Q 01 TR J 201 FET N 524093M00
Q 02 TR BC 184C NPN 523206Q20
Q 03 TR BC 184C NPN 523206Q20
Q 04 TR 2N 2219A NPN 522366L00
Q 05 TR 2N 2219A NPN 522366L00
Q 06 TR BC 184C NPN 523206Q20
Q 07 TR BC 184C NPN 523206Q20
Q 08 TR 2N 2219A NPN 522366L00
Q 09 TR BC 307B PNP 523015W20
R0 01 SHUNT 10 mΩ0.2 % Shunt MANGAN 681891
R0 02 SHUNT 0.1 Ω0.2 % Shunt MANGAN 681312A94
R0 03 RES 5.6 Ω5 % 6.9W WOUND 523043E00
R0 04 SHUNT 1 Ω0,2 % Shunt MANGAN 676116C00
