Brief Introduction
Warning
Package Inspection
Thank you for purchasing our products.
The washer unit gives you the tools to provide a more effective bath in animal clinics, grooming
salons, pet clubs, animal shelters and kennels. It can help save 20% shampoo or conditioner
and make groomers work easily.
I. The perfect combination of air and water flow, eliminating the cumbersome traditional manual
dilution of shampoo.
II. Automatic shampoo dilution without electricity and extra cost.
III. Labor-saving, time-saving, and “worry-saving”.
IV. Perfect dilution produces quick foaming and thorough cleaning.
V. Save shampoo by more than 20%, no need to worry about excessive waste of shampoo.
VI. 4 optional shampoos.
VII. Easily setting dilution ratio for different shampoos
The manufacturer is not liable for any damage caused by a third party "Transport or Delivery
Company". The day the unit is delivered, an inspection of the outer packing should be made
for any damage to the packing box.
Then the unit should be unpacked carefully; all components, accessories and the product itself
should be inspected for any damage or loss of accessories.
If any damage is evident, the carrier or dealer should be notified immediately.
1. Don’t place the unit on any place where can be touched by any animals.
2. Check all hoses and joints regularly. Be sure there are no leakages.
3. Once shampoo or conditioner is congeals in the unit, please clean them up as soon as
possible.
4. The unit is not suitable for the shampoo/ conditioner whose viscosity is above15000mPa·s.
Notice
1. AEOLUS reserves all the right of products modification without notification.
2. All Rights Reserved by AEOLUS International Pet Products, LLC.

03
Parts List
02
Installation
Hook×2
Expansion
tube×5
Expansion
screw×5
Blocking plate×1
Thumb screw×1
Wall
1. Use the drilling template to align and drill four
ø4 holes in the wall. Use expansion screws to
mount the hooks on the wall.
4. Attach inlet pipe and outlet pipe.
Note: Sealing gaskets should be put in
before screwing the pipes.
5. Install four metering tips in the four shampoo
ports according to the Dilution Table of Metering
Inserts. Before inserting the tips, apply some
shampoo on their silicone gaskets for lubrication.
Make sure that the gaskets are inside the port.
6. Install the shampoo pipes onto the
ports in the 2-3-4-1 order marked.
8. After installation, turn on the water supply to check for any leakage. If the shampoo can be
sucked into the pipes rapidly, the unit can be in use.
7. Connect the pipe to the shampoo/conditioner caps and screw the cap tight on the shampoo
bottle.
2. Mount the unit on the hook.
3. If the wall is clad with ceramic tiles, use the
thumb screw to fix the blocking unit onto the
bottom of the unit. Remove the protection on the
double-sided adhesive tape and stick the unit on
the wall.
If the wall is not clad with ceramic tiles, expansion
bolts should be used to fix the blocking unit onto
the wall.
Wall
Inlet pipe
Sprayer Hose
Blocking plate
Thumb screw
Metering tips Shampoo pipe
Part PartQuantity
1Shampoo
/ Conditioner Caps
1 Filter Seal
Gaskets
Hooks
Setscrews Φ4
Drills Φ4
Template
1
1
1
4
1
4
1
2
8
1
1
Bathing Unit
Hand shower
Discharge Hose
Bracket
Tubes
Shampoo Inlet Hose
Water Inlet Hose
Quantity
4 (in caps)
Function Knob
Bathe/Rinse
Inlet Hose
Sprayer Hose
(4)Shampoo Hose
Shampoo Source Knob
(4)Shampoo
Warm Water
Cold Water
Water Mixing Vavle
Warm Water
Hot Water
Warm Water

05
Operation Instructions
04
Warranty
Each Aeolus product has a 1 year limited warranty. This warranty covers the cost of parts and
repairs done by Aeolus International’s Technician Team. Your warranty is only valid when
accompanied by your sales receipt or proof of purchase date. This warranty coverage excludes
lost items or destroyed items. This warranty does not cover the shipping costs associated with
your repair or replacement items. To start a product repair or parts replacement claim for your
product, please contact us at [email protected] or call your local Aeolus distributor.
Service Support
Contact us if you cannot solve your problem with this manual. We will be happy to help!
Dallas
11307 Indian Trail, Dallas, Texas 75229, USA.
Tel: [phone]
Web: www.aeoluspet.com
Sydney
147 Dwyer Road, Leppington NSW 2179, Australia
Tel: [phone]
Singapore
150 South Bridge Road, Singapore 058727
Tel: + 65-6533 6524 / 9633 2734
Shanghai
Floor 5, Building 6, No. 675, Zhujin Road, Songjiang District, Shanghai, China.
Tel: [phone]
Dilution Table of Metering Tips
Colour Style Concentration
Dense ★★★★★
☆★★★★
☆☆★★★
☆☆☆★★
Dilute ☆☆☆☆★
Transparent
Red
Yellow
Green
Blue
1 2
4 3
PRODUCTS
BATHE
PET WASHER
RINSE
OFF
1 2
4 3
PRODUCTS
BATHE
PET WASHER
RINSE
OFF
1 2
4 3
PRODUCTS
BATHE
PET WASHER
RINSE
OFF
1 2
4 3
PRODUCTS
BATHE
PET WASHER
RINSE
OFF
Before a shower, please confirm the unit is turned off, that is, the function knob is on OFF
position.
1. Select appropriate metering tips to install onto the shampoo ports, according to the different
shampoos. (Ignore this step if the proper tips have been installed)
2. Turn on the water supply, rotate the function knob to RINSE until the coat is soaked and turn off,
as shown in Figure 1.
3. Turn the shampoo source knob to 1, 2, 3 or 4 to choose the shampoo or conditioner, as
shown in Figure 2.
Note: It is suggested that you start with one dilution tip of lower density. If you feel that you are
not getting a good clean bath, you might wish to switch the tip to the next dilution tip with a
higher density. For lower foam or to use less shampoo, switch the tip to the next dilution tip with
a lower density.
4. Turn the function knob to BATHE and switch the sprayer to the small-flow mode, as shown in
Figure 3. Hold the sprayer to soak the coat of the pet with dilution and then close the sprayer.
5. Rub the coat until enough foams are seen.
6. Turn the function knob to RINSE. Switch the shower to the large-flow mode and rinse the pet
thoroughly, as shown in Figure 4.
7. After the shower, turn the function knob to OFF and turn the shampoo source knob to cross
lines, as shown in Figure 5.

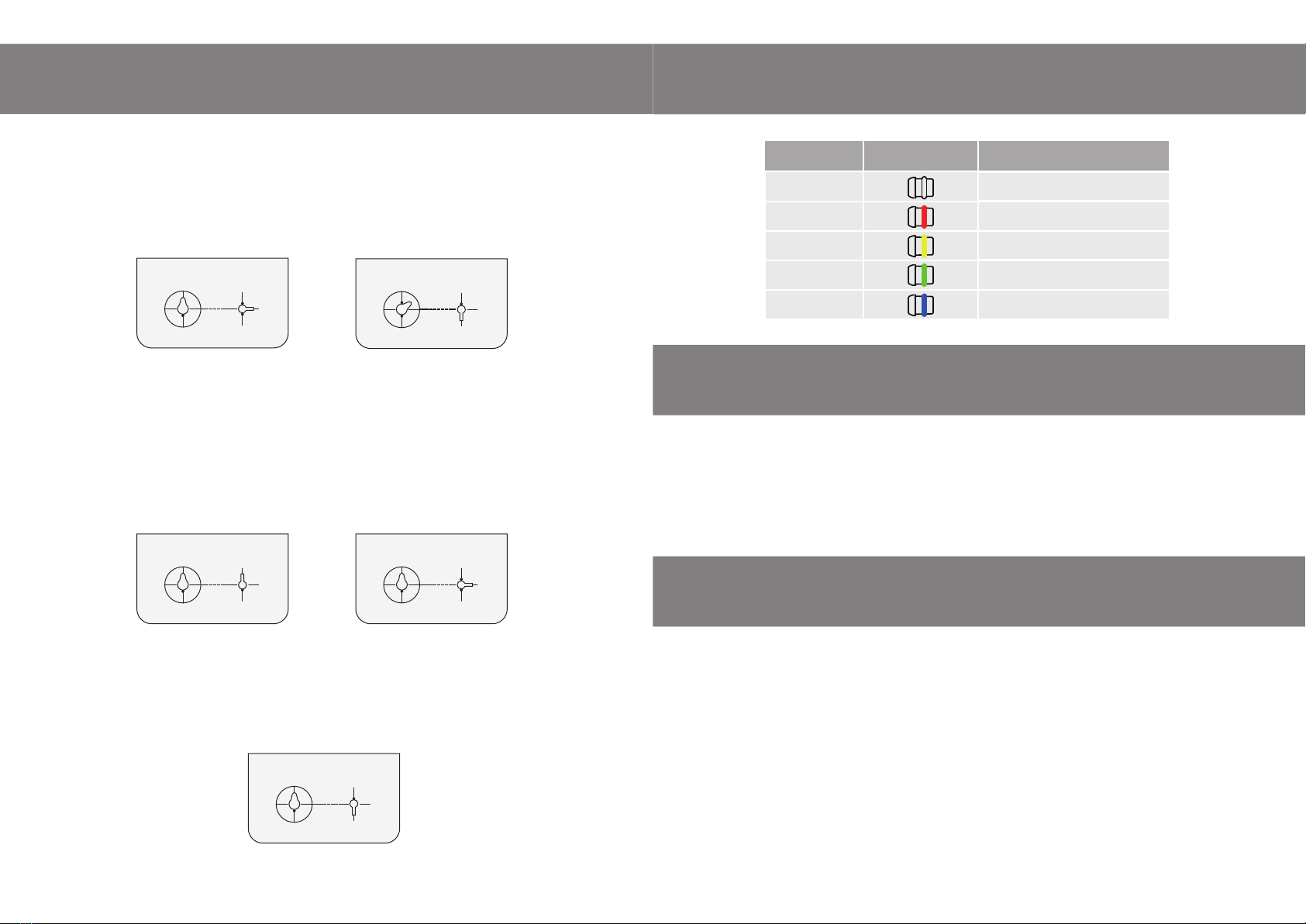

Figure 1 Figure 2
Figure 3
1 2
4 3
PRODUCTS
BATHE
PET WASHER
RINSE
OFF
Figure 5
Figure 4
